INSTALLATION AND OPERATION
Shown with optional gold door and brickaded interior
MANUAL
Report No. 189122-1050009
WARNING: IF THE INFORMATION IN
This appliance may be installed in an aftermarket permanently located,
THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow your gas
suppliers instructions.
• If your gas supplier cannot be reached, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
Model: L30 DVF-2 (Direct-Vent)
RETAIN THIS MANUAL FOR FUTURE REFERENCE
N 775,029M Rev. B, 8/04
P
manufactured (mobile) home, where not proh
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN
SUIVRE LES INSTRUCTIONS DONNÉ DANS CETTE
NOTICE POUR RÉDUIRE AU MINIMUM LE RISQUE
D’INCENDIE OU POUR ÉVITER TOUT DOMMAGE
MATÉRIEL, TOUTE BLESSURE OU LA MORT.
P
UR VOTRE
URITÉ: Ne pas entreposer ni
utiliser d’essence ni d’autre vapeurs ou liquides
inflammables dans le voisinage de cet appareil ou
de tout autre appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez
une odeur de gaz:
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le batiment
où vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L’installation et service doit être exécuté par un qualifié
installeur, agence de service ou le fournisseur de gaz.
ited by local code
IMPORTANT WARNINGS / CAUTIONS
CAUTION: READ THIS MANUAL THOROUGHLY BEFORE STARTING INSTALLATION. FOR YOUR SAFETY, FOLLOW THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS EXACTLY WITHOUT DEVIATION.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE FIRE HAZARD AND MAY VOID THE
WARRANTY. IF THIS APPLIANCE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.
1. WARNING: IMPROPER ASSEMBLY, INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE INJURY AND / OR PROPERTY DAMAGE. INSTALLATION AND SERVICE MUST BE PERFORMED BY A
QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS
SUPPLIER. EXCEPT WHEN COMPLYING WITH LOCAL
CODES, ANY DEVIATION FROM THE INSTALLATION
AND/OR OPERATING INSTRUCTIONS CONTAINED IN THIS
MANUAL WILL VOID THE APPLIANCE WARRANTY AND
MAY BE HAZARDOUS.
2. DUE TO HIGH TEMPERATURES, THIS APPLIANCE SHOULD
BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE, DRAPERIES AND NOT IN WINDY OR DRAFTY AREAS.
3. THE APPLIANCE MUST NOT BE CONNECTED TO A CHIMNEY
FLUE SERVING A SEPARATE SOLID-FUEL BURNING APPLIANCE.
4. THIS APPLIANCE IS EQUIPPED WITH 3 RELIEF DOORS
(ONE BEHIND THE BACK PANEL, AND ONE ON EACH SIDE,
BEHIND SIDE PANELS) IN CASE OF DELAYED IGNITION
BLOW BACK. IF ONE OR MORE RELIEF DOORS OPEN, INSPECT FOR GASKET DAMAGE. IF NECESSARY, REPLACE
WITH FACTORY SUPPLIED GASKET ONLY. CONFIRM RELIEF DOORS ARE CLOSED AND PROPERLY SEATED.
5. CAUTION: HOT WHILE IN OPERATION. AN APPLIANCE HOT
ENOUGH TO WARM YOUR HOME CAN SEVERELY BURN
ANYONE TOUCHING IT. KEEP CHILDREN, CLOTHING AND
FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS.
DO NOT LET CHILDREN TOUCH THE APPLIANCE. TRAIN
THEM TO STAY A SAFE DISTANCE FROM THE UNIT.
6. DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIAL ON OR NEAR THE GAS APPLIANCE. THE MINIMUM
CLEARANCES MUST BE MAINTAINED FOR ALL COMBUSTIBLE SURFACES AND MATERIALS INCLUDING; FURNITURE,
CARPET, DRAPES, CLOTHING, WOOD, PAPERS, ETC.
7. NEVER SEAL THE OPENING AT THE REAR OF THE STOVE.
8. DO NOT CONNECT 110-12 VAC (RESIDENTIAL LINE VOLTAGE) TO THE GAS CONTROL VALVE OR CONTROL WIRING
SYSTEM OF THE UNIT.
9. ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.
10. WARNING: USE ONLY THE GLASS DOOR CERTIFIED WITH
THIS APPLIANCE. EXERCISE CAUTION TO PROTECT
GLASS FROM IMPACT. DO NOT OPERATE THE APPLIANCE
WITH BROKEN GLASS OR USE SUBSTITUTE MATERIALS.
11. DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN
UNDER WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT THE APPLIANCE AND RE-
PLACE ANY PART OF THE CONTROL SYSTEM AND GAS
CONTROL WHICH HAS BEEN UNDER WATER.
12. DO NOT BURN WOOD OR OTHER MATERIAL IN THIS HEATER.
13. WARNING: THE APPLIANCE AREA MUST BE KEPT CLEAR
AND FREE FROM COMBUSTIBLE MATERIALS, GASOLINE
AND OTHER FLAMMABLE VAPORS AND LIQUIDS.
14. DO NOT USE A BLOWER INSERT, HEAT EXCHANGER INSERT OR OTHER ACCESSORY NOT APPROVED FOR USE
WITH THIS APPLIANCE.
15. THIS APPLIANCE IS NOT FOR USE WITH AIR FILTERS.
16. ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE
DANGEROUS.
17. THE APPLIANCE SHOULD BE INSPECTED AND MAINTAINED
AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED
DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.
18. THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF
GAS INDICATED ON THE RATING LABEL (LOCATED INSIDE
CONTROL PANEL). THIS APPLIANCE IS NOT CONVERTIBLE
FOR USE WITH OTHER FUEL UNLESS A CERTIFIED KIT IS
USED.
19. CAUTION: UNDER NO CIRCUMSTANCES SHOULD THESE
APPLIANCES BE VENTED TO OTHER ROOMS OR BUILDINGS. THESE APPLIANCES MUST ONLY BE VENTED TO
THE OUTSIDE. VENT TERMINATIONS SHALL NOT BE RECESSED INTO A WALL OR SIDING.
20. WARNING: THIS APPLIANCE MUST BE PROPERLY CONNECTED TO A VENTING SYSTEM. OPERATION OF THIS
GAS APPLIANCE WHEN NOT CONNECTED TO A PROPERLY
INSTALLED AND MAINTAINED VENTING SYSTEM CAN RESULT IN CARBON MONOXIDE (CO) POISONING AND POSSIBLE DEATH.
21. WARNING: DO NOT MODIFY THE VENTING SYSTEM, APPLIANCE, OR CONTROLS IN ANY WAY. BE ADVISED, ANY
MODIFICATION CAN BE DANGEROUS. PROVISIONS MUST
BE MADE TO ENSURE THE INTAKE AND EXHAUST PASSAGES OF THE VENT TERMINATION CAP REMAIN UNRESTRICTED.
22. IMPORTANT: DO NOT EXCEED THE MAXIMUM HORIZONTAL RUN ALLOWED.
23. SAVE THESE INSTRUCTIONS.
PAGE 2
TABLE OF CONTENTS
Important Warnings ........................................................ 2
Testing / Listing, Using this Manual ................................. 3
Planning Your Installation ..............................................4-6
Manufactured (Mobile) Home Installation.......................... 6
Installation ...................................................................7-15
Care and Operation.....................................................16-17
Propane Conversion ...................................................18-19
Maintenance...............................................................20-21
Wiring Diagrams ............................................................. 22
Troubleshooting .............................................................. 23
Replacement Parts ..........................................................24
Optional Accessories ....................................................... 25
Specifications.................................................................. 26
Safety / Listing Label ....................................................... 27
Ownership Record and Service Log................................. 28
TESTING / LISTING
This appliance is tested and certified as safe for residential use
by an internationally recognized testing and certification
agency. The safety tests are conducted in accordance with
American National Standards Institute (ANSI) requirements.
The Lennox Elite series appliances are tested, certified, and
listed by the CSA, AGA, CGA to ANSI Z21.88 - 1998 Vented
Gas Fireplace Heaters and CSA 2.33 - M98 Vented Gas Fireplace Heaters.
APPROVED VENT BRANDS:
This appliance is listed for installation with Security Secure
Vent chimney or Simpson Dura Vent brand chimney only.
Other brands may not be used. See pages 7, 8 and 9.
CONGRATULATIONS ON THE PURCHASE OF YOUR NEW GAS
APPLIANCE MANUFACTURED BY LENNOX HEARTH PRODUCTS.
When you purchased your new gas fired heater, you joined
the ranks of thousands of concerned individuals whose answer to their home heating needs reflects their concern for
aesthetics, efficiency and our environment. We extend our
continued support to help you achieve the maximum benefit
and enjoyment available from your new gas fired heater.
It is our goal at Lennox Hearth Products to provide you, our
valued customer, with an appliance that will ensure you
years of trouble free warmth and pleasure.
Thank you for selecting a Lennox Hearth Products gas fired
heater as the answer to your home heating needs.
Sincerely,
All of us at Lennox Hearth Products
PACKAGING LIST
This appliance is packaged with an accessory package, which
contains the following:
One - Installation and operation instructions manual.
One - Warranty.
One - Log set and embers.
One - LP conversion kit.
One - Vent restrictor ring.
One - 9 ft. electrical power cord.
USING THIS MANUAL
Please read and carefully follow all of the instructions found in
this manual. Please pay special attention to the safety instructions provided in this manual. Following the Homeowner’s
Care and Operation Instructions included here will assure that
you have many years of dependable and enjoyable service
from your appliance.
PAGE 3
PLANNING YOUR INSTALLATION
LOCAL AND NATIONAL CODE REQUIREMENTS
The installation of these appliances must conform with local
codes or, in the absence of local codes, with the National Fuel
Gas Code, (for USA) NFPA 54 / ANSI Z223.1-latest edition.
Air Circulation Blower: The blower electrical power cord must
be electrically grounded per local codes or per electrical codes:
In USA, NEC, ANSI / NFPA 70-Latest Edition.
In Canada, CSA C22.1
WARNINGS
ELECTRICAL GROUNDING INSTRUCTIONS. THIS
APPLIANCE IS EQUIPPED WITH A THREE-PRONG
(GROUNDING) PLUG FOR YOUR PROTECTION
AGAINST SHOCK HAZARD AND SHOULD BE
PLUGGED DIRECTLY INTO A PROPERLY GROUNDED
THREE-PRONG RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THIS PLUG.
WARNING: TO AVOID ELECTRICAL SHOCK, ALWAYS
ENSURE THAT THE POWER CORD IS UNPLUGGED
(I.E., THERE IS NO ELECTRICAL POWER TO THE
CIRCULATION BLOWER) BEFORE HANDLING THE
CIRCULATION BLOWER OR PERFORMING ANY
WORK ON THE APPLIANCE.
High Altitude: Gas inputs shown are for elevations up to 4500
feet. For elevations above 4500 feet, contact your gas supplier
or qualified service technician regarding the necessary deration of appliance (deration: replacing burner orifice with a
smaller one to reduce input). Ratings must be reduced at the
rate of 4 percent for each 1,000 feet above sea level. Refer to
(for USA) NFPA 54 / ANSI Z223.1-latest edition for orifice resizing.
TOOL / EQUIPMENT LIST
The following tools and equipment are recommended for completing the partial assembly required when the appliance is
installed:
1
•
/4” wrench.
1
/4”, 5/16” nut drivers.
•
• Pipe wrench.
• Phillips head screw driver.
• Flat head screw driver.
• Pipe sealant compound.
• Leak test fluid.
• Leak test fluid “U” tube manometer or pressure gauge
(0 - 16” (inches water column) H2O scale.
GAS PRESSURE (WC = Water Column)
Minimum inlet gas supply pressure for the purpose of input
adjustment:
Natural Gas - 4.5” WC min. – 7.0” WC max.
Propane (LP) - 11” WC min - 13.0” WC max.
Manifold gas supply pressure:
LOW HIGH
Natural Gas - 1.8” +/-.3” WC (to) 3.5” +/-.3” WC
25,000 BTU / hr 37,000 BTU / hr
Propane (LP) 6.6” +/-.3” WC (to) 10” +/-.3” WC
28,000 BTU / hr 35,000 BTU / hr
Note: ” WC = Inches Water Column
PRESSURE TAPS
Gas Inlet Pressure Tap
- Located on bottom left of gas valve.
Gas Outlet (manifold) pressure tap
- Located on bottom right
of gas valve.
Gas Control Valve
Pilot Adjustment Screw
Gas Control Knob
Piezo Igniter
Convertible HI/LO
Regulator
Inlet
Pressure
Outlet Pressure Tap
Regulator
Cap
Wiring
Terminals
Pressure Testing: See Pressure Testing on page 11.
PAGE 4
PLANNING YOUR INSTALLATION
QUESTIONS TO ASK THE LOCAL BUILDING OFFICIAL
Correct installation is critical and imperative for reducing fire
hazards and perilous conditions that can arise when gas appliances function improperly. The appliance must be installed
per manufacturers’ instructions.
Gas appliance equipment and installations must conform to
appropriate local codes and applicable state and federal requirements. Familiarity with these requirements before installation is essential. Important considerations to discuss with
local building officials include:
1. Applicable codes (i.e. Uniform Mechanical Code, State or
Regional Gas Codes, National Fuel Gas Code)?
2. Local amendments?
3. Recognized testing lab: CSA / AGA.
4. Is a permit required - cost?
5. In some states or municipalities, a licensed gas fitter or
plumber may be required to install this appliance. Check
with your local building official for requirements in your
area (i.e. Is a license required for installation of gas supply
line)?
6. Maximum amount of gas pipe without a pressure test type of test required?
7. Are below grade penetrations of the gas line allowed?
8. Is concealed gas piping allowed?
9. Specific requirements of concealed fittings?
10. Is rigid pipe to appliance required?
11. Allowed piping materials?
12. Shut-off valve required within 4 feet of the firebox?
13. May the shut-off valve be concealed?
14. Rooms where the installation is not allowed?
In the absence of local codes, installation should conform to
the National Fuel Gas Code, also known at ANSI Z223.1NFPA 54.
PAGE 5
PLANNING YOUR INSTALLATION
)
)
(
)
)
(
)
)
CLEARANCES TO COMBUSTIBLE MATERIALS
These appliances can be installed in most residential room configurations, parallel to a rear or adjacent wall, or in an alcove that allows for
the minimum clearances to combustible surfaces. Your local building
inspector should review your plans prior to installation.
When installing this appliance, provide adequate clearances around
air openings and adequate clearances for purposes of servicing and
proper operation.
As determined through the safety certification of this unit, a minimum clearance to combustible materials must be maintained around
specific areas of the gas appliance. (Refer to Figures 1 through 3)
The clearances listed here are minimum distances and only apply in
the configuration shown. Do not use clearances from one installation
configuration with clearances from another to obtain closer clearances.
Top of appliance (min.) 36” (inches)
This includes any projections such as shelves, window sills, mantels, etc.
above the appliance.
Back Wall 2" (inches)
Side Wall 12" (inches)
Corner (45° angle) 4" (inches)
stove corners to wall
Ceiling Minimum 65" (inches) from floor
Alcove Min. Height 65" (inches) from floor
Alcove Min. Width 53 7/8" (inches)
Alcove Max. Depth 24" (inches) from unit face.
The stove can not be placed deeper into an alcove than 24” from the stove
face to alcove opening.
Floor 0 inches
MANUFACTURED (MOBILE) HOME REQUIREMENTS
Model L30 DVF-2 may be installed in an aftermarket permanently located, manufactured home, where not prohibited by
local codes. When installed in Manufactured Housing the following supplemental requirements must be met:
The appliance must be secured to the floor. Use the (3) ¼”-20x2
¾” lag bolts (which secured appliance pedestal base to the
wooden pallet) for securing appliance to the manufactured home
floor.
The appliance must be grounded to the chassis of the manufac-
tured home. Use a No. 8 or heavier copper wire at least 18" in
length.
IMPORTANT NOTES:
The structural integrity of the manufactured home floor, walls, ceiling
and roof must be maintained.
A manufactured (mobile) home installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24 CFR,
Part 3280, or, when such a standard is not applicable, the Standard
for Manufactured Home Installations, ANSI / NCSBCS A225.1, or
standard for Gas equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.
Rear Wall or Alcove
65 Inch
(1651 mm)
Min. Ceiling
Height
2” Min.
(51 mm)
Fig. 1
Corner
4” Min. (102 mm
Fig. 2
4” Min.
(102 mm
Rear Wall or Alcove
2” Min. (51 mm
Ref. 30 1/8” (765 mm)
12” Min.
305 mm
Fig. 3
24” Max. (610 mm
12” Min.
305 mm
FLOOR PROTECTION
When installed directly on carpeting, •tile or other combustible material other than wood flooring, the appliance shall be
installed on a metal or wood panel extending the full width
and depth of the appliance (♦ see notes below).
♦
Notes:
1) Ceramic tile is non-combustible and does not require a
wood or metal panel under the appliance. 2) Models with a
pedestal base where base dimensions exceed width and
depth of stove body, qualify as the floor protection
PAGE 6
INSTALLATION
o
e
–
This appliance is designed to be vented with a 4” x 6 5/8” direct-vent pipe. Each direct-vent appliance must use its own separate vent
system
VERTICAL TERMINATION
WITH NO OFFSETS
Min. Vertical Pipe Length: 5 feet
Max. Vertical Pipe Length: 25
feet
5 Feet
Min.
25 Feet
Max.
VERTICAL TERMINATION
WITH 2 OFFSETS
Min. Vertical Pipe From Appliance to first
offset: 2 feet (*see note).
Min. Total Vertical Pipe Length: 5 feet
Max. Total Vertical Pipe Length: 25 feet
For every 1 feet of
vertical pipe (from
unit to first offset), 2
feet of horizontal
run is allowed (not
to exceed 16 ft.
Example – with a 6’ vertical pipe off unit, 12’ of
horiz
ntal run is allowed.
5 Feet
Min.
Horizontal
runs require
¼” rise per
foot.
25
Feet
Max.
HORIZONTAL TERMINATION
WITH 1 OFFSET
Min. Vertical Pipe From Appliance to offset:
2 feet (*see note).
Max. Vertical Pipe Length: 25 feet
16 Feet Max.
For every 1 feet of v
pipe (from unit to first offset),
2 feet of horizontal run is
allowed (not to exceed 16 ft.
Example
tical pipe off unit, 16’ of
horizontal run is allowed.
25
Feet
Max.
At 2’ Min. Vertical, 2’ Max.
Horizontal is allowed.
rtical
with a 8’ ver-
Horizontal runs
require ¼” rise
per foot.
* 2 Feet Min.
* 2 Feet Min.
Wall
Penetration
Detail
Maximum total offsets allowed: Not to exceed 180 degrees.
Maximum allowable horizontal pipe run is 16 feet.
With 2 feet of vertical pipe installed from the appliance (* see note), a 2 foot maximum horizontal run allowed. For installations with
more than 2 feet of vertical pipe, calculate allowable horizontal run as indicated in applicable illustration above.
See page 10 for Vent Termination Requirements.
Also see pipe manufacturers instructions for additional vent installation requirements.
Horizontal vent clearances
Vertical vent clearances
: 3“ minimum top 1“ minimum on bottom and sidewalls.
: 1” minimum.
Install vent support brackets every 4 feet of vertical pipe unless otherwise specified by vent manufacturer.
* Note: If using Propane Gas (LP), it may be necessary to install (as a minimum) 3 feet of vertical pipe from the appliance prior to an
offset to ensure optimum product performance. This may be necessary due to variations in vent configuration and other numerous
factors which affect exhaust flow and air delivery such as BTU value, ambient temperature, wind conditions, altitude, etc.
PAGE 7
INSTALLATION
VENT RESTRICTOR RING INSTALLATION
Recommended Restrictor Ring Placement For Optimum Stove Performance
16 Feet or Higher,
Install Restrictor
Ring
If total vertical venting is
16 feet or higher, install 1
restrictor ring (included)
between the appliance
outlet / inlet collar and
first section of pipe.
Guideline for Installing Flue Restrictor
Ring in Co-Axial Direct-Vent Pipe
If the total vertical venting is 16 feet or
higher, installation of 1 restrictor ring is recommended to improve the performance and
flame asthetics of the appliance. Install the
restrictor ring between the appliance outlet /
inlet collar and the first section of pipe. Depending upon the vent configuration and
other variables, it may be necessary to adjust
the quantity and position of the restrictor
ring(s) to ensure proper operation of the appliance. Be advised, product performance
can be affected due to numerous factors
which affect exhaust flow and air delivery,
such as – gas BTU value, vent configuration, ambient temperature, altitude, etc.
Symptoms for Lack of Combustion Air
Remove restrictor ring(s) to increase combustion air delivery if the following symptoms
are present (first confirm input is correct, primary air shutter is properly adjusted, venting
system connections are secure and not
blocked):
♦ Flame appears yellow with black tips.
♦ Floating Flames (lazy, ill-defined, quiet,
may roll).
♦ Sooting.
♦ Pilot becomes yellow and appliance
shuts down.
Symptoms - Excessive Combustion Air
Install one or more restrictor rings to reduce
combustion air delivery if the following symptoms are present:
♦ Low Flame.
♦ Pilot pulls and appliance shuts down.
♦ Pilot flame ghosts
PAGE 8
INSTALLATION See Pipe Manufacturers Instructions For Installation Of Venting Components & Clearances.
DIRECT VENT SYSTEM COMPONENTS – Model L30 DVF-2
The following Direct-Vent system components may be safely used with this appliance.
Model # Brand: SECURITY / Description Model # Brand: SIMPSON DURA-VENT / Description
SV 0 SHK Standard Horizontal Term. Kit (90° Black Elbow, Firestop (2),
Horizontal Square Term. Cap)
SV 0 HK Horizontal Term. Kit (90° Black Elbow, Firestop (2), Horizontal
Term. Cap, adj. Black length 1-1/2 – 6”)
SV 0 FK Vertical Flat Roof Term. Kit (w/flashing, storm collar, vertical
Term. Cap)
SV 0 FAK Vertical pitched Roof Kit, 1/12-7/12 (with adjustable roof flash-
ing, storm collar, vertical termination cap)
SV 0 FBK Vertical pitched Roof Kit, 8/12-12/12 (with adjustable roof
flashing, storm collar, vertical termination cap)
SV 0 L6 6” Pipe Length (Galvalume) 6” Pipe Length (Galvalume)
SV0 LB6 6” Pipe Length (Black) 908B 6” Pipe Length (Black)
SV 0 9” Pipe Length ( Black) 907B 9” Pipe Length ( Black)
SV 0 L12 12” Pipe Length (Galvalume) 906 12” Pipe Length (Galvanized)
SL 0 LB12 12” Pipe Length (Black) 906B 12” Pipe Length (Black)
SV 0 L24 24” Pipe Length (Galvalume) 904 24” Pipe Length (Galvanized)
SV 0 LB24 24” Pipe Length (Black) 904B 24” Pipe Length (Black)
SV 0 L36 36” Pipe Length (Galvalume) 903 36” Pipe Length (Galvanized)
SV 0 LB36 36” Pipe Length (Black) 903B 36” Pipe Length (Black)
SV 0 L48 48” Pipe Length (Galvalume) 902 48” Pipe Length (Galvanized)
SV 0 LB48 48” Pipe Length (Black) 902B 48” Pipe Length (Black)
N/A N/A 911B 11”-14” Adj. Pipe Length (Black)
SV 0 LA 1 ½- 6” Adj. Pipe Length N/A N/A
SV 0 LBA 1 ½- 6” Adj. Black Pipe Length N/A N/A
SV 0 E45 45 Elbow (Galvalume) 945 45 Elbow (Galvanized)
SV 0 EB45 45 Elbow (Black) 945B 45 Elbow (Black)
SV 0 E90 90 Elbow (Galvalume Swivel) 990G 90 Elbow (Galvanized Swivel)
SV 0 EB90 90 Elbow (Black Swivel) 990BG 90 Elbow (Black Swivel)
SV 0 90 Elbow (Galvalume) 990 90 Elbow (Galvanized)
SV 0 90 Elbow (Black) 990B 90 Elbow (Black)
SV 0 CHC ⊕Horizontal Standard Term. Cap 984 ⊕Horizontal Standard Term. Cap
SV 0 CHCV ⊕Horizontal High Wind Term. Cap N/a ⊕Horizontal High Wind Term. Cap
SV 0 CPB • Vertical Termination Cap 983 • Vertical Termination Cap
SV 0 CGV • Vertical High Wind Cap 991 • Vertical High Wind Cap
SV 0 STC36 ⊗Snorkel Termination Cap 36” 981 ⊗Snorkel Termination Cap 36”
SV 0 STC14 ⊗Snorkel Termination Cap 14” 982 ⊗Snorkel Termination Cap 14”
SV 0 Vinyl Shield Protector 950 Vinyl Siding Standoff
SV 0 VS Round Ceiling Support
/ Wall Thimble Cover
SV 0 CSB Cathedral Ceiling Support Box, decorative square 941 Cathedral Ceiling Support Box
SV 0 SF Black Plate, Decorative N/A N/A
SV 0 Round Ceiling Support Box/Wall
Thimble
SV 0 Storm Collar 953 Storm Collar
SV 0 RSM Wall Radiation Shield N/A N/A
SV 0 BF Firestop N/A N/A
N/A N/A 963 Firestop Spacer
SV 0 F Flashing, Flat Roof (storm collar included)
SV 0 FA Flashing, Adjustable roof 1/12-7/12 (storm collar
included)
SV 0 FB Flashing, Adjustable 8/12-12/12 (storm collar included) 943S Flashing 7/12-12/12
SV 0 BM Wall Band 988 Wall Strap
⊗ Snorkel Caps: These are elongate vent termination caps, which incorporate the principles of natural draft into a horizontal installa-
tion. Two styles are common, 14” and 36” (Cap height). They enhance draft and relieve backpressure by creating natural draft in
the snorkel.
⊕ Horizontal Caps: This 13 ½” square horizontal cap is placed on the outer wall of the dwelling. Not to be within 9” of an air inlet or
within 12” of the ground. It requires a minimum 2’ rise on the interior pipe.
• Vertical Termination Cap: Low profile and high wind caps can only be used on vertical pipe installations.
970 Basic Horizontal Term. Kit (90° Black Elbow, Wall Thimble
Cover, Horizontal Square Term. Cap)
971 Horizontal Term. Kit A (90° Black Elbow, Wall Thimble
Cover, Horizontal Square Term. Cap, adj. 24” black pipe,
11-14 5/8” adj. Black pipe)
973 Vertical Termination Kit
978 Vertical Pitched Roof Kit, 0/12–6/12 (with adjustable flash-
ing, storm collar, low profile term. Cap)
N/A N/A
940 Round Ceiling Support
/ Wall Thimble Cover
942 Round Ceiling Support Box/Wall
Thimble
943 Fl a s h i ng 0/ 1 2 - 6/12
PAGE 9
INSTALLATION
V
Vent
DIRECT VENT RETROFIT OF EXISTING CHIMNEY SYSTEM - An existing Class-A (wood-burning) Metal Chimney or Masonry Chimney
can be converted to a direct vent system. Use one of the following chimney conversion kits listed below. Have the existing chimney
system inspected by a professional prior to the conversion. If using Simpson Dura-Vent brand liner kit, see “IMPORTANT” note at
the top of page 9. The chimney conversion should not be applied to the portion of the vent system that is in the room of the appliance.
Use only Co-Axial direct vent pipe (4” inner pipe, 6 5/8” outer pipe as listed on page 9) from the appliance to the retro-connector into
converted flue system. Adhere to all specifications shown on pages 6 and 7 regarding clearances to combustibles, vertical and horizontal vent length minimums and maximums, etc. Read all instructions in this manual and provided by vent manufacturer with kit carefully before starting the installation. Failure to follow the instructions may create a fire or other safety hazard, and will void the warranty.
Model # Brand: SECURITY / Description Model # Brand: SIMPSON DURA-VENT / Description
SV4MCK Masonry Chimney Conversion Kit –Vertical term. Cap, cap adapter,
masonry cover, black adapter (to flex), 2 gear clamps
SV4CCK1 Factory Built Chimney Conversion Kit – for 6” I.D., 1” insulation. 931 Factory Built Chimney Conversion Kit A – for 6” I.D.; Only compati-
SV4CCK2 Factory Built Chimney Conversion Kit – for 7” I.D., 1” insulation; 8” I.D.,
SV4CCK3 Factory Built Chimney Conversion Kit – for 10” I.D., 1” insulation; 7” I.D.,
1” insulation; 6” I.D., 2” insulation.
2” insulation; 8” I.D., 2” insulation.
VERTICAL VENT TERMINATION CLEARANCES
These instructions should be used as a guideline and do not supersede local codes in any way. Install vent according to local
codes, these instructions, the current National Fuel Gas Code
(ANSI-Z223.1) in the USA or the current standards of CAN/CGAB149.1 and -B149.2 in Canada.
Terminate multiple vent terminations according to the installation
codes listed above.
Terminate single vent caps relative to building components according to the following chart & illustration. The vent/air intake
termination clearances above the high side of an angled roof is
as shown in the following chart:
.
Termination Heights For Vents Above Flat
Flat to 6/12 1 0.3
6/12 to 7/12 1.25 0.38
7/12 to 8/12 1.5 0.46
8/12 to 9/12 2 0.61
9/12 to 10/12 2.5 0.76
10/12 to 11/12 3.25 0.99
11/12 to 12/12 4 1.22
12/12 to 14/12 5 1.52
14/12 to 16/12 6 1.83
16/12 to 18/12 7 2.13
18/12 to 20/12 7.5 2.29
20/12 to 21/12 8 2.44
or Sloped Roofs
Roof Pitch Feet Meters
934 Masonry Chimney Conversion Kit
ble w/specific brands – Contact Vent Manufacturer
932 Factory Built Chimney Conversion Kit B – for 6”, 7” & 8” I.D.; Only
933 Factory Built Chimney Conversion Kit C – for 7” & 8” I.D.; Only
compatible w/specific brands – Contact Vent Manufacturer
compatible w/specific brands – Contact Vent Manufacturer
Termination Heights For Vents Above Flat or Sloped Roofs
2 Ft. Min.
Termination
Storm
Collar
Flashing
Concentric
Vent Pipe
Horizontal Overhang
2 Ft. Min.
Lowest
Discharge
Opening
* H
1 inch (25.4 mm) Minimum
Clearance to Combustibles
* H = Minimum height from roof to
lowest discharge opening of vent.
ertical
Wall
X
12
Roof Pitch is X/12
PAGE 10
INSTALLATION
HORIZONTAL VENT TERMINATION REQUIREMENTS
The venting terminals should not be recessed into a wall or siding.
A = 2” Clearances above grade, veranda, porch, deck or
balcony.
B = 12” Clearance to window or door that may be
opened.
C = 9” (USA) Clearance to permanently closed win-
dow.12” (CAN)
D = 24” Vertical clearance to ventilated soffit located
above the terminal within a horizontal distance of
2 feet (60 cm) from the center-line of the termi-
nal.
E = 12” Clearance to unventilated soffit.
F = 9” Clearance to outside corner.
G = 6” Clearance to inside corner.
H = 3 ft. (USA) Not to be installed above a me-
ter/regulator assembly within 3 feet (90 cm) hori-
zontally from the center-line of the regulator.
I = 3 ft. (USA) Clearance to service regulator vent out-
let.
6 ft. (CAN)
J = 9” (USA) Clearance to non-mechanical air supply
inlet to building or the combustion air inlet to 12“
(CAN) any other appliance.
K = 3 ft. (USA) Clearance to a mechanical air supply
inlet.
6 ft. (CAN)
L* = 7 ft. (USA) Clearance above paved side-walk or a
paved driveway located on public property.
M**= 12” Clearance under veranda, porch, deck or bal-
* A vent shall not terminate directly above a side-walk
** Only permitted if veranda, porch, deck or balcony is
• Note: Local Codes or Regulations may require differ-
cony
or paved driveway which is located between two single family dwellings and serves both dwellings.
fully open on a minimum of 2 sides beneath the floor.
ent clearances.
PAGE 11
INSTALLATION
GAS SUPPLY HOOKUP
If using pipe other than black iron pipe see NFPA 54-National Fire Protection Association / ANSI Z223.1-American National Standards Institute;
and local code for specific requirements for the type of pipe used. Alternative gas piping systems such as CSST may be used subject to local
code and proper sizing.
This appliance is equipped with a flexible gas line and fitting for
a gas supply line connection. Connection can be made using
either the 3/8” NPT male fitting or, by removing the fitting, to the
flex line 3/8” female flare. The flex line can be routed to the gas
supply through either the pedestal bottom or through the rear
pedestal cover depending upon the orientation of the supply line.
Some areas may have certain restrictions against the use of
flexible gas lines. Check local codes. The gas appliance control
valve has a 3/8” NPT female type inlet for the gas supply line, if
hard plumbing is required.
If the gas supply will be routed to the appliance from the rear,
the flexible gas line for hookup is readily accessible. If the gas
supply will be routed to the appliance through the flooring, remove the rear panel. Redirect the flexible gas line through the
large hole in the center of the pedestal base for gas supply connection.
A gas supply line must be run to the appliance by a qualified
professional. The plumbing of the gas line must comply with
National Standards; NFPA 54-National Fire Protection Association / ANSI Z223.1-American National Standards Institute; and
local code.
Gas piping must not run in or through air ducts, clothes chutes,
chimneys or gas vents, dumb waiters or elevator shafts.
Piping should be sloped 1/4” per 15 feet (6mm per 4.6m) upward toward the meter from the appliance. The piping must be
supported at proper intervals every 8 to 10 ft. (2.4m to 3.1m)
using suitable hangers or straps.
The gas supply line must be purged of air before it is connected
to the appliance.
An accessible, approved shut-off valve must be installed upstream of any connector so that the appliance may be isolated to
allow service, removal, and replacement (within six feet of the
appliance per NFPA 54, or twelve inches in some codes). A shutoff valve is provided with this appliance.
IMPORTANT: In case emergency shut-off is required, shut off
main manual gas valve and disconnect main power to appliance.
These devices should be properly labeled by the installer.
PRESSURE TESTING:
• The appliance main gas valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of *1/2 psi (3.5 kPa).
• The appliance must be isolated from the gas supply piping system
by closing its individual manual shut-off valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than *1/2 psi (3.5 kPa).
Make the connection to the gas supply line using the correct
fitting required to the shut-off valve.

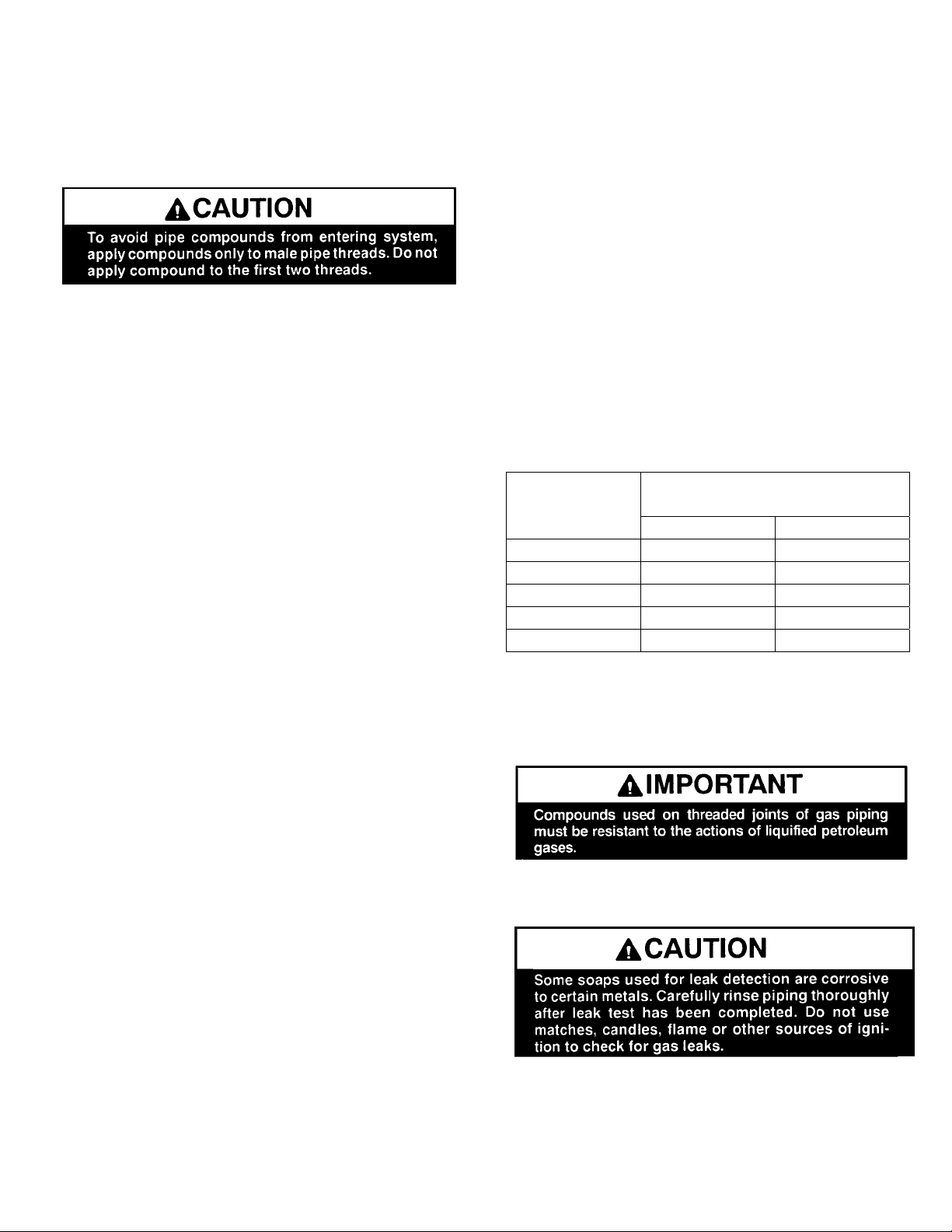

Install a drip leg where condensates might accumulate.
Sediment traps, like drips and collection tees, are required to
be installed. Traps collect moisture and intercept and hold
foreign objects which might block orifices and valves. A drip
leg should be installed in vertical pipe runs to the appliance.
Supply Line Size Requirements
The proper gas line diameter must be used to run from the
supply regulator (at the gas company meter) to the appliance. Never use galvanized or plastic pipe. Refer to the table below for suggested sizing of the gas supply line.
Suggested Sizing of
Schedule 40 Pipe Supply Line
Schedule 40 Pipe
Length (Feet)
0-10 1/2 3/8
10-40 1/2 1/2
40-100 1/2 1/2
100-150 3/4 1/2
150-200 3/4 1/2
Schedule 40 Pipe
Inside Diameter (Inches)
Natural Gas LP. Gas
Use an approved pipe sealant compound for NPT fittings.
After all pipe connections are made, apply normal gas line
pressure: 7.0” W.C. for natural gas; 11.0” W.C. for LP gas
(propane) and use an approved leak detection solution to
test for the tightness of each pipe connection joint.
IMPORTANT: All connections must be checked for leaks with a leak
detector or soapy water solution. Never check for gas leakage with an
open flame!
* Note: ½ psi = 14” WC (inches water column).
PAGE 12
INSTALLATION
DOOR OPERATION
After setup of the logs and embers is complete, the glass
door must be closed. The glass door is mounted on
hinges at the left side of the firebox and is secured in the
closed position by two draw latches mounted on the right
side of the firebox. The latch tension is preset at the factory. Over time, adjustment of the latch tension may be
necessary to maintain a tight door seal. This adjustment
can be made by spinning the latching rod in the rod
guide. Care should be exercised to not adjust the tension too high. Caution: Never operate the appliance
with the glass door open.
If glass door removal is required for replacement or
maintenance, the door can be removed Do not attempt to
remove or replace broken glass in the door assembly.
Contact your Lennox dealer for glass replacement. To
Remove Door:
1. Remove the glass door assembly from appliance as follows:
a. Open the right and left side panels (held closed
by magnets in the front. The panels hinge to
back).
Side Panel
b. Open the two draw latches mounted on the right
side of the door by pulling them forward. Swing
open door. See picture in left column of this page
showing their location.
c. With the door open, lift the door straight up and
off the hinge pins. Set door aside.
Lift Door Up
and Off Hinge
Pins
Draw
Latches
PAGE 13
INSTALLATION
GAS APPLIANCE FINAL ASSEMBLY
After the appliance has been properly installed and
all gas connections have been made and tested, you
can now install the log set. See Door Assembly on
page 14 for door removal instructions.
INSTALLING LOG SET:
WARNING: If logs are not installed according to
the directions in this manual, flame impingement
and improper combustion could occur and result
in excessive production of carbon monoxide
(CO), a colorless, odorless, toxic gas.
This appliance is equipped with a five-piece log set.
Carefully install the logs into the firebox as shown on
this page. All logs should fit down onto pins and
mounts provided. This will ensure a proper flame and
safe combustion.

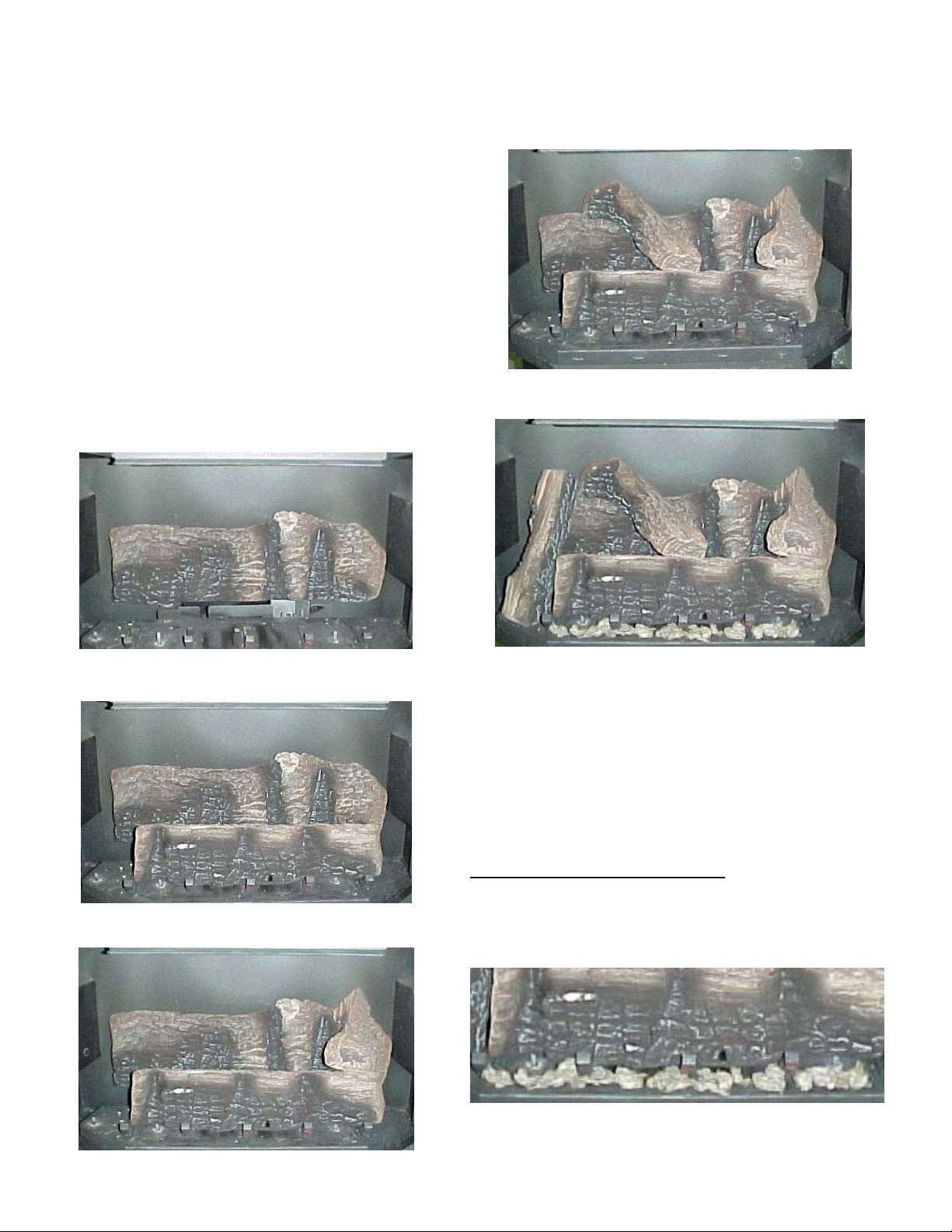

1. Carefully place the largest log in the rear of the
firebox as shown in the following illustration.
4. Install the center top twig as shown in the following illustration.
5. Install the left top twig and embers as shown in the follow-
ing illustration (see Glowing Embers on this page).
2. Install the front log as shown in the following illustration.
3. Install the right top twig as shown in the following
illustration.
Glowing Embers
One package of ember material has been included with this
gas appliance. You will not need to use the entire bag (additional ember material is provided for your future maintenance
needs).
IMPORTANT: The quantity and placement of the ember
material can affect stove performance therefore it is very
important that it be placed as shown in the picture on
instruction # 5 and shown below.
Proper Placement of Ember Material
the fine ember material (mineral wool) into thumbnail sized
fluffy pieces. Distribute the pieces over the top of the front
burner ports and filling the area in front of and beneath the
forward log and running the full length of the log.
: Unpackage and divide
PAGE 14
INSTALLATION
A
y
INSTALLATION CHECK LIST
Read and understand these instructions before using
appliance. Go through this installation checklist:
Ensure that the log set is properly installed. Use cau-
tion when handling the logs. See page 12.
Reinstall the door frame assembly. See Door As-
sembly on page 14.
WARNING: Do not operate appliance with the
glass front removed, cracked or broken. Replacement of the glass should be done by a
qualified technician.
Ensure venting termination cap is unobstructed.
Check to see that wiring is correct and is enclosed
inside the stove pedestal base (See page 21).
Ensure that the 3 relief doors on the back and sides
of the appliance are properly closed (see Combustion Chamber Relief Doors on page 16).
Verify that the gas line has been purged of air.
Test all connections for leaks (factory and field) with
a leak detector or soapy water solution. If you smell
gas, do not attempt to light this appliance. Follow
safety instructions on the front cover of this manual.
Burner Air Shutter opening to be:
Natural Gas – 1/2 open, Propane 3/4 open.
Some adjustment from standard may be necessary
for the desired flame characteristics (see Burner
Flame Appearance, page 20). To adjust air shutter:
1. Remove burner from firebox by removing the 2
nuts as shown in the following picture. Then lift
burner up and out of firebox.
2. Adjust gap as shown in following picture.
Loosen setscrew
using Phillips
ir Shutter
NG = 1/2 Open (1/4” gap)
LP = 3/4 Open (3/8” gap)
screwdriver
Burner Assembl
3. Reinstall burner. Do not overtighten nuts (finger
tight only).
Light the appliance following the instructions on page
15 (Care and Operation). Relight the main burner in
both the HI, and LO positions, and verify proper
burner ignition and operation.
NOTE: Upon the initial firing of your new gas stove,
you may notice an odor. This may last up to two
hours. It is recommended to open the windows to allow fresh air to circulate into the room.
WARNING: If the pilot does not light after 1 min-
ute, wait at least 5 minutes for gas to clear before
attempting again.
With burner lit, check to make sure that the inlet gas
and manifold pressures are correct (see Gas Pressure, page 4). Verify that the pilot and main burner
ignition and operation are correct.
Plug blower power cord into an 120 V, 60Hz,
grounded outlet (See Air Circulation Blower, Page 4).
Air
Shutter
Burner
Assembly
Remove 2 nuts,
Then lift burner
out of firebox
PAGE 15
CARE AND OPERATION
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lit. When
lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appli-
ance area for gas. Be sure to smell next to the
floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the
fire department.
C. Use only your hand to push in or turn the gas con-
trol knob. Never use tools. If the knob will not
push in or turn by hand, don’t try to repair it, call a
qualified service technician. Force or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has been un-
der water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which has been under water.
Pilot Adjustment Screw
Piezo Igniter
Thermocouple
Gas Control Knobs
Convertible HI/LO
Regulator
Inlet
Pressure
Outlet Pressure Tap
Pilot Assembly
Igniter
Electrode
Pilot
Hood
Regulator
Cap
Wiring
Terminals
Thermopile
LIGHTING AND SHUTDOWN INSTRUCTIONS
1. STOP! Read the safety information on this page or on label
(on appliance).
2. Turn off all electrical power to the appliance (unplug blower
power cord). Make sure the burner ON/OFF switch is in the
OFF position.
3. To gain access to the gas controls, swing the control access
door open. The control access door is located directly under
the window.
4. Push in gas control knob slightly and turn clockwise
3 to
“OFF.”
NOTE: Knob cannot be turned from “PILOT” to “OFF”
unless knob is pushed in slightly. Do not force.
5. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above on this label. If you
don’t smell gas, go to the next step.
6. Visually locate the pilot located in the center of the firebox
beneath the rear ceramic log.
7. Turn knob on gas control counterclockwise
4 to “PILOT.”
8. This appliance contains a spark ignition system (piezo igniter), which is used to light the pilot. Push in the gas control
knob all the way and hold it in. Immediately press the button
on the piezo igniter located to the left of the gas control knob.
The spark produced by the piezo igniter should light the pilot.
Continue to hold the control knob in for about one (1) minute
after the pilot is lit. Release the gas control knob and it will
pop back up. Pilot should remain lit.
•If it goes out, repeat steps 4 through 8.
•If the knob does not pop up when released, stop and im-
mediately call your service technician or gas supplier.
•If the pilot will not stay lit after 3 or 4 tries, turn the gas con-
trol knob to “OFF” and call your service technician or gas
supplier.
9. Turn gas control counterclockwise
4 to “ON.” Use rocker
switch, located either on the control panel or the exterior
side panel, to operate main burner. Adjust variable pressure dial (RB Regulator / Flame Height Control) to set
burner flame to desired heat output.
10. Swing the control access door closed.
11. Turn on electrical power to the appliance (plug in blower
power cord. See page 16, Circulation Blower Operation.)
TO TURN OFF GAS TO THE APPLIANCE
1. Turn off all electric power to the appliance if service is to be
performed.
2. To gain access to the gas controls, swing the control access door open. The control access door is located directly
under the window.
3. Push in gas control knob slightly and turn clockwise
“OFF.”
NOTE: Knob cannot be turned from “PILOT” to “OFF”
unless knob is pushed in slightly. Do not force.
4. Swing the control access door closed.
3 to
PAGE 16
CARE AND OPERATION
“BREAK-IN” PERIOD
The finish on this appliance is a high temperature paint that
requires time and temperature to completely cure. The curing
process will take 2 or 3 burns (heat up and cool down periods). We recommend that you ventilate the house during the
initial burns. The paint emits non-toxic odors during this process.
KEEP YOUR HOUSE WELL VENTILATED DURING THE CURING
PROCESS TO PREVENT ACTIVATION OF YOUR HOME SMOKE
DETECTOR.
Do not turn on a blower during the break-in period. Do not
place anything on the stove surface until the paint is completely cured. Do not attempt to repaint the stove until the
paint is completely cured. If the surface later becomes stained
or marred, it may be lightly sanded and touched up with spray
paint (See Small Area Paint Touch-Up, page 19). Paint is available at your local authorized Lennox Hearth Products dealer.
Never attempt to paint a hot stove.
COMBUSTION CHAMBER RELIEF DOORS
This appliance is equipped with 3 relief doors (one behind the
back panel, and one on each side, behind side panels) in case
of delayed ignition blow back. If one or more relief doors open,
inspect for gasket damage. If necessary, replace with factory
supplied gasket only. Confirm relief doors are closed and
properly seated.
CIRCULATION BLOWER OPERATION
The speed of the circulation blower is controlled using the
speed control rheostat (see following illustration) on the left
hand side of the control panel. The blower system is designed
with a variable speed control allowing an infinite range of
blower settings to meet the customer’s needs. With the rotary
switch turned fully CCW 4, the blower is off. Turning the
switch CW 3 will activate the blower at its maximum speed.
Further rotation of the switch in the CW direction will reduce
the speed of the blower. At approximately 270° of CW 3 rotation, the switch provides a minimum setting for blower speed.
Thermostatic feature: With the control switch in any “ON” position, the circulation blower is designed to automatically begin
operation approximately 12 minutes after lighting the main
burner. The blower will turn off approximately 15 minutes
after the main burner is shut-off.
Variable Speed Control for Air Circulation Blower
KNOB
SIDE VIEW SHOWN
RHEOSTAT
PAGE 17
PROPANE CONVERSION
PROPANE CONVERSION PROCEDURE
(Only required if Propane gas is used)
This appliance is designed to operate on natural gas, or propane
(LP). It is factory set for use with natural gas and requires field
conversion for use with propane. The use of other fuels or combination of fuels will degrade the performance of this system
and may be dangerous.
When converting to Propane Gas (LP), it may be necessary to
install (as a minimum) 3 feet of vertical pipe from the appliance prior to an offset to ensure optimum product performance.
This may be necessary due to variations in vent configuration
and other numerous factors which affect exhaust flow and air
delivery such as BTU value, ambient temperature, wind conditions, altitude, etc.
The conversion kit provided with this appliance contains components required to convert this appliance from use with natural
gas to use with propane (LP) Gas. All of the components in the
propane conversion kit must be installed in order for the appliance to operate safely on propane.
Installation Tools / Supplies
7/16” Open end wrench
Small standard screwdriver
Pipe sealant compound (must be rated for use with LPG gas)
Parts List
• Propane RB Regulator conversion screw (Red indicates LP gas)
• Burner Orifice (If you are at an elevation above 4500 feet do not use
the orifice provided in this kit. Contact your gas supplier to obtain a
smaller orifice)
• Pilot Orifice
• Label, Converted to (LP) Propane – Affix to valve
• Label, Converted to (LP) Propane – Affix to stove body
Avertissement: cet équipement de conversion sera installé par
une agence qualifiée de service conformément aux instructions
du fabricant et toutes exigences et codes applicables de
l’autorisés avoir la juridiction. Si l’information dans cette instruction n’est pas suivie exactement, un feu, explosion ou production de protoxyde de carbone peut résulter le dommages
causer de propriété, perte ou blessure personnelle de vie.
L’agence qualifiée de service est esponsable de l’installation
propre de cet équipment. L’installation n’est pas propre et
compléte jusqu’à l’opération de l’appareil converti est chéque
suivant les critères établis dans les instructions de propriétaire
provisionnées avec l’équipement.
IN CANADA:
The conversion shall be carried out in accordance with the requirements of the provincial authorities having jurisdiction and
in accordance with the requirements of the CAN1-B149.1 and .2
Installation code.
La conversion devra être effectuée conformément aux recommandations des autorités provinciales ayant juridiction et conformément aux exigences du code d’installation CAN1-B149.1
ET.2.
PAGE 18
PROPANE Conversion Procedure
1. Turn off Gas - Turn gas control knob to the off position, and
shut off the gas supply to the valve. If necessary, disconnect
appliance from gas supply.
2. Caution: The gas supply shall be shut off prior to disconnecting the electrical power, before proceeding with the conversion. Unplug blower power cord.
3. If the installation is at an elevation below 4500 feet, proceed
to step 4.
orifice provided in this kit. Contact your gas supplier to obtain a
smaller orifice).
If you are at an elevation above 4500 feet, do not use the
4. Burner Orifice Installation Procedure:
a. Remove glass door.
b. Remove logs, burner cover, and burner.
c. Use a 7/16” open-end wrench to remove gas burner ori-
fice.
d. Replace the burner orifice with the appropriate burner
orifice (see instruction #3).
e. Use pipe sealing compound rated for LP gas. BE VERY
CAREFUL THAT THE PIPE COMPOUND DOES NOT GET
INSIDE OF THE ORIFICE (THIS COULD RESULT IN
PLUGGING OF THE ORIFICE). Using a 7/16” open-end
wrench to tighten orifice - DO NOT OVER TIGHTEN (finger tight, then 1/2 turn maximum). *Make sure the orifice is inserted fully into the primary air shutter fixed
opening.
5. Adjust primary air shutter. Burner Air Shutter opening to be:
Natural Gas – 1/2 open, Propane 3/4 open. Some adjustment
from standard may be necessary for the desired flame characteristics (see Burner Flame Appearance, page 20).
6. Replace Pilot Orifice - Using a 7/16” open-end wrench, remove the pilot burner hood. Replace the pilot orifice with the
one supplied in the propane conversion kit. Then, reinstall
the pilot burner hood. Ensure that the mark on the pilot hood
is lined up with the mark on the pilot mounting plate.
PROPANE CONVERSION
7. High / Low Pressure Regulator Installation Procedure:
a. Remove regulator cap and conversion screw (see fol-
lowing illustration).
b. Install the new conversion screw (Red = Propane LP
gas, Blue = Natural Gas). Ensure that the conversion
screw is finger tight. Install the new regulator cap.
c. Affix conversion label on gas control valve body where
it can easily be seen.
Conversion
Screw
Propane Natural
Red Blue
8. Reinstall burner cover, logs, ember wool / ceramic rocks
and glass front.
9. Purging Air from Supply Line:
This should only be done by a qualified and licensed
(where applicable) professional. Check with your local
building official for qualifications required to perform this
procedure.
Color Code
Gas
10. Purge air from the gas line (see #9 above), then connect
propane gas line to the appliance. Connect the fuel line to
the insert inlet (1/2” NPT fitting) using the fitting required.
11. Perform leak Test.
CAUTION
After this procedure is complete with appliance installed
and connected to gas line, recheck the pilot connection
and manifold fittings for leaks, using soapy water or a gas
leak detector.
12. Lighting Procedure-See page 14.
Note: If the gas control knob is turned to the “off” position
after pilot has been lit, the appliance must be allowed to cool
for at least five minutes before pilot flame can be relit.
13. Apply the propane conversion label to the rating label.
The Appliance is ready for use with propane fuel as its only
fuel.
REFERENCE INFORMATION
See pages 4, and 26 of this manual for the following reference
information:
Manifold Gas Pressure
Inlet Gas Pressure
Input Ratings
BURNER FLAME APPEARANCE
A periodic visual check of burner flames should be performed.
The burner flame should appear as indicated on page 20 Burner Flame Appearance.
PAGE 19
MAINTENANCE
y
Always Turn Off Gas Control Valve Before Cleaning. Annual Maintenance Should Only Be Performed By A
Qualified Service Technician:
LOG SET
Removing & Cleaning Logs - Carefully remove the logs (removing top logs, then lifting front log out, then rear log). Use care
when handling the fiber logs, as they become quite fragile after
curing. Use a small soft-bristled brush (e.g., a nylon paint
brush) to remove soot, dust or debris that may have accumulated on the burner or log set. Remove the logs and burner, and
clean them outside the home in a location with plenty of fresh
air ventilation. Avoid breathing fine particulates of dust that
may be generated. See page 12, Installing Log Set for instructions on reinstalling logs.
Replacing Logs - If logs become damaged by accident or improper handling and need replacement, use only the proper replacement logs from manufacturer, which can be purchased
from your local dealer. See page 23.
CLEANING BURNER
With the logs removed, vacuum out any foreign matter (lint,
carbon etc.) on the burner. Be sure the burner ports are “open.”
CLEANING VALVE / AIR VENTURI
Clean all lint and dust build-up around the control valve and air
shutter on the venturi. Inspect and clean with a brush or wire
the inlet of the venturi for any spider webs or lint accumulation.
Air Shutter
Burner Assembl
Ensure opening is clear
from lint, dust, spider
webs, debris, etc.
INSPECT WIRING / CAUTIONS:
1) Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
2) Verify proper operation after servicing.
3) Inspect and clean all wire connections. Ensure that there is
no melting or damage from rodents. Inspection should include:
• Terminals at the valve
• On / Off switch
• Wall Thermostat / Remote Control (optional kits)
VENTING SYSTEM
A periodic examination of the venting system must be performed to ensure that the flow of combustion and ventilation air
is not obstructed (outlet and inlet is open and free from blockage). We recommend that you have your gas appliance checked
yearly by your independent Lennox dealer.
If the vent-air intake system is disassembled for any reason, the
service technician should follow vent manufactures instructions
for proper reassembly and sealing of the vent-air intake system.
IMPORTANT – APPLIANCES INSTALLED USING SIMPSON DURA-VENT
BRAND PIPE MUST SEAL ALL JOINTS WITH MILL-PAC BLACK, HIGH
TEMPERATURE SEALANT.
CLEAN EXTERNAL SURFACES
External surfaces should be kept clean and dust removed form
air inlets to the appliance. The flow of combustion and ventilation air must not be obstructed. The appliance must be kept
clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
SMALL AREA PAINT TOUCH-UP
The stove body is painted with a quality high-temperature stove
paint. Use only model TSPK-C Stove Paint, Catalog # 19L92. Do
not touch-up this appliance with any other paint.
Using one small piece of 320 grit sand paper and lightly sand
the blemish so that the edges are “feathered” or smooth to the
touch between the painted and bare surfaces. Do not let the
sand paper gum up with paint, as this will cause scratches on
the metal surface. If there are any scratches, use 600 grit sandpaper instead. Mask off surfaces you do not want painted. Paint
lightly over the bare surface first as this will act as an undercoat.
Then paint over a larger area in smooth even strokes to blend.
See Break-In Period on page 16 for information on curing the
paint.
CLEANING GLASS
The window on the gas appliance is made from a clear ceramic
material and may be cleaned when cool with any non-abrasive
product designed for use on glass windows. Do not use abra-
sive cleaners on glass. The viewing glass should be cleaned
periodically. Exterior glass may be cleaned with a glass cleaner
as desired. Interior glass - use soap and water, or commercial
glass cleaner recommended for stove glass.
Note: Each time the appliance is lit, it may cause condensation
and fog on the glass. This condensation and fog will disappear
in a few minutes.
CLEANING BLOWER INTAKE
The blower air intake requires cleaning at least once a year to
remove lint, dust, etc. If there are pets in the dwelling, the intake
should be cleaned at least twice a year.
PAGE 20
MAINTENANCE
Always Turn Off Gas Control Valve Before Cleaning. Annual Maintenance Should Only Be Performed By A
Qualified Service Technician:
PERIODIC CHECK OF PILOT AND BURNER FLAMES
Check the operation of the pilot and cycle the burner. Visually
check the flame of the burner making sure the flames are
steady; not lifting or floating. The flame color should be blue at
the burner with yellow body and tops.
Cycle unit a minimum of 2 times
• Watch for smooth burner ignition and shut down.
• Burner: Check flame patterns. Ensure that burner flame
appearance does not vary greatly from diagram shown on
this page.
• Pilot: Ensure pilot flame appearance does not vary greatly
from diagram shown below.
PILOT FLAME APPEARANCE
A proper pilot flame should consist of torch-like flame issuing
from the pilot hood as shown in illustration below.
Proper Pilot Appearance
BURNER FLAME APPEARANCE
A periodic visual check of the pilot and burner flames should
be performed. If either the pilot or burner flame do not show
proper appearance or behavior, as outlined here, consult a
qualified gas appliance technician.
A proper burner flame is shown above. The burner flame
should have the following characteristics after initial start-up
(let appliance burn 15 to 20 minutes prior to accessing flame
appearance):
• Excessive impingement (contact of flame with logs)
should not occur.
• Rear burner flames should have yellowish tips; no soot
should form at burner flame tips.
• Flames should not raise off of burner (no “lifting” of
flame).
Air Shutter Adjustment
The flame can be adjusted to give the proper flame appearance
and to prevent sooting on the window or logs by adjusting the
position of the primary air shutter (located at the rear center
inlet to the burner). The air shutter should be positioned approximately 1/2 open for Natural Gas and approximately 3/4
open for LP Gas. See page 13, Burner Air Shutter.
NOTE: During periods of high natural gas demand, the gas
supplier may add “make-up gases” to the pipeline. This addition will change the composition of the supply gas, and may
cause a change in burner flame appearance. You may also
notice soot formation on the logs and viewing windows.
Check with your gas supplier if you suspect a change in the
composition of your gas supply.
PAGE 21
WIRING DIAGRAMS
V
V
GAS CONTROL AND SAFETY SYSTEM WIRING DIAGRAM
CAUTION: Label all wiring prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
The gas control wiring diagram shown here should be used by service technicians for guidance when troubleshooting problems with
the pilot safety (millivolt) system or burner remote control system or when locating system components for repair / replacement.
Note: If replacement of any of the original wire is necessary, use 105°C thermoplastic wiring.
GAS CONTROL AND SAFETY SYSTEM WIRING DIAGRAM
Burner On/Off Switch
Igniter Electrode
Thermocouple
Pilot Hood
Thermopile
PILOT
ASSEMBLY
Wall Thermostat
(Optional)
ariable Speed
(rheostat)
Control
CIRCULATING BLOWER WIRING DIAGRAM
Microswitch for
Thermostatic
Switch (fan disc)
Control Panel Light
Ground
Convection Blower
(room air circulation blower)
Power Cord
120 V AC
AC Power
Supply
ent Spill Switch
(High Limit Disc)
Control
Panel
Light
PAGE 22
TROUBLESHOOTING Qualified Technicians Only
1) Pilot will not light, and Piezo Igniter does
not produce a heavy blue spark.
2) Pilot will not light, but Piezo Igniter produces a heavy blue spark.
3) Pilot will not stay lit. a. Thermocouple is not firmly connected to
4) Pilot flame stays lit, but main burner will
not light.
5) Smell of gas a. Loose fittings may be allowing gas to leak
6) A thin coating of black soot forms on the
window. NOTE: See page 19, Cleaning
Glass.
7) A white coating forms on windows, logs,
and / or inside walls of firebox.
8) Circulation blower makes a humming
sound, but there is no circulation air.
REFERENCE INFORMATION FOR QUALIFIED TECHNICIAN:
Thermopile / Thermocouple Operation
• Thermopile: Millivolt production should be a minimum of
325 MV with pilot only.
• Thermocouple: Millivolt production should be a minimum of
14 MV with pilot only.
PROBLEM
CAUSE(S)
a. Electrode wire (at Piezo Igniter) not
pushed completely on.
b. Piezo igniter is defective
a. Incorrect lighting procedure.
b. No gas to appliance due to shut valves or
disconnected gas lines.
control valve.
b. Pilot flame is not directed to top of ther-
mocouple.
c. Thermocouple is defective. Make sure
connection is solid.
a. Burner control switch (on control panel) is
in "OFF" position; or thermostat (if in-
stalled) is turned off or temperature set-
ting is too low.
b. Electrical wiring is damaged or poorly
connected
c. One of the following components may be
defective: burner control switch, thermo-
stat, or thermopile.
out.
a. Burner primary air inlet is restricted or
blocked.
b. Flames make contact with logs or other
surfaces.
c. Improper venting.
a. Residues / impurities being burned off. • Follow cleaning guidelines outlined in the
a. Impeller blades in circulation blower are
dirty.
b. Circulation blower is defective.
Drop out rate
• TP 50-60 MV
• TP 1 1/2-2 Min. (3 max.) if longer, replace thermopile.
SOLUTIONS
• Make sure connections are solid.
• Replace piezo igniter.
• Carefully follow the lighting / operating
instructions found in the appliance of this
owner's manual.
• Check for multiple gas shut-offs; check
gas supply lines.
• Ensure thermocouple is fully inserted into
pilot assembly.
• Replace thermocouple.
• Position the burner control switch to
"ON"; or adjust the thermostat. Refer to
manufacturer's instructions for thermostat.
• Refer to Control and Safety Wiring Diagram (Figure 11) and check electrical
connections.
• Refer to Control and Safety Systems
Wiring Diagram. Electrically bypass
components one at a time and replace
defective item.
• Check all joints for leakage: pilot assembly, gas supply system, main burner assembly, pilot and burner adjustment
screws. Use a proper leak check solution. WARNING: Never use an open
flame to check for leaks.
• Be sure all openings (fresh air inlets) in
stove are free from dust and debris. Recheck these areas periodically.
• Make sure ceramic logs are in their correct positions.
• Check for flue blockage, disconnected
flue, improper installation, negative air
pressure inside building (with respect to
exhaust exit), or "down draft" situation.
Make appropriate corrections.
MAINTENANCE section of this manual.
• Disconnect electrical power to circulation
blower, access blower and clean impeller
blades as outlined in the MAINTENANCE section of this manual.
• Replace blower.
PAGE 23
REPLACEMENT PARTS Model: L30 DVF-2
Item # Description Cat. No.
1 Trim, Decorative 10050164
2 Window Frame, Charcoal 17M60
3 Burner Assembly 17M58
4 Blower, Air Circulating 52L02
5 Thermal Fan Switch 52L12
6 Power Cord (blower) 12058820
7 Rheostat w / Knob
(speed control for blower)
10050088
Item # Description Cat. No.
8 On / Off Switch, Pkg. of 3 52L13
9 Control Valve NG
(with LP Conversion Kit)
10 ( 0-4500’ ) Orifice, #31, NG,
Pkg. of 10
10 ( 0-4500’ ) Orifice, #50, LPG,
Pkg. of 10
10 (4500’ ) Orifice, #32, NG, Pkg.
of 10
10 (4500’ ) Orifice, #51, LPG,
Pkg. of 10
11 Pilot Assembly NG 52L15
12 Log Set, 5 pc. (with embers) 17M59
64L98
18750031
10850183
52L06
10850184
PAGE 24
OPTIONAL ACCESSORIES
Item # Description Catalog # Model
1 Door Kit, L30 DVF-2, Gold 14M08 DK3D-G
2 Brickaded Interior Kit, L30 14M06 BRK-L30
3 Deluxe Remote Control (Thermostatically controlled) H0251 RC-STAT
4 Remote Control (Standard On / Off) H0249 RC
5 Wall Thermostat Kit 89L36 WTK
6 Touch-up Spray Paint Kit, Charcoal 19L92 TSPK-C
7 Glowing Embers, 1 oz bag 88L53 FGE
21
3
6
4
5
7
PAGE 25
SPECIFICATIONS: Model L30 DVF-2
Top View
Flue Size 4” – Top Vent
Intake Pipe 6.625” (6 5/8”)
Height Overall 30 5/8”
Height 29 1/8”
Width 30 1/8”
Depth 16 1/8”
Fuel Natural Gas (standard)
(or) LP Gas (convertible).
Gas inlet 3/8” NPT-Male/Flex Line
(or) remove flex, 3/8” NPT–Female Flare.
Side View
Performance Variable Flame Control.
Features High Efficiency Heat Exchanger.
Natural Convection & Radiant Heat.
Standing Pilot/Operates During Power
Outages. Remote Control & Wall
Thermostat Capable.
Technical Honeywell Combination Gas Control
Features Valve, Millivolt - VS8520E
Pan Burner with Tuned Ports.
Radiant & Fan Assisted Convection Heat.
Safety Test Tested and certified by CSA to ANSI stan-
dards. Z21.88-1998 • CSA 2.33a - M98.
Vented Gas Fireplace Heater
Heat Input 25,000 to 37,000 BTU’s (Nat. Gas)
28,000 to 35,000 BTU’s (Propane)
Ship Weight 200 lb.’s
Dimensions shown are approximations only (+/- ¼”)
SPECIFICATIONS
GAS TYPE NATURAL
GAS
Orifice Size #31 -.120 #50-.070” Back Wall Min. 2 In. / 51 mm
Minimum Supply Pressure 4.5” WC 10.5” WC Side Wall Min. 12 In. / 305 mm
Maximum Supply Pressure 10.5” WC 13.0” WC Corner (45° angle)
HIGH SETTING stove corner to wall, min. 4 In. / 102 mm
Manifold Pressure 3.5” WC 10.0” WC (Floor to) Ceiling Height Min. 65 In. /1651 mm
Input BTU/HR / ⊗ Efficiency 37,000/76% 35,000/79% Alcove Min. Height 65 In. /1651 mm
LOW SETTING Alcove Min. width 54 In. /1372 mm
Mainfold Pressure 1.8” WC 6.6” WC Alcove - Max. Depth into
Input BTU/HR 25,000 28,000 stove face to alcove opening 24 In. / 610 mm
♦ Altitude - U.S.A. 0-4,500 Ft. (0-1372M) No derating
♦ Altitude - Canada 0-4,500 Ft. (0-1372M) No derating
* With the orifice, manifold pressure and input ratings shown above.
For installation higher than altitudes shown above, reorifice per Gas
Codes
This Appliance is equipped at the factory for the use with Natural Gas or Propane (LP). Appliances using propane must
be field conversed using the LP Conversion Kit supplied with appliance.
PROPANE
(LP)
MINIMUM CLEARANCES TO COMBUSTIBLES
⊗ The efficiency rating of the appliance is a
product thermal efficiency rating determined
under continuous operating conditions and was
determined independent of any installed system.
PAGE 26
SAFETY / LISTING LABEL (RATING PLATE)
If the rating plate on the unit is different than shown here, the rating plate on the unit is the correct one.
PAGE 27
OWNERSHIP RECORDS
Dealer’s Name:
Dealer’s Address:
City: State: Zip Code:
Serial Number: Date of Purchase: Date Installed:
Notes:
SERVICE AND MAINTENANCE LOG
Service Service Service
Date Technician Description
PAGE 28
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
LENNOX reserves the right to make changes at any time, without notice, in design, materials,
specifications, prices and also for discontinued colors, styles and products.
Consult your local distributor for fireplace code information
Printed in U.S.A LENNOX HEARTH PRODUCTS 2001
P/N 775,029M REV. B 08/2004 1110 West Taft Avenue • Orange, CA 92865
.
Loading...
