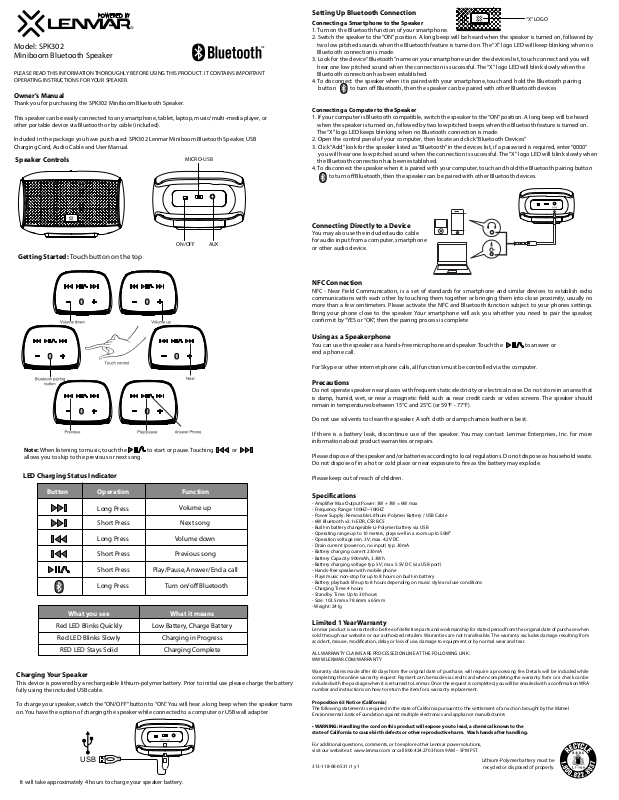

Lenmar SPK302 User Manual

Model: SPK302
Miniboom Bluetooth Speaker

PLEASE READ THIS INFORMATION THOROUGHLY BEFORE USING THIS PRODUCT. IT CONTAINS IMPORTANT
OPERATING INSTRUCTIONS FOR YOUR SPEAKER.

Owner’s Manual

Thank you for purchasing the SPK302 Miniboom Bluetooth Speaker.

This speaker can be easily connected to any smartphone, tablet, laptop, music/multi-media player, or
other portable device via Bluetooth or by cable (included).

Included in the package you have purchased: SPK302 Lenmar Miniboom Bluetooth Speaker, USB
Charging Cord, Audio Cable and User Manual.

Speaker Controls

MICRO-USB

AUXON/OFF

Getting Started: Touch button on the top

Note: When listening to music, touch the to start or pause. Touching or

allows you to skip to the previous or next song.

LED Charging Status Indicator

Button Operation Function

Long Press

Short Press

Long Press

Short Press

Short Press

Long Press

What you see

Red LED Blinks Quickly

Red LED Blinks Slowly

RED LED Stays Solid

Charging Your Speaker

This device is powered by a rechargeable lithium-polymer battery. Prior to initial use please charge the battery
fully using the included USB cable.

To charge your speaker, switch the “ON/OFF” button to “ON.” You will hear a long beep when the speaker turns
on. You have the option of charging the speaker while connected to a computer or USB wall adapter.

Volume up

Next song

Volume down

Previous song

Play/Pause, Answer/End a call

Turn on/off Bluetooth

What it means

Low Battery, Charge Battery

Charging in Progress

Charging Complete

USB

It will take approximately 4 hours to charge your speaker battery.

Setting Up Bluetooth Connection

Connecting a Smartphone to the Speaker

1. Turn on the Bluetooth function of your smartphone.

2. Switch the speaker to the “ON” position. A long beep will be heard when the speaker is turned on, followed by
two low pitched sounds when the Bluetooth feature is turned on. The “X" logo LED will keep blinking when no
Bluetooth connection is made.

3. Look for the device “Bluetooth” name on your smartphone under the devices list, touch connect and you will
hear one low pitched sound when the connection is successful. The “X" logo LED will blink slowly when the
Bluetooth connection has been established.

4. To disconnect the speaker when it is paired with your smartphone, touch and hold the Bluetooth pairing
button to turn o Bluetooth, then the speaker can be paired with other Bluetooth devices

Connecting a Computer to the Speaker

1. If your computer is Bluetooth compatible, switch the speaker to the “ON” position. A long beep will be heard
when the speaker is turned on, followed by two low pitched beeps when the Bluetooth feature is turned on.
The “X" logo LED keeps blinking when no Bluetooth connection is made.

2. Open the control panel of your computer, then locate and click “Bluetooth Devices”

3. Click “Add” look for the speaker listed as “Bluetooth” in the devices list, if a password is required, enter “0000”
you will hear one low pitched sound when the connection is successful. The “X" logo LED will blink slowly when
the Bluetooth connection has been established.

4. To disconnect the speaker when it is paired with your computer, touch and hold the Bluetooth pairing button
to turn o Bluetooth, then the speaker can be paired with other Bluetooth devices.

Connecting Directly to a Device

You may also use the included audio cable
for audio input from a computer, smartphone
or other audio device.

“X” LOGO

NFC Connection

NFC - Near Field Communication, is a set of standards for smartphone and similar devices to establish radio
communications with each other by touching them together or bringing them into close proximity, usually no
more than a few centimeters. Please activate the NFC and Bluetooth function subject to your phones settings.
Bring your phone close to the speaker. Your smartphone will ask you whether you need to pair the speaker,
conrm it by “YES or “OK”, then the pairing process is complete

Using as a Speakerphone

You can use the speaker as a hands-free microphone and speaker. Touch the to answer or
end a phone call.

For Skype or other internet phone calls, all functions must be controlled via the computer.

Precautions

Do not operate speaker near places with frequent static electricity or electrical noise. Do not store in an area that
is damp, humid, wet, or near a magnetic eld such as near credit cards or video screens. The speaker should
remain in temperatures between 15°C and 25°C (or 59°F - 77°F).

Do not use solvents to clean the speaker. A soft cloth or damp chamois leather is best.

If there is a battery leak, discontinue use of the speaker. You may contact Lenmar Enterprises, Inc. for more
information about product warranties or repairs.

Please dispose of the speaker and/or batteries according to local regulations. Do not dispose as household waste.
Do not dispose of in a hot or cold place or near exposure to re as the battery may explode.

Please keep out of reach of children.

Specifications

- Amplier Max Output Power: 3W + 3W = 6W max

- Frequency Range: 100HZ~10KHZ

- Power Supply: Removable Lithium-Polymer Battery / USB Cable

- 6W Bluetooth v2.1+EDR, CSR BC5

- Built-in battery changeable Li-Polymer battery via USB

- Operating range up to 10 meters, plays well in a room up to 50M²

- Operation voltage min. 3V; max. 4.2V DC

- Drain current (power on, no input) typ. 30mA

- Battery charging current 230mA

- Battery Capacity: 900mAh, 3.3Wh

- Battery charging voltage typ. 5V; max. 5.5V DC (via USB port)

- Hands-free speaker with mobile phone

- Plays music non-stop for up to 8 hours on built-in battery

- Battery playback life up to 8 hours depending on music style and use conditions

- Charging Time: 4 hours

- Standby Time: Up to 30 hours

- Size: 103.5mm x 78.6mm x 65mm

- Weight: 241g

Limited 1 Year Warranty

Lenmar product is warranted to be free of defective parts and workmanship for stated period from the original date of purchase when
sold through our website or our authorized retailers. Warranties are not transferable. The warranty excludes damage resulting from
accident, misuse, modication, delay or loss of use, damage to equipment or by normal wear and tear.

ALL WARRANTY CLAIMS ARE PROCESSED ONLINE AT THE FOLLOWING LINK:
WWW.LENMAR.COM/WARRANTY

Warranty claims made after 60 days from the original date of purchase, will require a processing fee. Details will be included while
completing the online warranty request. Payment can be made via credit card when completing the warranty form or a check can be
included with the package when it is returned to Lenmar. Once the request is completed, you will be emailed with a conrmation WRA
number and instructions on how to return the item for a warranty replacement.

Proposition 65 Notice (California)

The following statement is required in the state of California pursuant to the settlement of an action brought by the Mateel
Environmental Justice Foundation against multiple electronics and appliance manufacturers

• WARNING: Handling the cord on this product will expose you to lead, a chemical known to the
state of California to cause birth defects or other reproductive harm. Wash hands after handling.

For additional questions, comments, or to explore other Lenmar power solutions,
visit our website at: www.lenmar.com or call 800.424.2703 from 9AM – 5PM PST.

313-118-08-0531 r1 y1

Lithium-Polymer battery must be

recycled or disposed of properly.
