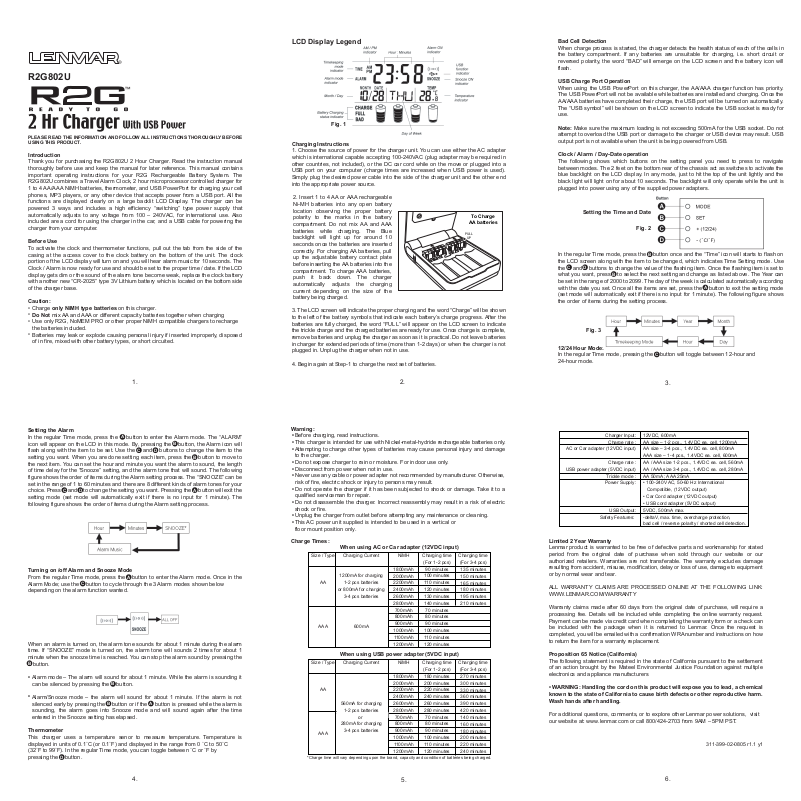

Lenmar R2G User Manual

R2G802U

PLEASE READ THE INFORMATION AND FOLLOW ALL INSTRUCTIONS THOROUGHLY BEFORE
USING THIS PRODUCT.

Introduction

Thank you for purchasing the R2G802U 2 Hour Charger. Read the instruction manual
thoroughly before use and keep the manual for later reference. This manual contains
important operating instructions for your R2G Rechargeable Battery System. The
R2G802U combines a Travel Alarm Clock, 2 hour microprocessor controlled charger for
1 to 4 AA/AAA NiMH batteries, thermometer, and USB PowerPort for charging your cell
phones, MP3 players, or any other device that accepts power from a USB port. All the
functions are displayed clearly on a large backlit LCD Display. The charger can be
powered 3 ways and includes a high efficiency “switching” type power supply that
automatically adjusts to any voltage from 100 – 240VAC, for international use. Also
included are a cord for using the charger in the car, and a USB cable for powering the
charger from your computer.

Before Use

To activate the clock and thermometer functions, pull out the tab from the side of the
casing at the access cover to the clock battery on the bottom of the unit. The clock
portion of the LCD display will turn on and you will hear alarm music for 10 seconds. The
Clock / Alarm is now ready for use and should be set to the proper time / date. If the LCD
display gets dim or the sound of the alarm tone become weak, replace the clock battery

with another new “CR-2025” type 3V Lithium battery which is located on the bottom side

of the charger base.

Caution:

•

Charge only NiMH type batteries on this charger.

•

Do Not mix AA and AAA or different capacity batteries together when charging

•

Use only R2G, NoMEM PRO or other proper NiMH compatible chargers to recharge
the batteries included.

•

Batteries may leak or explode causing personal injury if inserted improperly, disposed
of in fire, mixed with other battery types, or short circuited.

LCD Display Legend

Fig. 1

Charging Instructions

1. Choose the source of power for the charger unit. You can use either the AC adapter
which is international capable accepting 100-240VAC (plug adapter may be required in
other countries, not included), or the DC car cord while on the move or plugged into a
USB port on your computer (charge times are increased when USB power is used).
Simply plug the desired power cable into the side of the charger unit and the other end
into the appropriate power source.

2. Insert 1 to 4 AA or AAA rechargeable
Ni-MH batteries into any open battery
location observing the proper battery
polarity to the marks in the battery
compartment. Do not mix AA and AAA
batteries while charging. The Blue
backlight will light up for around 10
seconds once the batteries are inserted
correctly. For charging AA batteries, pull
up the adjustable battery contact plate
before inserting the AA batteries into the
compartment. To charge AAA batteries,
push it back down. The charger
automatically adjusts the charging
current depending on the size of the
battery being charged.

3. The LCD screen will indicate the proper charging and the word “Charge” will be shown
to the left of the battery symbols that indicate each battery’s charge progress. After the
batteries are fully charged, the word “FULL” will appear on the LCD screen to indicate
the trickle charge and the charged batteries are ready for use. Once charge is complete,
remove batteries and unplug the charger as soon as it is practical. Do not leave batteries
in charger for extended periods of time (more than 1-2 days) or when the charger is not
plugged in. Unplug the charger when not in use.

4. Begin again at Step-1 to charge the next set of batteries.

To Charge

AA batteries

PULL

UP

Bad Cell Detection

When charge process is started, the charger detects the health status of each of the cells in
the battery compartment. If any batteries are unsuitable for charging, i.e. short circuit or
reversed polarity, the word “BAD” will emerge on the LCD screen and the battery icon will
flash.

USB Charge Port Operation

When using the USB PowerPort on this charger, the AA/AAA charger function has priority.
The USB PowerPort will not be available while batteries are installed and charging. Once the
AA/AAA batteries have completed their charge, the USB port will be turned on automatically.
The “USB symbol” will be shown on the LCD screen to indicate the USB socket is ready for
use.

Note: Make sure the maximum loading is not exceeding 500mA for the USB socket. Do not

attempt to overload the USB port or damage to the charger or USB device may result. USB
output port is not available when the unit is being powered from USB.

Clock / Alarm / Day-Date operation

The following shows which buttons on the setting panel you need to press to navigate
between modes. The 2 feet on the bottom rear of the chassis act as switches to activate the
blue backlight on the LCD display. In any mode, just to hit the top of the unit lightly and the
black light will light on for about 10 seconds. The backlight will only operate while the unit is
plugged into power using any of the supplied power adapters.

Setting the Time and Date

Fig. 2

In the regular Time mode, press the B button once and the “Time” icon will starts to flash on
the LCD screen along with the item to be changed, which indicates Time Setting mode. Use

CCD

the C and D buttons to change the value of the flashing item. Once the flashing item is set to
what you want, press B to select the next setting and change as listed above. The Year can

B

be set in the range of 2000 to 2099. The day of the week is calculated automatically according

with the date you set. Once all the items are set, press the A button to exit the setting mode

B

A

(set mode will automatically exit if there is no input for 1 minute). The following figure shows
the order of items during the setting process.

Fig. 3

12/24 Hour Mode:

In the regular Time mode, pressing the C button will toggle between 12-hour and
24-hour mode.

1. 2.

Setting the Alarm

In the regular Time mode, press the A button to enter the Alarm mode. The “ALARM”
icon will appear on the LCD in this mode. By, pressing the B button, the Alarm icon will
flash along with the item to be set. Use the C and D buttons to change the item to the
setting you want. When you are done setting each item, press the B button to move to

A

B

CCD

B

the next item. You can set the hour and minute you want the alarm to sound, the length
of time delay for the “Snooze” setting, and the alarm tone that will sound. The following
figure shows the order of items during the Alarm setting process. The “SNOOZE” can be
set in the range of 1 to 60 minutes and there are 8 different kinds of alarm tones for your
choice. Press C and D to change the setting you want. Pressing the A button will exit the

D

C

A

setting mode (set mode will automatically exit if there is no input for 1 minute). The
following figure shows the order of items during the Alarm setting process.

Turning on /off Alarm and Snooze Mode

From the regular Time mode, press the A button to enter the Alarm mode. Once in the

A

Alarm Mode; use the C button to cycle through the 3 Alarm modes shown below
depending on the alarm function wanted.

When an alarm is turned on, the alarm tone sounds for about 1 minute during the alarm
time. If “SNOOZE” mode is turned on, the alarm tone will sounds 2 times for about 1
minute when the snooze time is reached. You can stop the alarm sound by pressing the

B

B button.

Alarm mode – The alarm will sound for about 1 minute. While the alarm is sounding it

•

can be silenced by pressing the B button.

•

Alarm/Snooze mode – the alarm will sound for about 1 minute. If the alarm is not
silenced early by pressing the B button or if the A button is pressed while the alarm is

B

B

A

sounding, the alarm goes into Snooze mode and will sound again after the time
entered in the Snooze setting has elapsed.

Thermometer

This charger uses a temperature senor to measure temperature. Temperature is

displayed in units of 0.1˚C (or 0.1˚F) and displayed in the range from 0 ˚C to 50˚C
(32˚F to 99˚F). In the regular Time mode, you can toggle between ˚C or ˚F by

pressing the D button.

D

Warning:

Before charging, read instructions.

•

This charger is intended for use with Nickel-metal-hydride rechargeable batteries only.

•

Attempting to charge other types of batteries may cause personal injury and damage

•

to the charger.
Do not expose charger to rain or moisture. For indoor use only.

•

Disconnect from power when not in use.

•

Never use any cable or power adapter not recommended by manufacturer. Otherwise,

•

risk of fire, electric shock or injury to persons may result.
Do not operate the charger if it has been subjected to shock or damage. Take it to a

•

qualified serviceman for repair.
Do not disassemble the charger. Incorrect reassembly may result in a risk of electric

•

shock or fire.
Unplug the charger from outlet before attempting any maintenance or cleaning.

•

This AC power unit supplied is intended to be used in a vertical or

•

floor mount position only.

Charge Times:

Size / Type

When using AC or Car adapter (12VDC input)

AA

or 800mA for charging

AAA

Charging Current

1200mA for charging

1-2 pcs batteries

3-4 pcs batteries

600mA

NiMH

1800mAh
2000mAh
2200mAh
2400mAh
2600mAh
2800mAh

700mAh
800mAh

900mAh

1000mAh
1100mAh
1200mAh

Charging time

(For 1-2 pcs)

90 minutes

100 minutes
110 minutes
120 minutes
130 minutes
140 minutes

70 minutes
80 minutes

90 minutes

100 minutes
110 minutes
120 minutes

Charging time

(For 3-4 pcs)

135 minutes
150 minutes
165 minutes

180 minutes

195 minutes

210 minutes

When using USB power adapter (5VDC input)

Size / Type

AAA

*Charge time will vary depending upon the brand, capacity and condition of batteries being charged.

AA

Charging Current

560mA for charging

1-2 pcs batteries

or

280mA for charging

3-4 pcs batteries

NiMH

1800mAh
2000mAh
2200mAh
2400mAh
2600mAh
2800mAh

700mAh
800mAh

900mAh

1000mAh
1100mAh
1200mAh

Charging time

(For 1-2 pcs)

180 minutes
200 minutes
220 minutes
240 minutes
260 minutes
280 minutes

70 minutes
80 minutes

90 minutes

100 minutes
110 minutes
120 minutes

Charging time

(For 3-4 pcs)

270 minutes
300 minutes
330 minutes
360 minutes

390 minutes

420 minutes
140 minutes
160 minutes
180 minutes
200 minutes
220 minutes
240 minutes

Charger Input:

Charge rate :

AC or Car adapter (12VDC input)

Charge rate :

USB power adapter (5VDC input)

Trickle mode :

Power Supply:

USB Output:

Safety Features:

Limited 2 Year Warranty

Lenmar product is warranted to be free of defective parts and workmanship for stated
period from the original date of purchase when sold through our website or our
authorized retailers. Warranties are not transferable. The warranty excludes damage
resulting from accident, misuse, modification, delay or loss of use, damage to equipment
or by normal wear and tear.

ALL WARRANTY CLAIMS ARE PROCESSED ONLINE AT THE FOLLOWING LINK:
WWW.LENMAR.COM/WARRANTY

Warranty claims made after 60 days from the original date of purchase, will require a
processing fee. Details will be included while completing the online warranty request.
Payment can be made via credit card when completing the warranty form or a check can
be included with the package when it is returned to Lenmar. Once the request is
completed, you will be emailed with a confirmation WRA number and instructions on how
to return the item for a warranty replacement.

Proposition 65 Notice (California)

The following statement is required in the state of California pursuant to the settlement
of an action brought by the Mateel Environmental Justice Foundation against multiple
electronics and appliance manufacturers

• WARNING: Handling the cord on this product will expose you to lead, a chemical
known to the state of California to cause birth defects or other reproductive harm.
Wash hands after handling.

For additional questions, comments, or to explore other Lenmar power solutions, visit

our website at: www.lenmar.com or call 800/424-2703 from 9AM – 5PM PST.

3.

12VDC, 600mA
AA size – 1-2 pcs., 1.4VDC ea. cell, 1200mA
AA size – 3-4 pcs., 1.4VDC ea. cell, 800mA
AAA size – 1-4 pcs., 1.4VDC ea. cell, 600mA

AA / AAA size 1-2 pcs., 1.4VDC ea. cell, 560mA

AA / AAA size 3-4 pcs., 1.4VDC ea. cell, 280mA

AA 50mA ; AAA 25mA

• 100-240V AC, 50-60 Hz International

Compatible, (12VDC output)

• Car Cord adapter (12VDC output)

• USB cord adapter (5VDC output)
5VDC, 500mA max.

-deltaV, max. time, overcharge protection,
bad cell / reverse polarity / shorted cell detection.

311-399-02-0805 r1.1 y1

4.

5.

6.
