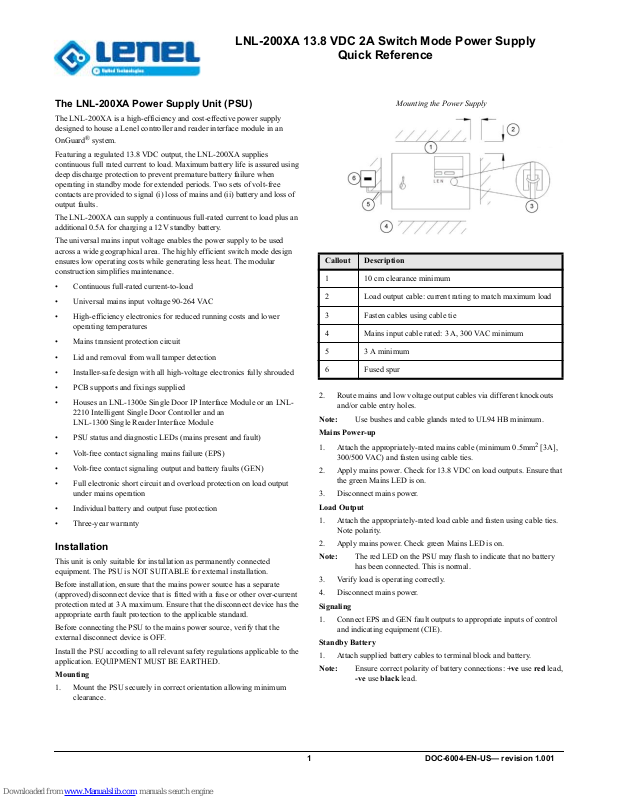

LNL-200XA 13.8 VDC 2A Switch Mode Power Supply
Quick Reference
The LNL-200XA Power Supply Unit (PSU)
The LNL-200XA is a high-efficiency and cost-effective power supply
designed to house a Lenel controller and reader interface module in an
OnGuard® system.
Featuring a regulated 13.8 VDC output, the LNL-200XA supplies
continuous full rated current to load. Maximum battery life is assured using
deep discharge protection to prevent premature battery failure when
operating in standby mode for extended periods. Two sets of volt-free
contacts are provided to signal (i) loss of mains and (ii) battery and loss of
output faults.
The LNL-200XA can supply a continuous full-rated current to load plus an
additional 0.5A for charging a 12V standby battery.
The universal mains input voltage enables the power supply to be used
across a wide geographical area. The highly efficient switch mode design
ensures low operating costs while generating less heat. The modular
construction simplifies maintenance.
• Continuous full-rated current-to-load
• Universal mains input voltage 90-264 VAC
• High-efficiency electronics for reduced running costs and lower
operating temperatures
• Mains transient protection circuit
• Lid and removal from wall tamper detection
• Installer-safe design with all high-voltage electronics fully shrouded
• PCB supports and fixings supplied
• Houses an LNL-1300e Single Door IP Interface Module or an LNL2210 Intelligent Single Door Controller and an
LNL-1300 Single Reader Interface Module
• PSU status and diagnostic LEDs (mains present and fault)
• Volt-free contact signaling mains failure (EPS)
• Volt-free contact signaling output and battery faults (GEN)
• Full electronic short circuit and overload protection on load output
under mains operation
• Individual battery and output fuse protection
• Three-year warranty
Installation
This unit is only suitable for installation as permanently connected
equipment. The PSU is NOT SUITABLE for external installation.
Before installation, ensure that the mains power source has a separate
(approved) disconnect device that is fitted with a fuse or other over-current
protection rated at 3 A maximum. Ensure that the disconnect device has the
appropriate earth fault protection to the applicable standard.
Before connecting the PSU to the mains power source, verify that the
external disconnect device is OFF.
Install the PSU according to all relevant safety regulations applicable to the
application. EQUIPMENT MUST BE EARTHED.
Mounting
1. Mount the PSU securely in correct orientation allowing minimum
clearance.

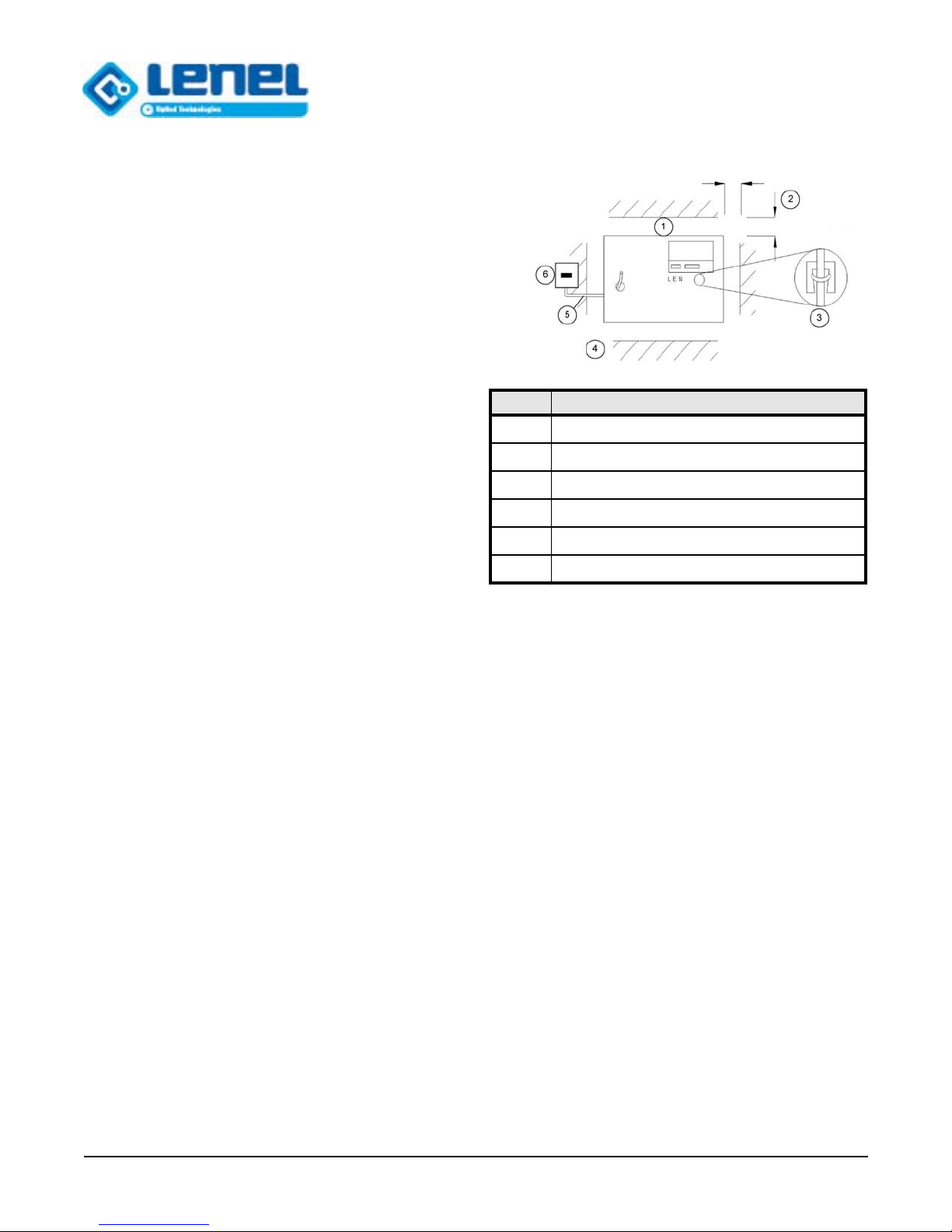

Mounting the Power Supply
Callout Description
1 10 cm clearance minimum
2 Load output cable: current rating to match maximum load
3 Fasten cables using cable tie
4 Mains input cable rated: 3 A, 300 VAC minimum
5 3 A minimum
6 Fused spur
2. Route mains and low voltage output cables via different knockouts
and/or cable entry holes.
Note: Use bushes and cable glands rated to UL94 HB minimum.
Mains Power-up
2
1. Attach the appropriately-rated mains cable (minimum 0.5mm
300/500 VAC) and fasten using cable ties.
2. Apply mains power. Check for 13.8 VDC on load outputs. Ensure that
the green Mains LED is on.
3. Disconnect mains power.
Load Output
1. Attach the appropriately-rated load cable and fasten using cable ties.
Note polarity.
2. Apply mains power. Check green Mains LED is on.
Note: The red LED on the PSU may flash to indicate that no battery
has been connected. This is normal.
3. Verify load is operating correctly.
4. Disconnect mains power.
Signaling
1. Connect EPS and GEN fault outputs to appropriate inputs of control
and indicating equipment (CIE).
Standby Battery
1. Attach supplied battery cables to terminal block and battery.
Note: Ensure correct polarity of battery connections: +ve use red lead,
-ve use black lead.
[3A],
1 DOC-6004-EN-US— revision 1.001
Tamper
1. Verify that the tamper screw makes good contact with the mounting
surface.
2. Check that the tamper switch is CLOSED when the lid is closed and
the retaining screw is fitted, OPEN when the retaining screw is
removed and the lid is open. Use fine adjustment screw if necessary,
no more than one turn in either direction, to align indicator with set
point.
3. Close the lid and fasten with screw supplied.

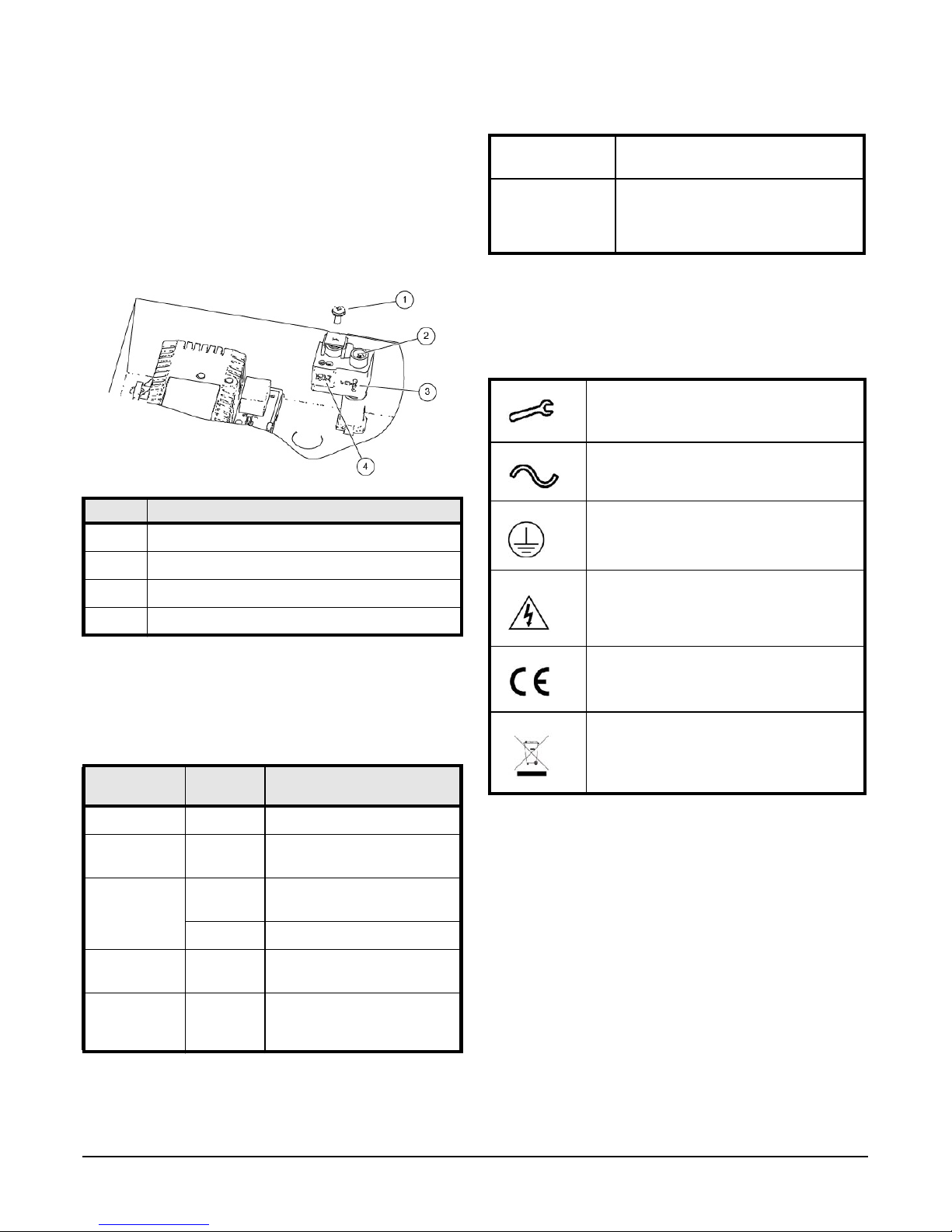

Tamper Arrangement
Local Indicators
MAINS LED
(Green)
FAULT LED (Red) Flashes (1s period) when: loss of mains,
If the output of the PSU fails, the cause of the failure should be investigated
(for example, short circuit load, connection of a deeply discharged battery).
Rectify the fault before restoring power to the PSU. Replace any fuses with
the correct fuse rating and type as needed.
Mains present
battery disconnected, output fuse fail, battery
fuse fail, output short circuit or low output
voltage
Explanation of Symbols (not all may apply)
Fault Indication
Mains Present
Callout Description
1 Retaining screw
2 Fine adjustment screw
3 Set position indicator
4 Tamper switch connections
Operating Instructions
In the event of loss of mains, a battery fault or a GEN fault, the
corresponding fault signal contacts will open (see Fault Diagnostic Table for
LED indicator status).
Fault Diagnostic Table
Red LED
(Fault)
OFF ON Normal. Battery fully charged.
One short flash
every second
Flashing:
one second ON
one second OFF
Green LED
(Mains)
ON Normal. Battery charging but not
ON Fault. Output fuse or battery fuse
OFF Fault. No mains, output fuse blown.
PSU Status
fully charged.
blown, or battery missing.
Protective Earth
Shock Risk - Isolate before attempting access
Certification Level
Do not dispose of in unsorted waste
Maintenance
This unit is intended for use by Service Personnel only. There are NO USER
SERVICEABLE parts inside.
There is no regular maintenance required of the PSU other than periodic
testing and replacement of the standby batteries. Reference should be made
to the battery manufacturer's documentation to determine typical/expected
battery life with a view to periodic replacement of the battery.
One short flash
every 3 sec
OFF OFF Fault. No mains, no output,
OFF Fault. No mains, battery supplying
load.
batteries disconnected or
completely discharged.
2 DOC-6004-EN-US— revision 1.001
Specifications Signaling Outputs
Input Specifications
Voltage (rated) 100 - 240 VAC
Voltage (operating) 90 - 264 VAC
Frequency 50 - 60 Hz
Maximum Current < 1.0A @ Full load
Mains Input Fuse T2.0A (20 mm 250 VAC HBC)
Output Specifications
Voltage 12.8 - 14.2 VDC (13.8 VDC nominal) on
mains power; 9.8 - 13.0 VDC on battery
standby
Maximum Load
Current
Ripple < 400 mV pk-pk max
Load Output Fuse F2.0A
Overload Electronic shutdown until overload or short
2 A
circuit removed (under mains power only)
Standby Battery
Battery Type 12 V Valve Regulated Lead Acid
Battery Capacity BS127N 8 Ah (max)
Battery Charging
Fuse protection
F2.0A
Mechanical
Enclosure Dimensions 330W x 275H x 80D (mm)
Weight (excluding battery) 3.3 Kg
Enclosure Material Steel - white powder coated RAL 9003
IP and IK Ratings IP30/IK08
Environmental
Temperature -10 to +40° C (operating) 75% RH
non-condensing; -20 to +80° C (storage)
Rating 0.1 0A @ 60 VDC 16 Ohm solid state relay
contacts, volt-free
GEN Fault
(general)
EPS Fault
(mains)
Tamper 0.5A @ 30 VDC volt-free contact. Open when lid is
Open if battery terminal voltage is < 11.5 VDC
(when operating in standby with no mains present),
battery not present or output and/or battery fuse
blown.
Open if Loss of mains for > 8s
open or enclosure removed from surface.
Connections
O/P +, - Power connection to equipment (observe polarity).
EPS Fault Relay output for mains fail. Open if loss of mains.
GEN Fault Relay output for General Fault. Open in fault
condition.
BATT +, - Connection to standby battery. Use cables provided
(observe polarity).
Compliance
This power supply unit meets the essential requirements of the following
European Directives:
• Low Voltage 2014/35/EU
• EMC 2014/30/EU
• WEEE 2012/19/EU
• RoHs2 2011/65/EU
Disposal of Product at End of Life
This product falls within the scope of EU Directives 2012/19/EU Waste
Electrical and Electronic Equipment (WEEE) and 2013/56/EU (Battery). At
the end of life, the product must be separated from the domestic waste
stream and disposed via an appropriate approved WEEE disposal route in
accordance with all national and local regulations.
Before disposal of the product, any batteries must be removed, and disposed
separately via an appropriate approved battery disposal route in accordance
with all national and local regulations. Package used batteries safely for
onward transport to your supplier, collection point or disposal facility.
Note: Risk of fire or explosion if bare battery wires are allowed to
touch.
3 DOC-6004-EN-US— revision 1.001

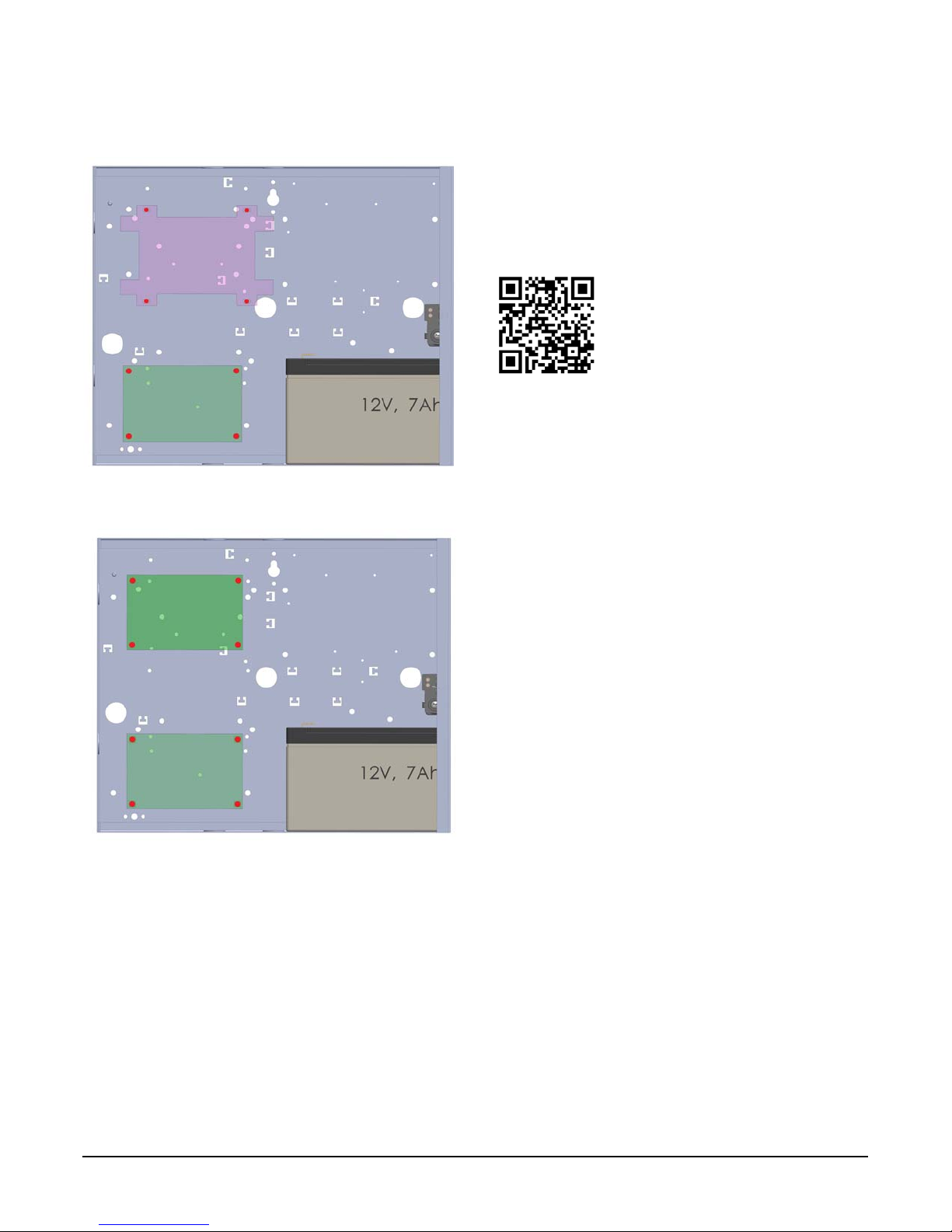

Controller and Module Layouts
One LNL-1300e/LNL-2210 and one LNL-1300/LNL-1300-U
Two LNL-1300 Single Reader Interface Modules or Two LNL-1300-U
Single Door IP Interface Modules
Product Warnings and Disclaimers
These products are intended for sale to, and installation by, an experienced
security professional. UTC Fire & Security cannot provide any assurance
that any person or entity buying its products, including any “authorized
dealer,” is properly trained or experienced to correctly install securityrelated products.
For more information on product warnings, refer to
https://www.utcfssecurityproducts.eu/productwarning/ or scan the following
code:
4 DOC-6004-EN-US— revision 1.001
