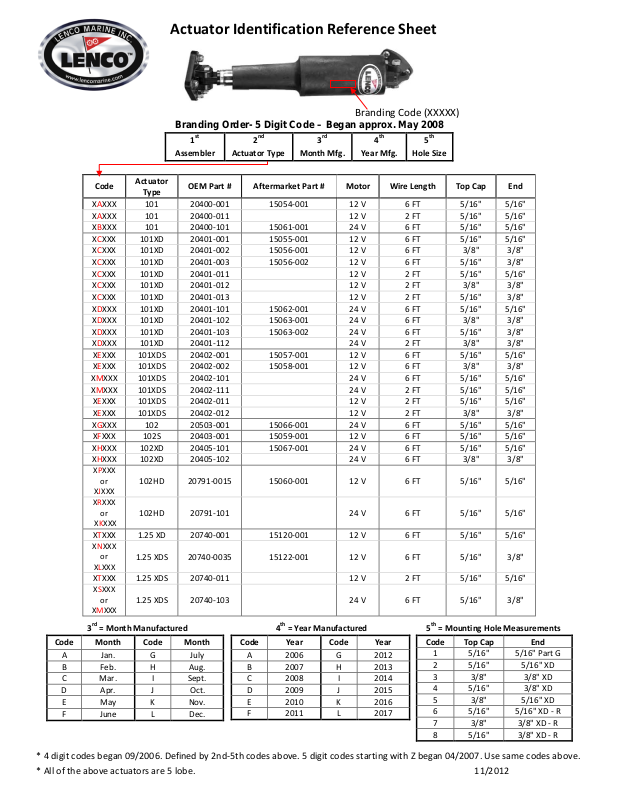

Actuator Identification Reference Sheet
st
XTXXX
1.25 XDS
20740-011
12 V
2 FT
5/16"
5/16"
C
Mar.
I
Sept.
E
May K Nov.
C
2008
I
2014
E
2010
K
2016
Branding Code (XXXXX)
Branding Order- 5 Digit Code – Began approx. May 2008
1
Assembler
Code
XAXXX 101 20400-001 15054-001 12 V 6 FT 5/16" 5/16"
XAXXX 101 20400-011 12 V 2 FT 5/16" 5/16"
XBXXX 101 20400-101 15061-001 24 V 6 FT 5/16" 5/16"
XCXXX 101XD 20401-001 15055-001 12 V 6 FT 5/16" 5/16"
XCXXX 101XD 20401-002 15056-001 12 V 6 FT 3/8" 3/8"
XCXXX 101XD 20401-003 15056-002 12 V 6 FT 5/16" 3/8"
XCXXX 101XD 20401-011 12 V 2 FT 5/16" 5/16"
XCXXX 101XD 20401-012 12 V 2 FT 3/8" 3/8"
XCXXX 101XD 20401-013 12 V 2 FT 5/16" 3/8"
XDXXX 101XD 20401-101 15062-001 24 V 6 FT 5/16" 5/16"
XDXXX 101XD 20401-102 15063-001 24 V 6 FT 3/8" 3/8"
XDXXX 101XD 20401-103 15063-002 24 V 6 FT 5/16" 3/8"
XDXXX 101XD 20401-112 24 V 2 FT 3/8" 3/8"
XEXXX 101XDS 20402-001 15057-001 12 V 6 FT 5/16" 5/16"
XEXXX 101XDS 20402-002 15058-001 12 V 6 FT 3/8" 3/8"
XMXXX 101XDS 20402-101 24 V 6 FT 5/16" 5/16"
XMXXX 101XDS 20402-111 24 V 2 FT 5/16" 5/16"
XEXXX 101XDS 20402-011 12 V 2 FT 5/16" 5/16"
XEXXX 101XDS 20402-012 12 V 2 FT 3/8" 3/8"
XGXXX 102 20503-001 15066-001 24 V 6 FT 5/16" 5/16"
XFXXX 102S 20403-001 15059-001 12 V 6 FT 5/16" 5/16"
XHXXX 102XD 20405-101 15067-001 24 V 6 FT 5/16" 5/16"
XHXXX 102XD 20405-102 24 V 6 FT 3/8" 3/8"
XPXXX
or
XJXXX
XRXXX
or
XKXXX
XTXXX 1.25 XD 20740-001 15120-001 12 V 6 FT 5/16" 5/16"
XNXXX
or
XLXXX
Actuator
Type
102HD 20791-0015 15060-001 12 V 6 FT 5/16" 5/16"
102HD 20791-101 24 V 6 FT 5/16" 5/16"
1.25 XDS 20740-0035 15122-001 12 V 6 FT 5/16" 3/8"
OEM Part # Aftermarket Part # Motor Wire Length Top Cap End
2nd
Actuator Type
3rd
Month Mfg.
4th
Year Mfg.
Hole Size
5th
XSXXX
or
XMXXX
Code Month Code Month
3rd = Month Manufactured
A Jan. G July
B Feb. H Aug.
D Apr. J Oct.
F June L Dec.
1.25 XDS 20740-103 24 V 6 FT 5/16" 3/8"
4th = Year Manufactured
Code Year Code Year
A 2006 G 2012
B 2007 H 2013
D 2009 J 2015
F 2011 L 2017
5th = Mounting Hole Measurements
Code Top Cap End
1 5/16" 5/16" Part G
2 5/16" 5/16" XD
3 3/8" 3/8" XD
4 5/16" 3/8" XD
5 3/8" 5/16" XD
6 5/16" 5/16" XD - R
7 3/8" 3/8" XD - R
8 5/16" 3/8" XD - R
* 4 digit codes began 09/2006. Defined by 2nd-5th codes above. 5 digit codes starting with Z began 04/2007. Use same codes above.
* All of the above actuators are 5 lobe. 11/2012
