Lenco Playlink-6 User Manual
Join us on fb.com/lenco
6
MULTIROOM WIRELESS HIFI SPEAKER
PLAYLINK 6 INSTRUCTION MANUAL
www.lencoplay.com
CONTENTS
LENCO PLAYLINK 6 OPERATION MANUAL
CONTENTS
Safety Instruction
Accessories
Unit description and operation
Front panel ………………………………………………………………………………
Rear panel ………………………………………………………………………………
Get ready
Minimum requirements ………………………………………………………………..
Download and Install the APP …………………………………………………………
Connect internet environment ……………………………………………………...
Play music ……………………………………………………………………………….

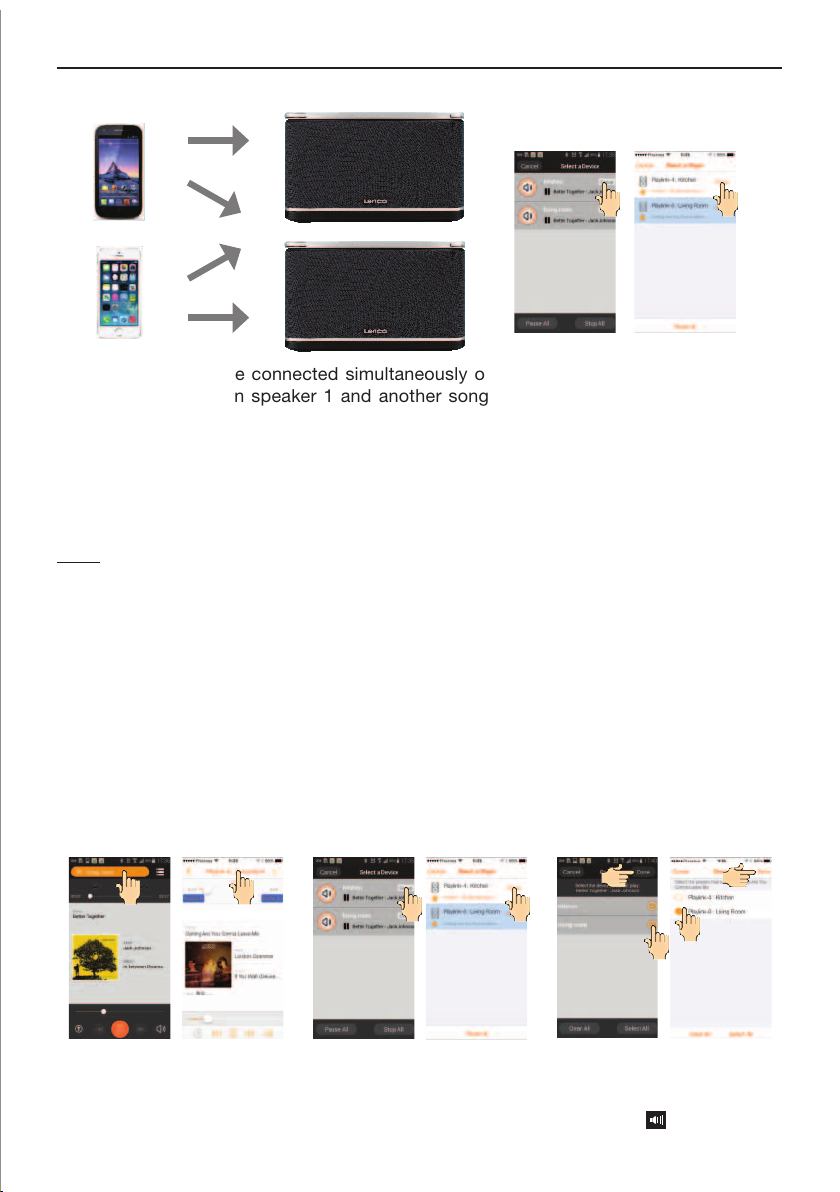

Multi-room operation……………………………………………………………...........
Settings
Direct mode
Bluetooth operation
DLNA router operation
Trouble shootings
2
2
3
3
4
5
5
5
5
7
9
10
11
12
12
13
Main Features
Cauton !
As for all radio systems, the performances greatly depends of the environment: The distance
to the router, the disposal of the rooms inside the house, the house construction materials are
all parameters which influence the performances of your system.
It’s recommended to place the router near the center of your house and not at one extremity.
For large habitations or with second floor and concrete slab, it could be necessary to add a
PLC system to conduct the internet signal to the router.
The traffic on your home network is also very important to ensure the correct operation of your
system: For example, if you watch video on-line, your router bandwidth could not be large
enough to transport correctly the sound to your speaker system. If you operate your system
in crowded WiFi environments like a company or use a corporate router, you also might be
affected by the traffic.
14
1EN -
LENCO PLAYLINK 6 OPERATION MANUAL
Before Start
1. Safety Instruction
Be sure to read the user's manual before starting the operation of the product.
Never open any part of the product to prevent a possible electric shock. No naked
fame sources, such as lighted candles, should be placed on the apparatus.
Place the product in a well-ventlated and no-heat environment.
IMPORTANT: This product is not an outdoor product! Only for indoor use!
To clean the speaker, disconnect it from AC source. Only use a soft cloth, never use
any solvent. To maintain the speaker fabric, do not use a vacuum cleaner.
When you do not use the product for a long time, make sure that power cord is
pulled out from the outlet. Also do not use a damaged power cord as it may cause
fire or electric shock. Do not touch the AC line and AC connectors with wet hands
as if may cause electric shock.
Do not put the heavy items on the product. That may cause damages not
supported by the warranty.
Do not place the product in a position where it is exposed to moisture or water
hazards. NEVER place any water carrying vessels such as vase, etc... near the unit.
Moving the unit to a hot area from a cold one will cause condensation. If
condensation occurs, leave the product in a warm, well ventilated area and do not
operate it for 30 minutes or one hour or until it has dried completely.
If the unit broken accidentally, do not touch any parts with your hands. Ware
protect on clothes, put the parts in a bag and remit it to an electronic shop or a
special waste place to treat electronic used goods.
Disposal: All electrical and electronic products including batteries should be
disposed of separately from the municipal waste stream via designated collection
facilities appointed by the government or the local authorities.
2. Accessories
User Manual Quick Guide Power cable
Note: The other languages (DE/NL/ES/FR/IT/PT/SC) of the manual are available on the website : lencoplay.com.
2 - EN
LENCO PLAYLINK 6 OPERATION MANUAL
3. Unit description and operation
Front panel
1. Speakers
2. Multi Function
LED
indicator
4
1
Sound output
This indicator displays several colors versus the speaker mode or status:
Permanently red: Stand-by mode. In this mode the power consumptio is < 0.5W; no function is available and need one minute to make the
speaker operational when wake up it from this mode.
Note: keep pressed the power key during 5 seconds to go to
Stand-by mode.
Flashing red: Network sharing mode. This mode allow you to get
the minimal power consumption keeping your WiFi network function
activated. The power consumption in this mode is 3W.
Yellow: Flashing Yellow indicates the speaker is booting. Please wait
until the LED stop flashing yellow to get your speaker operational.
White: WiFi mode:
In WiFi mode, the indicator can take 4 different status below:
Flashing slow: Booting and Waiting connection
→
Flashing fast: Connecting
→
Permanently white: a. Connected to the home network;
→
b. Direct mode connection
Blue: Bluetooth mode (BT)
Flashing blue: Waiting for BT connection
→
Permanent blue: Connected
→
Green: Line-IN mode
Purple: Flashing purple indicates you adjust the maximum preset
volume
2
3
3. Power Key
4. +/-
Press this key to Power-ON the box or go to Stand-By mode.
To preset the maximum volume following your allowance.
3EN -
LENCO PLAYLINK 6 OPERATION MANUAL
Rear panel
5 6 7 8 9 10 11
5. Stereo
Switch
6. MODE key
7. Quick
Connect
8. DIR MODE
/RESET
9. AUX-IN
10. Ethernet
11. AC IN
4 - EN
To configurate your speaker in Stereo Mode (ST) or Left mode (L) or
Right mode (R). If you use two identical speaker you can affect one for
right channel and another one for Left Channel.
Press this key allows to select: Bluetooth/ Line-IN/ Wi-Fi modes.
For easy connection to your home network. Please insert a small
isolated tool (like a wood toothpick) and press the inside key to start
the connection process.
This key has a double function:
Short press: set the speaker in DIRECT MODE. In this mode you can
stream music directly without the need of a local wireless network.
Long press (more than 5 seconds): RESET: Return to factory setting
(delivery status).
Aux Line input (Analog, 3.5 mm Jack), with auto detection connection.
Ethernet LAN connection to connect your speaker to a cable LAN
instead of Wi-Fi network.
Connector to plug the AC cable delivered with your speaker.
Important: Only use the cable delivered with the speaker, never
another one!
LENCO PLAYLINK 6 OPERATION MANUAL
4. Get ready
What are you able to do with a DLNA compatible speaker?
Because these are “just” speakers connected to “something” you do need to select and
connect your own player! Players can be smart phones, tablets or other computers. On
these players you must download your APP’s that will play your media, internet radio or
services like Spotify. We recommend the use of:
- Playlink App for media player
- All play audio for internet Radio
- Spotify for services.
1. Minimum requirements
Android Phone ( 4.1 minimum) or iPhone (from iPhone 4 with IOS 7.0 and later).
- Router WiFi 802.11n, with WPA2-PSK encryption (AES)
- ADSL or Optical / Internet connection
- For Multiroom or High Resolution playing, a 5 GHz multimedia router (speed> 600Mbps)
is highly recommended.
- For the best operation, the router must be placed at the center of the house or
apartment.
2. Download and Install the “Lenco PLAYLINK” App to your mobile phone:
Open an account or use your existing parameters to connect on Google or Apple stores.
Android Phone : Go to Google Store and look for PLAYLINK App, then download it.
iPhone: Go to Apple Store and look for PLAYLINK App, then download it
Open the file manager and install the App.
3. Connect your speaker into your internet environment:
Install your speaker in a dry and cool place of your living room. Care to place it on a stable
support (not on another electric device producing heat).
Install the speaker in a place you are sure to receive the Wifi Signal from your Home WiFi
router.
Connect the speaker to a normalized AC outlet with the delivered AC cable:
The Power key: Press the Power key The LED indicator turns to flashing yellow.
Wait the LED turns to flashing white to get your Speaker Wi-Fi visible by other WiFi
devices.

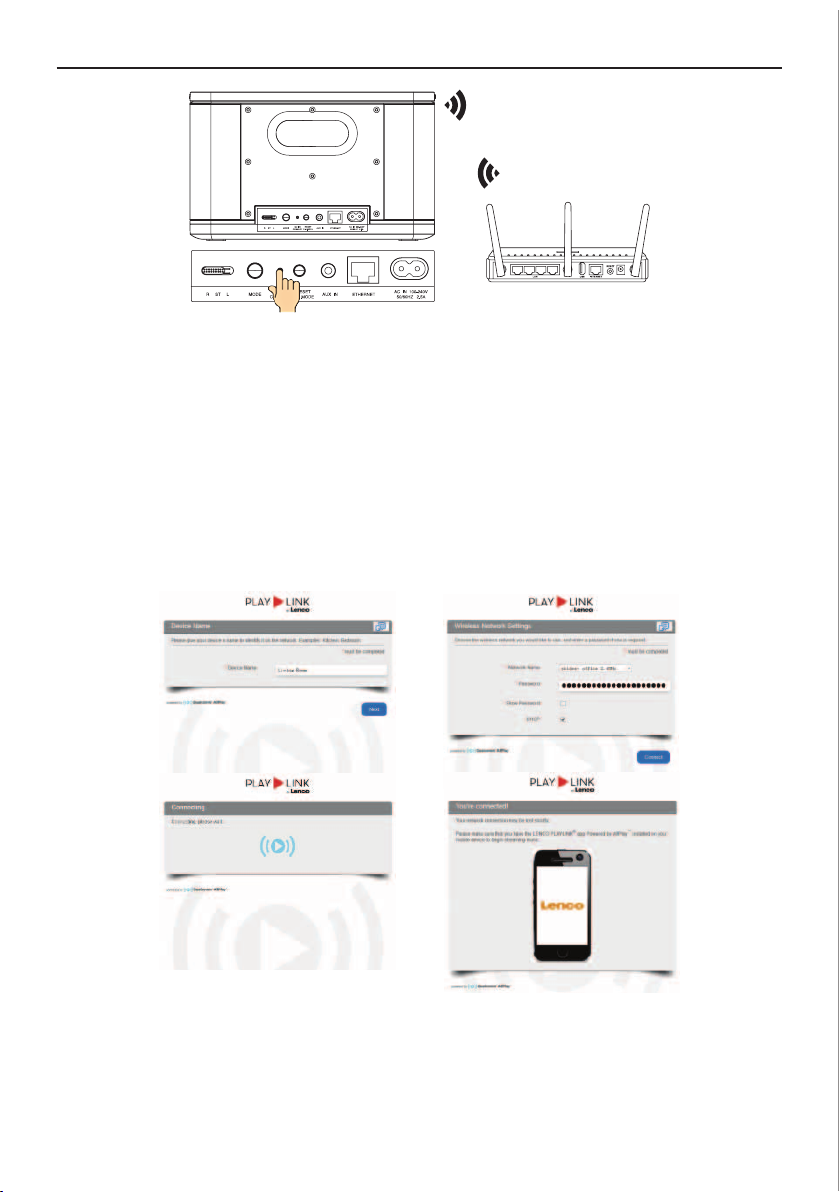

3.1: Connect your speaker with the “Quick Connect” key:
Your home router must have a WPS key function. Please check your router instruction manual first and look for WPS key symbol.
5EN -
