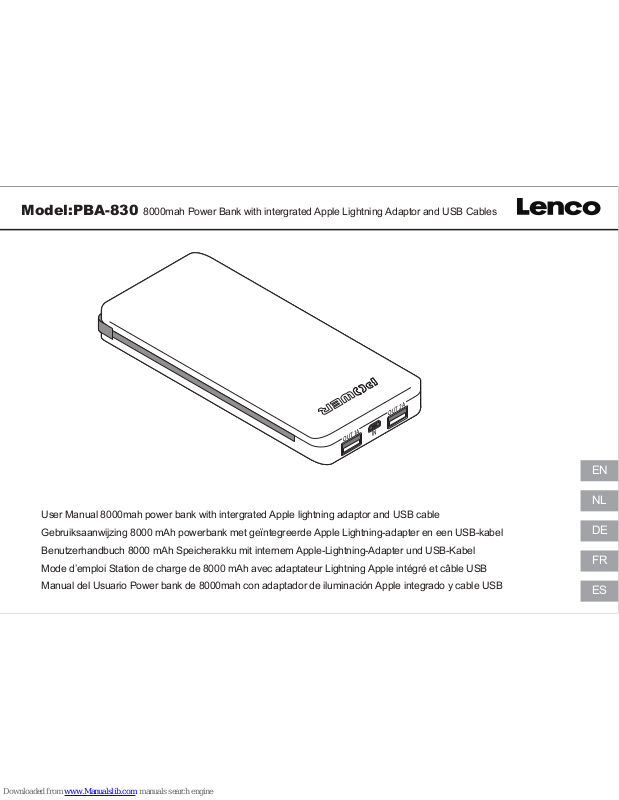

LENCO PBA-830 User Manual
Model:PBA-830
8000mah Power Bank with intergrated Apple Lightning Adaptor and USB Cables
User Manual 8000mah power bank with intergrated Apple lightning adaptor and USB cable
Gebruiksaanwijzing 8000 mAh powerbank met geïntegreerde Apple Lightning-adapter en een USB-kabel
Benutzerhandbuch 8000 mAh Speicherakku mit internem Apple-Lightning-Adapter und USB-Kabel
Mode d’emploi Station de charge de 8000 mAh avec adaptateur Lightning Apple intégré et câble USB
Manual del Usuario Power bank de 8000mah con adaptador de iluminación Apple integrado y cable USB
EN
NL
DE
FR
ES
O
U
T
1A O
U
T 2
A
I
N
EN
NL
DE
FR
ES
Index
English·········································································································································· 03~12
Nederlands··································································································································· 13~22
Deutsch········································································································································ 23~33
Français········································································································································ 34~44
Español········································································································································ 45~54
0202
Safety warnings
Intended use
The spare battery is designed to recharge various battery operated mobile devices with a charging voltage of 5V, such as
mobile phones, smartphones, MP3/MP4 players, digital cameras, tablets, etc.
It is intended for private use and is not suitable for commercial purposes.
The spare battery is designed for use in dry indoor and outdoor spaces. Do not expose it to rain or moisture.
The spare battery itself can be charged with a PC or with a USB mains adapter.
DANGER to children
•Children are not aware of the risks involved when electrical devices are handled incorrectly. Therefore, keep the product
out of the reach of children.
•This product contains small parts (adapters). If swallowed, these can be fatal. Therefore store the spare battery power
bank and all accessories well out of the reach of infants.
•Keep all packaging material out of the reach of children. There is a risk of suffocation!
WARNING - risk of fire
•The spare battery and mobile end devices become warm while charging. Do not cover the devices while in use. Do not
use the spare battery in the vicinity of explosive gases.
WARNING - risk of injury
Only charge mobile devices that have built-in batteries with a minimum input voltage of 5 V. Do not attempt to connect other
devices or to charge batteries directly.
EN
NL
DE
FR
ES
03
•Conventional batteries must not be charged!
•Do not expose the device to naked flames, water, damp surroundings, high temperatures, or direct sunlight, etc. There is
the risk of overheating, exploding or short-circuiting.
•Protect the device from impacts, collisions, vibrations and other mechanical influences.
•Do not disassemble the device. Do not make any modifications to the device. Improper repairs can lead to a considerable
risk of injury to the user. Only have repairs to the device carried out by a specialist workshop, or contact the customer care service.
•The rechargeable battery cannot be replaced and you should not attempt to change it yourself. If the battery is defective,
please contact the customer care service.
CAUTION – material damage
•Do not use any caustic, aggressive or abrasive products for cleaning.
•Only use the device in surrounding temperatures of 0°C to +45°C and with humidity of 40% to 70%.
EN
NL
DE
FR
ES
Integrated micro USB
charging cable
Indicator light
charge status display
On/Off switch
O
U
T
1A O
U
T
2
A
I
N
Integrated
USB charging
cable
USB outlet
OUT 5V/2.4A
Micro USB input IN
USB outlet OUT 5V/1A
04
EN
NL
DE
FR
ES
English
English
Integrated micro USB charging cable
Integrated micro USB charging cable
Integrated USB charging cable Integrated USB charging cable
USB outlet OUT 5V/1A
USB outlet OUT 5V/1A
Indicator light charge status display
Indicator light charge status display
On/Off switch
On/Off switch
USB outlet OUT 5V/2.4A
USB outlet OUT 5V/2.4A
Micro USB input
IN
Micro USB input
IN
Dear Customer
Your new spare battery power bank is the perfect accessory when you spend an extended period of time
without access to an electricity supply.
With a charging voltage of 5 V, you can use it to charge up various battery-operated end devices such as
smartphones, digital cameras, MP3 players, tablets, etc. Depending on the battery capacity of the devices
they can be charged multiple times, until the spare battery is empty.
English
English
Adapter Apple® Lightning
Adapter Apple® Lightning
USB charging cable
USB charging cable
Adapter
Apple® Lightning
USB charging
cable
05
The spare battery power bank has the following advantages:
•smart protection against: overloading, exhaustive discharging, overvoltage and short-circuiting
•low self-discharge
•one battery charge (8,000 mAh) is enough to charge, for example, a mobile drive with a battery capacity of 500mAh
approx. 14 – 16 times or a mobile device with a battery capacity of 2,000 mAh approx. 3 – 4 times
•2 USB ports allowing you to charge 2 mobile devices at the same time with normal (output OUT 5V/1A) or high (output
OUT 5V/2.4A) power
•2 built-in charging cables in the casing (1x USB and 1x micro USB).
Use
•To ensure the device functions smoothly it is best to charge it up regularly.
•When the internal capacity of the built-in battery in the spare battery is too low or if it encounters electronic problems,
the spare battery will switch itself off to protect your battery-operated mobile device from any damage.
•If the spare battery is not connected to any other mobile device, it will turn itself off automatically after a few seconds.
Charging the spare battery power bank via USB
You can charge the spare battery with the built-in charging cable or the separate charging cable provided.
Pull the built-in charging cable out of the sides of the spare battery.
EN
NL
DE
FR
ES
06
EN
NL
DE
FR
ES
Plug the USB connector on the charging cable into a free USB port on your computer or use a mains adapter with a
USB socket (not included in delivery).
It will start charging immediately.
PC/ Mac
US B
English English
PC/Mac USB
PC/Mac USB
English English
PC/Mac USB
PC/Mac USB
OUT 1A OUT 2A
IN
PC/Mac
US B
07

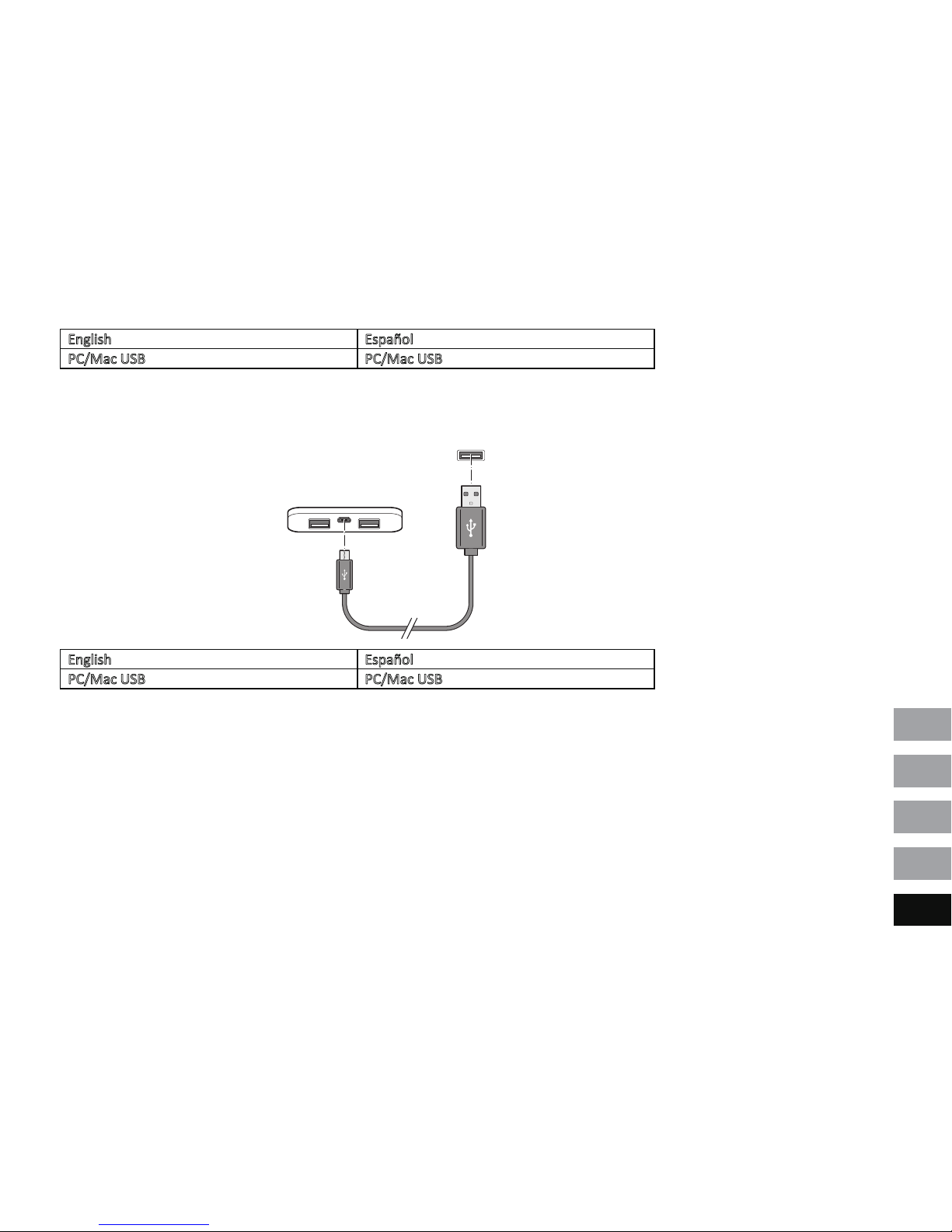

Or connect the supplied charging cable with the micro USB plug to the micro USB input IN on the spare battery. Then
plug the USB connector into a free USB port on your computer or use a mains adapter with a USB socket (not included
in delivery). It will start charging immediately.
The blue indicator lights on the charging display show the current capacity of the spare battery while it is charging
(P=20% - O=40% - W=60% - E=80% - R=100%):
•Indicator light is off - charging capacity not reached
•Indicator light is flashing - being charged
•Indicator light lights up - capacity reached
Once all five indicator lights are lit up, the spare battery is fully charged.
Because of the lower voltage, charging the spare battery via computer takes significantly longer than if you charge the
spare battery using a mains adapter.
Charging battery-operated mobile devices
You should also refer to the instruction manual of your mobile device.
EN
NL
DE
FR
ES
OUT 1A OUT 2A
IN
08
EN
NL
DE
FR
ES
•Depending on which charging capacity you would like, plug the USB connector of the charging cable supplied into either
the outlet OUT 5V/1A or OUT 5V/2.4A on the spare battery. Connect the micro USB plug to your mobile device.
If your mobile device has a mini USB or an Apple® Lightning connection, use the appropriate adapter provided.
It begins to charge automatically.
•If the device does not automatically begin to charge, briefly press the On/Off switch on the side of the spare battery to
activate charging.
The blue indicator lights on the charging display show the current capacity of the battery while it is charging (P=20% - O
=40% - W=60% - E=80% - R=100%):
•Indicator light lights up - capacity still remaining
•Indicator light is off - already empty
If all five indicator lights are off, the spare battery is completely empty and must be charged up again before the next use.
The spare battery switches itself off automatically once the mobile device connected to it is fully charged.
•If you want to stop charging before the mobile device is fully charged, briefly press the On/Off button on the spare
battery twice until the indicator lights go out, and then remove the charging cable from the device.
•After disconnecting the mobile device from the spare battery, the indicator lights of the spare battery will flash or light
up for approx. 30 seconds.
•If you connect mobile devices with a power consumption of less than 85 mA to be charged, the spare battery will
switch itself off automatically after a short time because it does not recognise the device - see section
“Problems/solutions”.
09
EN
NL
DE
FR
ES
Charging status display
To see the charging status of the spare battery, briefly press the On/Off button once.
The charging status will be shown for approx. 30 seconds:
•Indicator light lights up - capacity still remaining
•Indicator light is off - already empty
Problems/Solutions
The device is not charging
Are the device and the spare battery connected correctly?
Is the spare battery switched on? If necessary, briefly press the On/Off switch once to turn the spare battery on.
Is the spare battery charged up? If none of the indicator lights lights up, the spare battery is empty.
If you are using the spare battery near strong magnetic fields (e.g. from any television devices or speakers), the
charging process may malfunction. Change the location of the spare battery and try connecting it with the mobile
device again.
The spare battery switches itself off automatically after a short time
Does the device connected to it have a power consumption of less than 85 mA and therefore is not recognized? In
this case, connect another device into the second output on the spare battery so that the current strength is above 85 mA.
10
EN
NL
DE
FR
ES
Technical specifications
Model: PBA-830
Rechargeable battery: lithium-ion, 8,000mAh
Input: DC 5V 2A
Output: DC 5V 1A, DC 5V 2.4A
Charging time: approx. 4h (+/- 0.5h)
Ambient conditions: 0 to +45°C
40 to 70% rel. humidity
Guarantee
Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both
during and after the warranty period) you should contact your local dealer.
Important note: It is not possible to send products that need repairs to Lenco directly.
Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.
This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer
will be voided.
Disclaimer
Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction,
specifications and pictures in this documentation may differ slightly from your particular situation. All items described
in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may
be obtained from the description made in this manual.
11
EN
NL
DE
FR
ES
Disposal of the Old Device
This symbol indicates that the relevant electrical product or battery should not be disposed of as general
household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose
them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries.
In so doing, you will help to conserve natural resources and improve standards of environmental protection in
treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).
CE Marking
Products with the CE marking comply with the EMC Directive (2014/30/EU) and the Low Voltage Directive
(2014/35/EU) issued by the Commission of the European Community.
Hereby, Lenco Benelux BV; Thermiekstraat la, 6361 HB Nuth, The Netherlands, declares that this product is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.The declaration of conformity may
be consulted via techdoc@lenco.com
Service
For more information and helpdesk support, please visit www.lenco.com
Lenco Benelux BV; Thermiekstraat la, 6361 HB, Nuth, The Netherlands.
12
EN
NL
DE
FR
ES
Veiligheidswaarschuwingen
Bedoeld gebruik
De externe batterij is ontworpen om verschillende op batterijen werkende mobiele apparaten met een oplaadspanning
van 5V op te laden, zoals mobiele telefoons, smartphones, MP3/MP4-spelers, digitale camera's, tablets enz.
Het is ontworpen voor particulier gebruik en is niet geschikt voor commerciële doeleinden.
De externe batterij is ontworpen voor gebruik in droge binnen- en buitenruimten. Niet blootstellen aan regen of vocht.
De externe batterij zelf kan worden opgeladen met een PC of met een USB-lichtnetadapter.
GEVAAR voor kinderen
•Kinderen zijn zich niet bewust van de risico's die zij lopen bij het onjuist omgaan met elektrische apparaten. Houd
daarom het product buiten het bereik van kinderen.
•Dit product bevat kleine onderdelen (adapters). In het geval van inslikken, kan dat fataal zijn. Berg daarom de externe
batterij/powerbank en alle accessoires buiten het bereik van kleine kinderen op.
•Houd al het verpakkingsmateriaal buiten het bereik van kinderen. Er bestaat verstikkingsgevaar!
WAARSCHUWING - kans op brand
•De externe batterij en mobiele apparaten worden warm tijdens het opladen. Bedek daarom deze apparaten niet tijdens
het gebruik. Gebruik de externe batterij niet in de nabijheid van explosieve gassen.
WAARSCHUWING - letselrisico's
Laad alleen mobiele apparaten op die ingebouwde batterijen hebben met een minimale ingangsspanning van 5 V.
Probeer niet om andere apparaten aan te sluiten of om batterijen rechtstreeks op te laden. Gewone batterijen mogen
niet worden opgeladen!
13
EN
NL
DE
FR
ES
•Stel het apparaat niet bloot aan open vuur, water, een vochtige omgeving, hoge temperaturen of direct zonlicht enz.
Het risico van oververhitting, exploderen of kortsluiting bestaat.
•Bescherm het apparaat tegen stoten, botsingen, trillingen en andere mechanische invloeden.
•Haal het apparaat niet uit elkaar. Breng geen wijzigingen aan het apparaat aan. Ondeskundige reparaties kunnen
leiden tot aanzienlijke letselrisico's voor de gebruiker. Laat alleen een gespecialiseerde onderhoudsdienst het product
repareren of neem contact op met de klantenservice.
•De oplaadbare batterij kan niet worden vervangen en u mag niet zelf proberen het te vervangen. Als de batterij defect
is, neem dan contact op met de klantenservice.
VOORZICHTIG - materiële schade
•Gebruik voor het reinigen geen bijtende, agressieve of schurende producten.
•Gebruik het apparaat uitsluitend in omgevingstemperaturen van 0 °C tot +45 °C met een vochtigheidsgraad van 40%
tot 70%.
Integrated micro USB
charging cable
Indicator light
charge status display
On/Off switch
O
U
T
1A O
U
T
2
A
I
N
Integrated
USB charging
cable
USB outlet
OUT 5V/2.4A
Micro USB input IN
USB outlet OUT 5V/1A
14
EN
NL
DE
FR
ES
Geachte klant,
Uw nieuwe externe batterij/powerbank is de perfecte accessoire als u voor langere tijd geen toegang hebt tot
een elektriciteitsvoorziening.
Met een oplaadspanning van 5 V, kunt u deze gebruiken om verschillende op batterijen werkende apparaten
op te laden, zoals smartphones, digitale camera's, MP3-spelers, tablets enz. Afhankelijk van de batterijcapaciteit
van de apparaten kunnen zij meerdere keren worden opgeladen, totdat de externe batterij leeg is.
English
Nederlands
Integrated micro USB charging cable
Geïntegreerde micro-USB-oplaadkabel
Integrated USB charging cable
Geïntegreerde USB-oplaadkabel
USB outlet
OUT 5V/1A
USB-uitgangsspanning
5 V/1 A
Indicator light charge status display
Indicatielichtje weergave oplaadstatus
On/Off switch
On/Off-schakelaar
USB outlet OUT 5V/2.4A
USB-uitgangsspanning 5 V/2,4 A
Micro USB input
IN
Micro-USB-ingang
IN
Adapter
Apple® Lightning
USB charging
cable
English
Nederlands
Adapter Apple® Lightning
Apple® Lightning-adapter
USB charging cable
USB-oplaadkabel
15
EN
NL
DE
FR
ES
De externe batterij/powerbank heeft de volgende voordelen:
•slimme bescherming tegen: overbelasting, uitputtend ontladen, overspanning en kortsluiting
•lage zelfontlading
•één acculading (8000 mAh) is genoeg om bijvoorbeeld een mobiel schijfstation met een batterijcapaciteit van 500 mAh
ongeveer 14 tot 16 keer op te laden of een mobiel apparaat met een batterijcapaciteit van 2000 mAh ongeveer 3 tot 4 keer
•2 USB-poorten maken het mogelijk 2 mobiele apparaten tegelijk op te laden met de normale (5V/1A) of hoge (5V/2,4A)
oplaadfaciliteit.
•2 ingebouwde oplaadkabels in de behuizing (1 x USB en 1 x micro-USB).
Gebruik
•Om ervoor te zorgen dat het apparaat goed functioneert, dient u het regelmatig op te laden.
•Als de interne capaciteit van de ingebouwde batterij in de externe batterij te laag is of wanneer deze elektronische
problemen tegenkomt, zal de externe batterij zichzelf uitschakelen om uw mobiele apparaat tegen eventuele schade te
beschermen.
•Als de externe batterij niet is aangesloten op een ander mobiel apparaat, zal hij zichzelf na enkele seconden automatisch
uitschakelen.
Externe batterij/powerbank via USB opladen
U kunt de externe batterij opladen met de ingebouwde oplaadkabel of met de meegeleverde afzonderlijke oplaadkabel.
Trek de ingebouwde oplaadkabel uit de zijkant van de externe batterij.
16
EN
NL
DE
FR
ES
Steek de USB-connector van de oplaadkabel in een vrije USB-poort van uw computer of gebruik een lichtnetadapter
met een USB-aansluiting (niet meegeleverd).
Het opladen zal direct beginnen.
PC/ Mac
US B
OUT 1A OUT 2A
IN
PC/Mac
US B
English
Nederlands
PC/Mac USB PC/Mac USB
English
Nederlands
PC/Mac USB
PC/Mac USB
17
Loading...
