Lemon iT 717 Instruction Manual

1

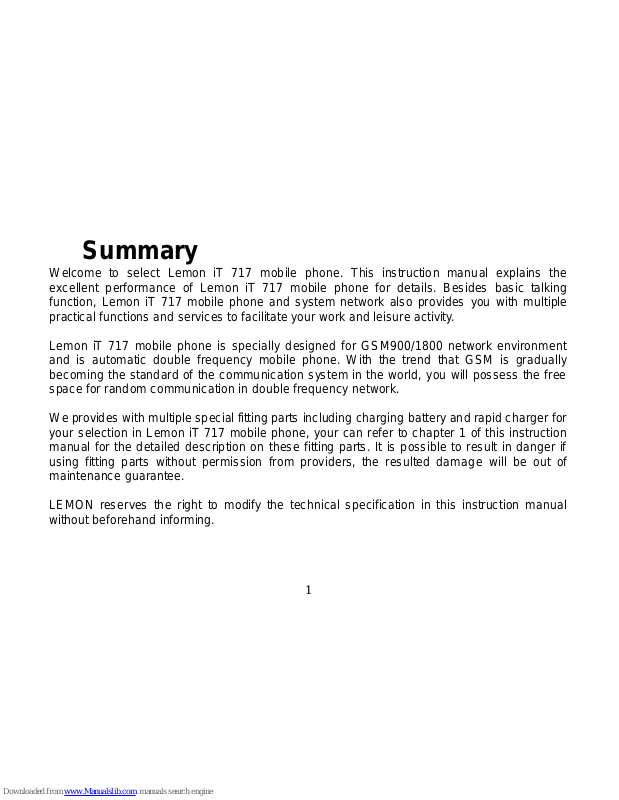

Summary

Welcome to select Lemon iT 717 mobile phone. This instruction manual explains the
excellent performance of Lemon iT 717 mobile phone for details. Besides basic talking
function, Lemon iT 717 mobile phone and system network also provides you with multiple
practical functions and services to facilitate your work and leisure activity.

Lemon iT 717 mobile phone is specially designed for GSM900/1800 network environment
and is automatic double frequency mobile phone. With the trend that GSM is gradually
becoming the standard of the communication system in the world, you will possess the free
space for random communication in double frequency network.

We provides with multiple special fitting parts including charging battery and rapid charger for
your selection in Lemon iT 717 mobile phone, your can refer to chapter 1 of this instruction
manual for the detailed description on these fitting parts. It is possible to result in danger if
using fitting parts without permission from providers, the resulted damage will be out of
maintenance guarantee.

LEMON reserves the right to modify the technical specification in this instruction manual
without beforehand informing.

2

Table of Contents

1 For Your Safety……………………………………………………………………………..6

1.1 Device Safety …………………………………………………………...……………6

1.2 About Your Device……………………………………………………………………7

1.3 Network Services………………………………………………………………………7

1.4 Enhancements, Batteries, and Chargers……………………………………………8

2 Device keypad and function………………………………………………………….......9

2.1 Device Keypad Appearance…………………………………………………………9

2.2 Device Keypad Function ……………………………………………………………9

3 Essential Indicators…………………………………………………………..………….12

3.1 ICO List ………………………………………………………………………….…12

4 Battery information……………………………………………………………………..14

4.1 Charging and Discharging…………………………………………………………14

4.2 Operate Battery………………………………………………………………………15

5 SIM Card………………………………........……………………………………………..16

5.1 Install SIM Card………………………………………………………………………16

5.2 Take the SIM Card out……………………………………………………………16

6 T-flash Card Use Guide…………………………………………………………………..16

6.1 Install/Take out The T-flash Card……………………………………………………16

6.2 T-flash Card use Guide………………………………………………………………17

7 Device Use Guide………………………………………………………………………..18

7.1 Characteristic function………………………………………………………………18

8 Make Calls………………………………………………………………………………..20

8.1 Make Calls…………………………………………………………………………..20

8.2 Answer Calls …………………………………………………………………………21

3

8.3 Call Option……………………………………………………………………………21

9 Messaging…………………………………………………………………………..…….31

9.1 Message…………………………………………………………………………..………31

9.2 Email…………….................………………………………………………………36

9.3 Broadcast Message…………………………………………………………………37

10 Phone Book………………………………………………………………………………..….37

10.1 Quick Search…………………………………………………………………….…37

10.2 Search Entry…………………………………………………………………….……37

10.3 Add New Entry………………………………………………………………………38

10.4 Copy All…………………………………………………………………………..…38

10.5 Delete……………………………………………………………………………..…38

10.6 Caller Group…………………………………………………………………………39

10.7 Extra Number…………………………………………………………………….…39

10.8 Settings………………………………………………………………………….…39

10.9 Caller Picture………………………………………………………………………39

10.10 Caller Ring Tone…………………………………………………………………39

11 Call Center………………………………………………………………………………...40

11.1 Call history……………………………………………………………………….40

11.2 Call settings………………………………………………………………………..40

12 Multimedia…………………………………………………………………………….….…..42

12.1 Camera.........……………………………………………………………………….42

12.2 Image viewer………………………………………………………………………44

12.3 Video Recorder………………………………………………………………….….44

12.4 Video Player………………………………………………………………………..45

12.5 Photo Editor
12-6 Audio Player
12-7 AB Repeater

4

12-8 Sound Record
12-9FM Radio
12-10 Schedule FM Record
12-11Melody composer
12-12Side show

13 File Manager……………………………………………………………………..……….48
14 Settings…………………………………………………………………………….………..49

14.1 Dual SIM settings …………....……………………………………………………….49

14.2 Phone setup………………………………………………………………………..50

14.3 Network Setup……………………………………………………………………51

14.4 Security Setup…………………………………………………………………….51
14-5 Connectivity
14-6 Restore factory settings
14-7Sound Effects

15 User profiles……………………….……………………………………………………….52

16 Organizer……………….………………………………………….......…….............…….53

16.1 Calendar:…………………………………………………………………...…….…53

16.2 Tasks………………………………………................................………….…53

16.3 Alarm……………………………………………………................…….…………54

16.4 World Clock………………………………………………………….……………54

16.5 Notes

16.6 Synchronization

16.7 Phone sync

17 Extra

17-1Calculator
17-2Unit converter

5

17-3Currency converter
17-4Stopwatch
17-5Ebook reader
17-6Answer machine

18JAVA

18-1JAVA
18-2JAVA Settings
18-3JAVA default security

19 Security & Help

19.1 Security ………………………………………………………………………………57

19.2 Help ………………………………………………………………………………….58

1 For Your Safety

1-1 Device Safety

Read these simple guidelines. Not following them may be dangerous or illegal. Read the
complete user guide for further information.

◆SWITCH ON SAFELY Do not switch the device on when wireless phone use is prohibited or

when it may cause interference or danger.

6

◆ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate

the vehicle while driving. Your first consideration while driving should be road safety

◆INTERFERENCE All wireless devices may be susceptible to interference, which could affect

performance.

◆SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the device off near medical

equipment.

◆SWITCH OFF IN AIRCRAFT Follow any restrictions. Wireless devices can cause

interference in aircraft.

◆SWITCH OFF WHEN REFUELING Do not use the device at a refueling point. Do not use

near fuel or chemicals.

◆SWITCH OFF NEAR BLASTING Follow any restrictions. Do not use the device where

blasting is in progress.

◆USE SENSIBLY Use only in the normal position as explained in the product documentation.

Do not touch the antenna unnecessarily.

◆QUALIFIED SERVICE Only qualified personnel may install or repair this product.

◆ENHANCEMNTS AND BATTERIES Use only approved enhancements and batteries. Do not

connect incompatible products.

◆WATER-RESSTANCE Your device is not water-resistant. Keep it dry.

◆BACK-UP COPIES Remember to make back-up copies or keep a written record of all

important information.

◆CONNECTI TO OTHER DEVICES When connecting to any other device, read its user guide

for detailed safety instructions. Do not connect incompatible products.

◆EMERGENCY CALLS Ensure the phone function of the device is switched on and in service.

The keypad is active only in the Fold open mode. Touch as many times as needed to clear
the display and return to the start screen. Enter the emergency number, then touch. Give
your location. Do not end the call until given permission to do so.

7

1-2 About Your Device

The wireless device described in this guide is approved for use on the EGSM 900/1800 or
850/1900 networks. Contact your service provider for more information about networks. When
using the features in this device, obey all laws and respect privacy and legitimate rights of
others.

When taking and using images or video clips, obey all laws and respect local customs as well
as privacy and legitimate rights of others.
Warning: To use any features in this device, other than the alarm clock, the device must be
switched on. Do not switch the device on when wireless device use may cause interference or
danger.

1-3 Network Services

To use the device you must have service from a wireless service provider. Many of the features
in this device depend on features in the wireless network to function. These network services
may not be available on all networks or you may have to make specific arrangements with your
service provider before you can utilize network services. Your service provider may need to
give you additional instructions for their use and explain what charges will apply. Some
networks may have limitations that affect how you can use network services. For instance,
some networks may not support all language-dependent characters and services. Network
features are designated in this guide by (network service).

This Lemon iT 717 device is designed to be compatible with wireless service networks in many
countries. Not all networks support all features offered in this device. For instance, Video Calls,

8

Video Sharing, Push-to-Talk, and Instant Messaging are not compatible with the networks in
the United States of America. Your service provider may have requested that certain features
be disabled or not activated in your device. If so, they will not appear on your device menu.
Your device may also have been specially configured. This configuration may include changes
in menu names, menu order, and icons. Contact your service provider for more information.

1-4 Enhancements, Batteries, and Chargers

Always switch the device off and disconnect the charger before removing the battery. Check
the model number of any charger before use with this device.

Warning: Use only batteries, chargers, and enhancements approved by Lemon iT 717 for use
with this particular model. The use of any other types may invalidate any approval or warranty,
and may be dangerous. For availability of approved enhancements, please check with your
dealer. When you disconnect the power cord of any enhancement, grasp and pull the plug, not
the cord.

2 Device key-press and function

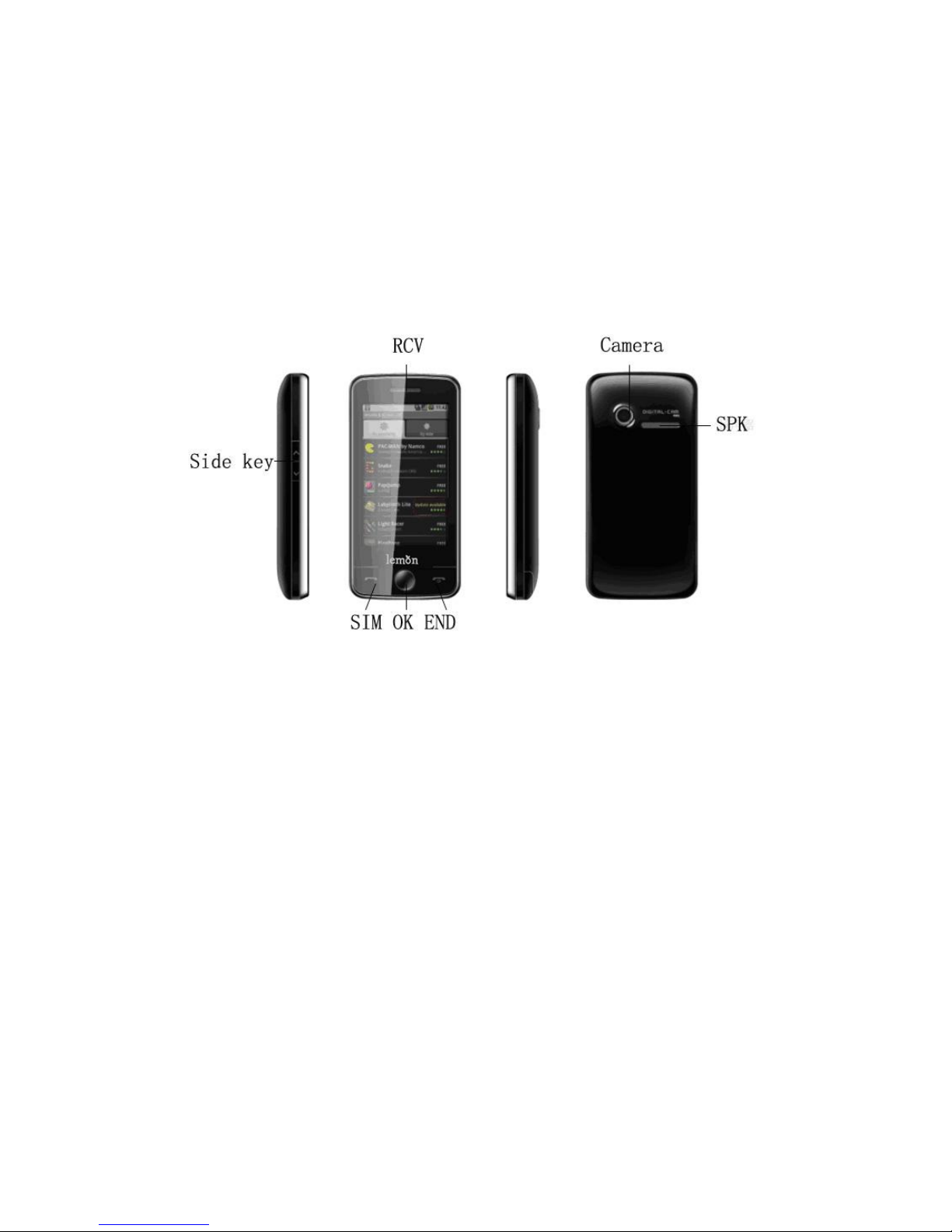

2-1 Device Key-press Appearance:

9

2-2 Device Key-press Function:

■1. [OK key]：Press left function key to show main menu in standby mode

■2. [SIM Key] Use this key to make call and receive call. Check the call records

■3. End Key

⑴. End the call.
⑵. Back to standby mode.
⑶. Refuse the incoming call.
⑷. Long last pressing to power on/off.

10

■ 4. [Side key]
Up side key: to turn up volume

Down side key：to turn down volume

3 Essential Indicators

3-1 ICO List

ICO

Specification

Network signal intension

Keypad locked

Vibration

Vibration &Ringtone

Ringtone

Vibration first& Ringtone second

Plug handsfree

SMS

Email

11

Start Bluetooth

EDGE

Set and start alarm

Start Stopwatch

Start termless transfer

Sending message

Battery message

Unanswered Call

4 Battery Information

4-1 Charging and Discharging

◆Your device is powered by a rechargeable battery. The full performance of a new battery is
achieved only after two or three complete charge and discharge cycles. The battery can be
charged and discharged hundreds of times but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, replace the battery.

◆Use only Lemon iT 717 Solution approved batteries, and recharge your battery only with

12

Lemon iT 717Solution approved chargers designated for this device.

If a replacement battery is being used for the first time or if the battery has not been used for a
prolonged period, it may be necessary to connect the charger then disconnect and reconnect
it to begin charging the battery.

◆Unplug the charger from the electrical plug and the device when not in use. Do not leave a
fully charged battery connected to a charger, since overcharging may shorten its lifetime. If
left unused, a fully charged battery will lose its charge over time.

◆If the battery is completely discharged; it may take a few minutes before the charging
indicator appears on the display or before any calls can be made.

◆Use the battery only for its intended purpose. Never use any charger or battery that is
damaged.

◆Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
such as a coin, clip, or pen causes direct connection of the positive (+) and negative
(-) terminals of the battery. (These look like metal strips on the battery.) This might happen,
for example, when you carry a spare battery in your pocket or purse. Short-circuiting the
terminals may damage the battery or the connecting object.

◆Leaving the battery in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery.

◆Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A device with a hot
or cold battery may not work temporarily, even when the battery is fully charged. Battery
performance is particularly limited in temperatures well below freezing.

◆Do not dispose of batteries in a fire as they may explode.
Batteries may also explode if damaged. Dispose of batteries according to local regulations.
Please recycle when possible.

13

◆Do not dispose as household waste.

4-2 Operate Battery

◆Install battery
1, Aim the battery top (with metal point) at the metal reed in the back groove, then press

the battery gently to fix it.

2, Put the cover on.

◆Take out battery
1, Switch off device at first.
2, Remove the battery cover.
3, Aim to the hemicycle groove and bring up the battery, then get it out.

◆Charging

Device will advise you to charge if necessary, please do it soon; otherwise it will be

switched off itself.
1, Connect the device to electrical source.
2, when charging, the referential ICO will scroll until completed.
3, Turn off the power.

5 SIM Card

5-1 Install SIM Card

Please make sure the device is not connecting to power and no charging.
1, Take the battery out
2, Keep the metal side adown, put the SIM card gap correspond to groovy gap, then push the
card in.

14

3, Fit the battery on.

5-2 Take the SIM Card out

Please make sure the device is not connecting to power and no charging.
1, Take the battery out
2, Push the SIM Card out.
3, Fit the battery on.

6 T-flash Card Use Guide

6-1 Install/Take out the T-flash Card

This device support T-flash card, Please make sure install the T-flash Card correctly. T-flash
Card groovy locates the right side of SIM Card.

◆Install SIM Card

1,Switch off device, take the battery cover out.
2,Insert T-flash card according to instruction picture besides card groovy.

◆Take the T-flash Card out

1,Switch off device, take the battery cover out.

15

2,Press T-flash card slightly and then pull it out of card groovy.

6-2 T-flash Card Use Guide

◆Document operating
The following documents should be saved in T-flash Card: Photo pictures

( [Camera]—[Photos] ), MP3 ([Multimedia]-[Audio player] ).
1, Connect device USB to PC with special data cable.
2, Enter [Main Menu]->[File Manager]->[Memory Card]

◆T-flash Card Menu
Insert T-flash Card, then switch on your device or start T-flash Card from PC, these following

menu will be set up:

MENU

Available formats

My Music

For MP3, WAV, AMR, MID, IMY, etc.

Videos

For MP4 format video

16

Photos

For jpg only

7 Device Use Guide

7-1 Characteristic Function

As a multimedia mobile phone, not only of basic phone function, the device support many
special multimedia functions:

■Phonebook: Support phone number quick search. There are Up to 4 numbers to each
phonebook record. Total 2000 entries phonebook records in device. Remove or copy
records from device to SIM card. Support name card phonebook record.

■Call History: Device will save call record information automatically.

■Message: Save messages in device, 500 for capacity of mobile phone

■MMS: Support multimedia message with words, pictures, voice, etc.

■Audio Player: Device support MP3, WAV, AMR, MID, IMY, format Music.

■Sound Recorder: Device support dialing voice record and

Environment voice record.

■Memory Card: Device support move memory function (USB) no matter when Switch

Off or on device, then connect device to PC with data cable

■E-book: Support TXT format documents smaller than 2M.

■Extra Function: Includes calculator, unit converter, currency converter, stopwatch, E-book

reader, answer machine.

■Settings: Set device and main display.

17

■User Profiles: Set device model, customize tone setup, Volume, Alert Type, ring type, extra

tone, network service, and etc.

8 Make Calls

8-1 Make Calls

◆In the standby mode, touch the sign to input the numbers and touch the [clear]on the right
down corner of the screen to delete wrong input. Touch [save] to add new contact to SIM1 or
SIM2 card or device. Then, press SIM key to make call.

◆Make Calls from call record
[Menu]—[Call History]

△ In stand by model, press SIM key to view call records for SIM 1 or SIM 2.
△,Select record then press SIM key to make call to any phone number in record

◆EMERGENCY CALLS
Ensure the phone function of the device is switched on and in service. The keypad is active
only in the standby mode. Press as many times as needed to clear the display and return to
the start screen. Enter the emergency number, then press. Give your location. Do not end the
call until given permission to do so.

8-2 Answer Calls

When there is incoming call, Device will give the corresponding register (vibration or ring). If
network support, the device screen will display the caller’s information.
1, Press SIM key to answer the call.

18

2, Press end key to end the call.

8-3 Call Setting

In calling model, Press left function key to enter call option menu, then get below items:

■Blacklist

■Whitelist

■Auto redial

■Background sound

■Call time display

■Call time reminder

■Auto quick end

■Reject by SMS

9 Messaging

User could use this device to send and receive EMS and MMS, which can enclose
pictures, animations and rings in message

9-1 Message

■ Write Message: touch to write a new message and touch [Option] to below menu:

■Send to: Select item from [Enter recipient] and [Add from phonebook]

■Input method

■Add picture

■Add sound

19

■Add video

■Add subject

■Slide options

■Switch to MMS

■Advanced: insert—text template, attachment, contact number, contact name,
bookmark

■Save

■Details

■Inbox:
□ View new message in [Inbox]. Device will quiver or ring if receive new

message.

□ press SIM key to call sender. Touch [Option] to below menu:

■ View: to read the message

■Reply: Reply a message to sender.

■Call sender: to make a call who sent message

■Forward: Send to another one or more than one. Also be saved in device.

■Delete: Delete message selected.

■Delete all: Delete all the messages in inbox

■Save to phonebook: add new contact or replace existing

■Sort by: to show the message of list by date, sender, unread\read, message

type, message size

■Mark several

■Mark as read

■Advanced: copy to SIM; move to SIM; copy all; move all

20

■ Drafts: Select one template and edit

■Outbox:
□ View message saved in [Outbox], both in SIM card and Device. Touch [Option]

to below menu:

■ View: to read the message

■Resend: resend the message selected.

■Edit: Edit message selected.

■Delete: Delete message selected.

■Delete all: Delete all messages in [Out box].

■Sort by: to show the message of list by date, sender, unread\read, message

type, message size

■Mark several

■Mark as read

■Advanced: copy to SIM; move to SIM; copy all; move all

■ Sent messages: touch [ok] to read the sent messages

■ Archive

■ Delete messages: to delete messages in inbox, drafts, outbox, sent messages,
archive, all messages.

■ Message Setting: User need finish correspond setting before use message function, touch
[Message Setting] to below menu:

□Text message: Touch to set below items:

◆Profile settings

◆Voicemail server

◆Common settings: Select Delivery report; reply path; save sent message

21

◆Memory Status: Touch to view SMS Status in SIM card and local device in n/m format.

◆Pref.storage: Select from SIM and phone

□Multimedia message: touch [ok]-[common settings] to set below items:

◆Compose: touch to set [creation mode] in warning, free, restricted; [picture resizing]
from 160*120. 320*240. off; on or off [Auto signature]; set [signature].

◆Sending: touch to set [Validity period] from maximum, 1 hour, 1 week, 1 day, 12 hours,

6 hours; on or off [Delivery report] and [Read report]; [Priority] from high, low, medium

◆Retrieval: touch to set [Home network] and [Roaming] from immediate, deferred,

rejective; [Flilter] to allow or reject anonymous and advertisement; [Read report] in send,
never send, on request; on or off [Delivery report]

◆Memory status: touch to show usage, used memory, free memory

9-2 Email

■Send and receive

■Write Email: touch to log in the mail servers

■Inbox: touch to enter received Email list

■Outbox: touch to enter sent Email list

■Sent: touch to enter Email list already be sent out.

■Clear mailbox: touch to delete all emails

■Clear marked Emails: touch to delete the marked emails

■Email accounts: touch to view

■Templates: touch to enter Email list in drafts such as—Dear friend, How are you?....

9-3 Broadcast Message

Check the available topics and related topic numbers with your service provider. Touch and

22

select
[Messages]> [Broadcast Message] and from the following:

■Receive Mode: touch to choose on or off

■Read Messages

■Languages

■Channel Setting-add: can add channels users like from channel title and channel ID

10 Phone Book

User could save name card information to device, including below items: name, telephone
number, company name, e-mail, fax number, birthday, photo, movie, ring tone and incoming
call group information. There are total 2000 entries phone numbers in device.

10-1Quick Search

This function will help user to reach all records in phone book which match letters user input
in.

10-2 Search Entry

Enter name then touch [Search] to find items you want.

10-3 Add New Entry

Input phone number, then select save to SIM card or device. If save number to device, user
could add below information for each number:

23

■Name

■Number

10-4 Copy All

■Copy all records from SIM card to device

■Copy all records from device to SIM card

10-5 Delete
10-6 Caller Group:

Select [Caller Group], choose a item, then and view members and edit [Group setting]
including [Group name], [caller ringtone], [Caller Picture], [Caller Video], etc.

10-7 Extra Number

■Owner Number

■Service Dialing Number

■SOS Number: Up to 4 entries.

10-8 Settings

■Preferred storage

■Speed dial

■My number

■ VCard version

■Extra numbers

24

■Memory Status

■Copy contacts

■Speed dial

■Move contacts

■Delete all contacts

10-9 Caller Picture

User could select photos from [File Manager] to set as picture of caller

10-10 Caller Ring Tone

User set ring tone as ―caller ring tone‖, which could be selected from system or memory card

(should be sent to [User Profiles] firstly).

11 Call Center

11-1 Call history

■Missed calls

Enter [Missed Call] to view unanswered call list. Select one record then press left function
key to view more details, including date, time, name ,number and how many times.

■Touch [Option] – [Advanced]to enter below menu:

25

□Call timers
□Call cost

□Text message counter

□GPRS counter

■ Dialed Calls

Enter [Dial Calls] menu to view recently call out phone number list, Select one record then
press left function key to view more details, including date, time, name ,number and how
many times.

■Touch [Option] to enter below menu:

□View: touch to show the telephone number, date, time and calling times
□Call: touch to make a call
□Send message
□Save to Phone book
□Add to blacklist
□Edit before call

□Delete
□Delete all
□Advanced: touch to show call timers, call cost, text message counter, GPRS counter

■Received calls

Enter [Dial Calls] menu to view recently answered call phone number list, Select one record
then press left function key to view details, including date, time, name ,number and how many
times.

■Touch[Advanced] to enter below menu:
□call time

26

□call cost
□Text message counter
□GPRS counter

11-1 Call Settings

Enter [Advance settings] to choose on or off these bellows:

■[Blacklist]：Refuse all numbers’ calling whose name is in blacklist

■[Whitelist]: only allow numbers’ calling whose name is in whitelist

■[Auto redial]:

■[Background sound]

■[Call time display]

■[Call time reminder]

■[Auto quick end]

■[Reject by SMS]

12 Multimedia

12-1 Camera

There is 3 mega pixels in device. You can take pictures easily with device.

12-1-1 Camera setting

After enter camera preview mode, touch the screen to adjust exposal and adjust focus.

■Camera setting: touch the screen to adjust [Shutter Sound], [EV], [Banding], [Delay Timer]

27

and [Cont Shot].

■Image settings: Select [Image Size] from 2048*1536, 1600*1200, 1280*960, 640*480,
240*400
Select [Image Quality] from high, low and normal.

■White balance: Adjust white balance.

■Scene mode: Choose [Scene mode] from [Auto] and [Night].

■Effect setting: Add special effect to image.

■Storage: choose [phone] or [memory card]

■Restore Default: Back to original setting.

12-1-2 Take Pictures

■Adjust camera and take the view

■Press ok key to take the picture.

■Press SIM key to save images or touch [Clear] to back to camera mode.

■In the cont shot mode, images will be saved automatically

12-2 Image viewer

Touch [Image Viewer] to enter below menu:

■View

■Edit

■Print

■Browse style

■Send

■Use as

28

■Rename

■Delete

■Sort by

■Delete all files

■Storage

12-3 Video Recorder

Touch [Video Recorder] to take the AV, then touch [Option] to below menu:

■Camcorder Setting: Adjust EV, Night Mode,Anti-flicker, then touch [Done] to confirm and
active setting.

■Video Setting: Select and adjust video quality, size limit reached, time limit reached, and
record audio and encode format (can choose from H.264 and MPEG4), but the format of file

recorded can just be 3GP.

■White balance: select from auto, daylight, tungsten, fluorescent, cloudy, incandescent

■Effect Setting: select from normal, grayscale, sepia, sepia green, sepia blue color invert

■Storage

■Restore Default

When doing AV record:

■Touch the screen adjust focus

■Select view

■Press ok key to begin.

■Press ok key to pause.

12-4 Video Player

29

Touch [Video Player] and select right video to enter below menu:

■Play: Adjust speed, volume, progress. Press center key to pause when playing videos,
then press center key to continue.

■Storage: choose from phone and memory card

12-5 Photo Editor

■Photo artist: enter to select from file; capture from camera; resize image

■Image tiles: choose 2/4/9 image tiles

12-6 Audio Player
Refresh list updating from the phone or memory card.

■Settings：set[Player settings] in pre. Playlist from phone or memory card, list auto gen.,
repeat, shuffle; set [Display settings] in skin, spectrum display, lyrics display, set [ Sound

effects] in audio effect, bass enhancement, play speed, set [Bluetooth settings]
12-7 AB Repeater: Repeat voice documents.

12-8 Sound Record

■New record

■List

■Settings: set storage from phone or memory card; set file format; set audio quality from low,

and high
12-9FM Radio

■Channel list

■Manual input

■Auto search

■Settings

■Record

30

■Append

■File list

12-10 Schedule FM Record
12-11Melody composer
12-12Side show

13 File Manager

13-1 Touch [File Manager] to view all documents in phone and T-flash
card.

Touch [Option] to below menu:

■Open: Touch to show document list. Select target item to enter below menu:

□Answer machine
□Received
□Audio
□E-book
□Photos

□Videos
□My music

■Format: Touch to format.

14 Settings

31

14-1 Dual SIM settings

■Dual SIM open

■Only SIM1 open

■Only SIM2 open

■Flight mode

14-2 Phone setup

■Time and Date: Select to enter below items:

□Set Home City:
□Set Time/Date
□Set Format

■Schedule Power On/Off

■Language

■Preferred input method

■Display

□Wallpaper
□Screen saver
□power on display
□power off display
□Interactive screen
□Main menu effect
□Show owner number
□Screen switch effect

■Themes: there are 3 themes to be chosen

32

■Greeting Text

■Auto update of date and time

■Handwriting

■UART settings

■Misc Settings

14-3 Network Settings

■Network Selection
□automatic
□Manual

■Preferred networks

14-4 Security Settings

■SIM Lock: Normal PIN Code should be 1234; user should personalize the PIN code as soon
as possible.

■Phone Lock: Normal Phone Code should be 1122, user should personalize the PIN code as
soon as possible.

■Auto Keypad Lock

■Change Password

14-5 Connectivity

■Bluetooth

■Conn. Management

■Data account

14-6 Restore factory settings

33

14-7Sound Effects

■Audi effect

■Bass enhancement

15 User profiles

There are many scene modes in device, for personalize device ring tone according to
environment, including below items:

■General: For simple environment.

■Meeting: For meeting, and need be set before.

■Outdoor: For outdoor, and need be set before.

■Indoor: For indoor, and need be set before.

■Silent: For silence, and need be set before

■Headset: For insert headset, and need be set before.

■Bluetooth: For Bluetooth, and need be set before.

■Energy-saving: for saving power, and need be set before

[Customize] includes below items:

■Tone Setup: Select tone from previewed tone as incoming tone, power on, power off,
message, keypad, etc. Also previewed tone for switch on/off and message. Select [Silent] to
turn off correspond tone. [Keypad Tone] includes [Silent], [Click], [Tone].

■Volume: To set [Ring Tone] and [Key Tone] volume, from ―Grade 1‖ to ―Grade 7‖

■Alert Type: Includes below items: [Ring Only], [Vibration Only],

[Vibration and Ring], [Vibration then Ring]

34

■Ring Type: Includes [Single], [Repeat] and [Ascending].

■Extra Tone: Includes [Warning], [Error], [Camp On] and [Connect].

■Answer Mode: choose [Any key]

16 Organizer

User could enjoy this function as an assistant, touch ICO on the main menu to enter
below menu:

16-1 Calendar:

User could input task list on special day and touch [View Tasks] to view all details of these
records.

16-2 Tasks

Touch [Tasks] to view all records existed, then touch [Option] to below menu:

■View: Touch to see all details about item selected

■Add: Touch to add a new record, including below information:
□Date
□Call
□Anniversary

□Style of alarm

■Edit Task

35

■Delete Task

■Delete All

■Send calendar: Including below item:
□Send By SMS: Send to another phone by SMS
□Send By MMS: Send to another phone by MMS
□Save To File: Save task details to memory card or phone system

16-3 Alarm

There are total 5 alarm records; user could personalize ―time‖, ―repeat style‖, and ―snooze
style‖and―alarm type for each record.

16-4 World Clock

User could touch cursor to the city location on the map to view the local time of that city.

16-5 Notes
16-6Sync accounts
16-7Phone sync

17 Extra

17-1Calculator
17-2Unit converter
17-3Currency converter
17-4Stopwatch
17-5Ebook reader

36

17-6Answer machine

18-JAVA
18-1JAVA
Opera Mini
18-2JAVA Settings

■Java audio

■Java backlight

■Java vibration

■Java virtual keypad

■Select SIM

■Java SIM Profile

■Heap size

18-3JAVA default security

19 Security & Help

Repair and Security

Your device is a product of superior design and craftsmanship and should be treated with
care. The suggestions below will help you protect your warranty coverage.

19-1 Security

■, Keep device away from kids.

■To allow the device to reset, power the device off, and remove the battery from time to time

37

for optimum performance.

■, Make back-up copies of all important data.

■, Remember to follow any special regulations in force in any area, and always switch off your

device when its use is prohibited or when it may cause interference or danger.

■, Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain
minerals that will corrode electronic circuits. If your device does get wet, remove the battery,
and allow the device to dry completely before replacing it.

■, Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.

■, Do not store the device in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain plastics.

■, Do not store the device in cold areas. When the device returns to its normal temperature,
moisture can form inside the device and damage electronic circuit boards.

■, Do not attempt to open the device other than as instructed in this guide.

■, Do not drop, knock, or shake the device. Rough handling can break internal circuit boards

and fine mechanics.

■, Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.

■, Do not paint the device. Paint can clog the moving parts and prevent proper operation.

■, Use a soft, clean, dry cloth to clean any lenses (such as camera, proximity sensor, and

light sensor lenses).

■, Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the device and may violate regulations
governing radio devices.

38

■, Use chargers indoors.

■, Always create a backup of data you want to keep (such as contacts and calendar notes)

before sending your device to a service facility.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest authorized service
facility for service.

19-2 Help

Refer below table if any problem of device. Otherwise, telex network carrier and ask for help.

Abnormity

Reason

Solve

Bad signal

1) Use device in weak signal area
like park and basement

Move to window side or outside.

2) Talk in busy time and busy line

Try to avoid

3) Far away from basic signal

Ask carrier to support service area
map。

After sound or
cacophony

1) Network carrier’s fault

End the talk and redial

2) Badness line

Unable switch
on

Battery use up

Charging

39

Standby time
be shorter

1) The same device works in
different network, there will be
different standby time

Switch off

2) Battery is worn out

Change a new one

3) Device will keep searching for
base signal when there is no signal.

Move to another place

Useless SIM
Card

1) Invalid SIM Card

2) Not in service area

3) Weak signal

Check with carrier
Check the service area
Move to window side or change to
another network

No network
service

1) Broken SIM Card。

2) SIM Card fixed incorrectly

3) Dirty SIM Card

Check with carrier
Fix SIM Card again
Clear SIM Card

Can not send
message out

No service or no code

Contact carrier

Can not make &
answer call

Set restrict dial already

Turn off restrict

Incorrect PIN

Enter the wrong password at least
three times.

Contact carrier

No charging

1) Broken battery/charging

2) Temperature

Change new one
Adjust temperature

40

3) Bad touch

Check the touch

Can not input
phonebook

Phonebook is full

Deletes one useless

Can not set
some function

Network carrier no support

Contact carrier

Zone : North
State : Uttar Pradesh City

1) ASC Name: Ankur Care Center

Agra

Contact Person: Mr. Ankur
Address: Block no. 28/2, Shop no. B111, Jyoti Building,

Opp post office near LG service centre, Sanjay Place, Agra-282002

Ph. No: 9412254152, 9319380777
E-mail: [e-mail]

2) ASC Name: Jain Sons

Agra
Contact Person: Mr. V K Jain

41

Address: 3-A, Raghu Shopping Complex, MG Road, Agra
Ph. No: 056524000215, 05622853314
E-mail: [e-mail]

3) ASC Name: Aadinath Telecom

Ajmer

Contact Person: Mr. Kamal Jain
Address: Near Dr. Chandra Narayan, Ghee Mandi, Naya

Bazar
Ph. No: 9982951217
E-mail: [e-mail]

4) ASC Name: Infocare
Aligarh
Contact Person: Pranab Bansal
Address: No.-13,14, Vikram Arcade, Railway Road
Ph. No: 9359588880

E-mail: [e-mail]

5) ASC Name: SSS Telecom
Allahabad
Contact Person: Mr. Shailendra Tripathi
Address: 68, Zero Road (Behind Baxi Colour Lab), Allahabad
Ph. No: 9616171819, 9935156020

42

E-mail: [e-mail]

6) ASC Name: BRBM Teleservices
Allahabad

Contact Person: Girish Kumar Aggarwal
Address: 30, VN Marg (City Hotel Building), Allahabad
Ph. No: 9335062777, 0532-2401511
E-mail: [e-mail]

7) ASC Name: Customer Care Point

Budaun

Contact Person:
Address: 1st Floor, Plaza Market, Near Ghanta Ghar
Ph. No: 9719418537
E-mail: [e-mail]

8) ASC Name: Mahadev Communication

Budaun

Contact Person: Mahadev
Address: Railway Crossing, Civil Lines
Ph. No: 9808291322

9) ASC Name: Kissan Communication

43

Baghpat

Contact Person: Mr. Vivek Arya
Address: Opposite Gali No.-2,Court Road, Baghpat-250609
Ph. No: 9359366111
E-mail: [e-mail]

10) ASC Name: Mahalaxmi Mobile Repairing Center

Baghpat

Contact Person: Mr. Sunil Kumar
Address: Rastra Vandna Chowk,Chaudhary Market,

Baghpat-250609

Ph. No: 9837843533
E-mail: [e-mail]

11) ASC Name: Muneer Telecom
Bareilly

Contact Person: Farhat Ali Khan
Address: Shop No.-13, Novelty Plaza, Near Roadways Stand
Ph. No: 9219747170, 9259580800
E-mail: [e-mail]

11) ASC Name: Shree Balaji Communication
Bulandshahr
Contact Person: Mayur

44

Address: 1st Floor, Sharad Gyan Complex, Opp. Dr SC Gupta
Compound
Ph. No: 9219656300, 9259006500

E-mail: [e-mail]

12) ASC Name: Shree Shyam Mobile Collection

Deoria

Contact Person: Jitesh Kumar
Address: Amar Jyoti Road, Deoria
Ph. No: 9838450681, 9936904247
E-mail: [e-mail]

13) ASC Name: Triveni Computer Service
Etah

Contact Person: Vinod Kumar
Address: 688/01, Vijay Nagar, Opp. Sharda Cinema
Ph. No: 9368111681, 05742-235592
E-mail: [e-mail]

14) ASC Name: Front Line Computers
Etawah

Contact Person: Mr. Puneet Kaushik
Address: 132, Civil Lines, Pakka Talab Chauraha,

Etawah-206001

45

Ph. No: 9219404194, 9358613014
E-mail: [e-mail]

15) ASC Name: Care Electronics
Faizabad

Contact Person: Mr. Lakshman
Address: Shop No.-3, Build No.-5/11/114, Hamdani Kothi, Reed

Ganj

Ph. No: 9515492176
E-mail: [e-mail]

16) ASC Name: Gauri Infocare

Firozabad

Contact Person: Mr. Vinod Kumar
Address: 20, Ratan Vihar Complex, Suhad Nagar
Ph. No: 9319755155, 968111681
E-mail: [e-mail]

17) ASC Name: National Watch & Co.
Contact Person: Mr. Ameer Ahmed
Address: 84/85, Jassi Building, Railway Road, Ghaziabad
Ph. No: 9312847857
E-mail: [e-mail]

46

18) ASC Name: VM Computer Services
Contact Person: Akash Singh
Address: Shop No-1, C-22, RDC, Ghaziabad
