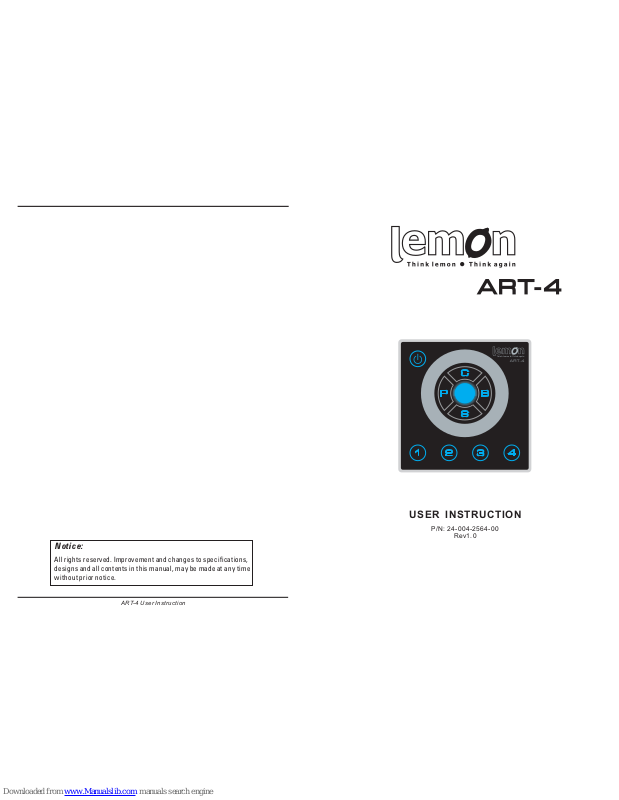

Page 1
All rights reserved. Improvement and changes to specifications,
designs and all contents in this manual, may be made at any time
without prior notice.
Notice:
ART-4User Instruction
USER INSTRUCTION
P/N: 24-004-2564-00
Rev1.0
Page 2
EU version
Physical Dimensions
86
86
Specification
Technical Specification
Power Supply ................................................
Housing .......................................................
DMX out ........................................................
PWM out .......................................................
Operation Temperature ..................................
Storage Temperature .....................................
Dimension .........................................
Weight ..........................................................
DC 12-24V
Polycarbonate
4-pin green terminal
6-pin green terminal
0 degC to +40 degC
-20 degC to + 70 degC
EU 100g
EU 86(L) x86(W) x15.5(H)mm
Page8
SPECIFICATION
ART-4User Instruction
Page 3
Setting Shortcuts
To delete power shortcut, touch "P" key and "Power" key simultaneously and
hold on for about 10 seconds until all keys flash once.
Directly touch any key on the panel.ART-4 starts up.
Touch "Power" key.ART-4 changes to standby condition.
To set power shortcut, touch "P" key and "Power" key at the same time and
hold on for about 10 seconds until all keys flash momentarily once to confirm
the setting.
Setup
2. "P"+"S"key (Press "S" & "P" key simultaneously)
To delete the above setting, touch "P" key and "S" key and hold on for about
10 seconds until all keys flash once.
At this time, the "S" key is out of effect, that is to say, Speed Adjustment
Menu is not valid. Besides, the figure keys(1, 2, 3 and 4) can only play back
saved scenes and colors, but can not record scenes or colors.
Touch "S" key and "P" key simultaneously and hold on for about 10s until all
keys flash once to confirm the setting.
Page7
1. "P" + "Power"( ) key
(Press "P" key and "Power" key simultaneously)
To delete the above two shortcuts at the same time, touch "P" key and "B"
key simultaneously and hold on for about 10s till all indicators flash once.
Then release the keys.
ART-4User Instruction
Setting Color Exchange Fadetime
Touch "C" key and hold on for 5 seconds till all LED indicators flash once to
indicate the Color Fadetime Setting is engaged. Then release the key and
the "C" key flash repeatedly.
Different keys represent different fadetime. The following table details the
fadetime information.
Keys
Fadetime
12
3
4
1s 2s
3s
4s
P/C/B/S
0s (nofade time)
The existing mode ends and changes to normal mode automatically.
All indicators flash momentarily once to confirm the setting.
Touch any one of these keys--1, 2, 3, 4, P, C, B or S.
To set the fadetime for color exchange, you take the following procedures:
CONTENT
INTRODUCTION
Product Description
Unpacking
Touch Interface View
Rear Panel View
SETUP
Setting Power On/Off Fadetime
Setting Color Exchange Fadetime
Setting Shortcut
Setting Key Tone
OPERATION
Four Function Menus
Built-in program menu
Color menu
Speed adjustment menu
Brightness adjustment menu
Two Modes
Auto mode
Manual mode
SPECIFICATION
Technical Specification
Physical Dimension
1
1
2
3
6
6
7
7
3
4
4
4
4
5
8
8
Powering ART-4
3
ART-4User Instruction
Page 4
Product Description
Thank you for purchasing our digital product ART-4.You now hold a premiere
LED controller with DMX 512/PWM output. Its compact and portable design
is convenient to mount and easy to operate for users. It's key features consist
of as the following:
Touch interface
DMX 512/PWM output
LED indicator to display the current output
Four function menus
To record and play back upto 4 scenes and 4 colors
To set fadetime for Power on/off and color exchange
To set fadetime for Power on/off and color exchange in the range of 0 to 4s
To assign key tone ON/OFF
To select input voltage in DC12-24V according to the output loading voltage
Function memory and power failure protection
I
ntroduction
Unpacking
Check for transport damage.
You should be in possession of the following items:
1ART-4
1 User manual
Every ART-4 has been tested at the factory before shipping to you. Please
spend a few minutes inspecting the package. Should you discover any
transport damage after unpacking the equipment, inform the hauler
immediately. Never connect a damaged device. You may also contact your
supplier.
INTRODUCTION
ART-4User Instruction
Pa
g
e1
SETUP
Setting Power on/off Fadetime
Different keys represent different fadetime. The following table details the
fadetime information.
Keys
Fadetime
12
3
4
1s 2s
3s
4s
P/C/B/S
0s (nofade time)
Touch "Power" key( ) and hold on for 5 seconds till all LED indicators flash
once to indicate the Power on/off Fadetime Setting is engaged.Then release
the Power key and the key flashes repeatedly.
The existing mode ends and changes to normal mode automatically.
All indicators flash momentarily once to confirm the setting.
Touch any one of these keys--1, 2, 3, 4, P, C, B or S.
To set power on/off fadetime, follow the procedures below:
Color Playback
Touch "C" key to enable Manual Mode, the key clicks and the indicator is lit.
In Manual mode, you play back the recorded colors as you wish. To play back
the recorded color, simply follow the procedures below:
Page6
Setup
ART-4User Instruction
To select the recorded color which you wish to play back, touch any of the
figure keys to which you've saved colors. The key clicks and it's LED
indicator is lit. Then it starts to display the recorded colors.
Setting Key Tone
To turn on or turn off key tone, keep the four figure keys--"1", "2" , "3" and "4"
touched simultaneously until all keys flash momentarily once to confirm the
setting, then release them.
With key tone ON, when you rotate the touch toggle to the maximum or
minimum value, the key click disappears.
With key tone OFF, when you rotate the touch toggle to the maximum or
minimum value, all keys flash repeatedly 3 times.
Page 5
Touch enable Auto Mode, the key clicks and the LED indicator
is lit.
"P"or"S"keyto
Repeat step a~d to save more scenes to the other 3 figure keys.
All indicators flash momentarily once to indicate the current parameters
(including the built-in program and the value of speed and brightness) have
been recorded and saved into the key.
Touch any of the figure keys to which you wish to record the scene, and hold
on for more than 2 seconds.
Scene Playback
In Auto mode, you play back the recorded scenes as you wish. To play back
the recorded scene, simply follow the procedures below:
Manual Mode
In Manual Mode, the RGB value and brightness can be adjusted. Up to 4
colors can be recorded and played back in this mode. Each figure key
corresponds to one color.
Touch "C" key to enable Manual Mode, the key clicks and the indicator is lit.
Color Record
Repeat step a~d to save more colors to the other 3 figure keys.
All indicators flash momentarily once to indicate the current parameters,
including the value of color and brightness, have been saved into the key.
Touch any of the figure keys to which you wish to record the color, and hold
on for more than 2 seconds.
c.
Touch "P" or "S" key to enable Auto Mode, the key clicks and the LED indicator
is lit.
To select the recorded scene which you wish to play back, touch any of the
figure keys to which you have saved scenes. The key clicks and it's LED
indicator is lit. Then it starts to display the recorded scene.
In Manual mode, you can record a color to the desired figure key. The
procedure to record a color is described below:
Page5
Operation
a.
a.
b.
c.
d.
Rotate the touch toggle to adjust RGB value until you get desired color.
b.
d.
e.
ART-4User Instruction
Rotate the touch toggle to select the built-in program or adjust the speed.
e.
Scene Record
In Auto mode, you record a scene to the desired figure key as you wish. The
procedure to record a scene is described below:
Touch Interface View
1
2
3
4
5
6
7
8
ART-4 (EU)
1. Power key
7. Touch toggle
Menu keys:
5. "B" key
To select Brightness adjustment menu.
2. "C" key
To select Color menu.
3. "P' key
To select Built-in program menu.
4. "S" key
To select Speed adjustment menu.
6. Output Indicator
To display the current output.
To adjust color, brightness and speed, and select built-in programs.
8. figure keys (1~4)
To record scene and color, as well as set fadetime.
I
ntroduction
To power on/off ART-4.
ART-4User Instruction
Pa
g
e2
Page 6
Page3
Operation
Four Function Menus
Built-in Program Menu
ART-4 contains 4 function menus, available in Built-in program selection,
Color selection, Brightness adjustment and Speed adjustment.
In Built-in Program Menu, there are 10 built-in programs and Auto Program
("Auto Program" is the sequential running of these 10 built-in programs). To
select desired built-in program in this mode, you proceed as the following:
Touch "P" key to enable Built-in Program Menu, the key clicks and the indicator
is lit.
Rotate the touch toggle to select a desired built-in pattern.
Powering ART-4
The process of selecting the built-in programs produces clicks and each
click will activate one program. When reaching Auto program or the 1st
program, the click disappears.
ART-4 can be connected to a DC power at any voltage from 12V to 24V.
Once the unit is connected to a main power, all the LED indicators flash
momentarily and the unit is powered on.
In normal mode, to touch power key ( ) and hold on for 2s, ART-4 switches
to the state of standby. At this time, the output is shut down. Touch the power
key once again and hold on for 2s, the unit is powered on.
OPERATION
ART-4User Instruction
DMX OUT
PWM OUT
Madein P.R.C.
GND
RoHS
Data-
Data+
GND
+12-24V
+12-24V
+12-24V
Blue
Green
Red
POWER IN
12
1. DMX out: 4-pin male terminal
2. PWM out & Power in: 6-pin terminal
Rear Panel View
Color Menu
Brightness Adjustment Menu
In Color Menu, you adjust RGB value to get a desired color by rotating touch
toggle. T ou take the following procedure:o adjust RGB value, y
Touch "C" key to enable Color Menu, the key clicks and the indicator is lit.
Rotate the touch toggle to adjust RGB value.
In Brightness Adjustment Menu, it allows you to adjust the brightness by
rotating the touch toggle.You change the brightness as the following:
Two Modes
ART-4 has the following two modes: Auto Mode and Manual Mode.
Touch "B" key to enable BrightnessAdjustment Menu, the key clicks and the
indicator is lit.
Rotate the touch toggle to adjust brightness as you wish. In clockwise, the
brightness increases; In anti-clockwise, the brightness decreases.
Each figure key can have a scene, or a color, or both elements recorded.
Page4
Operation
The value of color and brightness can be adjusted in the range of 0 to 255.
In the process of adjusting brightness and speed, the toggle produces clicks.
However, the click disappears when the toggle reaches the maximum
/minimum value.
Speed Adjustment Menu
In Speed Adjustment Menu, you adjust the speed of running built-in programs
in the range of 0.2s~10min. You set the speed as the following:
Touch "S" key to enable SpeedAdjustment Menu, the key clicks and the
indicator is lit.
Rotate the touch toggle to adjust the speed. In clockwise, the speed will
increase; In anti-clockwise, the speed will decrease.
When you rotate the toggle to reach 10min, the click disappears and all the
four figure keys flash repeatedly. Then you select the speed which you wish
by touch any of the figure keys. Different figure keys stand for different
speed -- "1" for 10min, "2" for 20min, '3" for 30min and "4" for 40min.
ART-4User Instruction
In Auto Mode, ART-4 runs built-in programs automatically. The speed and
brightness can be adjusted. Up to 4 scenes can be recorded and played
back in this mode. Each figure key corresponds to one scene.
Auto Mode
Loading...
