LSG/D.M.X Interface
Users Guide
Page 2
Table of Contents
Using The LSG/DMX Interface ........................................ Page 1
XLR Pin Assignments ................................................ Page 2
D.M.X. Addressing Example ...................................... Page 3
D.M.X. Binary Address Table ....................................... Page 4
Specifications
Model : LSG/DMX Interface
Uses DMX 512 Protocol to switch on or off 115 Volt 10 Amp loads.
Size: 190.50mm x 190.50mm x 88.9mm high
7.50îš” x 7.50îš” x 3.50îš” high
Weight: 1.92 Kgs.
4.20 Lbs.
Power: Input :115 Volts A/C 12 Amps.
Power Output Switched: 10 Amps Maximum switched per auxilliary output
12 Amps Maximum total switched load.
Page 3
Using The LSG/DMX Interface

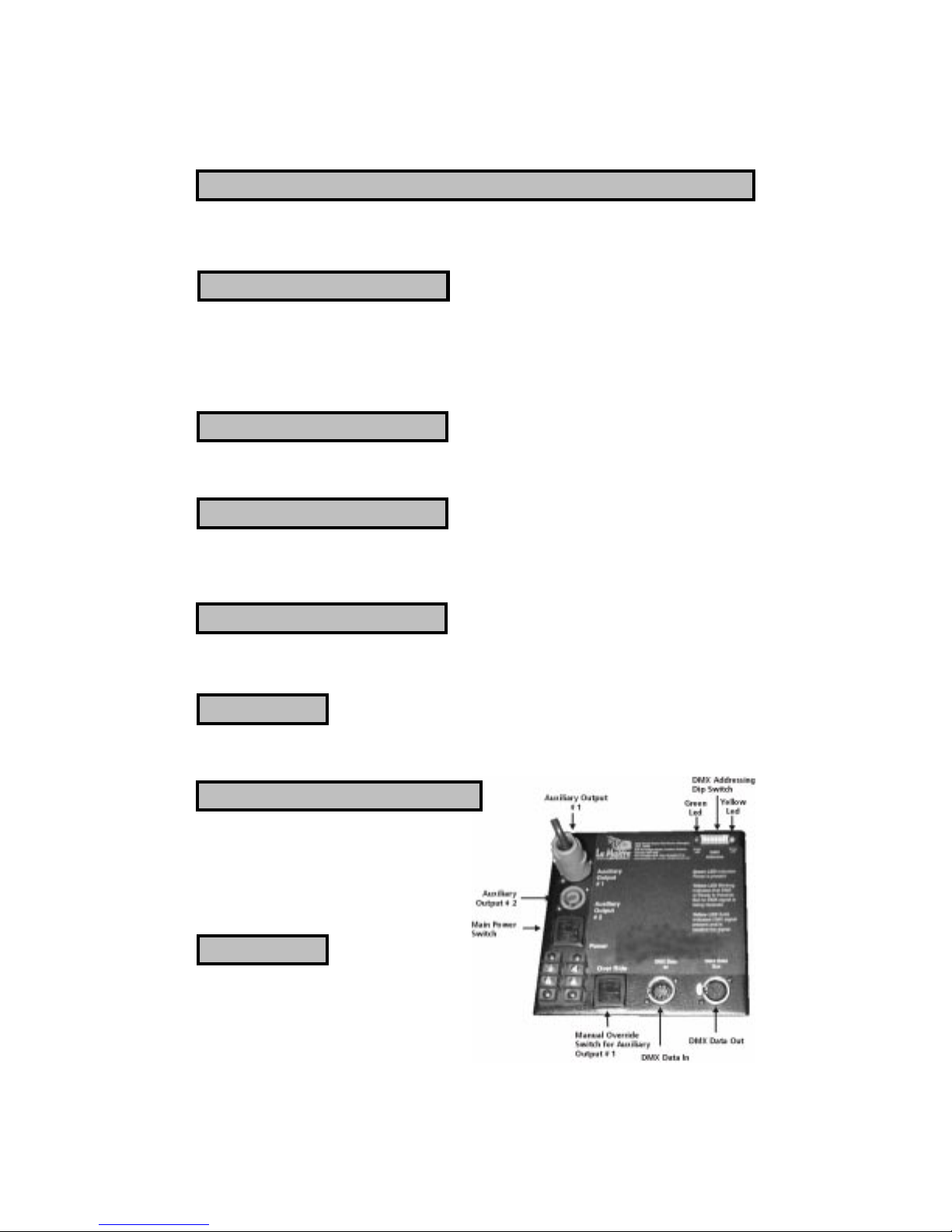

The LSG/DMX Interface will allow the user to control the LSG, or any other 115
Volt load that is 10 Amps or less, using a standard 512 DMX signal.
Auxiliary Output # 1& 2
These outputs are 115 Volts and are switched on and off using the DMX Signal.
Each Output is 10 Amps Maximum, with a Maximum combined load of 12
Amps .
Output 1 is DMX Channel (n). Output 2 is DMX Channel (n+1). Output 2 is
always the next consecutive higher channel than Output 1.
Main Power Switch
This switch is used to turn on the Main Power.The switch is illuminated when in
the On position
Manual Override
This switch is used to manually activate Auxiliary Output #1. When switch is
turned on the switch will be illuminated and there will be 115 volts power
present at Auxiliary Output #1
DMX Data In / Out
These two 5- pin connectors recieve, and throughput the DMX Data. They are
wired per the DMX 512 Protocol, and the pinouts are available on page two.
Green Led
The green led will indicate if power is present at the DMX circuit board.
DMX Addressing Dip Switch
Uses binary addressing to address
both DMX channels used on
Auxilliary Outputs 1 & 2.
DMX setting n is the first output.
DMX setting n+1 is the second
output.
Yellow Led
The yellow LED indicates the pres-
ence of DMX signal. A solid Yellow
LED indicates that the unit is
recieving the DMX signal.
1
Page 4
XLR Pin Assignments:
Auxilliary Output 1 & 2
D.M.X. Interface
L.= 115 VAC Line
N.= 115 VAC Neutral
D.M.X. Data In/ Out
Pin 1.Ground/Return
Pin 2.Compliment(-)
Pin 3. DataTrue(+)
Pin 4.Spare
Pin 5.Spare
2
Page 5
DMX Addressing Example
The following is a scenario on how to properly address and use the LSG/DMX
Interface.
Two fans are required ( Fan1, Fan2) to start and stop using a DMX signal. These
two fans have a combined Amperage load of less than 12 Amps.
The DMX address of the first fan is channel #440.
1.) Plug Fan 1 power into Auxilliary Output #1, and plug Fan 2 power into
Auxilliary Output #2.
2.) Plug main power of the LSG/DMX Interface into a 115 VAC source with a
minimum load rating of 12 Amps.
3.) Turn on Main power switch of the LSG/DMX Interface as well as the main
power to the 2 fans.
4.) To address the proper DMX channel on the DMX Addressing Dipswitch, we
must refer to the Binary Addressing Table located further in the manual.
The address table notes that channel # 440 is entered into the dipswitch as

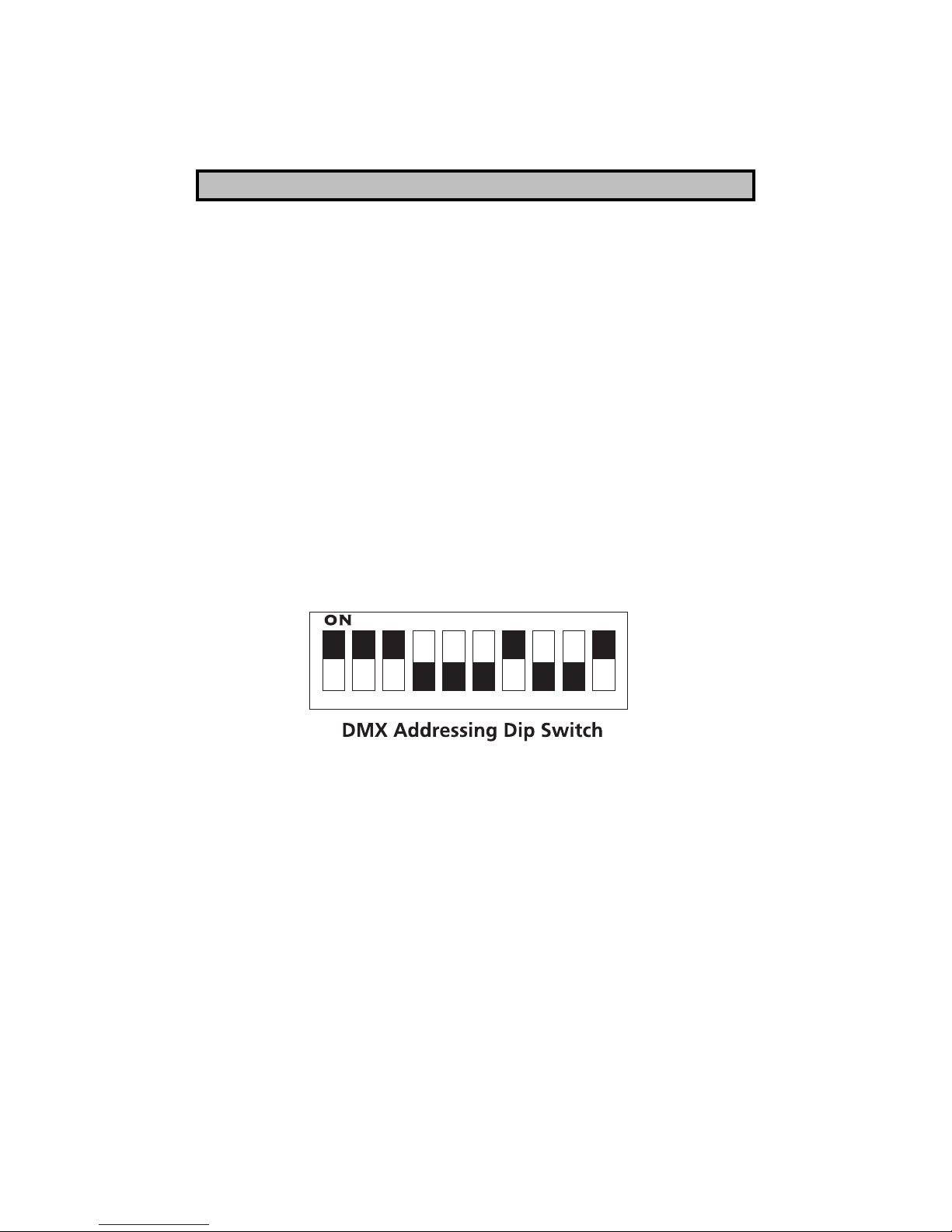

follows: 000111011. the DMX Addressing Dip Switch should look like this:
5.) When channel #440 is activated at the DMX control source, Fan 1 will turn
on. By default, when Channel 441 is activated ( 440+1=441) at the DMX control
source, Fan 2 will turn on.
3
Page 6
DMX Flow
Dip Switch No. 123456789Control Channel (n)
1000000001 1
0100000002 2
1100000003 3
0010000004 4
1010000005 5
0110000006 6
1110000007 7
0001000008 8
1001000009 9
01010000010 10
11010000011 11
00110000012 12
10110000013 13
01110000014 14
11110000015 15
00001000016 16
10001000017 17
01001000018 18
11001000019 19
00101000020 20
10101000021 21
01101000022 22
11101000023 23
00011000024 24
10011000025 25
01011000026 26
11011000027 27
00111000028 28
10111000029 29
01111000030 30
11111000031 31
00000100032 32
10000100033 33
01000100034 34
Page 7
DMX Flow
Dip Switch No. 123456789Control Channel (n)
11000100035 35
00100100036 36
10100100037 37
01100100038 38
11100100039 39
00010100040 40
10010100041 41
01010100042 42
11010100043 43
00110100044 44
10110100045 45
01110100046 46
11110100047 47
00001100048 48
10001100049 49
01001100050 50
11001100051 51
00101100052 52
10101100053 53
01101100054 54
11101100055 55
00011100056 56
10011100057 57
01011100058 58
11011100059 59
00111100060 60
10111100061 61
01111100062 62
11111100063 63
00000000064 64
10000010065 65
01000010066 66
11000010067 67
00100010068 68
Page 8
DMX Flow
Dip Switch No. 123456789Controll Channel(n)
10100010069 69
01100010070 70
11100010071 71
00010010072 72
10010010073 73
01010010074 74
01010010075 75
00110010076 76
00110010077 77
01110010078 78
01110010079 79
00001010080 80
10001010081 81
01001010082 82
11001010083 83
00101010084 84
10101010085 85
01101010086 86
11101010087 87
00011010088 88
10011010089 89
01011010090 90
11011010091 91
00111010092 92
10111010093 93
01111010094 94
11111010095 95
00000110096 96
10000110097 97
01000110098 98
11000110099 99
001001100100 100
101001100101 101
011001100102 102
Page 9
DMX Flow
Dip Switch No. 123456789Control Channel(n)
000101100104 104
100101100105 105
010101100106 106
110101100107 107
001101100108 108
101101100109 109
011101100110 110
111101100111 111
000011100112 112
100011100113 113
010011100114 114
110011100115 115
001011100116 116
101011100117 117
011011100118 118
111011100119 119
000111100120 120
1 0 0 111100121 121
010111100122 122
110111100123 123
001111100124 124
101111100125 125
011111100126 126
111111100127 127
000000010128 128
100000010129 129
010000010130 130
110000010131 131
001000010132 132
101000010133 133
011000010134 134
111000010135 135
000100010136 136
100100010137 137
Page 10
DMX Flow
Dip Switch No. 123456789Control Channel(n)
010100010138 138
110100010139 139
001100010140 140
101100010141 141
011100010142 142
111100010143 143
000010010144 144
100010010145 145
010010010146 146
110010010147 147
001010010148 148
101010010149 149
011010010150 150
111010010151 151
000110010152 152
100110010153 153
010110010154 154
110110010155 155
001110010156 156
101110010157 157
011110010158 158
111110010159 159
000001010160 160
100001010161 161
010001010162 162
110001010163 163
001001010164 164
101001010165 165
011001010166 166
111001010167 167
000101010168 168
100101010169 169
010101010170 170
110101010171 171
001101010172 172
Page 11
DMX Flow
Dip Switch No. 123456789Control Channel(n)
101101010173 173
011101010174 174
111101010175 175
000011010176 176
100011010177 177
010011010178 178
110011010179 179
001011010180 180
101011010181 181
011011010182 182
111011010183 183
000111010184 184
100111010185 185
010111010186 186
110111010187 187
001111010188 188
101111010189 189
011111010190 190
111111010191 191
000000110192 192
100000110193 193
010000110194 194
110000110195 195
001000110196 196
101000110197 197
011000110198 198
111000110199 199
000100110200 200
100100110201 201
010100110202 202
110100110203 203
001100110204 204
101100110205 205
011100110206 206
Page 12
DMX Flow
Dip Switch No. 123456789Control Channel(n)
111100110207 207
000010110208 208
100010110209 209
010010110210 210
110010110211 211
001010110212 212
101010110213 213
011010110214 214
111010110215 215
000110110216 216
100110110217 217
010110110218 218
110110110219 219
001110110220 220
101110110221 221
011110110222 222
111110110223 223
000000110224 224
100001110225 225
010001110226 226
110001110227 227
001001110228 228
101001110229 229
011001110230 230
111001110231 231
000101110232 232
100101110233 233
010101110234 234
110101110235 235
001101110236 236
101101110237 237
011101110238 238
111101110239 239
000011110240 240
100011110241 241
Page 13
DMX Flow
Dip Switch No. 123456789Control Channel(n)
010011110242 242
110011110243 243
001011110244 244
101011110245 245
011011110246 246
111011110247 247
000111110248 248
100111110249 249
010111110250 250
110111110251 251
001111110252 252
101111110253 253
011111110254 254
111111110255 255
000000001256 256
100000001257 257
010000001258 258
110000001259 259
001000001260 260
101000001261 261
011000001262 262
111000001263 263
000100001264 264
100100001265 265
010100001266 266
110100001267 267
001100001268 268
101100001269 269
011100001270 270
111100001271 271
000010001272 272
100010001273 273
010010001274 274
110010001275 275
001010001276 276
101010001277 277
011010001278 278
Page 14
DMX Flow
Dip Switch No. 123456789Control Channel(n)
111010001279 279
000110001280 280
100110001281 281
010110001282 282
110110001283 283
001110001284 284
101110001285 285
011110001286 286
111110001287 287
000001001288 288
100001001289 289
010001001290 290
110001001291 291
001001001292 292
101001001293 293
011001001294 294
111001001295 295
000101001296 296
100101001297 297
010101001298 298
110101001299 299
001101001300 300
101101001301 301
011101001302 302
111101001303 303
000011001304 304
100011001305 305
010011001306 306
110011001307 307
001011001308 308
101011001309 309
011011001310 310
111011001311 311
000111001312 312
100111001313 313
Page 15
DMX Flow
Dip Switch No. 123456789Control Channel(n)
100111001313 313
010111001314 314
110111001315 315
001111001316 316
101111001317 317
011111001318 318
111111001319 319
000000101320 320
100000101321 321
010000101322 322
110000101323 323
001000101324 324
101000101325 325
011000101326 326
111000101327 327
000100101328 328
100100101329 329
010100101330 330
110100101331 331
001100101332 332
101100101333 333
011100101334 334
111100101335 335
000010101336 336
100010101337 337
010010101338 338
110010101339 339
001010101340 340
101010101341 341
011010101342 342
111010101343 343
000110101344 344
100110101345 345
010110101346 346
110110101347 347
Page 16
DMX Flow
Dip Switch No. 123456789Control Channel(n)
001110101348 348
101110101349 349
011110101350 350
111110101351 351
000001101352 352
100001101353 353
010001101354 354
110001101355 355
001001101356 356
101001101357 357
011001101358 358
111001101359 359
000101101360 360
100101101361 361
010101101362 362
110101101363 363
001101101364 364
101101101365 365
011101101366 366
111101101367 367
000011101368 368
100011101369 369
010011101370 370
110011101371 371
001011101372 372
101011101373 373
011011101374 374
111011101375 375
000111101376 376
100111101377 377
010111101378 378
110111101379 379
001111101380 380
101111101381 381
Page 17
DMX Flow
Dip Switch No. 123456789Control Channel(n)
011111101382 382
111111101383 383
000000011384 384
100000011385 385
010000011386 386
110000011387 387
001000011388 388
101000011389 389
011000011390 390
111000011391 391
000100011392 392
100100011393 393
010100011394 394
110100011395 395
001100011396 396
101100011397 397
011100011398 398
111100011399 399
000010011400 400
100010011401 401
010010011402 402
110010011403 403
001010011404 404
101010011405 405
011010011406 406
111010011407 407
000110011408 408
100110011409 409
010110011410 410
110110011411 411
001110011412 412
101110011413 413
011110011414 414
111110011415 415
Page 18
DMX Flow
Dip Switch No. 123456789Control Channel(n)
000001011416 416
100001011417 417
010001011418 418
110001011419 419
001001011420 420
101001011421 421
011001011422 422
111001011423 423
000101011424 424
100101011425 425
010101011426 426
110101011427 427
001101011428 428
101101011429 429
011101011430 430
111101011431 431
000011011432 432
100011011433 433
010011011434 434
110011011435 435
001011011436 436
101011011437 437
011011011438 438
111011011439 439
000111011440 440
100111011441 441
010111011442 442
110111011443 443
001111011444 444
101111011445 445
011111011446 446
111111011447 447
000000111448 448
100000111449 449
Page 19
DMX Flow
Dip Switch No. 123456789Control Channel(n)
010000111450 450
110000111451 451
001000111452 452
101000111453 453
011000111454 454
111000111455 455
000100111456 456
100100111457 457
010100111458 458
110100111459 459
001100111460 460
101100111461 461
011100111462 462
111100111463 463
000010111464 464
100010111465 465
010010111466 466
110010111467 467
001010111468 468
101010111469 469
011010111470 470
111010111471 471
000110111472 472
100110111473 473
010110111474 474
110110111475 475
001110111476 476
101110111477 477
011110111478 478
111110111479 479
000001111480 480
100001111481 481
010001111482 482
110001111483 483
001001111484 484
Page 20
DMX Flow
Dip Switch No. 123456789Control Channel(n)
101001111485 485
011001111486 486
111001111487 487
000101111488 488
100101111489 489
010101111490 490
110101111491 491
001101111492 492
101101111493 493
011101111494 494
111101111495 495
000011111496 496
100011111497 497
010011111498 498
110011111499 499
001011111500 500
101011111501 501
011011111502 502
111011111503 503
000111111504 504
100111111505 505
010111111506 506
110111111507 507
001111111508 508
101111111509 509
011111111510 510
111111111511 511
Mayîš’99
Loading...
