Operation Instructions
FULLY AUTOMATIC WASHING MACHINE
XQB22-(AUS)22G
The machine is for cold water connection only
CONTENTS
PARTS IDENTIFICATION
FUNCTIONS OF OPERATING SWITCHES
SAFETY PRECAUTIONS
INSTALLATION
WASHING PROCEDURES
WASHING PROCEDURE CHART
INDICATION OF ABNORMITY
POWER VOLTAGE
TUB CLEANING PROGRAM
TROUBLE SHOOTING
1
2
3
4
5
6
6
6
7
8
MAIN TECHNICAL PARAMETERS
8
PARTS IDENTIFICATION
ACCESSORIES
Inlet Hose 1pc Upper drain hose 1pc

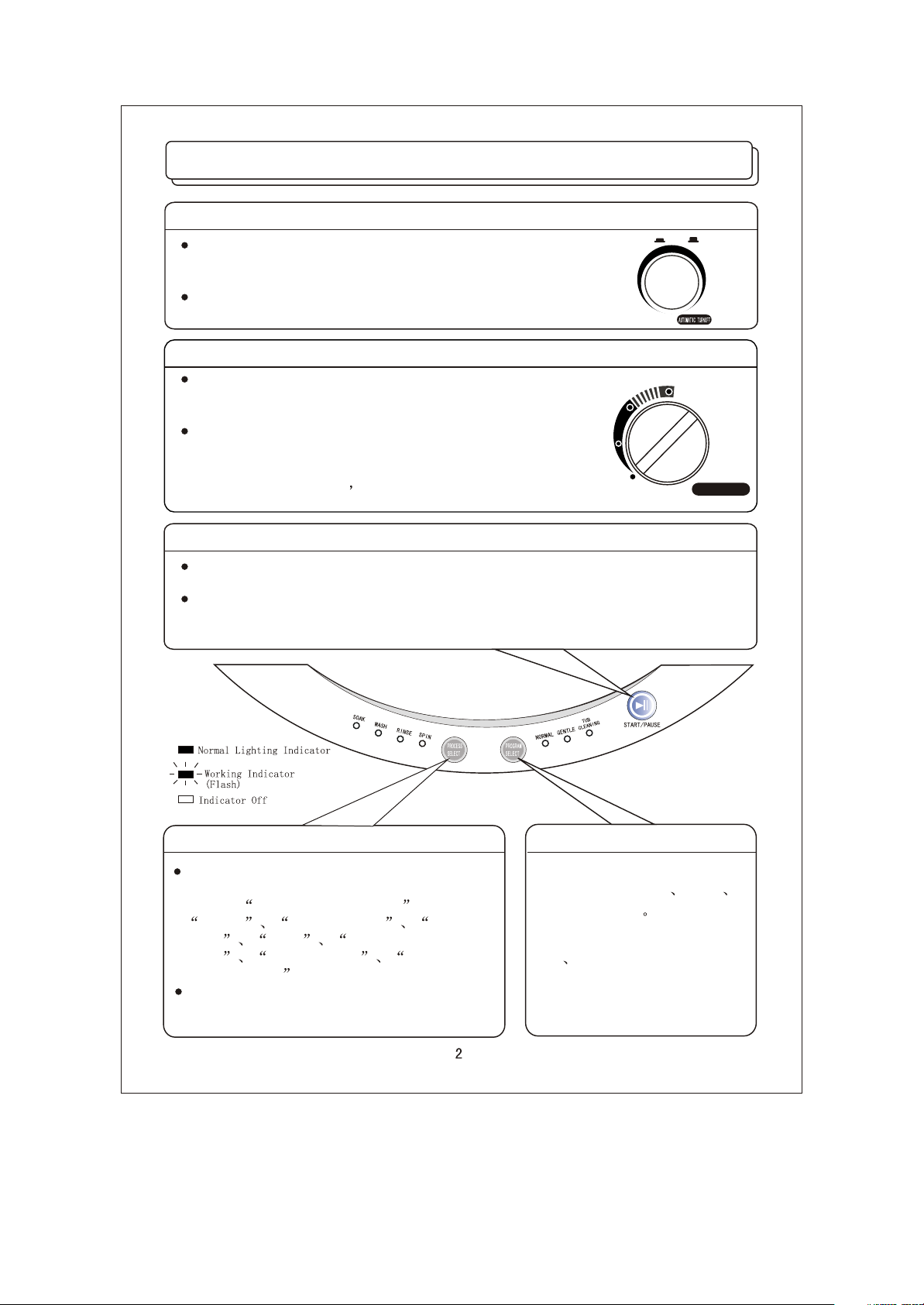

FUNCTIONS OF OPERATING SWITCHES
POWER SWITCH
OFF
Power supply is turned on by pressing down the button,
and washer is in a mode of normal washing; and turned
off by another press.
After washing,power switch will spring up automatically
to cut off power supply.
WATER LEVEL SELECTOR
Secelt the water level according to the capacity or
quantity of clothes to be washed: "High","Medium",
"Low".
To increase the water level atter the set level has
been reached,first set the switch to "RESET" and
MEDIUM
then immediately turn back WATER LEVEL to the
desired level position thus the desired level can
be obtained.
START/HOLD
When power is on , to start the machine, the button of [START/HOLD] must
be pressed(the working indicator glitters)first.
To hold the operating machine , press the button again, at which the working
indicator turns from a glitter into a normal lighting.To renew its operation, press
it another time.
ON
POWER
RESET
HIGH
LOW
WATER LEVEL
If the full cycle of wash , rinse is not
entired,
the desired process can be selected by the
key of PROCESS SELECT to choose
WASH WASH-RINSE RINSE SPIN SPIN SOAK-WASH-RINSE SPIN SOAK-WASH SOAK WASH-RINSE and so on.
Lamps will be glittering when the washer is
operating in any process.
PROGRAM SELECTPROCESS SELECT
NORMAL: is suitable for washing
the clothes of cottons linens
synthetics fabrics
GENTLE: is suitable for washing
silks
knits and soft clothes.
TUB CLEANING: is used for
cleaning the tub regularly.
SAFETY PRECAUTIONS
Power Line
*When take off the plug, be sure to hold
the plug and not to pull the power line.
*Do not put heavy articles on the power
line or have it pressed by machine parts.
*User should not replace power line by
himself.
Hot
*Keep any hot articles or comburants
away from the washer, do not put them
on its top , because there are plasthetic
parts inside the washer.
Unwashable Clothes
* Washing of clothes stained with
flammable or volatile fluids is strictly
prohibited.
* Donot use organic solutions.
Caution for Rotating Tub
Donot put your hand into the rotating
tub.
No Splashing the Switch
* Donot wash the machine , especially the
electric parts ( may cause a failure or an
accident).
* Donot put the washer in a wet place.
Measures After Washing
* Take off the power plug.
* Turn off the water tap.
* Never to pile articles on the washer.
* Keep inflammable or explosive matters
away from the washer,
Donot Let Children Climb up the Washer
* Do not let a child climb up or down into
the tub. special cautions should be tak-
en when the washer is used at home.
Petroleum Product Organic Solution
INSTALLATION

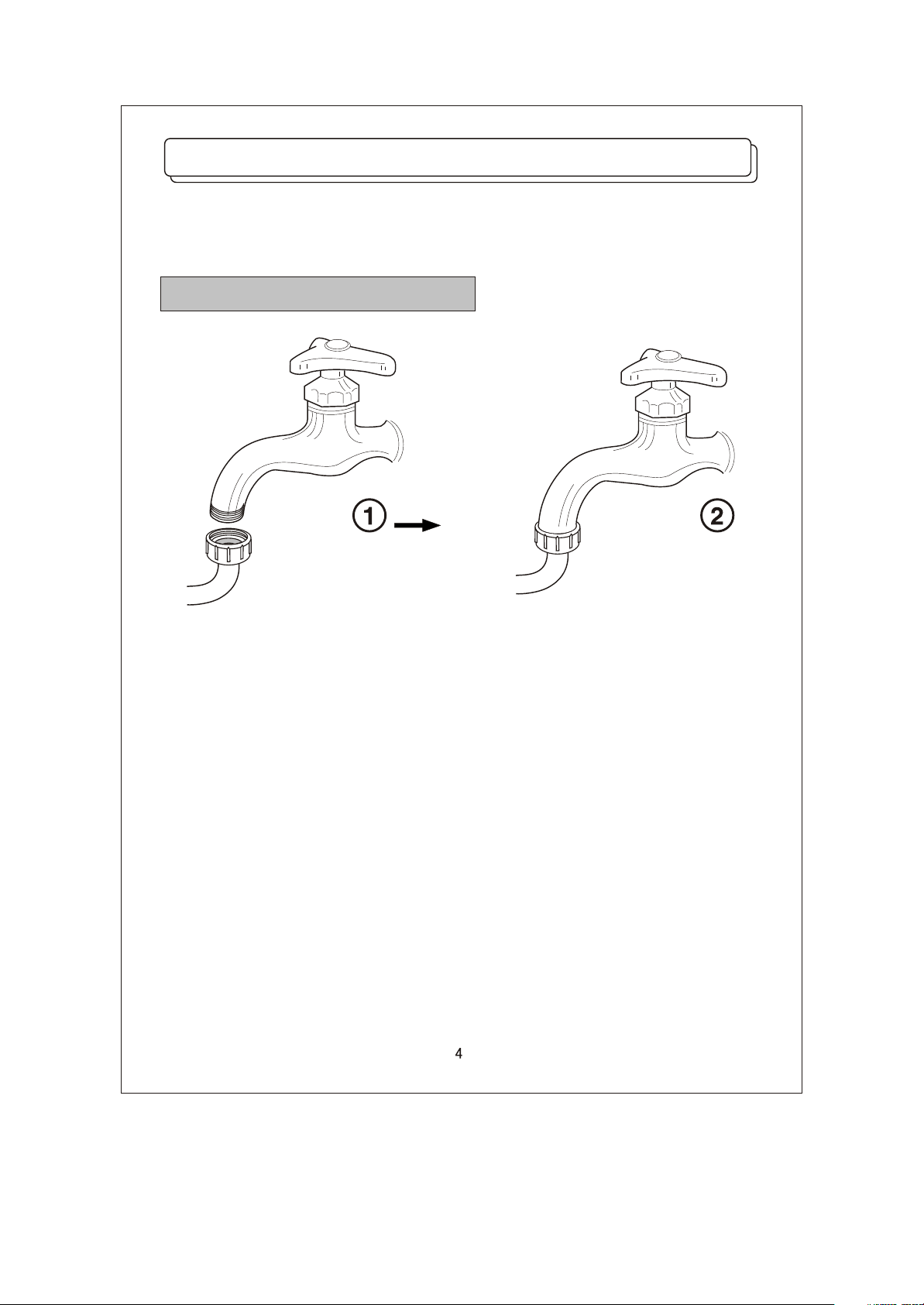

Installation of water inlet pipe
Put the water inlet pipe(which has metallic filtering bag) screw on to the tap.
WASHING PROCEDURES
1
2
ON
POWER
OFF
AUTOMATIC TURNOFF
1. First loose the adjust foot knob , place the
washer evenly and stably,and tighten
2. Connect with the water inlet hose , and
on the water tap.
3. Insert the power plug into the power socket
(with the earth lead properly connected).
4. Hang the upper drain hose on the pond.
>750mm
5. Loosely put clothes wash into the tub ( be
careful not to leave coins keys etc.hard
arti
cles in their pockets , in case they will
damage the tub.
6. Put an appropriate amount of detergent into
the tub , too much of it is both a waste and
difficult to rinse . Please refer to the Table
of Amount of Detergent.
Note:
The water will overflow when the height
of the drain hose under 750mm.
Press down the Power Button , the washer
enters a mode of normal wash procedure.
the knob.
turn
3
4
5
MEDIUM
HIGH
LOW
RESET
START
HOLD
WATER LEVEL
Select a proper water level based on the
quentity of clothes.(The washer will not start
before water reaches the set level.)
PROCESS SELECTION:
If the full cycle of wash , rinse and spin is
not entired,the desired process can be select
(please reference to Functions of operating
switches
PROGRAM SELECTION:
REGULAR: for cottons,linens,synthetic
fabrics.
GENTLE: for silks,knits and soft clothes.
TUB CLEANING: use this program to clean
the tub regularly.
The machine starts to work on pressing
down START/HOLD button . As the washer
finishes washing,the buzzer buzzes and the
power switch cuts off power supply
automatically , the
remain indicating.
REGULAR light
WASHING PROCEDURE CHART
INDICATION OF ABNORMITY
Abnormal spin
If the clothes to be spun have been coUected or crowded on one side of the Uib. the tub will
b& unbalanced during rotation. The microcomputer will detect the unbalanced condition and correct it with the following operations: Water filling rinse(1min.) Drain spin. However, if the
unbalanced condition can not be eliminated by consecutively repeating three times the above operations, all the three indicating lamps of "PROCESS SELECT" will begin blinking on and off si
multaneously and the buzzer will sound to indicate an abnormity. Open the lid and redisiribute
the clothes (making it being distributed evenly or uniformly around the tub inside) in this case.
Abnormal drain
The microcomputer will determine the required drain time according to the drainage conditions. However, if water in the tub can not be drained away in a preset time if the drain hose
has not been lowered or by poor drainage or other problems. In this case , all three indicating
lamps of "PROCESS SELECT " will be blinking on and off simultaneously and the buzzer will
sound to indicate an abnormity . Open the lid and check if there is water in the tub or lower the
drain hose. Close the lid, the machine will operate normally.
Followings are not malfunctions
At the end of draining, the machine will be iniermittem spinning ( the tub spinning speed
Mil] increase and decrease ).This is not shelving a malfunction but a special design to smoothly
rotate the tub from low speed to high speed.
POWER VOLTAGE
1. Do not use the washer if power supply is abnormal.
2. This machine has protective function for high voltage, when the voltage is
270V 10V, the power will be cut off automatically.
APPLICABLE WATER LEVEL, WASH CAPACITY AND AMOUNTS OF DETERGENT
Water Level
Wash Capacity
Applicable Detergent
The amount of detergent applicable would vary because of the difference in detergent quality.

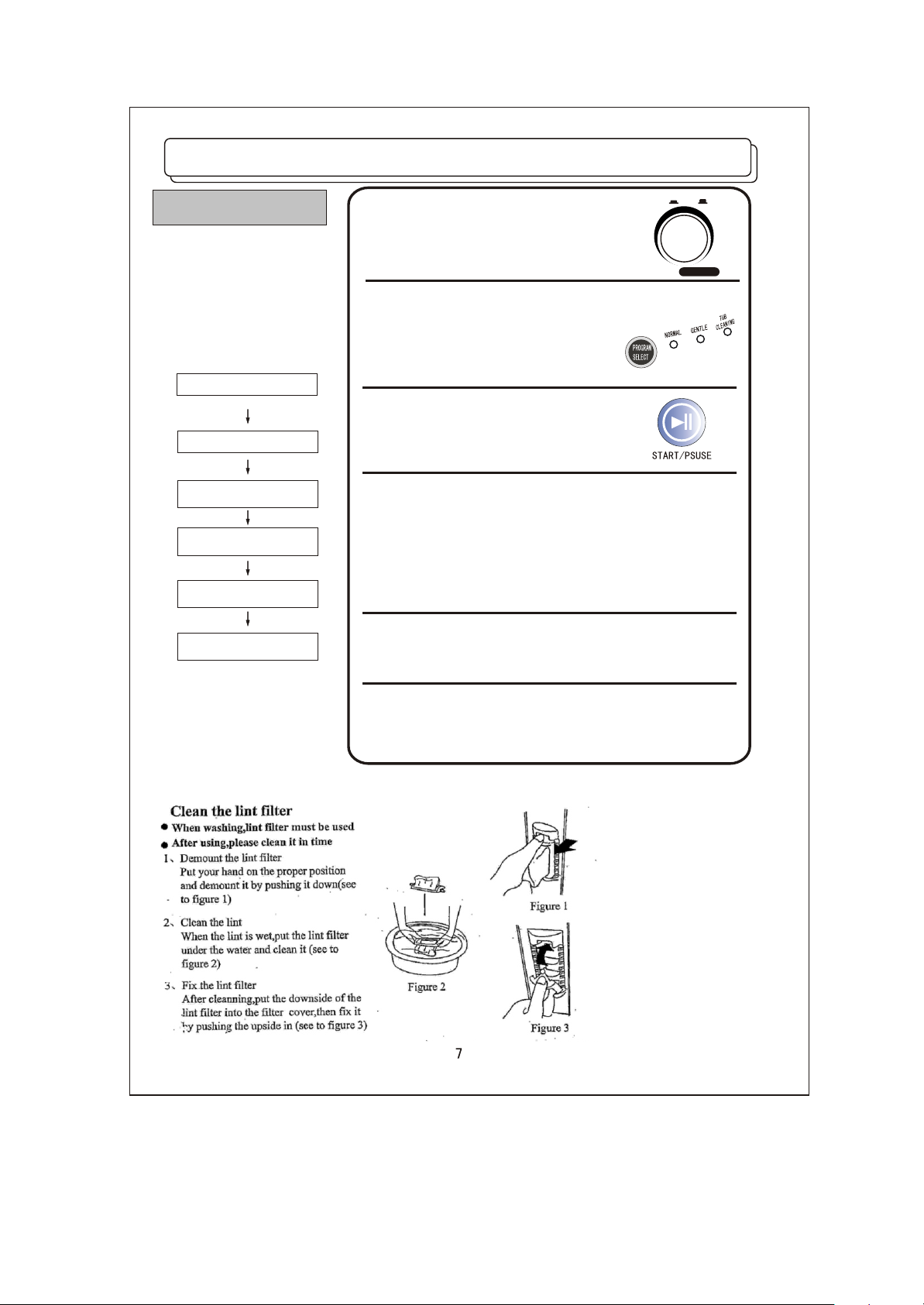

TUB CLEANING PROGRAM
Instruction to the tub cleaning
program
It will be adhere to wash powder's
residue inside and outside the
barrel because of the pollution
and the problem of the water
quality. It will take smelly and the
drain will not be flowing. Otherwise,
the adhering residue will take off
during the wash process. And the
clothing will be dirty. User should
clean the tub monthly.
The process of tub cleaning
Inlet water
Rinse for 5 minutes
Drain water ! Spin
for about 4 minutes
Inlet water ! Gyration
for about 5 minutes
Rinse 2 minutes ! Water
inlet for about 10 secs.
Drain water ! Spin
for about 4 minutes
*1 The water adding from low
water level in order. The
impeller start to move.
*2 The program is draining the
water while spinning.
! Please do not start the program
continuously.
ON
1
2
3
4
5
Completion of tub cleaning
! After completion of tub cleaning, the buzzer
will buzz continuously.
Switch on the power.
POWER
Select the [Tub Cleaning]
program.
Press the [Srart/Pause]
button.
When the impeller start to move,
take 200ml chloric bleacher into
the washer.
!
At first water inlet, you should take
about 200ml chloric bleacher.
! Please do not put into clothes.
Close the door lid.
If the door open, the program will
stop before spin and rinse.
OFF
AUTOMATIC TURNOFF
TROUBLE SHOOTING
Fault
Do not Operate Completely
No Water Inlet
Abnormal Drainage
No Spining
Items to Check
* If a power failure.
* If the plug inserted correctly into the power socket.
* If the fuse burnt out.
* If the power switch pressed.
* If START / PAUSE button pressed.
* If the set water level reached.
* If a water supply cut-off or an under water pressure.
* If the water inlet hose connected properly , and the
tap turned on.
* lfthe filter net of the intake valve blocked by foreign
matters.
* If the water drain hose is placed very high.
* If the end of the water drain hose is sealed in pond.
* If the internal rubber seal ring of drain valve is
blocked by dirt.
* If the washer placed unlevelly or tiltingly.
* If the clothes pressed to one side of the tub, or too
many clotlies placed.
* If the lid closed.
MAIN TECHNICAL PARAMETERS
Power 240V~/50Hz Working Water Pressure O.O3MPa-1MPa
Input Power 280W Gross Weight 18kg
Norminal Wash Capacity 2.2 kg Washing Type Novel Water Flow
Norminal Spin Capacity 2.2 kg Draining Type Upper Drain
Overall Dimensions 438X438X695mm Dewaterb Type Spining
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
CAUTION: If this appliance is supplied from a cord extension set or electrical
portable outlet device, the cord extension set or electrical portable outlet device
must be positioned so that it is not subject to splashing or ingress of moisture.
