LELY Splendimo 550 P Operating Manual

Lely Splendimo
550 P

Operator Manual

4.1304.850.0

English Original

www.lely.com

Lely Industries N.V.

Innovators in Agriculture

Innovators in Agriculture

This page intentionally left blank.

4.1304.8503.0

Innovators in Agriculture

Table of Contents

4.1304.8503.0

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Trademarks, Copyright And Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Warranty Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Manual Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Receiving and Delivery Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Dealer Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Dealer/Customer Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

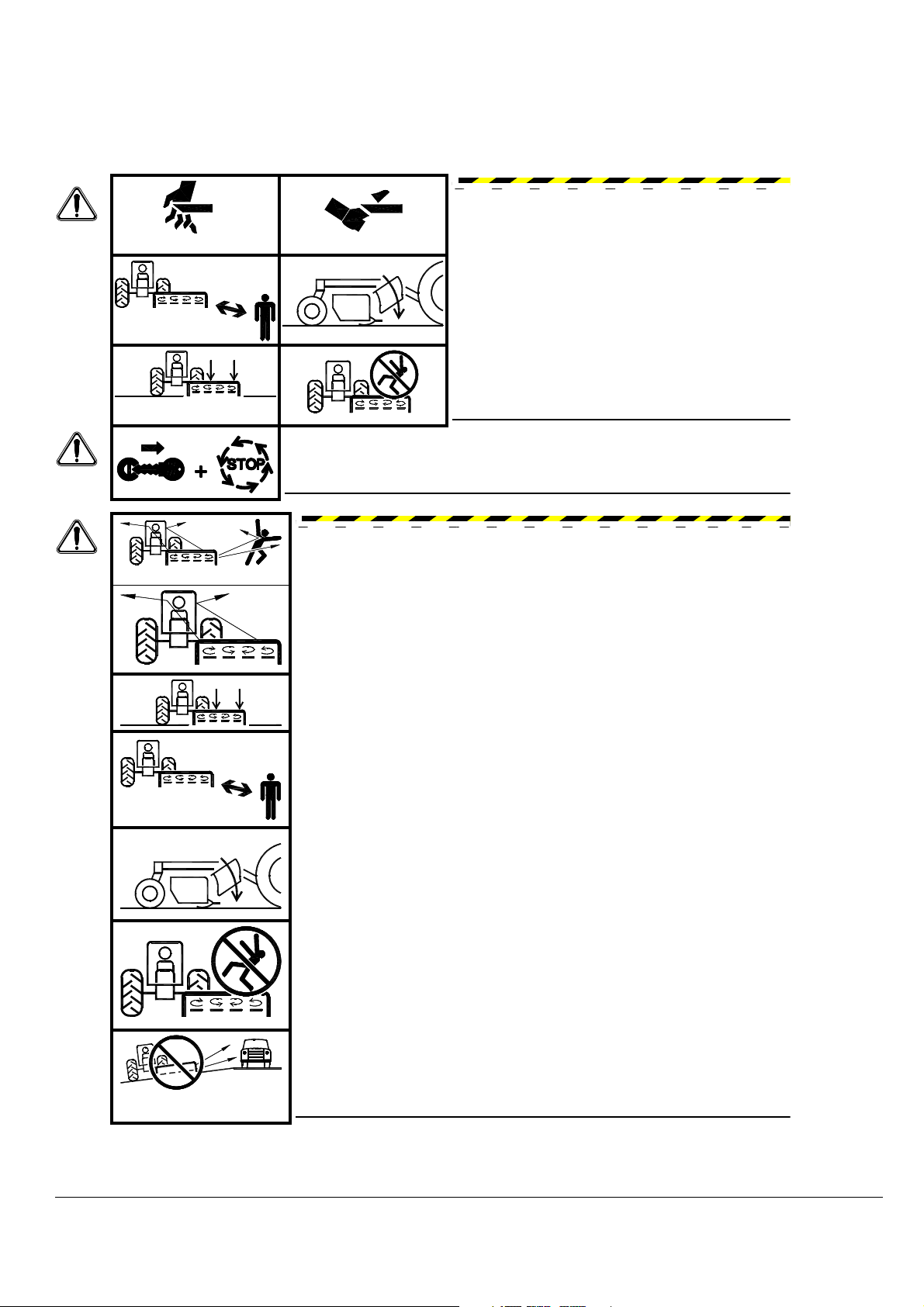

Explanation of Safety Decals on the Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Controls and Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Transport Locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Tongue Swing Lock Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

Cutter Bar Fold Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2

Cutter Bar Lift Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2

Hydraulic Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-3

Cutter Bars - Raise/Lower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-3

Tongue Swing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-4

Cutter Bars Fold/Unfold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-4

Cutter Bar Pitch - Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-5

Splendimo 550P S/N 101–157. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-5

Cutter Bar Pitch - Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-6

Splendimo 550P S/N 158–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-6

Cutter Bar Flotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-7

Cutter Bar Flotation - Adjust. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-8

Cutter Bar Balance Assembly - Adjust. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-8

Shutdown Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1

Stopping the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1

Hydraulic Pressure - Relieve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1

Preparing the Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1

Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1

Road Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1

Controls Familiarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-2

PTO Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-2

Sway Blocks - Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-2

Transporting the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-1

Preparing for Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-1

Pre-Season Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-1

Working on the Mower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-1

Inspection Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-1

Preparing the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-1

Primary PTO Shaft - Shorten (If Needed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-1

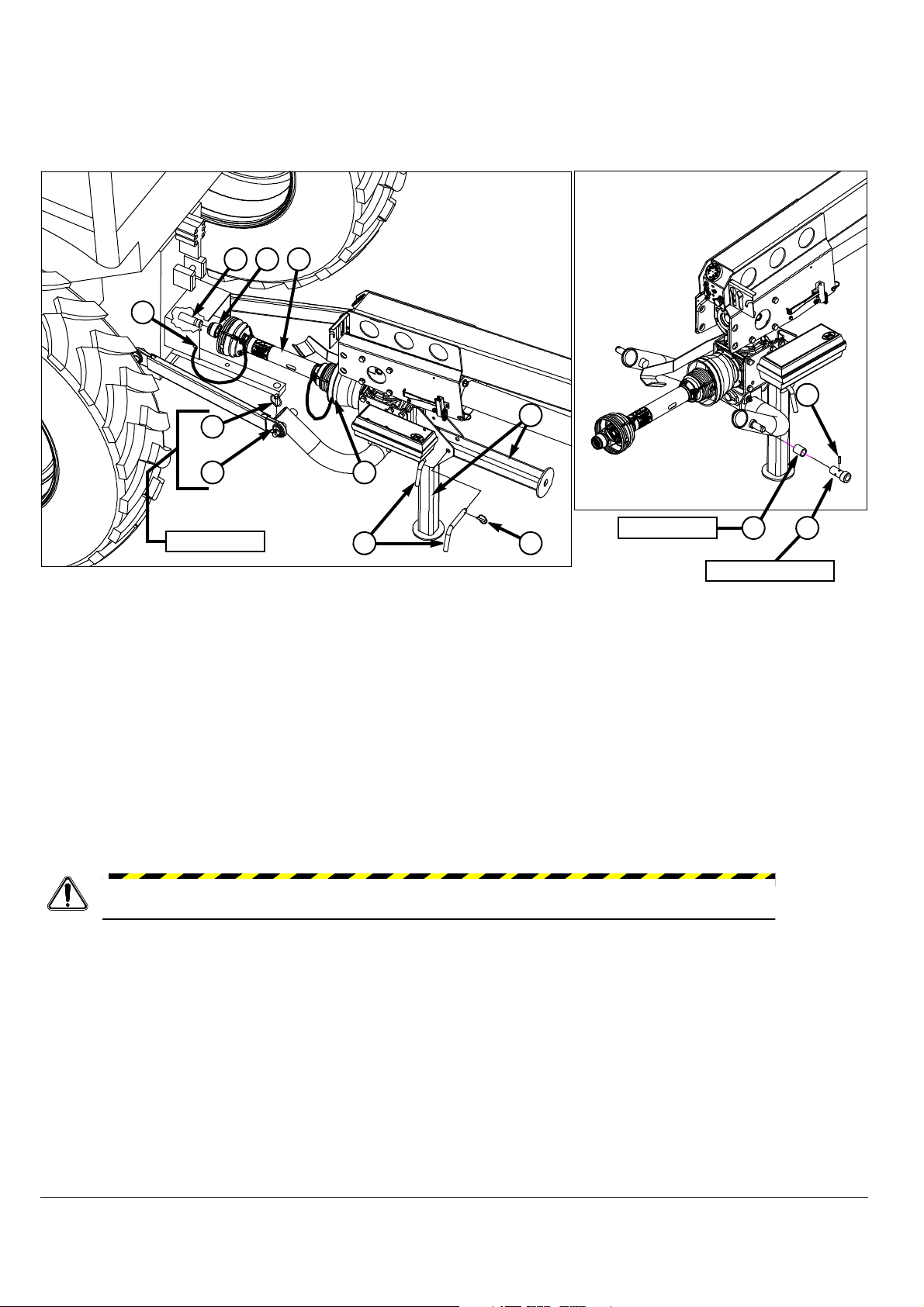

Attach Mower to Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-2

Splendimo 550 P Table of Contents iii

Innovators in Agriculture

Hydraulic Hoses - Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-3

4.1304.8503.0

Light Harness - Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-4

Controller - Prepare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-5

Slip Clutch - Break In. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-6

Disconnect Mower from Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-6

Operating the Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-1

Operator Qualifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-1

Personal Protective Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-1

Safe Operating Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-1

Arriving at the Field. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-1

Recommended Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-2

Splendimo 550P S/N 101–157. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-2

Splendimo 550P S/N 158–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-2

Transport Locks - Disengage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-4

Operating the Mower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-4

Opening the Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-4

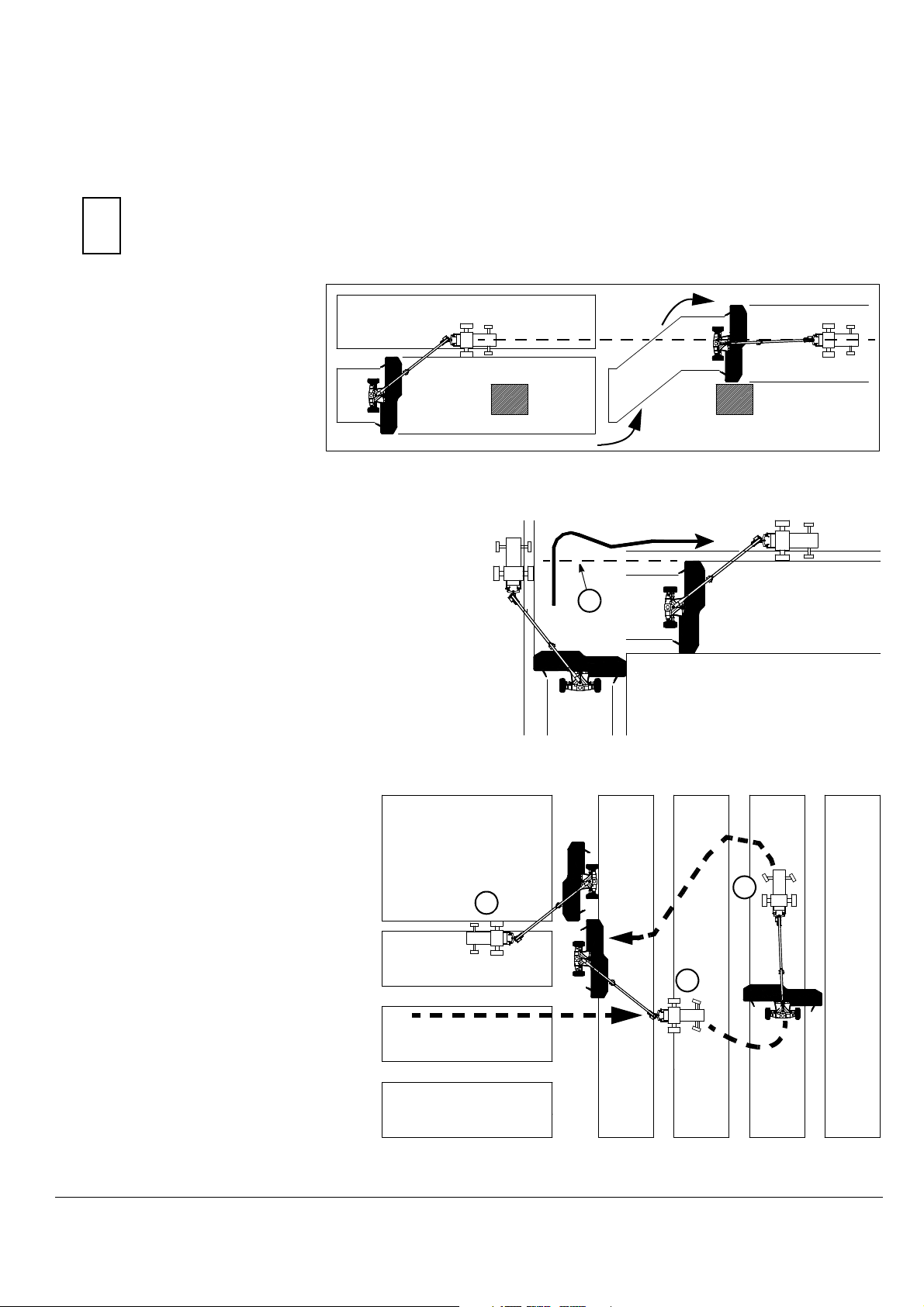

Steering the Mower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-5

Steering Around Obstacles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-5

Turning Square Corners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-5

180° Turns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-5

Flotation Pressure - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45-6

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-1

Cutter Bar Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-2

Machine - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-2

Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-2

Maintenance Intervals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-3

Maintenance - Before Each Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-4

Maintenance - After Initial 8 Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-4

Lug Nut - Torque Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-4

Maintenance - 8 Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-5

Tongue Pivot - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-5

3-Point Pivot - Grease. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-5

Overrunning Clutch - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-5

Primary PTO Shaft - Grease. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-6

Secondary PTO Shaft - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-7

Slip Clutch Hub - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-7

Cross PTO Shafts - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-8

Cutter Bars - Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-9

Cutter Elements Grease - Check for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-10

Skid Plates - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-10

Timing (Cutter Bars) - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-10

Cutter Blades - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-11

Overall Machine - Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-11

Mechanical Drive System - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-11

Universal Joints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-11

PTO Shaft Shields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-12

Gearboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-12

Curtain - Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-12

Maintenance - 50 Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tires and Rims -

Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-13

. . . . . . . . . . . . . . . . . . . . . . . . . . 50-13

Cutter Bar Driveshafts - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-13

Jackshaft - Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-14

Maintenance - 100 Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-14

Highway Lights - Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-14

Hydraulic System - Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-14

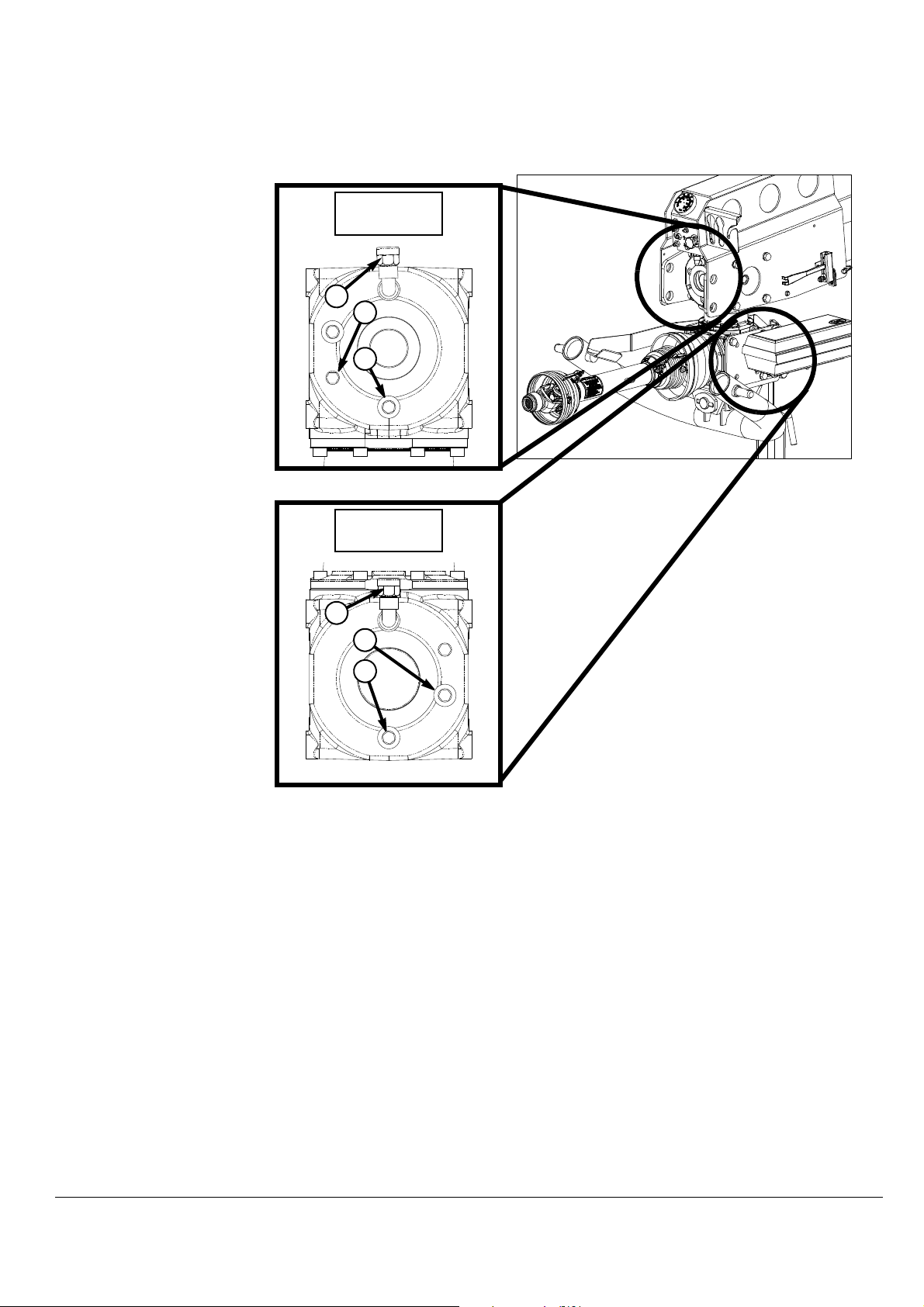

Gearbox Oil Levels - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-15

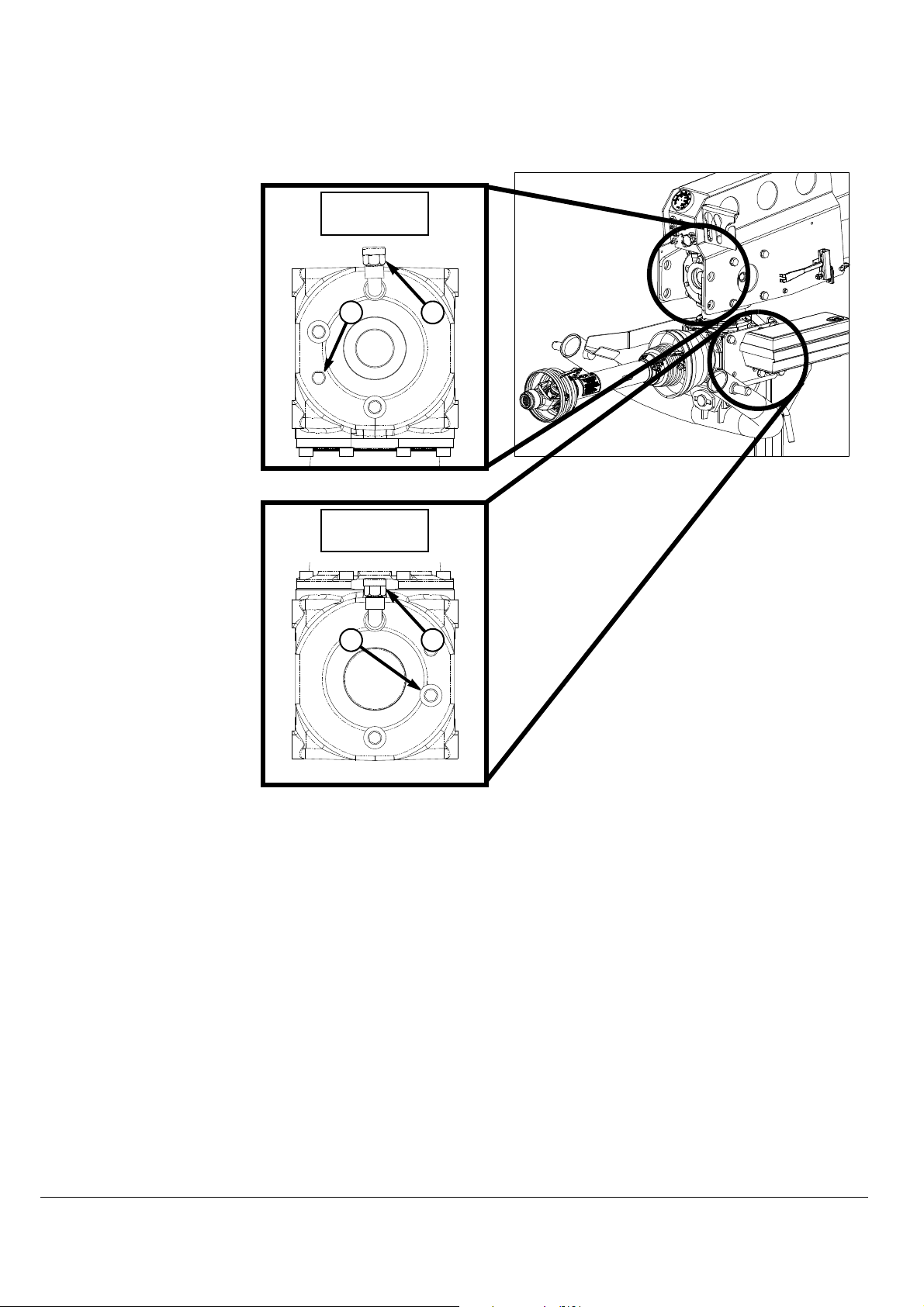

Cutter Bar Drive Gearboxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-15

iv Table of Contents Splendimo 550 P

Innovators in Agriculture

Swivel Hitch Gearbox (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-15

4.1304.8503.0

Swivel Hitch Gearbox (Front). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-16

Maintenance - 500 Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-17

Cutter Drive Elements - Change Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-17

Cutter Bar Drive Gearboxes - Change Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-17

Swivel Hitch Gearbox (Rear) - Change Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-18

Swivel Hitch Gearbox (Front) - Change Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-19

Cutter Elements - Replace Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-20

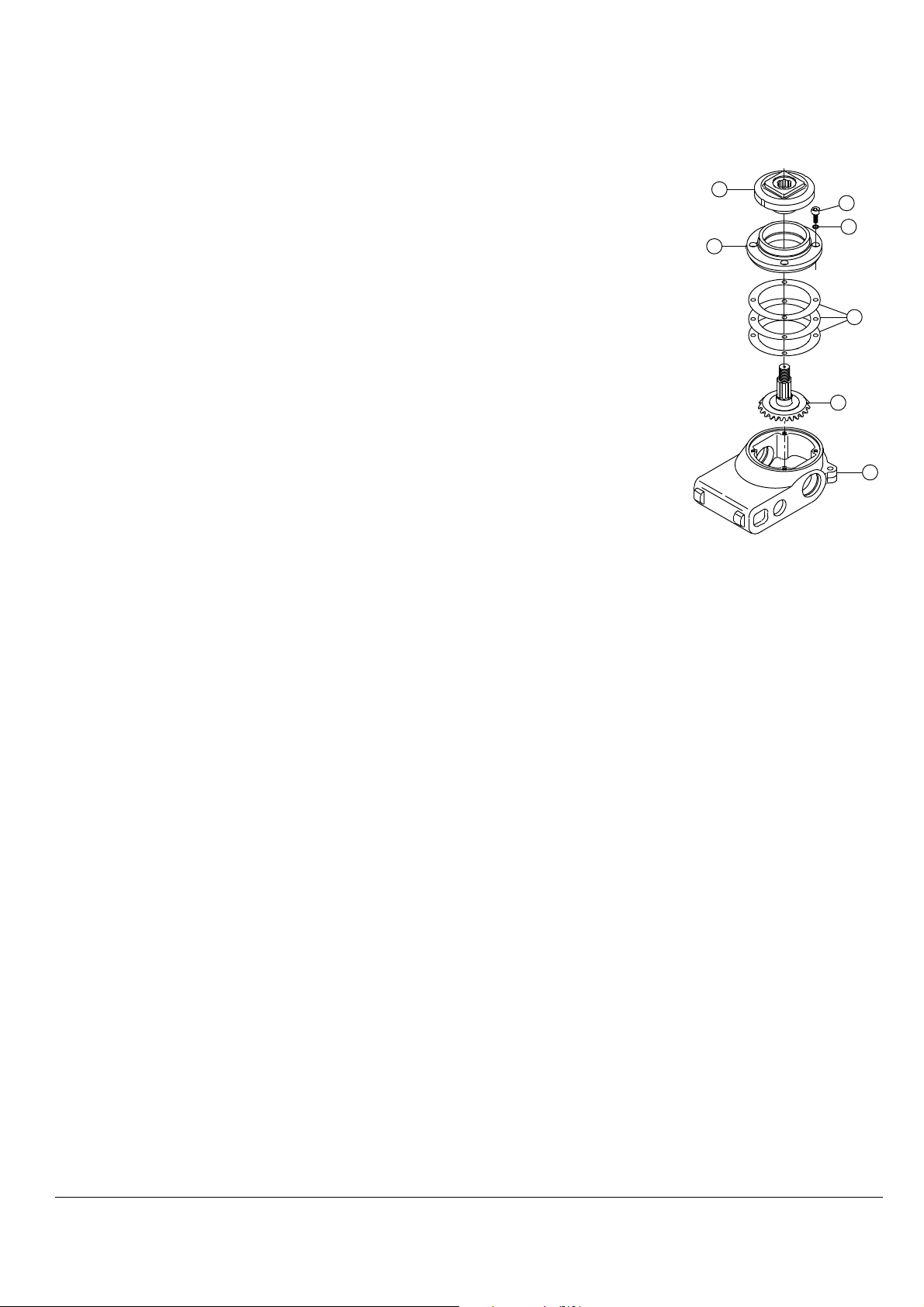

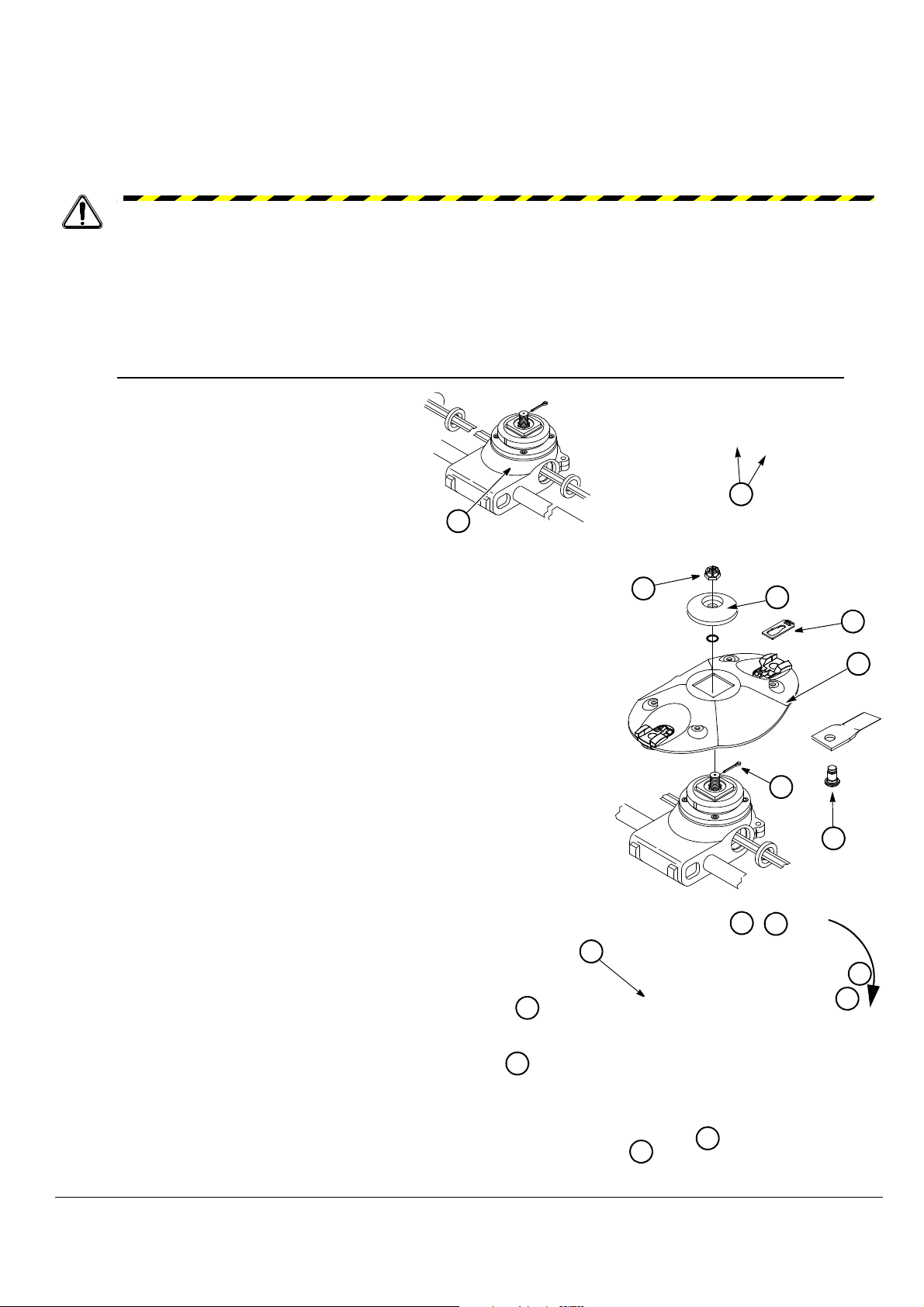

Cutter Disc Assembly - Remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-20

Grease - Replace. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-21

Maintenance - 1000 Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-22

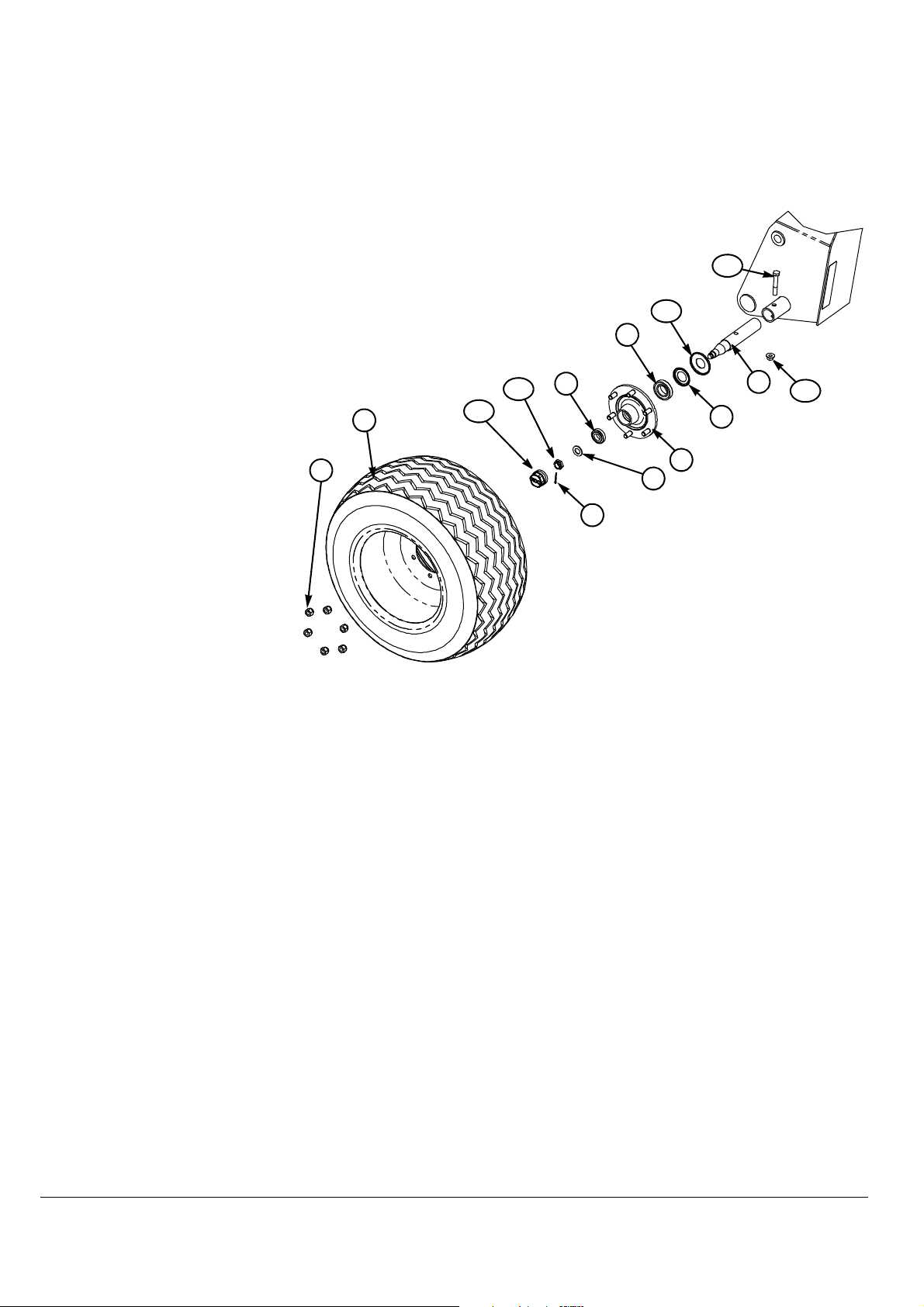

Wheel Bearings - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-22

PTO Shafts - Clean and Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-23

Primary PTO Shaft - Remove/Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-23

Secondary PTO Shaft - Remove/Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-24

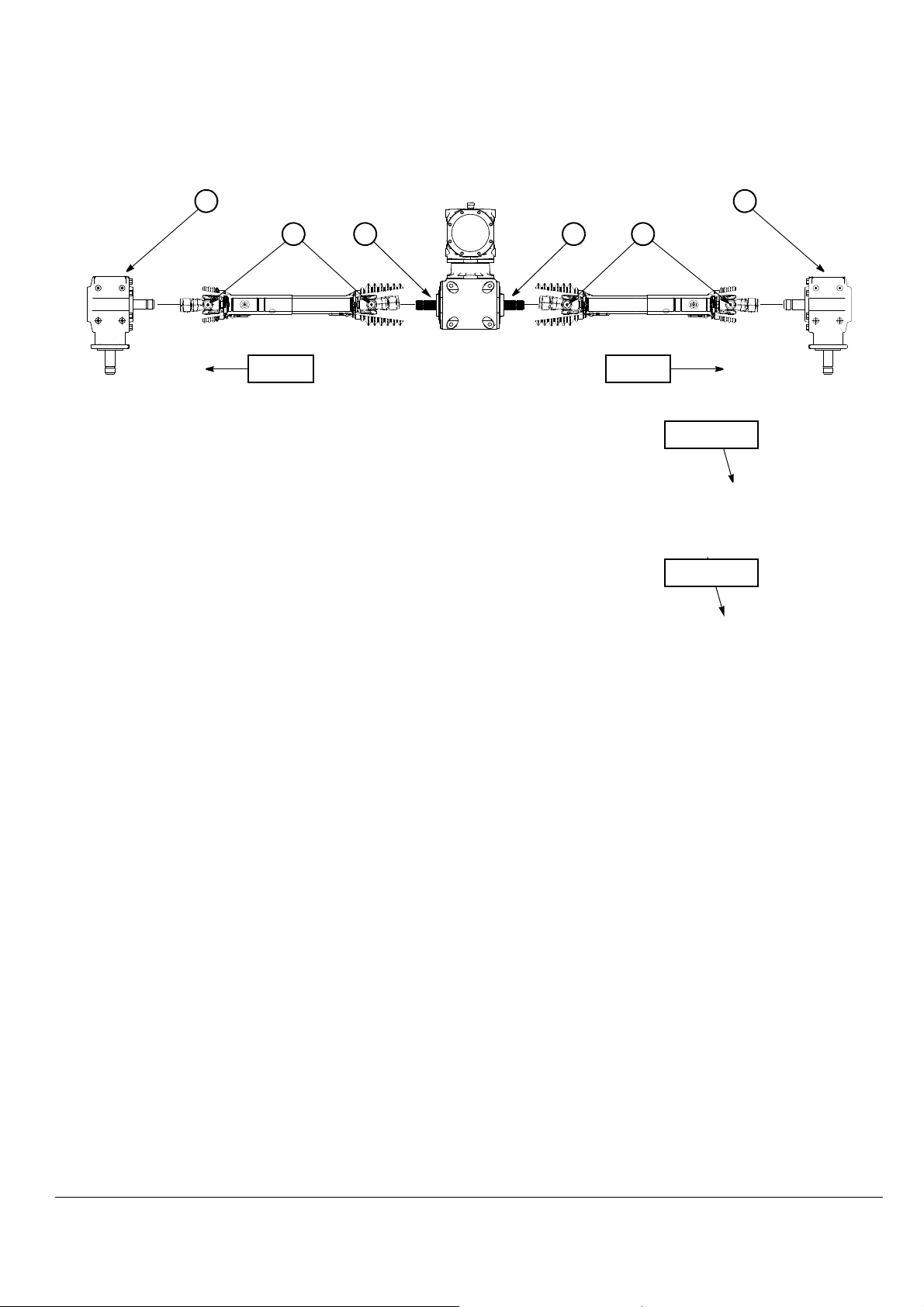

Cross PTO Shafts - Remove/Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-25

Primary and Cross PTO Shafts - Clean and Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-27

Secondary PTO Shaft - Clean and Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-29

Maintenance - As Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-31

Cutter Blades - Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-31

Blades Replacement Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-32

Blades - Remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-33

Blade Stops - Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-35

Disc Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-35

Leading Edges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-35

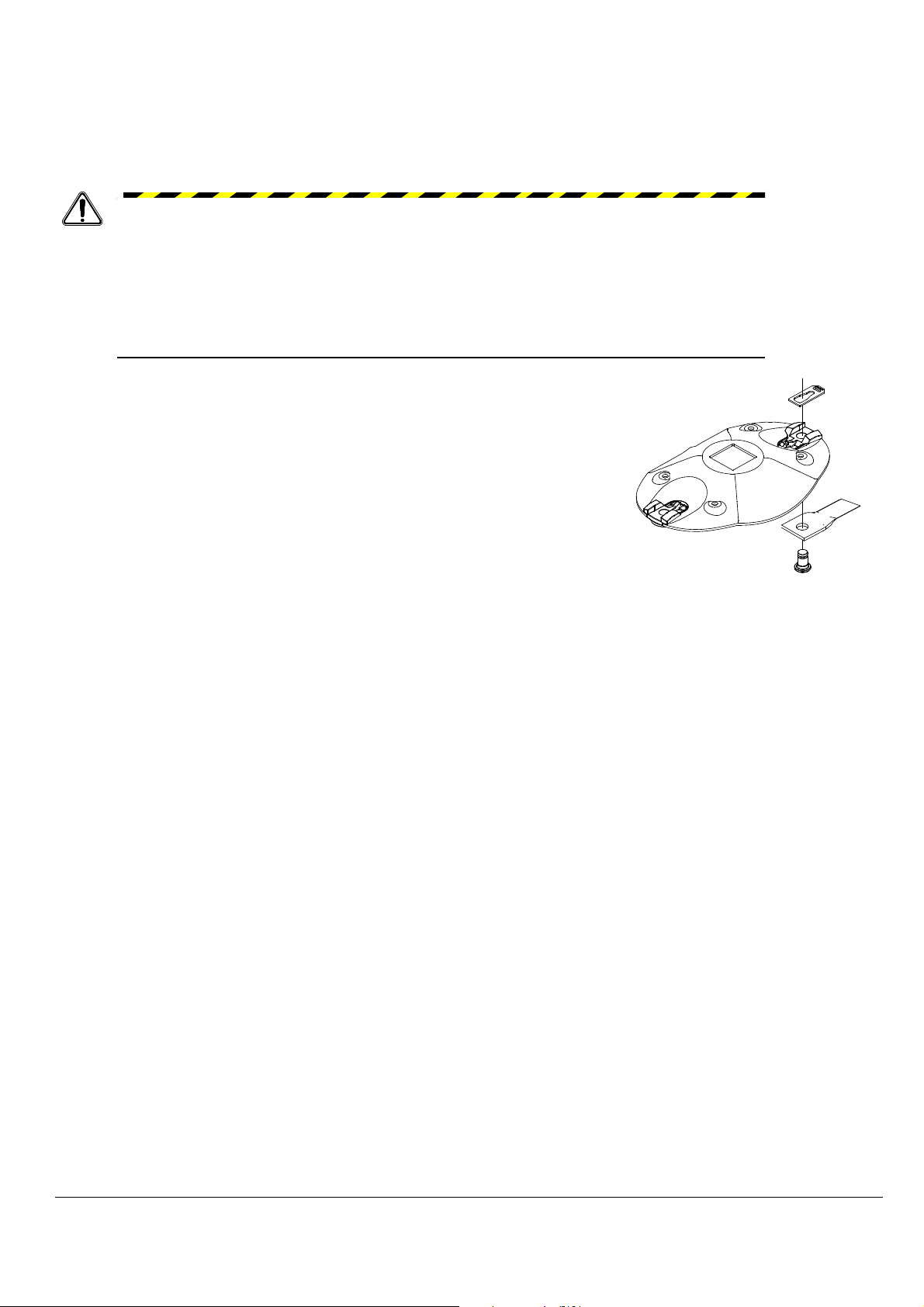

Blades - Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-36

Curtains - Check/Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-36

Curtain - Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-37

Slip Clutch - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-37

Slip Clutch - Break In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-37

Slip Clutch - Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-38

Slip Clutch Friction Discs - Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-38

Slip Clutch Friction Discs - Replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-39

Slip Clutch - Disassemble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-39

Slip Clutch - Assemble. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-39

Timing (Cutter Bars) - Adjust. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-40

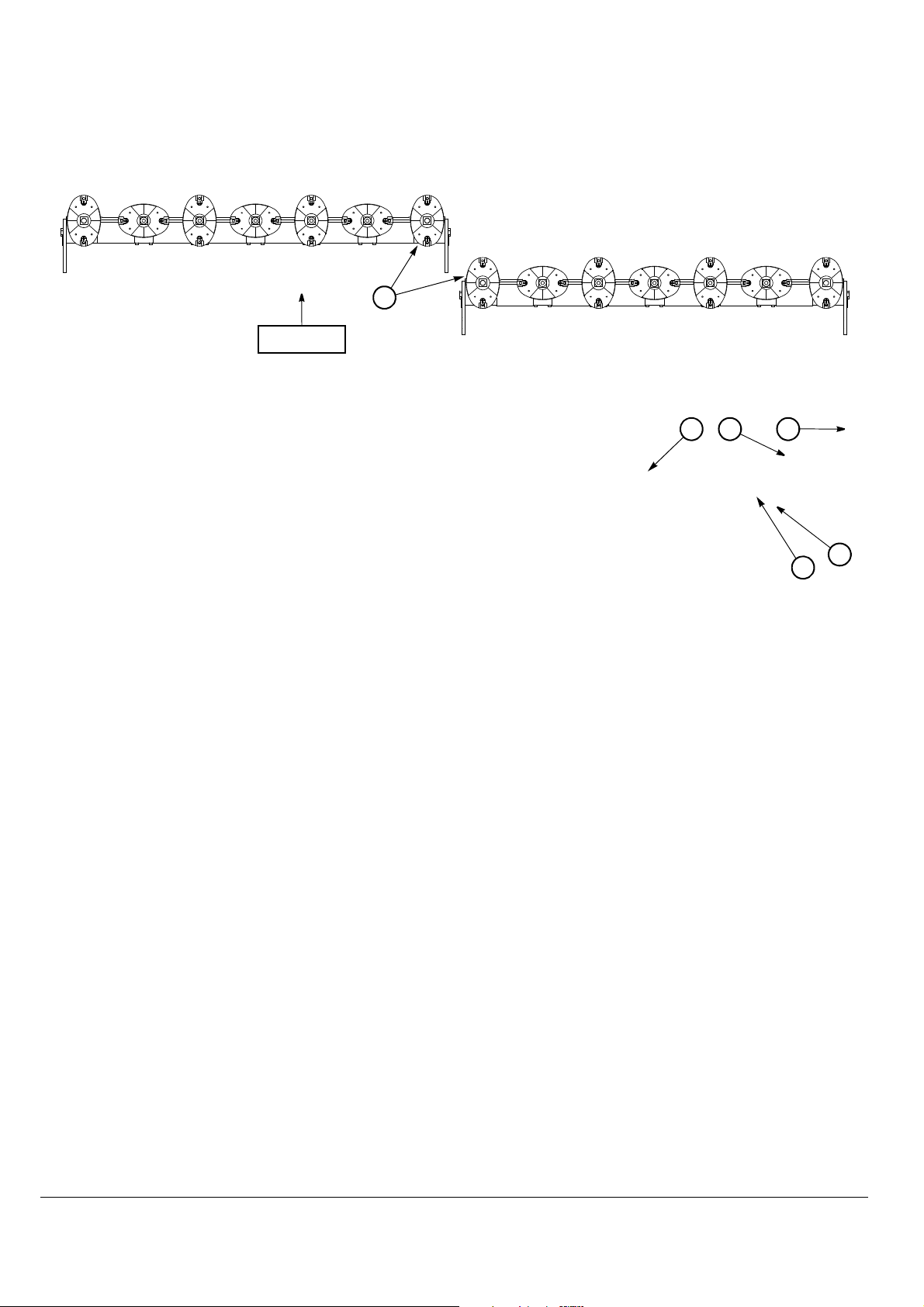

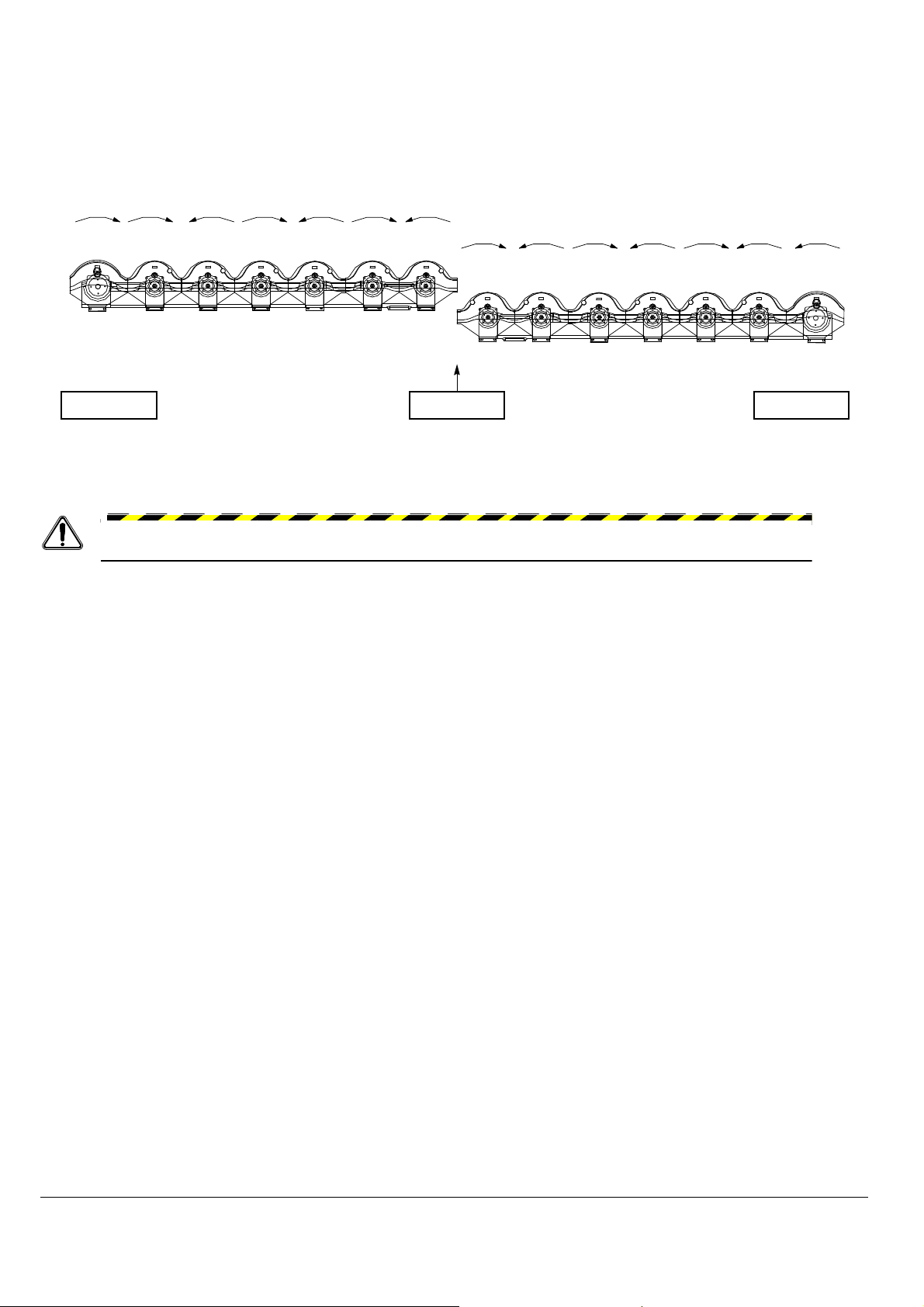

Direction of Rotation - Cutter Elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-42

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-42

Preparing for Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-42

Removing from Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-42

Schematics and Theory of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-1

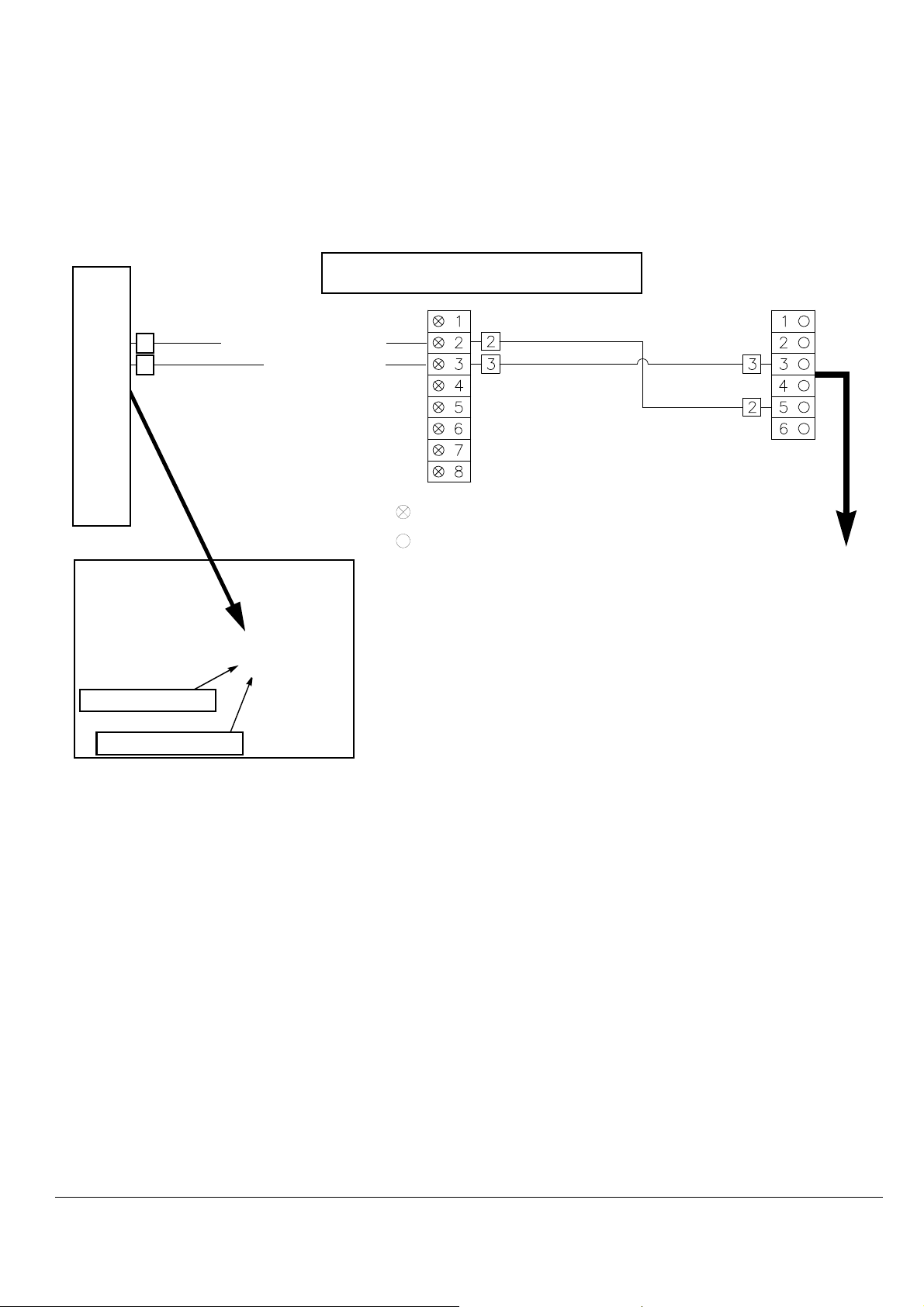

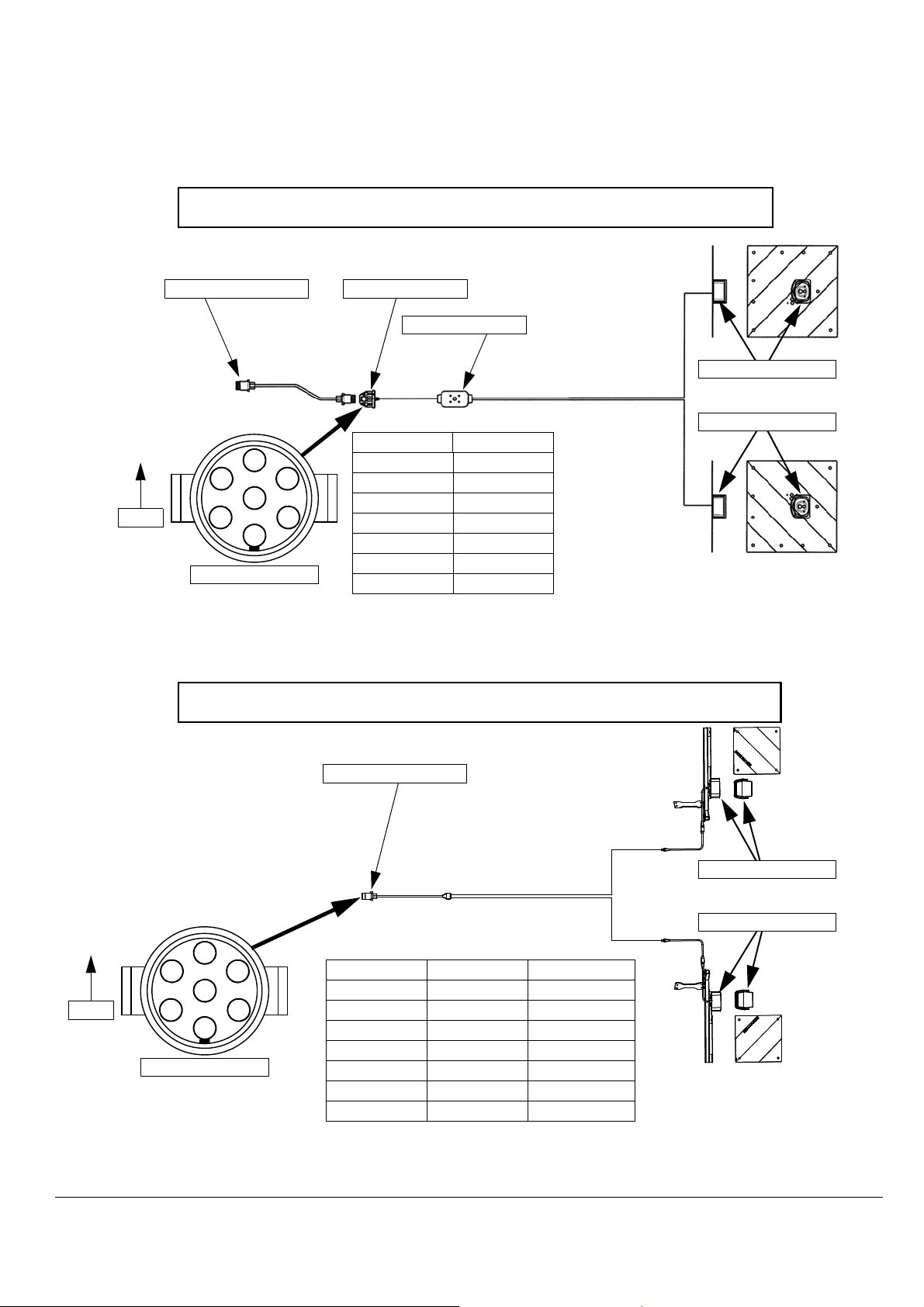

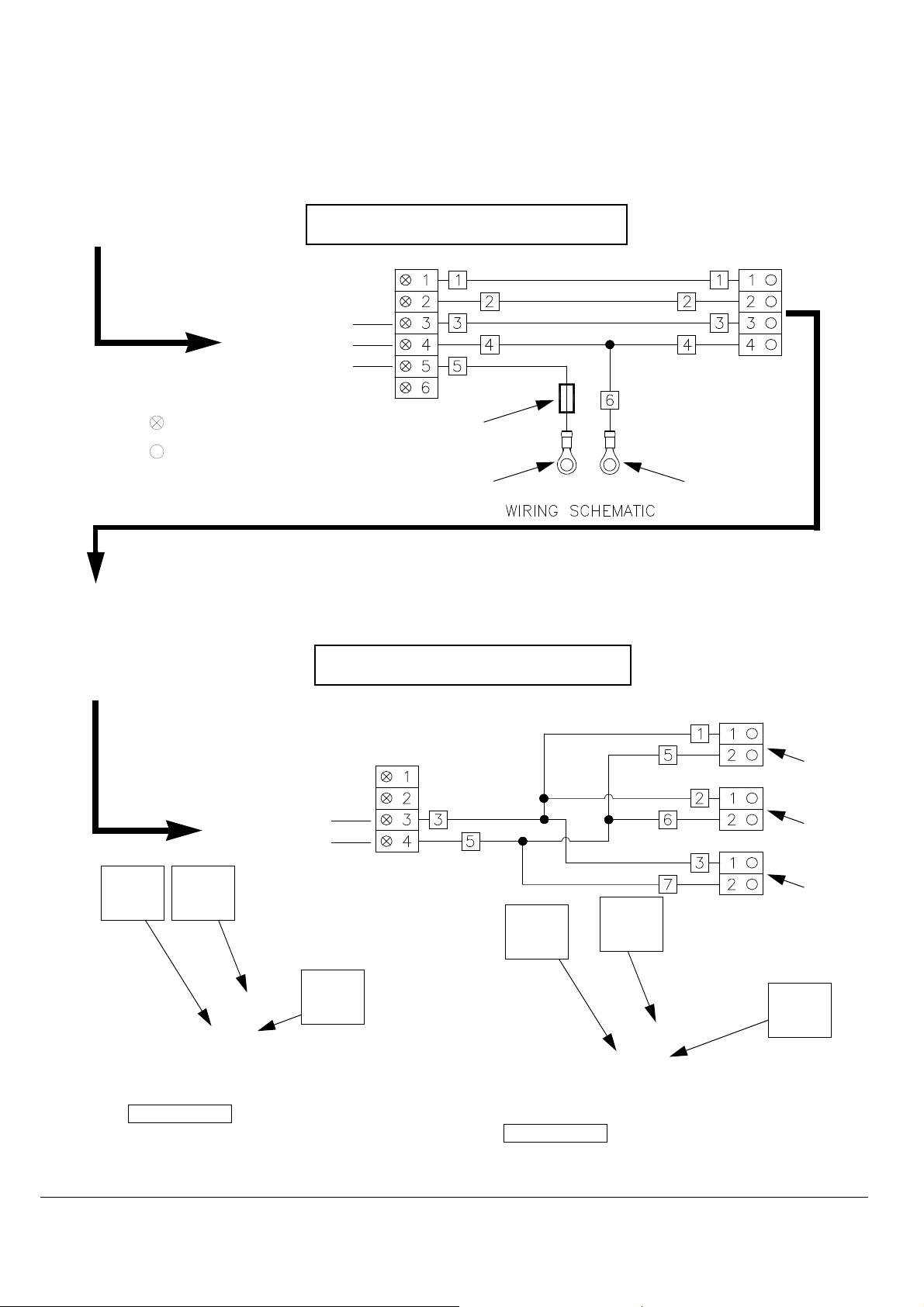

Electrical Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-1

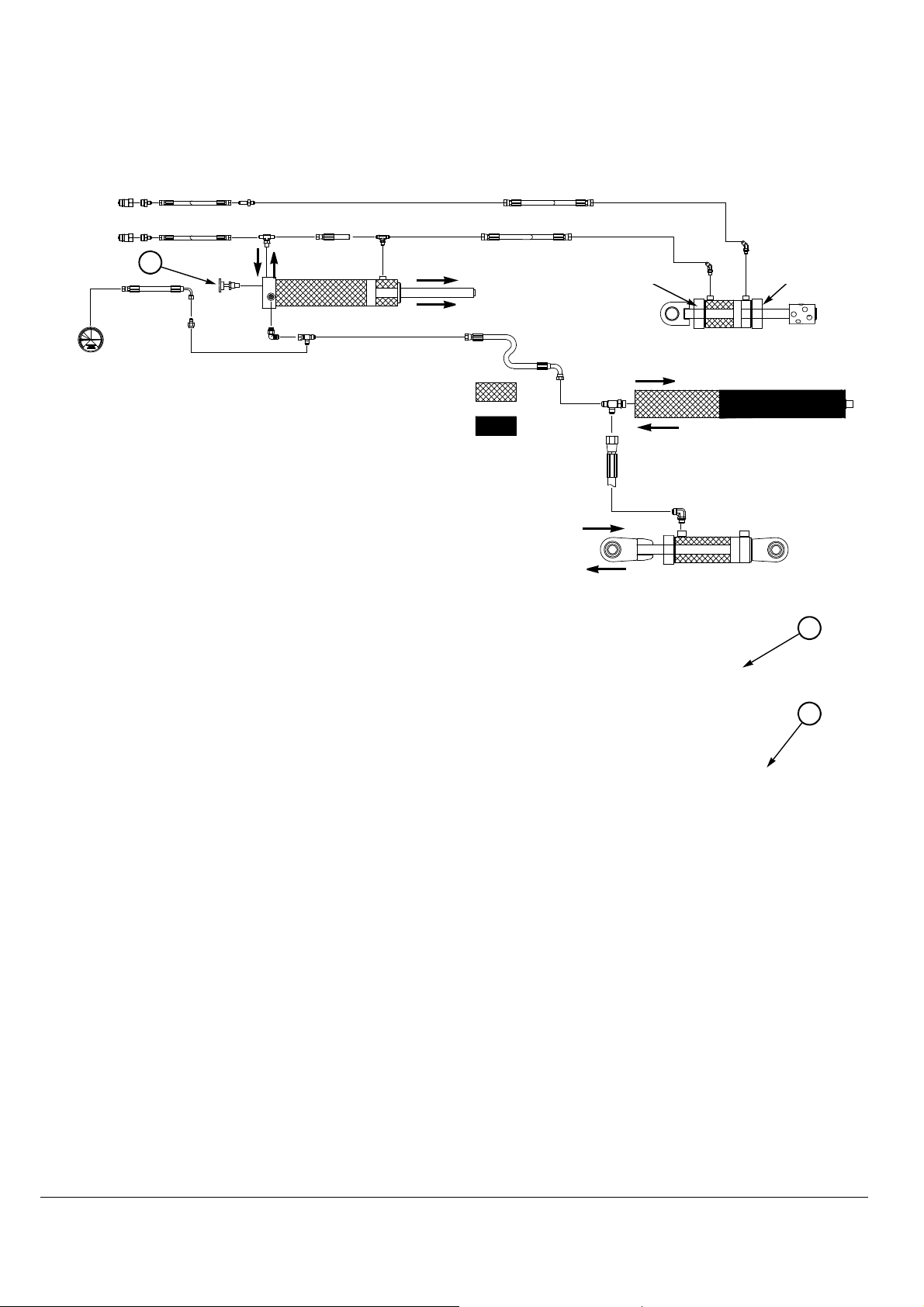

Theory of Operation - Cutter Bar Lift/Flotation Circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-4

Hydraulic Operation - Cutter Bars (Raise) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-4

Hydraulic Operation - Cutter Bars (Lowered). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-5

Hydraulic Operation - Cutter Bars (Adjust Flotation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-6

Troubleshooting - Cutter Bar Lift/Flotation Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

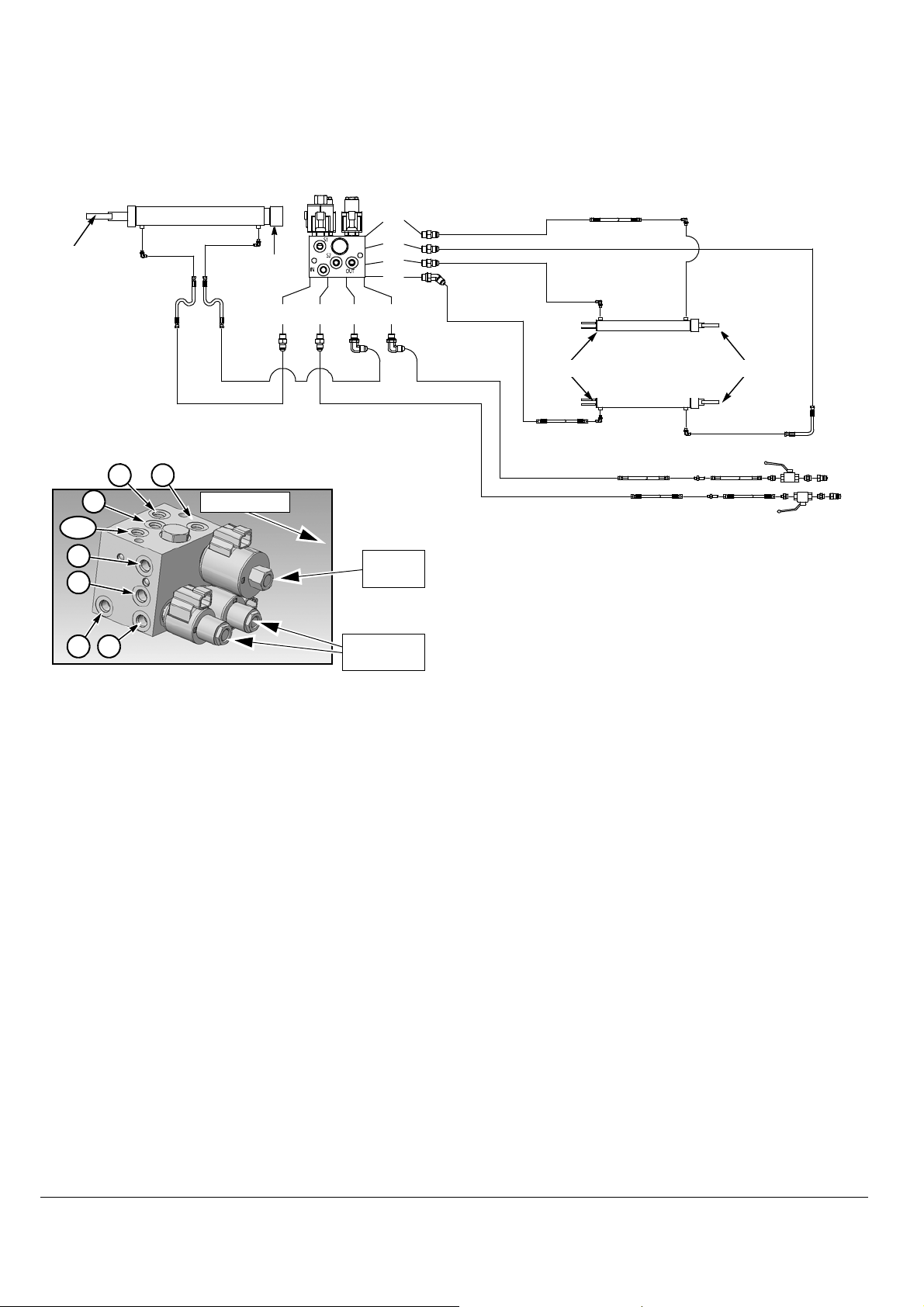

lic Connections - Swing & Fold Circuits (S/N 101–223

Hydrau

). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-8

. . . . . . . . . . . . . . . . . . . 55-7

Hydraulic Connections - Swing & Fold Circuits (S/N 224–Up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-9

Theory of Operation - Swing & Fold Circuits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-10

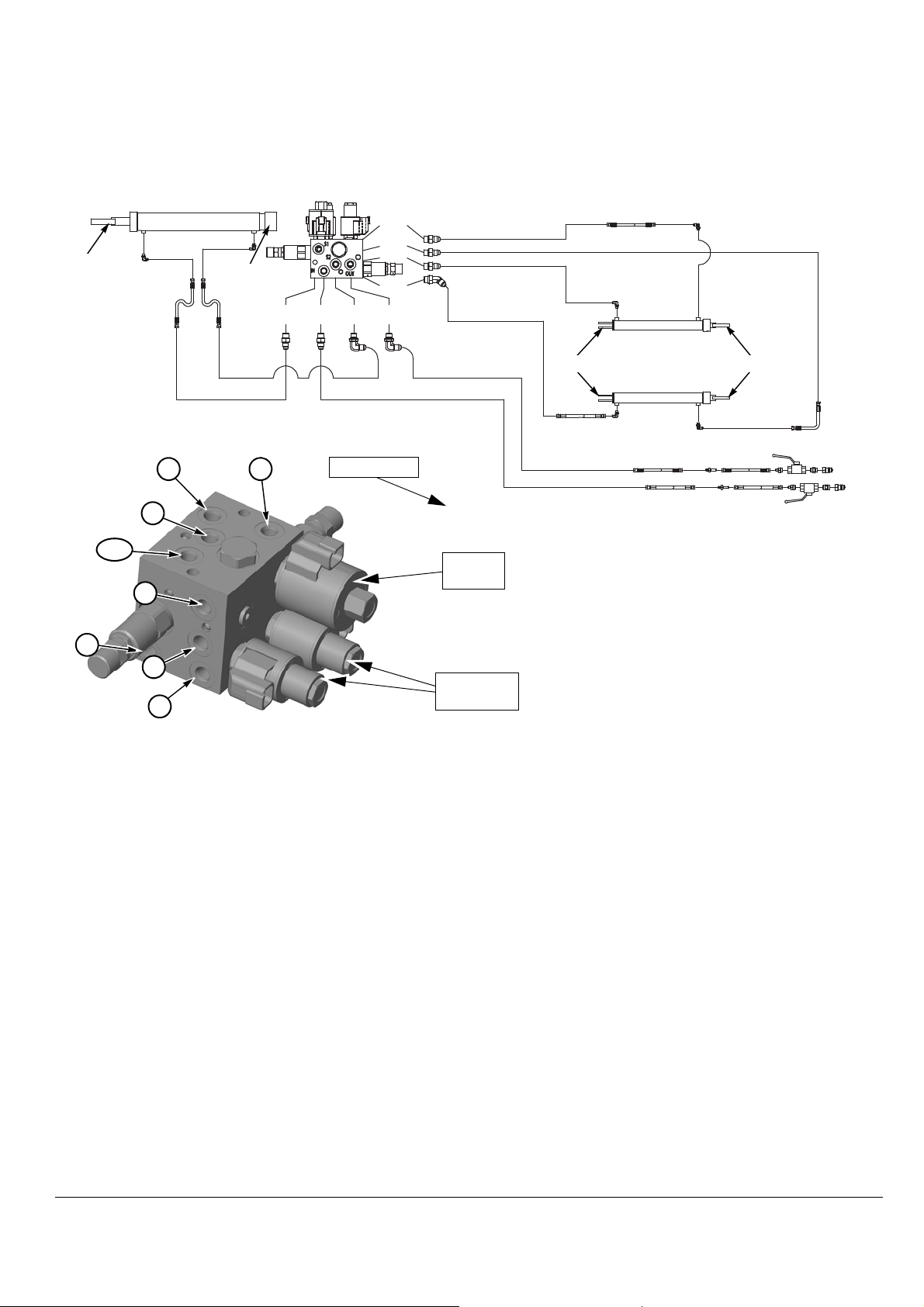

Hydraulic Schematic - Solenoid Valve Block (S/N 101–223) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-11

Hydraulic Schematic - Solenoid Valve Block (S/N 224–Up). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-12

Troubleshooting - Swing & Fold Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1

Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-1

Machine Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-2

Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-2

Splendimo 550 P Table of Contents v

Innovators in Agriculture

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-1

4.1304.8503.0

Preparation for Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-1

Lay Out Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-1

Wheels - Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-1

Curtain Support - Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-1

Curtains - Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-2

Headstock, PTO Shield, and Toolbox - Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-6

Light Mounts - Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-7

Decals - Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65-9

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1

Wear Plates Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1

Swath Wheel Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-1

Feed Assist Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70-2

vi Table of Contents Splendimo 550 P

Innovators in Agriculture

Section 1: Introduction

4.1304.8503.0

TRADEMARKS, COPYRIGHT AND DISCLAIMER

Lely, Astronaut, Astri, Atlantis, Attis, AWS, C4C, Calm, Caltive, Commodus, Compedes, Cosmix,
Discovery, F4C, Fertiliner, Gravitor, Grazeway, Hibiscus, Hubble, Juno, L4C, Lely Center, Lelywash,
Lotus, Luna, Nautilus, Orbiter, Quaress, Qwes, SAE, Shuttle, Splendimo, Storm, T4C, Tigo, Vector, Viseo,
Voyager, Walkway and Welger are registered trademarks of the Lely Group.

The right of exclusive use belongs to the companies of the Lely Group. All rights reserved. The
information given in this publication is provided for information purposes only and does not constitute an
offer for sale. Certain products may not be available in individual countries and products supplied may
differ from those illustrated. No part of this publication may be copied or published by means of printing,
photocopying, microfilm or any other process whatsoever without prior permission in writing by Lely
Holding S.àr.l. Although the contents of this publication have been compiled with the greatest possible
care, Lely cannot accept liability for any damage that might arise from errors or omissions in this
publication.

The English language manual is the original manual. Translations into other languages use the English
language manual as the source document. Lely accepts no liability for discrepancies between the original
English language manual and versions in other languages. If there is a conflict over the content and
accuracy of any translated manual, the English language manual is the authority document.

Copyright © 2014 Lely Industries N.V.
All rights reserved

Lely Industries N.V.
Cornelis van der Lelylaan 1
3147 PB Maassluis
the Netherlands
Phone: [phone]
Fax: [phone]
Website: www.lely.com

Splendimo 550 P Introduction 1-1

Innovators in Agriculture

PREFACE

4.1304.8503.0

Warranty Conditions

Excluded from this warranty are any cost or expenses due to:

• Abnormal use of the equipment which is not according to the specifications stated in the Operator
Manual.

• The result of any intervention by technicians other than Lely service technicians or technicians who
have Lely’s approval to perform certain duties.

• The result of any modification done by the operator or third parties without Lely's foreknowledge
and/or authorization.

• Incidents such as freezing, ice, fire, lightning, flood, inundation or any other form of excessive water.

• The use of cleaning agents for washing of the Lely Splendimo 550 P. This can cause damage to the
Lely Splendimo 550 P. All parts damaged as a result of the use of cleaning agents will be excluded
from warranty.

• Damage to the electrical system as a result of vermin or the like.

For those parts that fail under normal operating conditions, the factory will make replacement parts
available, free of charge, for a period of 12 (twelve) months from the date of purchase.

The warranty shall not apply if the instructions mentioned in this manual have not been followed
completely or correctly. Nor will the warranty apply if you or third parties modify the machine without our
foreknowledge and/or authorization.

Warranty does not apply to consequential damage which does not involve the machine itself.

All the systems are tested. However in the event of a malfunction Lely cannot be held responsible for
consequential damage.

Manual Contents

This manual contains the information necessary to operate the Lely Splendimo. It also includes
maintenance information that can be done by an operator.

Study and understand this information thoroughly before you operate the Lely Splendimo. Failure to do so
could result in personal injury or damage to equipment. Please consult your local Lely service provider if you
do not understand the information in this manual, or if you need additional information.

All information in this manual has been compiled with care. Lely shall not be liable for errors or faults in
this manual. The recommendations are meant to serve as guidelines. All instructions, pictures and
specifications in this manual are based on the latest information that was available at the time of
publication. Your Lely Splendimo may comprise improvements, features or options that are not covered in
this manual.

1-2 Introduction Splendimo 550 P

Innovators in Agriculture

Registration

4.1304.8503.0

The Type and Serial Number Plate is on the inner left-hand side of main
frame.

Always include the type and serial numbers of your product when you contact
your local Lely service provider or order spare parts.

Serial number is listed in the location labeled “VIN” (Vehicle Identification
Number).

We suggest you complete the table below with the type and serial numbers of
your product. This makes sure you can easily find the information.

Type Number

Serial Number

Splendimo 550 P Introduction 1-3

Innovators in Agriculture

RECEIVING AND DELIVERY REPORT

1

Amber

Amber

Red Rectangular

Amber Round

4.1304.8503.0

Dealer Preparation

Check or perform the following:

___ Check that all loose items are included with machine.

___ Inspect safety signs, operating decals, and shields for transit damage.

___ Finish assembling machine. Refer to page 65-1.

___ Inspect tires and rims for damage.

___ Ensure tires are inflated to 200 kPa (2 bar) and wheel lug bolt torque is 270

Nm (27.0 kgm).

___ Check oil level in cutter bar drive elements and main drive gearboxes.

___ Check condition of cutter bar curtains.

___ Check blade retaining clips for any damage and ensure they are securely

fastened to blade pin and disc.

___ Ensure all cutter blades pivot freely.

___ Check PTO shafts and shielding for proper installation.

___ Ensure hazard signs and lights are installed as shown (1).

___ Check that correct hydraulic couplers that match tractor are installed and

do not leak.

___ Inspect hydraulic systems for leaks and check for proper operation.

___ Check that reflector decals are installed as shown.

___ Run mower and check all phases of operation.

___ Check transport locks on tongue swing and cutter bar lift functions for

proper operation. Refer to “Transport Locks,” page 15-1.

___ Follow Shutdown Procedure, page 20-1. Check gearboxes and cutter

elements for leakage.

___ Complete “Dealer/Customer Information” on next page.

___ Record model and serial number as described on page 3.

1-4 Introduction Splendimo 550 P

Innovators in Agriculture

Dealer/Customer Information

4.1304.8503.0

dealer owner

address address

city city

state / province state / province

zip / postal code zip / postal code

country country

phone number phone number

email address email address

Splendimo 550 P Introduction 1-5

Innovators in Agriculture

This page intentionally left blank.

4.1304.8503.0

Innovators in Agriculture

Section 5: Safety Instructions

4.1304.8503.0

• Use the machine only for the purpose for which it was designed.

• Follow all prevailing safety regulations, including those laid down in this manual and indicated on the
machine.

• Operate this machine in a safe way.

• The machine should be operated by authorized persons only.

• Be alert and observe all safety precautions.

• Ensure that all safety guards and protection devices are in place.

• Keep out of reach of moving parts.

• Stop the engine, PTO, and moving parts before adjusting, cleaning or lubricating the machine.

• Take care that nobody is within the dangerous zone while the machine is in operation and ensure that
people are kept well away from the machine. This is especially important when working along roads
and near or on fields that are accessible to the public.

• Always use a tractor with a cab.

• Clear the field of any objects that could be thrown up by the machine.

• Observe prevailing legislation for public road transport.

• Use flashing lights or other safety signs, when required.

• Do not stand on the machine.

• Use genuine Lely parts only.

• Remove the pressure from hydraulic systems before starting work on them and/or before coupling/
uncoupling hydraulic hoses.

• Use protective clothing, gloves and/or safety glasses if required.

• Clean the safety signs regularly so that they can be read at all times.

General safety messages appear in this Safety Messages section. Specific safety messages are located in
appropriate sections of the manual where a potential hazard may occur if the instructions or procedures are
not followed.

A signal word “DANGER”, “WAR NING”, or “CAUTION” is used with the safety alert symbol.

Safety signs with signal word “DANGER”, “WARNING”, or “CAUTION” are located near specific hazards.

DANGER

WARNING

CAUTION

Splendimo 550 P Safety Instructions 5-1

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

Innovators in Agriculture

EXPLANATION OF SAFETY DECALS ON THE MACHINE

4.1304.8503.0

• Read the Operator’s Manual carefully before handling the machine.

Observe instructions and safety rules during operation.

• Danger: Rotating blades can throw objects 30 m or more. Death or serious
injury possible.

Maintain a sufficient, safe distance from the machine as long as the tractor
engine is running.

• Danger: Contact with rotating blades can dismember or kill.

Maintain a sufficient, safe distance from the machine as long as the tractor
engine is running.

• War ning: Folding and lifted parts can crush.

Keep away from the folding areas and raised machine
parts. Engage lock before working under mower.

5-2 Safety Instructions Splendimo 550 P

Innovators in Agriculture

• Never exceed the maximum PTO speed which is obligatory for the machine.

4.1304.8503.0

• Danger: Entanglement in rotating PTO shaft can result in death or serious
injury.

• Read the operating instructions of the PTO shaft.

• Never use a PTO shaft without protection.

• Ensure PTO shaft is securely attached at both ends.

• Stop engine and ensure PTO shaft is stopped before working on PTO

shaft.

• War ning: Use Shutdown Procedure before servicing, cleaning, repairing, or
transporting machine. Refer to page 20-1.

Splendimo 550 P Safety Instructions 5-3

Innovators in Agriculture

• War ning: Improper towing and excessive speed or

4.1304.8503.0

braking while transporting on a highway may result in
loss of control. Equipment damage, injury, or death are
possible.

• Do not tow equipment at speeds over 32 km/h. Obey
applicable laws concerning road use. Use good
judgment and drive carefully.

• Use tractor that is large enough and properly
ballasted for sufficient steering and braking control.
Minimum tractor mass is 1905 kg. Ensure machine is
securely attached to the lower two arms of the 3-point
hitch.

• Place machine components in transport positions and install locks. Raise and stow tongue jack.

• Connect and use equipment highway lights.

• Danger: Contact with rotating blades can dismember or kill. Rotating blades can throw objects 30 m or
more.

• Stay away from operating mower.

• Keep curtains down and shields closed.

• Do not mow near traveled highways.

• Keep operating mower down on ground.

• No riders allowed.

• Enclosed tractor cab is required.

WARNING: Failure to follow any of the preceding safety instructions, or those that follow within
this manual, could result in serious injury or death. This machine is to be used only for those
purposes for which it was intended, as explained in this Operator’s and Maintenance Manual.

5-4 Safety Instructions Splendimo 550 P

Innovators in Agriculture

Section 10: Introduction

4.1304.8503.0

Splendimo 550 P mowers are designed solely for use in mowing agricultural crops. These machines are not
equipped with any means of crop conditioning. Swath width is adjustable with the use of a swath board or
swath wheel.

DANGER: Rotating blades can throw objects up to 30 m or more,
which can strike motorists or pedestrians.

Do not mow on road right-of-ways including roadside ditches, banks, or
shoulders along traveled highways.

Always use the machine in accordance with the instructions contained in this Operator’s Manual, safety
signs on the machine, and other material provided by Lely.

Proper maintenance and repair is essential for safety, and for efficient operation of the machine. Do not use
the machine if it is not in suitable operating condition.

Splendimo 550 P Introduction 10-1

Innovators in Agriculture

• Lely Splendimo 550 P trailed mowers attach to lower links of tractor 3-point hitch. Lower half (2) of

2

1

6

3

5

4

7

4.1304.8503.0

swivel gearbox pivots from side to side independently of top half. This allows tight turns in any
direction with no concern of damage to PTO shaft (1).

• Splendimo 550 P mowers are configured for 1000 rpm PTO operation only. There is no provision for
field conversion to 540 rpm PTO operation.

• Two independently mounted cutter bars (3) hydraulically fold forward for transport, allowing transport
width of 2.6 m. Cutting width is 5.5 m.

• During operation, mower can be offset to either side of tractor by means of hydraulic cylinder (6).

• The cutter bars are attached to main frame by means of a 3-point linkage with ball joints. As a result,
cutter bars can follow ground contours independently of the main frame.

• Hydraulic cylinder (5) lifts the cutter bars out of the crop. A hydraulic accumulator (7) maintains an
adjustable level of pressure in cylinder (5) while mowing, which provides desired amount of cutter bar

flotation. Refer to page 15-7.

• An adjustable stop on hydraulic cylinder (4) controls pitch of cutter bars and resulting crop stubble

height while mowing. Refer to page 15-5.

10-2 Introduction Splendimo 550 P

Innovators in Agriculture

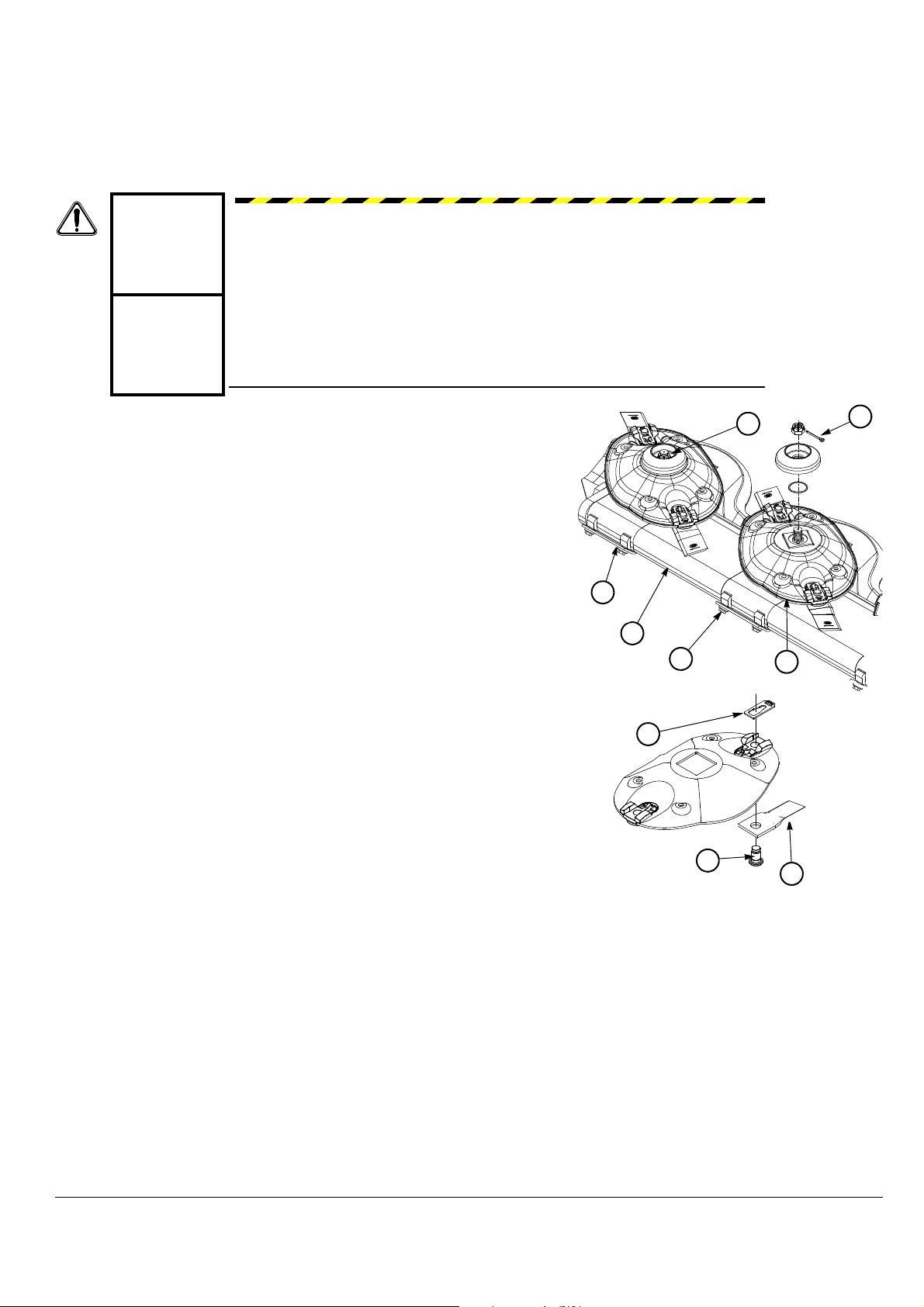

• Cutter bars are fitted with mower discs, complete with the Lely

1

2

4.1304.8503.0

SPLENDIMO CLIP quick-change system (1). The cutter bar is composed of
cutting units according to the modular Lely system. These elements as well
as the intermediate spacers are torqued together by a connecting rod (2).

• The first cutting unit (drive element) is driven from the top. A spring steel
shaft, which is driven from the first cutting unit, drives the other units of
the cutter bar. This configuration helps to reduce power consumption.

• Cutter elements rotate either clockwise or counterclockwise as viewed from

top. Refer to page 50-42.

Splendimo 550 P Introduction 10-3

Innovators in Agriculture

This page intentionally left blank.

4.1304.8503.0

Innovators in Agriculture

Section 15: Controls and Adjustments

2

1

4.1304.8503.0

DANGER: Contact with rotating blades may
result in serious injury or death.

• Stay away from rotating blades.

• Do not lift or reach under cutter bar
deflector curtain.

• Keep all folding shields down.

• Do not operate with cutter bar raised;
blades will be exposed.

• Never allow anyone to ride or stand on
mower. You could fall into blade area.

Follow Shutdown Procedure , page 20-1, before servicing, repairing, and

making any machine adjustments or setting changes.

This section contains the following information:

• operational adjustment procedures

• recommended initial settings

TRANSPOR T LOCKS

Tongue Swing Lock Valves

Center machine behind tractor before engaging lock. Refer to page 15-4.
(1) Locked: Ensure lock valve handles at tractor couplers are both

perpendicular to control valve circuit hoses.

(2) Unlocked: Ensure lock valve handles at tractor couplers are in-line

with control valve circuit hoses.

Splendimo 550 P Controls and Adjustments 15-1

Innovators in Agriculture

Cutter Bar Fold Lock

LOCKED

UNLOCKED

1 2 3

21

UNLOCKED

2 3 4

6

1

LOCKED

1

32 54

4.1304.8503.0

Ensure fold cylinders are fully extended before engaging or disengaging

cylinder stop (1). Refer to page 15-4.

Locked: Ensure cylinder stop (1) is installed around rod of fold cylinder (3)
and secured with D-pin (2) as shown. Repeat for other side.

Unlocked: Ensure cylinder stop (1) is secured to cutter bar lift frame with D­pin (2) as shown.

Cutter Bar Lift Lock

To L oc k:

Step 1: Fully raise cutter bars.
Step 2: Remove D-pin (2) and lock bar (3) from storage brackets (1).
Step 3: Secure lock bar (3) to cylinder mount (5) using hitch pin (4) and

hairpin clip (6).

Step 4: Secure D-pin (2) in storage brackets (1) for safekeeping.

To U nl ock:

Step 1: Fully raise cutter bars.
Step 2: Remove D-pin (2) from storage brackets (1).
Step 3: Remove hairpin clip (6) and hitch pin (4).
Step 4: Remove lock bar (3) from cylinder mount (5).
Step 5: Secure lock bar (3) to storage brackets (1) with D-pin (2).
Step 6: Secure hitch pin (4) in cylinder mount (5) with hairpin clip (6) for

safekeeping.

15-2 Controls and Adjustments Splendimo 550 P

Innovators in Agriculture

HYDRAULIC FUNCTIONS

1

1

2

3

6

54

7

Serial Number
550 P: 101-157

3

6

5

4

Serial Number
550 P: 158-

4.1304.8503.0

Mower requires two tractor hydraulic remote valves for proper operation.

Hoses (1) with lock valves supply oil to control valve (5). Depending on position
of controller switch (7), solenoids in control valve (5) direct oil from hoses (1) to
either tongue swing cylinder (4) or cutter bar fold cylinders (not shown).

Hoses (2) without transport lock valves supply oil directly to cutter bar pitch
control cylinder (3) and cutter bar lift cylinder (6).

Cutter Bars - Raise/Lower

Move tractor hydraulic control for remote valve & hoses (2) in one direction to
raise cutter bars, move in the opposite direction to lower. If control movement is
undesirable, switch hoses (2) at remote valve couplers.

When raising cutter bars, pitch control cylinder (3) will retract first, then lift
cylinder (6) will retract.

When lowering cutter bars, pitch control cylinder (3) will extend first, then lift
cylinder (6) will extend.

Some tractors have detents which will not allow the hydraulic control to return
to NEUTRAL on its own. Control must be returned to NEUTRAL manually to
prevent overheating of the hydraulic system. Layout of controls varies with
tractor model. Consult your tractor operator’s manual for further details.

A slight delay in cutter bar raise/lower is normal. Pressure inside lift
circuit accumulator must change accordingly before cutter bars will
raise or lower.

Splendimo 550 P Controls and Adjustments 15-3

Innovators in Agriculture

Tongue Swing

1

2

!

4.1304.8503.0

Step 1: Ensure controller switch (2) is in the left-hand “N” position.
Step 2: Move tractor hydraulic control for remote valve and hoses (1) in one

direction to swing mower towards the left, or move control in the
opposite direction to swing mower towards the right.

Cutter Bars Fold/Unfold

Step 1: Reduce engine speed to low idle and disengage power takeoff (PTO).

NOTICE: Never engage PTO while cutter bars are folded
in for transport. Damage to PTO shafts will result.

Step 2: Use tongue swing function as described above to ensure tongue and

mower are centered behind tractor.

Step 3: Ensure cutter bars are raised off of ground.
Step 4: Press and hold controller switch (2) in the right-hand fold position.
Step 5: Move tractor hydraulic control for remote valve & hoses (1) in one

direction to fold cutter bars in for transport, or move control in the
opposite direction to unfold cutter bars to operating position.

Step 6: When fold/unfold is complete, release switch (2) so it returns to the “N”

position.

Proceed as follows before transporting:

• Fully raise cutter bars.

• Adjust pitch control to position (1) as shown on next page.

• Install transport locks. Refer to page 15-1.

• Refer to “Preparing for Transport,” page 30-1.

15-4 Controls and Adjustments Splendimo 550 P

Innovators in Agriculture

CUTTER BAR PITCH - ADJUST

A

C

B

1

2

3

4

FRONT

B

Position 1

Position 4

4.1304.8503.0

Splendimo 550P S/N 101–157

Cutter bar pitch affects quality of cut.

Lighter crop may require tilting cutter bars farther forward (Position 4) to cut
crop shorter and minimize streaking. In this position the cutter bars are
more vulnerable to stone damage. Use of machine at this position should be
minimized.

To adju st:

Step 1: Fully raise cutter bars and engage cutter bar lift lock as described

on page 15-2.

Step 2: Remove hairpin clip (C) and remove pin (A).
Step 3: Align hole in cylinder rod with desired hole in cylinder stop (B).

Position (1) results in highest cut, position (4) results in lowest cut.
Refer to table below for recommended initial settings.

Alfalfa Grasses

Pitch

Control

Setting

Step 4: Install pin (A) and hairpin clip (C).
Step 5: Fully raise cutter bars and disengage cutter bar lift lock. Refer to

(2) (2) or (3) (3) or (4) (1) (1) (1)

Each consecutive hole changes blade cutting height approximately
13 mm.

page 15-2.

Short

Crop

Rocky

Field

Muddy

Field

Cane

Crops

Splendimo 550 P Controls and Adjustments 15-5

Innovators in Agriculture

CUTTER BAR PITCH - ADJUST

A

C

B

1

2

6

FRONT

B

Position 2

Position 7

3

7

5

4

4.1304.8503.0

Splendimo 550P S/N 158–Up

Cutter bar pitch affects quality of cut.

Lighter crop may require tilting cutter bars farther forward (Position 7) to cut
crop shorter and minimize streaking. In this position the cutter bars are
more vulnerable to stone damage. Use of machine at this position should be
minimized.

Only use position (1) when folded for transport to prevent front of cutter bars
from settling.

To adjust:

Step 1: Fully raise cutter bars and engage cutter bar lift lock as described

on page 15-2.

Step 2: Remove hairpin clip (C) and remove pin (A).
Step 3: Align hole in cylinder rod with desired hole in cylinder stop (B).

Position (2) results in highest cut, position (7) results in lowest cut.
Refer to table below for recommended initial settings.

Alfalfa Grasses

Short

Crop

Rocky

Field

Muddy

Field

Pitch
Control
Setting

(4) (5) or (6) (6) or (7) (2) (2) (2)

Each consecutive hole changes blade cutting height approximately
8 mm.

Step 4: Install pin (A) and hairpin clip (C).
Step 5: Fully raise cutter bars and disengage cutter bar lift lock. Refer to

page 15-2.

Cane

Crops

15-6 Controls and Adjustments Splendimo 550 P

Innovators in Agriculture

CUTTER BAR FLOTATION

1

45–57 kg

4.1304.8503.0

Correct flotation requires approximately (45–57 kg) ground
force at outer corners of cutter bars as shown.

• Cutter bars should be as light as possible without
missing too much crop due to bouncing.

• Measure ground force by lifting with a spring scale at
outer edge of curtain support frames (1). Cutter bars
should lift off the ground when scale reads 45–57 kg. To
check this, mower must be in operating position and
cutter bars must be fully lowered to the ground.

Check and adjust flotation if one of the following has
taken place:

• Weight has been added to or removed from cutter bars,
including crop debris.

• Mower is operated with a different tractor.

Different tire sizes and PTO shaft heights from one
tractor to another may affect flotation.

• Field terrain conditions have changed.

• Any flotation system components have been changed.

Splendimo 550 P Controls and Adjustments 15-7

Innovators in Agriculture

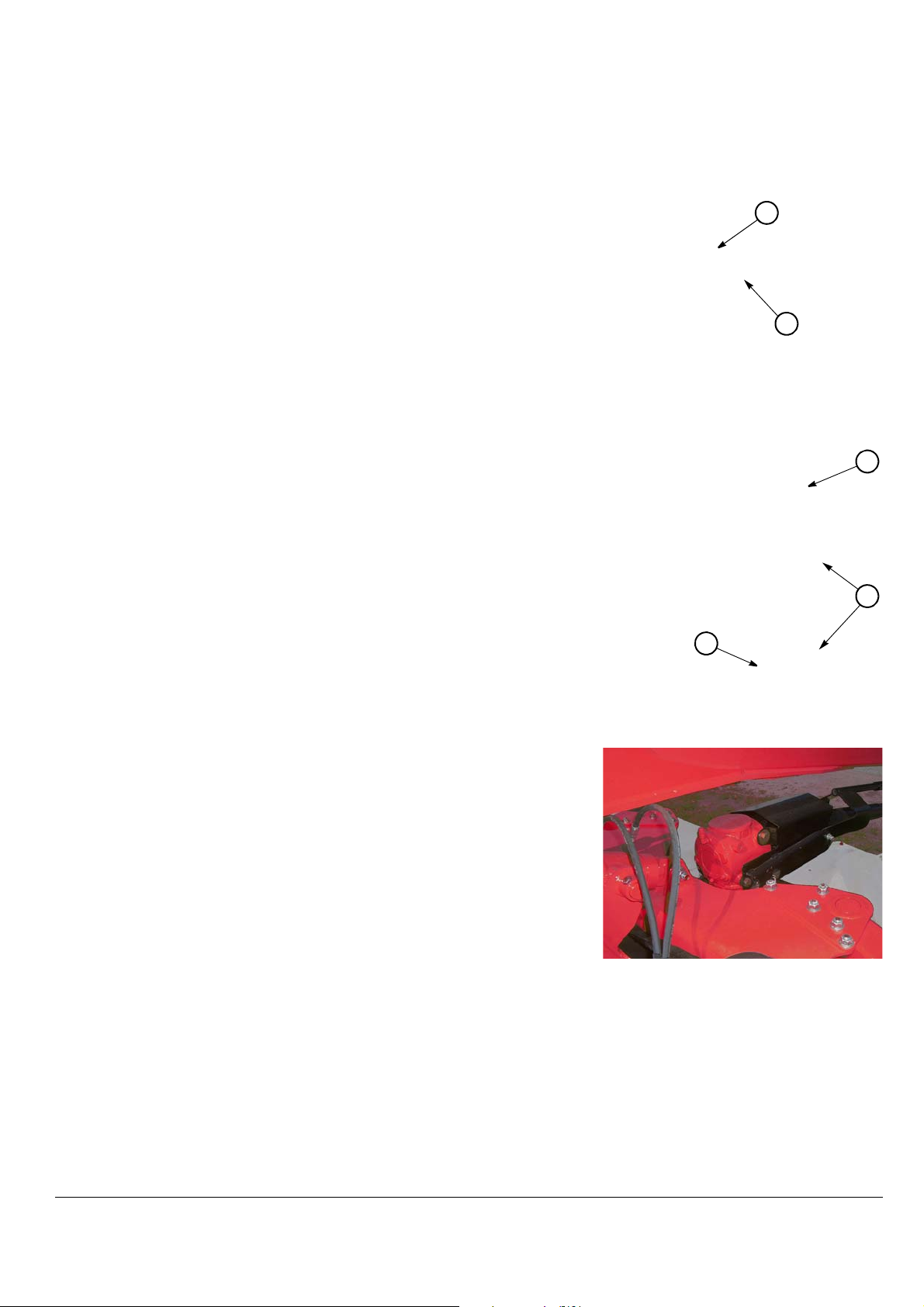

Cutter Bar Flotation - Adjust

1

2

59 bar

(850 psi)

1

1

2

3

4.1304.8503.0

Step 1: Ensure cutter bars are folded out to operating position. Refer to page 15-4.
Step 2: Turn valve handle (2) in front of tongue fully counterclockwise to the open position.
Step 3: Use tractor hydraulic control to fully raise cutter bars. Keep tractor hydraulics

engaged for a few seconds until pressure reading on gauge (1) stops increasing,
then return tractor hydraulic control to the NEUTRAL position.

Pressure reading on gauge (1) should hold steady at maximum tractor pressure.

Step 4: Turn valve handle (2) fully clockwise to the closed position.
Step 5: Move tractor hydraulic control for cutter bar raise/lower circuit to FLOAT position.
Step 6: Slowly turn valve handle (2) counterclockwise until gauge (1) pressure reading

begins to decrease.

Cutter bars will lower as gauge pressure decreases.

Step 7: Turn valve handle (2) fully clockwise to the closed position when gauge reading is

approximately 59 bar (850 psi).

Gauge reading may raise slightly at this point, then should hold steady. Repeat
Steps 6–7 as needed.

Step 8: Move tractor hydraulic control back to NEUTRAL position and check cutter bar

flotation as described on previous page.

Step 9: Gauge reading is only an indication of system pressure. If further adjustment is

necessary to achieve desired flotation as described on previous page, repeat Steps
1–8 as needed.

A higher pressure reading in Step 7 equates to a lighter flotation setting, lower
pressure equates to a heavier flotation setting.

Cutter Bar Balance Assembly - Adjust

Step 1: Swing cutter bar assemblies out to operating position and

leave in the raised position.

Step 2: Adjust spring (3) until the cutter bar is heavier on the inside

of the cutter bar assembly than the outside.

To make heavier:

• Loosen lock nut (1) and tighten lock nut (2).

• Tighten lock nut (1) when after setting is reached.

To make lighter:

• Loosen lock nut (2) and tighten lock nut (1).

• Tighten lock nut (2) when after setting is reached.

Step 3: Adjust both springs evenly.
Step 4: Repeat for other side.

15-8 Controls and Adjustments Splendimo 550 P

Innovators in Agriculture

Section 20: Shutdown Procedure

C

B

A

4.1304.8503.0

STOPPING THE MACHINE

When stopping machine, use the following shutdown procedure:

Step 1: Reduce engine speed to low idle.
Step 2: Disengage power takeoff (PTO). Wait for blade rotation to stop.
Step 3: Engage tractor park brake.
Step 4: Lower cutter bars to the ground unless mechanically supported with cutter bar lift lock as

described on page 15-2.

Step 5: Shut off engine and remove key.

NOTICE: For your safety and the safety of others, use this procedure before servicing, cleaning, unclogging
or inspecting implement.

A variation of the above procedure may be used if so instructed within this manual or your tractor manual,
or if an emergency requires it.

HYDRAULIC PRESSURE - RELIEVE

Use the following procedure to remove all hydraulic pressure before storing
machine for a prolonged period of time or before working on hydraulic system.

Step 1: Ensure tongue and mower are centered behind tractor.
Step 2: Fold cutter bar into transport position and install cutter bar fold locks

as described on page 15-4.

Step 3: Fully raise cutter bar and engage cutter bar lift lock as described on

page 15-2.

Step 4: Secure pitch control cylinder stop in position (1) as described on page

15-5.

Step 5: Turn valve (C) counterclockwise to open and move tractor hydraulic

control for cutter bar lift circuit to FLOAT position. Ensure pressure
gauge (B) reading drops to zero. This will relieve pressure from lift
circuit.

Step 6: Ensure tongue swing/cutter bar fold lock valves are unlocked as

shown on page 15-1.

Step 7: Move tractor hydraulic control for swing/fold circuit to FLOAT position

and cycle controller switch (A) from “N” to fold and back. This will
relieve pressure from swing and fold circuits.

Step 8: Shut off engine and remove key.

Splendimo 550 P Shutdown Procedure 20-1

Innovators in Agriculture

This page intentionally left blank.

4.1304.8503.0

Innovators in Agriculture

Section 25: Preparing the Tractor

4.1304.8503.0

TRACTOR REQUIREMENTS

Tractor must meet the following requirements:

• Drawbar power minimum: 71 kW

• Equipped with upright exhaust system

• Equipped with rollover protection structure and seat belts

WAR NING: Rotating blades can throw objects. Serious injury or death is
possible if struck.

Use tractor equipped with enclosed cab.

• Equipped with enclosed cab. Windows on rear and mower side of tractor must be closed when operating
mower.

• PTO speed: 1000 rpm

• Equipped with electrical connector for mower highway lights.

Hydraulic System

• Two double-acting hydraulic remote valves equipped with FLOAT function

• Minimum flow rate of 23 L/min

• Minimum system pressure: 130 bar

• Cat. II or IIIN (narrow) 3-point hitch

Road Transport

WARNING: Loss of steering or braking control can cause death or serious injury. Use a tractor that
is large enough for sufficient steering and braking control. Do not tow equipment over 32 km/h.
Minimum tractor mass is 1905 kg.

Splendimo 550 P Preparing the Tractor 25-1

Innovators in Agriculture

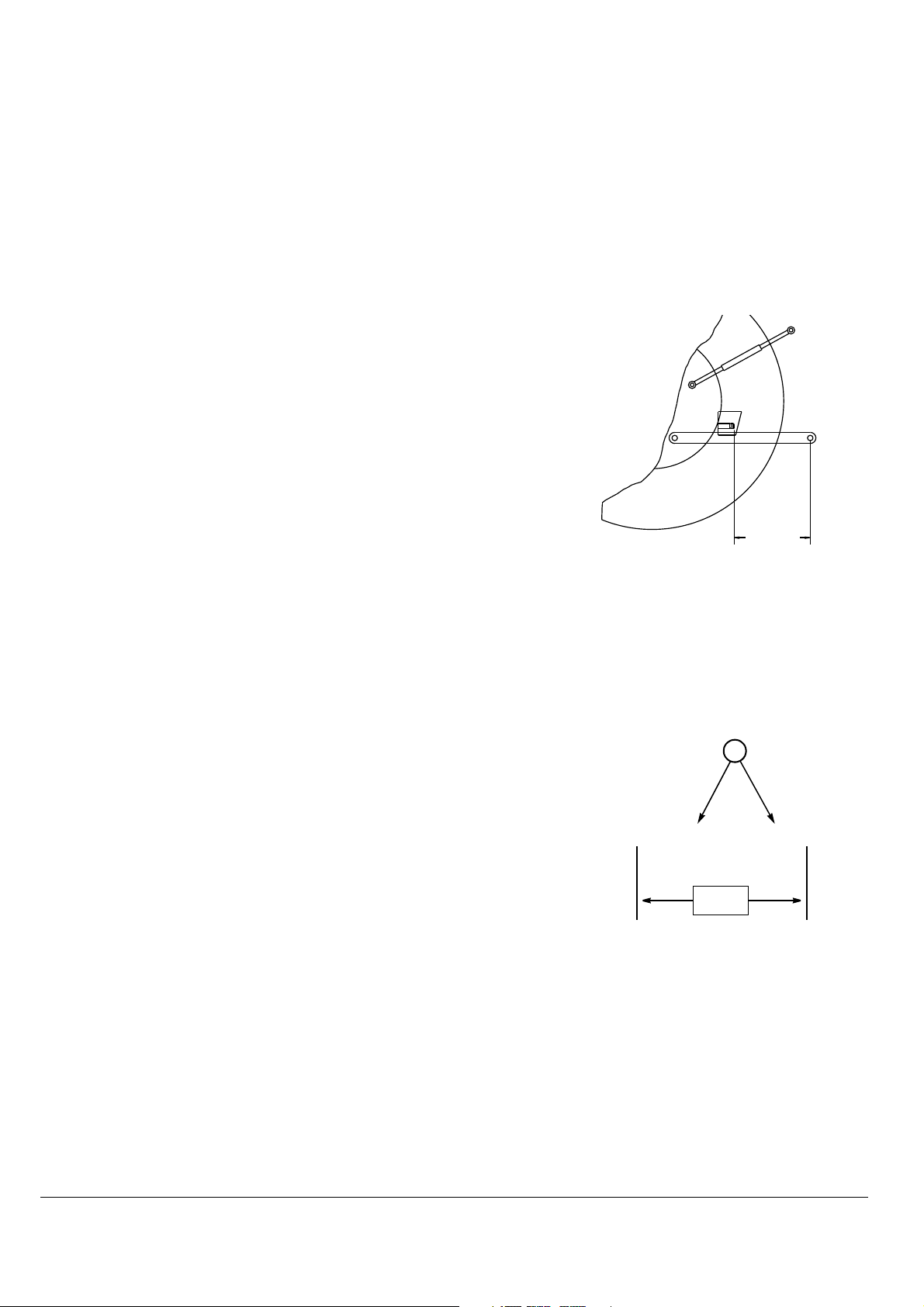

CONTROLS FAMILIARITY

18-22"

(46-56 cm)

46–56 cm

1

83 cm

4.1304.8503.0

The tractor power takeoff (PTO) control engages and disengages power to mechanically driven components
including gearboxes and cutter blades.

The tractor hydraulic controls raise/lower cutter bars, swing mower from side to side, and fold/unfold cutter
bars between transport and operating position.

Refer to tractor operator’s manual for control locations and operation instructions.

PTO Length

NOTICE: Failure to conform to standards for PTO setup dimensions can result in
PTO shaft damage.

The horizontal distance from end of PTO shaft to centerline of 3-point lower link
hitch points should be 46–56 cm.

If the distance is less than 46 cm, use a Quick Attach hitch to increase distance
to hitch points.

Sway Blocks - Adjust

Adjust lift arm anti-sway blocks (1) to eliminate arm swing. Minimum distance
between insides of hitch points should be 83 cm.

25-2 Preparing the Tractor Splendimo 550 P

Innovators in Agriculture

Section 30: Transporting the Machine

!

4.1304.8503.0

PREPARING FOR TRANSPORT

WAR NING: Improper towing and excessive speed or braking while transporting
on a highway may result in loss of control. Equipment damage, injury, or death
are possible.

Use a tractor that is large enough and properly ballasted for sufficient steering
and braking control. Minimum tractor mass is 1905 kg.

Ensure machine is securely attached to the lower two arms of the 3-point hitch.

Connect and use equipment highway lights.

Place machine components in transport positions and install locks. Raise and
stow tongue jack.

Step 1: Hitch mower to tractor. Refer to “Attach Mower to Tractor,” page 40-2.
Step 2: Ensure tongue and mower are centered behind tractor. Refer to “Tongue Swing,” page 15-4.
Step 3: Fully raise cutter bars.

NOTICE: Disengage PTO and allow mower to coast to a
stop before folding cutter bars in for transport.

Never engage PTO while cutter bars are folded in for
transport. Damage to PTO shafts will result.

Step 4: Fold cutter bars in for transport. Refer to “Cutter Bars Fold/Unfold,” page 15-4.
Step 5: Install all transport locks. Refer to “Transport Locks,” page 15-1.
Step 6: Secure pitch control cylinder stop bushing in position (1) as described on page 15-5.
Step 7: Ensure tongue swing/fold circuit transport lock valves are moved to locked position. Refer to

“Tongue Swing Lock Valves,” page 15-1.

Step 8: Ensure mower tires are inflated to 200 kPa (2 bar).

Splendimo 550 P Transporting the Machine 30-1

Innovators in Agriculture

This page intentionally left blank.

4.1304.8503.0

Innovators in Agriculture

Section 35: Pre-Season Inspection

4.1304.8503.0

WORKING ON THE MOWER

Before working on or near the mower for any reason including servicing, lubricating, cleaning or inspecting,

follow Shutdown Procedure, page 20-1.

INSPECTION CHECKLIST

WAR NING: A falling mower can result in serious crushing injury or death.

Engage cutter bar lift lock before doing any work under machine.

Before using the mower at the beginning of the hay season, check the following items carefully and make the
necessary corrections.

• Read and familiarize yourself with this Operator’s Manual.

• Remove all protective coverings.

• Remove excess oil or grease from cylinder rod(s).

• Lubricate all grease points on the machine.

• Check for proper lubrication level.

• Check hydraulic components for leaks or damage.

• Check wheel lug nuts for tightness: 270 Nm (27.0 kgm).

• Check wheel bearings. Refer to “Wheel Bearings - Check,” page 50-22.

• Check tires for correct air pressure: 200 kPa (2 bar).

• Check condition of the tires.

• Check condition of the rims.

• Refer to “Cutter Bars - Check,” page 50-9, and check the following:

• Check cutter elements and cutter drive elements for evidence of leaks.

• Check blade-retaining clips for proper installation.

• Check that all cutter blades pivot freely.

• Check cutter blades for excessive wear or damage.

• Check that all mower bar disc assemblies rotate freely.

Splendimo 550 P Pre-Season Inspection 35-1

Innovators in Agriculture

• Check all gearbox seals for leakage.

4.1304.8503.0

• Check that all gearbox vent plugs are free of any debris.

• Check condition of cutter bar curtains.

• Clean and grease PTO shafts to ensure they telescope properly. Refer to page 50-23.

• Lubricate all PTO shafts.

• Check that PTO shaft shields rotate freely within limits of shield chains.

• Ensure disc clamp castle nut is torqued to 150–250 Nm (15–25 kgm).

• Ensure slip clutch is operating correctly as described on page 40-6.

• Adjust cutter bar flotation as described on page 15-8.

• Check condition of highway lights, harness, tractor plug, and wiring for dirt, damage and wear.

35-2 Pre-Season Inspection Splendimo 550 P

Innovators in Agriculture

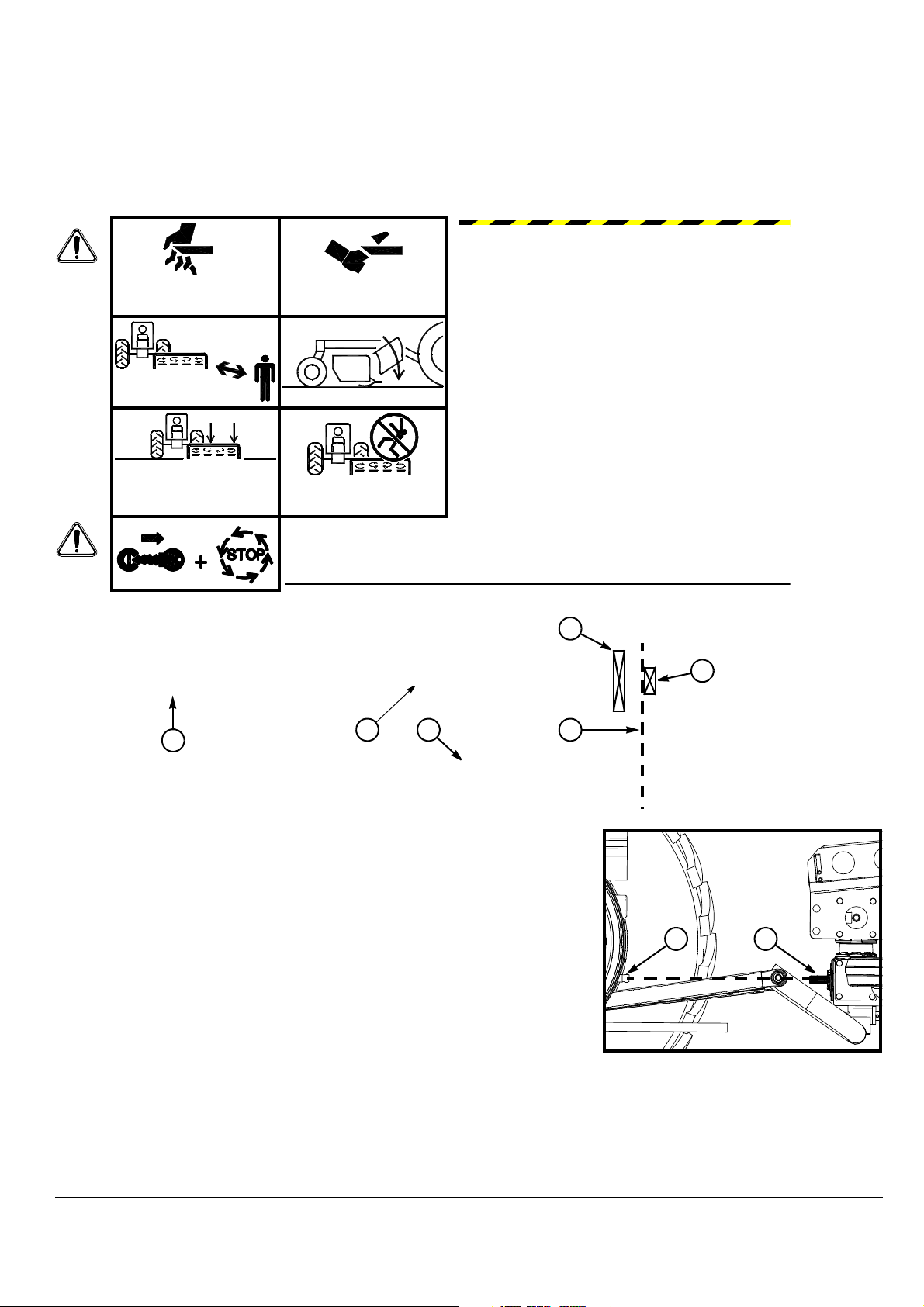

Section 40: Preparing the Machine

1

5

3 4

6

2

1 7

4.1304.8503.0

DANGER: Contact with rotating blades may
result in serious injury or death.

• Stay away from rotating
blades.

• Do not lift or reach under
cutter bar deflector
curtain.

• Keep all folding shields
down.

• Do not operate with cutter
bar raised; blades will be
exposed.

• Never allow anyone to ride
or stand on mower. You
could fall into blade area.

Follow Shutdown Procedure , page 20-1, before servicing, repairing, and

making any machine adjustments or setting changes.

PRIMARY PTO SHAFT - SHORTEN (IF NEEDED)

Step 1: Remove primary PTO shaft from mower. Separate the two PTO shaft

halves (2) and (3). Remove PTO shaft shielding. Refer to page 50-27.

Step 2: Remove grease from shaft (2).
Step 3: Attach mower to tractor 3-point hitch. Refer to page 40-2.
Step 4: Ensure mower shaft (7) is aligned with tractor shaft (1) as shown.

Raise or lower 3-point hitch as needed.

Step 5: Install shaft (3) on mower.
Step 6: Position shaft (2) alongside shaft (3) as shown above. Ensure front of

shaft (2) yoke is even with end of tractor shaft (1).

Shaft (2) should not protrude through yoke of shaft (3) as indicated by
line (4).

Step 7: If necessary, mark shaft (2) as indicated by line (4) and remove excess length (5).
Step 8: Remove excess shield length (6). Length (6) should be equal to length (5).
Step 9: Remove all sharp edges, burrs, and metal filings from shaft (2). Thoroughly clean, lubricate,

assemble, and reinstall primary PTO shaft. Refer to “PTO Shafts - Clean and Grease,” page 50-23.

Splendimo 550 P Preparing the Machine 40-1

Innovators in Agriculture

ATTACH MOWER TO TRACTOR

5

2 3

1

6 7

98

10

4

13

Category II

11

Category IIIN

Quick Attach Hitch

12

4.1304.8503.0

Step 1: Move tractor drawbar to one side, if necessary, to make room for mower PTO shaft (4).
Step 2: Determine length from PTO to the centerline of the lower links; install quick-attach hitch to

obtain correct dimension if required. Refer to “PTO Length,” page 25-2.

Step 3: Attach tractor lift arms to mower lift pins.

• Category II 3-point hitch: Install a washer (6) (32 mm ID x 58 mm OD) and linch pin (5) on
the outside of each lift pin to secure the tractor lift arms.

• Category IIIN 3-point hitch: Install included adapter link bushings (11) by sliding them over
the lift pins. Then attach tractor lift arms to mower lift pins. Secure with washer (6) and linch
pin (5).

• Category II or IIIN Quick Attach hitch: Refer to Parts Manual and install optional Quick Hitch

adapters (12) using supplied roll pins (13). Attach the Quick Attach to mower lift pins.

WAR NING: The normal operating position of the 3-point lift arms is when the PTO shaft is horizontal.
Failure to keep 3-point lift arms in this position can result in damage to PTO shaft or tractor.

40-2 Preparing the Machine Splendimo 550 P

Innovators in Agriculture

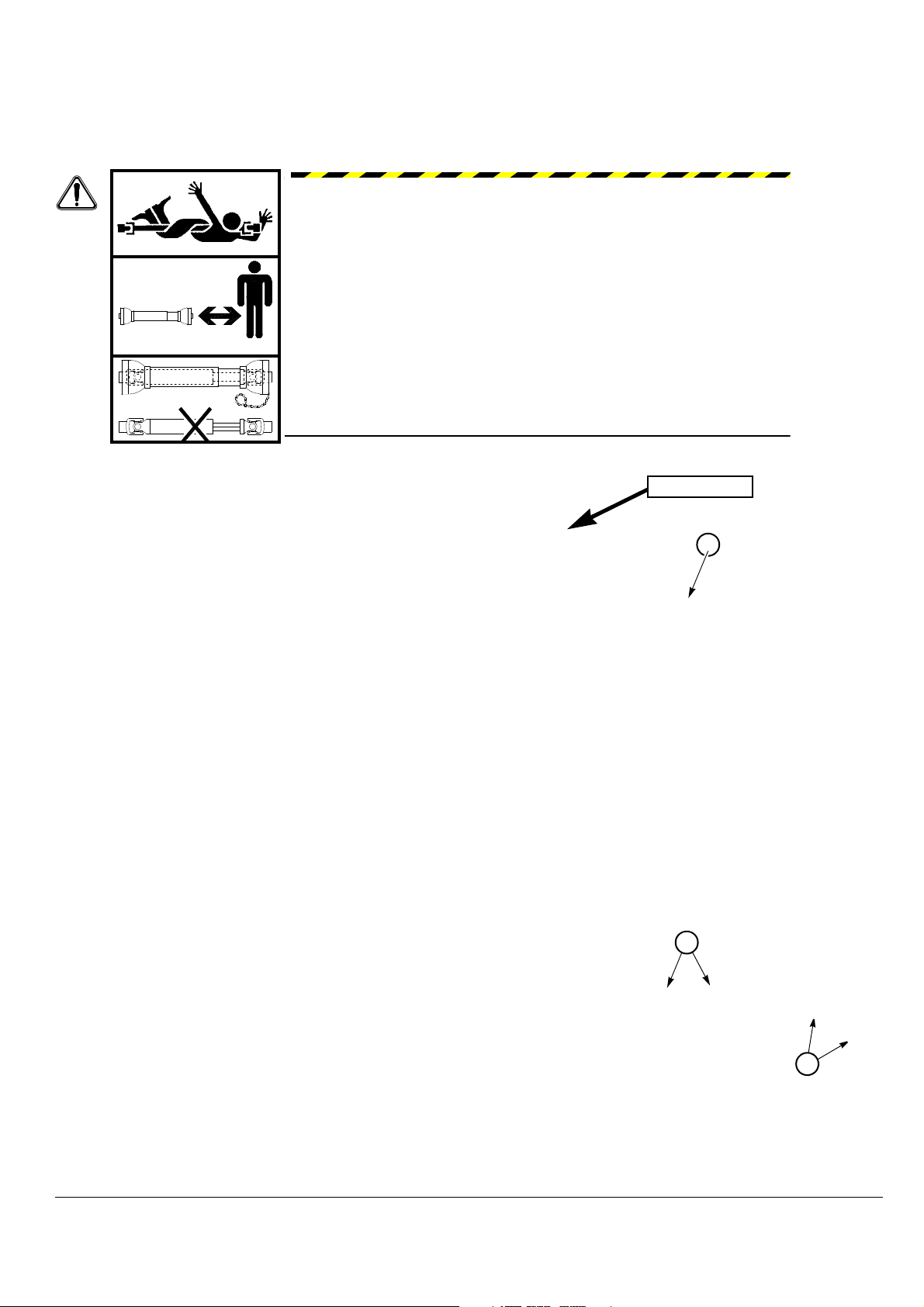

FRONT

14

1

2

4.1304.8503.0

DANGER: Entanglement in rotating PTO shaft can result in death or
serious injury.

Stay away from rotating PTO shaft. Stop engine and ensure PTO shaft is
stopped before working on PTO shaft.

Keep PTO shaft shields in place at all times. Ensure shields turn and
telescope freely.

Wear close-fitting clothing and confine long hair.

Refer to graphics on previous page when needed.

Step 4: Align splines and start PTO shaft (4) onto tractor PTO shaft

(2).

If PTO shaft is too long to fit on tractor shaft, PTO shaft must

be shortened. Refer to page 40-1.

Step 5: Compress locking collar (3). Push PTO shaft onto tractor

shaft until locking collar snaps into position. Pull back on
PTO shaft to ensure it is properly connected.

Step 6: Connect PTO shield chains to tractor PTO shield (1) and

mower PTO shield (7).

Step 7: Lower tractor PTO shield into operating position.
Step 8: Remove pin (8) and rotate stand (10) to point rearward;

reinstall pin (8) and secure with linch pin (9).

Step 9: Slowly raise 3-point hitch to ensure PTO shaft does not

bottom out when lifting hitch to maximum height. Refer to
tractor operator’s manual if adjustment to maximum hitch
height is needed.

Step 10: Lower 3-point hitch so that PTO shaft (4) is horizontal

(parallel to the ground).

Step 11: Remove wheel chocks and place in storage location (14).

Hydraulic Hoses - Connect

Connect each pair of hydraulic hoses to a hydraulic remote valve on the tractor.

• Clean both tractor quick-couplers and implement hose tips before connecting.

• Connect hoses (1) with transport lock valves to one remote valve, connect hoses
(2) without transport lock valves to another remote valve.

Individual quick-couplers for a particular remote valve may be arranged side
by side or one on top of the other, depending on tractor make and model. Refer
to tractor operator’s manual for details.

• If tractor hydraulic control movement needs to be reversed, switch hoses at the
tractor quick-couplers.

• Mark implement hoses and tractor quick-couplers to ensure the same tractor hydraulic control
functionality whenever the implement is attached to the tractor.

Splendimo 550 P Preparing the Machine 40-3

Innovators in Agriculture

Light Harness - Connect

A

B

S/N 101–223

S/N 224–UP

C

D

4.1304.8503.0

Serial Number 101–223

• Connect light harness (A) to tractor electrical outlet (D) and mower
connector (B). If tractor is not equipped with an outlet, contact tractor
dealer for outlet installation.

• Check to ensure lighting is operating correctly.

Serial Number 224–Up.

• Connect light harness (C) to tractor electrical outlet (D). If tractor is not
equipped with an outlet, contact tractor dealer for outlet installation.

• Check to ensure lighting is operating correctly.

40-4 Preparing the Machine Splendimo 550 P

Innovators in Agriculture

CONTROLLER - PREPARE

4

1 3

5

3

4

5

2

4.1304.8503.0

Step 1: Connect orange wire (4) of power lead (with 25-amp in-line

fuse) to positive (+) terminal of 12-volt tractor battery.
Connect white wire (5) to negative (-) terminal of tractor
battery.

Step 2: Connect controller harness (2) to tractor harness at connector

(1).

Step 3: Connect tractor harness to mower harness at connector (3).

Splendimo 550 P Preparing the Machine 40-5

Innovators in Agriculture

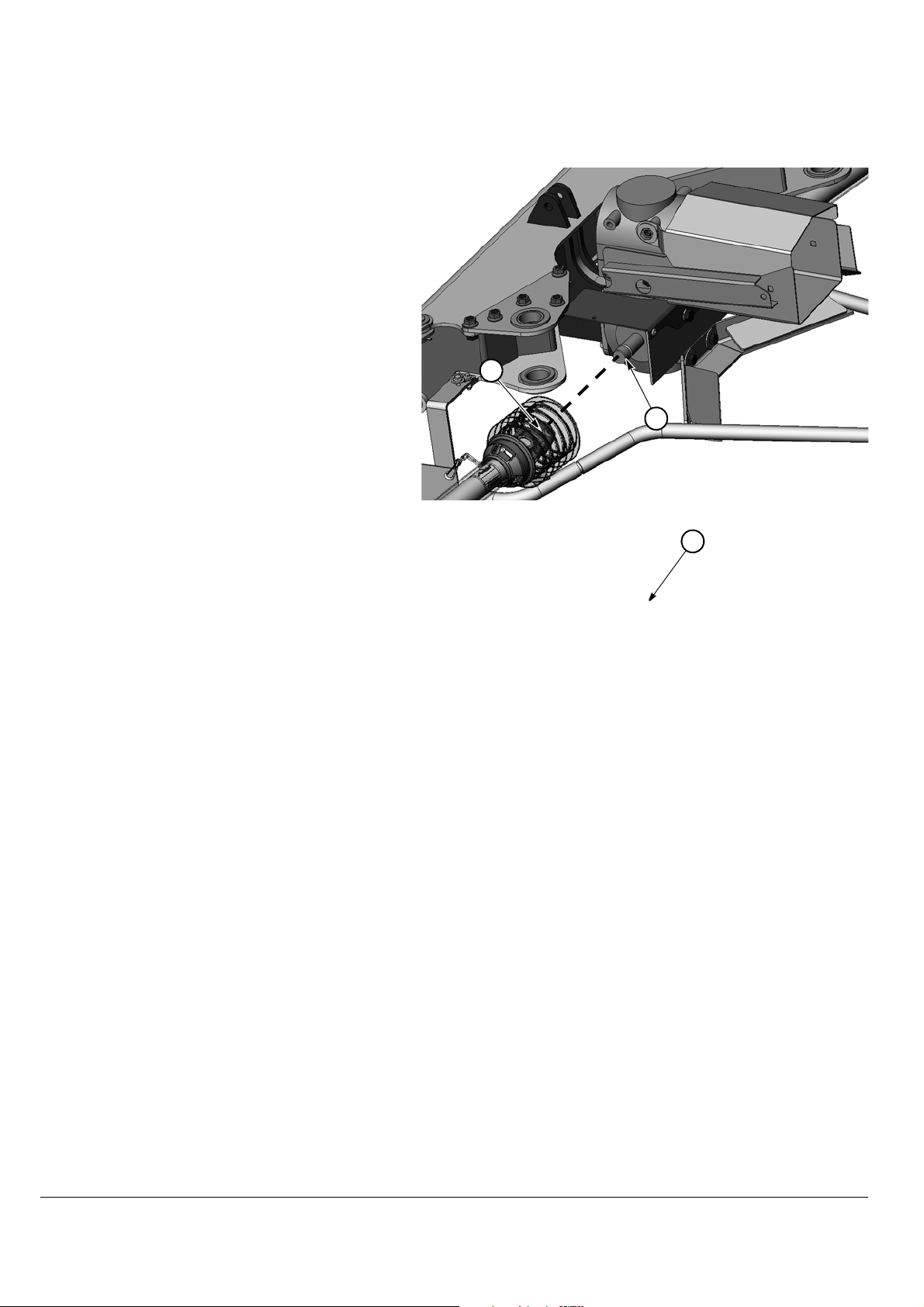

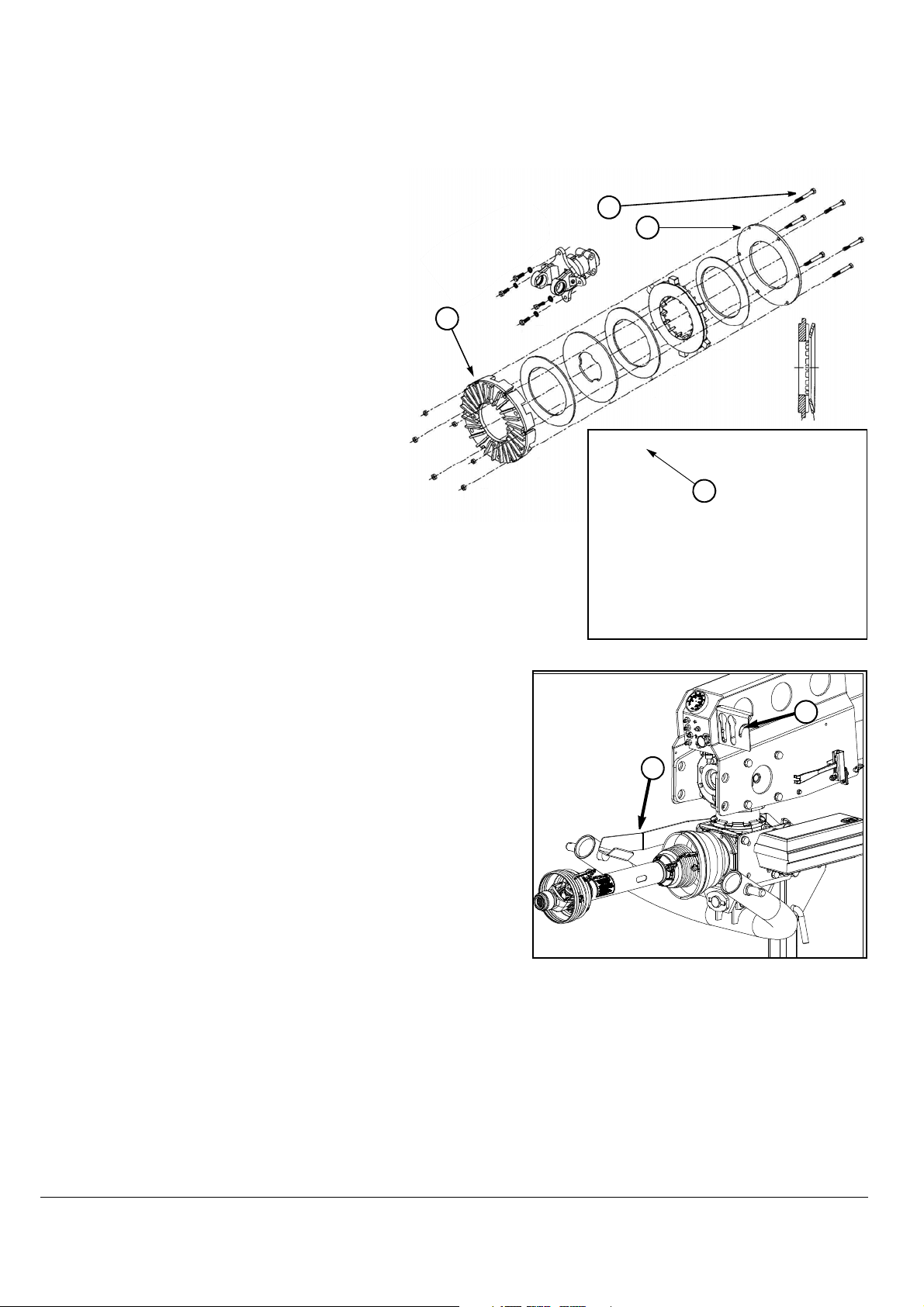

SLIP CLUTCH - BREAK IN

1

2

3

4

2

1

4.1304.8503.0

Break in clutch when new and whenever it has not
been used for approximately 60 days.

Slip clutch is located at rear end of secondary PTO
shaft. Rotate shield (4) to access.

Step 1: Follow Shutdown Procedure, page 20-1.
Step 2: Disconnect PTO shaft from tractor.
Step 3: Loosen bolts (1) on outside diameter of

clutch until all bolts are just loose, then
tighten all bolts 1/2 turn.

Step 4: Attach implement and PTO shaft to

tractor. Stand clear of machine.

Step 5: Start tractor engine. Engage PTO and

run for a few seconds, or until clutch
smokes, then disengage PTO.

Step 6: Follow Shutdown Procedure, page 20-1.
Step 7: Disconnect PTO shaft from tractor.
Step 8: Tighten all bolts (1) evenly until

compression plate (2) is tight against
housing (3). Torque bolts (1) to 41 Nm
(4.1 kgm).

Step 9: Grease fitting on yoke.

DISCONNECT MOWER FROM TRACTOR

Step 1: Place mower and tractor on level ground.
Step 2: Fully lower or fully raise cutter bars and install cutter bar

lift lock. Refer to page 15-2.

Step 3: If cutter bars are fully raised, move pitch control cylinder

stop to position (1). Refer to page 15-5.

Step 4: Place wheel chocks behind tires.
Step 5: Raise 3-point hitch slightly to ensure stand can be rotated

down freely.

Step 6: Remove pin and rotate stand down; reinstall pin.
Step 7: Lower 3-point hitch until stand is on the ground.
Step 8: Unhook PTO shaft and place in PTO cradle (2).
Step 9: Unhook hydraulic hoses and electrical harnesses. Place in

Step 10: Disconnect lower links of 3-point hitch.

storage holder (1).

40-6 Preparing the Machine Splendimo 550 P

Innovators in Agriculture

Section 45: Operating the Machine

4.1304.8503.0

OPERATOR QUALIFICATIONS

WAR NING: Read Operator’s Manual and safety signs before operating machine.

Allow only responsible, properly instructed individuals to operate machine.

Become familiar with the controls, operation and use of the machine under the supervision of a trained and
experienced operator.

The operator must be familiar with the workplace’s safety rules and regulations, and must be mentally and
physically capable of operating the machine safely.

PERSONAL PROTECTIVE EQUIPMENT

WAR NING: Wear required personal protective equipment. Wear close-fitting
clothing and confine long hair. Avoid wearing jewelry such as rings, wristwatches,
necklaces or bracelets. Always wear safety glasses and safety shoes.

Operating the machine will require you to wear personal protective equipment. You should always wear eye
protection and safety shoes.

SAFE OPERATING PRACTICES

Familiarize yourself with the tractor operator’s manual before attempting to operate mower.

Never leave tractor controls unattended while implement is operating.

Be sure you are familiar with location and function of each mower control before operating mower. Refer to

the Controls and Adjustments section, beginning on page 15-1.

Do not leave machine unattended with cutter bars in raised position unless cutter bar lift lock is engaged.

Refer to page 15-2.

WAR NING: Ensure tractor operator is the only person riding the tractor.
Never carry riders on towed machine. Falling from machine can result in
serious injury or death.

ARRIVING AT THE FIELD

Be alert and use extreme caution when operating on hillsides or near ditches, gullies, holes, or obstructions
where rollover could occur.

Watch out for and avoid any object that might interfere with proper operation of machine (i.e. stones and
limbs).

Check terrain of field and condition of crop, and make adjustments to cutter bar pitch and cutter bar
flotation if needed.

• Refer to “Cutter Bar Pitch - Adjust,” page 15-5.

• Refer to “Cutter Bar Flotation - Adjust,” page 15-8.

Survey area around machine and ensure everyone is away before starting or moving mower.

Splendimo 550 P Operating the Machine 45-1

Innovators in Agriculture

RECOMMENDED SETTINGS

1

2

3

4

FRONT

A

A

FRONT

A

1

2

6

A

3

7

5

4

4.1304.8503.0

Splendimo 550P S/N 101–157

The settings in this table are general guidelines. Adjust position of
cylinder stop (A) as needed to attain optimum performance. Refer to

“Cutter Bar Pitch - Adjust,” page 15-5.

Alfalfa Grasses Short Crop

Pitch

Control

Setting (A)

Pitch

Control

Setting (A)

Position (1) also recommended for transport and storage.

(2) (2) or (3) (3) or (4)

Rocky Field Muddy Field Cane Crops

(1) (1) (1)

Splendimo 550P S/N 158–Up

The settings in this table are general guidelines. Adjust position of
cylinder stop (A) as needed to attain optimum performance. Refer to

“Cutter Bar Pitch - Adjust,” page 15-5.

Alfalfa Grasses Short Crop

Pitch

Control

Setting (A)

Pitch

Control

Setting (A)

Position (1) is for transport only.

(4) (5) or (6) (6) or (7)

Rocky Field Muddy Field Cane Crops

(2) (2) (2)

45-2 Operating the Machine Splendimo 550 P

Innovators in Agriculture

4.1304.8503.0

DANGER: Contact with rotating blades may
result in serious injury or death.

• Stay away from rotating blades.

• Do not lift or reach under cutter bar
deflector curtain.

• Keep all folding shields down.

• Do not operate with cutter bar raised;
blades will be exposed.

• Never allow anyone to ride or stand on
mower. You could fall into blade area.

Follow Shutdown Procedure , page 20-1, before servicing, repairing, and

making any machine adjustments or setting changes.

DANGER: Rotating blades or tines can throw objects 30 m or more.
Serious injury or death is possible if struck.

Use tractor with enclosed cab.

Run mower only with cutter bar on ground.
Watch for and avoid objects which could be thrown by mower.

Stay away from rotating blades. Keep others away.

Keep all shields and curtains in place during operation; do not lift or reach
under curtains.

Never allow anyone to ride or stand on mower.

Do not use mower in populated area or along roadside. Use only for
agricultural mowing.

Splendimo 550 P Operating the Machine 45-3

Innovators in Agriculture

DANGER: Entanglement in rotating PTO shaft can result in death or

!

4.1304.8503.0

serious injury.

Stay away from rotating PTO shaft. Stop engine and ensure PTO shaft is
stopped before working on PTO shaft.

Keep PTO shaft shields in place at all times. Ensure shields turn and
telescope freely.

Wear close-fitting clothing and confine long hair.

TRANSPOR T L OCKS - DISENGAGE

Refer to “Transport Locks,” page 15-1.

OPERATING THE MOWER

Step 1: Start tractor engine.
Step 2: Lower cutter bars halfway, then unfold cutter bars to operating position.
Step 3: While driving forward, use tongue swing function to offset mower to left or right side of tractor.

NOTICE: Do not start mower in long crop with cutter bars on the ground. If
mower is started and stopped with cutter bars on the ground in long crop, crop
may wind around discs and plug machine.

Step 4: Engage PTO and increase PTO speed to 1000 rpm before entering standing crop.

WAR NING: Never exceed rated 1000 rpm PTO speed. Excessive speed may cause
blade failure. Excessive speed will cause blades to throw material at a higher
velocity which may penetrate the cutter bar deflector curtains. Serious injury or
death could occur if you are struck by thrown blade or debris.

Step 5: Fully lower cutter bars. Allow adequate time for cutter bars to rest completely on the ground, then

return tractor hydraulic control to NEUTRAL.

Step 6: Slowly move tractor forward.
Step 7: Adjust your ground speed to a safe speed consistent with efficient operation. It may be possible to

travel faster depending on cutting conditions. In other conditions it may be necessary to travel
slower to maintain a safe travel speed.

OPENING THE FIELD

Step 1: In a new field, cut the first round with the mower offset to either side of the tractor.
Step 2: For the second round, travel in the opposite direction to mow the crop laid down by the tractor

wheels in the opening round.

Step 3: Steer mower around obstacles using tongue swing function to minimize tractor steering as

described below.

45-4 Operating the Machine Splendimo 550 P

Innovators in Agriculture

STEERING THE MOWER

!

1

A

B

C

4.1304.8503.0

NOTICE: While turning sharp corners, extreme care must be taken to ensure
inside rear tractor tire does not contact the tongue. Damage could result to the
tractor tire and the mower. Ground speed may need to be reduced to maintain
stability when making tight turns on sloped ground.

Steering Around Obstacles

Use the tractor hydraulic control to
swing mower left or right around
obstacles.

If swing speed of the tongue is too
fast, adjust flow rate on tractor
hydraulics.

Mower will normally move to the
left slightly slower than to the right
due to the difference in oil volume
needed to move base end vs. rod end of tongue swing cylinder.

Turning Square Corners

Cutter bars should remain lowered throughout the following
steps.

Step 1: As the tractor approaches a corner, adjust the

ground speed to account for terrain and field
conditions.

Step 2: Continue straight past the corner until the rear

wheel of the tractor passes the cut/uncut line (1) of
the crop.

Step 3: Turn sharply toward the uncut material.
Step 4: Straighten out the tractor just enough so that the

inside front tire misses the uncut crop.

Step 5: Position tractor so mower will cut a full-width swath.

180° Turns

To make 180° turns, four or five rounds must
be cut from the perimeter of the field.

Step 1: Continue going straight until the

mower completely cuts the current
swath (A).

Step 2: Immediately raise cutter bars and

turn slightly away from the uncut
crop.

A slight delay in cutter bar raise/
lower is normal. Pressure inside lift
circuit accumulator must change
accordingly before cutter bars will
raise or lower.

Step 3: Turn sharply toward the uncut

crop.

Step 4: At the halfway point of the turn,

reposition mower from left towards
right side of tractor (B).

Splendimo 550 P Operating the Machine 45-5

Innovators in Agriculture

Step 5: As the tractor straightens out alongside uncut crop, swing the mower to cut a full width of uncut

1

4.1304.8503.0

crop (C).

Step 6: Fully lower cutter bars, minimizing disturbance of previously cut crop.

FLOTATION PRESSURE - CHECK

While operating mower, occasionally check flotation pressure reading on gauge
(1).

• With cutter bars lowered, gauge (1) reading should be equal to setting

obtained as result of the last flotation adjustment. Refer to page 15-8.

Pressure may decrease slightly and gradually over time due to normal
amounts of hydraulic system leakage and temperature, but should
generally remain consistent.

When cutter bars are raised, gauge (1) reading will increase. This is
normal.

45-6 Operating the Machine Splendimo 550 P

Innovators in Agriculture

Section 50: Maintenance

4.1304.8503.0

WARNI NG: Use Shutdown Procedure before servicing, cleaning, repairing, or

transporting machine. See the Shutdown Procedure for instructions. Refer to page

20-1.

Visually inspect machine daily before starting the machine.

Make no modifications to your equipment unless specifically recommended by Lely.

WAR NING: A falling mower can result in serious crushing injury or death.

Engage cutter bar lift lock before doing any work under machine.

• The maintenance section of this Operator’s Manual contains general maintenance guidelines for the machine. Do not
attempt any maintenance procedure that is not fully understood, or that cannot be safely and accurately performed with
the available tools and equipment.

• If a problem is encountered that is not understood or cannot be solved, contact your authorized independent Lely dealer.

• Read and understand the safety messages and procedures of this Maintenance section before performing any required
maintenance.

• To provide a better view, some photographs or illustrations in the maintenance sections may show the machine shields
removed. Never operate the machine with the shields removed; keep all shields in place. If removing a shield is
necessary, return it to its operating position before operating the machine.

Splendimo 550 P Maintenance 50-1

Innovators in Agriculture

CUTTER BAR ACCESS

1

2

3 1

4.1304.8503.0

Access to both cutter bar assemblies is easiest from front of mower. Proceed as
follows:

Step 1: Remove linch pin (1) from center curtain post.
Step 2: Fold curtain frame (2) up until latch (3) engages.
Step 3: To lower, release latch (3), lower curtain frame (2), and ensure

curtains hang freely.

Step 4: Re-engage curtains on to center post and secure with linch pin (1).

MACHINE - GREASE

As a general rule, grease machine after it is shut down for the day. This
protects metal under seals from corrosion caused by condensation as
temperature drops.

Ensure all fittings and nozzle of grease applicator are clean before applying
grease. If any grease fittings are missing, replace them immediately.

SAFETY SIGNS

Safety signs located on your machine contain important and useful information

that will help you operate your equipment safely. Refer to the Parts Manual for

safety sign location.

To assure that all signs remain in place and in good condition, follow
instructions given below:

• Keep signs clean. Use soap and water - not mineral spirits, abrasive cleaners, or other similar cleaners that will damage
the safety sign.

• Replace any damaged or missing signs. When attaching signs, the temperature of the mounting surface must be at least
5°C. The mounting surface must also be clean and dry.

• When replacing a machine component with a sign attached, replace sign also.

• Replacement signs can be purchased from your Lely equipment dealer.

50-2 Maintenance Splendimo 550 P

Innovators in Agriculture

MAINTENANCE INTERVALS

4.1304.8503.0

“ac” = acres and “ha” = hectares in table below.

= Regular maintenance interval.

INITIAL = Initial maintenance on new machine. Regular maintenance interval may be different.

Service

Hydraulic System - Inspect
Machine - Clean
Safety Signs and Operating Decals -

Inspect
Lug Nut - Torque Check
Cutter Drive Gearboxes - Initial Oil

Change
Cutter Drive Elements - Initial Oil Change

Tongue Pivot - Grease
3-Point Pivot - Grease
Overrunning Clutch - Grease
Primary PTO Shaft - Grease
Secondary PTO Shaft - Grease
Cross PTO Shafts - Grease
Cutter Bars - Check
Overall Machine - Check
Mechanical Drive System - Check
Curtain - Check
Tires and Rims - Check
Cutter Bar Driveshafts - Grease
Jackshaft - Grease
Highway Lights - Check
Hydraulic System - Check
Gearbox Oil Levels - Check
Cutter Drive Elements - Change Oil
Cutter Bar Drive Gearboxes - Change Oil
Swivel Hitch Gearbox (Rear) - Change

Oil
Swivel Hitch Gearbox (Front) - Change

Oil
Cutter Elements - Replace Grease
Wheel Bearings - Check
PTO Shafts - Clean and Grease
Cutter Blades - Replace
Curtains - Check/Replace
Slip Clutch - Check
Slip Clutch Friction Discs - Replace
Timing (Cutter Bars) - Adjust
Preparing for Storage

Before

Each Use







After First

8 Hours



Maintenance Interval - Service Hours

8 hrs or

Daily





















50 hrs or

Weekly

INITIAL
INITIAL







100 hrs or

200 ha







500 hrs or

1000 ha











1000 hrs

or 2000 ha





As

Required













Splendimo 550 P Maintenance 50-3

Innovators in Agriculture

MAINTENANCE - BEFORE EACH USE

1

4.1304.8503.0

• Inspect hydraulic system for leaks, wear, and damage. Repair as needed.

• Remove accumulated trash and debris.
NOTICE: Do not use high pressure washers or steam cleaners to clean machine, use compressed air.

• Inspect safety signs and operating decals for wear and damage. Refer to page 50-2.

MAINTENANCE - AFTER INITIAL 8 HOURS

Lug Nut - Torque Check

After the first eight hours of operation, check transport wheel lug bolts
(1) to ensure they are torqued to 270 Nm (27.0 kgm).

50-4 Maintenance - Before Each Use Splendimo 550 P

Innovators in Agriculture

MAINTENANCE - 8 HOURS

1

2

B

TRACTOR

MOWER

A

C

4.1304.8503.0

WAR NING: A falling mower can result in serious crushing injury or death.

Engage cutter bar lift lock before doing any work under machine.

TONGUE PIVOT - GREASE

(1) One shot of grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .two fittings

3-POINT PIVOT - GREASE

(2) One shot of grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .one fitting

OVERRUNNING CLUTCH - GREASE

• Apply 2–3 shots of grease to overrunning clutch fittings (A) every 8
hours.

• Apply 2–3 shots of grease to U-joint fitting (B) every 50 hours.

Viewed from underneath tongue. Remove D-pin (C) and rotate cover down
for access as shown.

Splendimo 550 P Maintenance - 8 Hours 50-5

Innovators in Agriculture

PRIMARY PTO SHAFT - GREASE

TRACTOR MOWER

4 4

1 22 13

3

4.1304.8503.0

• Apply 8–10 shots of grease to fitting (3) every 8 hours.

Fitting (3) for sliding profiles is accessible with PTO shaft hooked to tractor
and positioned as shown. Shielding on both halves of PTO shaft will likely
have to be rotated to align access holes with fitting (3).

• Apply 2–3 shots of grease to fittings (1) every 50 hours.

Fitting (1) on mower end of PTO shaft is best accessed by removing

driveline from swivel gearbox input shaft. Refer to page 50-23.

• Apply 2 shots of grease to fittings (2) every 50 hours.

• Lightly oil locking collars (4) every 50 hours.

50-6 Maintenance - 8 Hours Splendimo 550 P

Innovators in Agriculture

SECONDARY PTO SHAFT - GREASE

TRACTOR MOWER

1 2 3

4

3 1

4 5

4

6 7

3

8

4.1304.8503.0

• Remove shielding (7) from tabs (6) as needed to access grease fittings.

• Apply 4–6 shots of grease to fitting (2) every 8 hours.

• Inspect all wear surfaces inside double yoke to ensure presence of

grease after operation.

• Apply 8–10 shots of grease to fitting (4) every 8 hours.

Fitting (4) for sliding profiles is accessible with cutter bars fully raised or
fully lowered and tongue centered with machine. Shielding on both halves
of PTO shaft will likely have to be rotated to align access holes with fitting
(4).

• Apply 2–3 shots of grease to fittings (1) every 50 hours.

• Apply 2 shots of grease to fittings (3) every 50 hours.

NOTICE: Never operate machine without all shielding installed.

Slip Clutch Hub - Grease

• Apply 5–6 shots of grease to fitting (5) once per season.

Rotate shield (8) up to access grease fittings.
NOTICE: Never operate machine without all shielding installed.

Splendimo 550 P Maintenance - 8 Hours 50-7

Innovators in Agriculture

CROSS PTO SHAFTS - GREASE

OUTSIDE CENTER

1 2 3 2 1

3

1

4

4.1304.8503.0

• Apply 8–10 shots of grease to fitting (3) every 8 hours.

Fitting (3) for sliding profiles is accessible with cutter bars in operating
position as shown. Shielding on both halves of PTO shaft will likely have to
be rotated to align access holes with fitting (3).

• Apply 2–3 shots of grease to fittings (1) every 50 hours.

• Apply 2 shots of grease to fittings (2) every 50 hours.

Rotate shield (4) up as shown to access grease fitting.
NOTICE: Never operate machine without all shielding installed.

50-8 Maintenance - 8 Hours Splendimo 550 P

Innovators in Agriculture

CUTTER BARS - CHECK

2

3

6

7

4

5

1

8

9

4.1304.8503.0

WAR NING: A falling mower can result in serious crushing injury or death.

Engage cutter bar lift lock before doing any work under machine. Adequately
support cutter bar when working under raised mower.

•Check disc (2), blades (8), blade retaining clips (1), and blade pins (9)
for wear, damage, and looseness.

• Check leading edge of discs (2) for worn, cracked edges, and looseness.

Blades need to be exchanged also when exchanging discs.

•Check tightness of castellated disc nut (3). Torque nuts to 150–250
Nm (15–25 kgm). Ensure split pin (4) does not protrude from pressure
block. Press pin down so it does not catch hay.

•Check skid plate (5) for wear.

• Check elements (6) and spacers (7) for damage and/or leaking
lubricant.

• Check for mud or other foreign material wedged under disc (2).

Splendimo 550 P Maintenance - 8 Hours 50-9

Innovators in Agriculture

Cutter Elements Grease - Check for Leaks

1

2

1

FORWARD

4.1304.8503.0

Visually inspect cutter bar assemblies (1) for evidence of external leaks or heat
damage which indicate loss of lubricant.

If leak or heat damage is found:

Step 1: Remove cutter disc assemblies to determine which cutter element(s)

have lost lubricant.

For information on removing cutter disc assemblies to check grease,

refer to page 50-20.

Step 2: Determine cause of lubricant loss and repair as necessary.

Skid Plates - Check

Check condition of skid plates (2) under cutter elements.

Timing (Cutter Bars) - Check

Ensure blades on one element are 90° from the blades of the adjoining elements, as shown above. Center
elements (1), however, must be parallel.

If cutter elements (1) are not parallel, refer to page 50-40.

50-10 Maintenance - 8 Hours Splendimo 550 P

Innovators in Agriculture

Cutter Blades - Check

4.1304.8503.0

WARNING: Do not operate this mower with bent, broken, or cracked blades which could break
loose from machine and injure you.
Do not resharpen blades since this will affect the strength of the blades and may cause them to
break.
Use only Lely blades. Other blades may lack strength or be incompatible with Blade Retention
system. Blade failure or loss of blades may occur if the wrong blades are used. This could result in
serious injury or death.
Be sure to install blades correctly.
Always replace both blades on a disc to avoid imbalance.

Check that each cutter blade pivots freely on each mower disc. Check for bent,
broken, cracked, or dull blades. Check for bent, broken, cracked, or loose blade
retaining clips. Replace before using mower.

Blades are reversible; they can be flipped over and re-used.
NOTICE: Check condition of blade pins when reversing blades. Replace if worn or

damaged.

New blade retaining clips are included with new Lely blades and need not be
ordered separately. Always use new blade retaining clips when replacing blades.

OVERALL MACHINE - CHECK

Shields and Guards - Check that all shields and guards are installed and are fastened securely to
machine. Replace or repair any shields or guards that are damaged or have missing parts.

Safety Signs - Check machine for any worn or missing safety signs or operating decals (refer to the Parts

Manual for replacement parts).

Hardware - Check machine for loose, worn, or missing parts and hardware. Tighten any loose parts and

replace any worn or missing parts (refer to the Parts Manual for replacement parts).

Frame - Check frame and contact dealer immediately if you notice any bends, cracks, or breaks.

Reflectors - Check that reflectors are present. Replace missing or damaged reflective materials (refer to

the Parts Manual).
Curtains - Check curtains for holes, rips, tears, or wear. Refer to “Curtains - Check/Replace,” page 50-37.

MECHANICAL DRIVE SYSTEM - CHECK

Universal Joints

Check for cracks and remove any mud or other material that is wedged in joints. Replace any worn or

cracked parts (refer to the Parts Manual for replacement parts).

Splendimo 550 P Maintenance - 8 Hours 50-11

Innovators in Agriculture

PTO Shaft Shields

1

1

A

4.1304.8503.0

Check that PTO shaft shields are in place and rotate freely within the limits of
shield chains (1). Both ends of primary, secondary, and cross PTO shafts (shown)
are equipped with shield chains (1).

PTO shaft shields should be in place to prevent debris from contaminating PTO
shafts and rubbing off anti-friction coating.

Gearboxes

Check all gearbox seals for leakage.

Check gearbox vent plugs to ensure vent caps have not been damaged. If vent
caps are damaged, plugs will need to be replaced.

CURTAIN - CHECK

The cutter bar deflector curtain (A) assembly is an essential part of the safety
equipment provided with the mower. Comprised of separate left and right
curtains, curtain assembly is designed to help prevent materials from being
thrown out from the cutter bar area.

The curtain is designed with a specific shape and material composition to
accomplish this purpose effectively. For your safety, it is essential that the
machine is equipped with a curtain that is in good condition. Damaged
curtains must be replaced.

Use your good judgment and the guidelines in “Curtain - Replace,” page 50-37,

to determine whether a curtain needs to be replaced.

50-12 Maintenance - 8 Hours Splendimo 550 P

Innovators in Agriculture

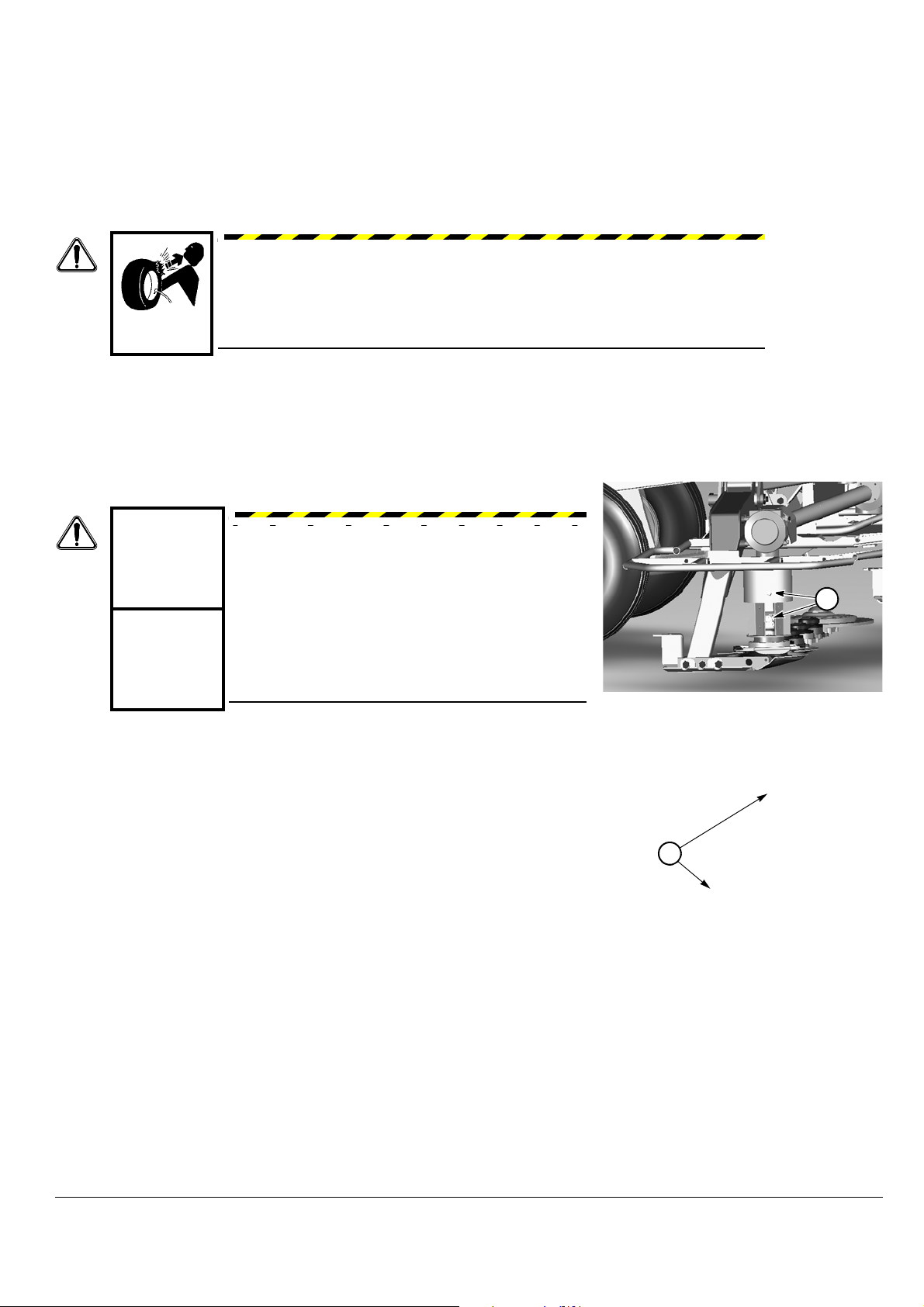

MAINTENANCE - 50 HOURS

1

1

4.1304.8503.0

TIRES AND RIMS - CHECK

WAR NING: Tire explosion can result if the following procedures are not followed:

- Maintain correct tire pressure. Do not inflate tire above recommended pressure.

- Low tire pressure can cause internal tire damage. Inflate to recommended
pressure.

- Replace any tire with cuts or bubbles. Replace any damaged rims.

- Do not weld or heat wheel assembly. Heating will increase tire pressure.

Check tires and rims for damage.

Tire pressure should be 200 kPa (2 bar) and wheel lug bolt torque should be 270 Nm (27.0 kgm).

CUTTER BAR DRIVESHAFTS - GREASE

WAR NING: A falling mower can result in serious
crushing injury or death.

Engage cutter bar lift lock before doing any work
under machine.

• Apply 2–3 shots of grease to fittings (1).

NOTICE: Cutter bar curtain removed for illustrative purposes. Never operate
mower without curtain installed and in good condition.

Splendimo 550 P Maintenance - 50 Hours 50-13

Innovators in Agriculture

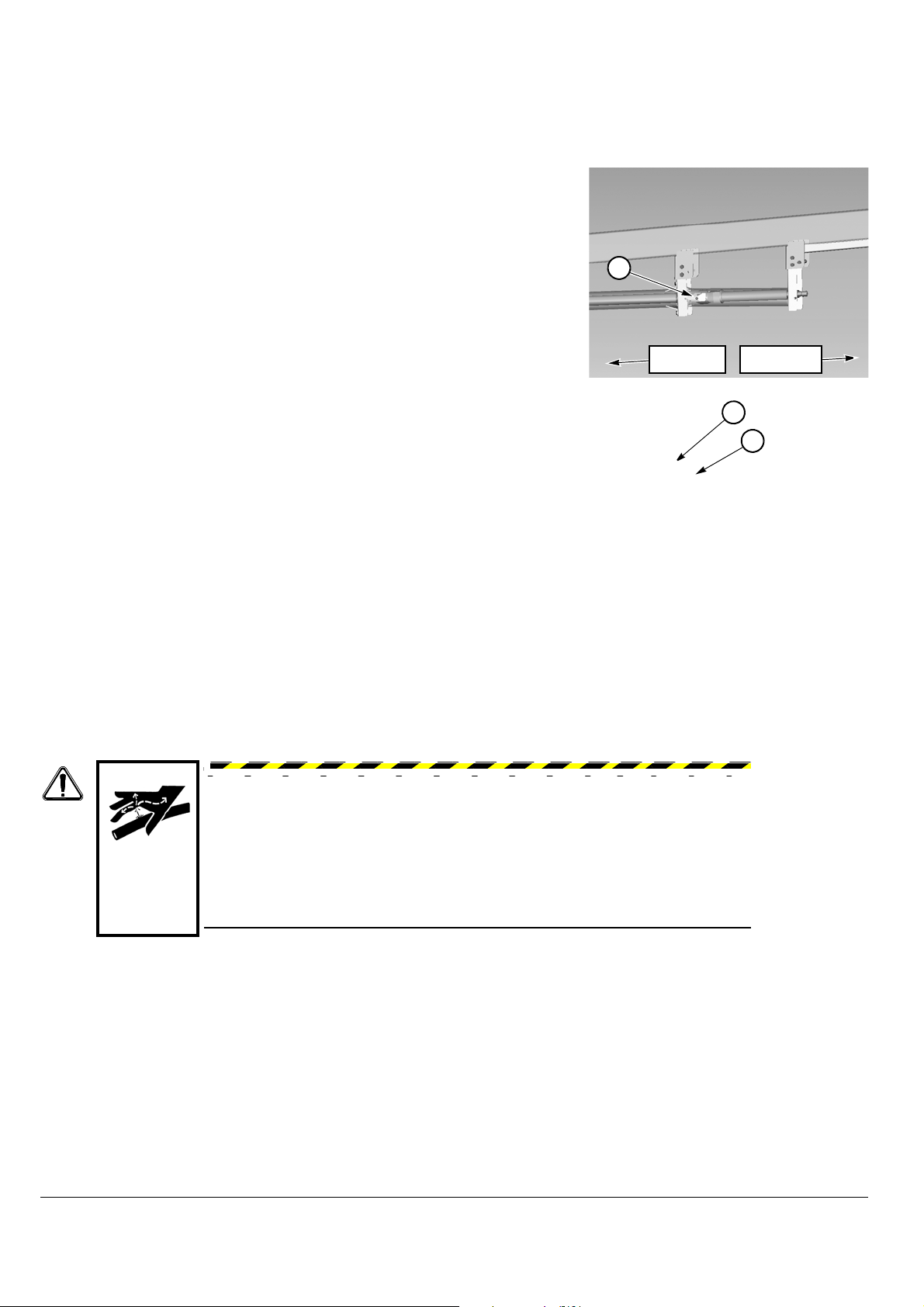

JACKSHAFT - GREASE

TRACTOR MOWER

1

2

3

4.1304.8503.0

Apply 2–3 shots of grease to U-joint fitting (1).

Rotate cover (2) up and forward for grease fitting access. Rotate cover (2) back
over fitting access hole (3) after greasing.

NOTICE: Never operate machine without all shielding installed.

MAINTENANCE - 100 HOURS

HIGHWAY LIGHTS - CHECK

Connect mower highway lights to tractor lighting connector and ensure all
lighting functions operate correctly. Obey all applicable laws regarding the use of
highway lights.

HYDRAULIC SYSTEM - CHECK

WAR NING: Pressurized fluid can penetrate body tissue and result in serious injury
or death. Leaks can be invisible. Keep away from any suspected leak. Relieve
pressure in the hydraulic system before searching for leaks, disconnecting hoses, or
performing any other work on the system. If you must pressurize the system to find
a suspected leak, use an object such as a piece of wood or cardboard rather than
your hands. When loosening a fitting where some residual pressure may exist,
slowly loosen the fitting until oil begins to leak. Wait for leaking to stop before
disconnecting the fitting. Fluid injected under the skin must be removed
immediately by a surgeon familiar with this type of injury.

Ensure all connections are tight and hoses are in good condition before applying pressure to the system.

Check hydraulic lines and fittings for leaks or damage. Check for rubbing or pinching of lines which might
damage the line. Repair or replace as necessary. When a hose with a protective sleeve is replaced, always
install a protective sleeve over the new hose.

50-14 Maintenance - 100 Hours Splendimo 550 P

Innovators in Agriculture

GEARBOX OIL LEVELS - CHECK

1

2

1

1

2

4.1304.8503.0

Ensure tops of gearboxes are approximately level before checking gearbox oil
levels.

Cutter Bar Drive Gearboxes

Step 1: Clean areas around check plug (1) and breather cap (2).
Step 2: Remove check plug (1). Oil should drip from bottom of check plug

hole if oil level is adequate.

Step 3: If oil does not drip from bottom of check plug hole, remove breather

cap (2) and add oil until oil drips from bottom of check plug hole.

Refer to “Lubricants,” page 60-1, for recommended Lubricant specifications

and quantities.

Step 4: Reinstall breather cap and check plug.

Swivel Hitch Gearbox (Rear)

Step 1: Clean areas around check plug (2) and breather cap (1).
Step 2: Remove check plug (2). Oil should drip from bottom of check plug

hole if oil level is adequate.

Step 3: If oil does not drip from bottom of check plug hole, remove breather

cap (1) and add oil until oil drips from bottom of check plug hole.

Refer to “Lubricants,” page 60-1, for recommended Lubricant specifications

and quantities.

Step 4: Reinstall breather cap and check plug.

Splendimo 550 P Maintenance - 100 Hours 50-15

Innovators in Agriculture

Swivel Hitch Gearbox (Front)

1

TOP HALF -

View from front

21

TOP HALF -

View from front

2

1

BOTTOM HALF -

View from rear

2

4.1304.8503.0

Step 1: Clean areas around check plug (1) and breather cap (2).
Step 2: Remove check plug (1). Oil should drip from bottom of check plug hole if oil level is adequate.
Step 3: If oil does not drip from bottom of check plug hole, remove breather cap (2) and add oil until oil

drips from bottom of check plug hole.

Refer to “Lubricants,” page 60-1, for recommended Lubricant specifications and quantities.

Step 4: Reinstall breather cap and check plug.

50-16 Maintenance - 100 Hours Splendimo 550 P

Innovators in Agriculture

MAINTENANCE - 500 HOURS

1

2

1

3

4.1304.8503.0

WAR NING: A falling mower can result in serious crushing injury or death.

Engage cutter bar lift lock before doing any work under machine.

CUTTER DRIVE ELEMENTS - CHANGE OIL

Step 1: Fully raise and tip cutter bars back as far as possible.
Step 2: Engage cutter bar lift lock as described on page 15-2.
Step 3: Remove drain/fill plug (1), located at rear of cutter bar, and drain oil

into suitable collection container.

Step 4: With cutter bar lift lock still engaged, tip cutter bars forward as far

as possible.

Step 5: Fill with fresh oil and replace drain/fill plug (1). Refer to

“Lubricants,” page 60-1, for recommended Lubricant specifications

and quantities.

Step 6: Repeat Steps 1–5 for other cutter bar.

Consider replacing oil whenever cutter bar is removed.

CUTTER BAR DRIVE GEARBOXES - CHANGE OIL

Ensure tops of gearboxes are approximately level before checking gearbox oil
levels.

Step 1: Clean areas around check plug (2), breather cap (1), and drain plug

(3) (hidden by deflector curtain).

Step 2: Remove breather cap (1) and drain plug (3) to drain oil from gearbox

into suitable collection container.

Step 3: Reinstall drain plug (3) and remove check plug (2).
Step 4: Add new oil until oil drips from bottom of check plug hole. Refer to

“Lubricants,” page 60-1, for recommended Lubricant specifications

and quantities.

Step 5: Reinstall check plug (2) and breather cap (1).
Step 6: Repeat for other side.

Splendimo 550 P Maintenance - 500 Hours 50-17

Innovators in Agriculture

SWIVEL HITCH GEARBOX (REAR) - CHANGE OIL

2

1

1 2

3

3

4.1304.8503.0

Step 1: Clean areas around check plug (2), breather cap (1), and drain plug

(3).

Step 2: Remove breather cap (1) and drain plug (3) to drain oil from gearbox

into suitable collection container.

Step 3: Reinstall drain plug (3) and remove check plug (2).
Step 4: Add new oil until oil drips from bottom of check plug hole. Refer to

“Lubricants,” page 60-1, for recommended Lubricant specifications

and quantities.

Step 5: Reinstall check plug (2) and breather cap (1).

50-18 Maintenance - 500 Hours Splendimo 550 P

Innovators in Agriculture

SWIVEL HITCH GEARBOX (FRONT) - CHANGE OIL

1

TOP HALF -

View from front

22

TOP HALF -

View from front

3

1

2

BOTTOM HALF -

View from rear

1

3

4.1304.8503.0

Step 1: Clean areas around check plug (2), breather cap (1), and drain plug (3).
Step 2: Remove breather cap (1) and drain plug (3) to drain oil from gearbox into suitable collection

container.

Step 3: Reinstall drain plug (3) and remove check plug (2).
Step 4: Add new oil until oil drips from bottom of check plug hole. Refer to “Lubricants,” page 60-1, for

recommended Lubricant specifications and quantities.

Step 5: Reinstall check plug (2) and breather cap (1).

Splendimo 550 P Maintenance - 500 Hours 50-19

Innovators in Agriculture

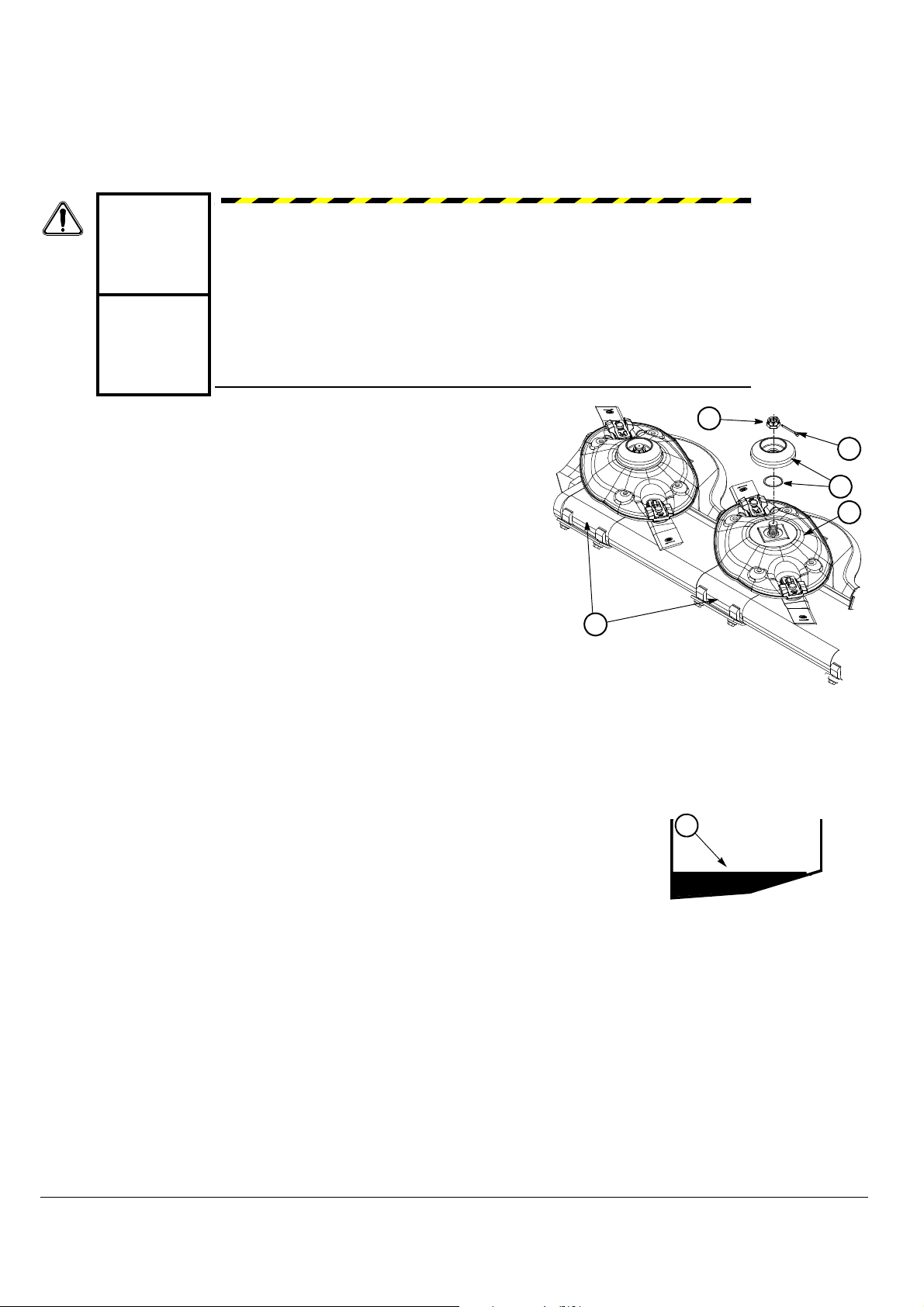

CUTTER ELEMENTS - REPLACE GREASE

1

6

2

4

5

3

4.1304.8503.0

WAR NING: A falling mower can result in serious crushing injury or death.

Engage cutter bar lift lock before doing any work under machine.

Use only specified type and amount of lubricant in cutter element. Refer

to page 60-1.
NOTICE: Do not mix lubricants.

Replace grease in cutter elements (1) yearly, at 500 service hours, or
1000 hectares, whichever comes first. Replace grease whenever cutter
element is repaired.

NOTICE: Grease level should be approximately even with bottom of
driveshaft as shown (6). Too much or too little grease will cause cutter
element to overheat.

Required amount of grease is approximately 100 g.

Cutter Disc Assembly - Remove

Before grease level can be checked or grease can be replaced, the cutter
disc assembly must be removed.

Step 1: Follow Shutdown Procedure, page 20-1.
Step 2: Remove cotter pin (4), nut (2), pressure block and seal (3), and

Step 3: Clean area thoroughly around top of cutter element (1).

disc (5).

50-20 Maintenance - 500 Hours Splendimo 550 P

Innovators in Agriculture

Step 4: Refer to graphic at right. Mark each element and bearing housing to ensure bearing

2

4

7

3

6

5

1

4.1304.8503.0

housing is fitted to the original element housing position during assembly.

Step 5: Remove four socket head bolts (2) and lock washers (7) on top of each element (1).
Step 6: Lift bearing housing (3), which includes the hub (4) and conical pinion gear

assembly (5) from the element (1). Ensure shims (6) remain in place and do not get
damaged.

Grease - Replace

Step 1: Use a clean towel to wipe the grease out of the element, off the conical pinion gear,

off of socket head bolts (2), and out of threaded holes for socket head bolts (2). Do
not use a solvent which can affect the bearing seals, or rinse the grease out of the
bearings.

Keep dirt out of element.

Step 2: Refill element with grease until grease level is approximately even with bottom of

driveshaft as shown on previous page (6).

NOTICE: An incorrect amount of grease may lead to overheating and damage to the element.

Step 3: Check that contact surfaces of the bearing housing (3) and the top of each element

(1) are clean.

Step 4: To maintain proper gear adjustment, install bearing housing, which includes (4)

and (5), on the original element. Apply blue thread locking compound #243 to threads of socket
head bolts (2) and bolt holes, then install four bolts (2) and lock washers (7).

Step 5: Ensure the following:

• Drive gear is positioned for correct disc timing.

• Socket head bolts (2) are torqued to 39 Nm.

• Disc clamp castle nut is torqued to 150–250 Nm (15–25 kgm).

Step 6: Install cotter pin. Bend cotter pin around castle nut and not over the top. Press it down so it does

not protrude from the pressure block and catch hay.

Splendimo 550 P Maintenance - 500 Hours 50-21

Innovators in Agriculture

MAINTENANCE - 1000 HOURS

6

5

9

11

2

10

3

4

1

8

12

7

13

14

4.1304.8503.0

WHEEL BEARINGS -

HECK

C

Step 1: Jack up machine until

one wheel is off the
ground. Block machine
so it cannot fall or roll
over.

Step 2: Remove dust cap (11).
Step 3: Remove cotter pin (5)

and castellated nut
(10).

Step 4: Remove shielding ring

(3), outer bearing (4),
and inspect lubricant.

If a generous amount of
grease is on bearing
and in housing, and if
grease is soft, grease
will not need changing.

If lubricant is caked
and bearings seem dry,
bearings should be
repacked.

To repack bearings:

Step 5: Remove six lug nuts (9).
Step 6: Remove wheel and rim assembly (2).
Step 7: Pull hub (8). If hub is tight, use a wheel puller for removal.
Step 8: Remove shielding ring (12) and seal (6) and inspect for damage. Replace if damaged.
Step 9: Remove inner bearing (7).
Step 10: Remove nut (13) and bolt (14) to remove spindle (1).

Wash cone bearings and inside hub with solvent and wipe clean. When repacking, be sure grease is worked
into roller retainers from edge to fill entire bearing with grease.

Step 11: Install spindle (1) and secure with bolt (14) and nut (13). Torque M16 nut to 313 Nm (31.3 kgm).
Step 12: Install inner bearing (7).
Step 13: Install seal (6) and shielding ring (12).
Step 14: Slide hub (8) onto spindle (1).
Step 15: Install outside bearing (4).
Step 16: Install spindle washer (3) and castellated nut (10).

Tighten castellated nut until a slight drag is felt when turning
slot in nut lines u

Step 17: Install and secure cotter pin (5) and dust cap (11).
Step 18: Mount wheel and rim assembly (2).
Step 19: Install lug nuts (9). Torque to 270 Nm (27.0 kgm).
Step 20: Remove blocks and lower jack. Repeat procedure for the other wheel.

p with cotter pin hole in spindle.

the hub. Loosen nut until nearest

50-22 Maintenance - 1000 Hours Splendimo 550 P

Innovators in Agriculture

PTO SHAFTS - CLEAN AND GREASE

1

2

(View from underneath)

Front

Rear

4.1304.8503.0

Dirt and debris will accumulate on various parts of the PTO shafts as machine
operates. Once a year or every 1000 hours operation, perform the following:

• Remove plastic shielding from PTO shaft.

• Remove old grease, dirt, and debris.

• Lubricate with fresh grease.

• Reassemble plastic shielding.

Primary PTO Shaft - Remove/Install

To r em ov e:

Step 1: Follow Shutdown Procedure, page 20-1.
Step 2: Disconnect shield chain.
Step 3: Pull locking collar (1) towards front of machine.
Step 4: Slide PTO shaft towards front of machine while pulling locking collar towards front of machine.

Before installation:

Step 1: Remove old grease, dirt and debris from front swivel gearbox input shaft splines.
Step 2: Apply light coat of fresh grease to shaft splines (2).

To install:

Step 1: Position end of PTO shaft with smaller shield diameter on end of front swivel gearbox input shaft.
Step 2: Rotate PTO shaft slightly to align splines with those on front swivel gearbox input shaft and push

PTO shaft rearward.

Step 3: Pull locking collar forward while pushing PTO shaft rearward, then release locking collar.

Continue to push PTO shaft rearward until collar snaps into locked position. Pull forward sharply
on rear half of PTO shaft to ensure it is solidly attached to swivel gearbox shaft.

Step 4: Connect shield chain.

Splendimo 550 P Maintenance - 1000 Hours 50-23

Innovators in Agriculture

Secondary PTO Shaft - Remove/Install

1 2

5

4

5

Front RearFront

7

3

6

4.1304.8503.0

To r em ov e:

Step 1: Ensure cutter bars are unfolded in operating position and fully lowered.
Step 2: Follow Shutdown Procedure, page 20-1.
Step 3: Disconnect shield chains (3).
Step 4: Remove shielding (2) from tabs (1) and open shield (7).
Step 5: Remove lock nuts and retaining bolts (5).

Retaining bolts (5) are installed with head of top bolt facing one direction, head of bottom bolt
facing opposite direction. Ensure bolts (5) are reinstalled in this manner.

Step 6: Slide front half of PTO shaft rearward from jackshaft (4), then forward and out of PTO shaft rear

half to remove.

Step 7: Repeat Steps 5–6 to remove rear half of PTO shaft from rear swivel gearbox input shaft.

Before installation:

Step 1: Remove old grease, dirt and debris from sliding profiles. Refer to page 50-29.
Step 2: Apply light coat of fresh grease to sliding profiles. Refer to page 50-29.

To install:

Install front and rear halves of PTO shaft separately.

Step 1: Ensure spacers are positioned as shown on jackshaft (4).
Step 2: Position slip clutch hub (6) on end of rear swivel gearbox input shaft.
Step 3: Rotate PTO shaft slightly to align splines with those on rear swivel gearbox input shaft and push

PTO shaft rearward.

Step 4: Push PTO shaft rearward until bolt holes are aligned with groove in rear swivel gearbox input

shaft.

Step 5: Install retaining bolts (5) from opposite sides of hub (6) as shown and secure with lock nuts.
Step 6: Slide front half of PTO shaft into rear half of PTO shaft. Refer to page 50-30.
Step 7: Repeat Steps 1–5 to secure front half of PTO shaft to jackshaft (4).
Step 8: Connect shield chains (3).
Step 9: Reinstall shield (2) on tabs (1) and close shield (7).

50-24 Maintenance - 1000 Hours Splendimo 550 P

Innovators in Agriculture

Cross PTO Shafts - Remove/Install

1 32

4.1304.8503.0

To r em ov e:

Step 1: Ensure cutter bars are unfolded in operating position and fully

lowered.

Step 2: Follow Shutdown Procedure, page 20-1.
Step 3: Open shield (3) and disconnect shield chains (1) from both ends.
Step 4: Remove lock nut and retaining bolt (2).
Step 5: Slide outer half of PTO shaft off of cutter bar drive gearbox input

shaft.

Step 6: Repeat Steps 4–5 to remove inner half of PTO shaft from rear swivel

gearbox output shaft.

Before installation:

Step 1: Remove old grease, dirt and debris from sliding profiles. Refer to page 50-27.
Step 2: Apply light coat of fresh grease to sliding profiles. Refer to page 50-27.

To install:

Step 1: Ensure cutter bars are timed correctly to each other. Refer to page 50-40.
Step 2: Ensure both cross PTO shafts will be in phase with each other when installed. Refer to page 50-41.
Step 3: Position outer half of PTO shaft (with male sliding profile) on end of cutter bar drive gearbox input

shaft.

Step 4: Push PTO shaft outward until PTO shaft yoke bolt hole is aligned with groove in cutter bar drive

gearbox input shaft.

Step 5: Install retaining bolt (2) and secure with lock nut.
Step 6: Close shield (3).

Splendimo 550 P Maintenance - 1000 Hours 50-25

Innovators in Agriculture

Step 7: Position inner half (4) of PTO shaft (with

5

4

1

4.1304.8503.0

female sliding profile) on end of rear swivel
gearbox output shaft (5).

Step 8: Push PTO shaft inward until PTO shaft

yoke bolt hole is aligned with groove in rear
swivel gearbox output shaft.

Step 9: Install retaining bolt and secure with lock

nut.

Step 10: Connect shield chains (1).

50-26 Maintenance - 1000 Hours Splendimo 550 P

Innovators in Agriculture

Primary and Cross PTO Shafts - Clean and Grease

21

3

4

5 6

3

4.1304.8503.0

Step 1: Follow Shutdown Procedure, page 20-1.
Step 2: Remove PTO shaft from mower and separate the two PTO shaft

halves. For primary PTO shaft, refer to page 50-23. For cross PTO
shafts, refer to page 50-25.

Step 3: Using a suitable pry bar, disengage clip (2) from plastic shield (1).
Step 4: Rotate shield bearing lock tab (3) until it is directly in-line with clip

(1).

Step 5: Pull universal joint (4) as shown to separate male sliding profile (6)

from plastic shield.

Step 6: Remove dirt and debris from universal joint (4), shield bearing (5),

and male sliding profile (6).

Step 7: Repeat Steps 3–6 for other half of PTO shaft.
Step 8: Using a suitable brush, apply an even coat of fresh grease to inner race

of shield bearing (5) and male sliding profile (6).

Splendimo 550 P Maintenance - 1000 Hours 50-27

Innovators in Agriculture

Step 9: Remove old grease, dirt, and debris from inside female sliding profile

7

2

3

2

8

6

3

9

4.1304.8503.0

(8).

Step 10: Slide plastic shield over male sliding profile (6), ensuring clip (2) on

plastic shield is aligned with shield bearing lock tab (3).

Standing PTO shaft on end may assist the reassembly process.

Step 11: Rotate shield bearing lock tab away from clip (2) to lock plastic shield

to front half of PTO shaft. Secure by replacing clip (2).

Step 12: Repeat Steps 10–11 for other half of PTO shaft.
Step 13: Ensure grease fittings (9) are facing the same direction as shown.
Step 14: Align tab (7) with groove (8) and slide male sliding profile into female

sliding profile.

Step 15: Reinstall PTO shaft on mower. For primary PTO shaft, refer to page

50-23. For cross PTO shafts, refer to page 50-25.

50-28 Maintenance - 1000 Hours Splendimo 550 P

Innovators in Agriculture

Secondary PTO Shaft - Clean and Grease

1

2

3

1

4

5 6

7

4.1304.8503.0

Step 1: Follow Shutdown Procedure, page 20-1.
Step 2: Remove PTO shaft from mower. Refer to page 50-24.
Step 3: Using a suitable pry bar, disengage clip (1) from plastic shield (2) on

front half of PTO shaft.

Step 4: Rotate shield bearing lock tab (3) until it is directly in line with clip

(1).

Step 5: Pull front yoke (4) as shown to separate front half of PTO shaft from

plastic shield.

Step 6: Remove dirt and debris from front universal and constant velocity

joint areas (5), front shield bearing (6), and sliding profile (7).

Step 7: Repeat Steps 3–6 for other half of PTO shaft.
Step 8: Using a suitable brush, apply an even coat of fresh grease to inner race

of shield bearing (6) and sliding profile (7).

Splendimo 550 P Maintenance - 1000 Hours 50-29

Innovators in Agriculture

Step 9: Remove old grease, dirt, and debris from inside the rear half of PTO

8

3

1

1

9

10

4.1304.8503.0

shaft (8).

Step 10: Slide plastic shield over front half of PTO shaft, ensuring clip (1) on

plastic shield is aligned with shield bearing lock tab (3).

Standing PTO shaft on end as shown may assist the reassembly
process.

Step 11: Rotate shield bearing lock tab as shown to lock plastic shield to front

half of PTO shaft. Secure by replacing clip (1).

Step 12: Repeat Steps 10–11 for other half of PTO shaft.
Step 13: Reinstall rear half of PTO shaft on rear swivel gearbox input shaft.

Refer to page 50-24.

Step 14: Align spot weld (9) with wide slot (10) when reinstalling front half of

PTO shaft in rear half of PTO shaft.

Step 15: Reinstall PTO shaft. Refer to page 50-24.

50-30 Maintenance - 1000 Hours Splendimo 550 P

Innovators in Agriculture

MAINTENANCE - AS REQUIRED

1

4.1304.8503.0

CUTTER BLADES - REPLACE

WARNING: Do not operate this mower with bent, broken, or cracked blades which could break
loose from machine and injure you.
Do not resharpen blades since this will affect the strength of the blades and may cause them to
break.
Use only Lely blades. Other blades may lack strength or be incompatible with Blade Retention
system. Blade failure or loss of blades may occur if the wrong blades are used. This could result in
serious injury or death.
Be sure to install blades correctly.
Always replace both blades on a disc to avoid imbalance.

WAR NING: A falling mower can result in serious crushing injury or death.

Engage cutter bar lift lock before doing any work under machine.

• Different blades are used for clockwise and counterclockwise rotation.

• The blade is mounted with bevel (1) of cutting side facing up. Refer to the

Parts Manual for details.

Splendimo 550 P Maintenance - As Required 50-31

Innovators in Agriculture

Blades Replacement Timing

2

1

4.1304.8503.0

• Lely blades are marked with Lely name (1). Use only Lely blades.

• Blades must be replaced whenever they are bent, cracked, or broken, or
when both cutting edges are dull.

• Blades should always be replaced in pairs to keep cutting element balanced.

• Always use new blade retaining clips when replacing blades. New blade
retaining clips are included with new Lely blades and need not be ordered
separately.

• Check condition of blade pins (2) when replacing blades. Replace if worn or
damaged.

• Do not resharpen blades since this will affect the strength of the blades and
may cause them to break.

• Blades are reversible and can be turned over when one edge becomes dull.

• Do not mix clockwise and counter clockwise blades on the same disc.

50-32 Maintenance - As Required Splendimo 550 P

Innovators in Agriculture

Blades - Remove

1

2

4

6

3

4

5

4.1304.8503.0

Step 1: Manually rotate cutter bar to position blade pin (1) over notched area

(2) in skid.

Step 2: Use forked end of blade change tool (3) to loosen and remove dirt and

debris from around retaining clip (4) and blade pin.

Step 3: Insert forked end of blade change tool (3) between disc (5) and blade

retaining clip (4) as shown.

When not in use, store blade change tool in holder (6). Refer to the

Parts Manual when ordering a replacement blade change tool.

Splendimo 550 P Maintenance - As Required 50-33

Innovators in Agriculture

Step 4: Pull on handle of blade change tool as shown to lift the end of the blade

Pull

7

Pull

1

8

4.1304.8503.0

retaining clip over the top of ramp (7).

Step 5: Continue to pull handle of blade change tool as shown to disengage

blade retaining clip from the blade pin (1).

Step 6: Remove blade retaining clip, then use the blade change tool as shown to

separate blade pin and blade (8) from the disc.

50-34 Maintenance - As Required Splendimo 550 P

Innovators in Agriculture

Blade Stops - Check

1

2

1

2

3

4

5

6

Direction of Travel

Check for Wear

2

1

2

2

2

2

2

2

2

4.1304.8503.0

WARNING: Do not operate this mower with damaged blade stops which could break loose from disc and injure you.

Several parts of the mower are subjected to damage and wear, if they are not replaced in time, parts can break away
during mowing and cause serious injury or death.

Only use genuine Lely parts for replacement.

Do not weld or perform metal work on parts of the mower discs, only use new parts. Do not resharpen knives.

This could result in serious injury or death.

If blades are making contact with drive unit housing
(1), blade stops (2) have exceeded their allowable
wear limit and disc must be replaced.

Inspect blade retention system and/or blade stops
for damage. Replace disc if damage is found.

Disc Components

Check disc (1), blade retaining clip (2), pressure block (3), nut (4), split pin (5),
and blade pin (6).

Replace any damaged or worn parts with new Lely parts. Never substitute parts
that are not genuine Lely parts.

Disc Leading Edges - Check

Ensure mower discs (1) are clean and you can see the
surface, if necessary us a brush to remove the dirt.

Examine the mower discs for wear and damage and
look for cracks, especially on the positions (2) as
indicated in the illustration at right.

• If a crack or damage is present, always

• If signs of wear are clearly visible, replace the

Splendimo 550 P Maintenance - As Required 50-35

replace the mower disc.

mower disc.

Innovators in Agriculture

Skid Plates

1

1

2

1

2

3

2

1

4.1304.8503.0

Examine the contamination on the skid plates (1). Remove all soil, sand, and
stones because it will cause wear of the mower disc.

Examine the skid plates for damage, cracks and bends, if one of these is clearly
visible replace the skid plate.

Blades - Install

WARNING: Always use new Splendimo clip when you replace a mower knife or a pin.

Always replace, or reverse the two knives of a mower disc at the same time. If only one knife is replaced or reversed
the disc will not be balanced and may cause vibration and damage to the mower unit.

When knives are replaced or turned, examine the pin (1). If wear or damage is visible replace the pin (and clip).

Examine the knives (3) for damage, cracks, bends and for dull knives.

• If any of these defects is visual, replace both knives on the mower disc.

• If a knife is dull on one side and has no signs of severe wear, you can turn it
and use the sharp side. Always turn both knives on a mower disc.

Ensure knife can rotate freely on each mower disc.

Examine Splendimo clips (2) for wear and damage, if necessary replace the clips.
If clips are loose, replace them.

Step 1: Clean dirt and debris from top and bottom of blade mounting area.
Step 2: Insert blade pin (1) through blade, then insert blade pin through disc as

shown.

Step 3: Place blade retaining clip (2) over exposed end of blade pin. Push blade

retaining clip towards the center of the disc until it begins to engage
blade pin.

Blade retaining clip can be installed with either side facing up.

Step 4: Using the blade change tool as shown, drive blade retaining clip into its

operating position. Check that blades swing freely after installing blade
retaining clip.

Ensure blade retaining clip is fully snapped in place over ramp before
operating machine.

50-36 Maintenance - As Required Splendimo 550 P

Innovators in Agriculture

CURTAINS - CHECK/REPLACE

4.1304.8503.0

Cutter bar deflector curtains are an essential part of the safety equipment
provided with the mower.

Curtains are designed to help prevent materials from being thrown out from
cutter bar area. They are designed with a specific shape and material
composition to accomplish this purpose effectively.

For your safety, it is essential that the machine is equipped with curtains that
are in good condition. Damaged curtains must be replaced.

Use your good judgment and the following guidelines to determine whether a
curtain needs to be replaced.

Curtain - Replace

A curtain must be replaced when it:

• has a hole, tear or other opening which would allow an object to pass through in a hazardous
manner.

• is worn at the bottom so it is too short.

• has other damage which will reduce its ability to contain flying materials.

When replacing a curtain, use only Lely replacement curtains, which are only available from Lely
dealers. Never use a curtain that is not supplied by Lely. Curtains of a different shape or material may
not provide as much protection from punctures, tearing, or other damage.

SLIP CLUTCH - CHECK

DANGER: Entanglement in rotating PTO shaft can result in death or
serious injury.

Stay away from rotating PTO shaft. Stop engine and ensure PTO shaft is
stopped before working on PTO shaft.

Keep PTO shaft shields in place at all times. Ensure shields turn and
telescope freely.

Wear close-fitting clothing and confine long hair.

The friction discs are spring-loaded, factory-set units which do not require adjustment over the life of the
friction discs. However, after each long period of inactivity, clutch must be slipped to release seized friction
discs before mowing.

Slip Clutch - Break In

• Refer to page 40-6.

Splendimo 550 P Maintenance - As Required 50-37

Innovators in Agriculture

Slip Clutch - Access

1

2

3 4

2

4.1304.8503.0

Step 1: Open shield (1).
Step 2: Remove bolts (2) and remove clutch from rear swivel gearbox input

shaft.

Slip Clutch Friction Discs - Check

The condition of the friction disc can be determined without disassembling
clutch. If tab (3) is against main housing (4), new friction discs are needed.

50-38 Maintenance - As Required Splendimo 550 P

Innovators in Agriculture

SLIP CLUTCH FRICTION DISCS -

4

9

6

5

8

3

5

2

1

6

7

11

12

10

4.1304.8503.0

EPLACE

R

Replace friction discs when you notice excessive
clutch slippage.

Slip Clutch - Disassemble

Step 1: Remove bolts (8) on outside of

housing.

Step 2: Remove plates and components (2) –

(7).

Step 3: Discard friction discs (2) and (4).
Step 4: Inspect steel and iron parts – housing

(1), separator plate (3), pressure plate
(5), spring (6), and compression plate
(7) – for wear, warping, or cracking,

and replace if damaged.

Step 5: Inspect yoke and hub (12) for

looseness. If there is more than 0.8
mm end play, replace parts.

Step 6: Clean any rust or dust from plate surfaces with a wire brush or steel wool.

Slip Clutch - Assemble

Step 1: Place one new friction disc (2) inside housing (1), then separator plate (3), then other friction disc

(4).

Step 2: Add pressure plate (5) so that flat surface rests on friction disc. Tabs on plate must fall into slots

in housing (1).

Step 3: Add spring (6) so small inside diameter of spring is against fins of pressure plate (5).
Step 4: Assemble compression plate (7), bolts (8), and nuts (9); tighten to 41 Nm (4.1 kgm).

Splendimo 550 P Maintenance - As Required 50-39

Innovators in Agriculture

TIMING (CUTTER BARS) - ADJUST

1

FORWARD

5

6

2 3 4

4.1304.8503.0

Step 1: Ensure cutter bars are in operating position and fully lowered.
Step 2: Follow Shutdown Procedure, page 20-1.
Step 3: Disconnect shield chain (2) and raise shield (4).
Step 4: Remove nut and bolt (5) from PTO shaft yoke (6).
Step 5: Slide PTO shaft off of cutter drive gearbox (3) input shaft. Leave other

end of PTO shaft attached to rear swivel gearbox output shaft.

Step 6: Manually rotate cutter bar on same side of machine to align cutter

elements (1) parallel as shown above.

Step 7: Reinstall PTO shaft on gearbox (3) input shaft and secure with nut

and bolt (5).

Step 8: Reinstall shield chain (2) and lower shield (4).

50-40 Maintenance - As Required Splendimo 550 P

Innovators in Agriculture

NOTICE: Ensure cross PTO shafts are “in phase” as follows:

1

A A

B

RIGHT

2

LEFT

B

High-Angle

Normal

4.1304.8503.0

Step 1: Ensure grease fittings (1) and corresponding grease fittings (2) on

other side point in the same direction.

If cross PTO shafts are out of phase, cutter bars may not fold or unfold properly
and/or PTO shaft damage may result.

Always make cutter bar timing adjustments at cutter drive gearbox (A) and
never at rear swivel gearbox (B).

High-angle (78°) U-joints are installed at locations (B). Difference in high-angle
and normal U-joint is shown at right.

Splendimo 550 P Maintenance - As Required 50-41

Innovators in Agriculture

DIRECTION OF ROTATION - CUTTER ELEMENTS

LEFT RIGHTFORWARD

4.1304.8503.0

STORAGE

Preparing for Storage

WAR NING: Follow Shutdown Procedure, page 20-1, when preparing the machine for storage.

• Park machine on level ground, fully lower cutter bars to ground, and block wheels. If possible, store machine in a dry,
protected place. If stored outside, cover with weatherproof material.

• Clean off foreign material using compressed air, then wash the machine. Repaint bare metal to inhibit rust.

NOTICE: Do not use a high-pressure washer.

• Repair or replace any worn or broken parts or damaged safety signs or decals.

• Relieve pressure from hydraulic system as described on page 20-1.

• Lubricate all grease points on the machine.

• Coat exposed hydraulic cylinder rods with grease to prevent rusting.

Removing from Storage

• Refer to “Pre-Season Inspection,” page 35-1.

50-42 Maintenance - As Required Splendimo 550 P

Innovators in Agriculture

Section 55: Schematics and Theory of Operation

+12V power from battery

+12V to solenoids

Red

= Male Connector Pins
= Female Connector Pins

TO TRACTOR

HARNESS

Controller Assembly

Red

Yellow

(Continued on next page...)

Terminal (2) – Red

Terminal (3) – Yellow

2
3

C
O
N
T
R
O
L

S

W

I
T
C
H

4.1304.8503.0

ELECTRICAL DIAGRAM

Splendimo 550 P Schematics and Theory of Operation 55-1

Innovators in Agriculture

(Continued from previous page...)

+12V to solenoids

+12V power from battery

Ground to battery

Battery-Positive Battery-Negative

Not Used
Yellow

White White

White

Red

= Male Connector Pins
= Female Connector Pins

Tractor Harness

FROM CONTROLLER

ASSEMBLY

TO IMPLEMENT

HARNESS

Not Used

25-Amp fuse

S/N 101–223

Implement Harness

FROM TRACTOR

HARNESS

+12V to solenoids

Ground to battery

Yellow

Yellow

White

White

White

White

Swing
Solenoid

Fold
Solenoid

Yellow

Yellow

Fold
Solenoid

Fold
Solenoid

Fold
Solenoid

Swing
Solenoid

Fold
Solenoid

Fold
Solenoid

Swing
Solenoid

S/N 224–UP

4.1304.8503.0

55-2 Schematics and Theory of Operation Splendimo 550 P

Innovators in Agriculture

Highway Lighting Components (S/N 101–223)

Highway Lighting Components (S/N 224–Up)

1

2

3

4

5

6

7

TOP

(View from Front)

Lights – Right Side

Lights – Left Side

Pin Number Wire Color Pin Name

1 Yellow L
2 Blue (if used )54G
3 White 31
4 Green R
5 Brown 58R
6 Red 54
7 Black 58L

1

2

3

4

5

6

7

TOP

(View from Front)

Tractor Connection Mower Connection

Control Module

Lights – Right Side

Lights – Left Side

Pin Number Wire Color

1 Yellow
2 Brown
3 White
4 Red
5 Green
6 Not Used
7 Black

Tractor Connection

4.1304.8503.0

Splendimo 550 P Schematics and Theory of Operation 55-3

Innovators in Agriculture

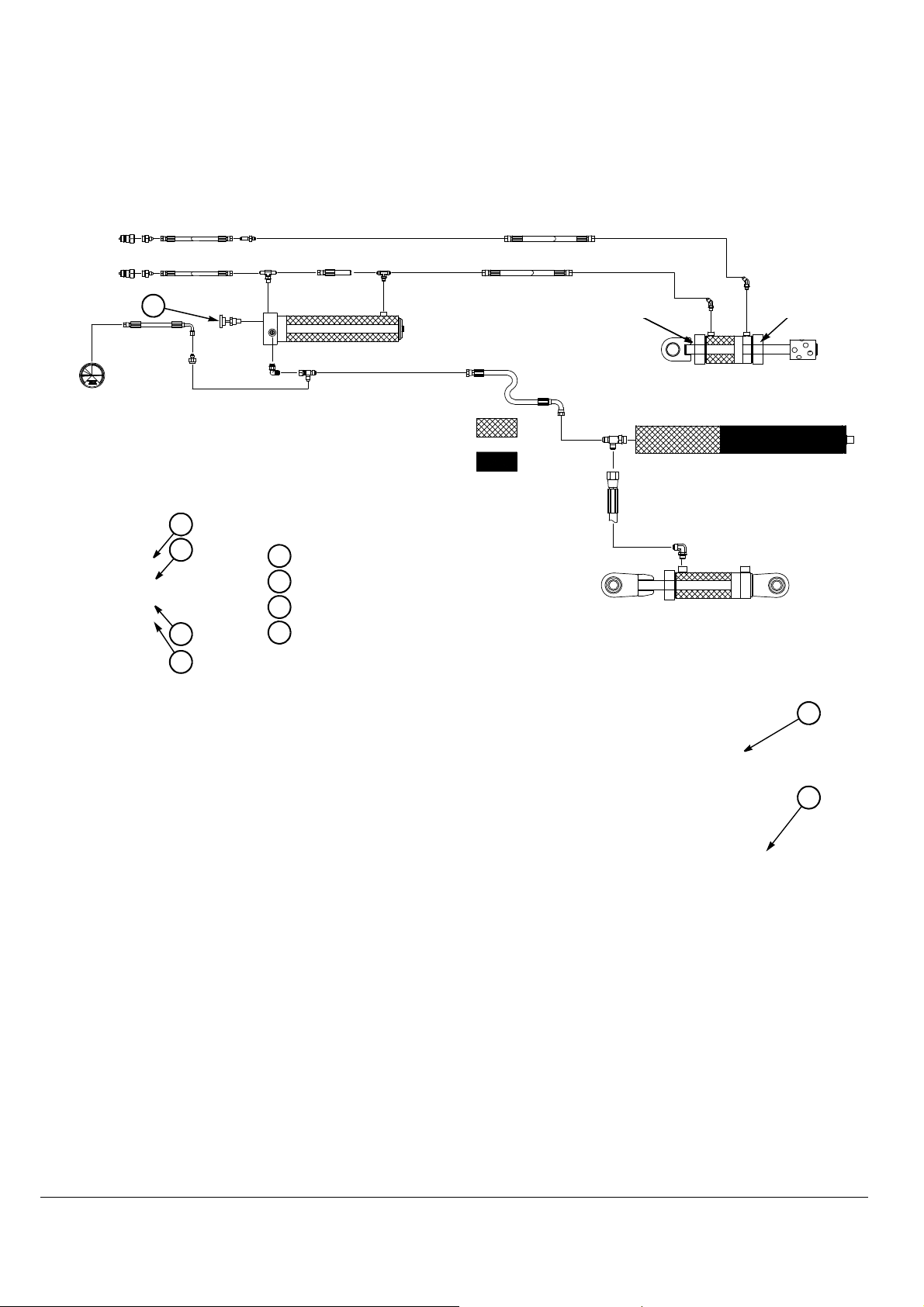

THEORY OF OPERATION - CUTTER BAR LIFT/FLOTATION CIRCUIT

1

Pressure Gauge

B

A

C
D

A
B
C
D

Take-Up Cylinder

Pitch Control Cylinder

Flotation/Lift Cylinder

Pressurized Oil =

Compressed Nitrogen =

Rod End Base End

Accumulator

= Swing Left/Fold
= Swing Right/Unfold
= Pitch/Lift Up
= Pitch/Lift Down

1

2

4.1304.8503.0

Hydraulic Operation - Cutter Bars (Raise)

When operator moves hydraulic control to raise cutter bars, oil flows as follows:

• From tractor to rod end of pitch control cylinder

• From tractor to rod end of take-up cylinder, mounted inside front of tongue
behind valve (1)

Take-up cylinder does not perform any machine control functions. It simply
isolates flotation circuit oil from tractor oil supply.

During normal operation, valve (1) is closed. This will not allow oil to flow
between base end of take-up cylinder and tractor.

Step 1: Because the pitch control cylinder offers oil flow the path of least

Step 2: When pitch control cylinder is fully retracted, oil is forced into the rod end of take-up cylinder.
Step 3: Oil trapped in the base end of the take-up cylinder is forced towards the accumulator, cutter bar

Step 4: When force required to further compress nitrogen gas and oil inside the accumulator exceeds force

resistance, pitch control cylinder retracts first. Oil from base end of
pitch control cylinder will return to tractor.

lift cylinder, and pressure gauge (2).

required to raise cutter bars, cutter bar lift cylinder retracts and cutter bars raise.

55-4 Schematics and Theory of Operation Splendimo 550 P

Innovators in Agriculture

Hydraulic Operation - Cutter Bars (Lowered)

1

Take-Up Cylinder

Pressure Gauge

Pitch Control Cylinder

Flotation/Lift Cylinder

Pressurized Oil =

Compressed Nitrogen =

Rod End Base End

Accumulator

Return to Tractor =

1

2

4.1304.8503.0

When operator moves hydraulic control to lower cutter bars, oil flows as follows:

• From rod end of pitch control cylinder to tractor

• From rod end of take-up cylinder to tractor

• From tractor to base end of pitch control cylinder

During normal operation, valve (1) is closed. This will not allow oil to flow
between base end of take-up cylinder and tractor.

Step 1: Oil flows from rod end of pitch control cylinder to tractor, and pitch

control cylinder extends. Oil also flows from tractor to base end of pitch
control cylinder.

Step 2: When pitch control cylinder is fully extended, oil flows from rod end of

take-up cylinder to tractor.

Step 3: Oil flows from accumulator and cutter bar lift cylinder into base end of take-up cylinder.
Step 4: When cutter bars reach the ground, there is still oil in the accumulator and rod end of the cutter

bar lift cylinder.

Step 5: Operator moves tractor hydraulic control to NEUTRAL position, cutting off flow of oil to tractor.
Step 6: Compressed nitrogen gas inside the accumulator maintains pressure in the base end of take-up

cylinder and rod end of cutter bar lift cylinder.

Step 7: Pressure in rod end of cutter bar lift cylinder will help support weight of cutter bars, providing

flotation.

Splendimo 550 P Schematics and Theory of Operation 55-5

Innovators in Agriculture

Hydraulic Operation - Cutter Bars (Adjust Flotation)

1

Take-Up Cylinder

Pressure Gauge

Pitch Control Cylinder

Flotation/Lift Cylinder

Pressurized Oil =

Compressed Nitrogen =

Rod End Base End

Accumulator

1

2

4.1304.8503.0

Cutter bar flotation is controlled by the amount of oil present in the accumulator
when cutter bars are on the ground. More oil in the accumulator further
compresses the nitrogen gas, which in turn will provide greater pressure in the
rod end of cutter bar lift cylinder and pressure gauge line. Higher pressure
results in cutter bars exerting less ground force and vice versa.

Refer to “Cutter Bar Flotation - Adjust,” page 15-8. Operator fully opens valve

(1), then moves hydraulic control to raise cutter bars. Oil flows as follows:

• From tractor to rod end of pitch control cylinder

• From tractor to rod end of take-up cylinder

• From tractor to base end of take-up cylinder

Step 1: Take-up cylinder extends due to greater force exerted on base end of

piston.

Step 2: Pitch control cylinder retracts.
Step 3: Oil flows to accumulator, cutter bar lift cylinder, and pressure gauge.
Step 4: When pressure of the nitrogen gas and oil inside the accumulator exceeds pressure required to

raise cutter bars, cutter bar lift cylinder will retract and cutter bars will raise.

Step 5: When cutter bars are fully raised, oil flows into accumulator until pressure of nitrogen gas equals

tractor relief pressure setting. Maximum amount of oil is now in the circuit.

Step 6: Operator moves tractor hydraulic control to NEUTRAL, closes valve (1), and moves hydraulic

control to FLOAT position.

Step 7: Operator gradually opens valve (1). This returns excess oil to tractor and reduces accumulator

pressure until desired flotation setting is achieved, at which point valve (1) is closed to resume
normal operation.

55-6 Schematics and Theory of Operation Splendimo 550 P

Innovators in Agriculture

Troubleshooting - Cutter Bar Lift/Flotation Circuit

1

2

3

4

3

S/N 101–223

S/N 224–Up

4.1304.8503.0

WAR NING: Pressurized fluid can penetrate body tissue and result in serious injury
or death. Leaks can be invisible. Keep away from any suspected leak. Relieve
pressure in the hydraulic system before searching for leaks, disconnecting hoses, or
performing any other work on the system. If you must pressurize the system to find
a suspected leak, use an object such as a piece of wood or cardboard rather than
your hands. When loosening a fitting where some residual pressure may exist,
slowly loosen the fitting until oil begins to leak. Wait for leaking to stop before
disconnecting the fitting. Fluid injected under the skin must be removed
immediately by a surgeon familiar with this type of injury.

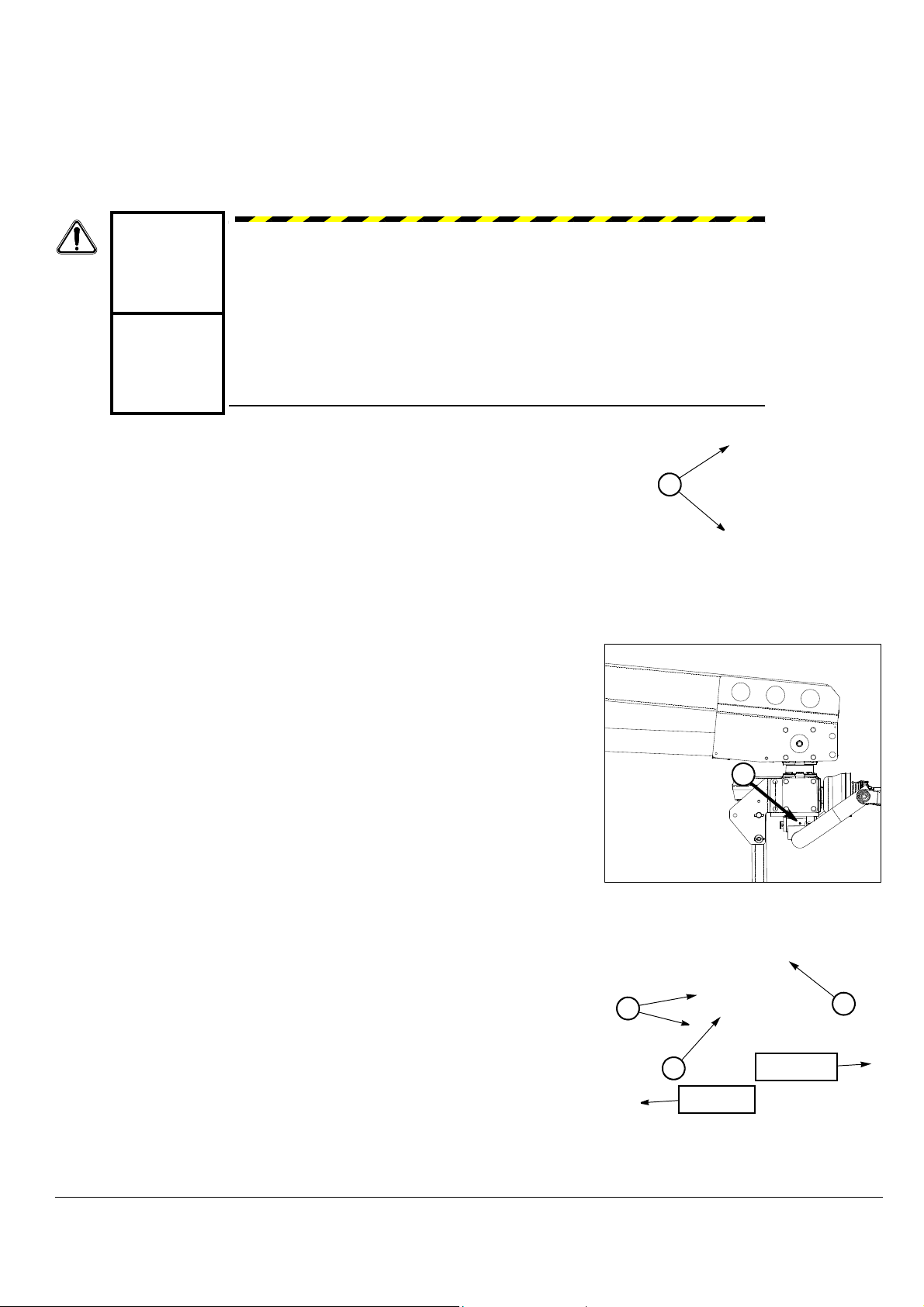

Before working on hydraulic system, ensure all circuit pressure is relieved as
follows:

Step 1: Fully lower cutter bars.
Step 2: Move tractor hydraulic control to FLOAT position.
Step 3: Open valve (1) and ensure gauge (2) pressure reading drops to zero.

In the event flotation pressure indicated by gauge (2) is lost during operation,
proceed as follows:

Step 1: Check for oil leaks from front of tongue. An oil leak in this area

indicates a loose or leaking fitting, hose, or take-up cylinder.

Step 2: Check for oil leak at cylinder breather (3). A leak here indicates failed

cutter bar lift cylinder piston seal.

Step 3: Check for any other external oil leaks and repair as needed.

If there are no external leaks and adequate flotation pressure still cannot be
achieved, continue below.

Step 4: If cutter bars raise slowly or will not raise, relieve system pressure,

Step 5: Follow steps 1–5 of flotation adjustment procedure on page 15-8. At

disconnect hoses from pitch control cylinder, and cap or plug all
exposed fittings.

• If cutter bars raise normally with pitch control cylinder
disconnected, pitch control cylinder internal seal is leaking.

this point pressure gauge reading should remain constant at
maximum tractor pressure.

• If pressure reading decreases at this point, either valve (4) or
take-up cylinder internal seal is leaking.

• Relieve system pressure, replace valve (4), and repeat Step 5. If
pressure reading still decreases, take-up cylinder internal seal is
leaking.

Splendimo 550 P Schematics and Theory of Operation 55-7

Innovators in Agriculture

HYDRAULIC CONNECTIONS - SWING & FOLD CIRCUITS (S/N 101–223)

Swing Cylinder

INS1 S2 OUT

F1
F2

F3
F4

(Rod)

(Base)

Left Fold Cylinder

Right Fold Cylinder

(Base) (Rod)

Front

NOTE: Port designations “S1,” “S2,” et cetera, are
stamped into valve block.

S2

S1IN

F2

OUT

F1

F4 F3

Fold

Solenoids

Swing

Solenoid

4.1304.8503.0

55-8 Schematics and Theory of Operation Splendimo 550 P

Innovators in Agriculture

HYDRAULIC CONNECTIONS - SWING & FOLD CIRCUITS (S/N 224–UP)

Swing Cylinder

INS1 S2 OUT

F1
F2

F3
F4

(Rod)

(Base)

Left Fold Cylinder

Right Fold Cylinder

(Base) (Rod)

Front

NOTE: Port designations “S1,” “S2,” et cetera, are
stamped into valve block.

S2

S1IN

OUT

F1

F4

F3

Fold

Solenoids

Swing

Solenoid

F2

4.1304.8503.0

Splendimo 550 P Schematics and Theory of Operation 55-9

Innovators in Agriculture

THEORY OF OPERATION - SWING & FOLD CIRCUITS

4

3 2

1

3 2

1

S/N 101–223

S/N 224–Up

4.1304.8503.0

None of the valve block solenoids are energized when control switch (4)
is set to left-hand “N” position. Since swing solenoid (1) is normally
open, but fold solenoids (2) and (3) are normally closed, oil will flow
only through the swing cylinder circuit.

When control switch (4) is moved to the right-hand fold position, swing
solenoid (1) will energize and close, fold solenoids (2) and (3) will
energize and open. Oil will flow only through the fold cylinders circuit.

Direction of tongue swing and fold cylinder movement is controlled by
tractor hydraulic control.

55-10 Schematics and Theory of Operation Splendimo 550 P
