LELY 1015 CD Profi Operator's Manual

Lely Hibiscus

1015 CD Profi

R-H012.1103EN

Operator Manual

TRADEMARKS, COPYRIGHT AND
DISCLAIMER

Lely, Astronaut, Astri, Atlantis, Attis, AWS, C4C, Calm, Commodus,
Compedes,
Hubble, Juno, L4C, Lely Center, Lelywash, Lotus, Luna, Nautilus, Orbiter,
Qwes, SAE, Shuttle, Splendimo, Storm, T4C, Tigo, Viseo, Voyager, Walkway
and Welger are registered trademarks of the Lely Group. The right of exclusive
use belongs to the companies of the Lely Group. All rights reserved. The
information given in this publication is provided for information purposes only
and does not constitute an offer for sale. Certain products may not be available
in individual countries and products supplied may differ from those illustrated.
No part of this publication may be copied or published by means of printing,
photocopying, microfilm or any other process whatsoever without prior
permission in writing by Lely Holding S.à r.l. Although the contents of this
publication have been compiled with the greatest possible care, Lely cannot
accept liability for any damage that might arise from errors or omissions in this
publication.

The English language manual is the original manual. Translations into other
languages use the English language manual as the source document. Lely
accepts no liability for discrepancies between the original English language
manual and versions in other languages. If there is a conflict over the content
and accuracy of any translated manual, the English language manual is the
authority document.

Cosmix, Discovery, F4C, Fertiliner, Gravitor, Grazeway, Hibiscus,

Manual Contents

Copyright © 2010 Lely Industries NV
All rights reserved

Lely Industries NV
Weverskade 110
3147 PA Maassluis
The Netherlands
Phone: Tel: [phone]
Fax: Fax: [phone]
Website: www.lely.com

PREFACE

This manual contains the information necessary to operate the Lely Hibiscus.
It also includes maintenance information that can be done by an operator.

Study and understand this information thoroughly before you operate the Lely
Hibiscus. Failure to do so could result in personal injury or damage to
equipment. Please consult your local Lely service provider if you do not
understand the information in this manual, or if you need additional information.

All information in this manual has been compiled with care. Lely shall not be
liable for errors or faults in this manual. The recommendations are meant to
serve as guidelines. All instructions, pictures and specifications in this manual

ii

Warranty Conditions

Registration

are based on the latest information that was available at the time of publication.
Your Lely Hibiscus may comprise improvements, features or options that are
not covered in this manual.

For those parts that fail under normal operating conditions, the factory will
make replacement parts available, free of charge, for a period of 12 (twelve)
months from the date of purchase.

warranty shall not apply if the instructions mentioned in this manual have

The
not been followed, or if they have not been followed completely or correctly.
Nor will the warranty apply if you or third parties modify the machine without
our foreknowledge and/or authorisation.

The Type and Serial Number Plate is on the front of the headstock.

Always include the type and serial numbers of your product when you contact
your local Lely service provider or order spare parts.

Type and Serial Number Plate

suggest you complete the table below with the type and serial numbers of

We
your product. This makes sure you can easily find the information.

Type number

Serial number

iii

iv

Table of Contents

1.

Introduction.........................................................................................................................................1-1

1.1 Rotors.......................................................................................................................................1-2

1.2 Hydraulic System.....................................................................................................................1-2

1.3 Octosense Wheel Assembly....................................................................................................1-2

1.4 Adjustable Cam Track..............................................................................................................1-2

1.5 Brake System...........................................................................................................................1-2

1.6 Lely Hibiscus 1015 CD Profi +.................................................................................................1-2

1.7 Optional Extras Lely Hibiscus 1015 CD Profi...........................................................................1-3

1.7.1 Stabilization Chain...................................................................................................................1-3

1.7.2 Spare Wheel Support...............................................................................................................1-3

2. Safety...................................................................................................................................................2-1

2.1 Signal Words............................................................................................................................2-1

2.2 Safety Instructions....................................................................................................................2-1

2.3 Explanation of the Safety Decals on the Lely Hibiscus 1015 CD Profi....................................2-2

2.4 Position of the Safety Decals on the Lely Hibiscus 1015 CD Profi..........................................2-3

3. Operation.............................................................................................................................................3-1

R-H012.1103EN

3.1 Connect the Hibiscus to the Tractor.........................................................................................3-1

3.2 Disconnect the Hibiscus from the Tractor................................................................................3-2

3.3 Move the Hibiscus to the Transport Position............................................................................3-3

3.4 Move the Hibiscus to the Working Position..............................................................................3-6

3.5 Move the Hibiscus from the Working Position to the Headland Position.................................3-7

3.6 Start Raking.............................................................................................................................3-7

3.7 Stop Raking..............................................................................................................................3-9

4. Test and Adjustment..........................................................................................................................4-1

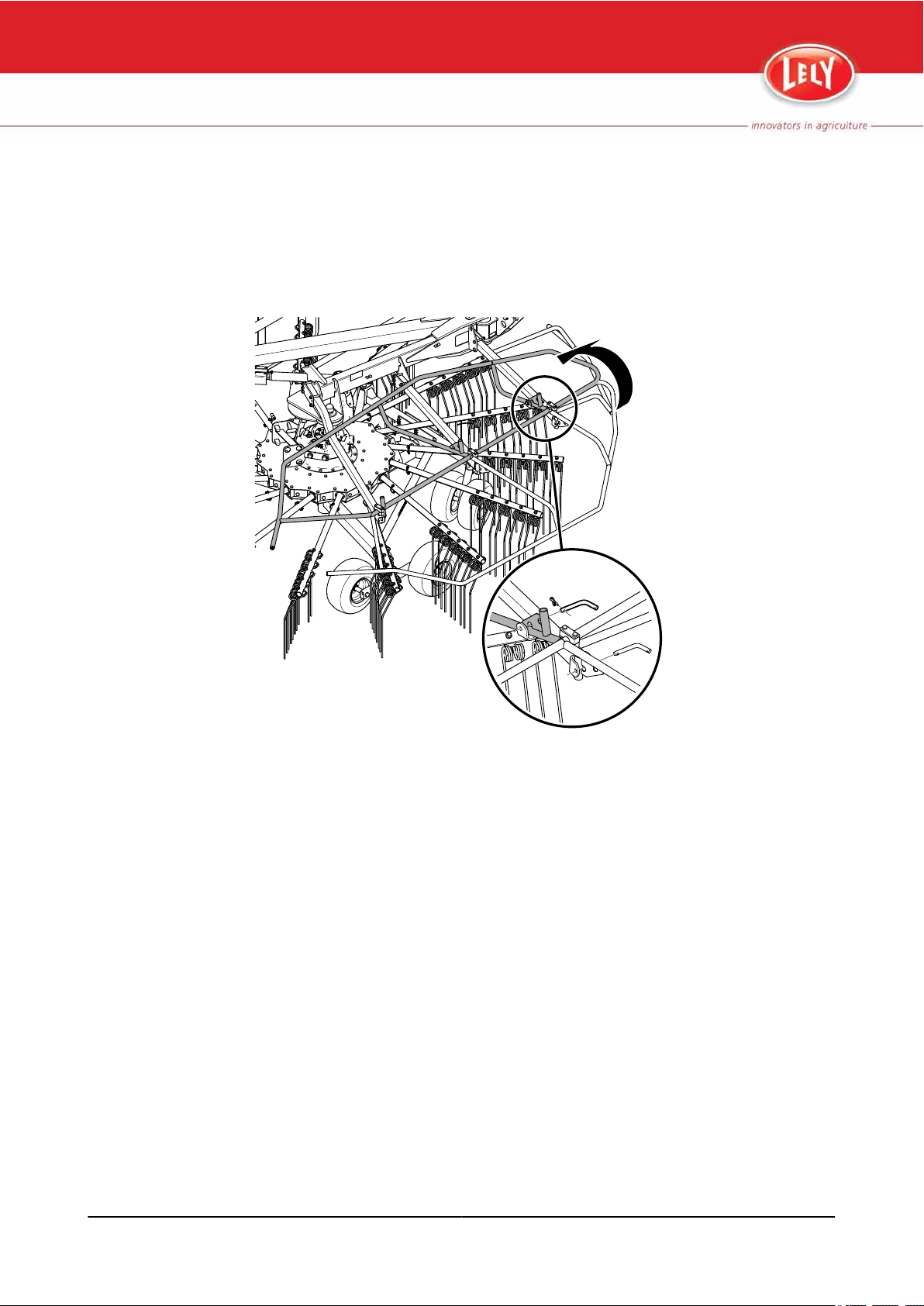

4.1 Adjust the Cam Track...............................................................................................................4-1

4.2 Adjust the Swath Width............................................................................................................4-2

4.3 Adjust the Working Height........................................................................................................4-3

4.4 Adjust the Tandem Wheel Assembly.......................................................................................4-4

4.5 Change to Combined or Individual Lifting................................................................................4-5

4.6 Adjust the Descending Speed..................................................................................................4-7

4.7 Adjust the Ground Pressure.....................................................................................................4-8

5. Maintenance........................................................................................................................................5-1

Table of Contents v

5.1 Scheduled Maintenance...........................................................................................................5-1

5.1.1

5.1.2 Maintenance Every 10 Working Hours....................................................................................5-1

5.1.3 Maintenance After the First 30 Working Hours........................................................................5-1

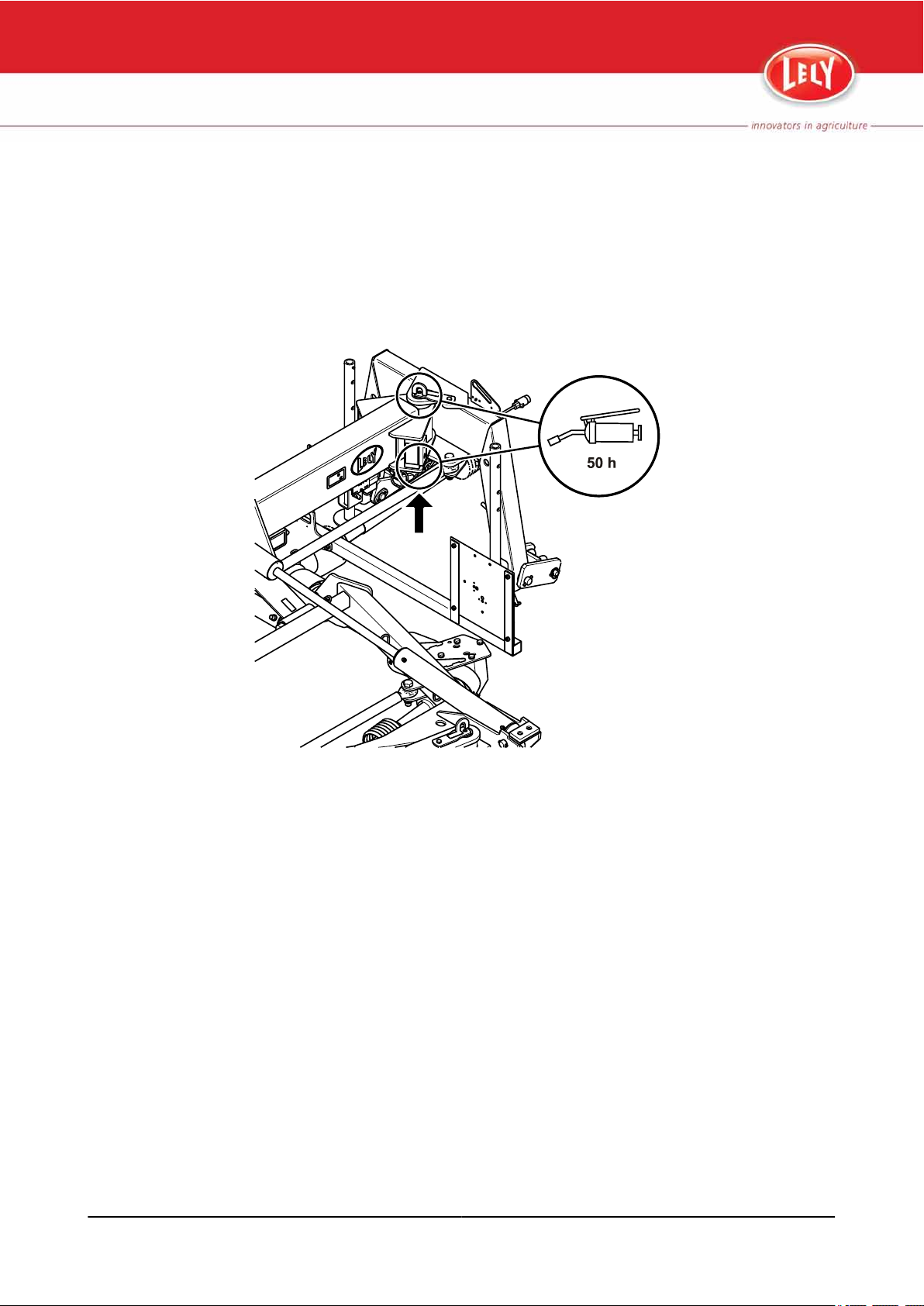

5.1.4 Maintenance Every 50 Working Hours....................................................................................5-1

5.1.5 Maintenance Every 100 Working Hours..................................................................................5-1

5.1.6 Maintenance Before Prolonged Storage..................................................................................5-1

5.1.7 Maintenance After Prolonged Storage.....................................................................................5-2

Maintenance After Operation...................................................................................................5-1

5.2 Preventive Maintenance...........................................................................................................5-3

5.2.1 Grease the Rotor Gearbox.......................................................................................................5-3

5.2.2 Grease the Pivot Frame...........................................................................................................5-3

5.2.3 Grease the Support Frame......................................................................................................5-5

5.2.4 Grease the Swath Width Support............................................................................................5-5

5.2.5 Grease the Steering Device.....................................................................................................5-6

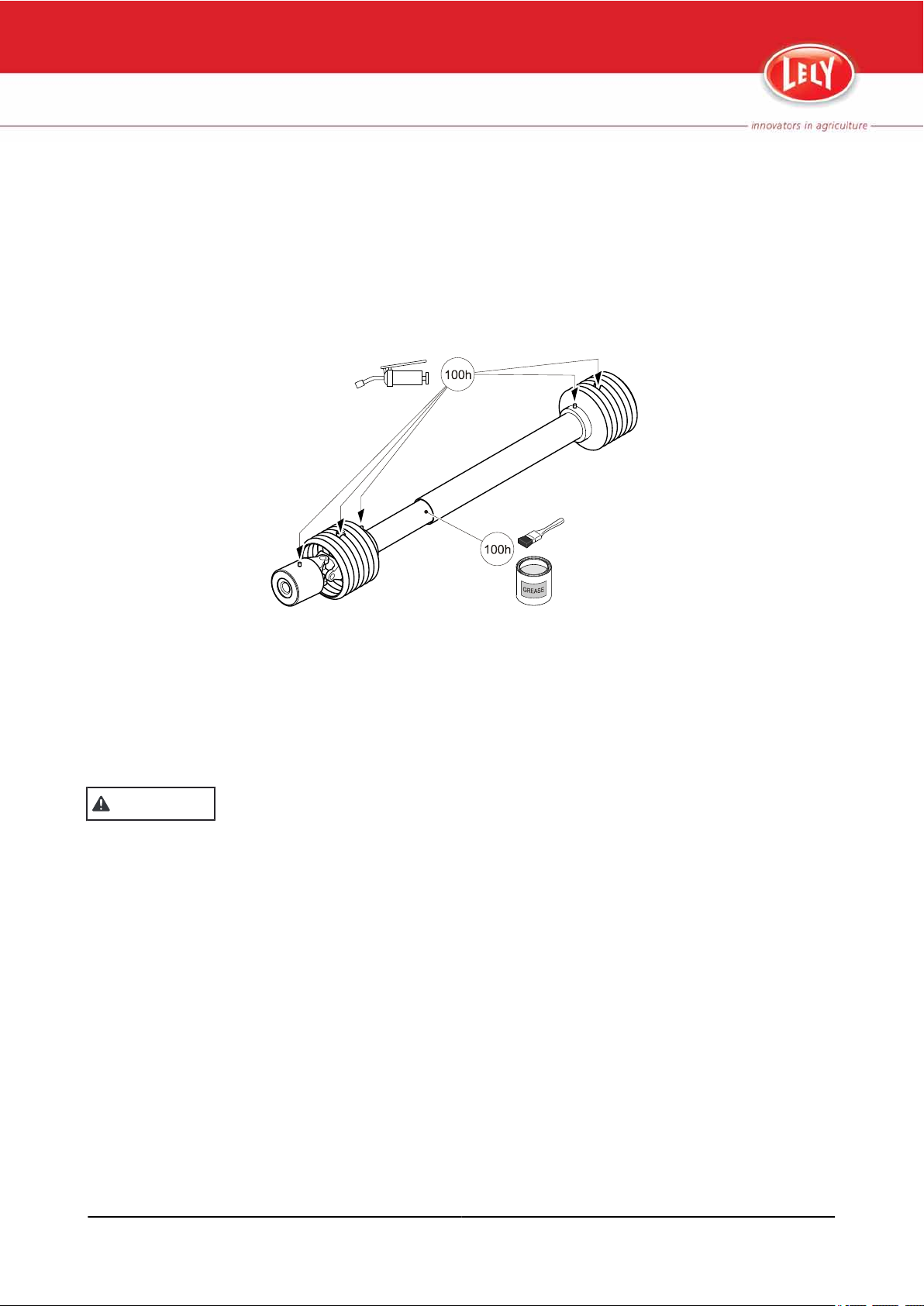

5.2.6 Grease the PTO shaft..............................................................................................................5-7

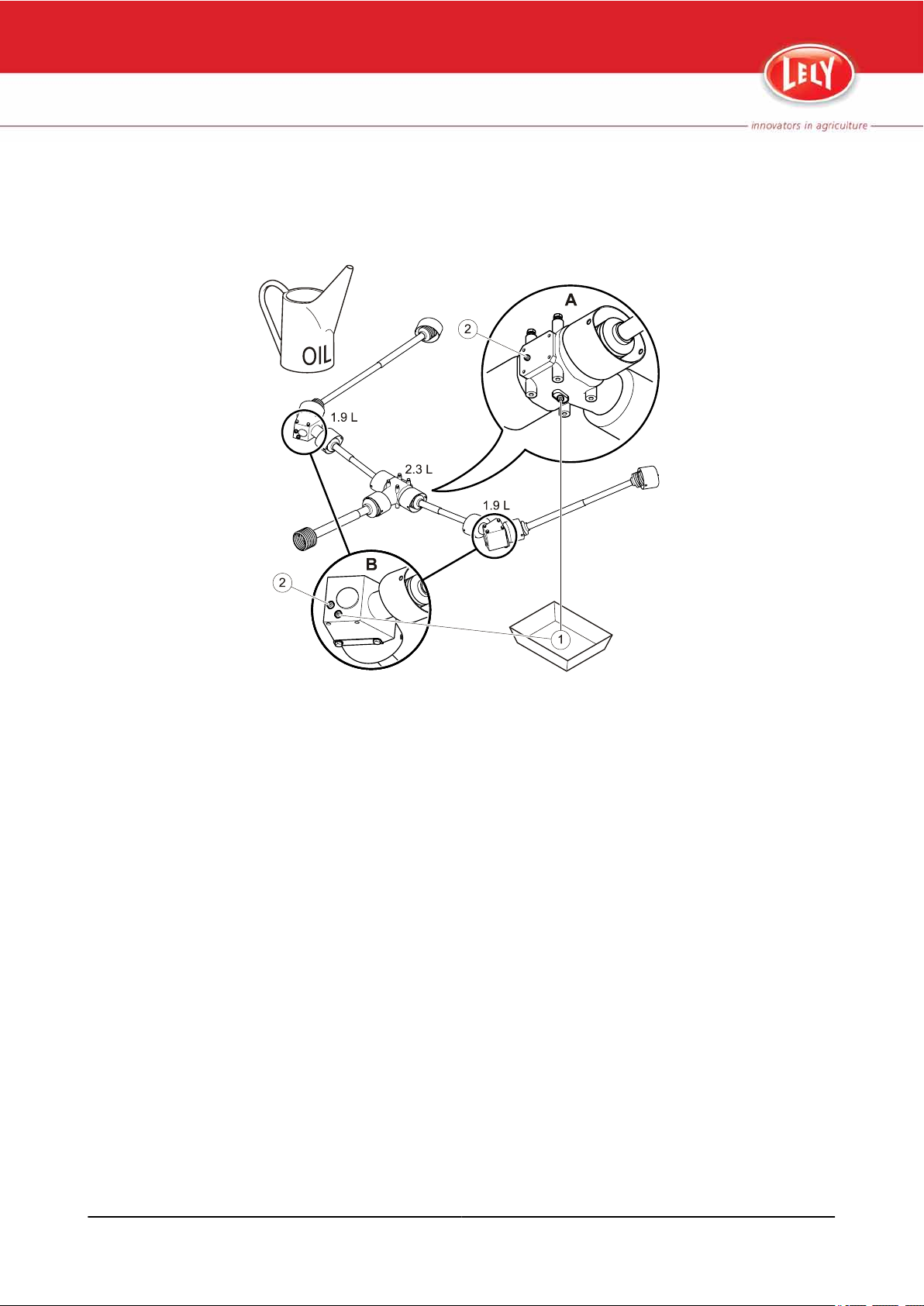

5.2.7 Replace the Gearbox Oil..........................................................................................................5-7

5.2.8 Grease the Rear Wheel Assembly...........................................................................................5-9

5.2.9 Grease the Bearing of the Transport Wheel Axle....................................................................5-9

5.2.10 Grease the Octosense Wheel Assembly.................................................................................5-9

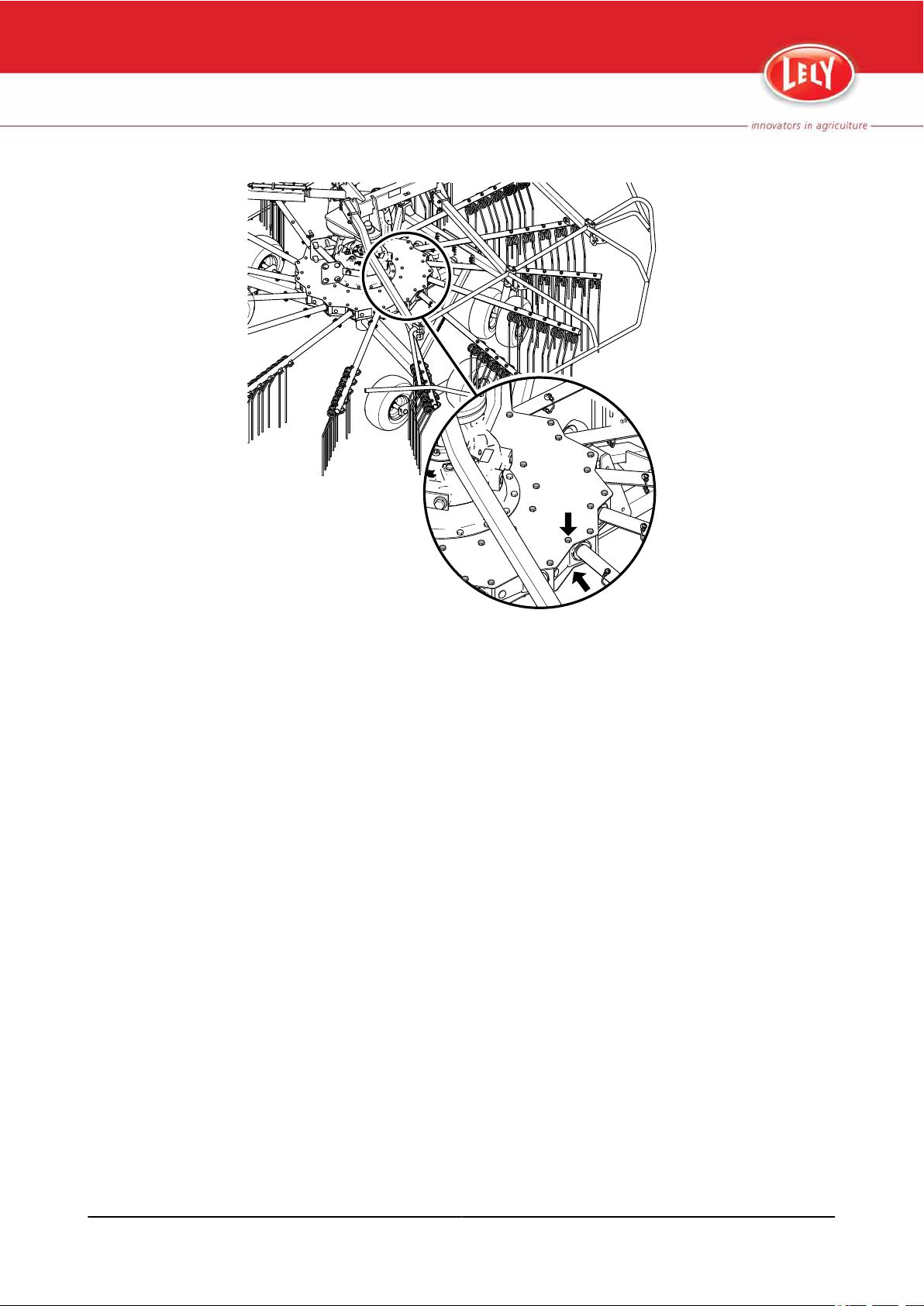

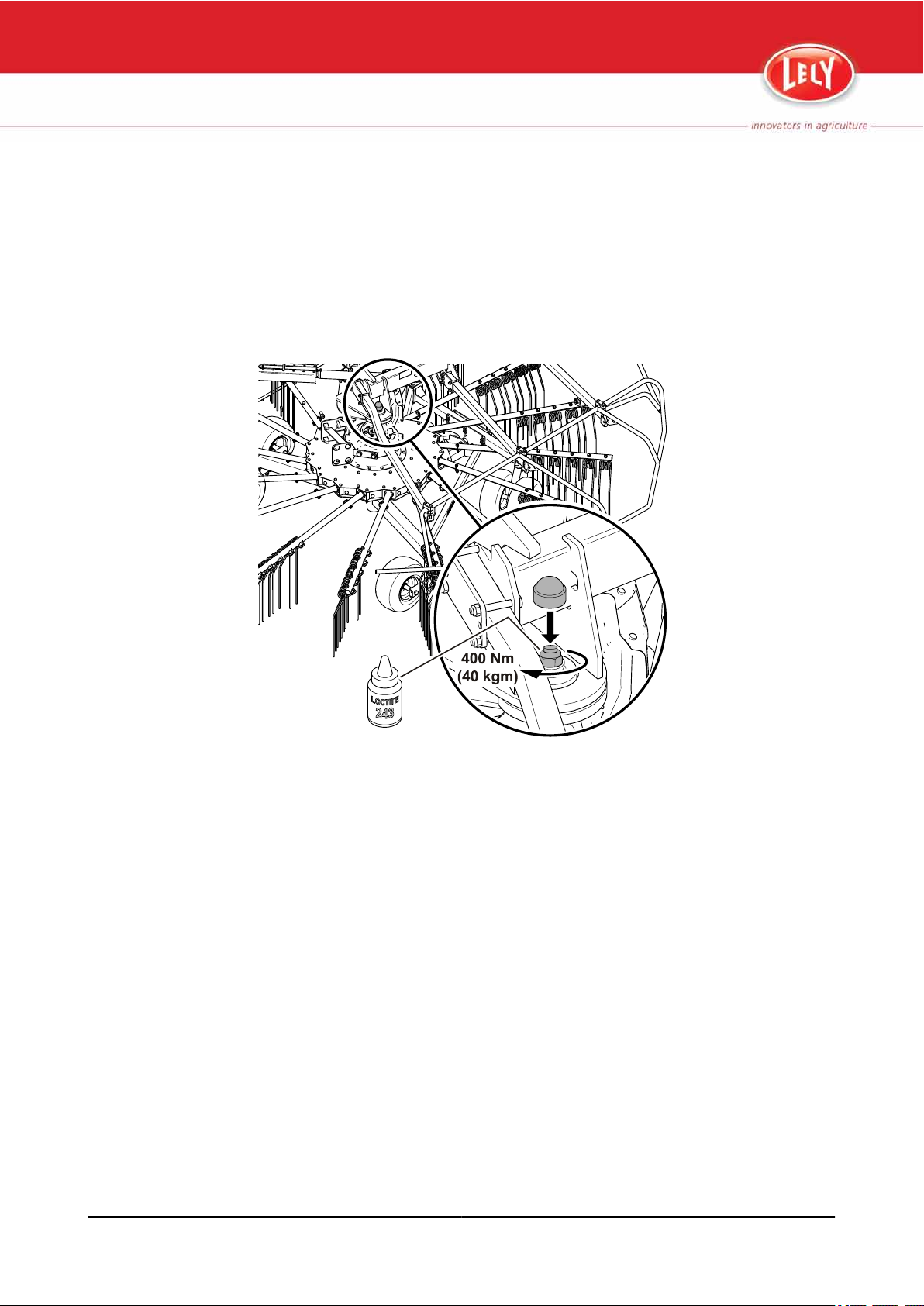

5.2.11 Torque-tighten the Nuts of the Rotor.....................................................................................5-10

5.3 Corrective Maintenance.........................................................................................................5-12

5.3.1 Drain and Refill the Hydraulic System...................................................................................5-12

6. Diagrams and Tables.........................................................................................................................6-1

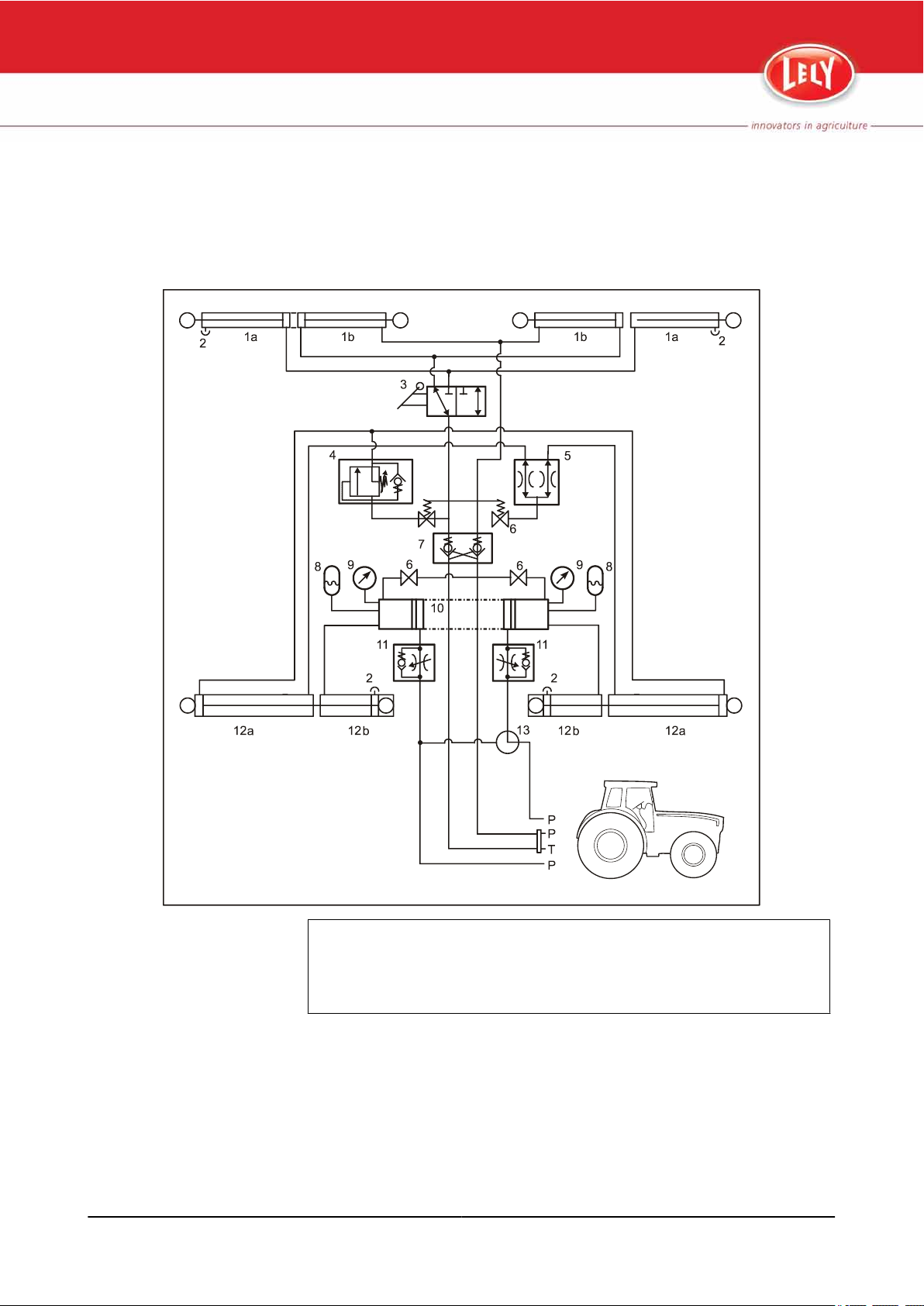

6.1 Lely Hibiscus 1015 CD Profi Hydraulic Schematic...................................................................6-1

6.2 Lely Hibiscus 1015 CD Profi Electrically Controlled Hydraulic Schematic...............................6-2

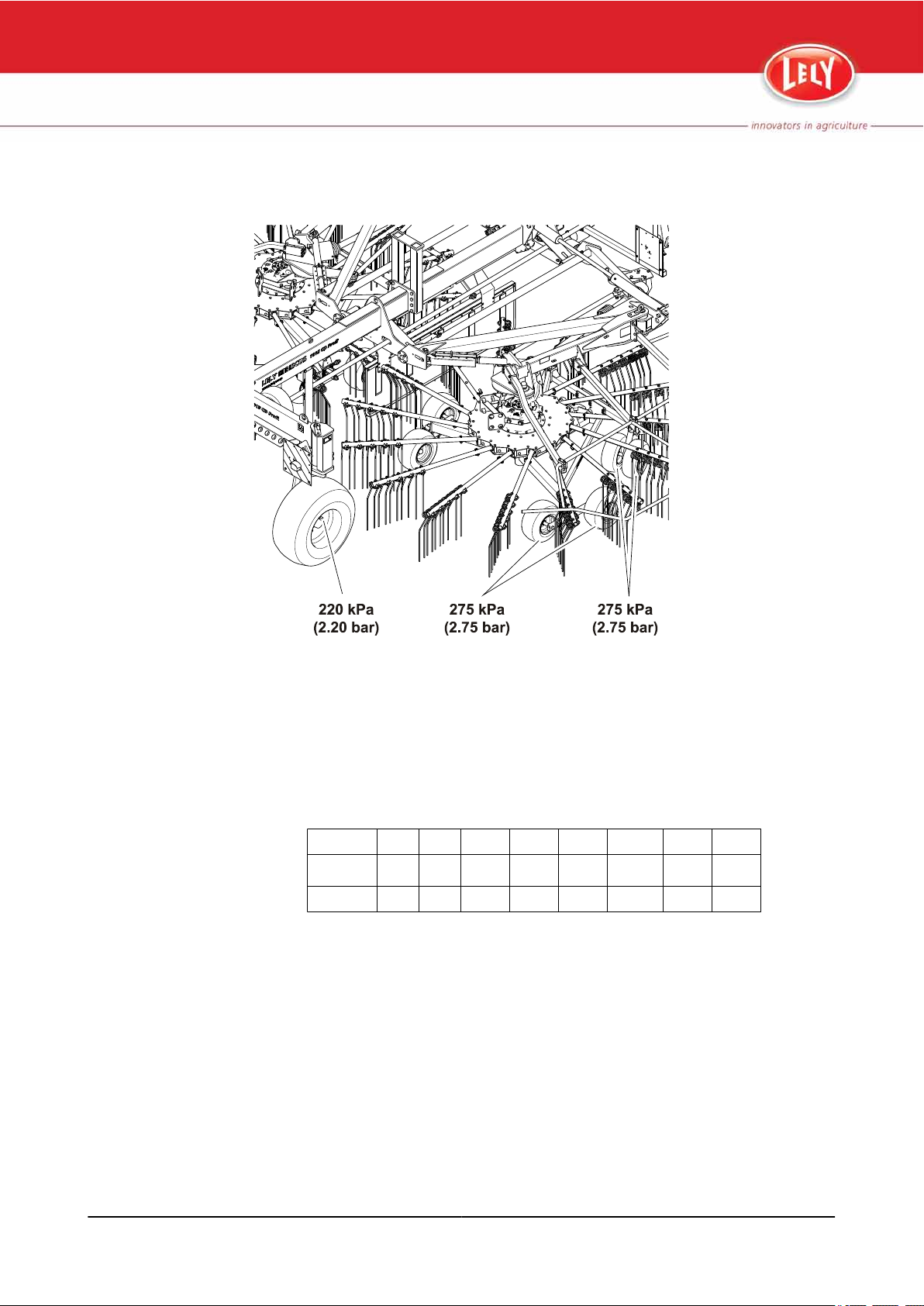

6.3 Tyre Pressure Diagram............................................................................................................6-3

6.4 Bolt and Nut Torque Table.......................................................................................................6-3

7. Troubleshooting.................................................................................................................................7-1

8. Specifications.....................................................................................................................................8-1

8.1 Hibiscus 1015 CD Specifications.............................................................................................8-1

8.2 Hibiscus 1015 CD Profi + Specifications..................................................................................8-2

R-H012.1103EN

vi Table of Contents

1. INTRODUCTION

The Lely Hibiscus 1015 CD Profi is a twin rotor rake to rake grass.

Lely Hibiscus 1015 CD Profi has two rotors with 15 removable tine arms,

The
each with five double tines.

The tines provide a clean sweep and move the grass to the center in a fluffy
swath.

The swath width can be hydraulically adjusted.

The Lely Hibiscus 1015 CD Profi has:

• Two rotors

• A hydraulic system

• An octosense wheel assembly

• An adjustable cam track.

• A brake system

Various optional extras are also available. Refer to Optional Extras Lely
Hibiscus 1015 CD Profi (page 1-3).

R-H012.1103EN

1. Safety guard - 2. Tine arm with tines - 3. Wheel wedge support - 4. Spare wheel support -

5.

Transport wheel - 6. Swath width adjustment - 7. Working height adjustment - 8. Rotor - 9.

Tandem wheel - 10. Pivot wheel - 11. Parking jack - 12. PTO- shaft - 13. Headstock

Figure 1. Overview of the Lely Hibiscus 1015 CD Profi

Introduction 1-1

1.1 Rotors

A 3-D system connects the rotors to the carriage of the Lely Hibiscus 1015 CD
Profi. This allows the rotors to follow ground contours independently from the
carriage.

modular design of the Lely Hibiscus rotors enables quick and easy repair

The
and replacement worn parts.

1.2 Hydraulic System

The hydraulic system transfers part of the weight of the rotors to the carriage
to minimize any damage to the crop.

The hydraulic system is controlled either by an operating cord or an electric
control
to the working position.

The electric controlled system also permits operation with one rotor in the
headland position. This enables raking places that are difficult to reach, for
example slopes and corners.

panel to move the Lely Hibiscus 1015 CD Profi from transport position

1.3 Octosense Wheel Assembly

The Octosense wheel assembly has eight tyres and is installed underneath
the

rotors. It enables the rotors to follow ground contours accurately and rake

cleanly.

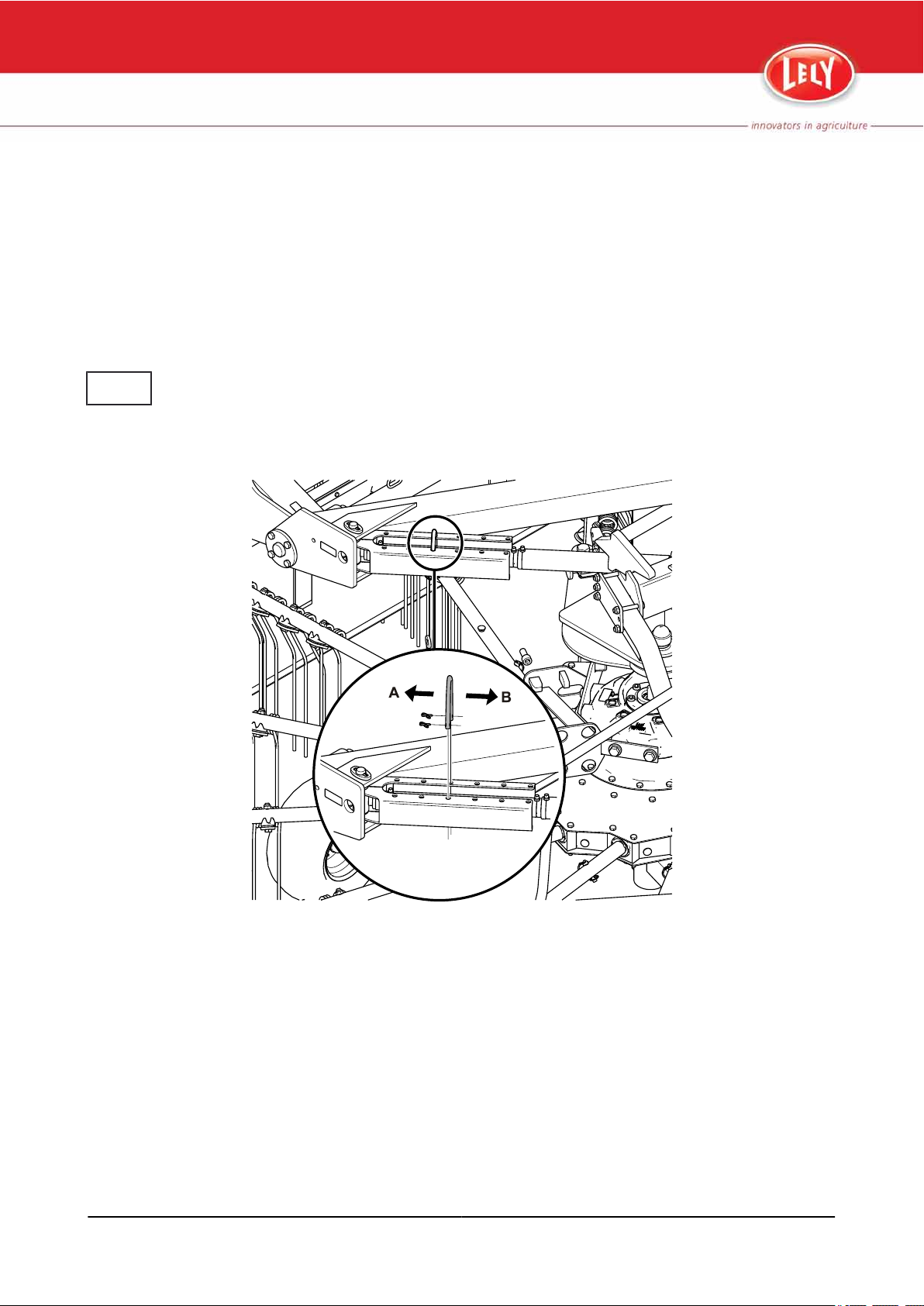

1.4 Adjustable Cam Track

The adjustable cam track determines the pick and release moments of the
crop.

Correct adjustment of the cam track depends on the type of crop, terrain
conditions and forward speed. The cam track is adjusted by moving the
adjustment strip to front or the back. Moving the adjustment strip to the front
gives a late release of the crop. Moving the adjustment strip to the back gives
an early release of the crop.

1.5 Brake System

The brakes of the Lely Hibiscus 1015 CD Profi are installed on the transport
wheels. Either oil-pressure or air-pressure brake systems can be installed.

1.6 Lely Hibiscus 1015 CD Profi +

The Lely Hibiscus 1015 CD Profi + is a special version of the Lely Hibiscus
1015

CD Profi. It has adjustable wheel assemblies underneath the rotors. This
enables easy adjustment of the working height during operation.

R-H012.1103EN

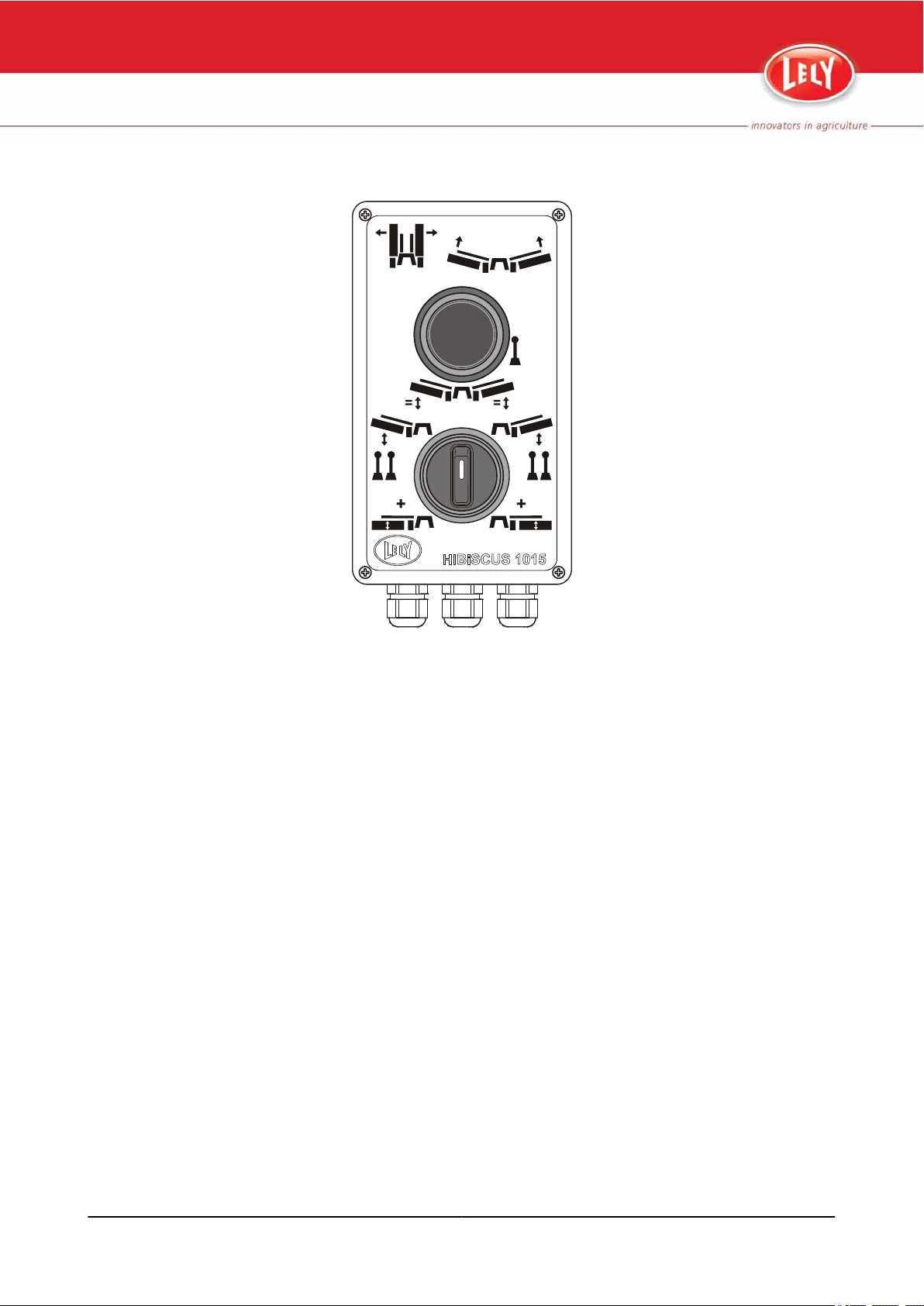

An electrically controlled hydraulic system operates the adjustable wheel
assemblies. The control panel is installed in the tractor cab.

1-2 Introduction

1.7 Optional Extras Lely Hibiscus 1015 CD Profi

1.7.1 Stabilization Chain

Stabilization chains are used to keep the lower arms of the tractor at the correct
height.
and the connection points of the Hibiscus.

Figure 2. Stabilization Chains

1.7.2 Spare Wheel Support

A spare wheel support is installed on the Hibiscus to carry a spare wheel.

The stabilisation chains are installed between a rigid part of the tractor

R-H012.1103EN

Figure 3. Spare Wheel Support

Introduction 1-3

R-H012.1103EN

1-4 Introduction

2.1 Signal Words

2. SAFETY

This chapter contains safety instructions you must obey when you use or do
maintenance on your Lely Hibiscus. It also explains the safety decals on the
Lely Hibiscus.

Note the use of the signal words DANGER, WARNING and CAUTION. The
signal word for each message uses the following guidelines:

DANGER

WARNING

CAUTION

Note:

2.2 Safety Instructions

R-H012.1103EN

Danger: Indicates an imminently hazardous situation that, if
not avoided, will result in death or serious injury.

Warning: Indicates a potentially hazardous situation that, if not avoided,
could result in death, serious injury or product damage, and includes
hazards that are exposed when guards are removed.

Caution: Indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury or damage to the product or property.

Note: This shows extra information that may help the reader.

• Use the Hibiscus only for the purpose for which it was designed.

• Follow all safety regulations, including those in this manual and instructions

or warnings on the machine.

• Operate the Hibiscus safely.

• The Hibiscus must only be operated by authorised persons.

• Be alert and observe all safety precautions.

• Make sure all safety guards and protection devices are installed and

function correctly.

• Keep people and objects away from moving parts.

• Stop the tractor engine, the Power Take-Off (PTO) and all moving parts

before you do maintenance on the Hibiscus.

• Make sure no people are in the danger zone when the Hibiscus is in

operation. This is especially important when you work near or on areas that
are accessible to the public.

• Always use a tractor with a cab.

• Make sure there are no objects in the field that could be thrown up by the

Hibiscus before you operate the Hibiscus.

• Obey local legislation when you drive on a public road.

• Use flashing lights or other safety signs, when necessary.

• Do not stand on the Hibiscus.

• Only use genuine LELY parts.

Safety 2-1

• Depressurise the hydraulic system before you connect or disconnect

hydraulic hoses.

Use protective clothing, gloves, safety glasses and ear protectors, if

•

necessary.

• Clean or replace the safety decals regularly so that they can be read at all

times.

2.3 Explanation of the Safety Decals on the Lely Hibiscus 1015 CD Profi

Read the operator's manual carefully before you
operate the Hibiscus

Keep a safe distance from the Hibiscus when the
tractor engine is on.

Keep away from all moving parts unless they are
locked and cannot move.

Read the operating instructions for the PTO
shaft. Always use the correct safety precautions
and protection when you operate the PTO shaft.

Never operate the Hibiscus at a PTO speed of
more than 540 rpm

R-H012.1103EN

2-2 Safety

2.4 Position of the Safety Decals on the Lely Hibiscus 1015 CD Profi

R-H012.1103EN

Figure 4. Position of the Safety Decals on the Lely Hibiscus 1015 CD Profi

Safety 2-3

R-H012.1103EN

2-4 Safety

3. OPERATION

3.1 Connect the Hibiscus to the Tractor

1. Adjust the 3-point hitch on the tractor until the arms are at the same
height.

Connect the two lower arms of the 3-point hitch to the linkage pins on

2.
the headstock.

3. If the Hibiscus has category III linkage pins, install filler pieces between
the linkage pins and the lowers arms of the tractor.

4. Use the tractor hydraulics system to lift the headstock until it is level.

5. Extend the parking jacks to the highest position.

6. Connect the stabilization chains (or rods) from the tractor to the lower
arms of the Hibiscus.

7. Make sure no lateral movement is possible.

8. Remove the wheel wedges and attach them to the support at the rear
of the Hibiscus.

CAUTION

WARNING

R-H012.1103EN

WARNING

The first time you connect the Hibiscus to each tractor, refer to the instructions
supplied with the PTO shaft and make sure the minimum and maximum
overlap of the two parts of the PTO shaft is correct.

Always connect the safety chain of the PTO shaft to a rigid part of the
tractor.

9. Make sure the Hibiscus PTO shaft telescopes smoothly.

10. Connect the Hibiscus PTO shaft to the tractor PTO shaft.

The maximum pressure of the tractor hydraulic system must not be more
than 21.0 MPa (210 bar).

11. Remove the dust caps from the hydraulic hoses.

12. Connect the two 1/2" hydraulic hoses to a single-acting hydraulic valve
with floating position on the tractor.

13. Connect the 3/8" hydraulic hoses to a double-acting valve on the tractor.

14. Connect the hydraulic brake hose to the tractor's trailer brake
connection.

15. Make sure the brakes operate correctly.

16. If a mechanically controlled hydraulic system is installed:

1. Put the end of the operating cord in the tractor cab.

17. If an electrically controlled hydraulic system is installed:

1. Use the magnet to attach the control box to a rigid metal part of

the tractor cab.

2. Connect the power supply cable of the control box to a suitable

connector in the tractor cab.

18. Connect the lighting electrical cable to the correct socket on the tractor.

19. Make sure all the lights on the Hibiscus operate correctly.

Operation 3-1

Figure 5. Connection Points

3.2 Disconnect the Hibiscus from the Tractor

1. Move the two parking jacks to the bottom position.

2. Install

3. Use the tractor hydraulic system to lower the headstock until the parking

4. Switch off the tractor engine.

5. Disconnect the Hibiscus PTO shaft from the tractor PTO.

6. Attatch the PTO shaft to the mount provided.

7. Release the pressure from the tractor hydraulic system.

8. Disconnect the hydraulic hoses from the tractor hydraulic system.

9. Install the dust caps on the hydraulic hoses.

10. Attach the hydraulic hoses to the support on the headstock.

11. If stabilization chains (or rods) are used:

12. If a mechanically controlled hydraulic system is installed:

the wheel wedges in front of the transport wheels and behind the

transport wheels.

jacks are on the ground.

1. Disconnect the stabilization chains (or rods) from the lower arms

of the tractor.

1. Remove the operating cord from the tractor cab.

R-H012.1103EN

3-2 Operation

13. If an electrically controlled hydraulic system is installed:

Disconnect the electrical power supply for the control box from

1.

the tractor.

2. Remove the control box from the tractor cab.

14. Disconnect the brake hoses from the tractor.

15. Attach the brake hoses to the support on the headstock.

16. Disconnect the lighting electrical cable from the tractor.

17. Disconnect the two lower arms from the linkage pins on the headstock.

18. Remove the tractor from the area.

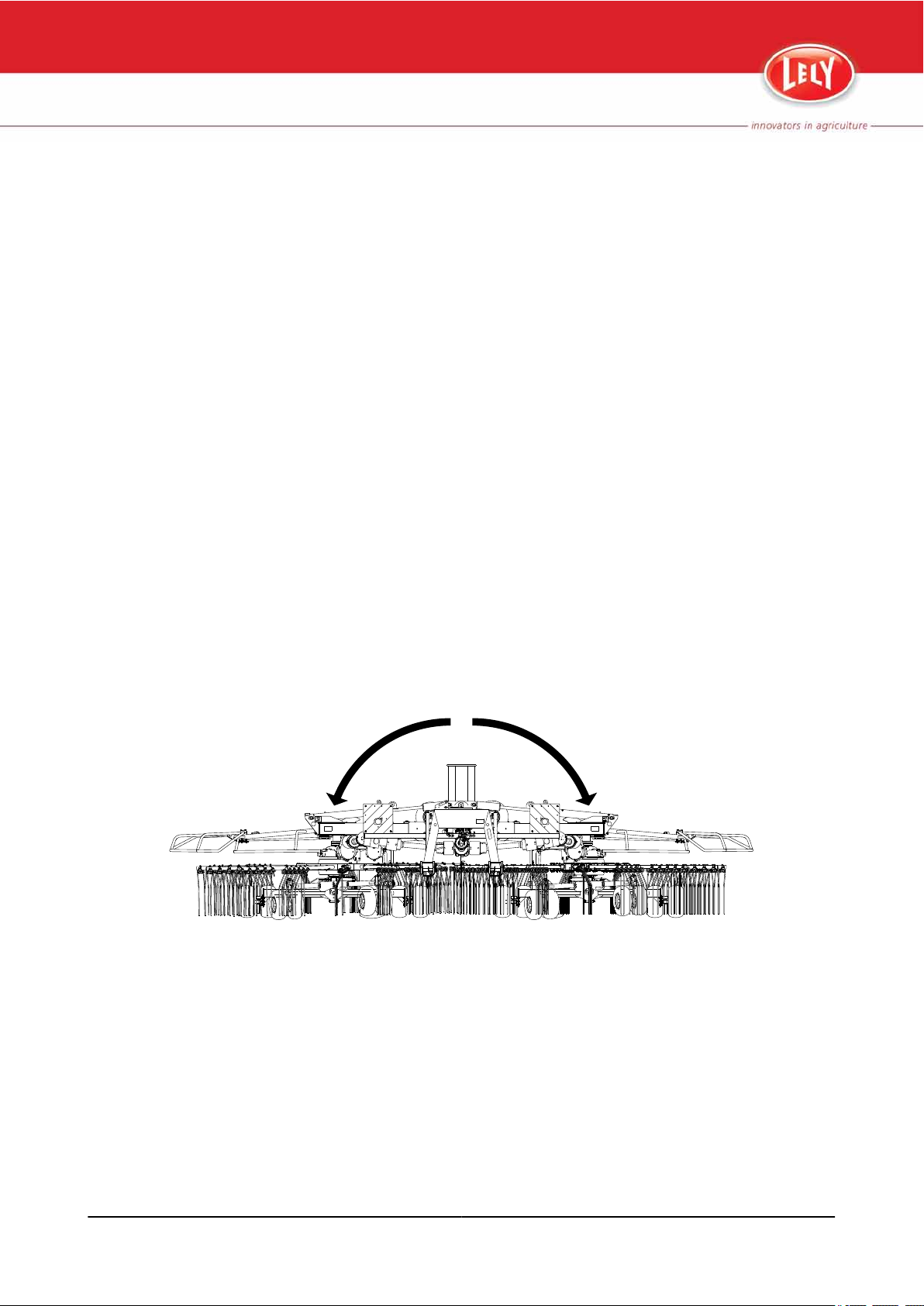

3.3 Move the Hibiscus to the Transport Position

WARNING

WARNING

WARNING

CAUTION

R-H012.1103EN

Make sure there are no persons in the area when you move the Hibiscus
to the transport position.

Make sure the front axle weight of the tractor is sufficient (use front
weights if necessary) and that you do not exceed the rear axle weight
when the Hibiscus is in the transport position.

Make sure the PTO shaft does not turn when the Hibiscus is in the
transport position.

Use all lights and warning signals as defined by your local road traffic
regulations.

1.

Disengage the PTO.

2. Wait for all moving parts of the Hibiscus to stop.

3. On the left and right side of the Hibiscus:

1. Remove the split pin from the four outer tine arms.

2. Remove the tine arms from the rotor.

3. Attach the removed tine arms to the provided mount and install

the split pins.

4. Remove the split pin of the safety guard

5. Move the safety guard up.

6. Install the split pin of the safety guard and make sure the safety

guard is locked.

4. If a mechanically controlled hydraulic system is installed:

1. Pull the operating cord to release the locking hooks on the

hydraulic ram.

2. Operate the tractor hydraulic system to retract the hydraulic ram

until the Hibiscus is in the transport position.

3. Make sure the locking hooks have engaged in the hydraulic rams.

Operation 3-3

5. If an electrically controlled hydraulic system is installed:

On the control box, set the switch to the center position.

1.

2. Operate the tractor hydraulic system to retract the hydraulic ram

until the Hibiscus is in the transport position.

3. Make sure the locking hooks have engaged in the hydraulic rams.

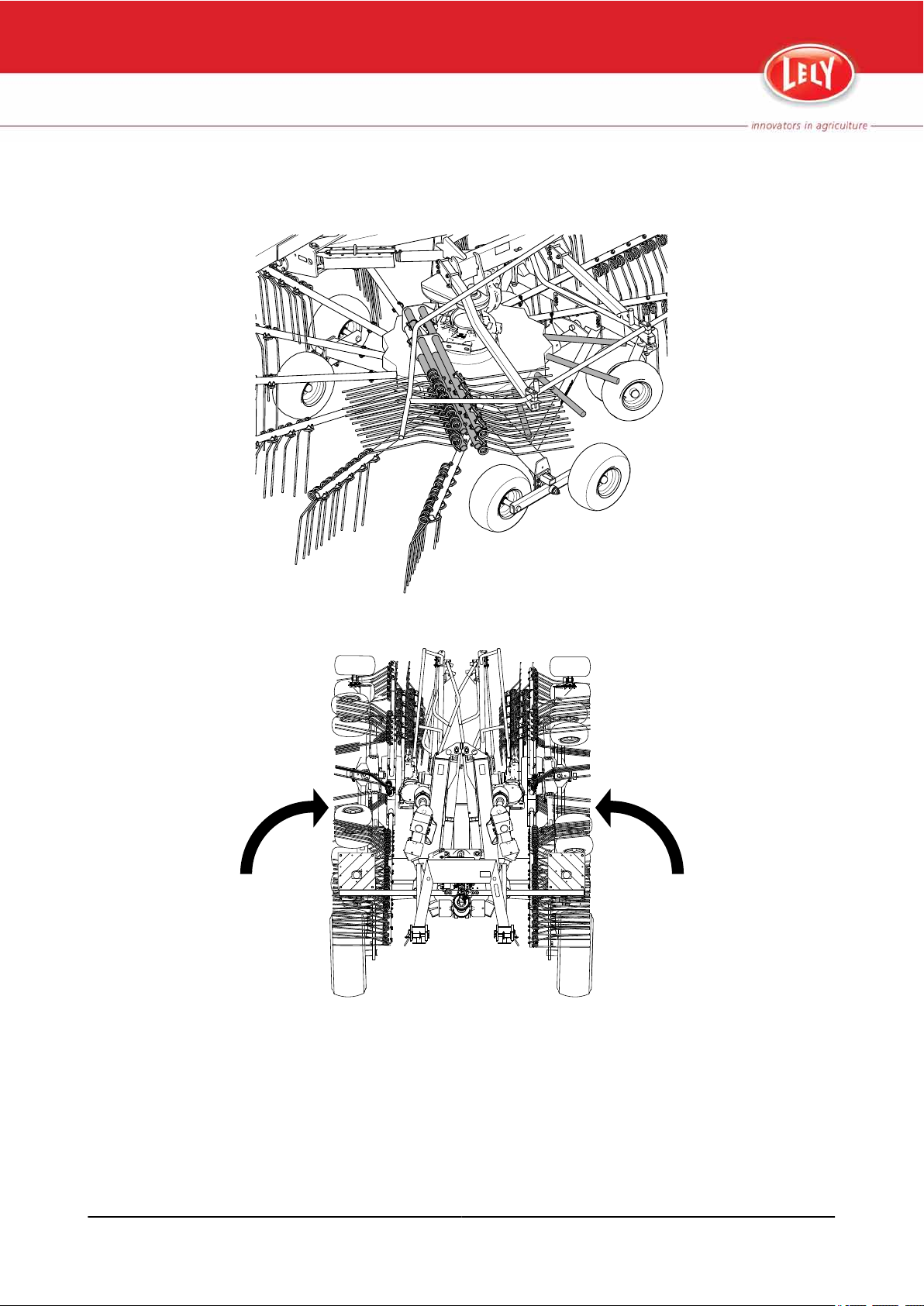

Figure 6. Move the Safety Guards Up

R-H012.1103EN

3-4 Operation

R-H012.1103EN

Figure 7. Storage of the Four outer Tine Arms

Figure 8. Transport Position

Operation 3-5

3.4 Move the Hibiscus to the Working Position

1. If a mechanically controlled hydraulic system is installed:

Pull the operating cord to release the locking hook on the

1.

hydraulic ram.

2. Operate the tractor double-acting hydraulic system to extend the

hydraulic rams until the Hibiscus is in the working position.

2. If an electrically controlled hydraulic system is installed:

1. On the control panel press the button.

2. Operate the tractor double-acting hydraulic system to extend the

hydraulic rams until the Hibiscus is in the working position.

3. Operate the tractor single-acting hydraulic system to lower the rotors to
the ground.

4. Remove the tine arms from the support.

5. Install the tine arms on the rotor.

6. On both sides of the Hibiscus:

1. Remove the split pins from the stored tine arms.

2. Remove the stored tine arms from the support.

3. Install the tine arms and install the split pins.

4. Make sure the tine arms are locked.

5. Move the safety guards downwards.

6. Make sure the safety guards are locked.

Figure 9. Working Position

R-H012.1103EN

3-6 Operation

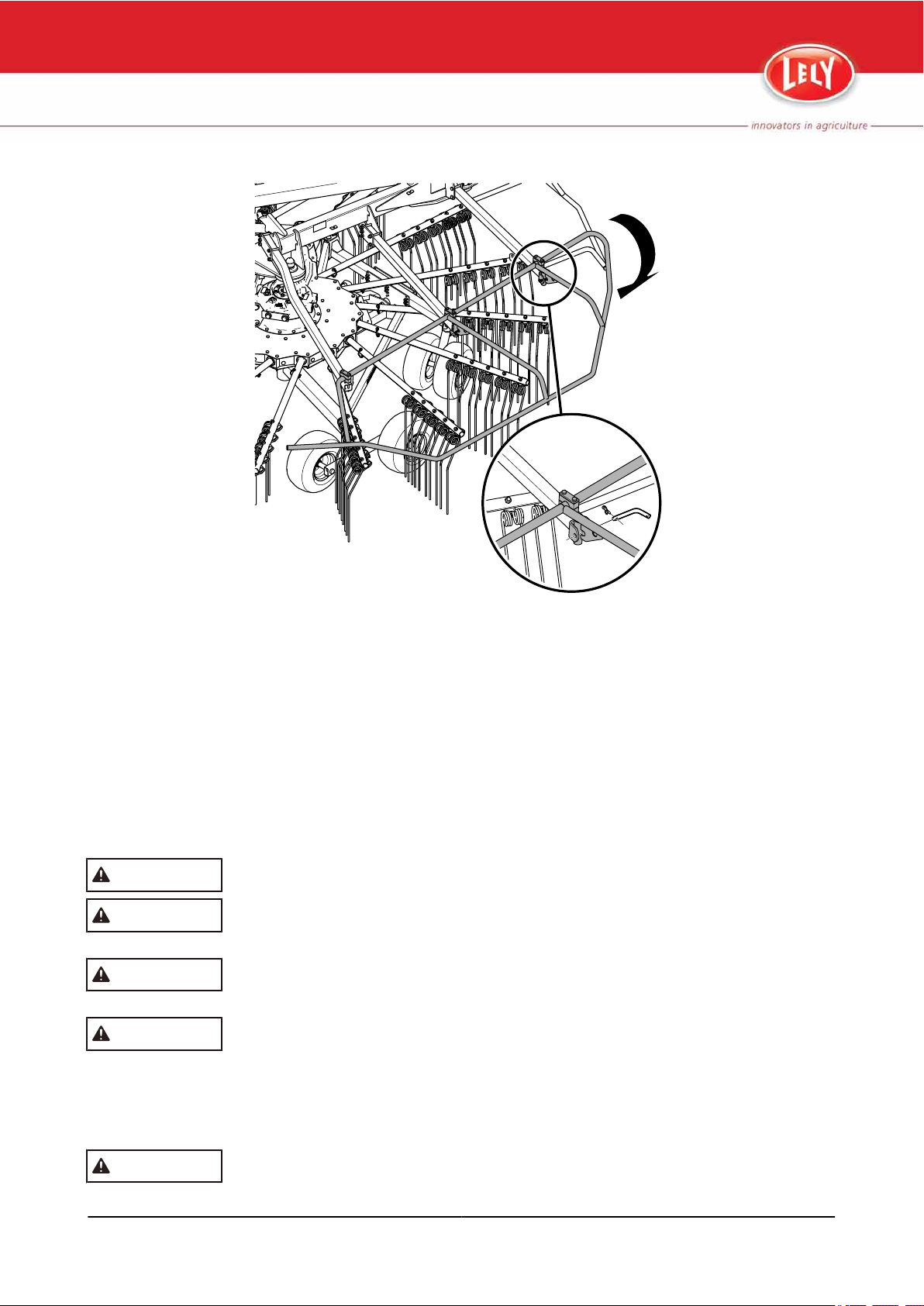

Figure 10. Move the Safety Guards Down

3.5 Move the Hibiscus from the Working Position to the Headland Position

R-H012.1103EN

1. Operate
headland position.

the tractor single-acting hydraulic system to lift the rotors to the

3.6 Start Raking

WARNING

WARNING

WARNING

WARNING

WARNING

Operation 3-7

Always switch off the tractor engine before you leave the tractor cab.

Make

sure no persons are within a 25 meter radius of the Hibiscus during

operation.

Do not operate the Hibiscus without safety guards or swath curtain, or if
the safety guards or swath curtain are damaged.

Make sure no obstacles can be hit.

1. Lift the Hibiscus to the headland position.

2. Carefully engage the PTO at the lowest possible engine speed.

3. Slowly increase the speed of the PTO to 400-450 rpm (max. 540 rpm).

Do not drive the machine through the crop when the rotor is on the
ground and not rotating. This causes damage to the tines and tine arms.

4. Drive the tractor at a minimum speed of 10 km/h.

5. Operate

the tractor single-acting hydraulic system to lower the rotors in

the crop.

6. If necessary stop the tractor and:

• Adjust the cam track (page 4-1).

• Adjust the swath width (page 4-2).

• Adjust the working height (page 4-3).

7. If you want to turn on headlands:

• Lift the Hibiscus to the headland position.

Figure 11. Making Swaths

R-H012.1103EN

3-8 Operation

3.7 Stop Raking

Figure 12. Moving Swaths

WARNING

R-H012.1103EN

WARNING

Always switch off the tractor engine before you leave the tractor cab.

1.

Stop the tractor.

2. Lift the Hibiscus to the headland position.

3. Disengage the PTO.

Wait for all moving parts of the Hibiscus to stop.

4. Switch off the tractor engine.

Operation 3-9

R-H012.1103EN

3-10 Operation

4. TEST AND ADJUSTMENT

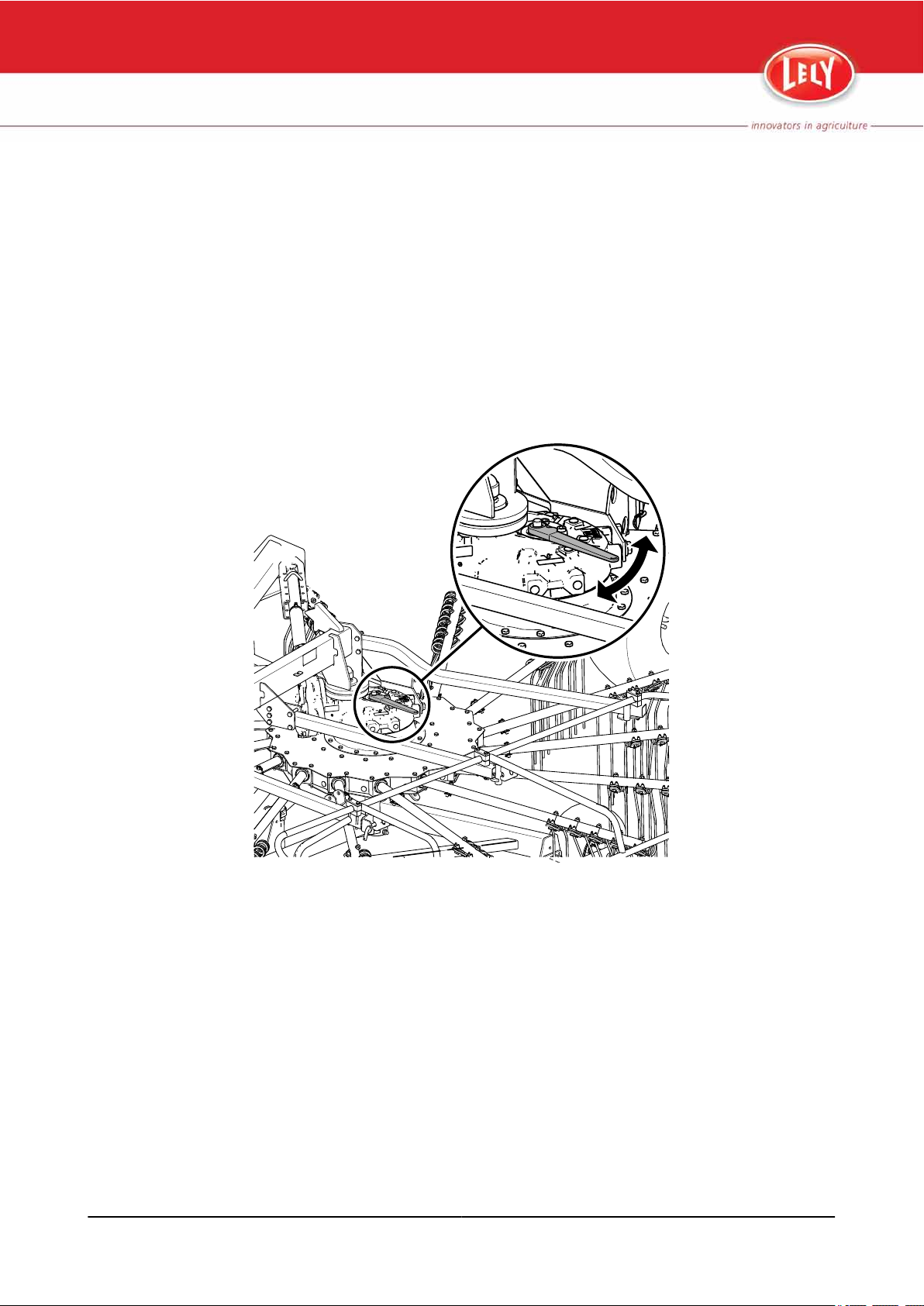

4.1 Adjust the Cam Track

1. Move the Hibiscus to the working position (page 3-6).

Switch off the tractor engine.

2.

3. Remove the three tine arms in front of the cam track adjustment strip.

4. Remove the split pin from the cam track adjustment strip.

5. Install the adjustment strip to the applicable position and install the split
pin.

Note:

R-H012.1103EN

Moving the adjustment strip to the front gives a late release of the crop.
Moving the adjustment strip to the back gives an early release of the crop.

Figure 13. Adjust the Cam Track

Test and Adjustment 4-1

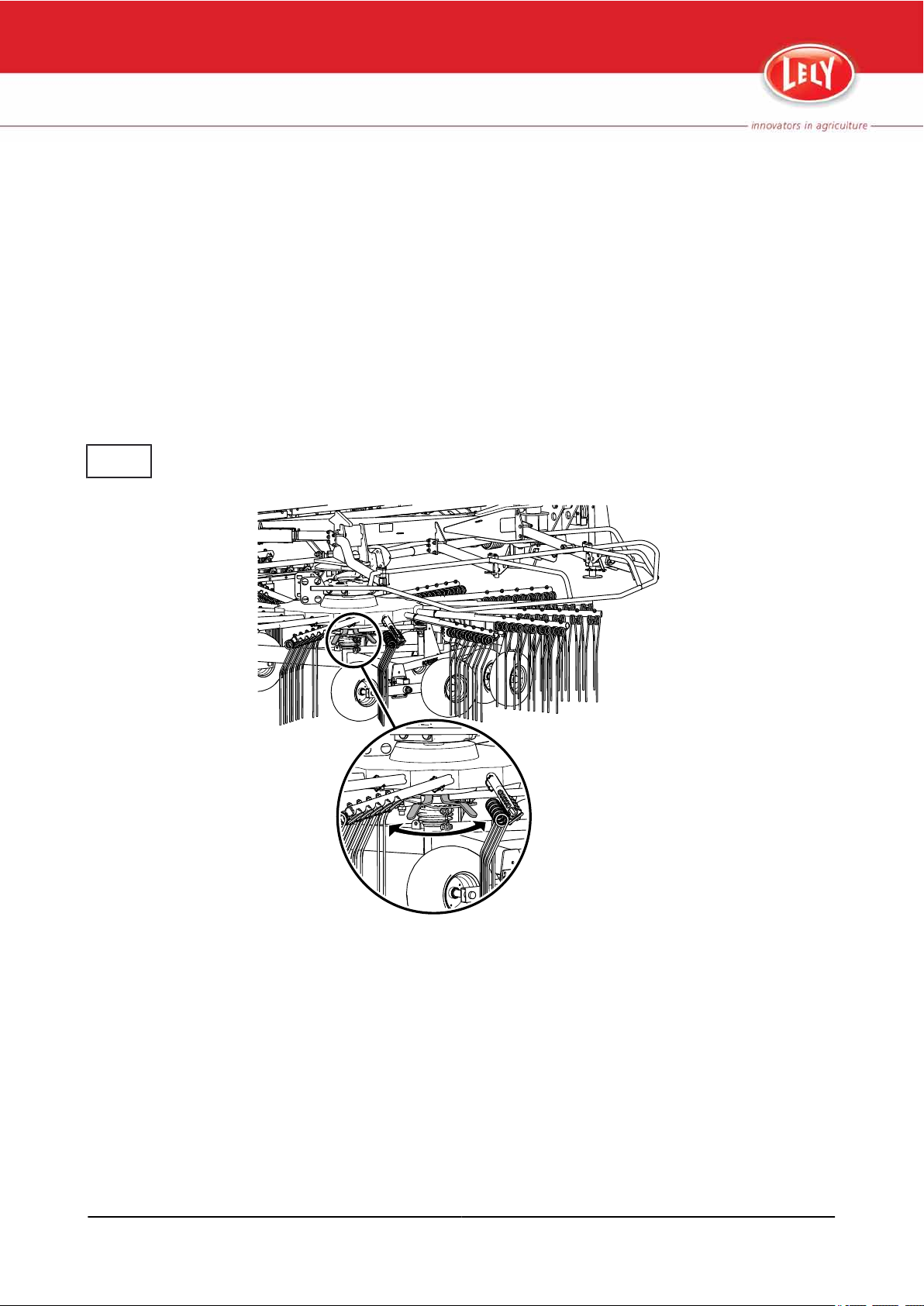

4.2 Adjust the Swath Width

1. If an electrically controlled hydraulic system is installed:

On the control panel, set the switch to the center position.

•

2. On the left and right side of the Hibiscus:

• Remove the stop from the ram.

• Install the stop to the applicable position.

Note:

Position A the gives the largest swath width. Position B gives the
smallest swath width.

3. Operate the tractor double-acting hydraulic system to adjust the swath
width.

R-H012.1103EN

Figure 14. Adjust the Working Width

4-2 Test and Adjustment

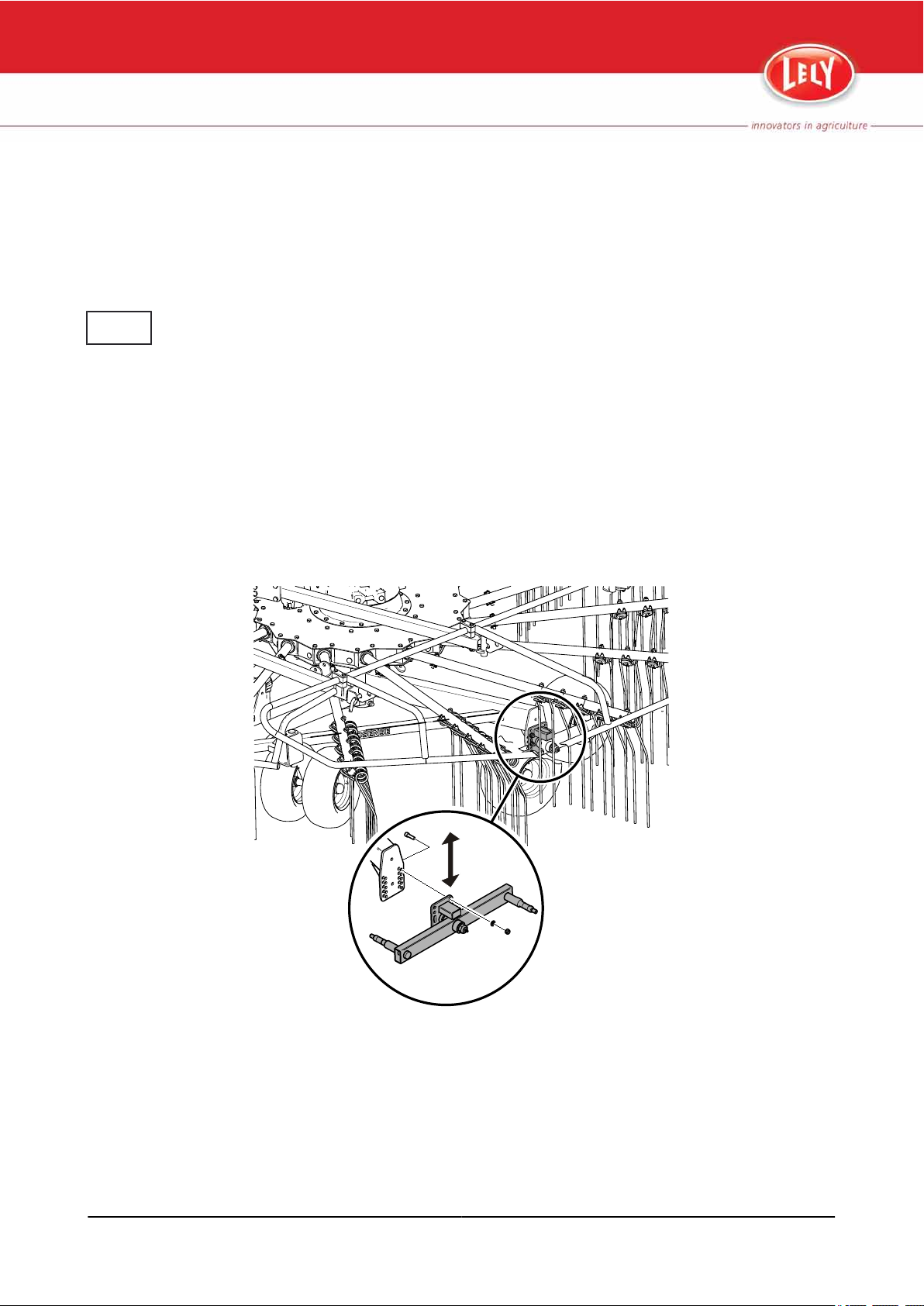

4.3 Adjust the Working Height

1. Use the winding handle to adjust the working height.

Make sure the tines touch the ground slightly.

2.

3. If an electrically controlled hydraulic system is installed:

1. On the control panel, set the switch to the center position.

2. Operate the tractor double-acting hydraulic system to adjust the

swath width.

4. If necessary:

• Adjust the tandem wheels (page 4-4).

R-H012.1103EN

Figure 15. Adjust the Working Height

Test and Adjustment 4-3

4.4 Adjust the Tandem Wheel Assembly

1. Remove the three bolts from the end piece.

Adjust the end piece to the applicable height.

2.

3. Install the three bolts.

Note:

The end piece can be installed upside down so you can adjust the tandem
wheel assembly by a half position.

4. If necessary install the end piece upside down:

1. Remove the bolt from the tandem wheel axle.

2. Remove tandem wheels.

3. Remove the three bolts from the end piece.

4. Turn the end piece 180°.

5. Adjust the end piece to the applicable height.

6. Install the three bolts.

7. Install the tandem wheels.

8. Install the bolt on the tandem wheel axle.

R-H012.1103EN

Figure 16. Adjust the Tandem Wheel Assembly

4-4 Test and Adjustment

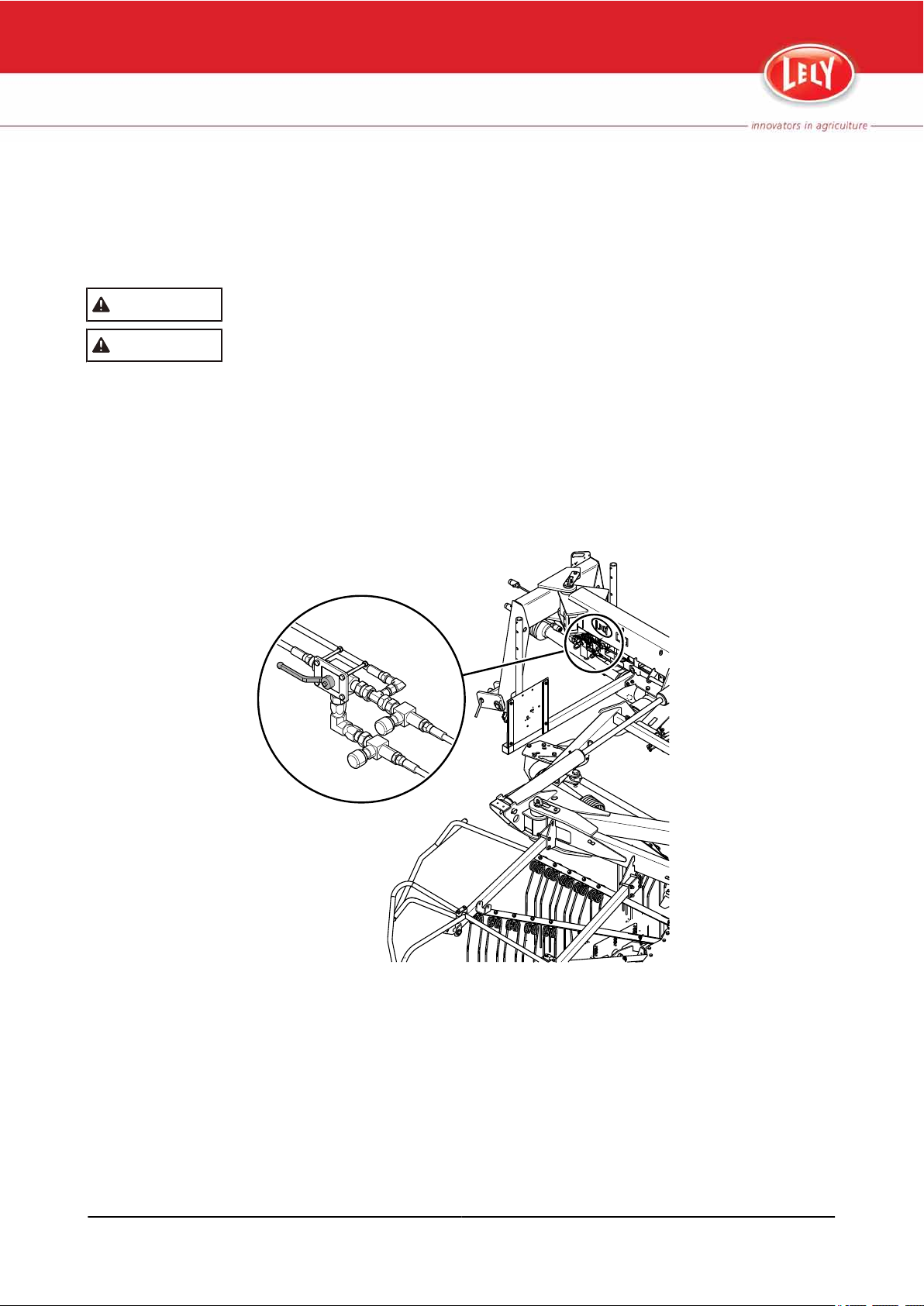

4.5 Change to Combined or Individual Lifting

1. Stop the tractor.

Disengage the PTO.

2.

WARNING

WARNING

R-H012.1103EN

Wait for all moving parts of the Hibiscus to stop.

Always switch off the tractor engine before you leave the tractor cab.

3. If necessary, set the ball valve on the hydraulic system to the correct
position for either combined or individual lifting and lowering as follows:

• Set the valve to position 1 for individual lifting and lowering.

• Set the valve to position 2 for combined lifting and lowering.

• If the hydraulic system is electrically controlled, set the switch on the

control box to the applicable position.

4. Operate the tractor hydraulic system to lift the Hibiscus to the headland
position.

Figure 17. Mechanically Change to Combined or Individual Lifting

Test and Adjustment 4-5

Figure 18. Electrical Control Box

R-H012.1103EN

4-6 Test and Adjustment

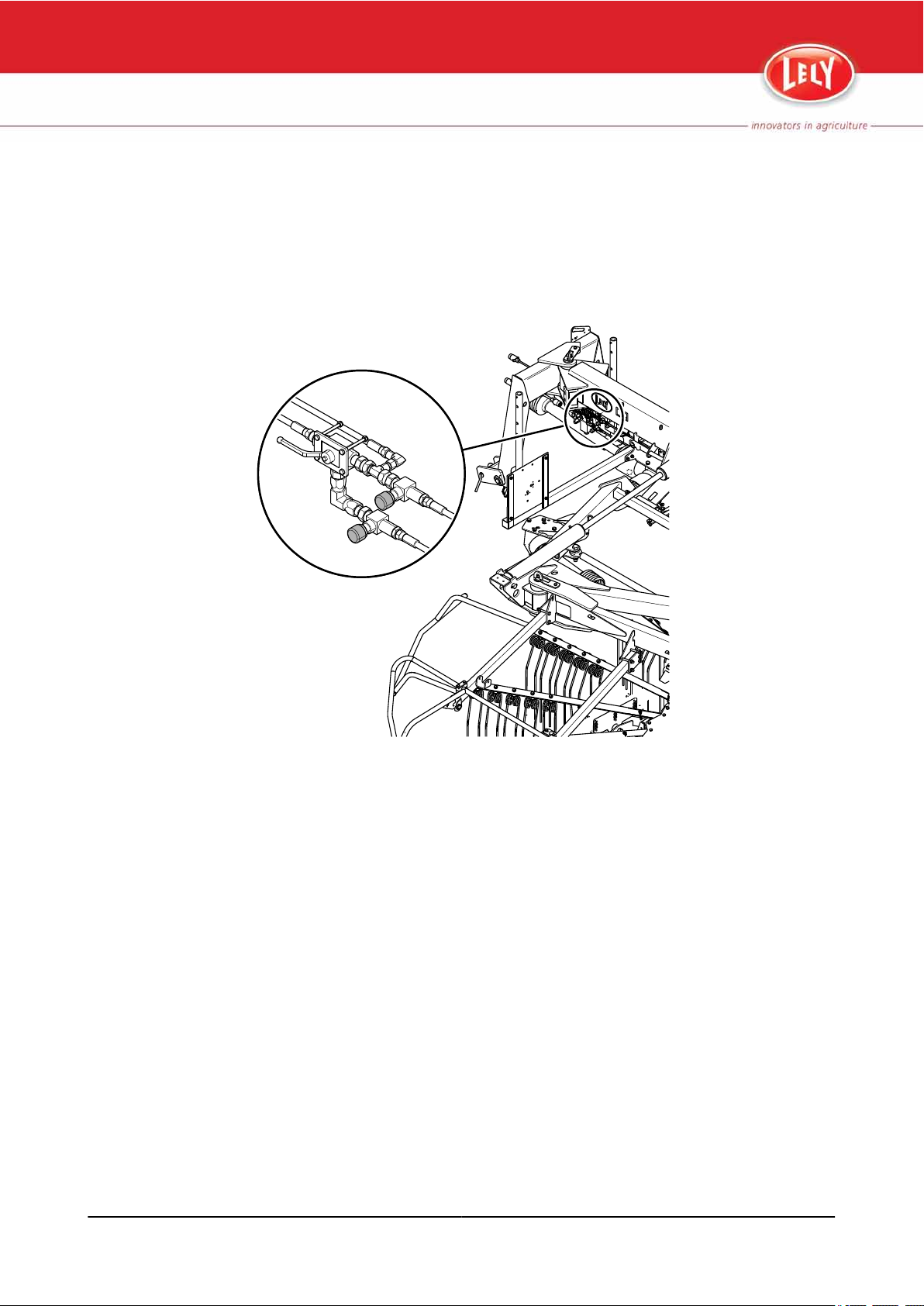

4.6 Adjust the Descending Speed

1. Turn the blue knobs on the throttle valves clockwise to decrease the
descending speed.

2. Turn

the blue knobs on the throttle valves counterclockwise to increase

the descending speed.

R-H012.1103EN

Figure 19. Adjust the Descending Speed

Test and Adjustment 4-7

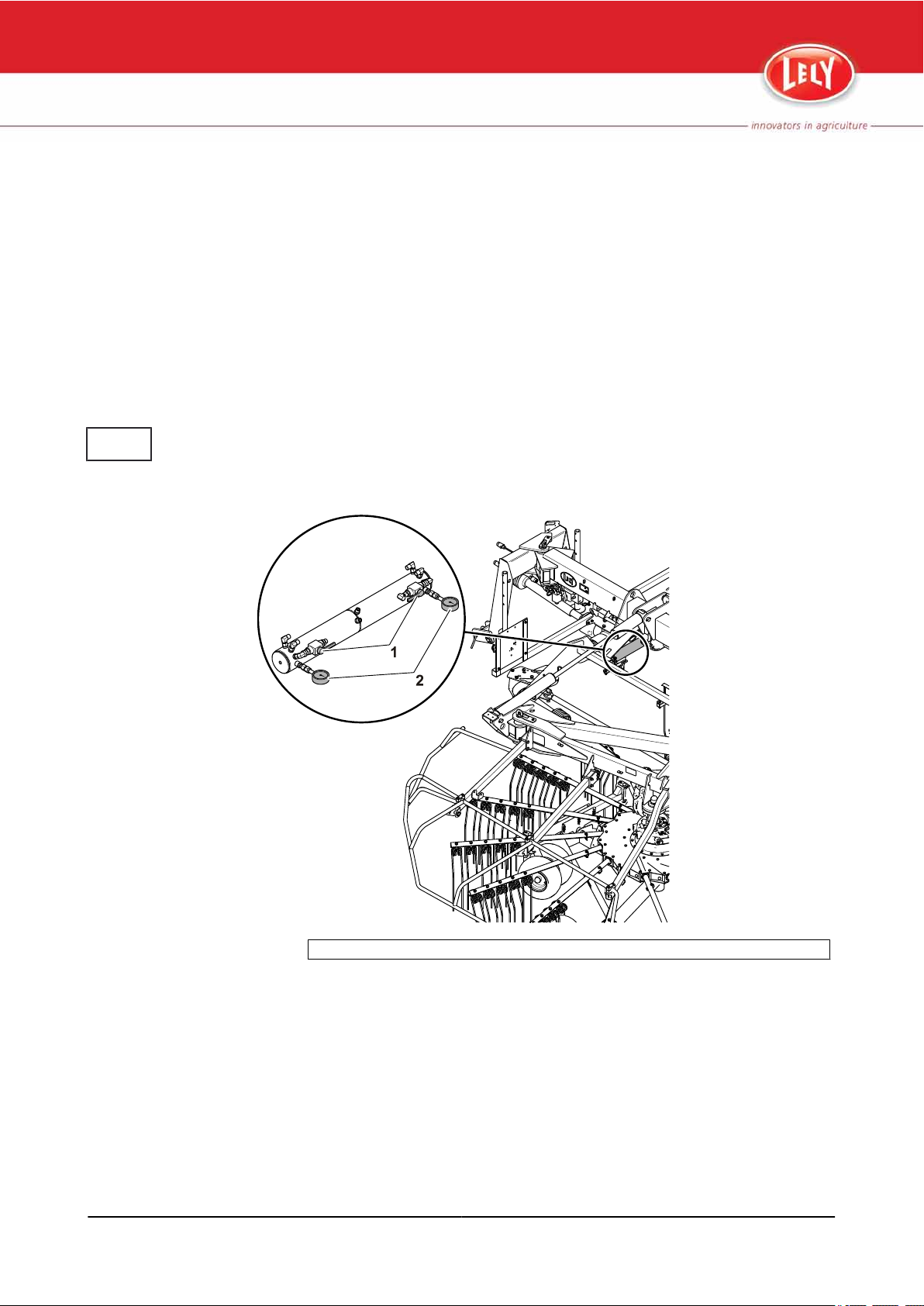

4.7 Adjust the Ground Pressure

1. Move the Hibiscus to the working position (page 3-6).

Set the tractor single-acting hydraulic system to the floating position.

2.

3. Turn the ball valves (1) on the buffer ram clockwise to open the hydraulic
system.

4. If an electrically controlled hydraulic system is installed:

• On the control box, set the switch to the center position.

5. Operate the tractor double-acting hydraulic system until the pressure
gauges (2) show the correct pressure.

Note:

On flat ground a pressure of 50 bar (5.0 MPa) is correct.

6. Turn the ball valves (1) on the buffer ram counterclockwise to close the
hydraulic system.

R-H012.1103EN

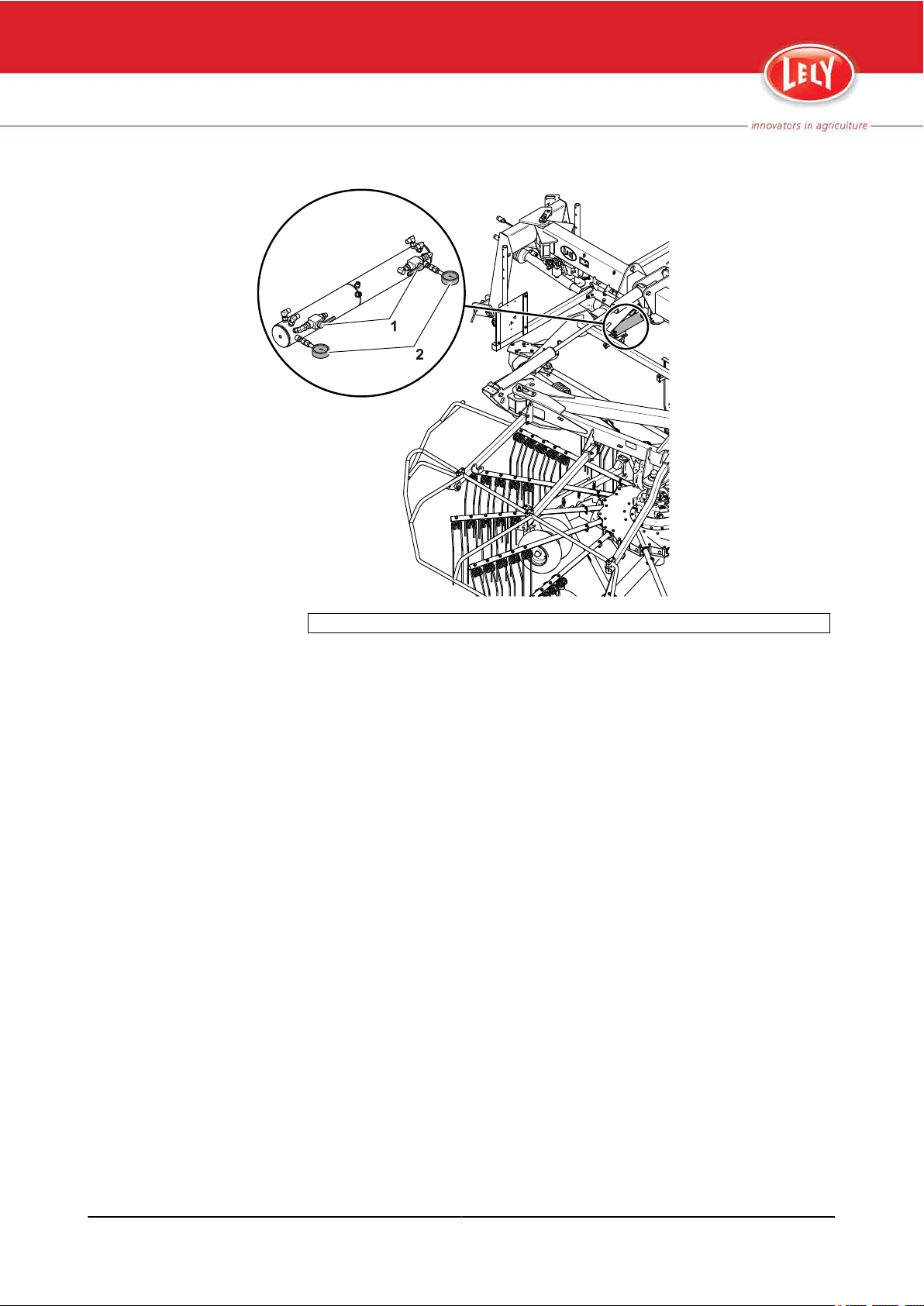

1. Ball valve - 2. Gauge

Figure 20. Hydraulic Buffer ram

4-8 Test and Adjustment

5. MAINTENANCE

5.1 Scheduled Maintenance

5.1.1 Maintenance After Operation

• Clean the Hibiscus.

Make sure the tines and tine arms are tight and not damaged.

•

• Grease the Hibiscus with an anti-corrosion agent.

5.1.2 Maintenance Every 10 Working Hours

• Grease the gearbox.

5.1.3 Maintenance After the First 30 Working Hours

After the Hibiscus is used for the first time, or if a new gearbox or drive element
is installed:

Replace the gearbox oil (page 5-7).

•

5.1.4 Maintenance Every 50 Working Hours

• Grease the pivot frame (page 5-3).

•

Grease the support frame (page 5-5).

• Grease the swath width support (page 5-5).

R-H012.1103EN

• Grease the steering device (page 5-6).

• Grease the Octosense wheel assembly (page 5-9).

• Grease the rear wheel assembly (page 5-9).

5.1.5 Maintenance Every 100 Working Hours

• Make sure the PTO shafts telescope smoothly.

• Grease the PTO shaft (page 5-7).

• Grease the rotor gearbox.

5.1.6 Maintenance Before Prolonged Storage

• Grease the Hibiscus with an anti-corrosion agent.

• Grease the piston rods with an anti-corrosion agent.

• Grease the gearbox.

• Grease the pivot frame (page 5-3).

• Grease the support frame (page 5-5).

• Grease the swath width support (page 5-5).

• Grease the steering device (page 5-6).

• Grease the Octosense wheel assembly (page 5-9).

• Grease the rear wheel assembly (page 5-9).

• Make sure the PTO shafts telescope smoothly.

Maintenance 5-1

• Grease the PTO shaft (page 5-7).

Grease the rotor gearbox.

•

• Grease the bearing of the transport wheel axle

• Examine the Hibiscus for damage and defects. Repair or replace damaged

parts.

• Examine the hydraulic system for leaks and damaged parts. Repair or

replace damaged parts.

• Examine the gearboxes for leaks.

• Make sure all bolts and nuts are torque-tight (page 6-3).

• Torque tighten the nuts of the transport wheels to 270 Nm (27 kgm).

• Make sure all safety decals are not damaged. Replace if necessary (page

2-3).

5.1.7 Maintenance After Prolonged Storage

• Remove the anti-corrosion agent from the piston rods.

Grease the gearbox.

•

• Grease the pivot frame (page 5-3).

• Grease the support frame (page 5-5).

• Grease the swath width support (page 5-5).

• Grease the steering device (page 5-6).

• Grease the Octosense wheel assembly (page 5-9).

• Grease the rear wheel assembly (page 5-9).

• Make sure the PTO shafts telescope smoothly.

• Grease the PTO shaft (page 5-7).

• Grease the rotor gearbox.

• Grease the bearing of the transport wheel axle

• Examine the Hibiscus for damage and defects. Repair or replace damaged

parts.

• Examine the hydraulic system for leaks and damaged parts. Repair or

replace damaged parts.

• Examine the gearboxes for leaks.

• Make sure all bolts and nuts are torque-tight (page 6-3).

• Torque tighten the nuts of the transport wheels to 270 Nm (27 kgm).

• Make sure all safety decals are not damaged. Replace if necessary (page

2-3).

R-H012.1103EN

5-2 Maintenance

5.2 Preventive Maintenance

5.2.1 Grease the Rotor Gearbox

• Requirements:

Grease pump.

•

• Biodegradable grease (Total Biomultis SEP2 or equivalent).

1. Manually turn the rotor in small increments and use the grease pump to
grease the gearbox.

R-H012.1103EN

5.2.2 Grease the Pivot Frame

Figure 21. Grease the Rotor Gearbox

• Requirements:

• Grease pump

• Biodegradable grease (Total Biomultis SEP2 or equivalent)

1. Use the grease pump to grease the pivot frame.

Maintenance 5-3

Figure 22. Grease the Pivot Frame

R-H012.1103EN

Figure 23. Grease the Hydraulic Rams of the Pivot Frame

5-4 Maintenance

5.2.3 Grease the Support Frame

• Requirements:

Grease pump

•

• Biodegradable grease (Total Biomultis SEP2 or equivalent)

1. Use the grease pump to grease the support frame.

R-H012.1103EN

Figure 24. Grease the Support Frame

5.2.4 Grease the Swath Width Support

• Requirements:

•

Grease pump

• Biodegradable grease (Total Biomultis SEP2 or equivalent)

1. Use the grease pump to grease the swath width support.

Maintenance 5-5

5.2.5 Grease the Steering Device

• Requirements:

Grease pump.

•

• Biodegradable grease (Total Biomultis SEP2 or equivalent).

1. Use the grease pump to grease the steering device.

Figure 25. Grease the Steering Device

R-H012.1103EN

5-6 Maintenance

5.2.6 Grease the PTO shaft

• Requirements:

•

• Biodegradable grease (Total Biomultis SEP2 or equivalent)

1. Use the grease pump to grease the PTO shaft.

2. Grease the profiled tubes of the PTO shaft.

Figure 26. Grease Points PTO Shaft

Grease pump

5.2.7 Replace the Gearbox Oil

R-H012.1103EN

CAUTION

• Requirements:

•

Collection container (minimum capacity: 3,5 liters)

• GX85-W140 transmission oil or equivalent

An incorrect quantity of oil will cause overheating and permanent damage to
the gearbox.

1. Clean the area around the drain plug.

2. Put the collection container underneath gearbox A.

3. Remove the fill plug from gearbox A.

4. Remove the drain plug from gearbox A and allow the oil to flow into the
collection container.

5. When all the oil is out of the gearbox, install the drain plug in gearbox
A.

6. Fill gearbox A with 2.3 l of GX85-W140 transmission oil or equivalent.

7. Install the fill plug in gearbox A.

8. Put the collection container underneath gearbox B.

9. Remove the fill plug from gearbox B.

10. Remove the drain plug from gearbox B and allow the oil to flow into the
collection container.

11. When all the oil is out of the gearbox, install the drain plug in gearbox
B.

12. Fill gearbox B with 1.9 l of GX85-W140 transmission oil or equivalent.

Maintenance 5-7

13. Install the fill plug in gearbox B.

Remove the collection container from the area and dispose of the

14.
drained oil as specified by local regulations.

Figure 27. Replace the Gearbox Oil

R-H012.1103EN

5-8 Maintenance

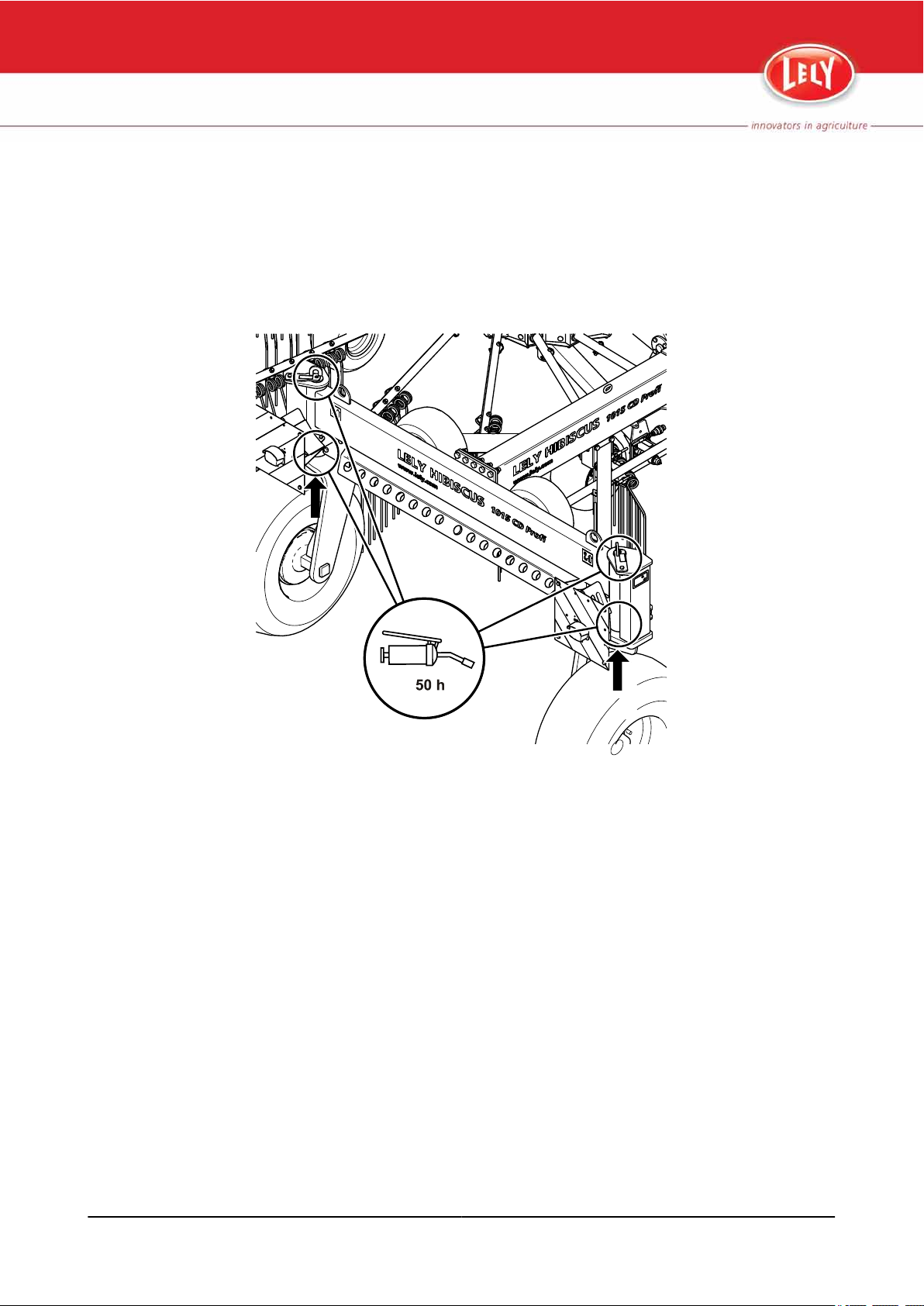

5.2.8 Grease the Rear Wheel Assembly

• Requirements:

Grease pump

•

• Biodegradable grease (Total Biomultis SEP2 or equivalent)

1. Use the grease pump to grease the rear wheel assembly.

R-H012.1103EN

Figure 28. Grease the Rear Wheel Assembly

5.2.9 Grease the Bearing of the Transport Wheel Axle

• Requirements:

Grease pump

•

• Biodegradable grease (Total Biomultis SEP2 or equivalent)

1. Remove the caps from the wheel hubs.

2. Use the grease pump to grease the bearing of the transport wheel axle.

5.2.10 Grease the Octosense Wheel Assembly

• Requirements:

• Grease pump

• Biodegradable grease (Total Biomultis SEP2 or equivalent)

1. Use the grease pump to grease the Octosense wheel assembly.

Maintenance 5-9

5.2.11 Torque-tighten the Nuts of the Rotor

1. Remove the cap from the catellated nut (fig. 29, page 5-10).

Loosen the castellated nut of the rotor.

2.

3. Put Loctite 243 on the thread of the threaded end.

4. Torque-tighten the nut to 400 Nm (40 Kgm).

5. Tighten all the bolts of the rotor segments (fig. 30, page 5-11). See
Bolt and Nut Torque Table (page 6-3) for the torque load of the bolts.

Figure 29. Torque-tighten the Castellated Nut of the Rotor

R-H012.1103EN

5-10 Maintenance

R-H012.1103EN

Figure 30. Tighten the Bolts of the Rotor Segments

Maintenance 5-11

5.3 Corrective Maintenance

5.3.1 Drain and Refill the Hydraulic System

1. Set the tractor double-acting and single-acting hydraulic valves to the
floating position.

If an electrically controlled hydraulic system is installed:

2.

• On the control panel, set the switch to the center position.

3. Turn the ball valves (1) on the buffer ram clockwise to open the hydraulic
system.

4. Examine the pressure gauges (2) and make sure the pressure
decreases to 0 bar.

5. Replace any damaged parts on the hydraulic system.

6. Set the tractor single-acting hydraulic system to the floating position.

7. If an electrically controlled hydraulic system is installed:

1. On the control panel, set the switch to the center position.

2. On the control panel, press the button.

8. If a mechanically controlled hydraulic system is installed:

1. Pull the operating cord to release the locking hooks on the

hydraulic ram.

CAUTION

Do not operate the tractor single-acting valve.

9. Move the Hibiscus approximately 10 times from the transport position
(page 3-3) to the working position (page 3-6).

10. Make sure the hydraulic system has no air.

11. Adjust the ground pressure to the applicable pressure (page 4-8).

R-H012.1103EN

5-12 Maintenance

R-H012.1103EN

1. Ball valve - 2. Gauge

Figure 31. Hydraulic Buffer ram

Maintenance 5-13

R-H012.1103EN

5-14 Maintenance

6. DIAGRAMS AND TABLES

6.1 Lely Hibiscus 1015 CD Profi Hydraulic Schematic

R-H012.1103EN

1. Combined ram - 1a. Single acting (unfolding) - 1b. Double acting (working width) - 2.

Breather

controlled return valve - 8. Accumulator - 9. Pressure gauge - 10. Buffer ram (combined) - 11.

Adjustable flow valve (one way) - 12. Combined ram - 12a. Double acting (unfolding) - 12b.

Single acting (headland position) - 13. Three-way valve

Figure 32. Mechanically Controlled Hydraulic Schematic

- 3. Rotating valve (3/2) - 4. Sequenze valve - 5. Distributor - 6. Ball valve - 7. Double

Diagrams and Tables 6-1

6.2 Lely Hibiscus 1015 CD Profi Electrically Controlled Hydraulic Schematic

1. Combined ram - 1a. Single acting (unfolding) - 1b. Double acting (working width) - 2.

Breather - 3. Double-acting ram (height adjustment) - 4. Double-controlled return valve - 5.

Electric valve (8/3) - 6. Sequence valve - 7. Distributor - 8. Rotating valve (3/2) - 9. Electric

(6/2) - 10. Accumulator - 11. Pressure gauge - 12. Ball valve - 13. Combined buffer ram

valve

- 14. Adjustable flow valve (one way) - 15. Combined ram - 15a. Double acting (unfolding) -

15b. Single acting (headland position)

Figure 33. Electrically Controlled Hydraulic Schematic

R-H012.1103EN

6-2 Diagrams and Tables

6.3 Tyre Pressure Diagram

Figure 34. Tyre Pressure

R-H012.1103EN

6.4 Bolt and Nut Torque Table

The following table specifies the standard torque load for all quality 8.8 bolts
in combination with quality 8 nuts on the Hibiscus.

Always

Nm 10 25 50 85 135 215 410 710

kgm 1.0 2.5 5.0 8.5 13.5 21.5 41.0 71.0

use a calibrated torque wrench when you torque-tighten bolts and nuts.

M6 M8 M10 M12 M14 M16 M20 M24

Diagrams and Tables 6-3

R-H012.1103EN

6-4 Diagrams and Tables

7. TROUBLESHOOTING

Crop is scattered behind the Hibiscus:

Reduce the PTO speed.

•

The overload clutch of the PTO shaft engages:

• Reduce your drive speed.

R-H012.1103EN

Troubleshooting 7-1

R-H012.1103EN

7-2 Troubleshooting

8. SPECIFICATIONS

8.1 Hibiscus 1015 CD Specifications

Working width 9.20 - 10.20 m

Transport width 3.0 m

Transport height 3.85 or 4.80 m

Transport length 6.8 m

Rotor diameter (incl. tine arms) 4.5

Number of tine arms 2 x 15

Number of tines 5 double tines

Swath width 1.50 - 2.50 m

Linkage Category II or III

Hydraulic connections 2 single-acting valves with floating position

1 double-acting valve

Max. oil pressure 21.0 MPa (210 bar)

PTO speed 450 - 500 rpm. Max. 1000 rpm

Security 2 x K33B slip clutch

Operating speed Max. 10 km/h

Transport speed Max. 40 km/h

Tyre size transport wheels 15.0/70-18 12 ply

R-H012.1103EN

Tyre size rotor wheels 16/6.5-8 6 ply

18.5/8.5-8.6 ply

Power requirement 74 kW (100 hp)

Approximate weight 4810 kg

Note:

Specifications 8-1

All specifications may be changed without prior notice.

8.2 Hibiscus 1015 CD Profi + Specifications

Working width 9.20 - 10.20 m

Transport width 3.0 m

Transport height 3.85 or 4.80 m

Transport length 6.8 m

Rotor diameter (incl. tine arms) 4.5

Number of tine arms 2 x 15

Number of tines 5 double tines

Swath width 1.50 - 2.50 m

Linkage Category II or III

Hydraulic connections 2 single-acting valves with floating position

1 double-acting valve

Max. oil pressure 21.0 MPa (210 bar)

Electric connection 1 x 12 V

PTO speed 450 - 500 rpm. Max. 1000 rpm

Security 2 x K33B slip clutch

Operating speed Max. 10 km/h

Transport speed Max. 40 km/h

Tyre size transport wheels 15.0/70-18 12 ply

Tyre size rotor wheels 16/6.5-8 6 ply

18.5/8.5-8.6 ply

Power requirement 74 kW (100 hp)

Approximate weight 4810 kg

R-H012.1103EN

Note:

8-2 Specifications

All specifications may be changed without prior notice.

INTENTIONALLY BLANK

R-H012.1103EN

LELY INDUSTRIES NV

Weverskade 110
NL-3147 PA Maassluis
Tel +31 (0)10 - 59 96 333
Fax +31 (0)10 - 59 96 444
www.lely.com

Live Life Lely

R-H012.1103EN
