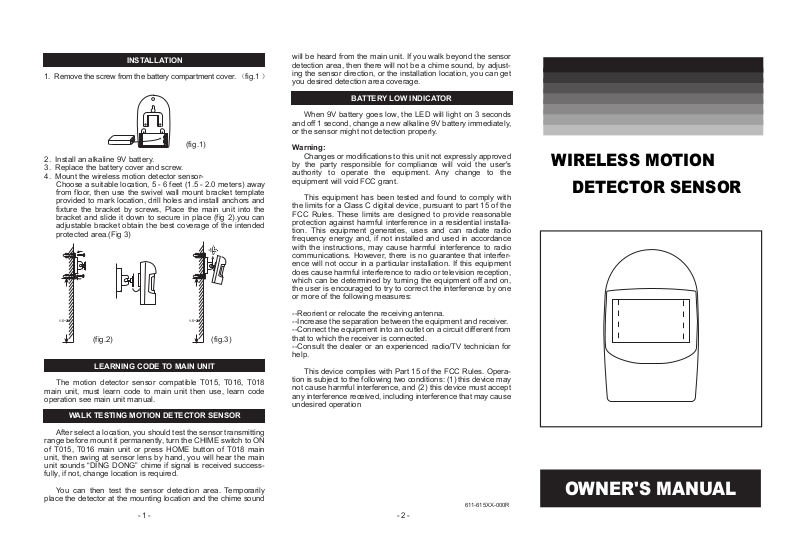

INSTALLATION
1. Remove the screw from the battery compartment cover. （fig.1 ）
(fig.1)
2. Install an alkaline 9V battery.
3. Replace the battery cover and screw.
4. Mount the wireless motion detector sensorChoose a suitable location, 5 - 6 feet (1.5 - 2.0 meters) away
from floor, then use the swivel wall mount bracket template
provided to mark location, drill holes and install anchors and
fixture the bracket by screws, Place the main unit into the
bracket and slide it down to secure in place (fig 2).you can
adjustable bracket obtain the best coverage of the intended
protected area.(Fig 3)
1.5~2M 1.5~2M
(fig.2)
LEARNING CODE TO MAIN UNIT
The motion detector sensor compatible T015, T016, T018
main unit, must learn code to main unit then use, learn code
operation see main unit manual.
WALK TESTING MOTION DETECTOR SENSOR
After select a location, you should test the sensor transmitting
range before mount it permanently, turn the CHIME switch to ON
of T015, T016 main unit or press HOME button of T018 main
unit, then swing at sensor lens by hand, you will hear the main
unit sounds “DING DONG” chime if signal is received successfully, if not, change location is required.
You can then test the sensor detection area. Temporarily
place the detector at the mounting location and the chime sound
(fig.3)
will be heard from the main unit. If you walk beyond the sensor
detection area, then there will not be a chime sound, by adjusting the sensor direction, or the installation location, you can get
you desired detection area coverage.
BATTERY LOW INDICATOR
When 9V battery goes low, the LED will light on 3 seconds
and off 1 second, change a new alkaline 9V battery immediately,
or the sensor might not detection properly.
Warning:
Changes or modifications to this unit not expressly approved
by the party responsible for compliance will void the user's
authority to operate the equipment. Any change to the
equipment will void FCC grant.
This equipment has been tested and found to comply with
the limits for a Class C digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation
611-615XX-000R
- 2 - - 1 -
WIRELESS MOTION
DETECTOR SENSOR
OWNER'S MANUAL
