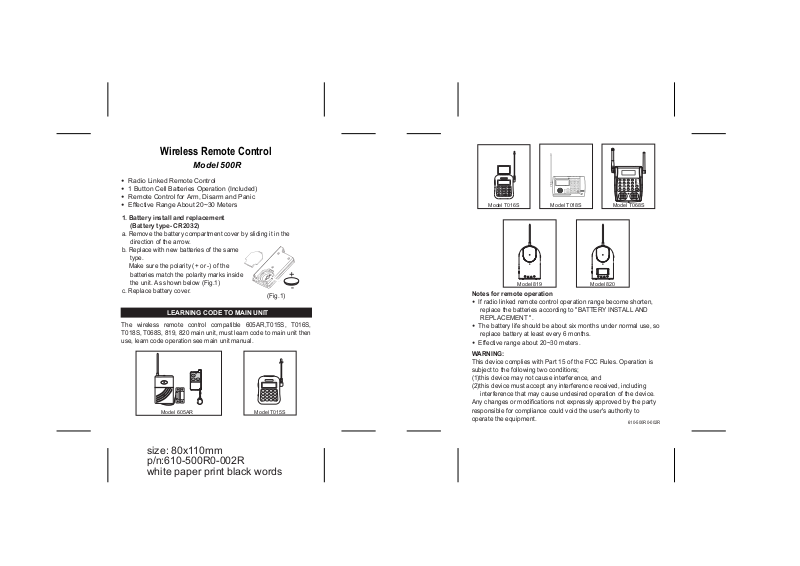

Lelux Electronics 500R Users Manual
Wireless Remote Control
Model 500R
• Radio Linked Remote Control
• 1 Button Cell Batteries Operation (Included)
• Remote Control for Arm, Disarm and Panic
• Effective Range About 20~30 Meters
1. Battery install and replacement
(Battery type- CR2032
a. Remove the battery compartment cover by sliding it in the
direction of the arrow.
b. Replace with new batteries of the same
type.
Make sure the polarity (+ or -) of the
batteries match the polarity marks inside
the unit. As shown below (Fig.1)
c. Replace battery cover.
LEARNING CODE TO MAIN UNIT
The wireless remote control compatible 605AR,T015S, T016S,
T018S, T068S, 819, 820 main unit, must learn code to main unit then
use, learn code operation see main unit manual.
Model 605AR
)
(Fig.1)
PANIC
ARM
DISARM
Model T015S
ARM/
REC.
1 2 3
DISARM
PSTN
GSM
HOME
4 5 6
AC.POWER
REC./
DEL./
PLAY
7 8 9
PROGPROG
11
22
33
PAUSEPAUSE
44
66
55
ARM/ARM/
77
88
99
DISARMDISARM
/DOWN/DOWN
*/ UP*/ UP
PANICPANIC
00
Model T016S
Model T018S
PAUSE
PROG
PANIC
0
Model T068S
Model 819 Model 820
Notes for remote operation
• If radio linked remote control operation range become shorten,
replace the batteries according to "BATTERY INSTALL AND
REPLACEMENT ".
• The battery life should be about six months under normal use, so
replace battery at least every 6 months.
• Effective range about 20~30 meters.
WARNING:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions;
(1)this device may not cause interference, and
(2)this device must accept any interference received, including
interference that may cause undesired operation of the device.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
610-500R0-002R
size: 80x110mm
p/n:610-500R0-002R
white paper print black words
