ASSEMBLY / INSTALLATION INSTRUCTIONS:
PART NUMBER:
00-KC339-1374
TOOLS REQUIRED
• 5mm allen wrench
• 10mm wrench
▼KC 339 LIGHT BRACKET hardware ▼
INSTALLATION TIME
10-15 minutes
Basic knowledge of hand tools required
SKILL LEVEL
1
2 4
3
1= easy

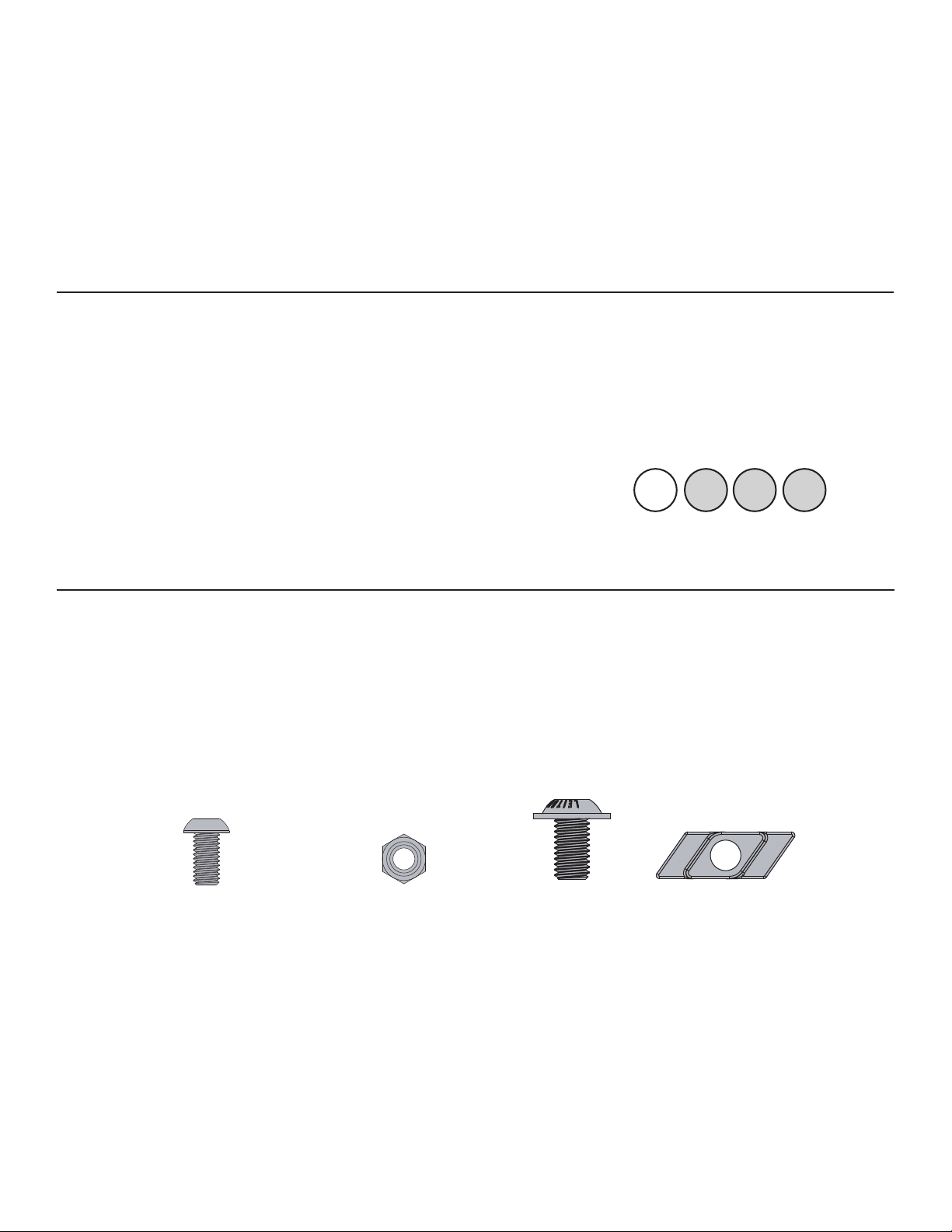

1372-M6 X 12 Stainless bhcs
(x12]
LEITNERDESIGNS.COM | [email protected] | 949-395-3049
1373-M6 Stainless locknut
(x12]
1281-M8 X 14
(x6)
1331-traklok nut
(x6)
V1 | Page 2
Page 3

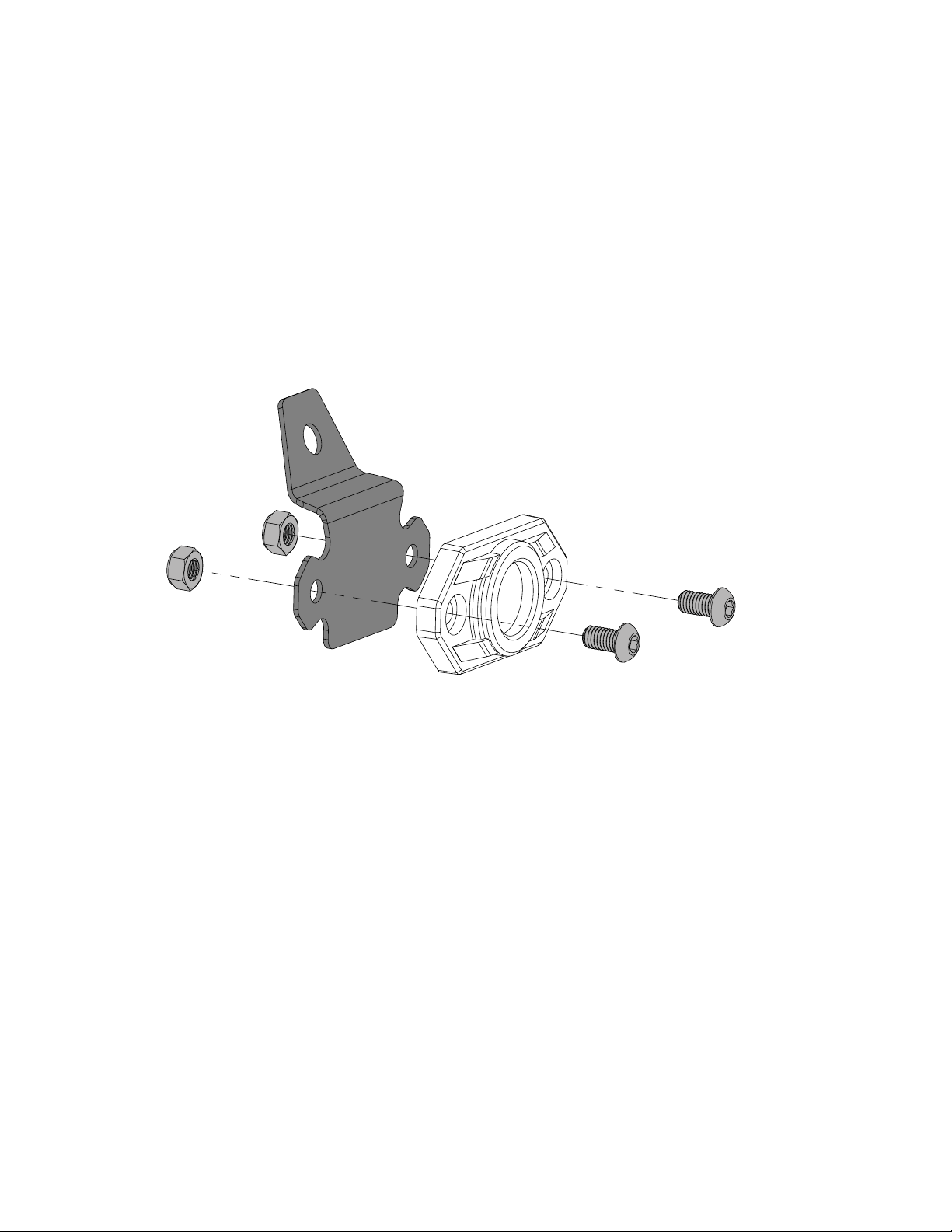

ATTACH: LIGHT TO BRACKET
• INSTALL KC 339 LIGHT TO BRACKET AS SHOWN USING SUPPLIED HARDWARE.
V1 | Page 3
Page 4

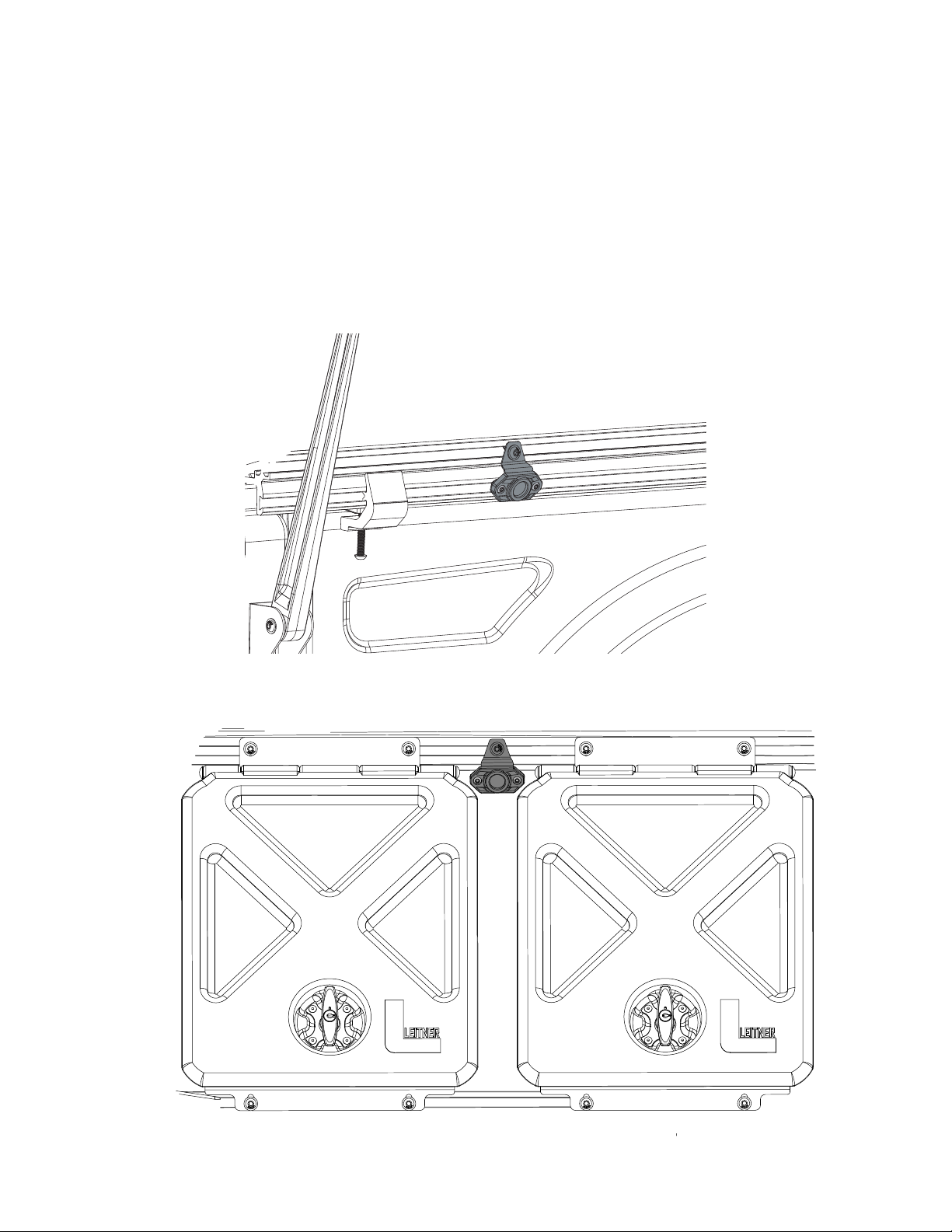

attach: light bracket assembly to ACS
• using the m8 x 14 and traklok nut you can attach the light bracket anywhere on the rack t-slots.
• popular locations are on the inside lower rail t-slot to be used for bed lighting {Fig A}
• or on the upper long bar between accessories for area lighting {Fig B}
fig a
fig b
V1 | Page 4
V1 | Page 4
Page 5
use guidelines
When using Leitner Designs carriers and accessories, the user must understand the precautions.
The points listed below will assist you in using the rack system and will encourage safety.
•For quality fits and safety, use only the recommended rack or accessories. Do not assume a rack
will fit, always check the current Fit Guide when obtaining a new vehicle.
•The maximum load is not to be exceeded. (250# off road – 500# on road). However, this limit is
always subordinate to the maximum load recommended by the manufacturer of the vehicle itself.
It is always the lower maximum recommended load that applies. Max truck load = load carrier
weight + any fitted carrier accessories + the weight of the load itself.
•high speed off road driving even with a light load can cause damage to the rack, accessories
and vehicle body. Damage caused by high speed driving and abuse is not covered under
warranty.
•Make sure all knobs, bolts, screws, straps, and locks are firmly attached, tightened and locked
before every trip. Knobs, bolts, screws, straps and locks must be periodically inspected for signs
of wear, corrosion, and fatigue. Check your load at stops during the trip to ensure continued
fastening security.
•Check local and state laws governing projection of objects beyond the perimeter of a vehicle.
Be aware of the width and height of your cargo since low clearance branches, bridges, and
parking garages can affect the load. All cargo will affect the vehicle’s driving behavior. Never
drive with any lock, knob or rack in an open or unlocked position. All long loads such as, but
not limited to, sailboards, surfboards, kayaks, canoes, and lumber must be tied down front and
rear to the bumpers or tow hooks of the vehicle.
•All locks must be turned and moved periodically to ensure smooth operation. Use graphite or
dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but
should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an
extended period. Place at least one key in the glove compartment.
•For safety to your vehicle and rack system, obey all posted speed limits and traffic cautions.
Adapt your speed to the conditions of the road and the load being carried.
•Do not use Leitner Designs load carriers and accessories for purposes other than those
for which they were designed. Do not exceed their carrying capacity. Failure to follow these
guidelines or the product’s instructions will void the warranty.
V1 | Page 5
Page 6
Warranty
Leitner Designs warrants product to be free from defects in material and workmanship, for
terms specified below, provided there has been normal use and proper maintenance. All remedies
under this warranty are limited to the repair or replacement of any item found by the factory to
be defective within the time period specified. If you have a warranty claim, first you must call our
factory at the number below for instructions. You must retain proof of purchase and submit
a copy with any items returned for warranty work. Upon completion of warranty work, if any,
we will return the repaired or replaced item or items to you freight prepaid. Damage to our
products caused by accidents, Fire, vandalism, negligence, mis-installation, misuse, Acts of God,
or by defective parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: (2) TWO YEARS FROM DATE OF PURCHASE.
high speed off road driving even with a light load can cause damage to the rack, accessories
and vehicle body. Damage caused by high speed off road driving and abuse is not covered
under warranty.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED
HEREBY ARE LIMITED IN DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS WRITTEN WARRANTY.
OUR COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights
that vary from state to state.
FOR WARRANTY ISSUES WITH THIS PRODUCT PLEASE CALL LEITNER DESIGNS CUSTOMER SERVICE 949-395-
3049 or email us at [email protected]
