LEI Technology Canada LEC 2580P User Manual
Embedded Computing Platform
1
LEC-2580P
Embedded Computing Platform
User Manual
Rev 1.1 Date: January 24th, 2017
Embedded Computing Platform
2
Revision
Date
Description
0.1
August 3, 2016
Preliminary
1.0
August 22, 2016
Official release
1.1
January 24, 2017
Added LTE module installation
Modified power input voltage
Modified operating temperature
Added PoE configuraiton description
Added warning statement in the installation
precaution
Added wall mounting section
Revision History
This document contains proprietary information of Lanner Electronics Inc. –and is not to be
disclosed or used except in accordance with applicable agreements.
Copyright © 2017. All Rights Reserved.
Copyright© 2017 Lanner Electronics Inc. All rights reserved. The information in this document is
proprietary and confidential to Lanner Electronics Inc. No part of this document may be
reproduced in any form or by any means or used to make any derivative work (such as
translation, transformation, or adaptation) without the express written consent of Lanner
Electronics Inc. Lanner Electronics Inc. reserves the right to revise this document and to make
changes in content from time to time without obligation on the part of Lanner Electronics Inc. to
provide notification of such revision or change.
The information in this document is furnished for informational use only, is subject to change
without notice, and should not be construed as a commitment by Lanner Electronics Inc. Lanner
Electronics Inc. assumes no responsibility or liability for any errors or inaccuracies that may
appear in this document or any software that may be provided in association with this document.
Embedded Computing Platform
3
Resource
Website
Lanner
www.lannerinc.com
Product Resources
www.lannerinc.com/support/download-center
RMA
http://eRMA.lannerinc.com
Online Resources
The listed websites are links to the on-line product information and technical support.
Acknowledgement
Intel®, Pentium and Celeron are registered trademarks of Intel® Corp.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Compliances and Certification
CE Certification
This product has passed the CE test for environmental specifications. Test conditions for passing included
the equipment being operated within an industrial enclosure. In order to protect the product from being
damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of
CE-compliant industrial enclosure products.
FCC Class A Certification
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
EMC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case users will be required
Embedded Computing Platform
4
to correct the interference at their own expense.
Safety Guidelines
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free before, during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and
roll up your sleeves.
Wear safety glasses/goggles if you are working under any conditions that might be hazardous to your
eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or
removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
LITHIUM BATTERY CAUTION:
Risk of explosion could occur if battery is replaced by an incorrect type. Please dispose of used batteries
according to the recycling instructions of your country.
Operating Safety
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool
equipment to acceptable operating temperatures without adequate circulation. Be sure that the
room in which you choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively.
An open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from
internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled and can result in complete or intermittent failures.
Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these
problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is
available, ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10
megohms (Mohms).
Installation only by a trained electrician or only by an electrically trained person who knows all the
applied or related installation and device specifications..
Do not carry the handle of power supplies when moving to other place.
Embedded Computing Platform
5
The machine can only be used in a fixed location such as labs or computer facilities.
Mounting Installation Environment Precaution
1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration
should be given to installing the equipment in an environment compatible with the maximum ambient
temperature (Tma) specified by the manufacturer.
2. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised.
3. Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition
is not achieved due to uneven mechanical loading.
4. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits might have on over-current protection and supply
wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this
concern.
5. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch circuit (e.g.
use of power strips).”
6. Warning: the unit must be installed indoors. The unit, AC power adapter, and its cables are not
designed for outdoor use.
Consignes de sécurité
Suivez ces consignes pour assurer la securite generale :
Laissez la zone du chassis propre et sans poussiere pendant et apres l’installation.
Ne portez pas de vetements amples ou de bijoux qui pourraient etre pris dans le chassis. Attachez
votre cravate ou echarpe et remontez vos manches.
Portez des lunettes de securite pour proteger vosmyeux.
N’effectuez aucune action qui pourrait creer un dangermpour d’autres ou rendre l’equipement
dangereux.
Coupez completement l’alimentation en eteignant l’alimentation et en debranchant le cordon
d’alimentation avant d’installer ou de retirer un chassis ou de travailler a proximite de sources
d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont presentes.
Ne considerez jamais que l’alimentation est coupee d’un circuit, verifiez toujours le circuit. Cet
appareil genere, utilise et emet une energie radiofrequence et, s’il n’est pas installe et utilise
conformement aux instructions des fournisseurs de composants sans fil, il risque de provoquer des
Embedded Computing Platform
6
interferences dans les communications radio.
Avertissement concernant la pile au lithium
Risque d’explosion si la pile est remplacee par une autre d’un mauvais type.
Jetez les piles usagees conformement aux instructions.
L’installation doit etre effectuee par un electricien forme ou une personne formee a l’electricite
connaissant toutes les specifications d’installation et d’appareil du produit.
Ne transportez pas l’unite en la tenant par le cable d’alimentation lorsque vous deplacez l’appareil.
La machine ne peut etre utilisee qu’a un lieu fixe comme en laboratoire, salle d’ordinateurs ou salle
de classe.
Sécurité de fonctionnement
L’equipement electrique genere de la chaleur. La temperature ambiante peut ne pas etre adequate
pour refroidir l’equipement a une temperature de fonctionnement acceptable sans circulation
adaptee. Verifiez que votre site propose une circulation d’air adequate.
Verifiez que le couvercle du chassis est bien fixe. La conception du chassis permet a l’air de
refroidissement de bien circuler. Un chassis ouvert laisse l’air s’echapper, ce qui peut interrompre et
rediriger le flux d’air frais destine aux composants internes.
Les decharges electrostatiques (ESD) peuvent endommager l’equipement et gener les circuits
electriques. Des degats d’ESD surviennent lorsque des composants electroniques sont mal manipules
et peuvent causer des pannes totales ou intermittentes. Suivez les procedures de prevention d’ESD
lors du retrait et du remplacement de composants.
- Portez un bracelet anti-ESD et veillez a ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps a la terre en touchant la partie metallique du chassis. Verifiez regulierement
la valeur de resistance du bracelet antistatique, qui doit etre comprise entre 1 et 10 megohms (Mohms).
Consignes de sécurité électrique
Avant d’allumer l’appareil, reliez le cable de mise a la terre de l’equipement a la terre.
Une bonne mise a la terre (connexion a la terre) est tres importante pour proteger l equipement
contre les effets nefastes du bruit externe et reduire les risques d’electrocution en cas de foudre.
Pour desinstaller l’equipement, debranchez le cable de mise a la terre apres avoir eteint l’appareil.
Un cable de mise a la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4
mm2 ou 10 AWG.
Procédure de mise à la terre pour source d’alimentation CC
• Desserrez la vis du terminal de mise a la terre.
• Branchez le cable de mise a la terre a la terre.
• L’appareil de protection pour la source d’alimentation
Embedded Computing Platform
7
CC doit fournir 30 A de courant. Cet appareil de protection doit etre branche a la source
d’alimentation avant l’alimentation CC.
Embedded Computing Platform
8
Table of Contents
Chapter 1: Introduction ...................................................................................................... 9
Specifications .............................................................................................................. 9
Ordering Information ................................................................................................ 10
Chapter 2: System Overview ..............................................................................................11

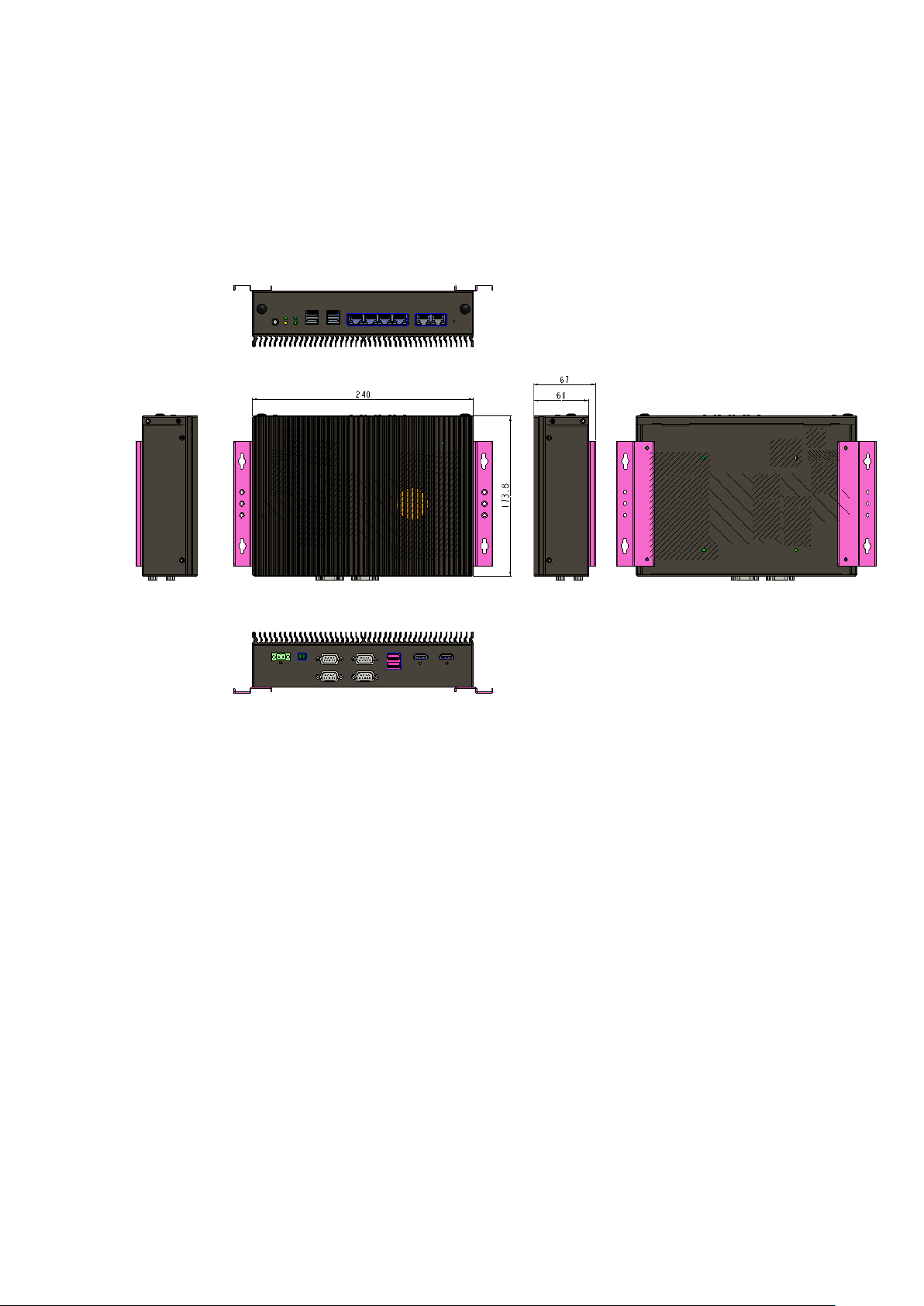

Mechanical Drawing ...................................................................................................11

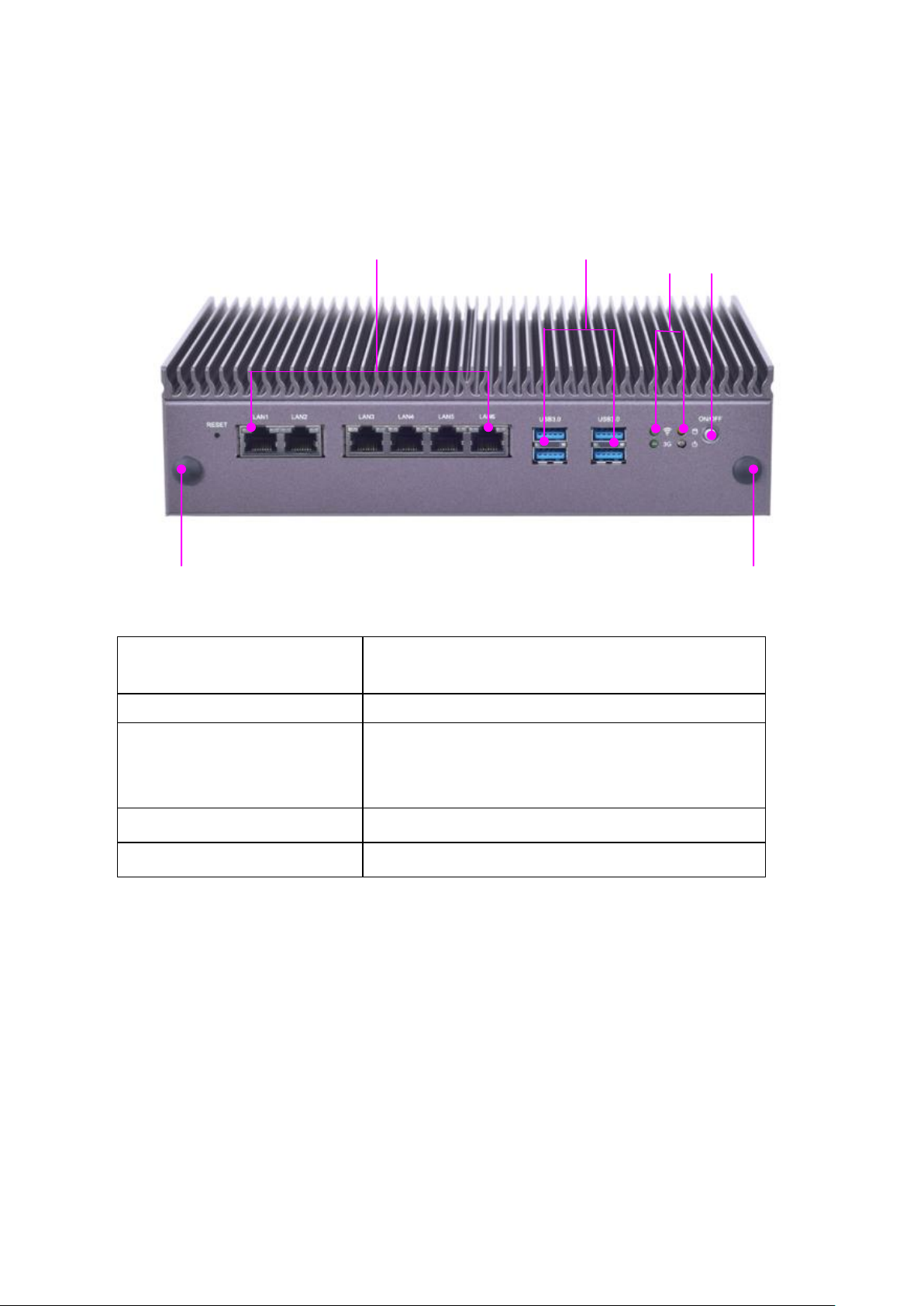

Front I/Os .................................................................................................................. 12

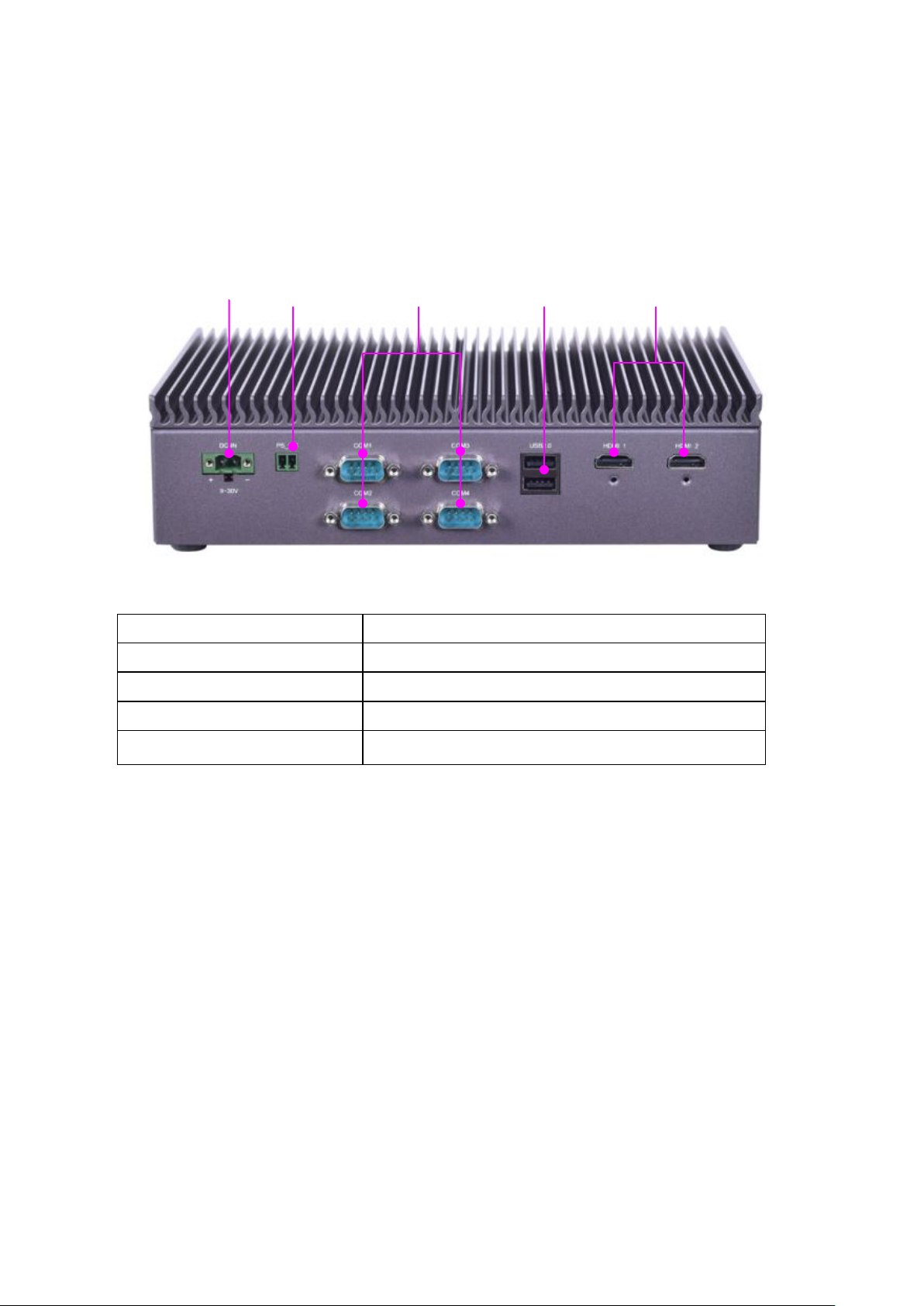

Rear I/Os .................................................................................................................... 13
Chapter 3: Board Layout ................................................................................................... 14

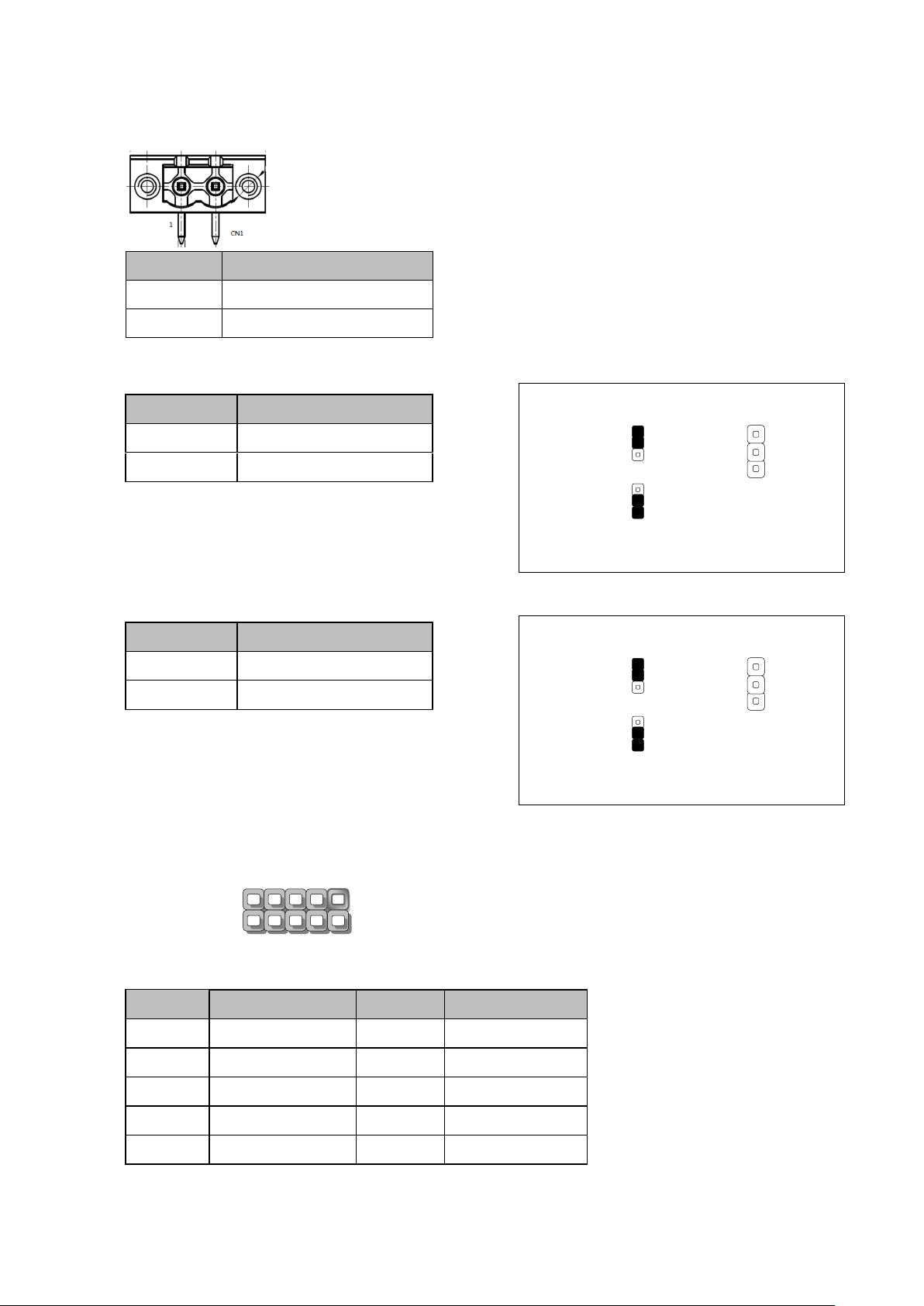

Jumper Settings & Connector Pinout (Motherboard) .............................................. 14

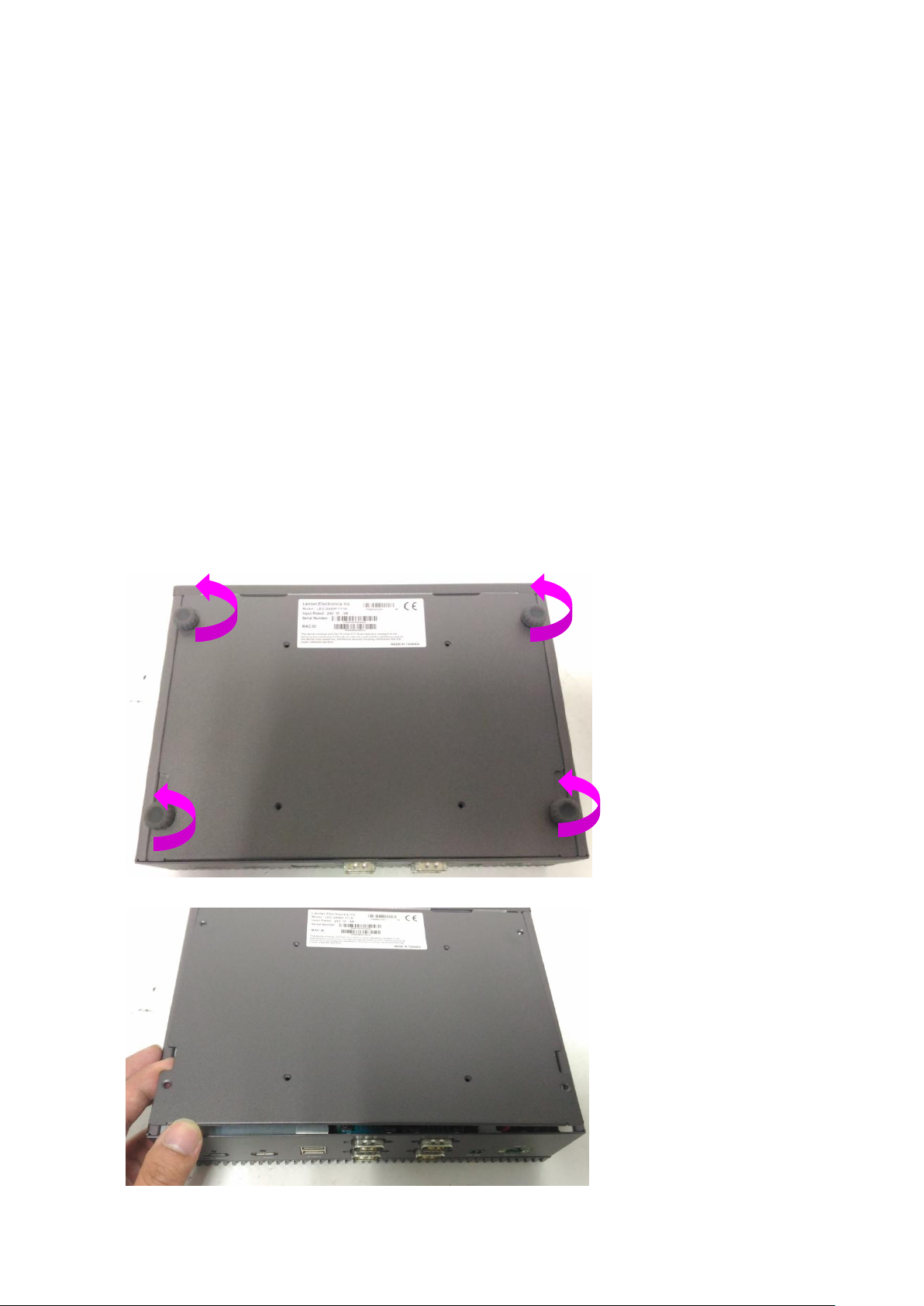

Chapter 4: Hardware Setup............................................................................................... 22

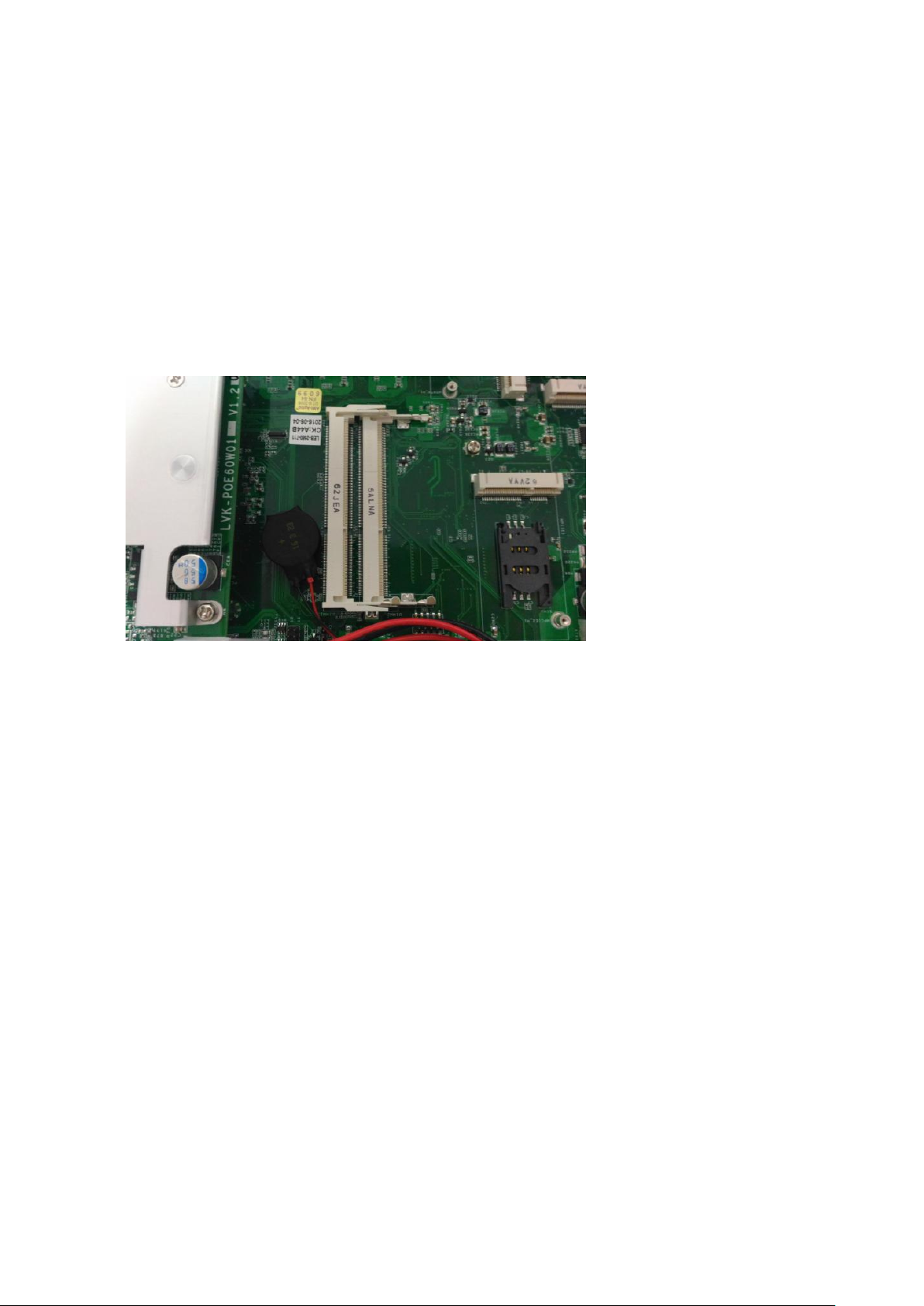

Installing SO-DIMM Memory .................................................................................... 23

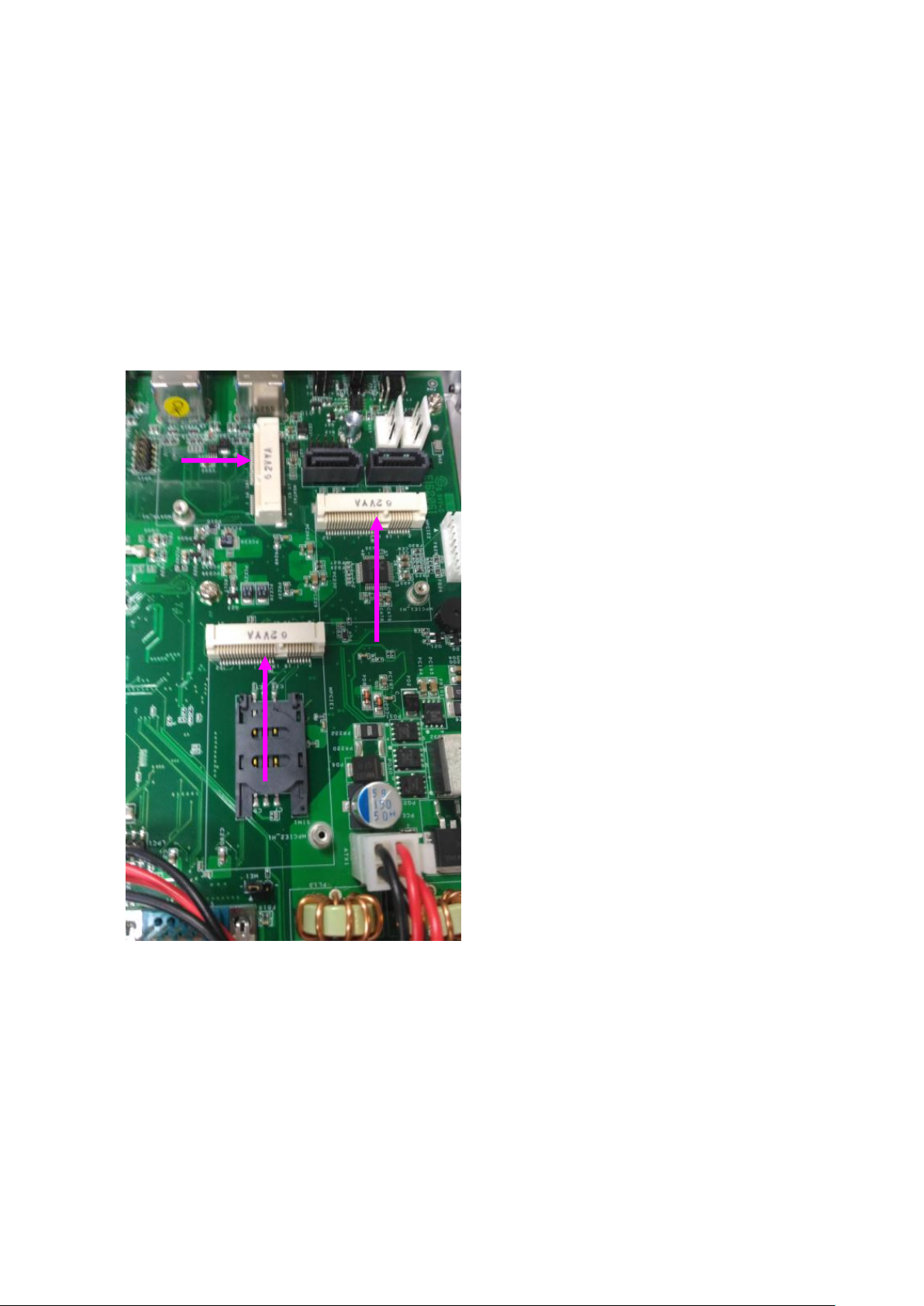

Installing mSATA and Mini-PCIe Module ................................................................... 24

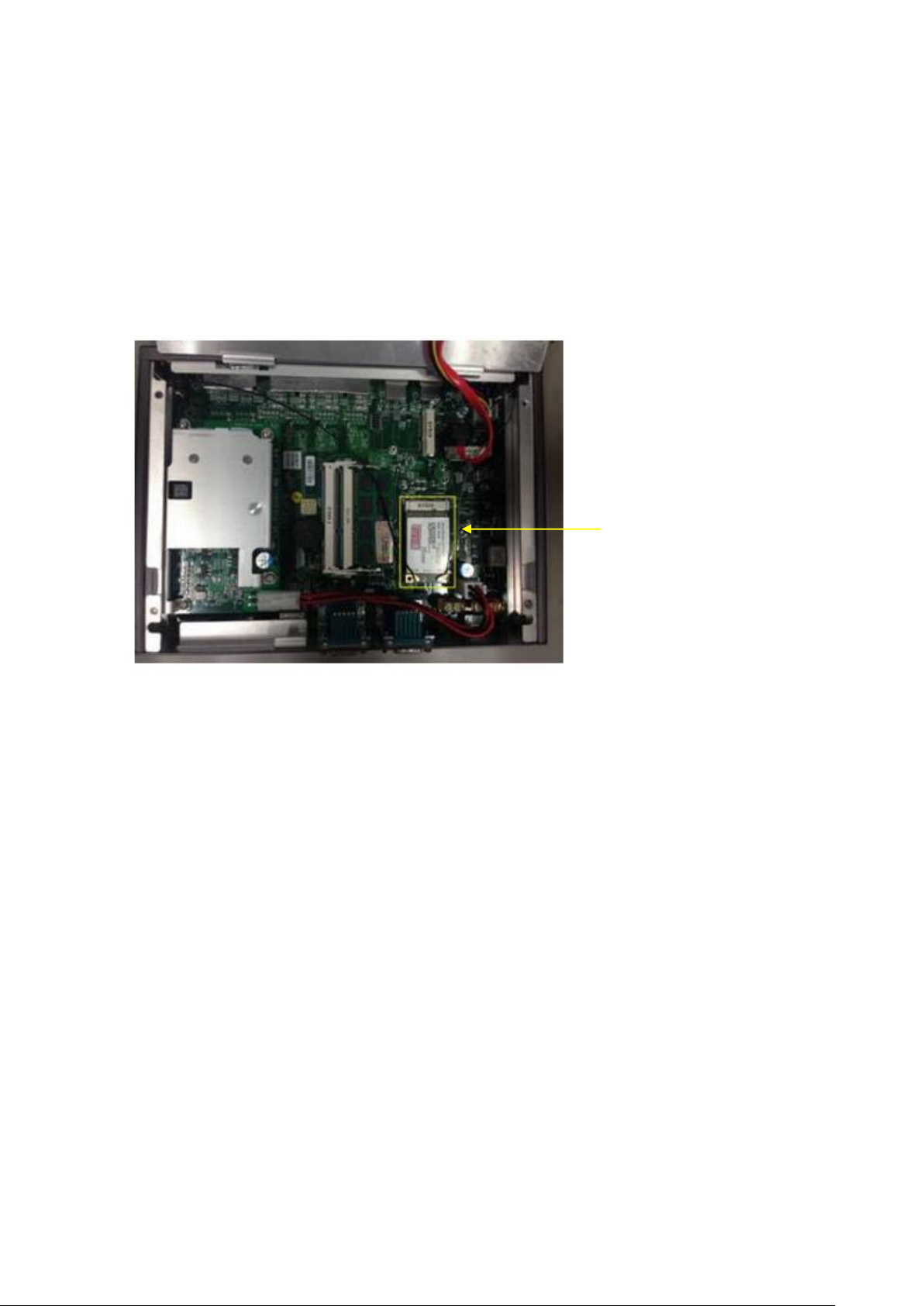

Installing LTE Wireless Network Module .................................................................. 25

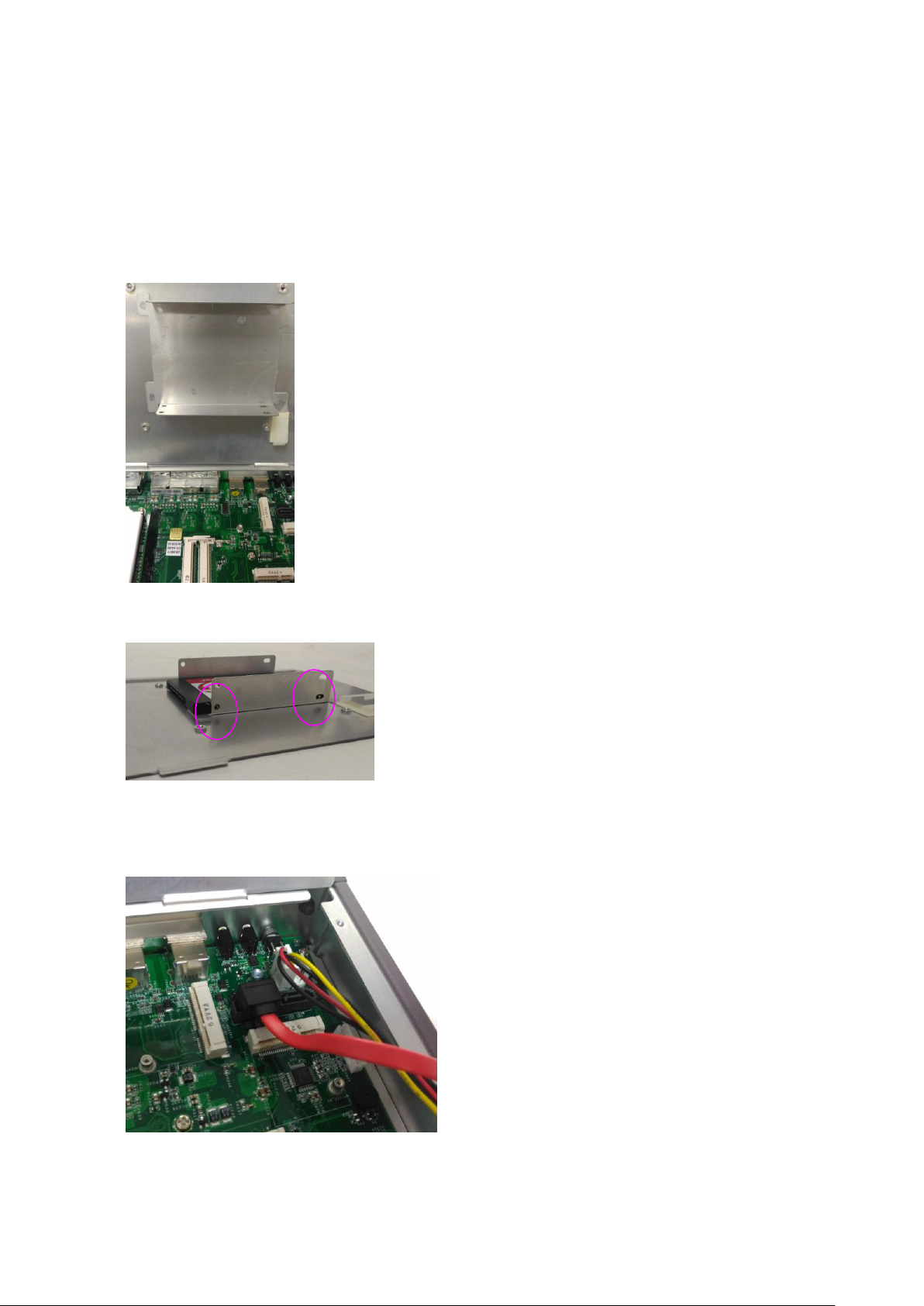

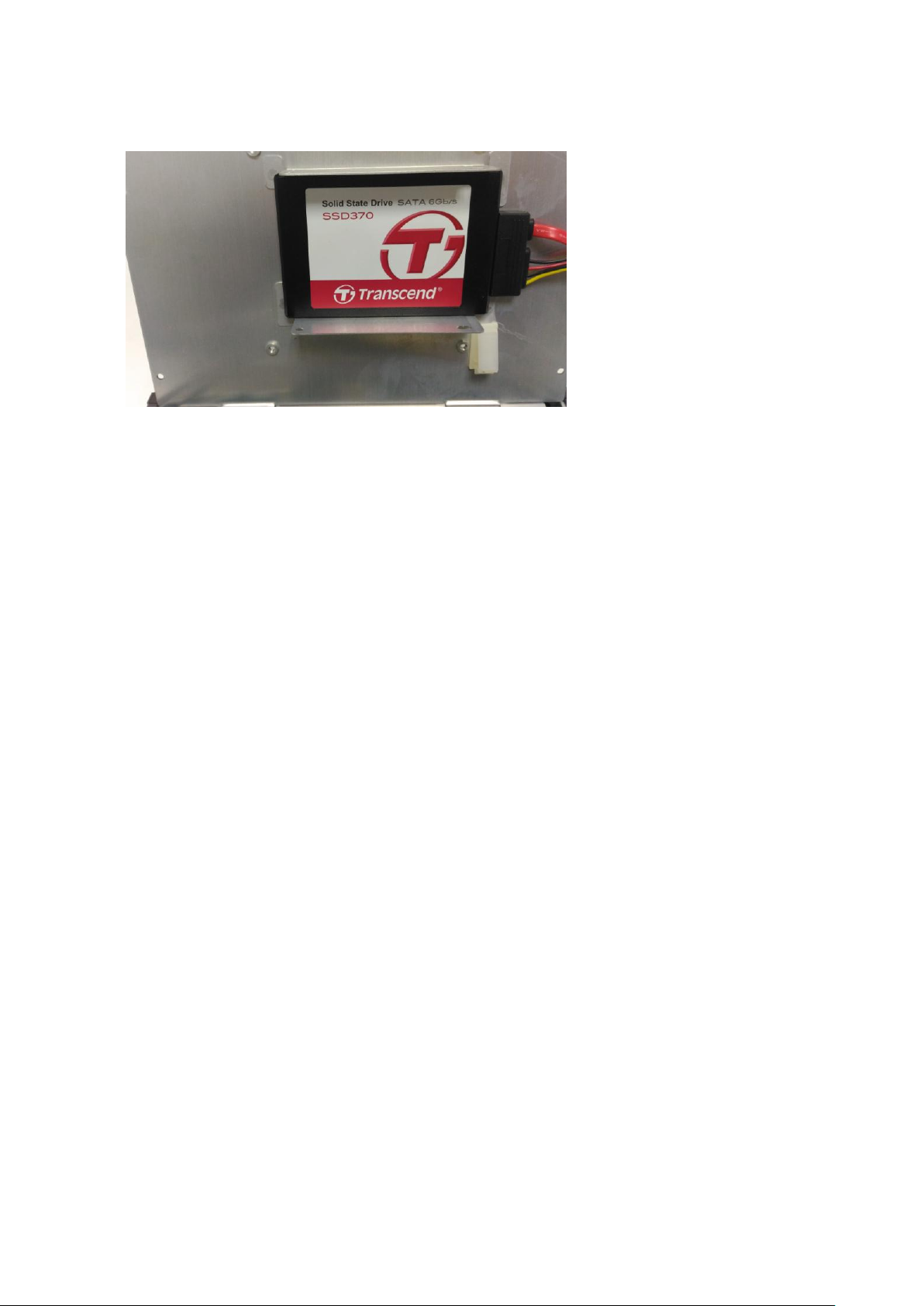

Installing Disk Drives ............................................................................................... 26

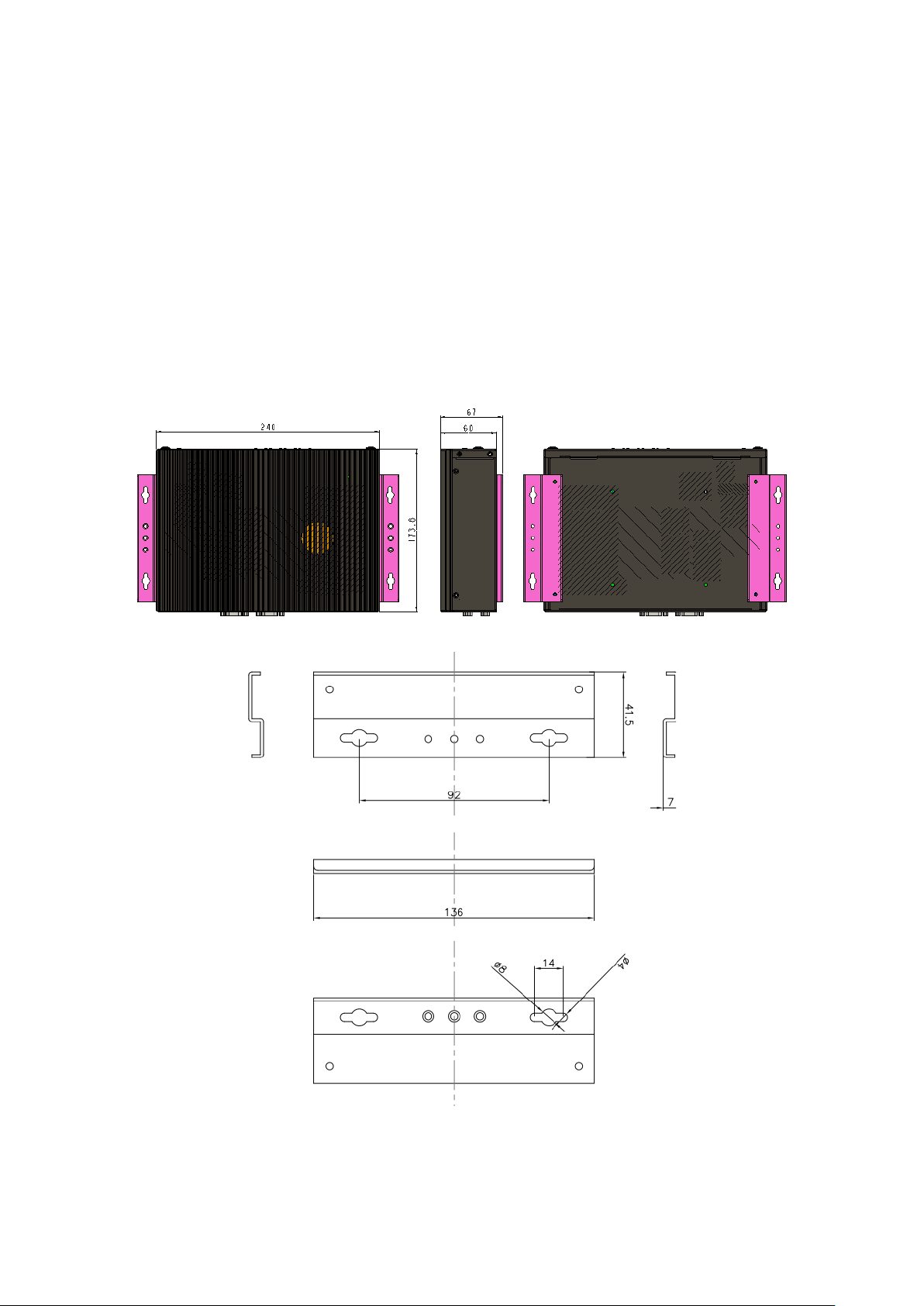

Wall Mounting .......................................................................................................... 28

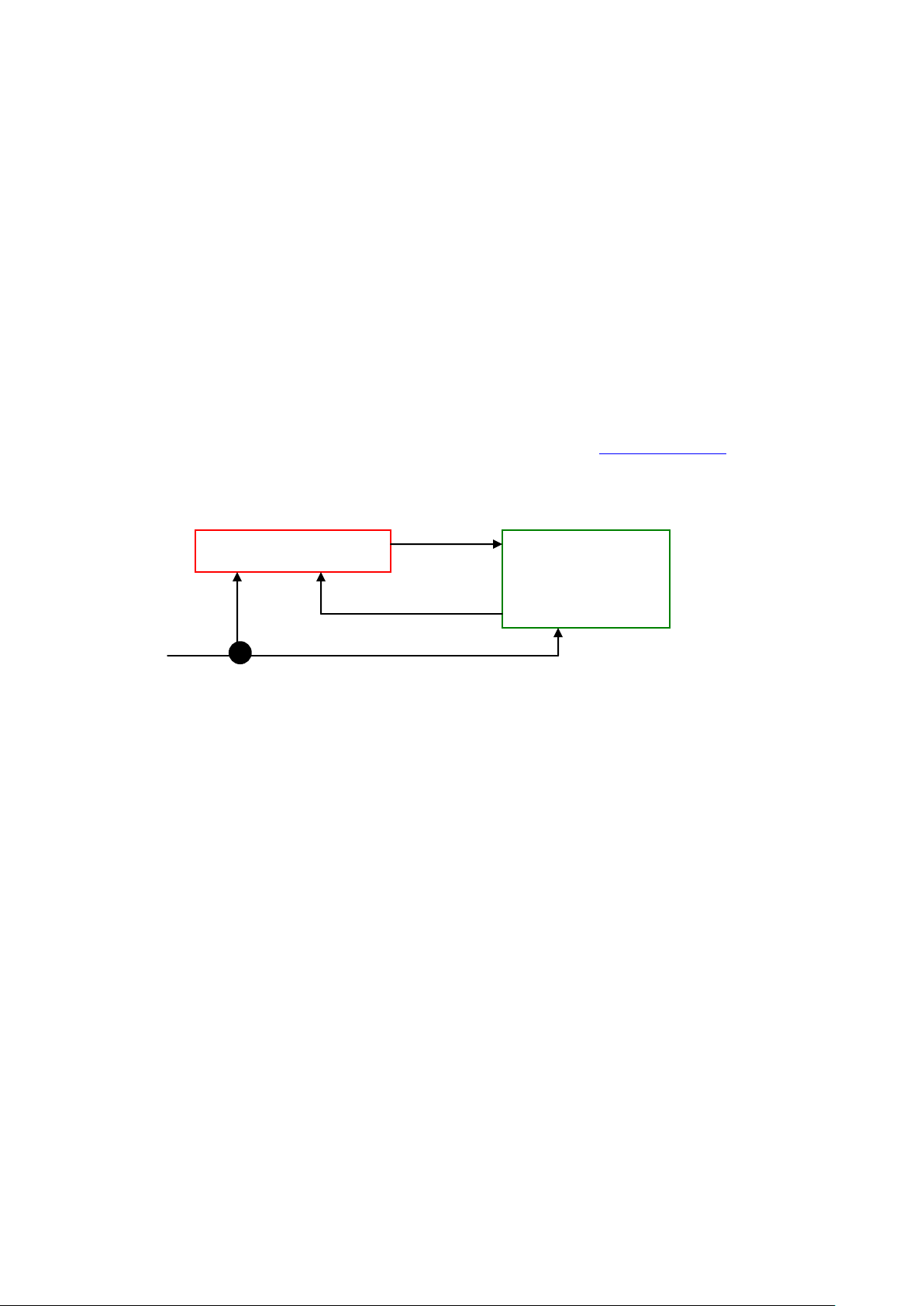

Appendix 1: Watchdog Timer ........................................................................................... 29
Embedded Computing Platform
9
Processor
Onboard Intel Skylake-U SoC processor options:
Intel® Core™ i7-6600U (15W)
Memory
2x DDR3L 1333/1600MHz SO-DIMM sockets
supporting up to 16GB
BIOS
AMI SPI Flash BIOS
Serial

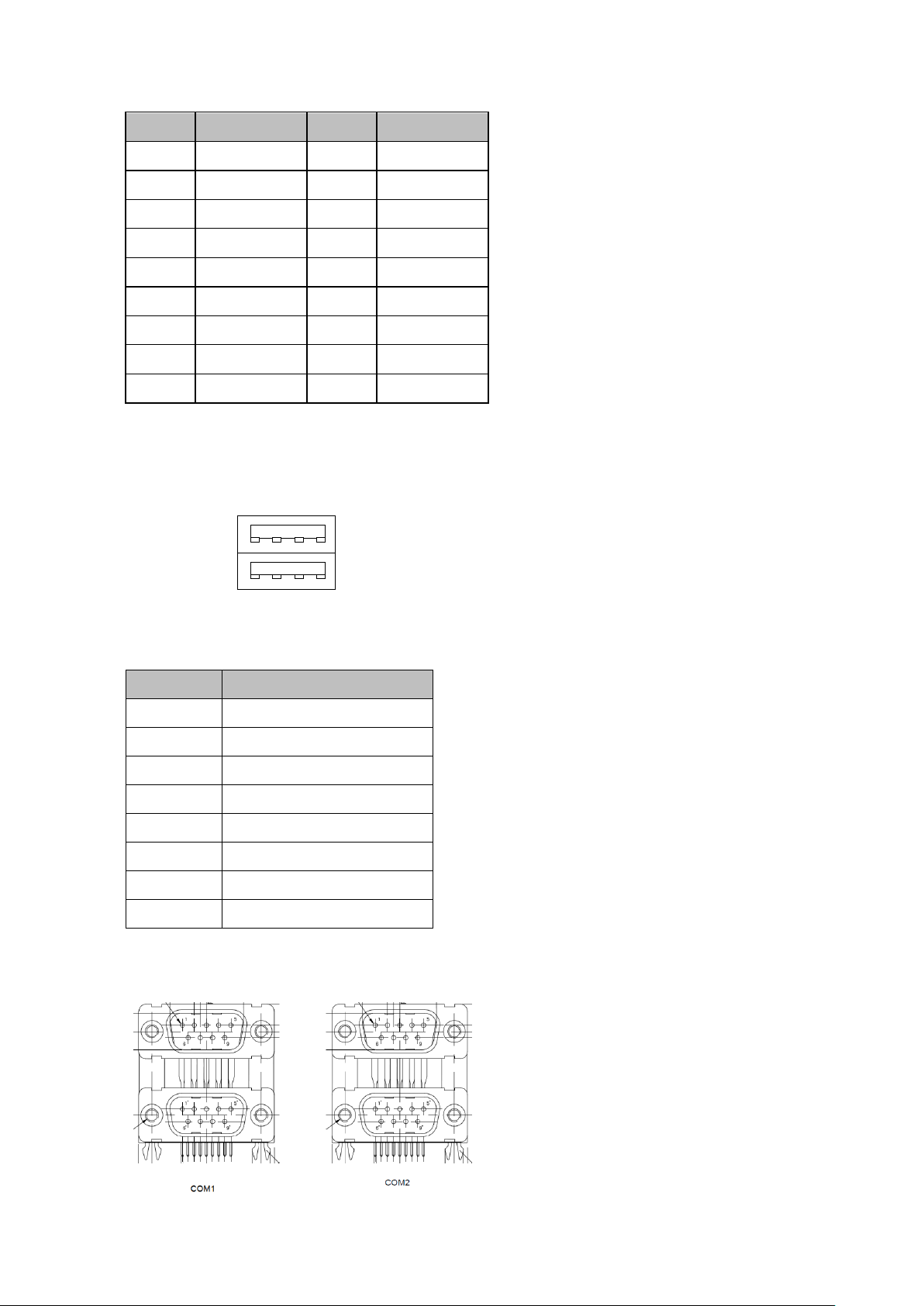

4 x D-Sub9 COM ports with RS-232/422/485 signals
USB
4 x USB 3.0 Type-A ports in dual double-stacked form
2 x USB 2.0 Type-A ports in double-stacked form
Display
Intel Integrated HD Graphic Engine

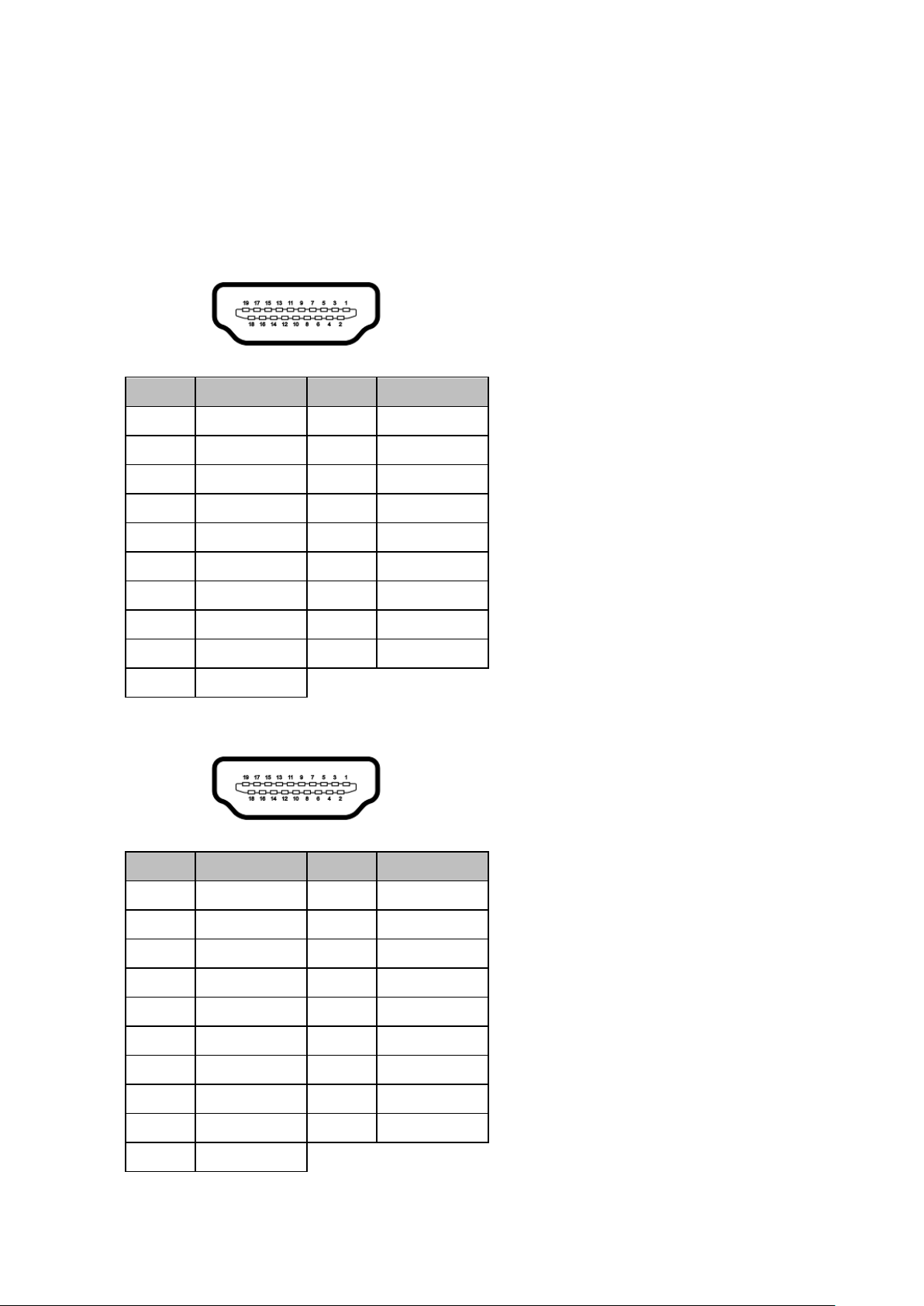

2 x HDMI ports
Storage
1x mSATA mini socket
1 x dual 2.5” SATA HDD/SSD drive bay
Chapter 1: Introduction
Thank you for choosing LEC-2580P. This industrial embedded system is empowered by Intel® Core™
i7-6600U SoC processors (codenamed Skylake-U). The I/O features include four RS-232/422/485 serial
ports, four USB 3.0, two USB 2.0 ports and two HDMI ports. For networking communications, the LEC-2580P
comes with two 10/100/1000 Mbps Ethernet ports and four PoE ports for even greater flexibility.
Product Features:
Intel® Core™ i7-6600U SoC
2 x DDR3L 1333/1600MHz SO-DIMM sockets supporting up to 16GB
Intel® HD Graphics
2x HDMI display output ports

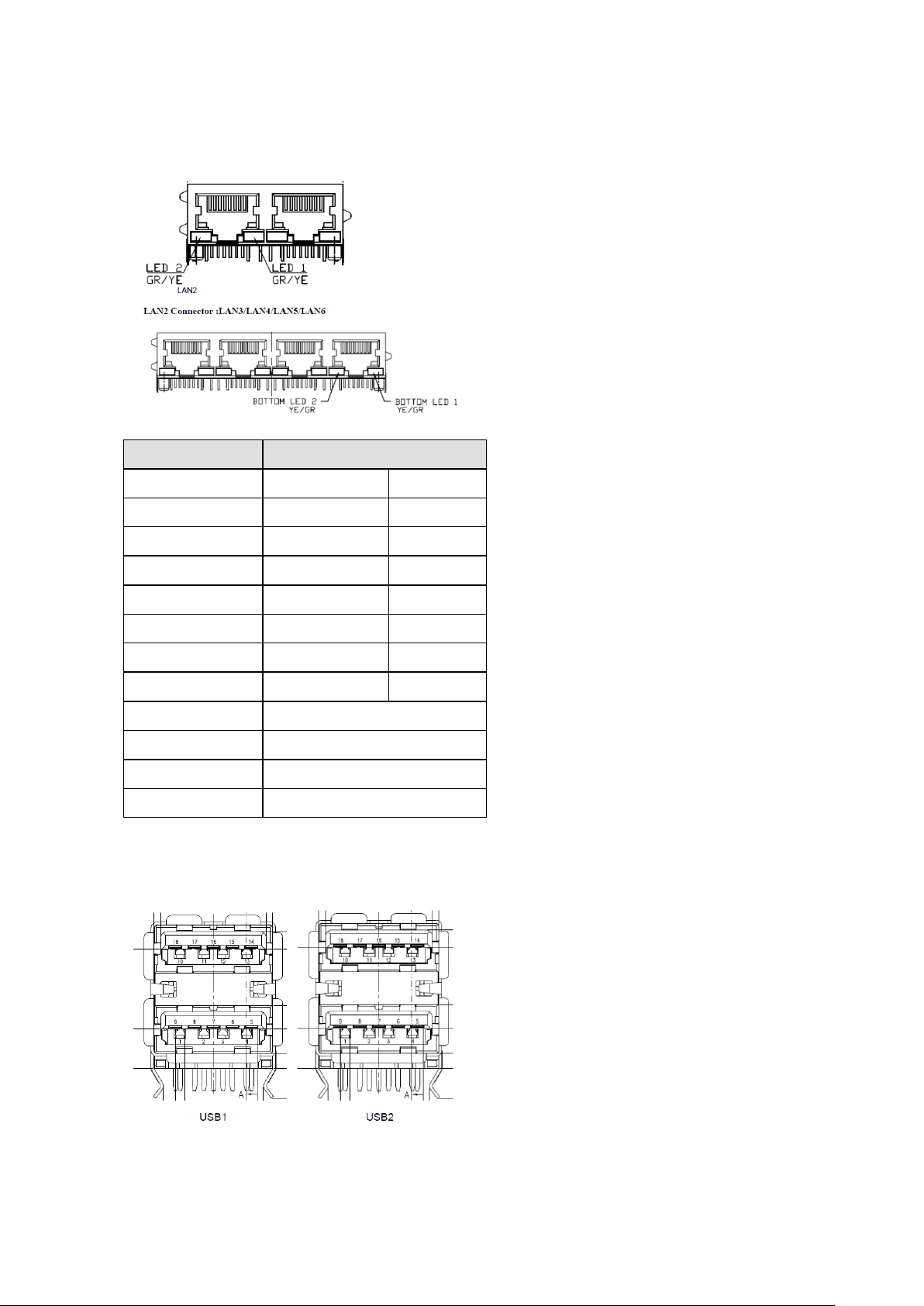

6x RJ45 (LEC-2580P ) or 2x RJ45 & 4x PoE (LEC-2580P )
4x USB 3.0 and 2x USB 2.0
2x 2.5” HDD/SSD with RAID 0/1
4x Serial Ports with RS-232/422/485 signals
0°C ~ +40°C Wide Operating Temperature Range

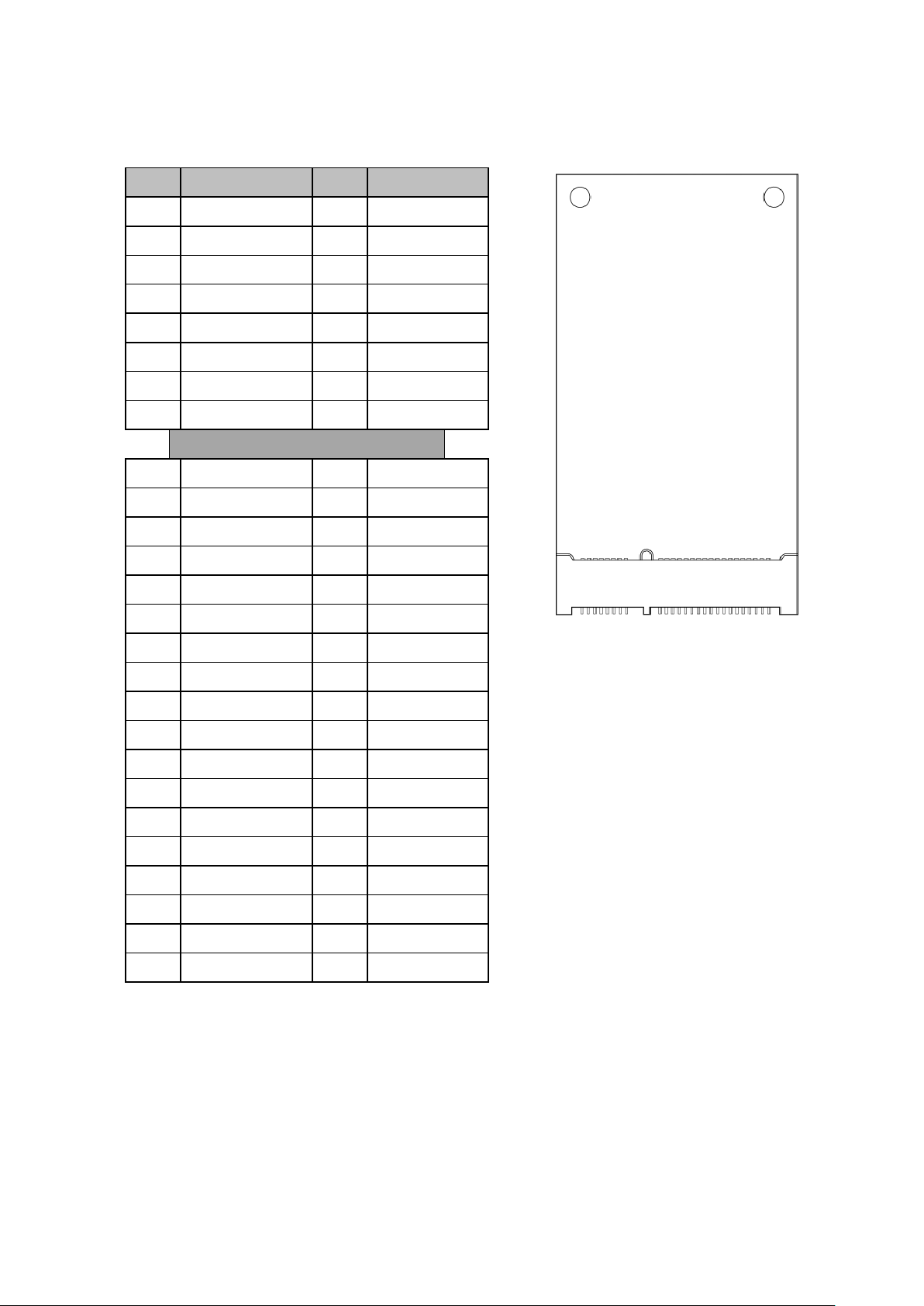

2 x mini-PCIe sockets (1 x full-size and 1 x half-size) with PCIe and USB signals (the full-size socket is
compatible with LTE module)

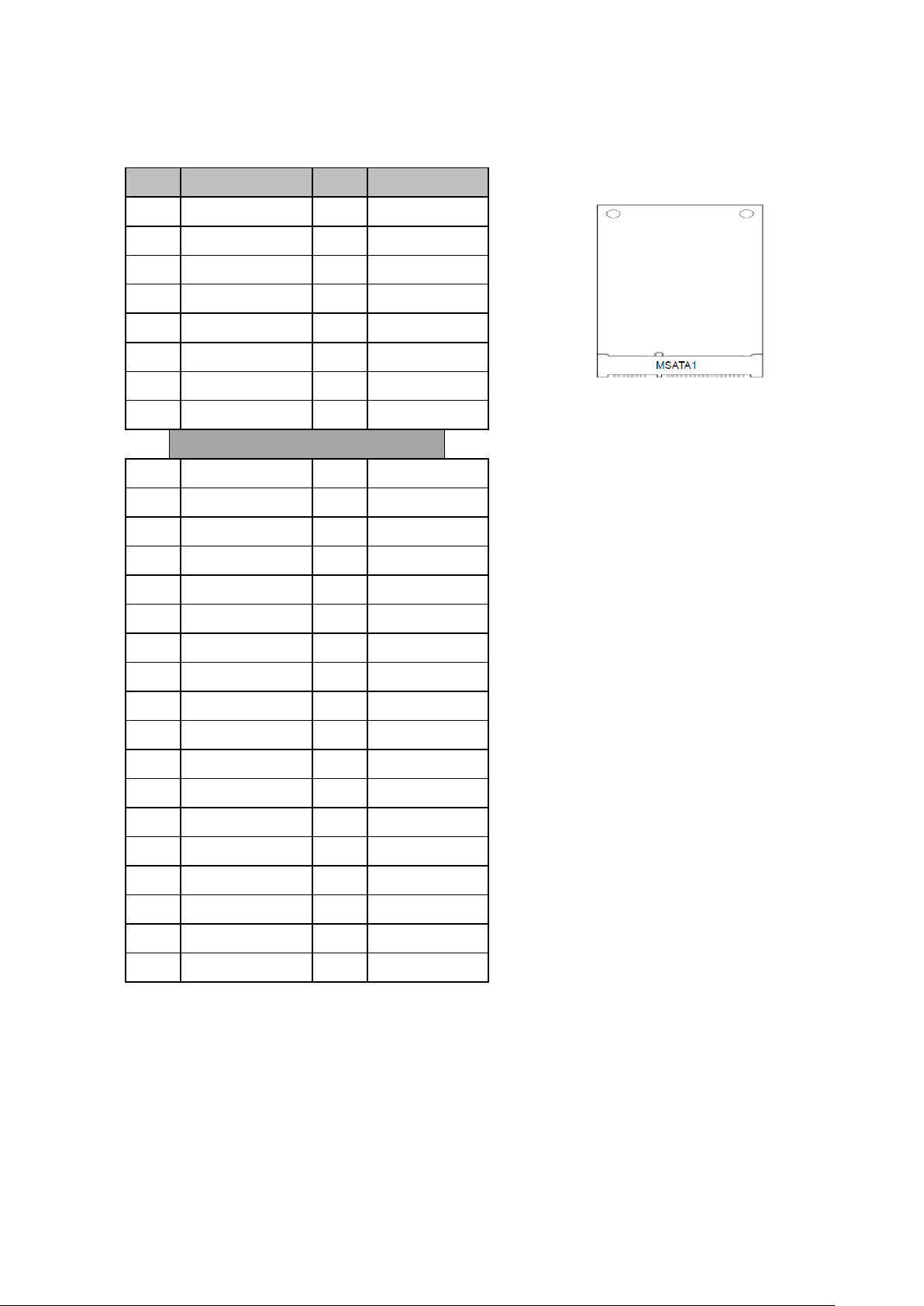

1 x mSATA socket for internal storage
Please refer to the following table for detailed specifications
Specifications
Loading...
