ASM-6001
Monitoring Serial DA
with Analog Audio
Outputs
User Manual
Edition F
January 2002
Page 4
Page 5
Purpose
Audience
Writing Conventions
Preface
This manual details the features, installation procedures, operational
procedures, and specifications of the ASM-6001 Monitoring Serial DA
with Analog Audio Outputs.
This manual is written for technicians and operators responsible for
installation, setup, and/or operation of ASM-6001Monitoring Serial DA
with Analog Audio Outputs.
To enhance your understanding, the authors of this manual have
adhered to the following text conventions:
Bold Indicates dialog box, property sheet, field, button, checkbox,
listbox, combo box, menu, submenu, window, list, and
selection names.
ASM-6001 User Manual iii
Italics Indicates email addresses, names of books and publications,
and first instances of new terms and specialized words that
need emphasis.
CAPS Indicates a specific key on the keyboard, such as ENTER,
TAB, CTRL, ALT, DELETE.
Code
> Indicates direction of navigation through a hierarchy of
hyperlink
Indicates variables or command-line entries, i.e., a DOS entry,
something you type into a field, etc.
menus and windows.
Indicates a jump to another location in the document or
elsewhere (such as a website).
Page 6
Revision History
Edition Date Revision History
Issue 5 September 2000 Previous release
Edition F January 2002 Format Conversion
iv ASM-6001 User Manual
Page 7
Unpacking/Shipping Information
This product has been carefully inspected, tested and calibrated before
shipment to ensure years of stable and troublefree service. Please check
the equipment for any visible damage which may have occurred during
transit.
Please confirm that all items listed on the packing list have been
received. If any item on the packing list is missing, please contact your
Leitch dealer. If any item is damaged please contact the carrier. Ensure
that all packaging material is removed from the product and its
associated components before installing the unit.
It is suggested that you keep at least one set of original Leitch packaging,
in the event that a product needs to be returned for service. If the
original packaging is not available, you can purchase replacement
packaging from Leitch at a modest cost or supply your own packaging as
long as it meets the following criteria:
• Packaging must be able to withstand the product weight.
• Product must be held rigid within the packaging.
• There must be at least two inches of space between the product
and the container.
• The corners of the product must be protected.
Products that are being returned to Leitch for servicing should be
shipped pre-paid in the original packaging material if possible. If the
product is still within the warranty period, the product will be returned
by pre-paid shipment after servicing.
Installation Information
If this product is rack mountable, it should be mounted in an
appropriate rack using the rack mounting positions and rear support
guides provided. It is recommended that each frame be connected to a
separate electrical circuit for protection against circuit overloading. If
this product relies on forced air cooling, it is recommended that all
obstructions to the air flow be removed prior to installing the frame in
the rack.
If this product has a provision for external earth grounding, it is
recommended that the frame be grounded to earth via the protective
earth ground on the rear panel.
ASM-6001 User Manual v
Page 8
Important Safety Instructions
Review the following safety precautions to avoid injury and prevent
damage to this product or any products connected to it. Read these
instructions. Keep these instructions. Heed all warnings. Follow all
instructions.
Servicing
Only qualified personnel should perform service procedures. Refer all
servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Safety Terms and Symbols
Terms and Symbols in This Manual
WARNING:
Statements identifying conditions or practices that can result in
personal injury or loss of life: High voltage is present. Uninsulated
dangerous voltage within the product’s enclosure may be sufficient
to constitute a risk of electric shock to persons.
CAUTION:
Statements identifying conditions or practices that can result in
damage to the equipment or other property: Important operating
and maintenance (servicing) instructions in the literature
accompanying the product.
Terms and Symbols on the Product
DANGER:
High voltage and indicates a personal injury hazard immediately
vi ASM-6001 User Manual
accessible as one reads the marking.
WARNING:
Indicates a personal injury hazard not immediately accessible as
one reads the marking.
CAUTION:
Indicates a hazard to property including the product or to take
attention and refer to the manual.
Page 9
Injury Precautions

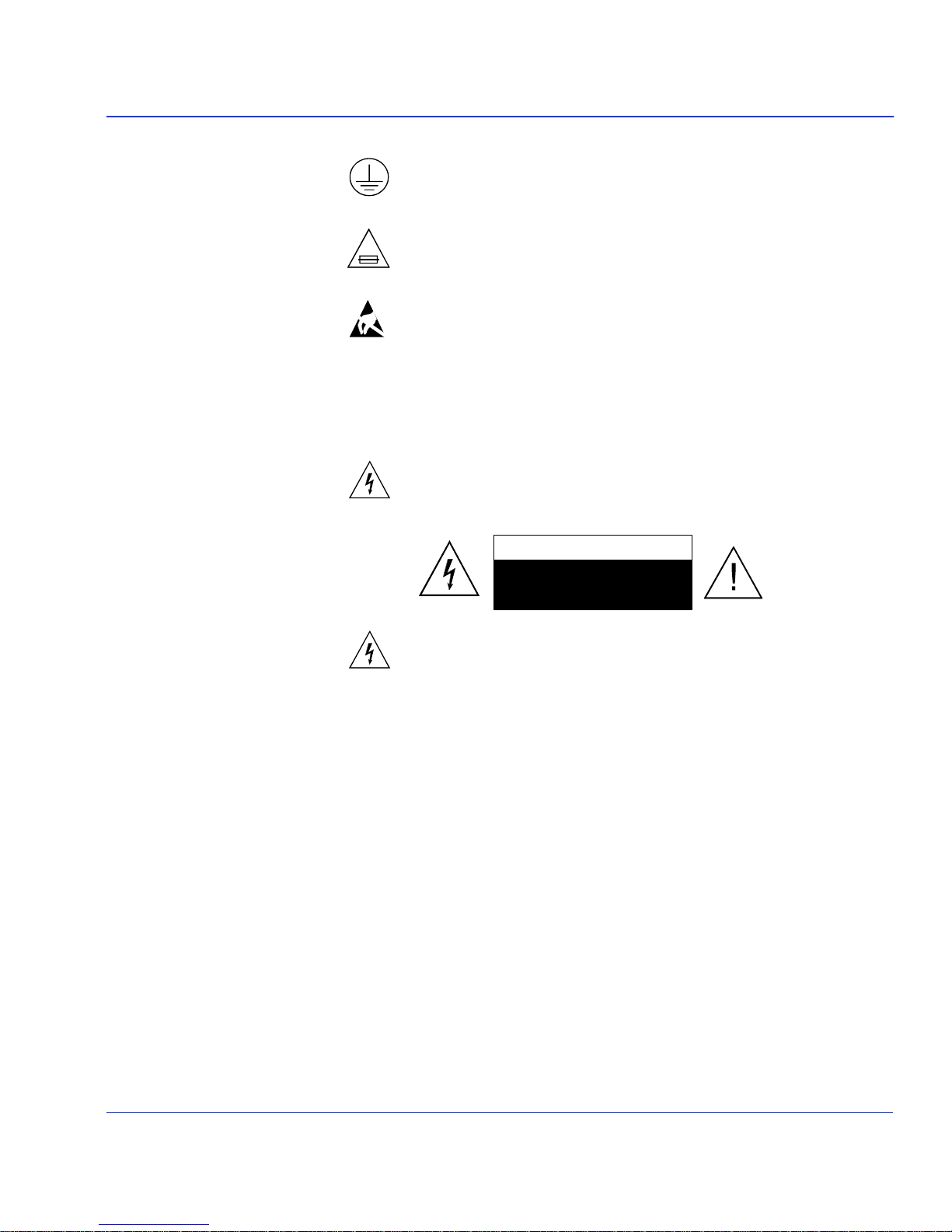

Protective ground (earth) terminal.
Fuse:
Replace with same type and rating of fuse.
Observe precautions for handling electrostatic-sensitive devices.
WARNING!
To reduce the risk of electric shock, do not expose this apparatus to
rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING!
Potentially lethal voltages are present within this product’s frame
during normal operation. The AC power cord must be
disconnected from the frame before the top panel is removed. (In
frames with multiple power supplies, remove ALL power cords.)
Power should not be applied to the frame while the top is open,
unless properly trained personnel are servicing the unit.
[PL Poland] Przod zdjeciem pokrywy wyciagnac wtyczke z gniazda
sieciowego.
[French] AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS
OUVRIR. INSTALLER SUR SUPPORT DE MONTAGE
SEULEMENT.
ASM-6001 User Manual vii
Page 10

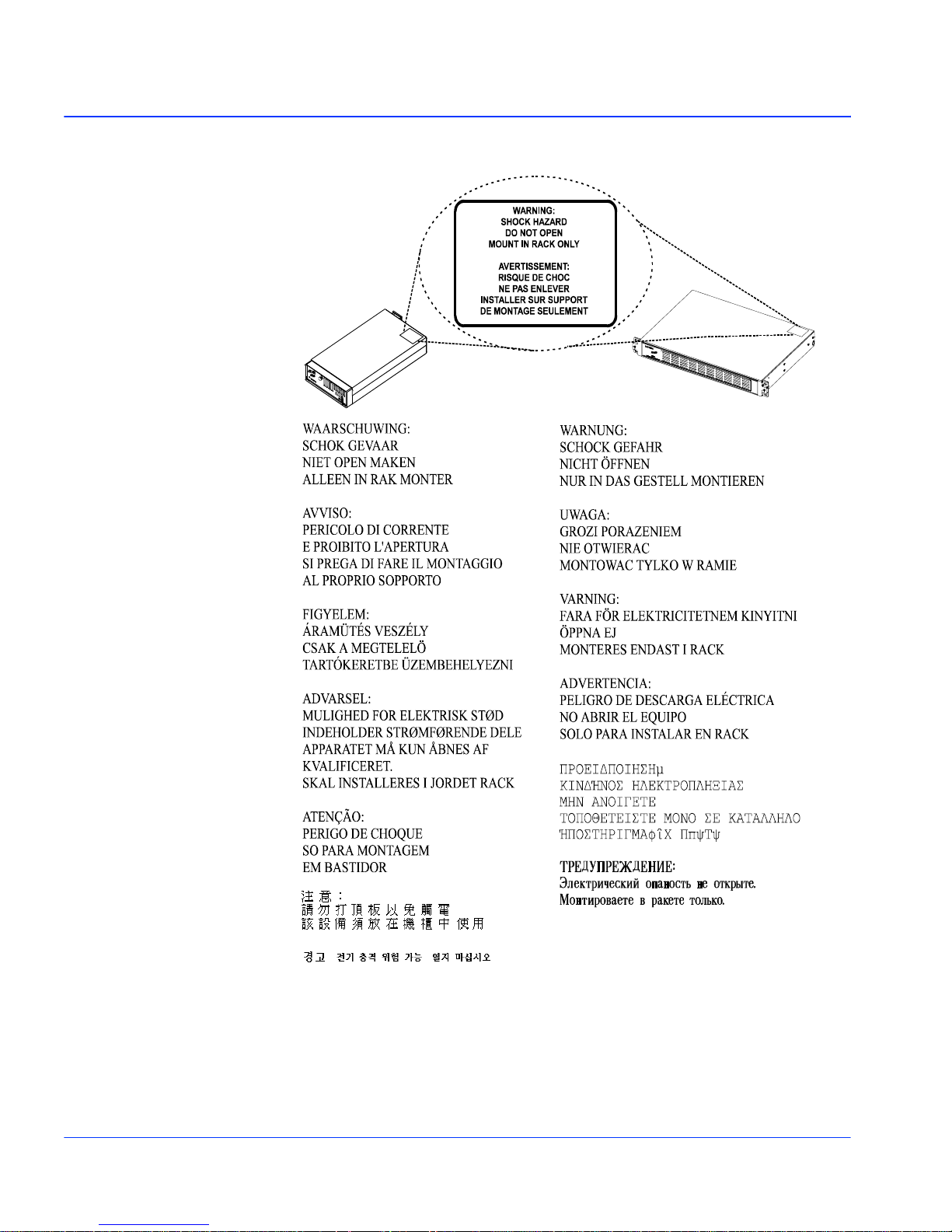

viii ASM-6001 User Manual
AVIS - Risque de choc electrique. Ne pas
ouvrir.
Page 11
Use Proper Power Cord
To avoid fire hazard, use only the power cord specified for this
product.
Ground the Product
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
When the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
[United Kingdom] WARNING: THIS APPLIANCE MUST BE
EARTHED.
[Sweden] APPARATEN SKALL ANSLUTAS TILL JORDAT
UTTAG NÄR DEN ANSLUTS TILL ETT NÄTVERK.
Do Not Operate Without Covers
To avoid electrical shock or fire hazard, do not operate this product
with covers or panels removed.
Use Proper Fuse
To avoid fire hazard, use only the fuse type and rating specified for
this product.
Do Not Operate in Wet/Damp Conditions
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture
Do Not Operate in an Explosive Atmosphere
To avoid injury or fire hazard, do not operate this product in an
explosive atmosphere.
Avoid Exposed Circuitry
To avoid injury, remove jewelry such as rings, watches, and other
metallic objects. Do not touch exposed connections and
components when power is present.
ASM-6001 User Manual ix
Page 12
Product Damage Precautions
Use Proper Power Source
Do not operate this product from a power source that supplies
more than the specified voltage.
Use Proper Voltage Setting
Before applying power, ensure that the line selector is in the proper
position for the power source being used.
Provide Proper Ventilation
To prevent product overheating, provide proper ventilation.
Do Not Block Any Ventilation Openings
Do not block any of the ventilation openings. Install in accordance
with the manufacturer’s instructions.
Only Use Attachments/Accessories Specified by the Manufacturer
Do Not Operate With Suspected Failures
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
For Products with Multiple Power Cords:
CAUTION: This unit can have more than one power supply cord.
To de-energize the internal circuitry, disconnect all power cords
before servicing.
[Norwegian] ADVARSEL: Utstyret kan ha mere ennn en
tilførselsledning. For å gjore interne deler spennigsløse må alle
tilførselsledningene trekkes ut.
[Sweden] VARNING: Denna apparat har mer än en nätanslutning.
Samtliga nätkablar måste bortkopplas för att göra de interna
kretsarna spänningsfria.
Do not use this apparatus near water
Do not expose this apparatus to dripping or splashing water.
Ensure that no objects filled with liquid, such as vases or cups, are
placed on the apparatus.
x ASM-6001 User Manual
Page 13
Clean only with a dry cloth
Keep Product Away from Heat Sources
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Install Near Socket Outlet
The equipment shall be installed near the socket outlet, and a
disconnect device shall be easily accessible.
Protect the Power Cord
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
Unplug this Apparatus During Lightning Storms
Unplug this apparatus during lightning storms or when unused for
long periods of time. Note: A UPS or power surge suppressor could
be used as an alternative.
Attention:
Observe precautions for handling electrostatic-sensitive devices.See
“Preventing Electrostatic Discharge” below for details.
Fuse Replacement:
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH THE SAME TYPE OF FUSE.
[French]ATTENTION: REMPLACER UNIQUEMENT PAR UN
FUSIBLE DE MEME TYPE.
ASM-6001 User Manual xi
Page 14
Battery Use Warnings
CAUTION:
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
PLACED. REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISCARD USED BATTERIES ACCORDING
TO THE MANUFACTURER’S INSTRUCTIONS.
[FI Finland] VAROITUS: Paristo voi rajahtaa, jos se on
virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan
suosittelemaan tyyppun. Havita kaytetty paristo valmistajan
ohjeiden mukaisesti.
[SE Sweden] VARNING: Explosionsfara vid felaktigt batteribyte.
Anvand samma batterityp eller en eller en ekvivalent typ som
rekommenderas av tillverkaren. Kassera anvant batteri enligt
fabrikantens instruktion.
[D Denmark]
Advarsel! Lithiumbatteri. Eksplosionsfare ved fejlagtig handtering.
Udskiftning ma kun ske med batteri af samme fabrikat oq type.
Lever det brugte batteri tilbage till leverandoren.
[KO Korean]
xii ASM-6001 User Manual
Page 15
Preventing Electrostatic Discharge
CAUTION: Electrostatic discharge (ESD) can damage components
in the product. To prevent ESD, observe these precautions when
directed to do so:
Use a Ground Strap. Wear a grounded antistatic wrist strap to
discharge the static voltage from your body while installing or
removing sensitive components.
Use a Safe Work Area. Do not use any devices capable of generating
or holding a static charge in the work area where you install or
remove sensitive components. Avoid handling sensitive
components in areas that have a floor or benchtop surface capable
of generating a static charge.
Handle Components Carefully. Do not slide sensitive components
over any surface. Do not touch exposed connector pins. Handle
sensitive components as little as possible.
Transport and Store Carefully. Transport and store sensitive
components in a static-protected bag or container.
ASM-6001 User Manual xiii
Page 16
Certifications and Compliances
This product has been tested and found to comply with the following
CE, FCC, UL, ICES and CSA standards:
EMC Standards
EN55014 Limits and methods of measurement of radio disturbance
characteristics of electric motor-operated and thermal
appliances for household and similar purposes, electric
tools and similar electric apparatus.
EN55022 Limits and methods of measurement of radio disturbance
characteristics of information technology equipment Class
A.
EN55103-1 Electromagnetic compatibility—Product family standard
for audio, video, audio-visual and entertainment lighting
control apparatus for professional use, Part 1: Emission,
Environment E4.
EN55103-2 Electromagnetic compatibility—Product family standard
for audio, video, audio-visual and entertainment lighting
control apparatus for professional use, Part 2: Emission,
Environment E4.
EN61000-4-2 Electrostatic discharge requirements “ESD” 2kV CD,4kV
AD.
EN61000-4-3 Radiated radio-frequency electromagnetic field immunity
test 1V/m {1kHz 80% AM, 80-1000MHz}.
EN61000-4-4 Electrical Fast transient requirements “Burst”, 0.5kV Sig. &
Ctrl. Lines 0.5kV a.c. & d.c. Power line, 0.5kV functional
earth.
EN61000-4-5 Surge Immunity test 0.5kV a.c. Power line.
EN61000-4-6 Immunity to conducted disturbances induced by radio
frequency fields 1V rms 0.15-80MHz Sig. & Ctrl. Lines, 3V
rms 0.15-80MHz d.c. Power line, 1V rms 0.15-80MHz a.c.
Power line, 1V rms 0.15-80MHz functional earth.
EN61000-4-11 Voltage dips, short interruptions and voltage variations-
immunity tests.
xiv ASM-6001 User Manual
Page 17
Safety standards
per the provision of the Electromagnetic Compatibility Directive 89/
336/EEC of 3 May 1989 as amended by 92/31EEC of 28 April 1992 and
93/68/EEC, Article 5 of 22 July 1993.
These devices are for professional use only and comply with Part 15 of
FCC rules. Operation is subject to the following two conditions:
1. These devices may cause interference to Radio and TV receivers in
residential areas
2. These devices will accept any interference received, including
interference that may cause undesired operations.
These devices do not exceed the class A limits for radio noise emissions
from digital apparatus as set out in the interference standard entitled
“Digital apparatus”, ICES-003 of the Canadian Department of
Communications.
EN60065 Safety requirements for mains operated electronic and
related apparatus for household and similar general use
[IEC 60065: 1985, 5th Edition + A1: 1987 + A2: 1989 + A3:
1992, (modified)], per the provision of the Low-Voltage
Directive 73/23/EEC of February 19, 1973, as amended by
93/68/EEC.
UL 6500-98 Audio/Video and Musical Instrument Apparatus for
Household, Commercial and Similar General Use.
CAN/CSA
E65-94
ASM-6001 User Manual xv
Safety Requirements for Mains Operated Electronic and
Related Apparatus for Household and Similar General
Use.
Page 18
xvi ASM-6001 User Manual
Page 19
Contents
Chapter 1: Overview............................................................................ 1
General Description .................................................................................... 1
ASM-6001 Edge View .........................................................................3
Chapter 2: Installation........................................................................ 5
Back Panel Connections ............................................................................. 5
S5 Rear Connector ..............................................................................5
S5 Rear Connector (ASM-6001/G) .....................................................6
S11 Rear Connector ............................................................................6
Cable Requirements ............................................................................ 7
Components ...............................................................................................8
Setting the Switches .................................................................................... 9
Chapter 3: Specification.................................................................. 13
Mechanical ................................................................................................13
Electrical .................................................................................................... 13
Power Supply ..................................................................................... 13
Video Input ....................................................................................... 13
Digital Video Output ........................................................................ 14
Analog Video Output ........................................................................ 14
Analog Audio Output ....................................................................... 14
Alarm Output .................................................................................... 14
ASM-6001 User Manual xvii
Appendix A: Edge Connections................................................. 15
Page 20
xviii ASM-6001 User Manual
Page 21
General Description
The Genesis ASM-6001 eurocard module is a dual standard (525/625)
serial distribution amplifier with analog composite video and analog
audio monitoring outputs for component SDI signals with embedded
audio.
The card has:
• Eight regenerated serial digital (270Mb/s) video outputs,
• Four composite video (PAL/NTSC) outputs,
• One stereo/two mono analog audio outputs (optionally two
stereo/four mono analogue audio outputs).
The card has one stereo audio 18-bit DAC (or, optionally two stereo
audio DACs.) The audio outputs appear on a 15-way "D" type on the
rear panel and a 3.5mm headphone socket on the front of the card.
Chapter 1
Overview
ASM-6001 User Manual 1
The audio output can be one of 8 stereo/16 mono audio signals extracted
from the embedded serial digital video signal (or optionally two stereo/
four mono from any one of four audio groups). Front of board controls
are available to select the audio signal to be extracted and to select stereo
or mono operation.
In addition to the rear panel connections, composite video monitoring is
provided on the front of PCB via a BNC connector, and audio
monitoring is available via a mini stereo jack.
Page 22
Chapter 1: Overview General Description
The card has a serial diagnostics port that allows the card to report to
Leitch’s BO/S Pilot application. BO/S allows access to error status and
set-up information, including loss of video or colour content and audio
content, via a serial link to a remote PC. In addition, the loss of video can
be reported via an Opto Isolated switch closure on the rear of the unit.
The ASM-6001 module is part of the Genesis range of modular interface
products and can be mounted in the 4RU chassis (FR-6004). The card
can be used with the S5 or the S11 rear connector modules.
The card is available only in this model:
ASM-6001 Serial DA with Composite Video and Dual Stereo Output
2 ASM-6001 User Manual
Page 23
General Description Chapter 1: Overview

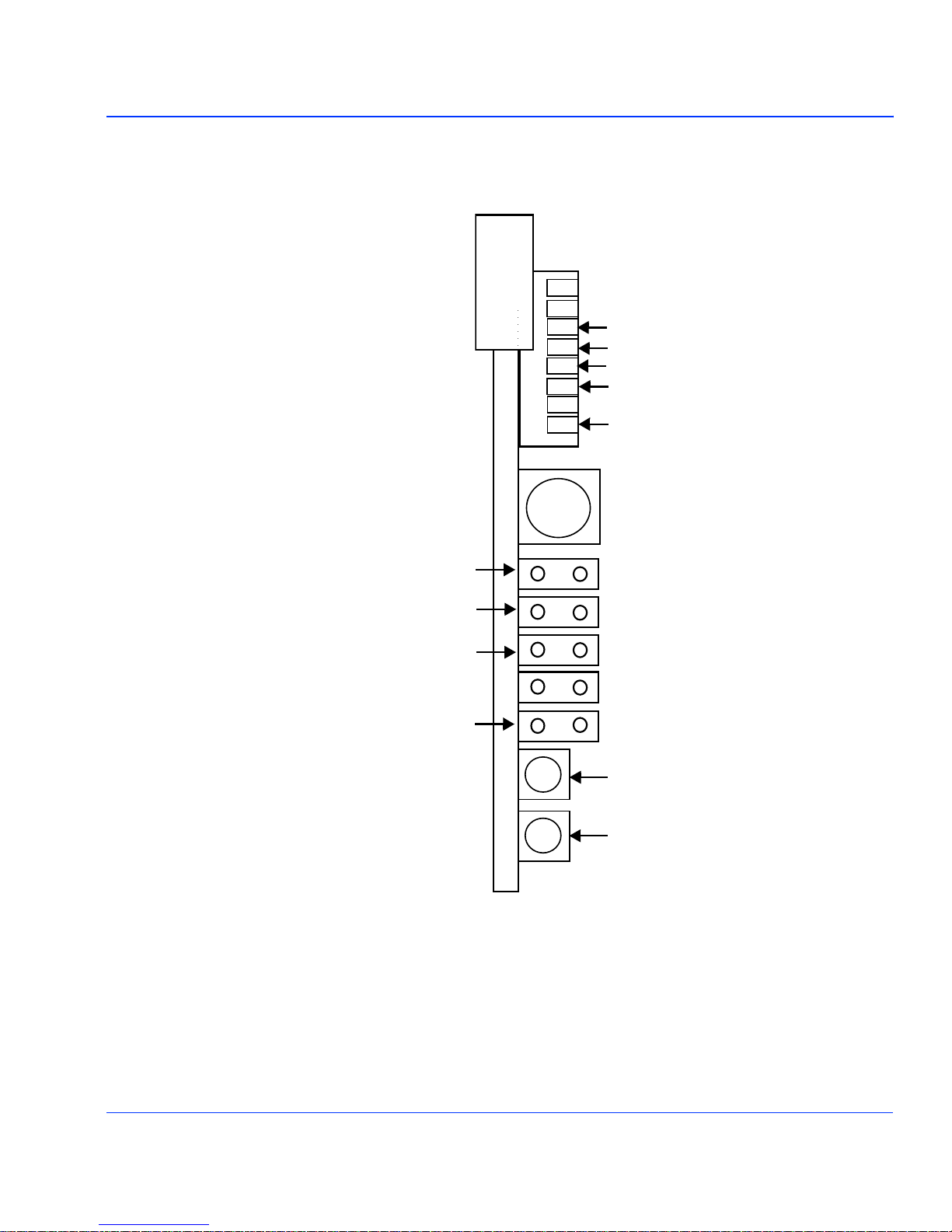

ASM-6001 Edge View
Figure 1-1 illustrates the position of the connectors on the ASM-6001:
Switch 1
Audio Group 1 & 2
Audio Group 3 & 4
Pedestal On/Off (NTSC)
PALN/PALI
Local/Remote
J1 Composite Video
-5 V
No Audio
625
No AES2
+5 V
No Input
No AES 1
PL1 Audio 2
PL2 Audio 1
Figure 1-1. ASM-6001 Edge View.
ASM-6001 User Manual 3
Page 24
Chapter 1: Overview General Description

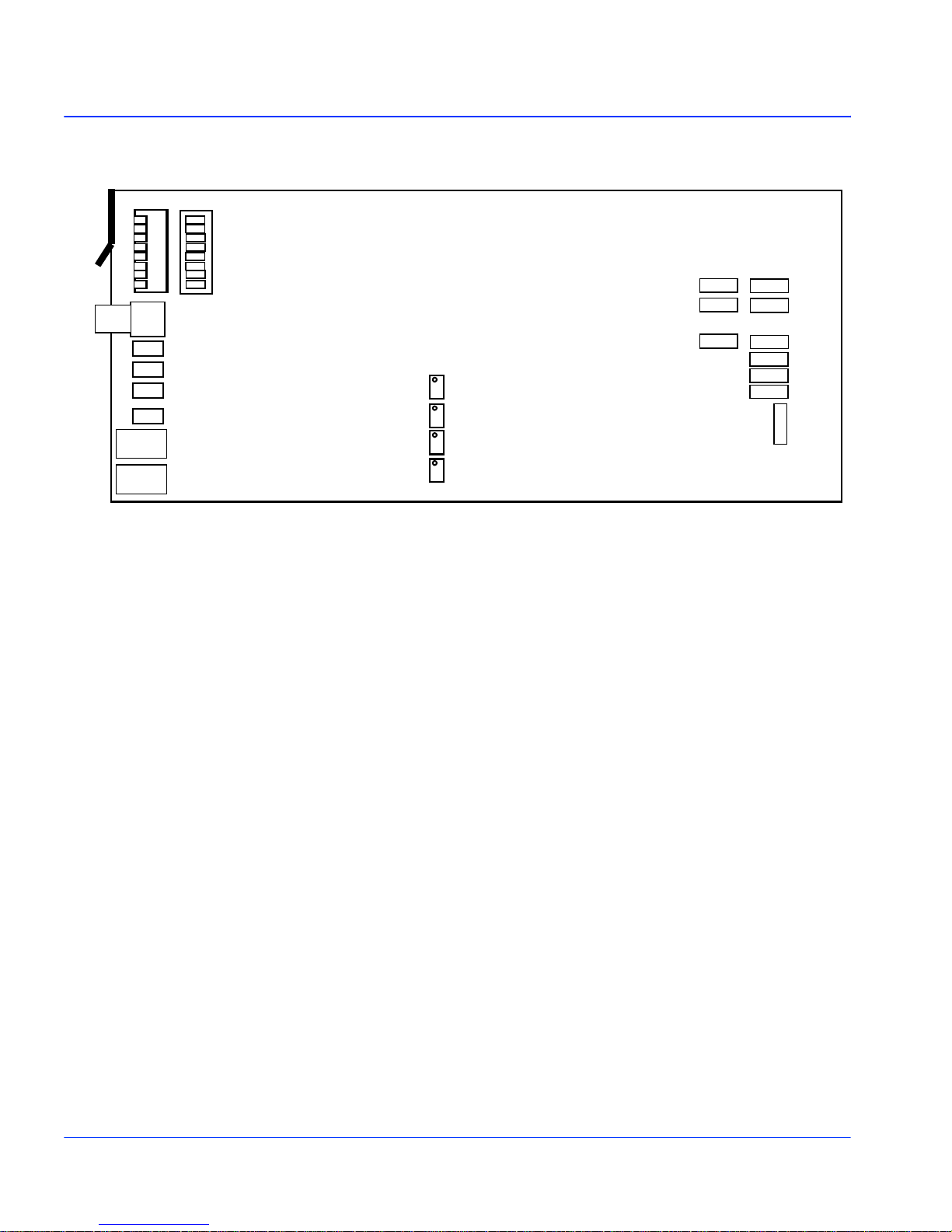

Figure 1-2 illustrates the top view of the ASM-6001:
SW1 SW2
VR4
VR5
VR6
VR7
Figure 1-2. . ASM-6001Top View
SW3
SW4
SW5
SW6
SW7
SW8
SW9
SW10
SW11
SW12
4 ASM-6001 User Manual
Page 25
Back Panel Connections
Figure 2-1, Figure 2-2 and Figure 2-3illustrate the back panel connectors
for the ASM-6001.
This equipment may be
damaged by electrostatic
discharge (ESD). Suitable
precautions must be taken to
minimize the risk of
electrostatic-induced damage.

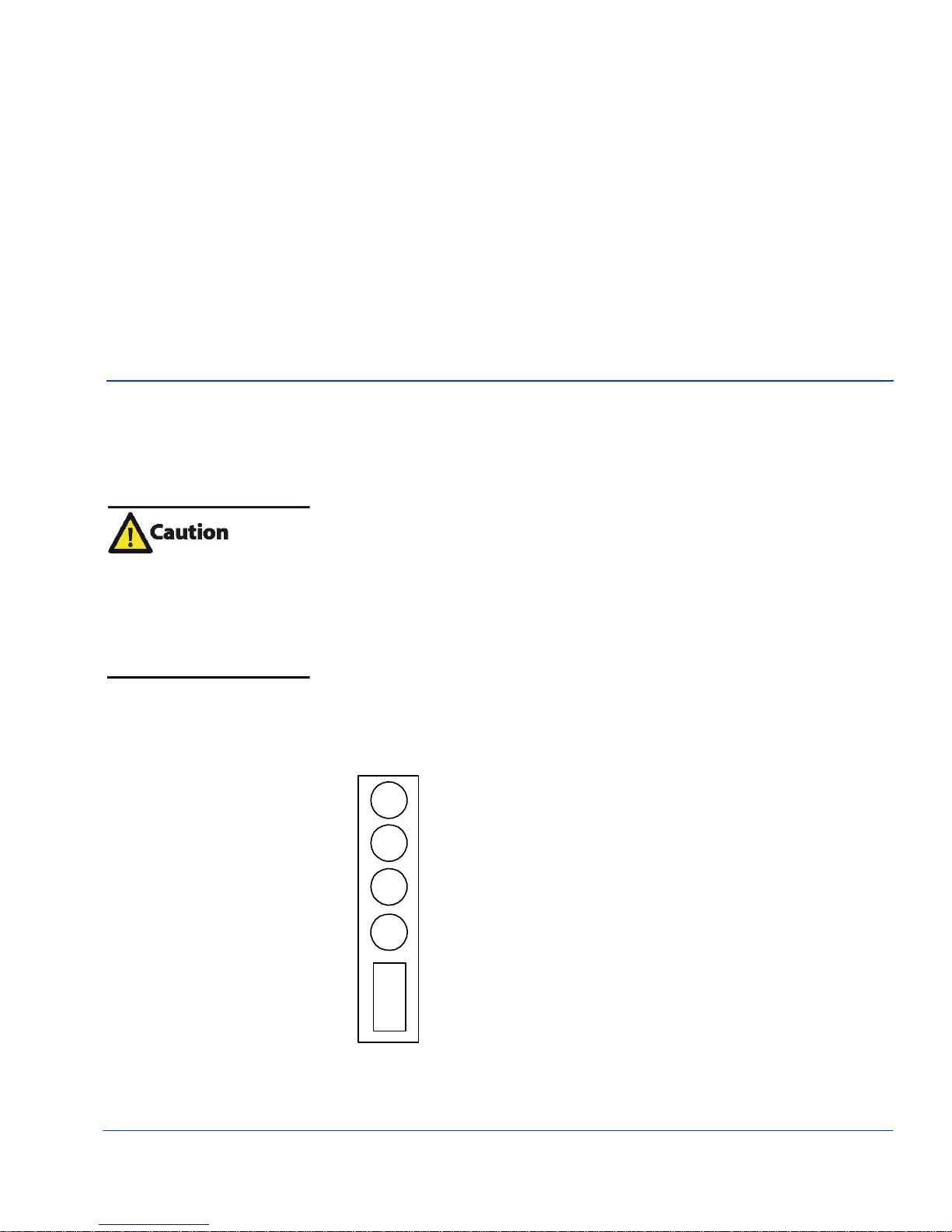

S5 Rear Connector
Figure 2-1 shows the rear connections on the S5.
Chapter 2
Installation
ASM-6001 User Manual 5
Serial Digital Input
E
Anlaog/Digital Output
D
Anlaog/Digital Output
C
B
A
Anlaog/Digital Output
Audio/Alarm Output
Figure 2-1. S5 Rear Connector
Page 26
Chapter 2: Installation Back Panel Connections
S5 Rear Connector (ASM-6001/G)
Figure 2-2 shows the rear connections on the S5:

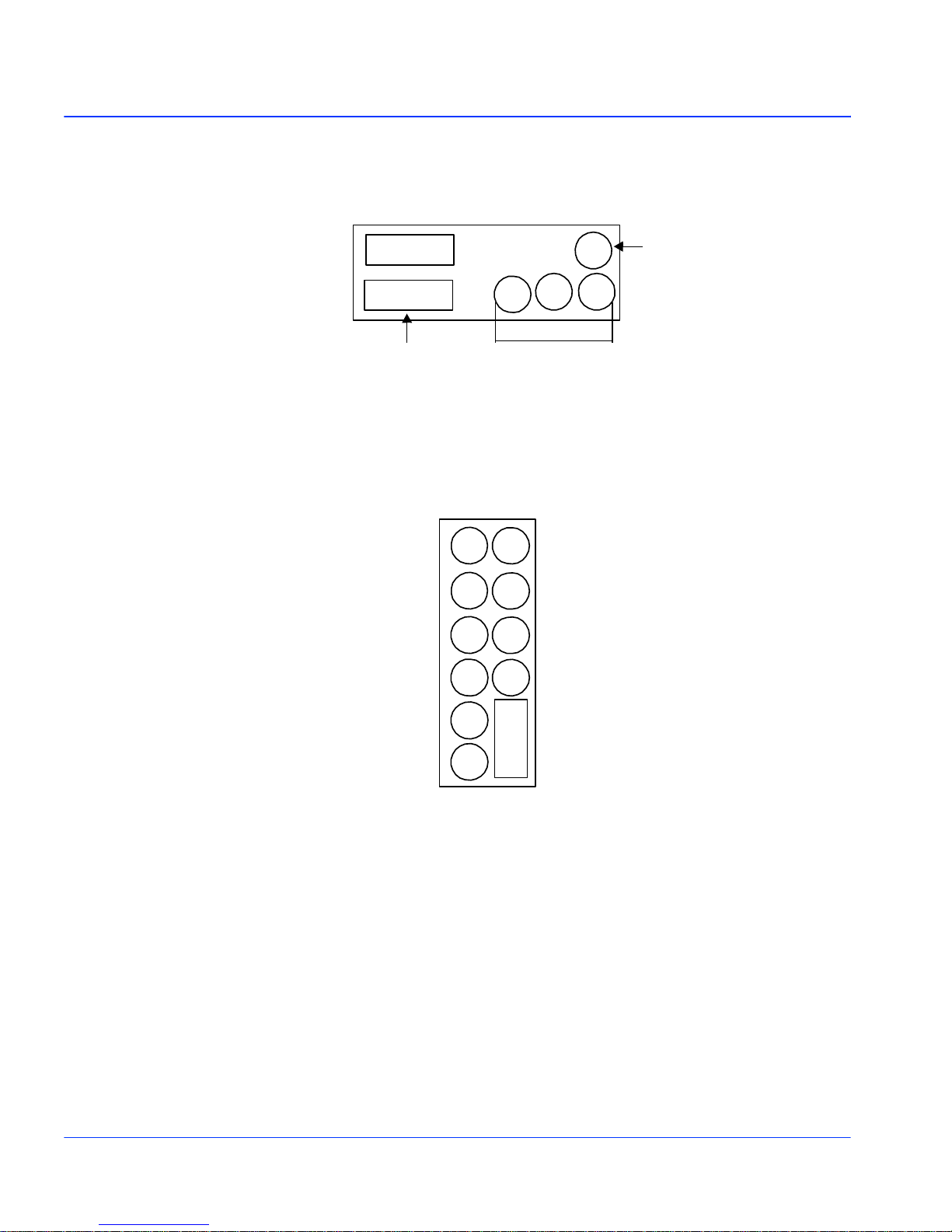

S11 Rear Connector
Figure 2-3 shows the rear connections on the S11.
A
Audio /Alarm
Output
Figure 2-2. S5 Rear Connector on the ASM-6001/G
Serial Digital Output
Serial Digital Output
Serial Digital Output
Serial Digital Output
B
Serial/Video Output
E
E1F1D
E1
C
D1
C
BC1
E
D
C
Serial Digital Input
Serial Digital Analog Output
Serial Digital Analog Output
Serial Digital Analog Output
Serial Digital Input
Serial Digital Output
Analog Output
B1
A1
Audio /Alar m Output
A
Figure 2-3. S11 Rear Connector
6 ASM-6001 User Manual
Page 27
Back Panel Connections Chapter 2: Installation
Cable Requirements
The S5 and S11 require a 15-way “D” type female plug for the connector
marked A on Figure 2-1, Figure 2-2 and Figure 2-3. The function of the
pins are listed below.
Pin Function Pin Function
1Audio Ground 9 GPI/GPO_Ret
2GPO 10
311
4 12 Audio 1 Left -
5 Audio 1 Left + 13 Audio 1 Right -
6 Audio 1 Right + 14 Audio 2 Left -
7 Audio 2 Left + 15 Audio 2 Right -
8Audio 2 Right +
ASM-6001 User Manual 7
Page 28
Chapter 2: Installation Components
Components
The following components are needed to install the ASM-6001:
Module ASM-6001
Frame FR-6004
Rear Connector S5 or S11

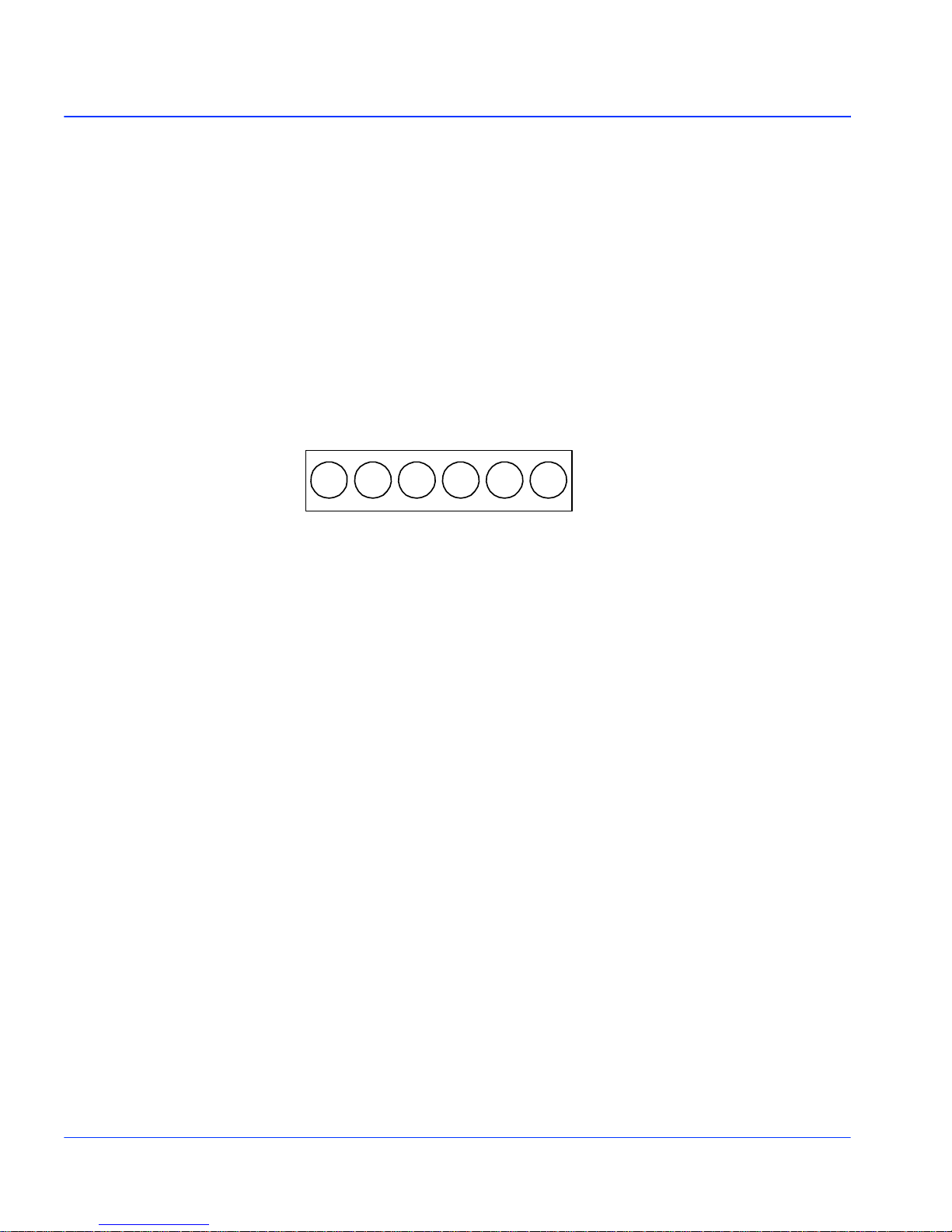

When installed in a FR-6002 frame, the ASM-6001 rear connectors that
cannot be used with this frame are marked. The rear connectors for the
FR-6004 frame are as shown in Figures 2-1 and 2-2 . When the FR-6002
or the FR-6001 frame is used, the rear connectors are mounted
horizontally with connector A located on the left as shown below:
D
CAB
E
F
8 ASM-6001 User Manual
Page 29
Setting the Switches Chapter 2: Installation
Setting the Switches
1. Disconnect all power sources from the frame.
2. Settings on Switch 1 enable the local/remote mode, NTSC
operation, pedestal, and audio input channels. See Figure 1-2,
page 4 for SW1 position.
When the switches on SW1are
towards the PCB
pushed
surface, the function is turned
. When the switches are
on
pushed
surface, the function is turned
off.
away from the PCB
SW1 Switch Position Function
1.1
1.2
1.3 and Off Enable group 1
1.4 Off
1.3 and On Enable group 2
1.4 Off
1.3 and Off Enable group 3
1.2 On
1.3 and On Enable group 4
1.4 On
1.5 On NTSC with 7.5 IRE pedestal
Off NTSC with no pedestal
1.6 On PAL-N/NTSC
Off PAL-I/NTSC
1.7 Off Default
1.8 On Local Mode
Off Remote BO/S mode
ASM-6001 User Manual 9
Page 30
Chapter 2: Installation Setting the Switches
3. To set the alarm , use Switch 4 to enable the GPO output and Switch 2
to enable the no-input-alarm as follows:
Switch Position Function
SW4 Push towards 64 way conncetor Enable GPO output
Push towards card ejector Disable GPO output
SW2.8 Push away from the PCB surface Enable no-input
alarm
Push towards the PCB surface Disable no-input
alarm
4. Use Switches 3, 4, 5, 11, and 12 to make the desired connections as
follows:
• To select the output on connector D:
Switch Position Function
SW10 Push towards the 64 way connector Analog output
Push towards card ejector Digital ouput
• To select the ouput on connector C:
Switch Position Function
SW11 and
SW5
SW11 and SW5 Push towards card ejector Digital ouput
Push towards the 64 way connector Analog output
• To select the output on connector B:
Switch Position Function
SW12 and
SW3
SW12 and SW3 Push up towards inductor L14 and
Push down away from inductor L14
and
Towards the 64 way connector
Towards card ejector
Analog output
Digital ouput
10 ASM-6001 User Manual
Page 31
Setting the Switches Chapter 2: Installation
5. To adjust the audio levels of the channels, use VR4, VR5, VR6 and
VR7 as shown in the table below.
Audio Channel Adjustment
Audio Channel 1 left
Audio Channel 1 right
Audio Channel 2 left
Audio Channel 2 right
VR4
VR5
VR6
VR7
6. When you have completed setting the switches, insert the ASM-6001
card into the frame using a S5 or S11 connector.
7. Connect the serial digital video source to the BNC E. See Figure 2-1,
Figure 2-2 or Figure 2-3 for the position of E.
8. Attach the output sources to connectors B, C and D.
ASM-6001 User Manual 11
Page 32
Chapter 2: Installation Setting the Switches
12 ASM-6001 User Manual
Page 33
Mechanical
Electrical
Chapter 3
Specification
Item Specification
Length 8.66 in. (220 mm)
Width 3.94 in. (100 mm)
Height 0.59 in. (15 mm)
Weight 6.70 oz. (190 g)
Power Supply
Video Input
ASM-6001 User Manual 13
Item Specification
Consumption 8 W
Item Specification
Connector 75 W Terminated BNC 525/625 (270 Mb/s)
(SMPTE259M-C, SMPTE272M-AB)
Page 34
Chapter 3: Specification Electrical
Digital Video Output
Item Specification
Connector 75 W BNC 525/625 (270Mb/s)
(SMPTE259M-C, SMPTE272M-AB)
Analog Video Output
Item Specification
Connector 75 W BNC PAL/NTSC
Return Loss >40dB
Analog Audio Output
Alarm Output
Item Specification
Quantity 4 Balanced outputs
Connector 15-Way "D " Type
Option - Standard
- A2
Weighted Signal to
Noise
Output Level max. 0 dBFS =+28 dBu
1 Analog stereo/ 2 mono
2 Analog stereo/ 4 mono
>60 dB
min. 0 dBFS =+12 dBu
Factory set to +18 dBu
Item Specification
Quantity
1 Opto Isolated
14 ASM-6001 User Manual
Page 35
Appendix A
Edge Connections
The function of each pin in row A and B of the ASM-6001 is listed below.
Row A
Pin
1 Serial Input 1 Ground
2 Ground 2 Ground
3 3
4 4
5 Serial Out 5 Ground
6 6
7 7
8 8
9 Serial Out 9 Ground
10 AES1GND 10
11 11 GPI_IP/GPO_GND
Function
Row B
Pin
Function
ASM-6001 User Manual 15
12 12
13 Serial Out 13 Ground
14 Serial Out 14 Ground
Page 36
Appendix A: Edge Connections
Row A
Pin
15 -6.5 v 15 -6.5 v
16 Ground 16 Ground
17 +7.5 v 17 +7.5 v
18 18
19 FLAG_ID 19 PCB-SEL
20 Serial Out 20 Ground
21 AUD1A+ 21 AUD1A-
22 AUD1B+ 22 AUD1B-
23 Serial Out 23 Ground
24 Serial Out 24 Ground
25 25
Function
Row B
Pin
Function
26 26
27 Serial Out 27 Ground
28 AUD2A+ 28 AUD2A-
29 TKN_DATA 29 I2-ADD
30 TKN_CLK 30 I2-RET
31 Video 4 31 Video 4 Ground
32 AUD2B+ 32 AUD2B-
