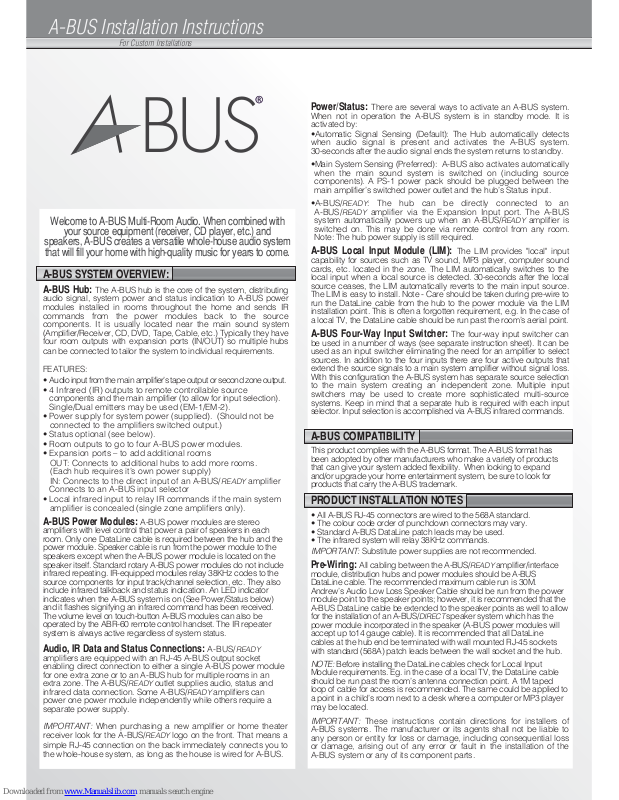

LeisureTech A-BUS Installation Instructions Manual

A-BUS SYSTEM OVERVIEW:

A-BUS Hub: The A-BUS hub is the core of the system, distributing

audio signal, system power and status indication to A-BUS power
modules installed in rooms throughout the home and sends IR
commands from the power modules back to the source
components. It is usually located near the main sound system
(Amplifier/Receiver, CD, DVD, Tape, Cable, etc.) Typically they have
four room outputs with expansion ports (IN/OUT) so multiple hubs
can be connected to tailor the system to individual requirements.

FEATURES:

· Audio input from the main amplifier’s tape output or second zone output.

· 4 Infrared (IR) outputs to remote controllable source
components and the main amplifier (to allow for input selection).

Single/Dual emitters may be used (EM-1/EM-2).

· Power supply for system power (supplied). (Should not be
connected to the amplifiers switched output.)

· Status optional (see below).

· Room outputs to go to four A-BUS power modules.

· Expansion ports – to add additional rooms
OUT: Connects to additional hubs to add more rooms.
(Each hub requires it’s own power supply)
IN: Connects to the direct input of an A-BUS/

READY amplifier

Connects to an A-BUS input selector

· Local infrared input to relay IR commands if the main system
amplifier is concealed (single zone amplifiers only).

A-BUS Power Modules: A-BUS power modules are stereo

amplifiers with level control that power a pair of speakers in each
room. Only one DataLine cable is required between the hub and the
power module. Speaker cable is run from the power module to the
speakers except when the A-BUS power module is located on the
speaker itself. Standard rotary A-BUS power modules do not include
infrared repeating. IR-equipped modules relay 38KHz codes to the
source components for input track/channel selection, etc. They also
include infrared talkback and status indication. An LED indicator
indicates when the A-BUS system is on (See Power/Status below)
and it flashes signifying an infrared command has been received.
The volume level on touch-button A-BUS modules can also be
operated by the ABR-60 remote control handset. The IR repeater
system is always active regardless of system status.

Audio, IR Data and Status Connections: A-BUS/READY

amplifiers are equipped with an RJ-45 A-BUS output socket
enabling direct connection to either a single A-BUS power module
for one extra zone or to an A-BUS hub for multiple rooms in an
extra zone. The A-BUS/READY outlet supplies audio, status and
infrared data connection. Some A-BUS/READY amplifiers can
power one power module independently while others require a
separate power supply.

IMPORTANT: When purchasing a new amplifier or home theater
receiver look for the A-BUS/

READY logo on the front. That means a

simple RJ-45 connection on the back immediately connects you to
the whole-house system, as long as the house is wired for A-BUS.

Power/Status: There are several ways to activate an A-BUS system.

When not in operation the A-BUS system is in standby mode. It is
activated by:

·Automatic Signal Sensing (Default): The Hub automatically detects
when audio signal is present and activates the A-BUS system.
30-seconds after the audio signal ends the system returns to standby.

·Main System Sensing (Preferred): A-BUS also activates automatically
when the main sound system is switched on (including source
components). A PS-1 power pack should be plugged between the
main amplifier’s switched power outlet and the hub’s Status input.

·A-BUS/

READY: The hub can be directly connected to an

A-BUS/READY amplifier via the Expansion Input port. The A-BUS
system automatically powers up when an A-BUS/READY amplifier is
switched on. This may be done via remote control from any room.
Note: The hub power supply is still required.

A-BUS Local Input Module (LIM): The LIM provides "local" input

capability for sources such as TV sound, MP3 player, computer sound
cards, etc. located in the zone. The LIM automatically switches to the
local input when a local source is detected. 30-seconds after the local
source ceases, the LIM automatically reverts to the main input source.
The LIM is easy to install. Note - Care should be taken during pre-wire to
run the DataLine cable from the hub to the power module via the LIM
installation point. This is often a forgotten requirement, e.g. In the case of
a local TV, the DataLine cable should be run past the room's aerial point.

A-BUS Four-Way Input Switcher: The four-way input switcher can

be used in a number of ways (see separate instruction sheet). It can be
used as an input switcher eliminating the need for an amplifier to select
sources. In addition to the four inputs there are four active outputs that
extend the source signals to a main system amplifier without signal loss.
With this configuration the A-BUS system has separate source selection
to the main system creating an independent zone. Multiple input
switchers may be used to create more sophisticated multi-source
systems. Keep in mind that a separate hub is required with each input
selector. Input selection is accomplished via A-BUS infrared commands.

A-BUS COMPATIBILITY

This product complies with the A-BUS format. The A-BUS format has
been adopted by other manufacturers who make a variety of products
that can give your system added flexibility. When looking to expand
and/or upgrade your home entertainment system, be sure to look for
products that carry the A-BUS trademark.

PRODUCT INSTALLATION NOTES

· All A-BUS RJ-45 connectors are wired to the 568A standard.

· The colour code order of punchdown connectors may vary.

· Standard A-BUS DataLine patch leads may be used.

· The infrared system will relay 38KHz commands.

IMPORTANT: Substitute power supplies are not recommended.

Pre-Wiring: All cabling between the A-BUS/READY amplifier/interface

module, distribution hubs and power modules should be A-BUS
DataLine cable. The recommended maximum cable run is 30M.
Andrew’s Audio Low Loss Speaker Cable should be run from the power
module point to the speaker points; however, it is recommended that the
A-BUS DataLine cable be extended to the speaker points as well to allow
for the installation of an A-BUS/DIRECT speaker system which has the
power module incorporated in the speaker (A-BUS power modules will
accept up to14 gauge cable). It is recommended that all DataLine
cables at the hub end be terminated with wall mounted RJ-45 sockets
with standard (568A) patch leads between the wall socket and the hub.

NOTE: Before installing the DataLine cables check for Local Input
Module requirements. Eg. in the case of a local TV, the DataLine cable
should be run past the room's antenna connection point. A 1M taped
loop of cable for access is recommended. The same could be applied to
a point in a child's room next to a desk where a computer or MP3 player
may be located.

IMPORTANT: These instructions contain directions for installers of
A-BUS systems. The manufacturer or its agents shall not be liable to
any person or entity for loss or damage, including consequential loss
or damage, arising out of any error or fault in the installation of the
A-BUS system or any of its component parts.

Welcome to A-BUS Multi-Room Audio. When combined with

your source equipment (receiver, CD player, etc.) and

speakers, A-BUS creates a versatile whole-house audio system

that will fill your home with high-quality music for years to come.

A-BUS Installation Instructions

For Custom Installations

POWER MODULE

LOCAL INPUT MODULE

A-BUS/

READY

TRIM POTS

LEFT

RIGHT

R- R+

L+ L-

SPEAKER OUT

LEFT

SPEAKER

RIGHT

SPEAKER

LINE LEVEL AUDIO

LINE LEVEL AUDIO

TO
ADDITIONAL
HUBS

SPEAKER CABLE

INFRARED

INFRARED

PS-1

STANDARD SYSTEM

SOURCE2

AMP

SOURCE1

SOURCE2

SOURCE1

IMPORTANT INSTALLATION GUIDELINES

Before installation, review the manuals included with each component in your system. If you are unsure of any of the installation procedures, it is recommended
that you contact your dealer or a professional electronics installer. During installation, do not connect power to the hub. Before powering up the system, make
sure all volume levels are on minimum level.
Note - before installing the power modules into the walls be sure to adjust the trim pots after all modules have been connected.

FEATURES AND SPECIFICATIONS

Power Module (AB-20)

Speakers Drives one pair of speakers (4-8 ohms)
Control Rotary
Wall plate A-BUS Screwless Wall Plate
Terminals Input: DataLine Punchdown (110)
Output: screw terminal (up to 14 gauge)
Infrared Repeating None
Size Depth 70mm (2.8”) Height 107mm (4.2”)
Width 44mm (1.7”)

Power Module (AB-39R/AB-43/AB-41) Includes

Infrared Repeating 38KHz
Nominal Range in sunlight < 5M, Indoors > 20M
Status System ON Indicated by LED
Talkback LED Flashes when in use.

Power Module (AB-43) Includes

· Control Touch button Up/Down volume

· Remote controllable volume level

Power Module (AB-41) Includes

· Remote Controllable Volume level

Local Input Module (AB-70)

Auto switching when local audio signal is sensed.
Auto return 30 seconds after audio ceases
Inputs Local Audio - RCA Phono jacks (1pr.)
From hub - Punchdown
Output To power module - Punchdown
Size Depth 25mm Height 107mm
Width 44mm

Cable Requirements

Interface module to hub to power modules: DataLine Cable
Power module to speakers: Andrew’s Audio Low Loss Cable

Remote Control (ABO-40RC)

A-BUS miniature remote control included with the ABS-40.
Inputs Buttons - Volume Up, Volume Down
Source 1-4, Off, All Off
Battery Voltage - 3V
Type - Lithium CR2025
Size Depth 6.8mm Height 86mm Width 33mm

Remote Control (ABR-60)

A-BUS Learning Remote Control
Inputs 64k Non-Volatile memory
6 Banks, 24 keys per bank
4 Macro keys
2 Rocker sets
Battery Voltage - 3V (1.5V x 2)
Type - AA
Size Depth 25mm Height 215mm Width 43mm

HUB (AB-62)

Inputs Audio - Phono jacks (1pr.)
Power - 2.5mm DC (+v centre)
Status - 2.1mm DC (+v centre)
Expansion - Input RJ-45
Outputs A-BUS ports - 4 x RJ-45
Infrared - 4 x 2.5mm TRS jacks
Expansion ports - RJ-45
Wiring format 568A
Size Depth 83mm Height 30mm
Width 184mm

Power Supply (APS-23)

Inputs 120 -240 Volt ~ 50/60Hz 1.5A
Output 24V - 2.3Amp
Size Length 151mm Height 36mm
Width 70mm

SETUP

The A-BUS installation
should be completed with all
power modules connected
but not installed into the
walls. Follow these steps to
give you maximum control
flexibility over the volume of
your A-BUS system. On the
back of the power modules
there are trim pots (Left &
Right) that fine-tune the
output level to compensate
for the length of the cable
run, the efficiency of the
speakers and the size of the
room. There are also
situations where you may
want to limit the output level
in a particular room. With the
trim pots adjusted to
minimum, the main volume
control should be adjusted to
maximum level, then with
popular music playing the
trim pots should be brought
up to a point just below the
amplifier’s clipping level.
(Clipping is the point where
the sound starts to distort).
When the trim pots are all set
to the desired level the
installation may be completed.

FAULT FINDING

Infrared Your A-BUS infrared relay system is world standard using the most

up-to-date technology. However, some infrared codes may present problems.
Make sure the infrared emitters are properly placed on the IR receiver of
the source components.
Infrared systems are more likely to give trouble as a result of too much
power. (Try moving the emitter away from the component).
Cable boxes and Plasma screens often cause difficulties.

· Most faults occur as a result of incorrect wiring.

· Check all connections carefully.

· Make sure all speakers are wired in phase.

· Disconnect power modules from hub and check operation one by one.

· A short in a line or incorrect wiring will cause the power module to

shutdown until the fault is fixed.

· Status indicates the system is active. (LED indicator on infrared models only)

A-BUS® is a Registered Trademark of LeisureTech Electronics Pty Ltd Sydney, Australia. Patent No. AUST 739808 LeisureTech Electronics Pty Ltd Sydney, Australia

DataLine

DataLine

DataLine

DataLine

OUT EXPANSION INOUT EXPANSION IN

A-BUS OUTPUTSA-BUS OUTPUTS

IR EMITTERSIR EMITTERS

LOCAL IRLOCAL IR

STAT

SIG

GND

V +

STAT

SIG

GND

V +

POWERPOWER

STATUSSTATUS

R AUDIO LR AUDIO L

TM

PUNCHDOWN WIRE ORDER

AMP

APS-23

IR

IR

IR

IR

IR

TV

TV

PC

PC

Brown Blue Green Orange

MP3

MP3

HUB
