Page 1
P.O. Box 1700 • Hendersonville, NC 28793 • Tel: (800) 633-8241 • (828) 693-8241
Fax: (828) 693-8777 • www.leisurecraftinc.com • [email protected]

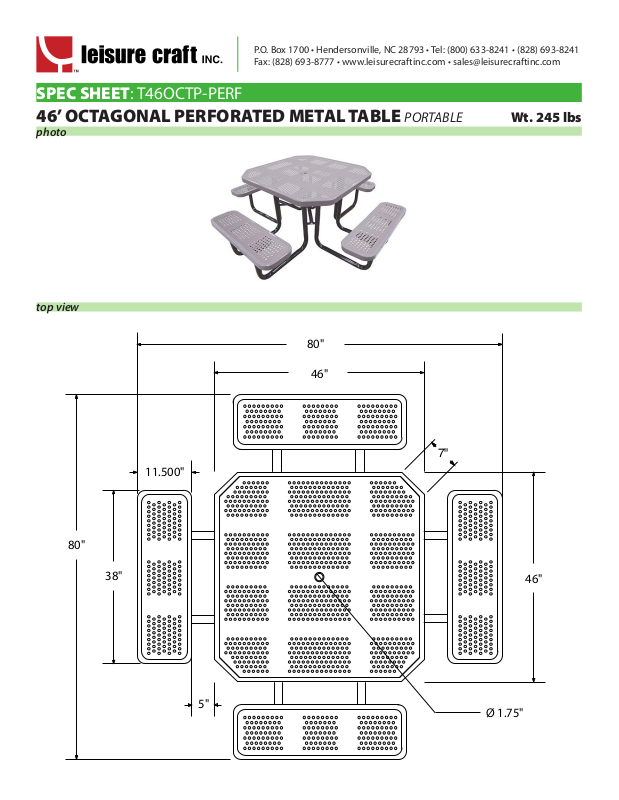

SPEC SHEET: T46OCTP-PERF
46’ OCTAGONAL PERFORATED METAL TABLE PORTABLE Wt. 245 lbs
top view
80"
38"
80"
46"
7"
11.500"
46"
5"
Ø 1.75"
Page 2
side view
2"
29.250"
2"
2"
product details
mounting types
P = Portable : no mount
26.375"
Coated Surfaces:
• Thermoplastic coated
• Copolymer-based,
environmentally safe
• Does not fade, crack, peel warp
• Applied at a thickness of
25-30 mils.
• 5 Year warranty on coating
16.500"
Construction:
• Seats and tops - 11 gauge steel
• 2” tubular understructure
• Understructure - galvanized steel
• Understructure nish - black
polyester powder coated
• Nuts, washers and bolts galvanized steel
SM = Surface Mount:
concrete anchors
through discs welded
to legs
IG= In-Ground:
J-rods set in concrete
through discs welded
to legs
portable
surface mount
in-ground
All design specics subject to change. For all products Leisure Craft reserves the right to make adjustments due to changing market
conditions, product discontinuation, legislative requirements or other circumstances. © 2009 Leisure Craft, Inc.
