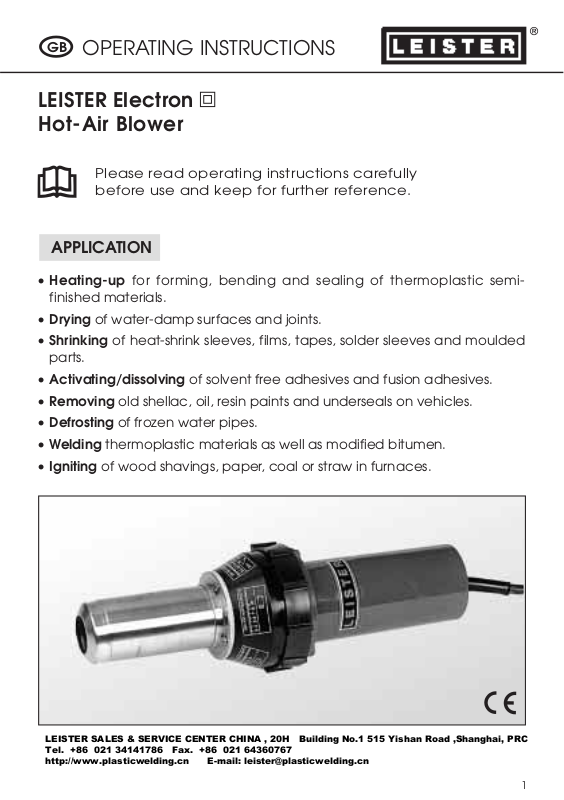

Leister Electron Operating Instructions Manual

1

LEISTER Electron
Hot-Air Blower

Please read operating instructions carefully
before use and keep for further reference.

• Heating-up for forming, bending and sealing of thermoplastic semi-

finished materials.

• Drying of water-damp surfaces and joints.

• Shrinking of heat-shrink sleeves, films, tapes, solder sleeves and moulded

parts.

• Activating/dissolving of solvent free adhesives and fusion adhesives.

• Removing old shellac, oil, resin paints and underseals on vehicles.

• Defrosting of frozen water pipes.

• Welding thermoplastic materials as well as modified bitumen.

• Igniting of wood shavings, paper, coal or straw in furnaces.

GB

OPERATING INSTRUCTIONS

APPLICATION

LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen/Switzerland

Tel. [phone] Fax [phone]

www.leister.com [e-mail]

®

LEISTER SALES & SERVICE CENTER CHINA , 20H Building No.1 515 Yishan Road ,Shanghai, PRC
Tel. [phone] Fax. [phone]
http://www.plasticwelding.cn E-mail: [e-mail]

Voltage V~
Power consumption W

Temperature °C
Air flow l/min.
Air pressure mbar
Emission level L

pA

(dB)
Weight kg
Size mm

42, 120, 200, 230, 230, 230, 400 for 50/60 Hz
1000, 2700, 2600, 2300, 3400, 4500, 5500
20 – 650, steplessly adjustable
max. 500, manual air slide
30
65

1.5 with 3m power supply cord
320

× 64

2

Line/mains voltage

cannot be

switched over

Electrical safety: Double insulated

TECHNICAL DATA

Danger to life when opening the tool, as live compo-

nents and connections ar exposed. Unplug the tool
before opening it.

Incorrect use of hot air blowers can cause fire and
explosion hazard, especially near combustible materials
and explosive gases.

The tool must be operated with supervision. Warmth
can reach combustible materials, which are out of sight.

For personal protection on building sites we strongly

recommend the tool be connected to a GFCI (Ground
Fault Circuit Interrupter) or a RCCB (Residual Current
Circuit Breaker) .

The voltage rating stated on the tool must correspond to
the line/mains voltage.

Do not touch the element housing and nozzle when
they are hot as they can cause burns. Let the tool cool
down. Do not point hot air flow in the direction of
people or animals.

Protect tool from damp and wet.

FI

120
230

WARNING

CAUTION

APPROVAL MARK
