Leigh TD330 User guide

User Guide

Leigh Through
Dovetail Jig

Model TD330

For Workbench or Router Table Use

Workbench

See page 81 for customer support

800-663-8932

www.leightools.com

Leigh Router Joi nery Jigs

Router Table

Watch the Online Instructional Videos

in the Support Section at leightools.com

2

TD330 User Guide

Contents

Chapter 1 Introduction 5

What’s Included 5

Jig Diagram 6

Units of Measure 7

Bit Specifications 7

Clamping 8

Marking the Boards 8

Chapter 2 Safety 9

Chapter 3 The Leigh eBush 13

Chapter 4 Mounting & Assembly 19

Chapter 5 Routing Through Dovetails (Handheld Router) 31

Clamping Narrow Boards 53

Chapter 6 Router Table Operation (Routing Through Dovetails) 57

Clamping Narrow Boards 78

Chapter 7 Guide Bushing Adaptor Selection 79

Chapter 8 Customer Support 81

Instructional Videos Available at leightools.com

Click on the Support tab and go to the Instructional Videos and User Guide page.

Your New Leigh Through Dovetail Jig, Model TD330

The Leigh Through Dovetail Jig, Model TD330, is a simple, easy to use tool for making
through dovetails on boards up to 13/16" [21mm] thick, and from 1-1/4" [32mm] to
12-7/8" [327mm] wide.

Customer Support

If you have any questions that are not answered in this user guide, please call Leigh Customer
Support: 1-800-663-8932 in North America or email: [email protected]. For support
contacts in your country of purchase, see Customer Support at the end of this Guide.

Reminder: If at first you don’t succeed, read the instructions!

TD330 User Guide

Register your Leigh TD330

Here’s Why!

• Be the first to learn new ways to use your jig

• Learn about updates to your jig

• Save $$ with Special Offers

• Find out about new product launches

• Industry leading 5 year warranty

Register Now – It’s Easy

Go to leightools.com
Click on Support
Click on Register your Product Online

3

Leigh will NEVER rent, sell or distribute your information.

5 Year Warranty

Leigh stands behind its products with a 5 year limited warranty, the best in
the business. See the complete warranty in Chapter 8, Customer Support.

Satisfaction Guarantee

Products purchased directly from Leigh carry a 90-day Customer Satisfaction Guarantee.
Those purchased from an authorized Leigh dealer may also carry a Customer Satisfaction
Guarantee; see your Leigh dealer for details. Proof of purchase is required.

PRIVACY POLICY

4

TD330 User Guide

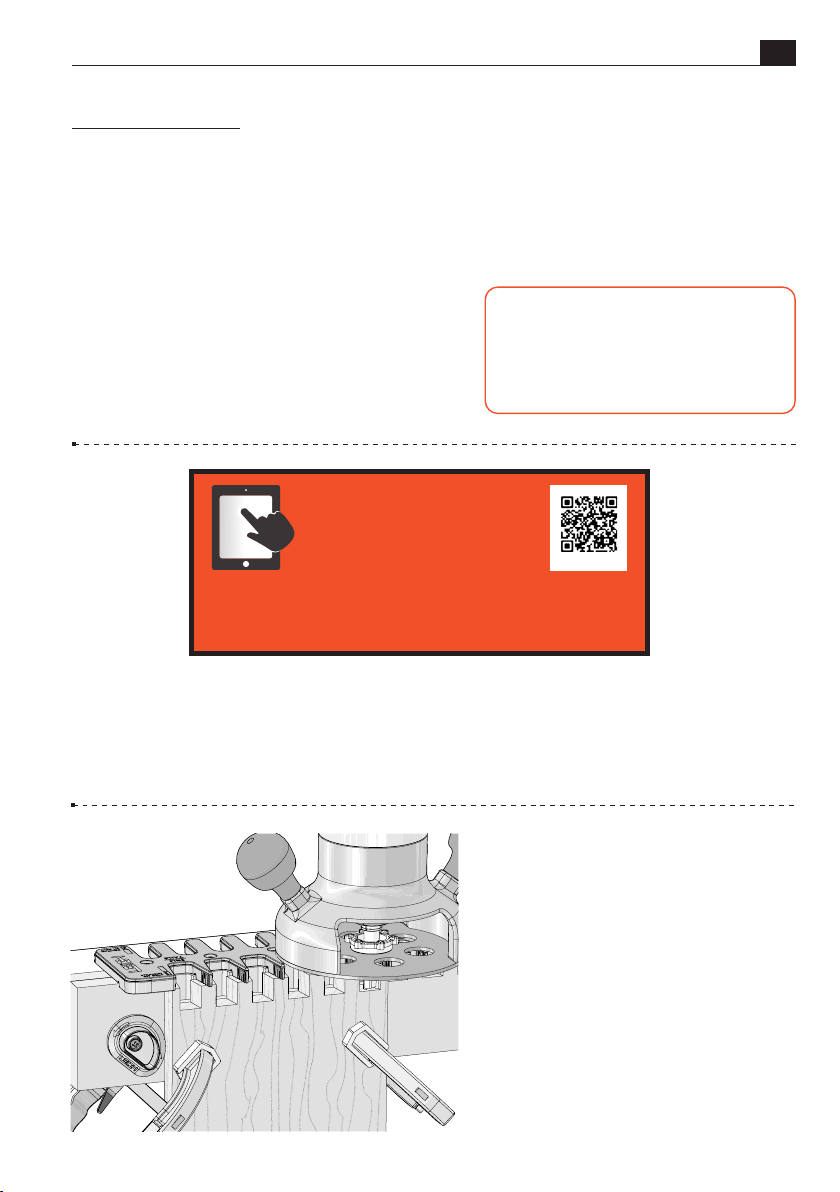

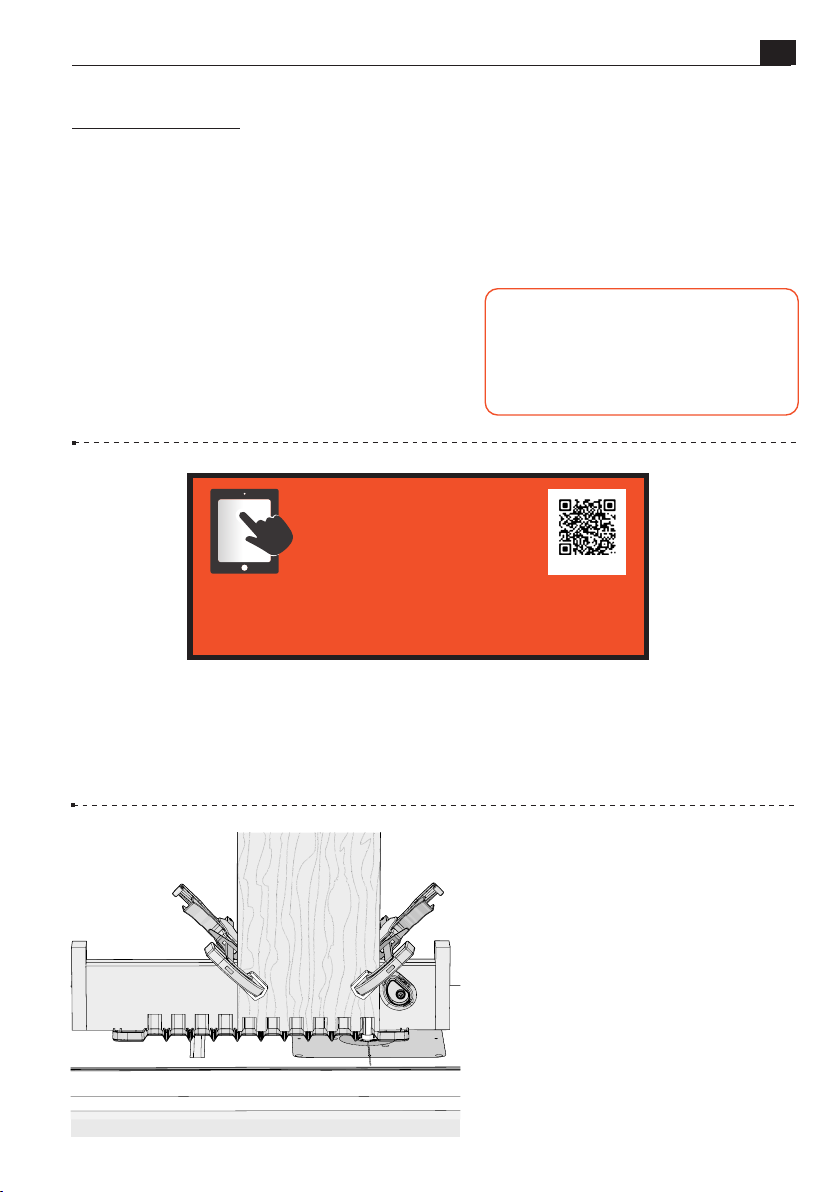

Watch the Online

Instructional

Video

Reduce your learning time dramatically! Stream to your
smart phone or tablet to use in your workshop while you're
working. See Instructional Videos section in Support menu at
leightools.com or scan QR code for instant video.

Watching the online video in addition to reading this user guide will reduce your learning
time dramatically. The video can be streamed to your smart phone or tablet and used in
your shop as a visual reference. Visit leightools.com and find the video in the Support
section.

Scan QR Code

Watch these Videos Online

Overview Video

Router Requirements Video

Router Table Requirements

Video

How to Rout Through Dovetails

on the TD330 Video

Router Table Operation Video

TD330 User Guide

CHAPTER 1

Introduction

5

H

F

E

A

G

D

B

C

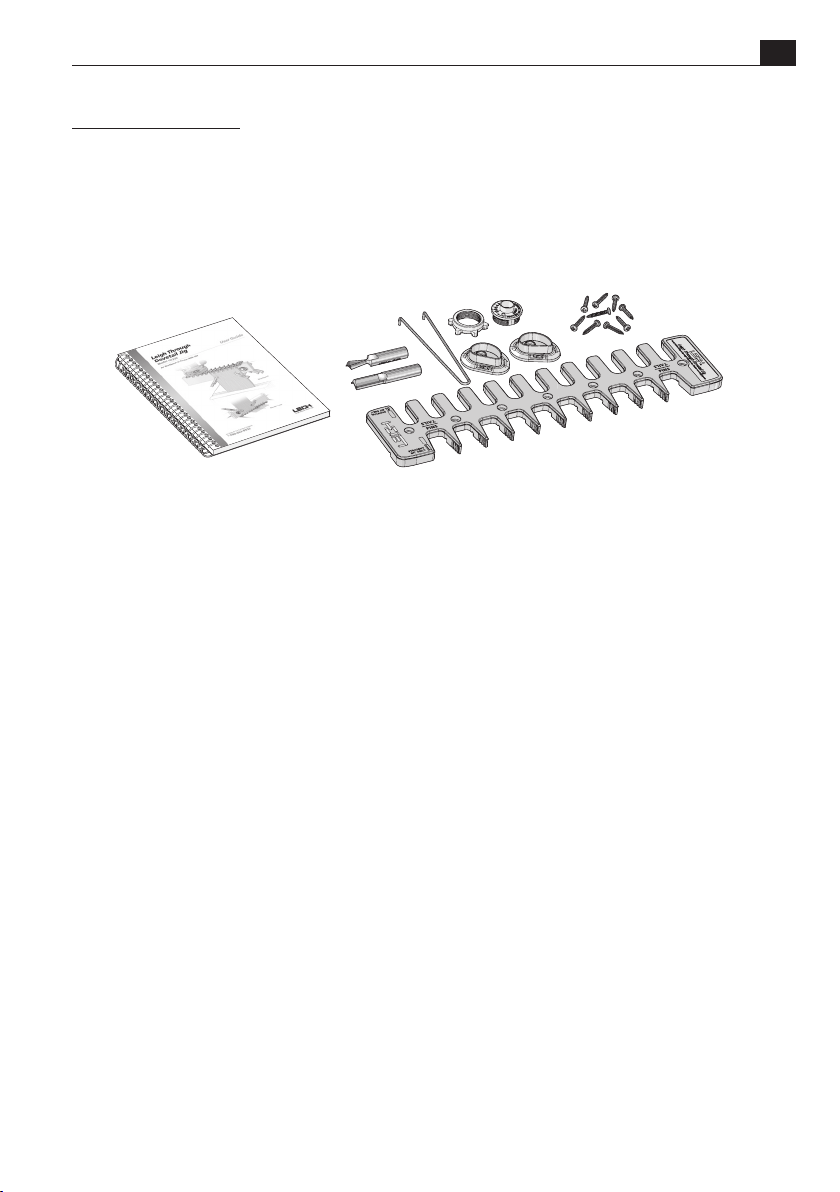

What’s Included

PART DESCRIPTION PART NO. QUANTITY

A

Bag 1

Bag 2

D
E

G

Bag 3

If any parts are missing from your jig, please notify your supplier
or Leigh immediately. See Chapter 8, Customer Support.

Jig Template with Decal 125128 1

Side Stops 125110 2

B

Phillips Pan Head Wood Screws, No.8 x 1" 313585 9

C

Guide Bushing, e10* eBush e10 1
Straight Bit, Carbide Tipped, 1/2" VM160CH 1
Dovetail Bit, Carbide Tipped, 1/2", 8º VM80-500CH 1

F

Pin Wrench 730V 1

Fully Illustrated User Guide 125115 1

H

* Leigh e10 Elliptical Guide Bushing: U.S. Patent no. 8,256,475 UK Patent no. GB2443974 Canada Patent no. 2,611,232

6

Chapter 1 Introduction

Leigh Through Dovetail Jig
Model TD330

TD330 User Guide

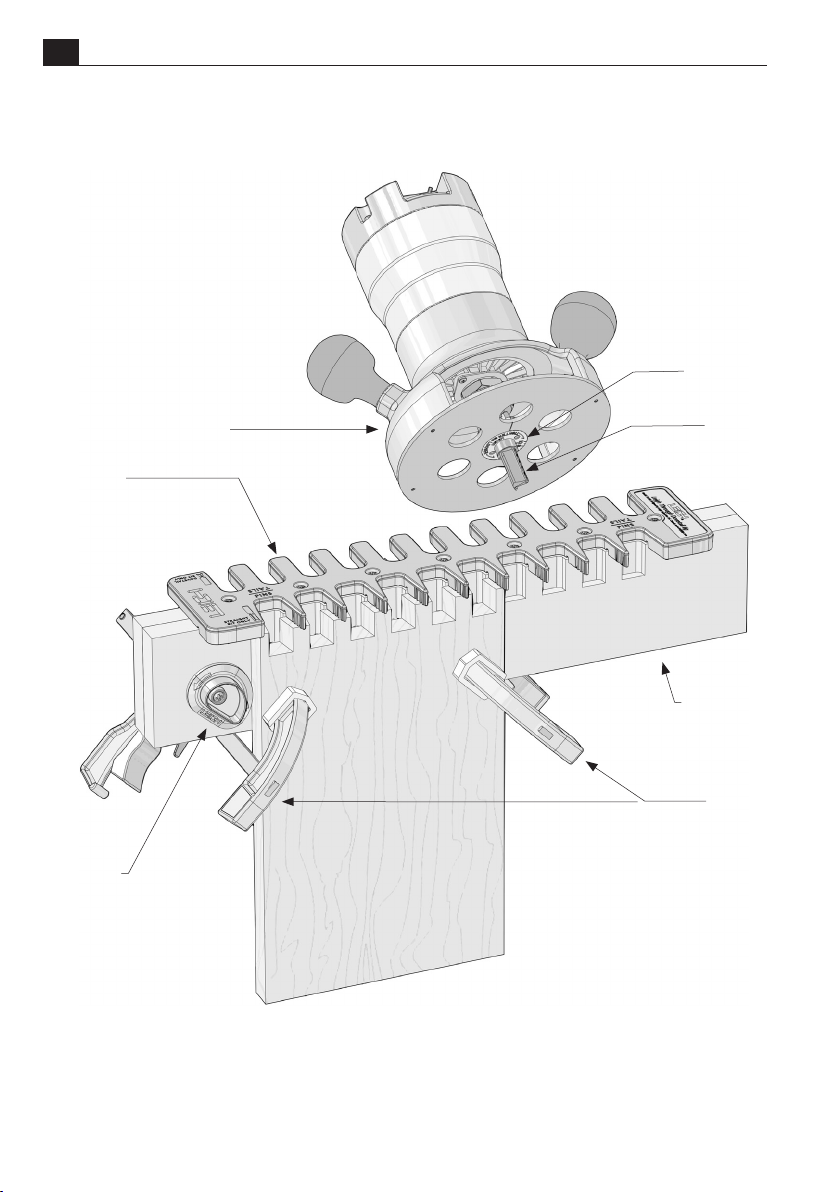

e10 eBush

Router (User Supplied)

Template

Side Stop

1/2" Bit

MDF Beam

(User Made)

Clamps

(User Supplied)

TD330 User Guide

Chapter 1 Introduction

7

Units of Measure

IMPORTANT! INCHES AND MILLIMETERS

Text and illustrations in this English language user guide indicate dimensions in both
inches and millimeters, where applicable, with “inches” first, followed by “millimeters” in
square brackets, i.e. 1/2" x 2"[12,7mm x 51mm].

Don’t be concerned that the inch/millimeter equivalents are not mathematically
“correct”.

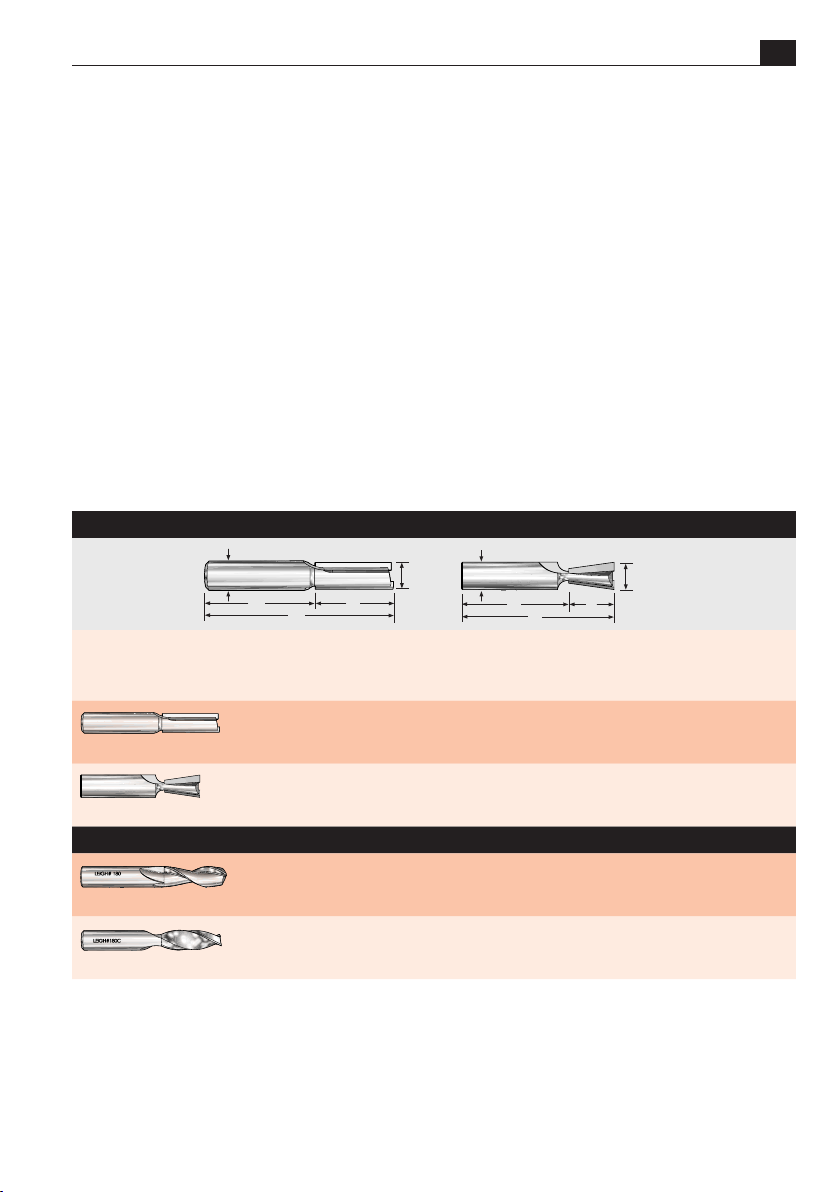

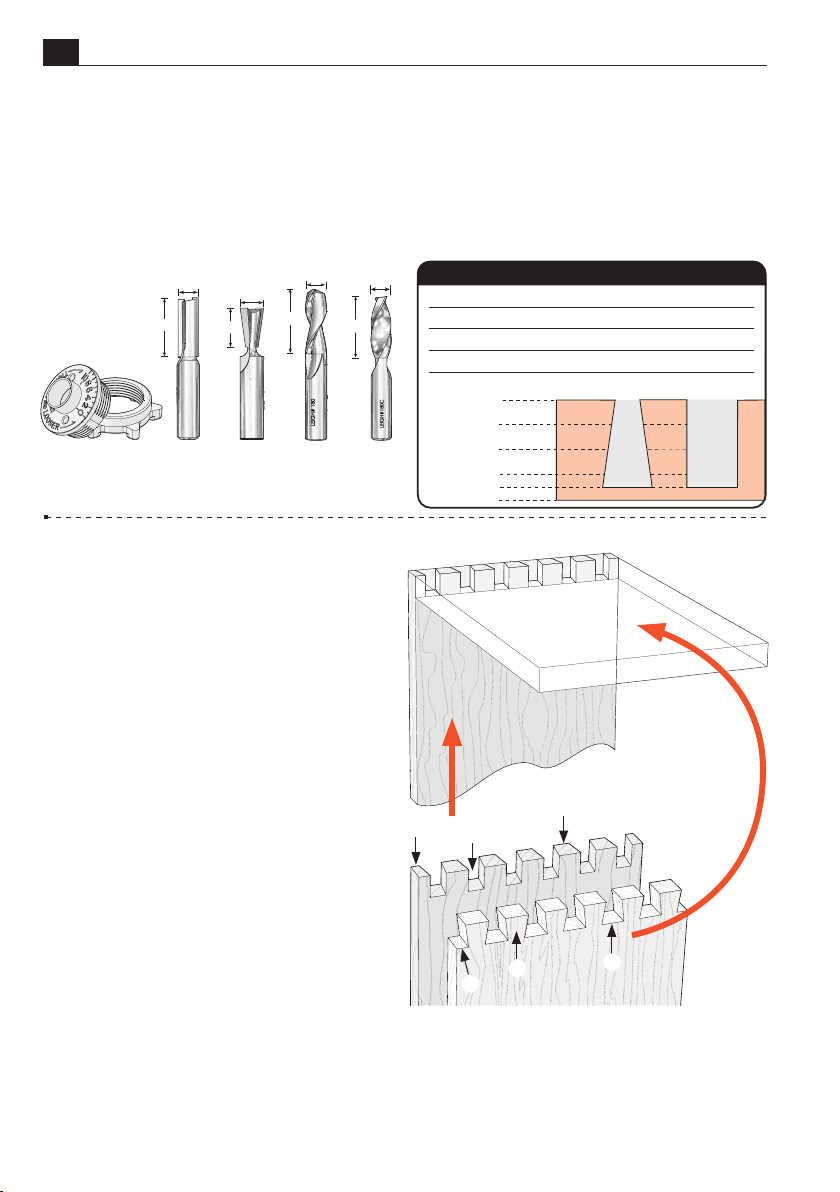

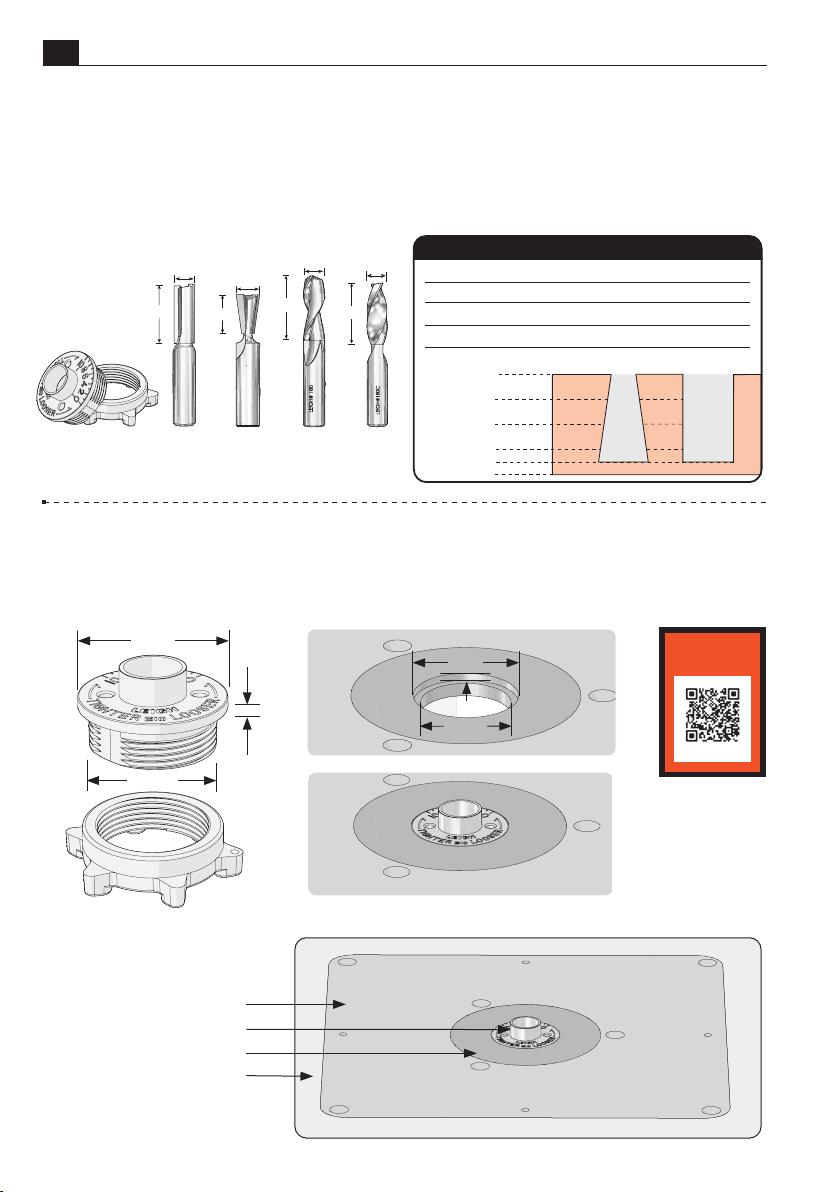

Bit Specifications

There are two bits used with the TD330 Through Dovetail Jig. Your new jig is shipped
with a 1/2" 2-flute, carbide tipped straight bit, and a 1/2" 8º carbide tipped 2-flute
dovetail bit. You may also use a 1/2" spiral upcut bit in high speed steel or solid carbide.

Router requirements: The Leigh TD330 Through Dovetail Jig requires a router with a

1/2" collet.

Bit Specifications

Leigh Bits

C

VM160CH

E

A

Bit

Diameter

BD

Max.

Cutting

Depth

A

B

Diameter

C

Shank

C

VM80-500CH

D

D

Shank

Length

A

B

E

E

Overall
Length

Use with Collet

Use with

eBush

VM160CH

/" 1" /" 1/" 3/"

VM160CH Carbide Tipped

VM80-500CH

Solid Carbide

Carbide Tipped

VM80-500CH

**

180

High Speed Steel

**

180C

** Optional spiral upcut bits rout cleaner and faster, leaving a smoother finish.

/" /" /" 1/" 2/"

Optional Bits**

/" 1/" /" 1/" 3/"

/" 1/" /" 1/" 3/"

/"

Collet

/"

Collet

/"

Collet

/"

Collet

e10

e10

e10

e10

8

Chapter 1 Introduction

TD330 User Guide

Clamping

The TD330 jig is clamped to the workpiece using two user supplied quick grip clamps,
or similar.

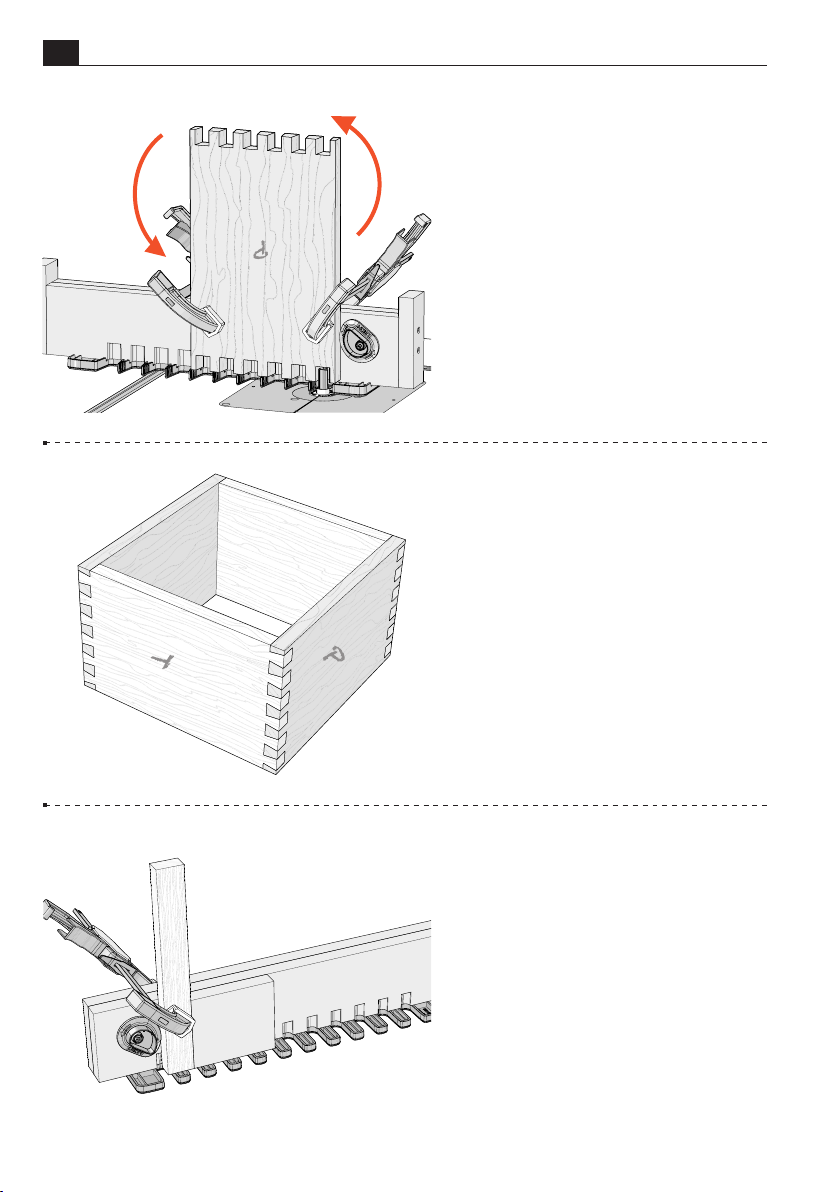

Marking the Boards

Before mounting and routing the
boards, mark them as follows. A
“P ” and a “T ” are marked on
the boards to indicate which
is the pin board and which is
the tail board. The marked face
indicates it is an outside board
and always faces away from
the jig and outwards on the
assembled box.

P

T

P

TD330 User Guide

CHAPTER 2

Safety

Safety is not optional. Read and
follow the recommendations here.

Read the owner’s manual that
came with your router and router
table. It is essential to understand
all manufacturer’s instructions
completely.

Reduce your learning time dramatically! Stream to your
smart phone or tablet to use in your workshop while you're
working. See Instructional Videos section in Support menu at

leightools.com or scan QR code for instant video.

Watch the Online

Instructional

Video

9

Scan QR Code

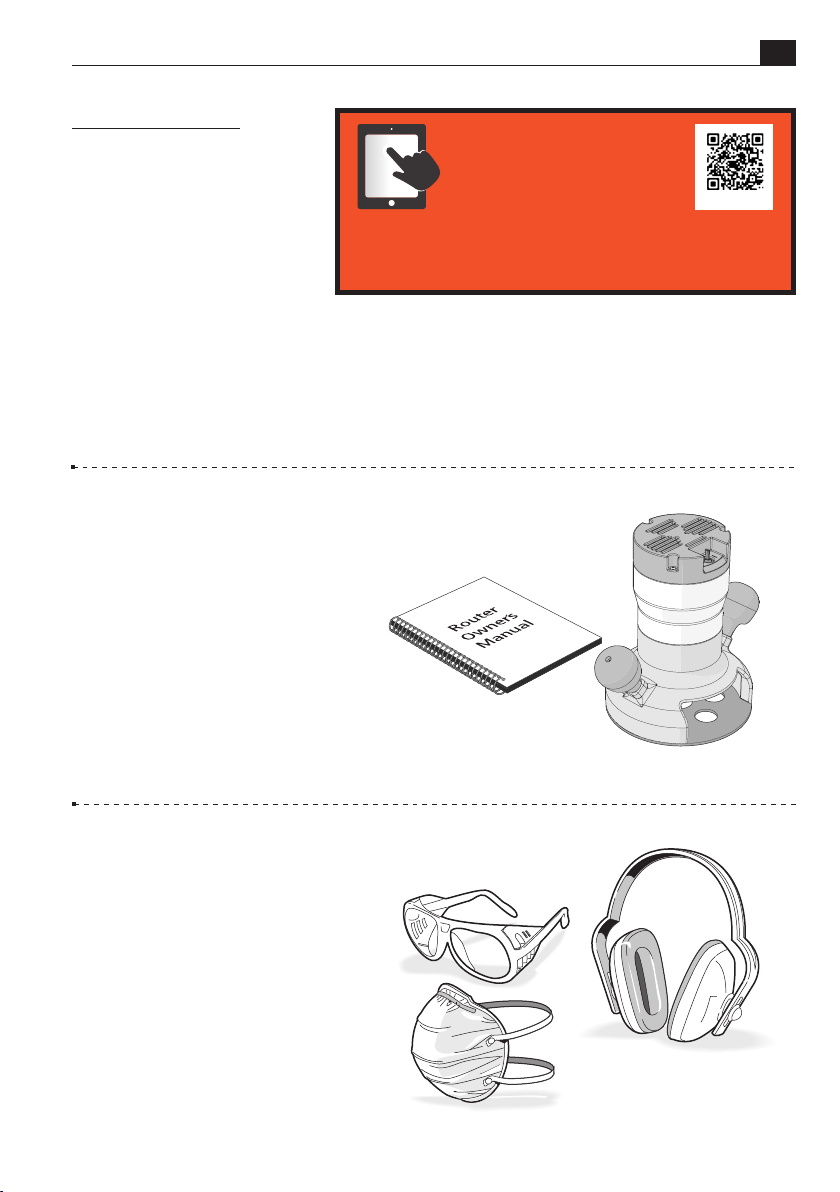

Always wear:



• Approved safety glasses;

• A face mask to protect yourself
from harmful dust;

• Hearing protection.

10

Chapter 2 Safety

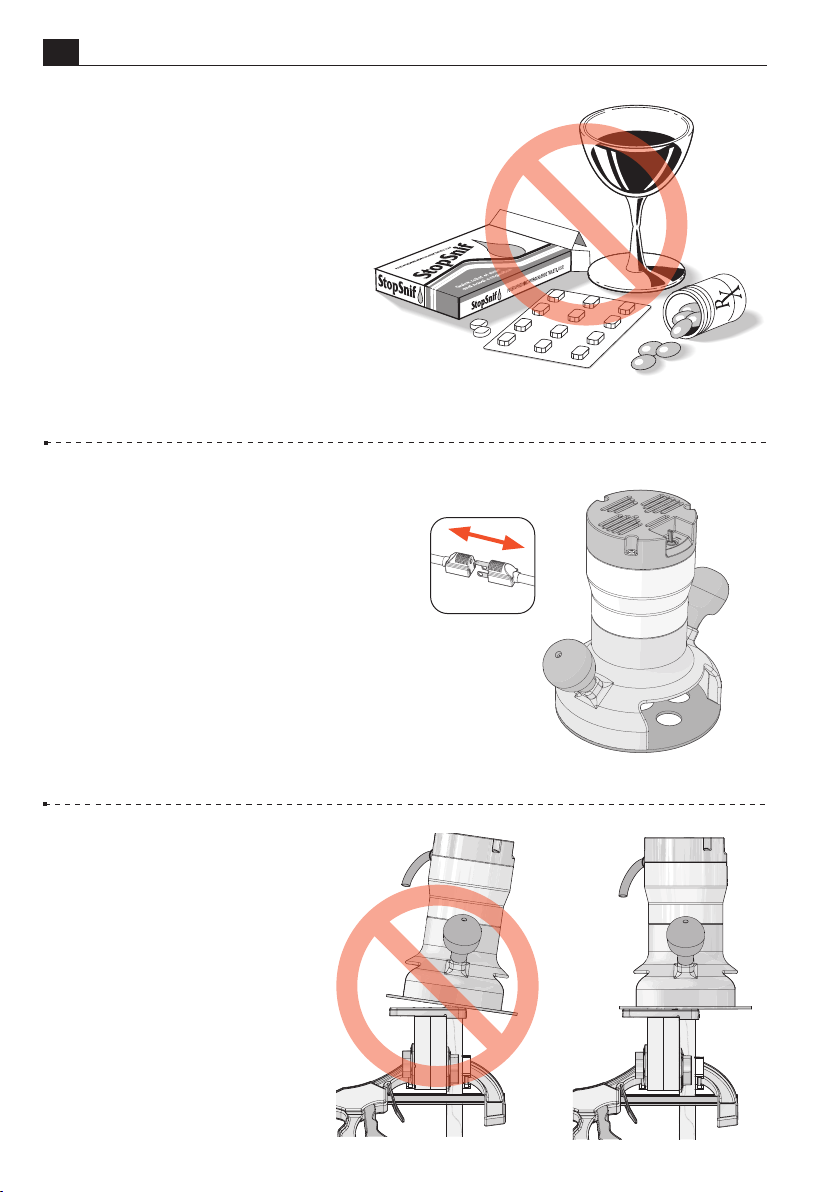

 Never drink alcohol or

take medications that can cause

drowsiness while operating a router.

Always disconnect the power



source before installing bits, guide

bushings or making adjustments. Before
reconnecting the router to the power
source, make sure the bit and collet
revolve freely with and without the
guide bushing in place.

TD330 User Guide

After routing, wait for the bit to come
to a complete stop before removing the
router from the jig.

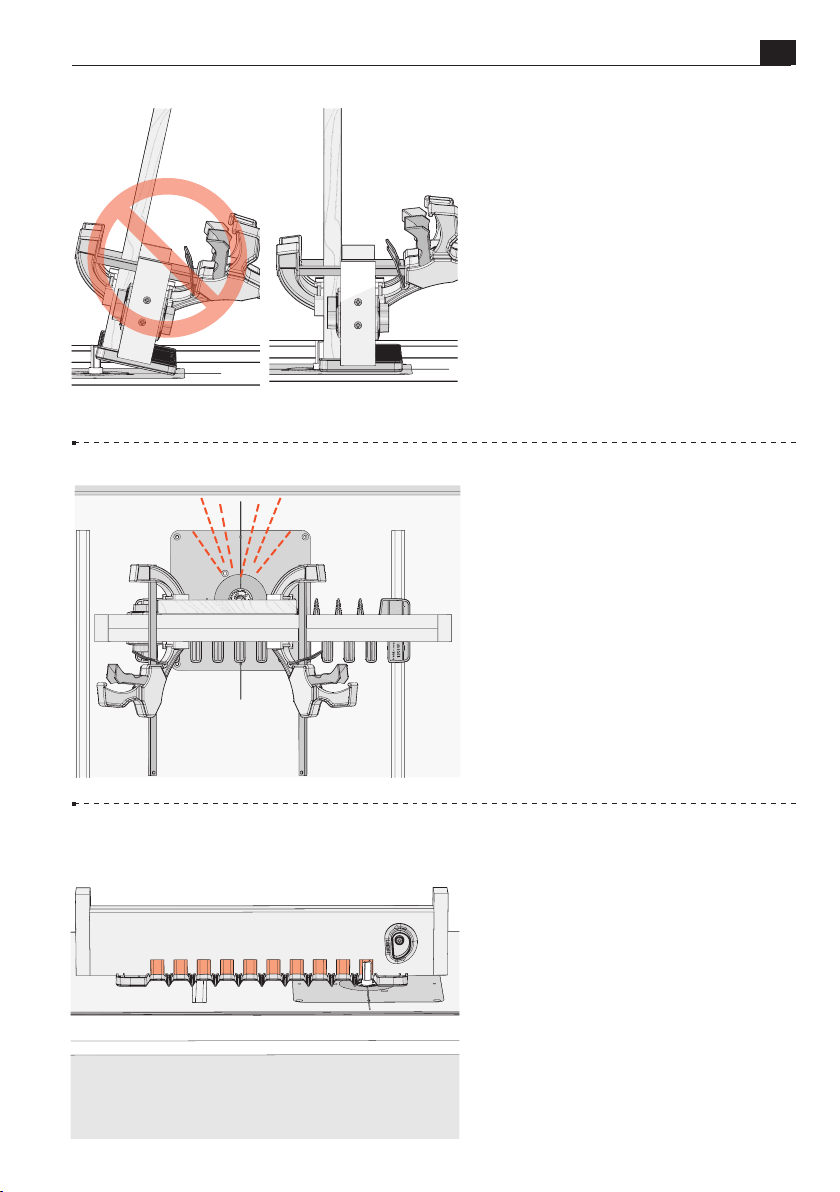

Do not tilt the router. Keep the



router flat on the jig during all routing.

TD330 User Guide

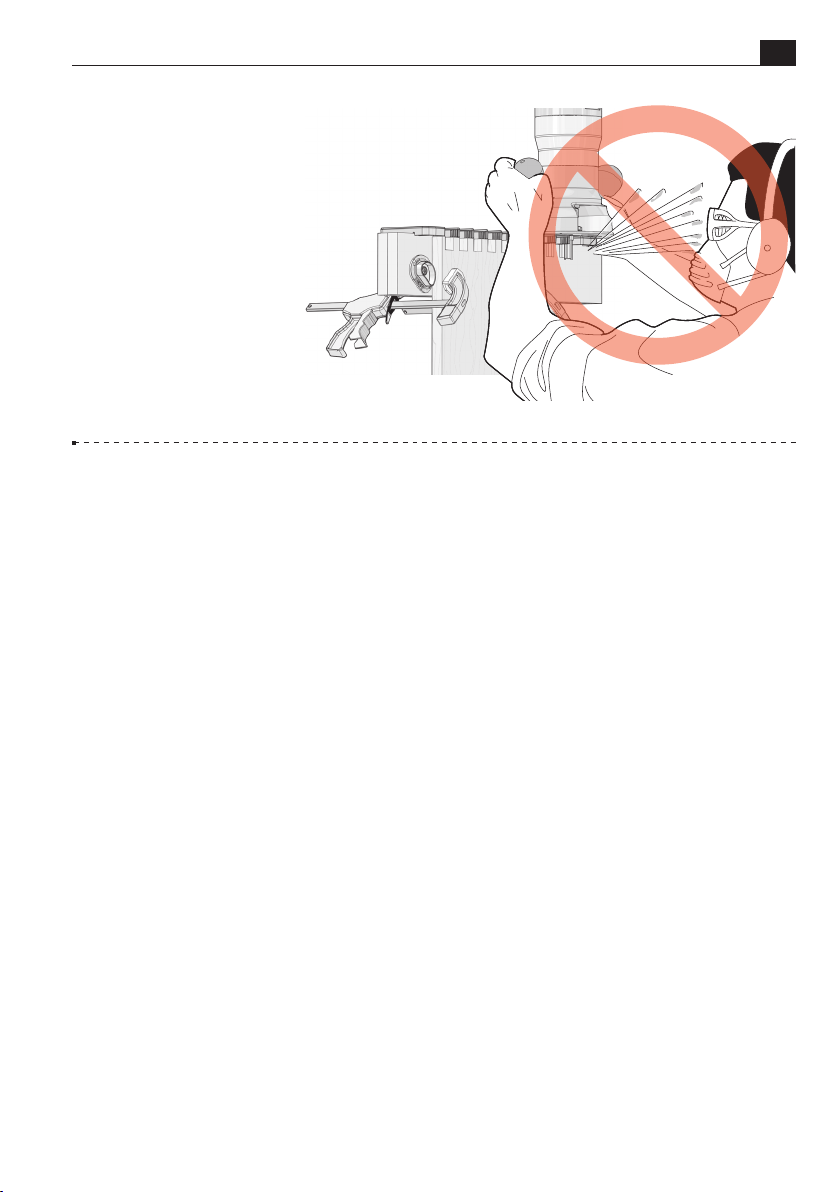

Never rout at face level.



Chips and sawdust are thrown out at
high speed. ■

Chapter 2 Safety

11

12

Chapter 2 Safety

TD330 User Guide

This page is left blank intentionally.

TD330 User Guide

CHAPTER 3

The Leigh eBush

Note: The patented Leigh e10 elliptical guide bushing, fitted to your router,
ensures a great fitting joint every time. This chapter describes how a simple
turn of the e10 is all it takes to adjust joint fit.

Leigh e10 Elliptical Guide Bushing: U.S. Patent no. 8,256,475 UK Patent no. GB2443974 Canada Patent no. 2,611,232

Watch the Online

Instructional

Video

Reduce your learning time dramatically! Stream to your
smart phone or tablet to use in your workshop while you're
working. See Instructional Videos section in Support menu at
leightools.com or scan QR code for instant video.

Scan QR Code

13

3-1 Watching the online video in addition to reading this user guide will
reduce your learning time dramatically. The video can be streamed to your smart

phone or tablet and used in your shop as a visual reference. Visit leightools.com and find
the video in the Support section.

1

3

/8"

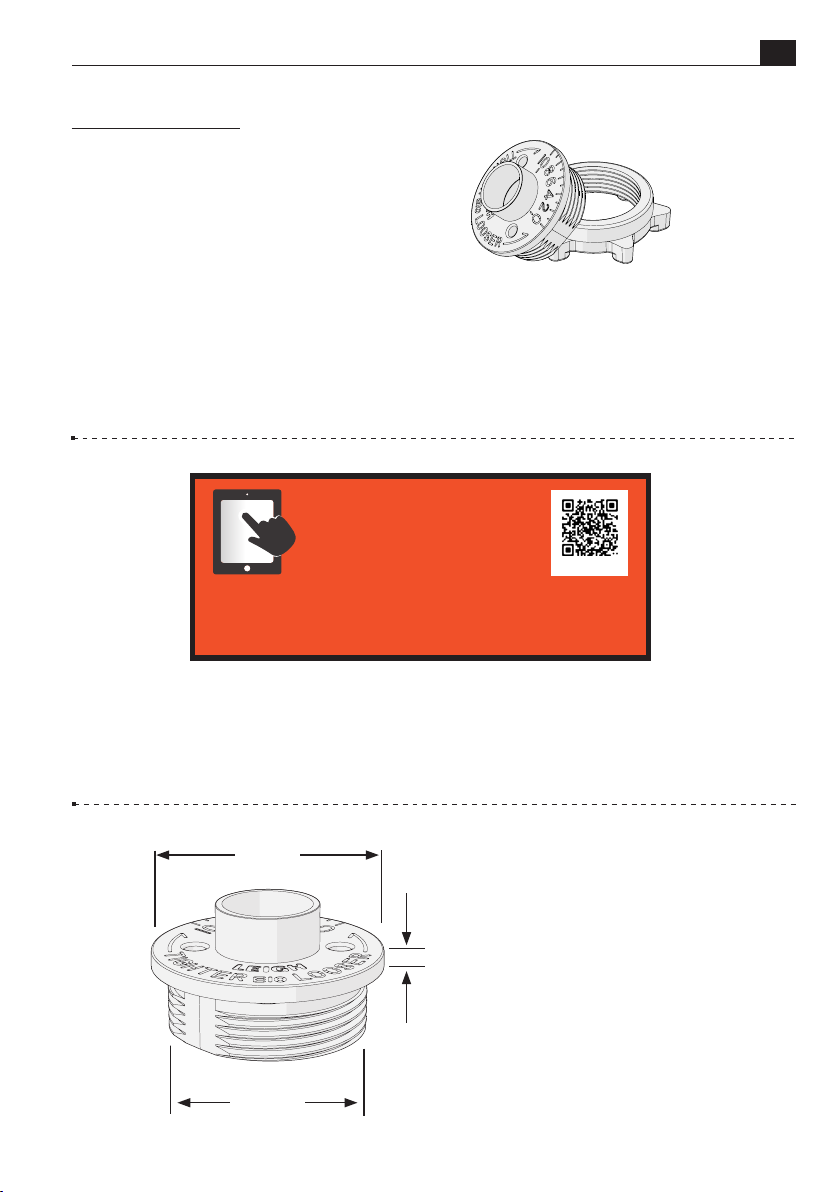

3-2 The Leigh eBush System is

designed around the 1-3/8" industry
standard. Some routers accept the
Leigh eBush directly. Many routers
require the use of a guide bushing
adaptor. If your router requires an
adaptor, please see Chapter 7, Guide
Bushing Adaptor Selection, or visit

0.100"

leightools.com/guide-bushings­adaptors.

3

1

/16"

14

14

Chapter 3 The Leigh eBush

TD330 User Guide

3-3 Routing on the TD330 re -

quires a router fitted with the
included e10 eBush.

The e10 is installed in the base of
the router and the guide bushing
retaining nut is screwed on from the
inside of the router base.

3-4 How a Guide Bushing

Works The barrel of the guide

bushing steers the router and the
bits in and around the openings of
the template.

A

B

3-5 Joint Fit Adjustment The

Leigh eBush barrel A is elliptical,
unlike plain circular template guide
bushings B. When the e10 is rotated,
the effective diameter of the barrel
changes, allowing fit adjustments as
small as 0.001"[0,025mm]. The e10
eBush is included with the jig.

Note: The elliptical barrel of the e10

shown in these and the following
diagrams is exaggerated for clarity.

TD330 User Guide

5/8"

15,9mm

0.010"

0,254mm

0.010"

0,254mm

Chapter 3 The Leigh eBush

15

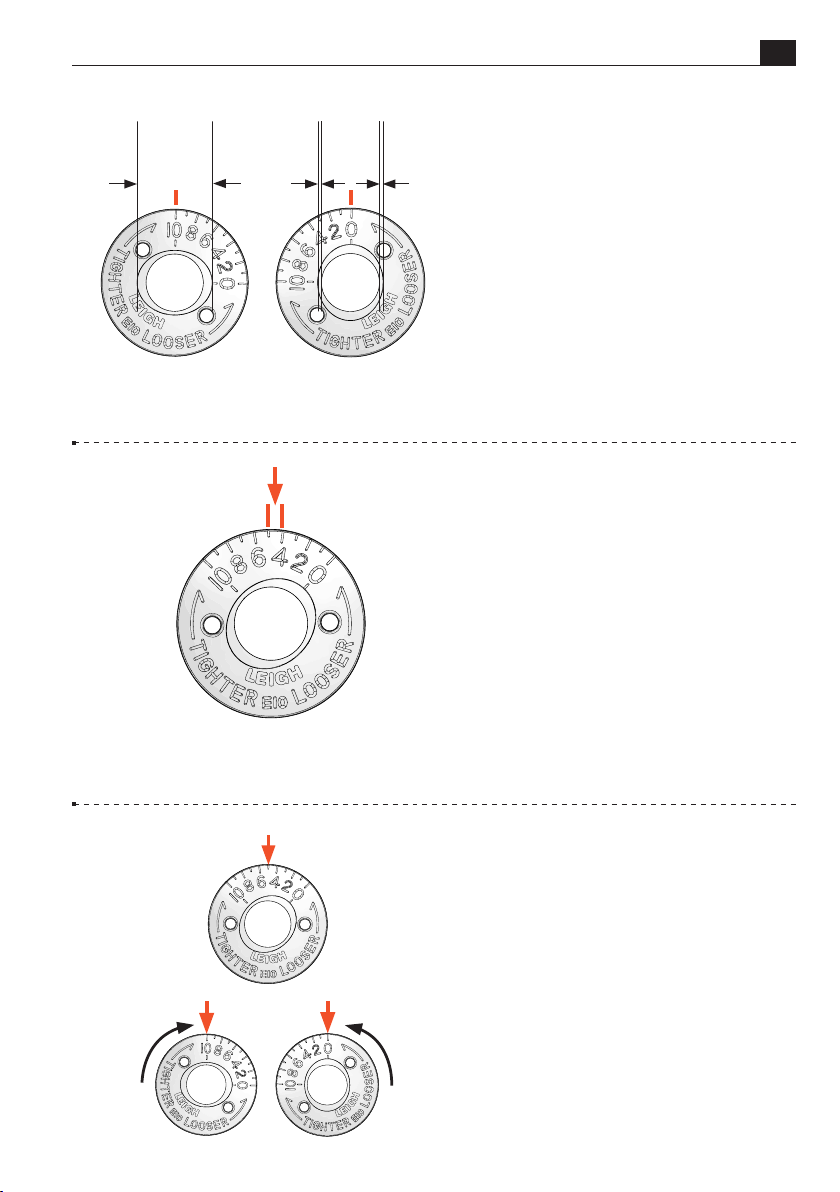

3-6 The effective diameter of

the e10 is 5/8"[15,9mm] at the
10 position. Rotating the eBush to
the 0 position reduces the effective
diameter by 0.020"[0,5mm].

3-7 One increment of the eBush

changes the joint glue line by

0.002"[0,05mm]. Half an increment
changes the fit by an incredible

0.001" [0,025mm]. A proper fit will
be established with one or two test
cuts.

A

B

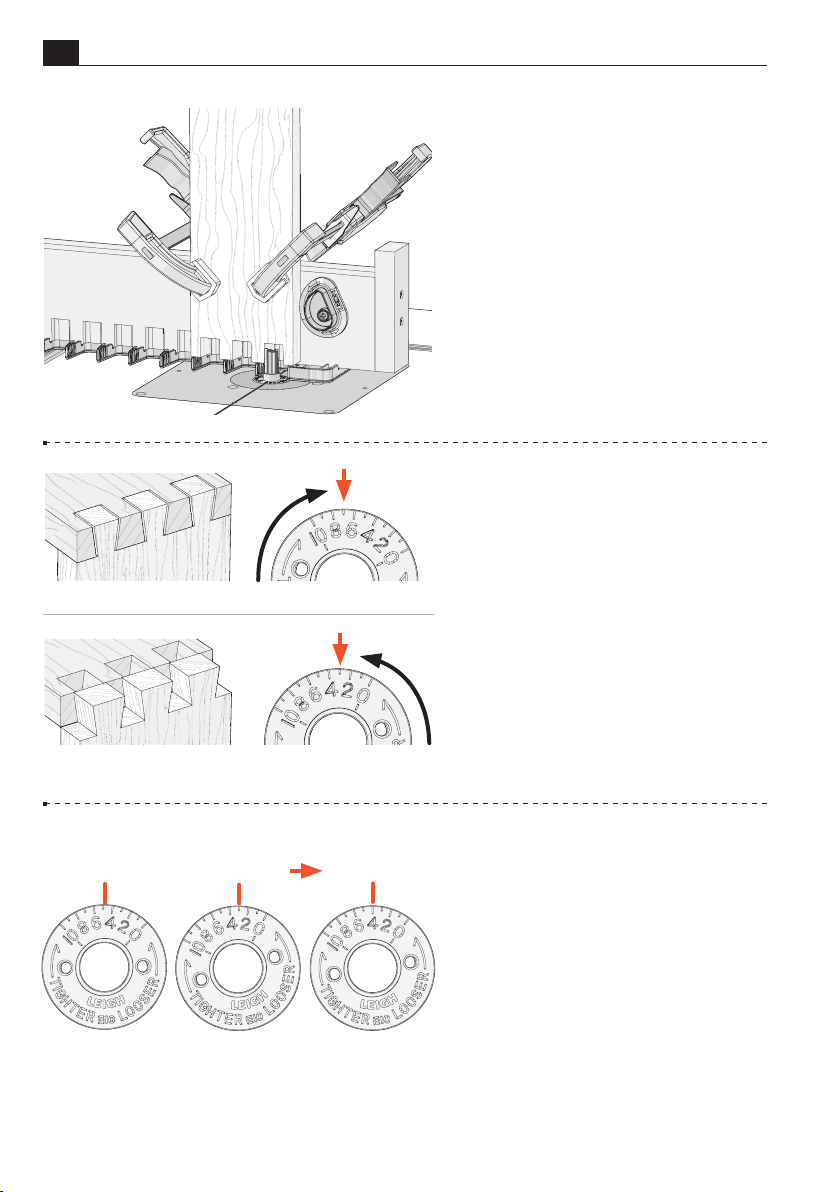

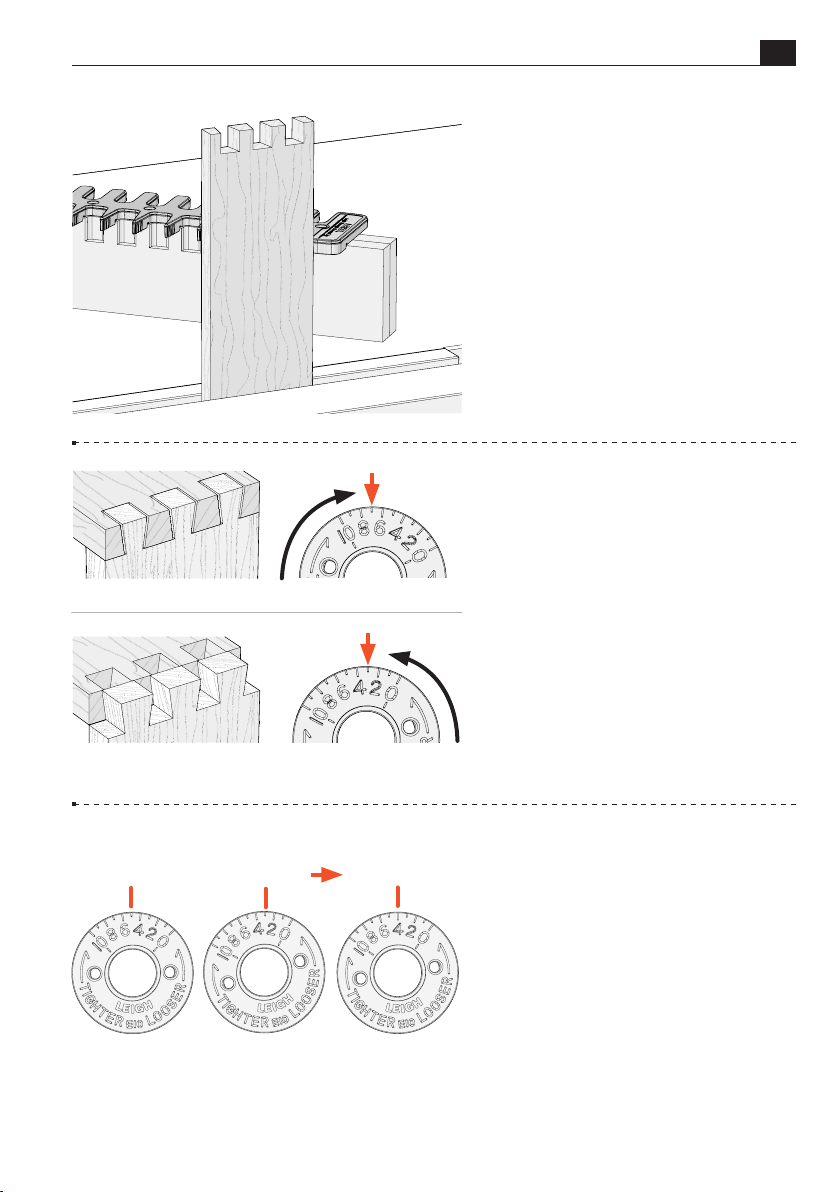

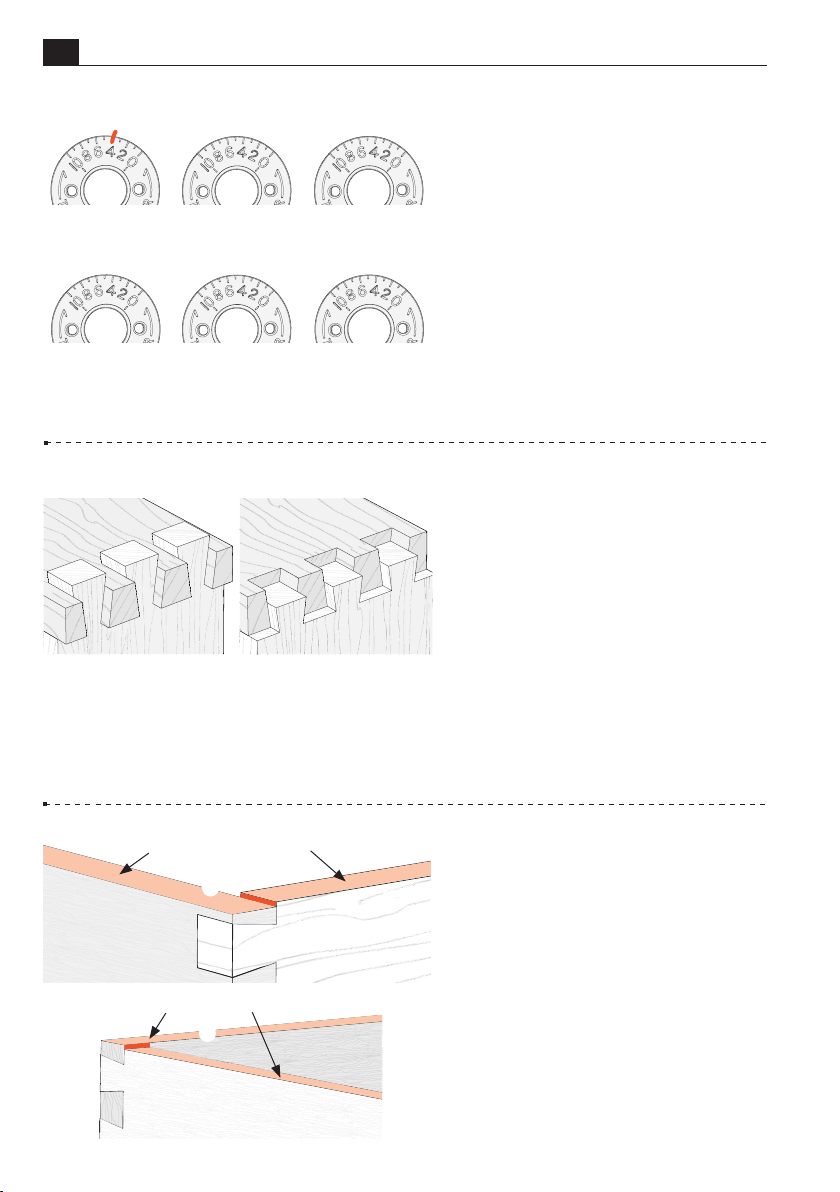

3-8 Test routing always starts

with the eBush set at 5 This

allows adjustment for a tighter or
looser fit. Turning the eBush toward
the 10 position A results in a tighter
fit. Turning the eBush toward the
0 position B results in a looser fit.

Be sure to retighten the eBush
nut after each adjustment.

16

16

Chapter 3 The Leigh eBush

TD330 User Guide

3-9 Each chapter provides a place

to mark your established eBush
setting, for easy repeatability the next
time.

Feb 27, Maple

160 bit

A

May 5, Poplar

EXAMPLE ONLY

B

160 bit

A

A

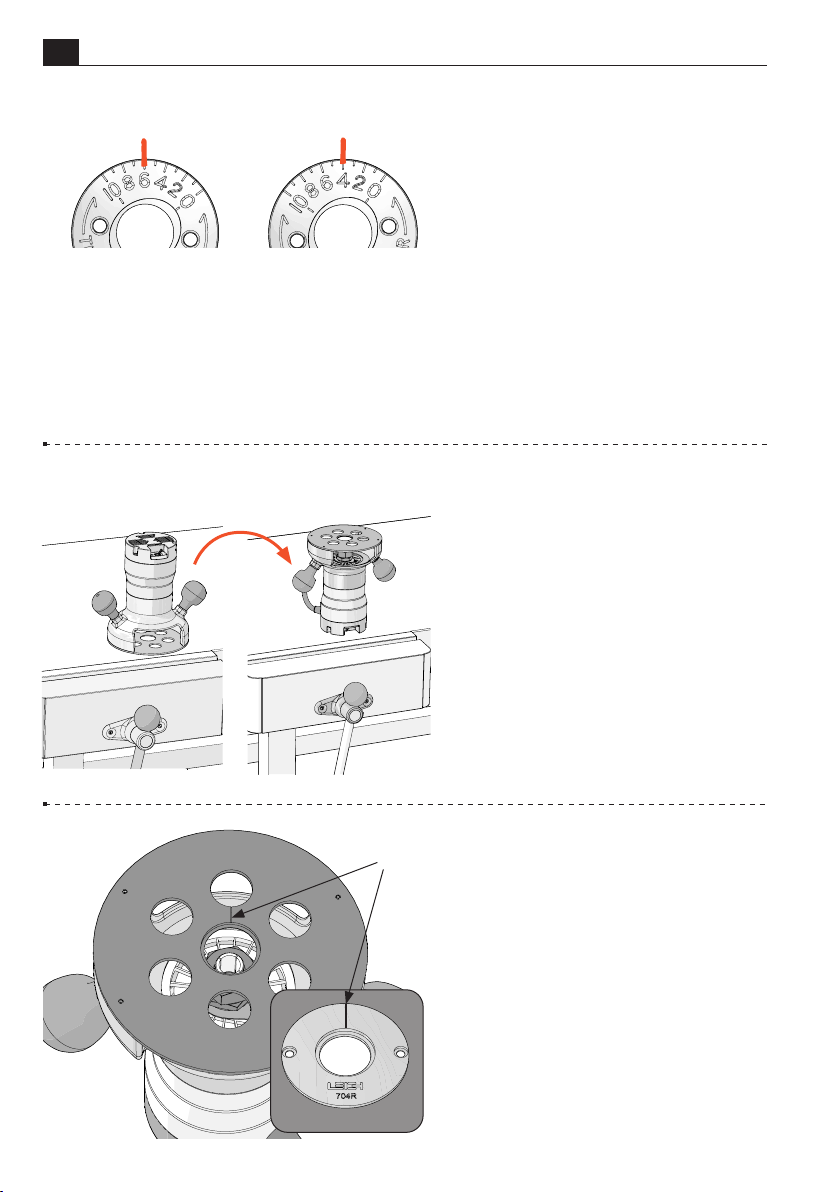

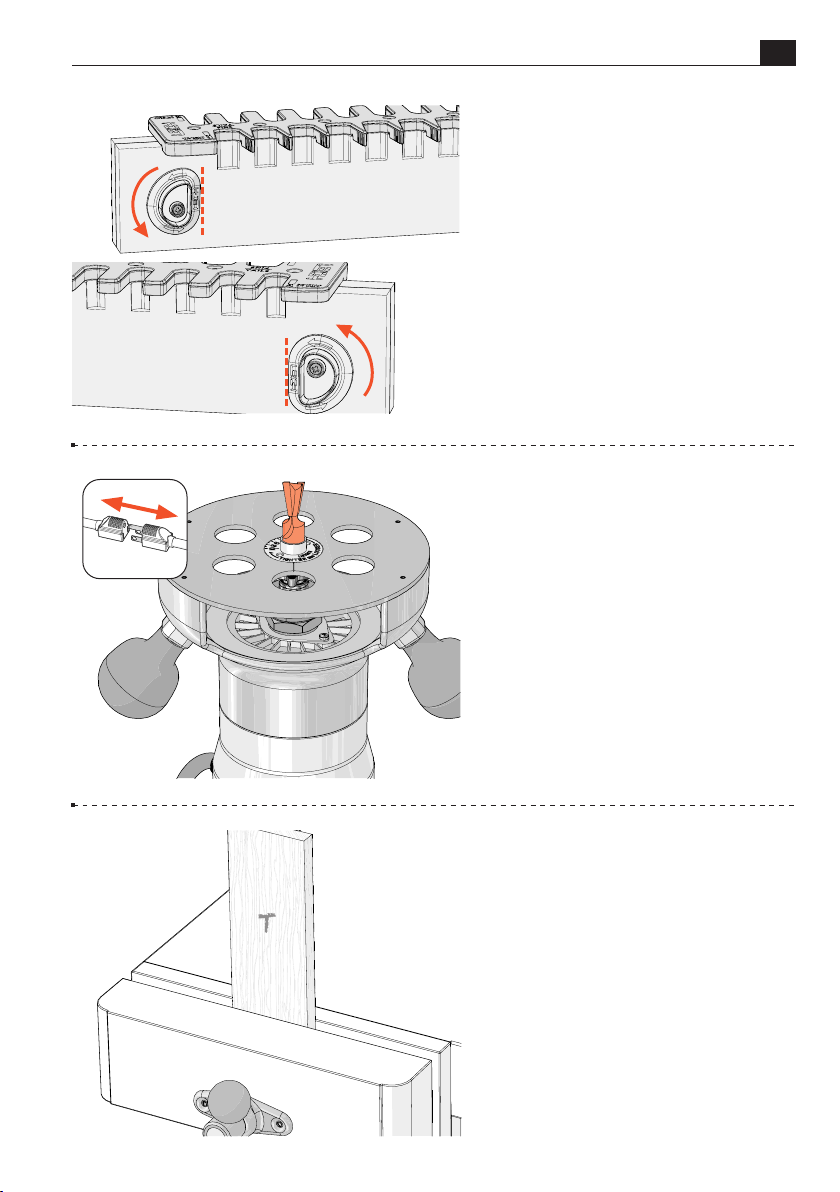

3-10 Fitting the eBush to the

Router Place the router on the

workbench with the handles
positioned the way you would
normally hold them A.

Then turn the router upside down
and place it on the workbench B,
keeping the same face of the router
toward you.

3-11 Make a small scratch line on

the router base or eBush adaptor,
at the 12 o’clock position. This will
be a reference line for all eBush
settings A.

TD330 User Guide

Chapter 3 The Leigh eBush

17

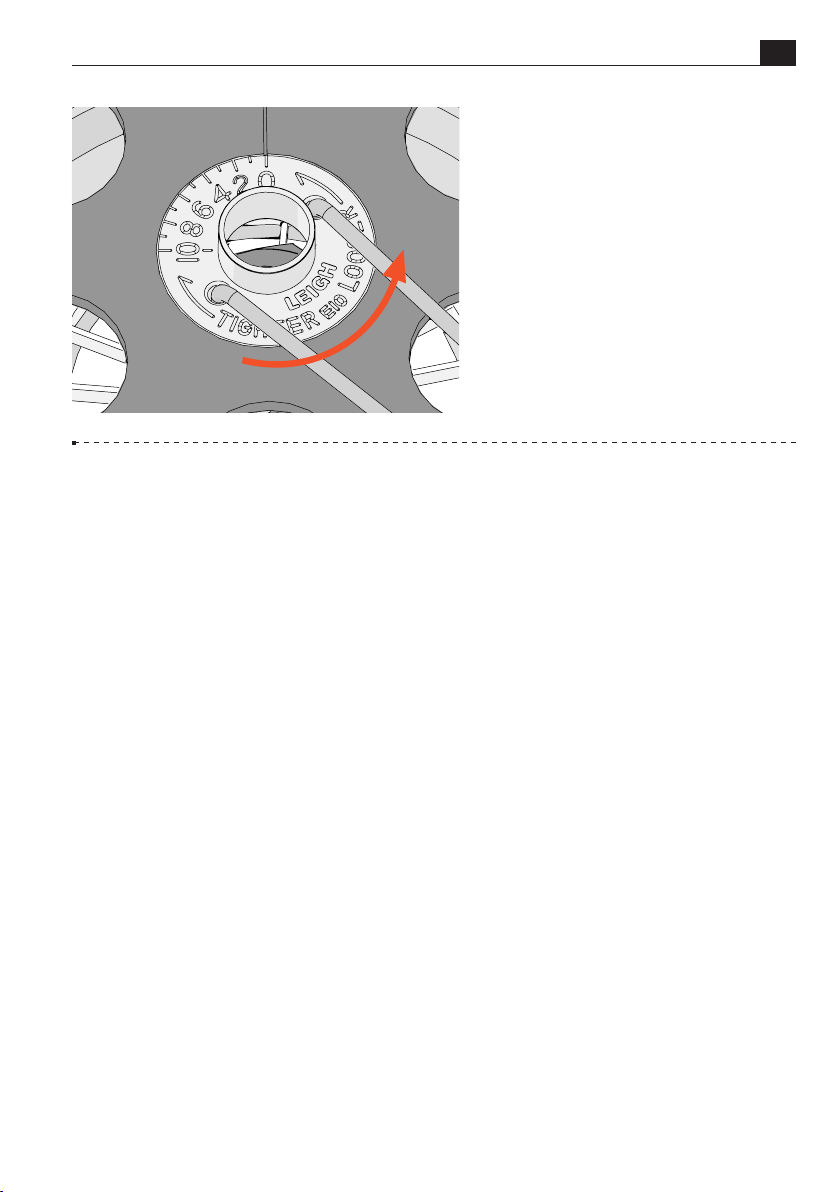

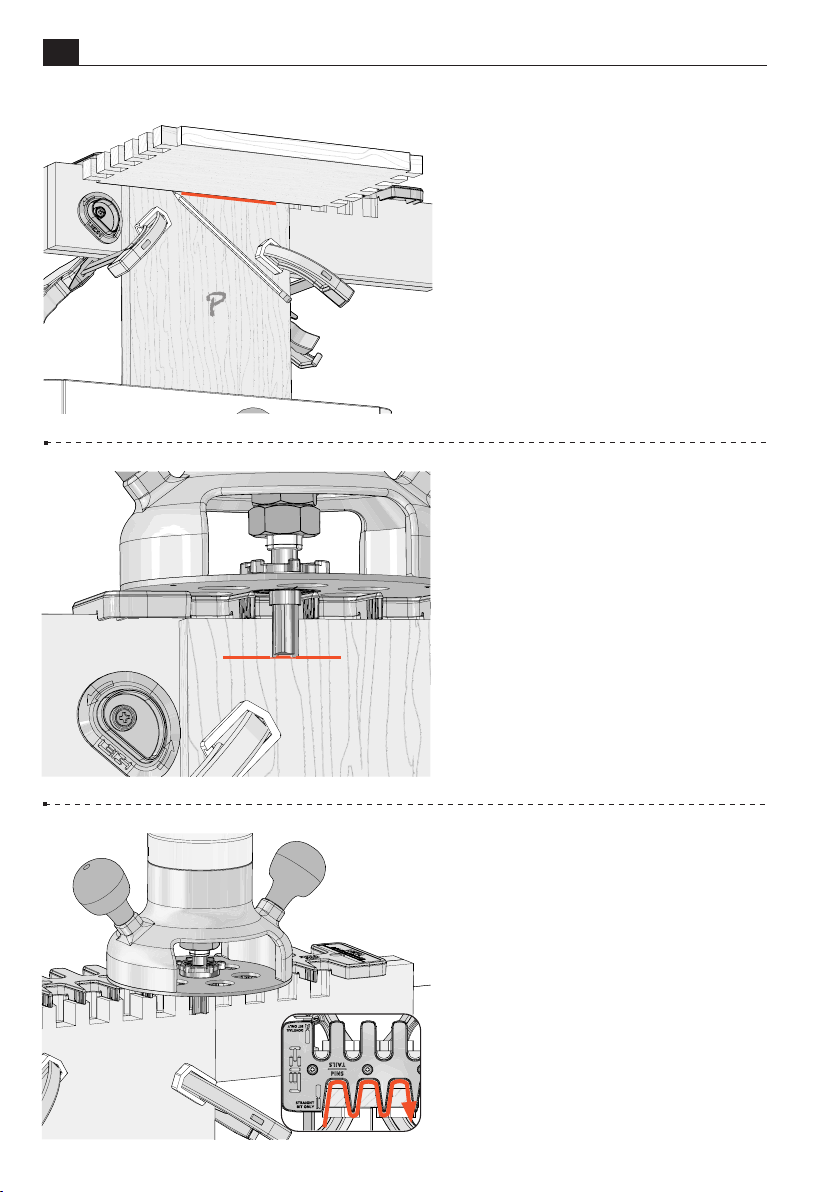

3-12 Install the e10‑Bush in the

router base and use the pin wrench
to align the 0 to the reference line.
The 0 setting is only used for beam
preparation in Chapter 4, Mounting
& Assembly.

Be sure to retighten the eBush
nut after each adjustment.

■

18

18

Chapter 3 The Leigh eBush

TD330 User Guide

This page is left blank intentionally.

TD330 User Guide

CHAPTER 4

Mounting
& Assembly

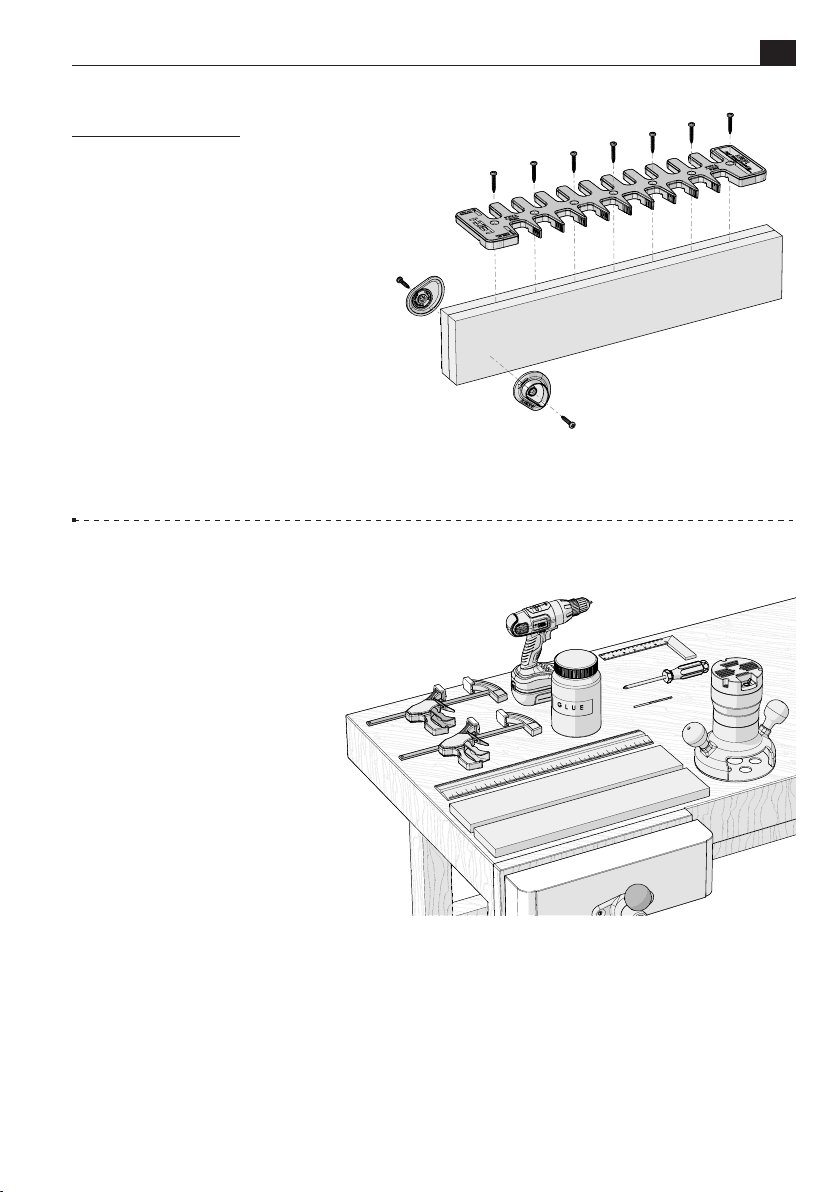

The following steps will show
you how to prepare the beam
and assemble your Leigh TD330
Through Dovetail Jig.

You will need:

• A workbench with vice or a
portable workbench

• 2 pieces of 3/4"[19mm] MDF to
make a beam 1-1/2"x 3-1/2" x
19" [38mm x 90mm x 483mm]

• Router with 1/2" collet

• Electric drill, preferably bench or
pedestal, but handheld will work

• 3/32" drill bit

• Two Quick-Grip clamps

• Square

• Ruler or tape measure

• No.2 Phillips screwdriver

• Wood glue

19

Note: The finished beam must be

1-1/2"[38mm] thick.

20

Chapter 4 Mounting & Assembly

TD330 User Guide

Watch the Online

Instructional

Video

Reduce your learning time dramatically! Stream to your
smart phone or tablet to use in your workshop while you're
working. See Instructional Videos section in Support menu at

leightools.com or scan QR code for instant video.

4-1 Watching the online video in addition to reading this user guide will
reduce your learning time dramatically. The video can be streamed to your smart

phone or tablet and used in your shop as a visual reference. Visit leightools.com and find
the video in the Support section.

Scan QR Code

3-1/2"

[90mm]

19"

[483mm]

3/4"

[19mm]

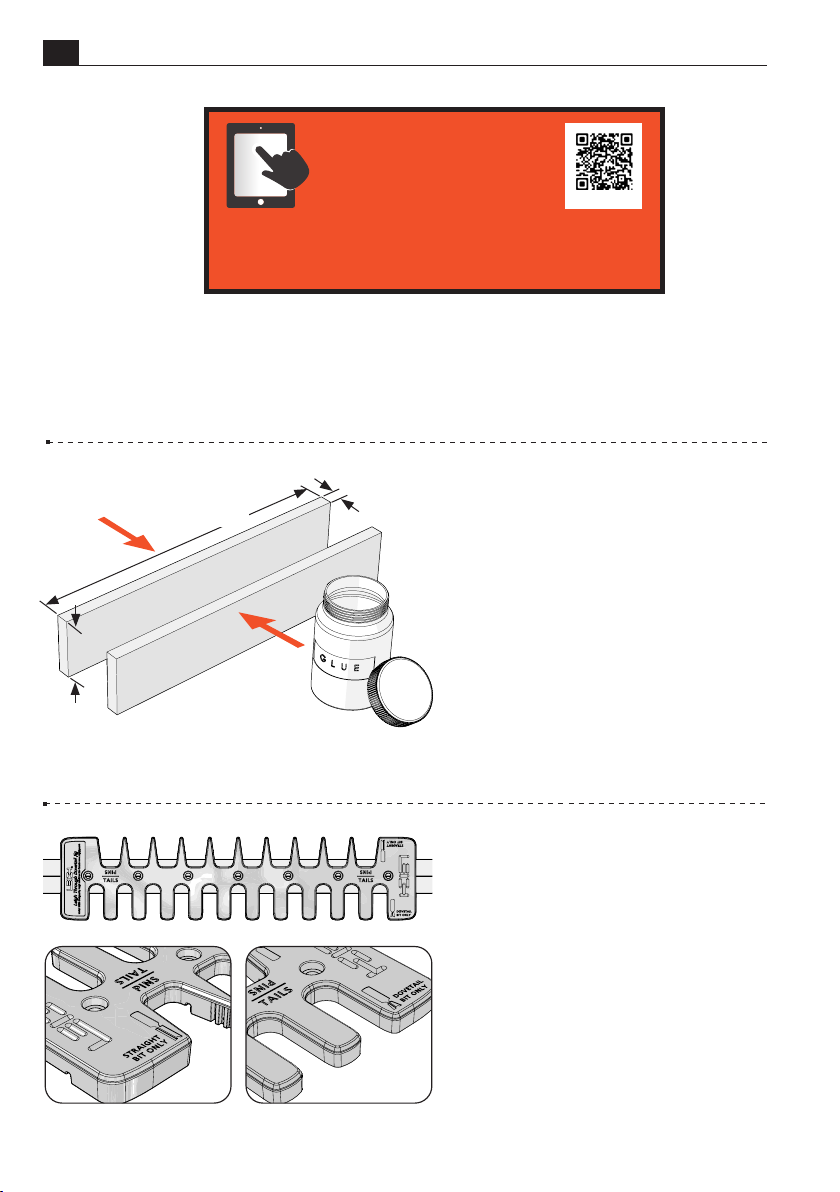

4-2 Making the Beam We

recommend laminating two pieces of
MDF: 3/4"[19mm] x 3-1/2"[90mm]
x19"[483mm]. Clamp the glued
pieces together and set aside to dry.
Be sure the top edges are flush and free
of glue residue. Alternate materials
may be used, eg, a common 2x4 in
North America, however the finished
thick ness must be 1-1/2"[38mm].
See Step 4-14 for special instructions.
If you are making dovetails using
narrow boards, see Step 5-66.

4-3 One side of the template is

used for routing pins, and the other
side for routing tails.

PINS

and

TAILS

is clearly marked on
the template, as well as which bit to
use.

TD330 User Guide

Chapter 4 Mounting & Assembly

21

A

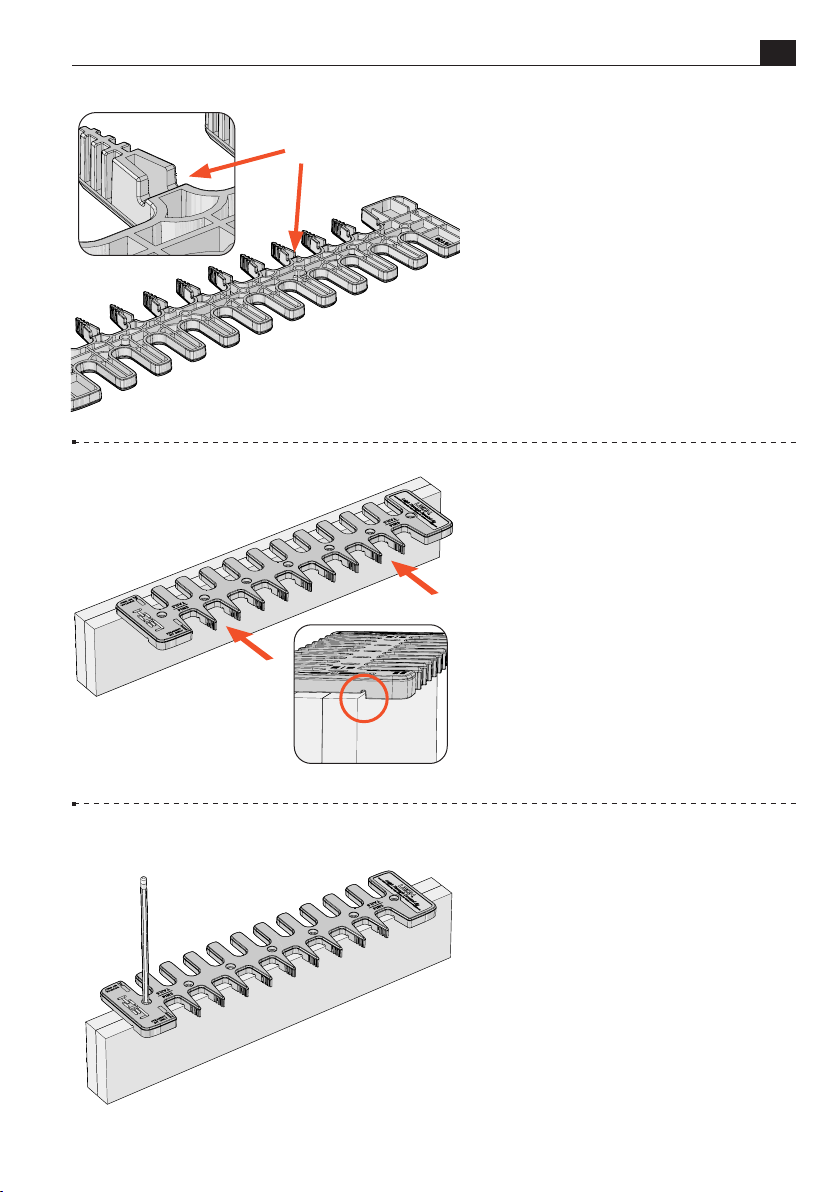

4-4 The

PINS

side of the template
has positioning ridges A molded
into the underside.

4-5 With the PINS side of the

template facing you, lay it flat on
the top of the beam and slide it
backwards until the positioning
ridges contact the edge of the beam.
Center the template left to right. The
template is now positioned correctly.

4-6 Use a pencil and mark the

location of all screw holes on the top
of the template. Hold the template
in place and proceed to the next step.

22

Tails

Pins

Tails
Pins

1/2"

[12,7mm]

Chapter 4 Mounting & Assembly

Tails

Pins

A

TD330 User Guide

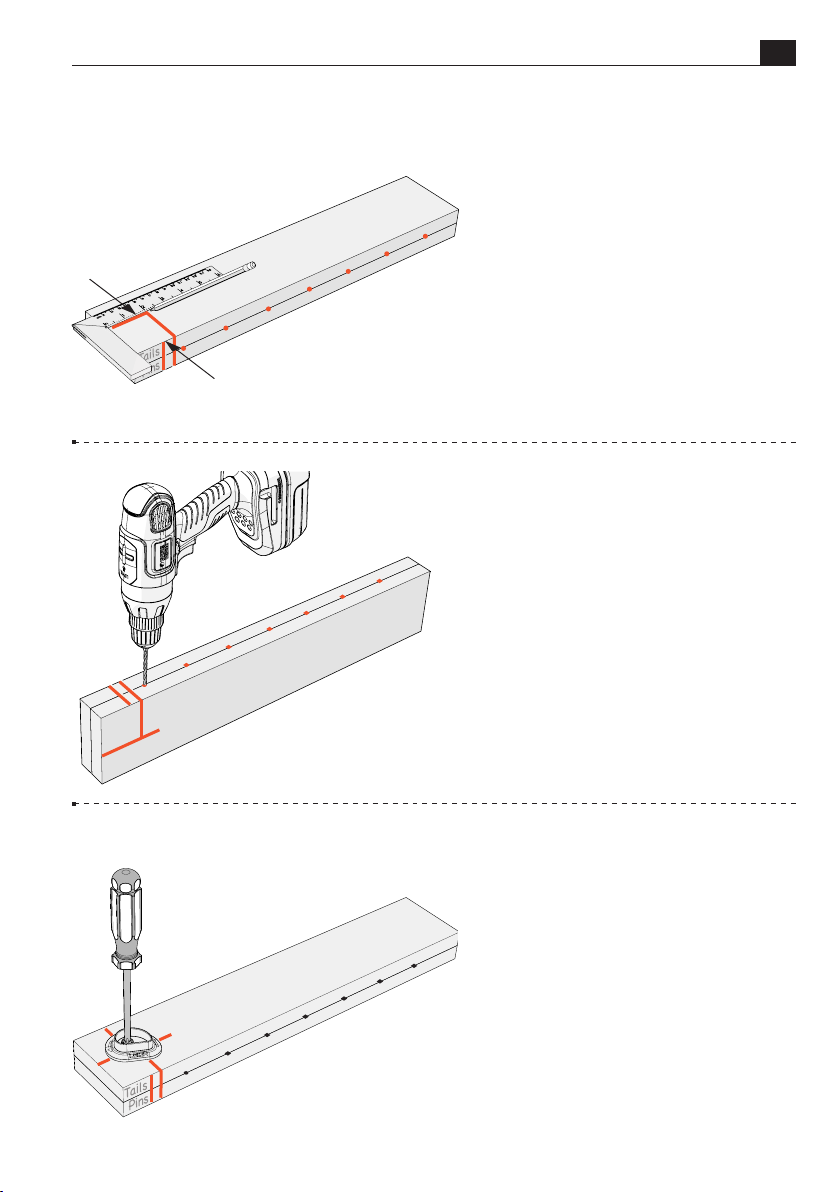

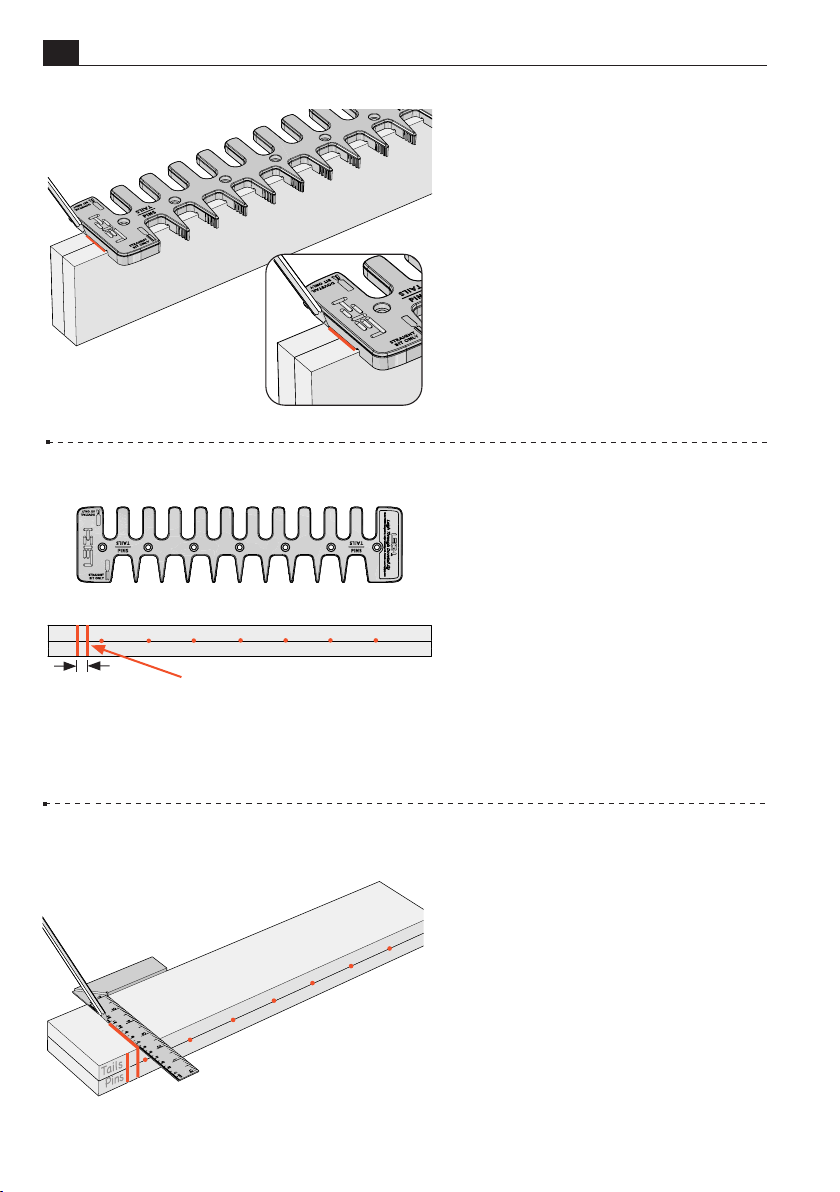

4-7 Use the left edge of the

template as a guide and draw a pencil
line completely across the top of the
beam.

Mark

PINS

and

TAILS

on the top left

side of the beam as indicated.

4-8 Remove the template and

place a mark 1/2"[12,7mm] to
the right of the line on the top of
the beam. Use a square and draw
a second line A completely across
the top of the beam at the 1/2"
[12,7mm] mark. This line will be
used to position the side stops.

4-9

Mark layout lines for the

side stops. Place the beam flat on

the workbench with the

TAILS

side
up. Use a square and draw a line
perpendicular from the side stop
positioning mark on the top of the
beam.

TD330 User Guide

Chapter 4 Mounting & Assembly

23

4-10 Next, draw a horizontal line,

2" [51mm] down from the top of the
beam. Make sure the horizontal line
intersects the vertical line. This is the
mounting point for the side stops.

2"

[51mm]

Tails

Rotate the beam and repeat for the

PINS side, at the same end of the
beam.

4-11 Use a drill press or hand drill

with a 3/32" bit to drill pilot holes
at all screw hole locations on the
top of the beam and at the side stop
positioning marks.

Pins

4-12 Place the beam on the

workbench with the TAILS side
facing up. Align the center of a side
stop with the pilot hole and attach
it using an included screw. Use a
screwdriver, not a power drill, to
attach the side stop.

Repeat the process on the PINS side
of the beam.

24

Chapter 4 Mounting & Assembly

Tails

Pins

TD330 User Guide

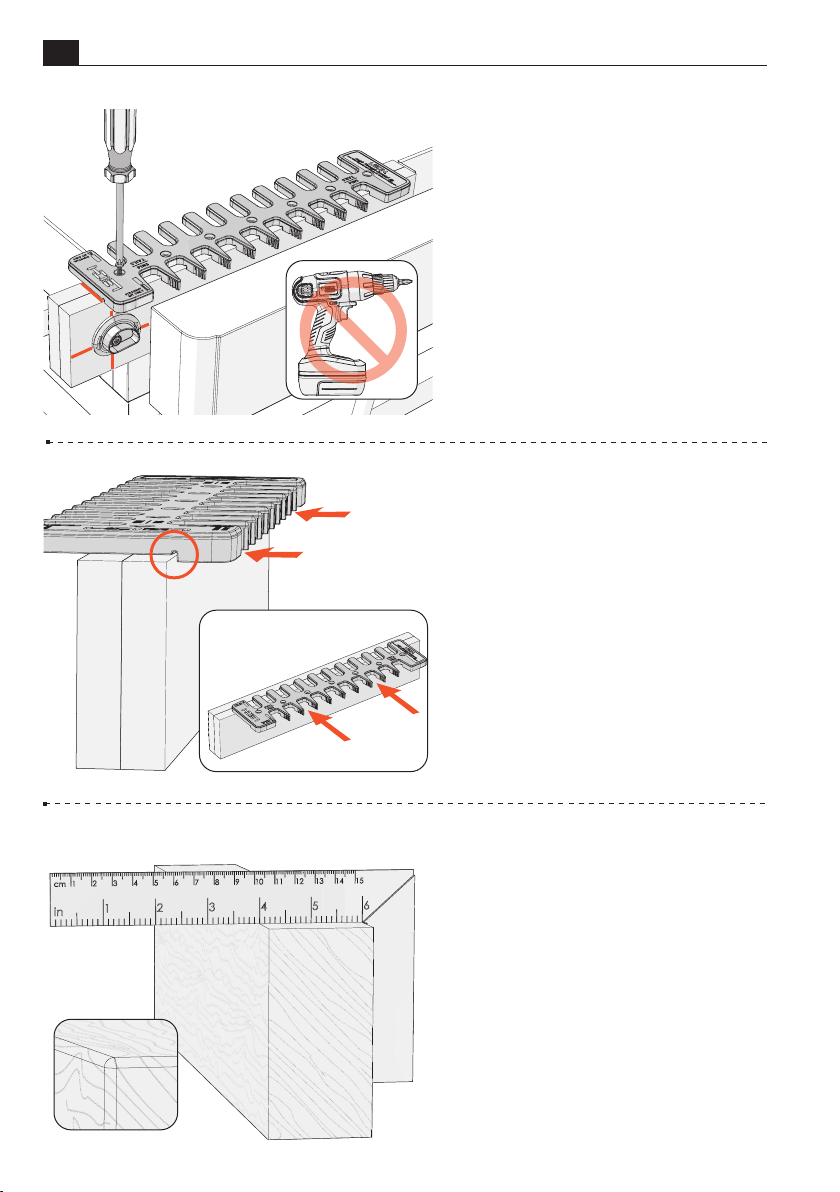

4-13 Clamp the beam in the vice

with the PINS side facing you. With
the

PINS

side of the template toward
you, place it on the beam and align
it with the pre-drilled holes. Use a
screwdriver to attach the template
with the included screws.

Do not use a power drill, as this



may overstress the template.

4-14

Make sure the positioning
ridges (see Step 4‑5) are held against
the beam while tightening the
screws.

4-15 Alternatively, you can use a

straight, flat 19"[483mm] piece of
common 2x4. Since a 2x4 has slightly
rounded corners, some preparation
is required. Note: the finished
thickness must be 1-1/2"[38mm].

Use a table saw, router table or
jointer to skim o the top surface of
the 2x4. Now go back to Step 4-4
for the rest of the beam preparation.

TD330 User Guide

PINS SIDE

Chapter 4 Mounting & Assembly

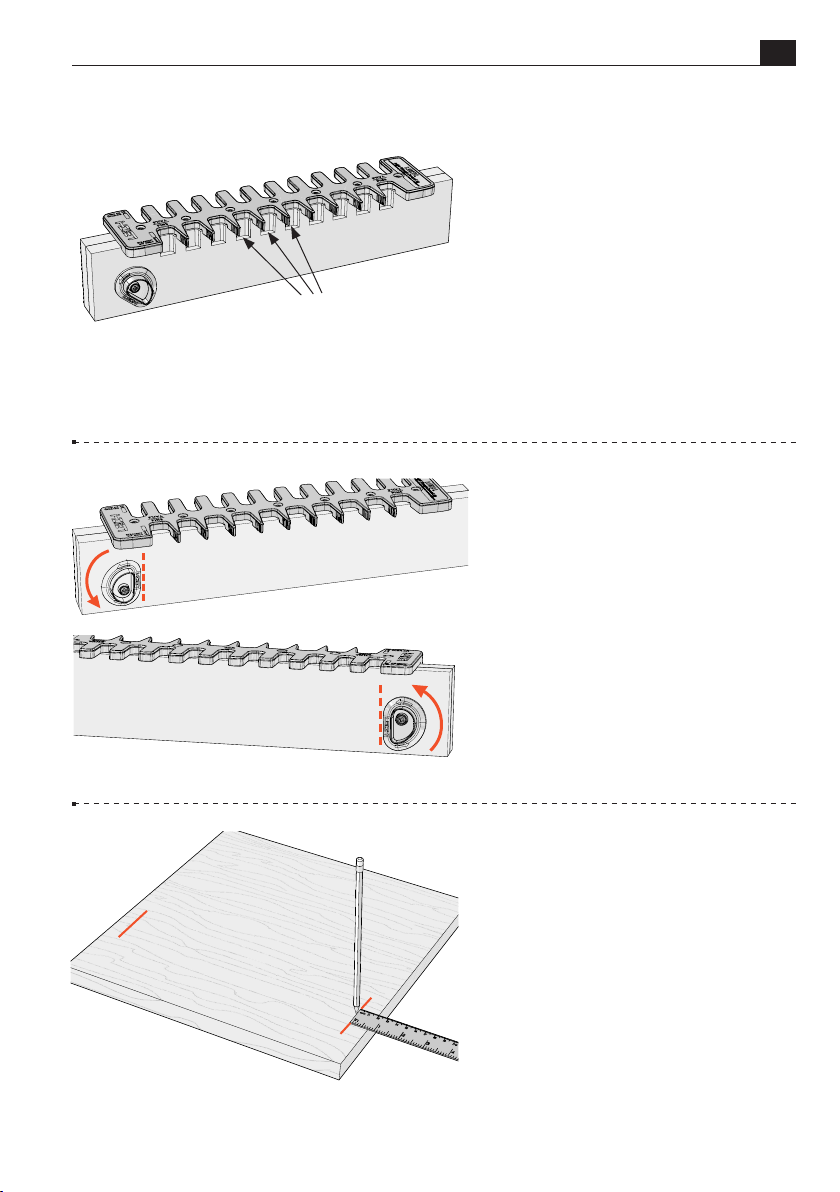

4-16 Prepare the Beam

25

To prevent tear-out of your good
material, grooves must be routed
in all template openings, on both
sides of the beam, as shown in the
following steps.

Preparing the beam is particularly
important when using a common
2x4 because its side grain will tear
out badly.

4-17

Turn both side stops until the
straight edge is vertical and facing
toward the middle of the beam.

TAILS SIDE

4-18 Depth of Cut

Select a board
at least 13-1/4" [330mm] wide and
1/2"[12,7mm] to 3/4"[19mm] thick.
Length is not important as long as it
can be clamped safely in the vice.

Mark a depth of cut line 3/4" from
the top and bottom ends of the
board. Clamp the board in the vice
with the depth of cut line facing you.

26

Chapter 4 Mounting & Assembly

A

B

TD330 User Guide

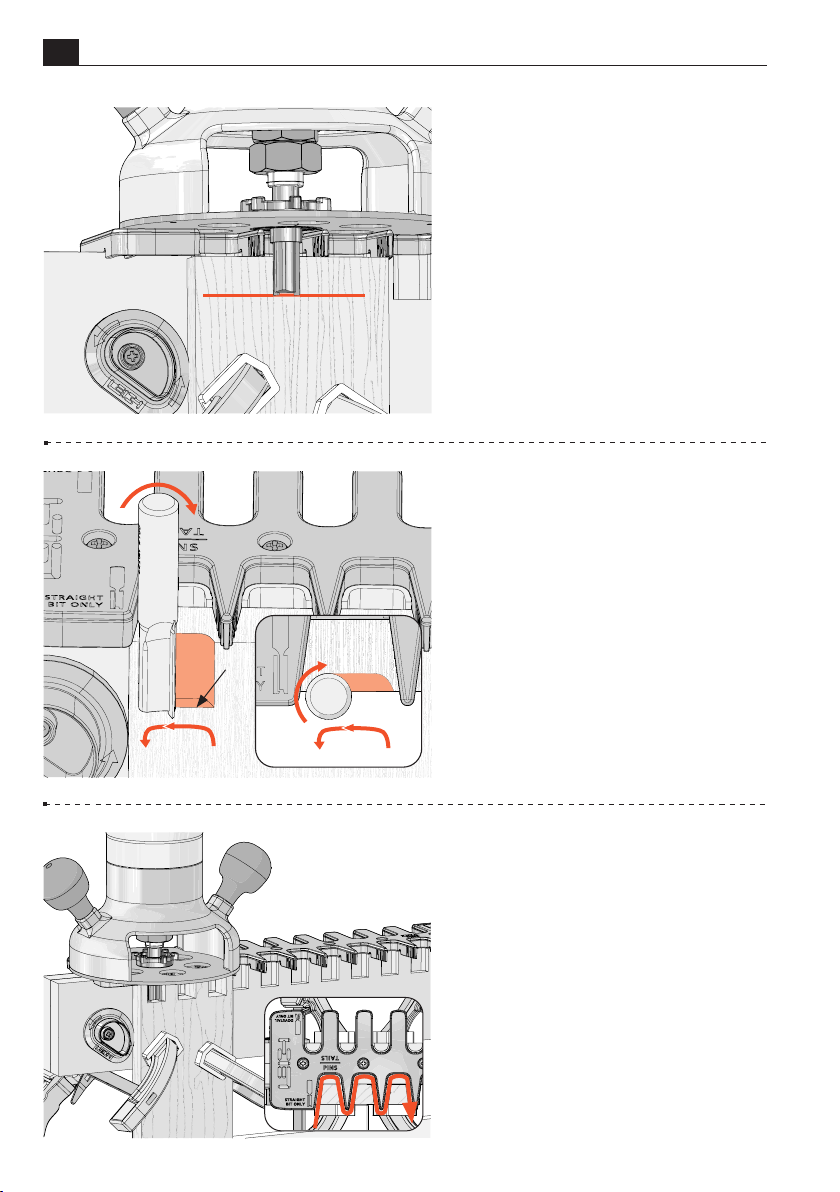

4-19

Install the Straight Bit

With the router unplugged, install
the included 1/2" straight bit. The
bit goes through the guide bushing
and fits in the router collet. Tighten
the collet.

The collet and bit must not touch
the eBush or eBush nut. Rotate the
collet to ensure both spin freely.

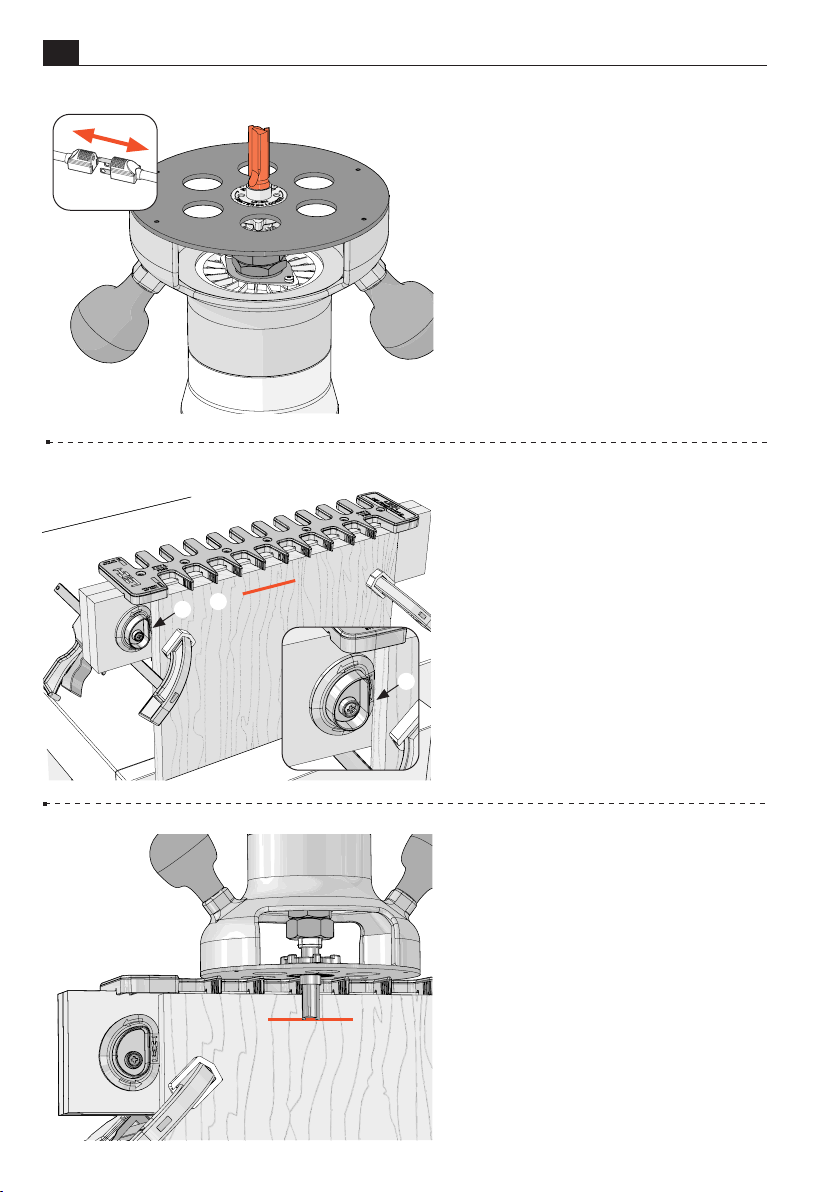

4-20 With the PINS side of the

jig facing you, place the jig on the
board A. Slide the jig to the right
until the side stop touches the left
edge of the board B and clamp the
jig in place.

B

4-21 Place the router on the jig and

adjust the tip of the bit up or down
until it’s at the center of the line.

Rotate the collet to ensure it spins
freely.

TD330 User Guide

Chapter 4 Mounting & Assembly

4-22 Hold the router firmly and

27

rout through the board and into the
beam, in each template opening.

Be sure the guide bushing touches
the left side of each template opening
on the way in and the right side on
the way out.

Check to make sure all the grooves
are cleanly routed before removing
the jig.

4-23 Remove the jig from the

board.

There will now be a clean groove
in each template opening on the

PINS side of the beam.

4-24

Install the Dovetail Bit

Unplug the router and install the
included 1/2" 8º dovetail bit. The
bit goes through the guide bushing
and fits in the router collet.
Tighten the collet.

The collet and bit must not touch
the eBush or eBush nut. Rotate the
collet to ensure both spin freely.

28

Chapter 4 Mounting & Assembly

TD330 User Guide

4-25 Unclamp the board, flip it

end for end, keeping the depth of
cut lines facing you and reclamp it
in the vice.

Place the jig on the board with the

TAILS side toward you and slide it

to the left until the side stop touches
the board edge.

Clamp the jig in place.

4-26 Place the router on the jig and

adjust the bit until the tip is at the
depth of cut line.

Rotate the collet to ensure it spins
freely.

4-27 Hold the router firmly and

rout through the board and into the
beam, in each template opening.

Be sure the guide bushing touches
both sides of the template opening.

TD330 User Guide

Chapter 4 Mounting & Assembly

29

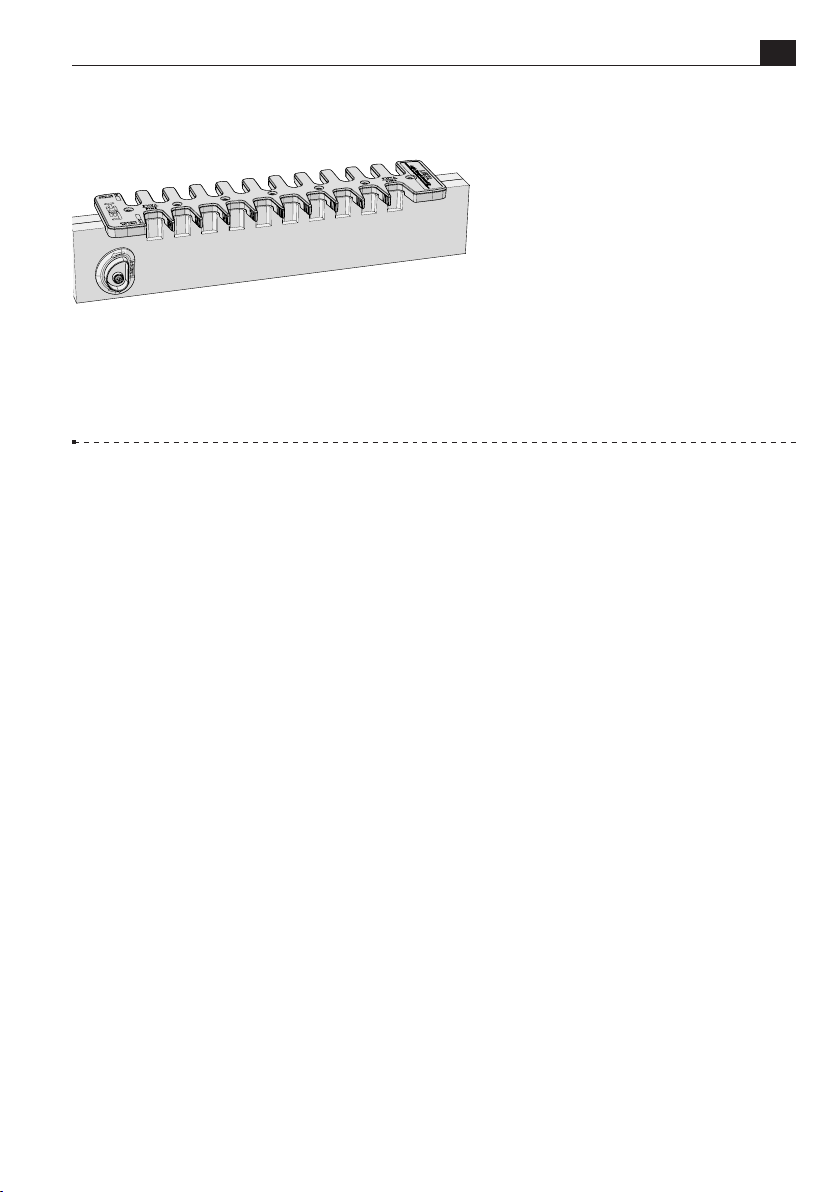

4-28 The beam and jig are now

ready to use.

■

30

Chapter 4 Mounting & Assembly

This page is left blank intentionally.

TD330 User Guide

TD330 User Guide

CHAPTER 5

Routing Through Dovetails

IMPORTANT SAFETY NOTE

Note: The instructions in this chapter are
based on using 3/4"[19mm] thick boards.
Different board thickness may also be
joined together.

Watch the Online

Instructional

Video

Reduce your learning time dramatically! Stream to your
smart phone or tablet to use in your workshop while you're
working. See Instructional Videos section in Support menu at
leightools.com or scan QR code for instant video.

Before using your Leigh TD330, you must
have completed the preparatory steps
listed in the previous pages, including
reading the jig safety recommendations
in Chapter 2.

Scan QR Code

31

5-1 Watching the online video in addition to reading this user guide will
reduce your learning time dramatically. The video can be streamed to your smart

phone or tablet and used in your shop as a visual reference.Visit leightools.com and find
the video in the Support section.

5-2 Getting Started The steps

in this chapter show the jig used
on a workbench. For router table
operation, see Chapter 6.

32

5-3

Chapter 5 Routing Through Dovetails

Parts Required

All through dovetails are routed with the included Leigh VM160CH

TD330 User Guide

1/2" straight bit, Leigh VM80-500CH 1/2" 8º dovetail bit and the Leigh e10 guide
bushing (eBush). No other bit diameters, angles and guide bushing combinations

may be used. Maximum board thickness for through dovetail pin and tail boards is

13/16" [20,6mm]. Pin and Tail boards of different thicknesses may also be joined, up to
a maximum of 13/16". Note: Optional 1/2" diameter spiral upcut bits may also be used.

1/2"

1"

e10

Guide Bushing

5-4

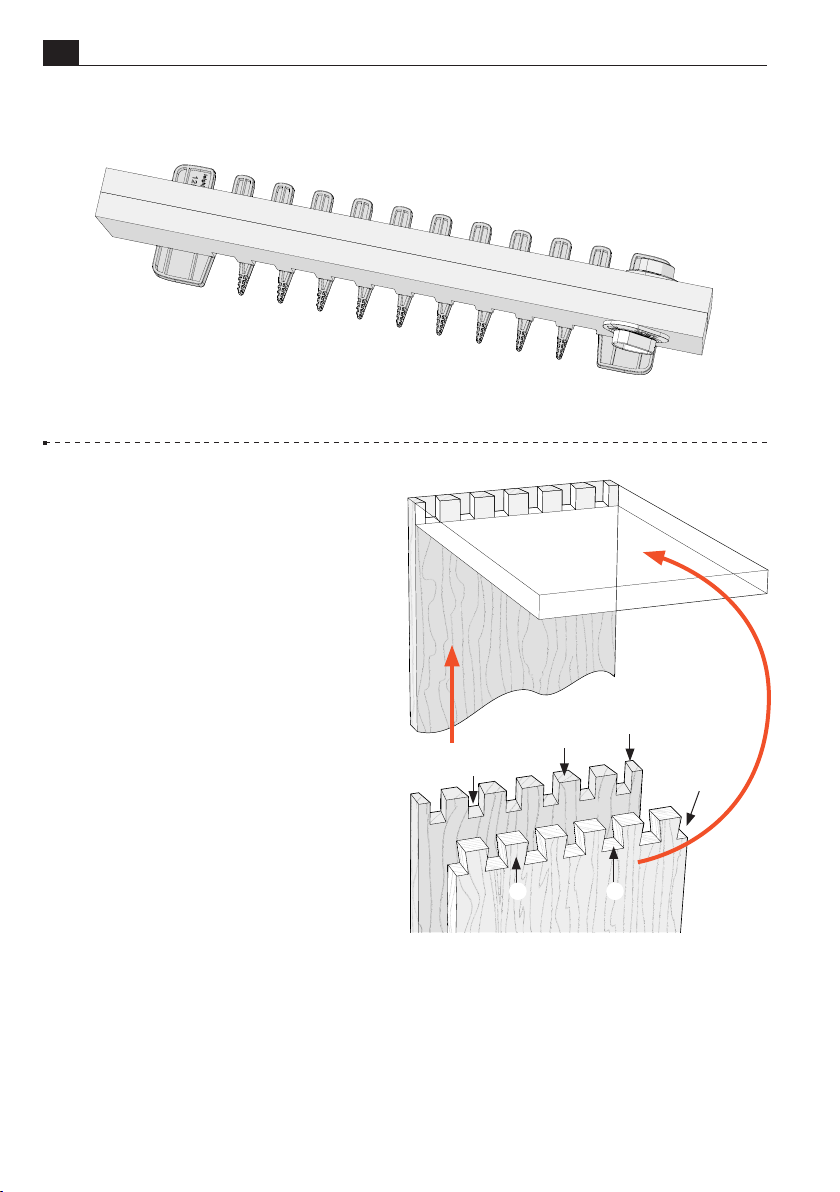

Through Dovetail Terminology

Pin

A

Pin socket

B

Half-pin

C

Half-pin socket

D

Tail

E

Tail socket

F

VM160CH

(Included Bits)

13/16"

VM160CH

1/2"

1-1/4"

VM80-500CH

VM80-500CH

1/2"

180 180C

1/2"

1-1/4"

(Optional Bits)

Bit Diameter
Item No. Carbide Tipped

Item No. Carbide Tipped

Item No.
Item No. Spiral Solid Carbide (Optional)

Depth of Cut

Bit Cutting Depth

Spiral HSS (Optional)

0"

1/4"

1/2"

3/4"

13/16"

1"

1/2"
VM160CH

VM80-500CH
180
180C

The pins fit in the pin sockets. Joints
should almost always have a half-pin at
each side of the joint.

A

C

F

D

E

B

TD330 User Guide

Chapter 5 Routing Through Dovetails

33

5-5 Board Width Selection

Board widths are determined by the total number of full

tails in the joint design. Use this chart to determine board widths up to 12-7/8" [327mm].

Board Width Selection for TD330

No. of Tails

Min 1 / 2 / 3 / 4 / 6 / 7 / 8 / 9 / 11 / 12 /

Exact 1 / 2 / 3 / 5 6 / 7 / 8 / 10 11 / 12 /

inches

Max 1 / 2 / 4 / 5 / 6 / 7 / 9 / 10 / 11 / 12 /

No. of Tails

Min 29 60 92 124 156 187 219 251 283 314

Exact 32 64 95 127 159 191 222 254 286 318

mm

Max 41 73 105 137 168 200 232 264 295 327

5-6

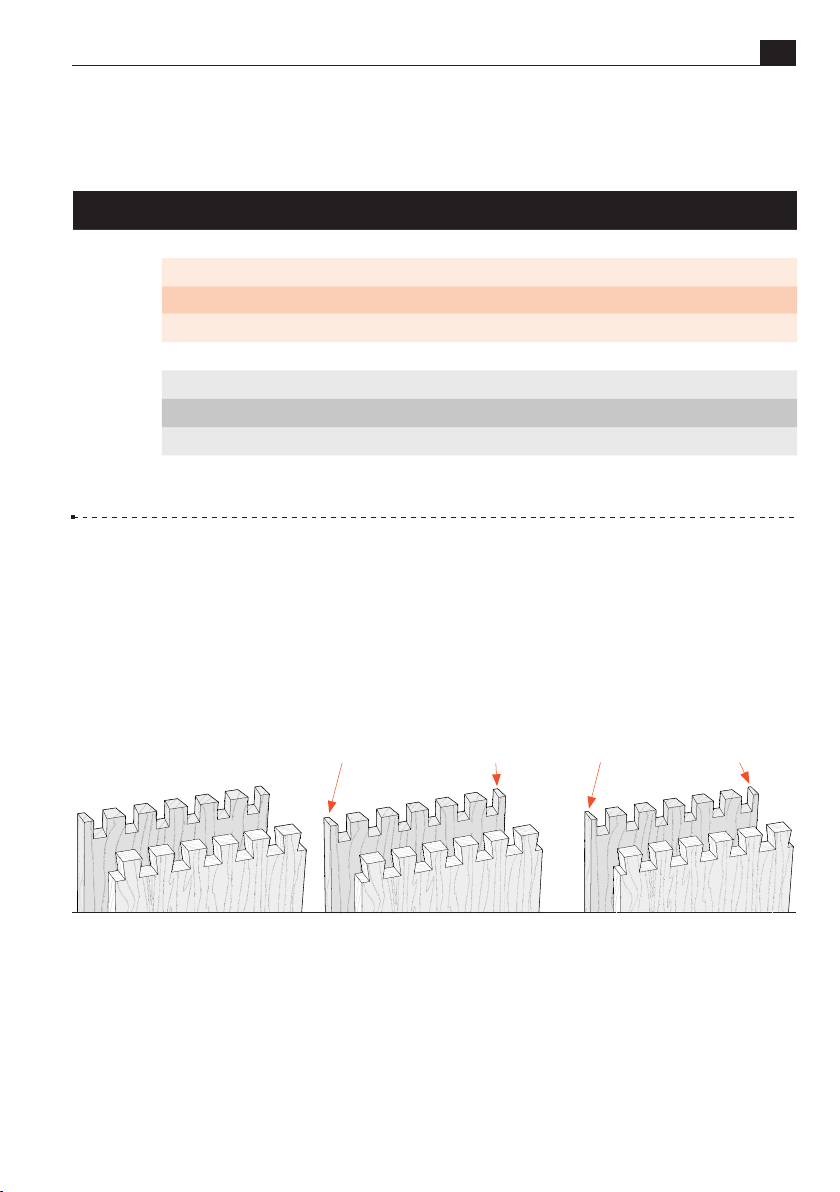

Board Width Selection

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9 10

Board widths indicated in the EXACT column of the
chart will produce half‑pins at each board edge. Board widths may be increased by 3/8"
[9,5mm] resulting in larger, but equally sized pins at each board edge. Similarly, board
widths may be reduced by a maximum of 1/8" [3,2mm], resulting in smaller but equally
sized pins at each board edge. Narrower widths may result in very small and weak pins at
the edges of the pin board.

Symmetrical

Full size

pins and sockets

Width specified in the board width chart
results in half size pins and sockets at
each edge of the board.

Reduced size pins and sockets

When a symmetrical board width is
reduced, the joint will have smaller, but
equal sized pins and sockets at each
edge of the board.

Small pins can break easily

When the board width is reduced
further, the result is very narrow and
fragile pins at each edge of the board.

34

Chapter 5 Routing Through Dovetails

TD330 User Guide

 IMPORTANT:

Read this chapter before routing any boards.

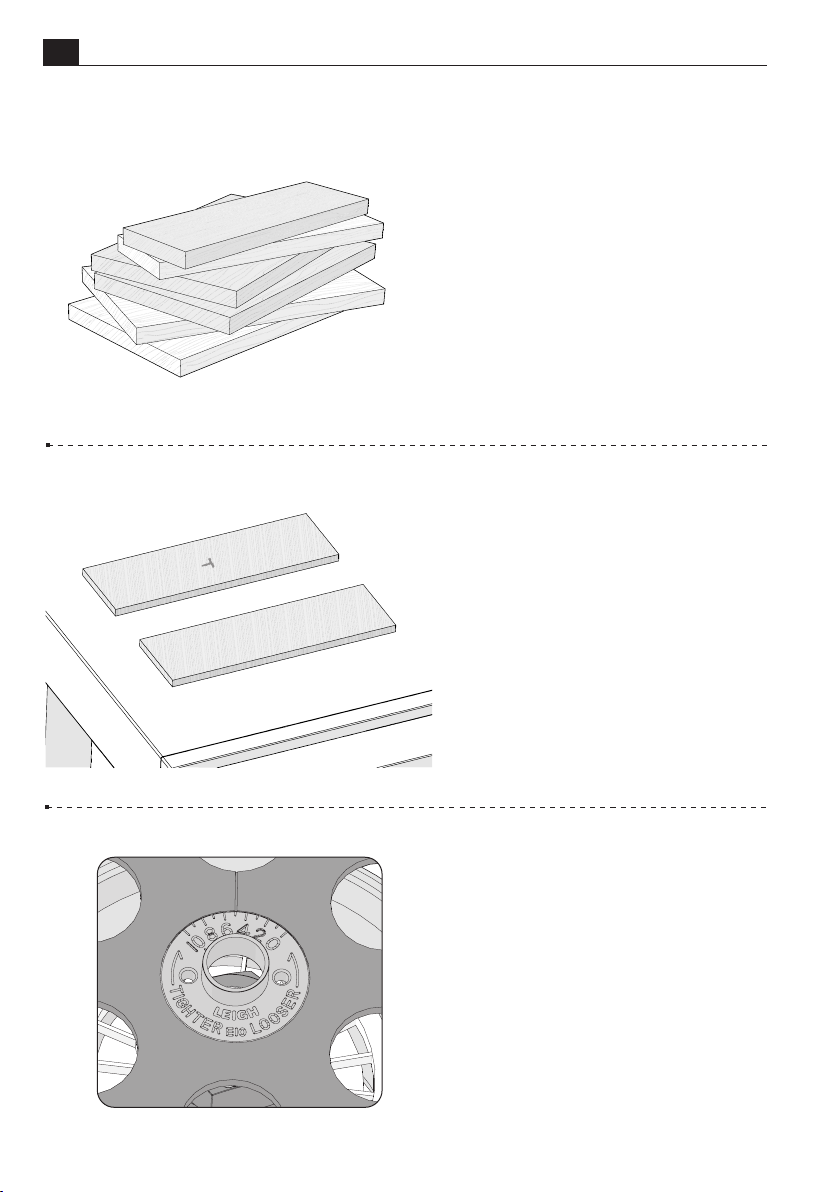

5-7 Making a Box

Prepare four similar boards 3/4"
thick × 7-1/2" wide by 12" long
[19mm×191mm×305mm], and two
test boards, 3-3/4" [100mm] wide
and the same thickness.

Note: Boards of different thicknesses
may also be joined.

5-8 Routing a Test Fit Joint

The two test boards are used to
establish joint fit before making the
box.

P

Mark the outside face of one test
board with a “T ” (tail board) and
the other one with a “P” (pin board).

5-9 If you haven’t already done

so, install the e10 guide bushing in
the router. See Steps 3-2 and 3-10 to
3-12. Test joints are always started
with the eBush set at the 5 position.

Retighten the eBush nut after each
guide bushing adjustment.

TD330 User Guide

TAILS SIDE

PINS SIDE

Chapter 5 Routing Through Dovetails

5-10

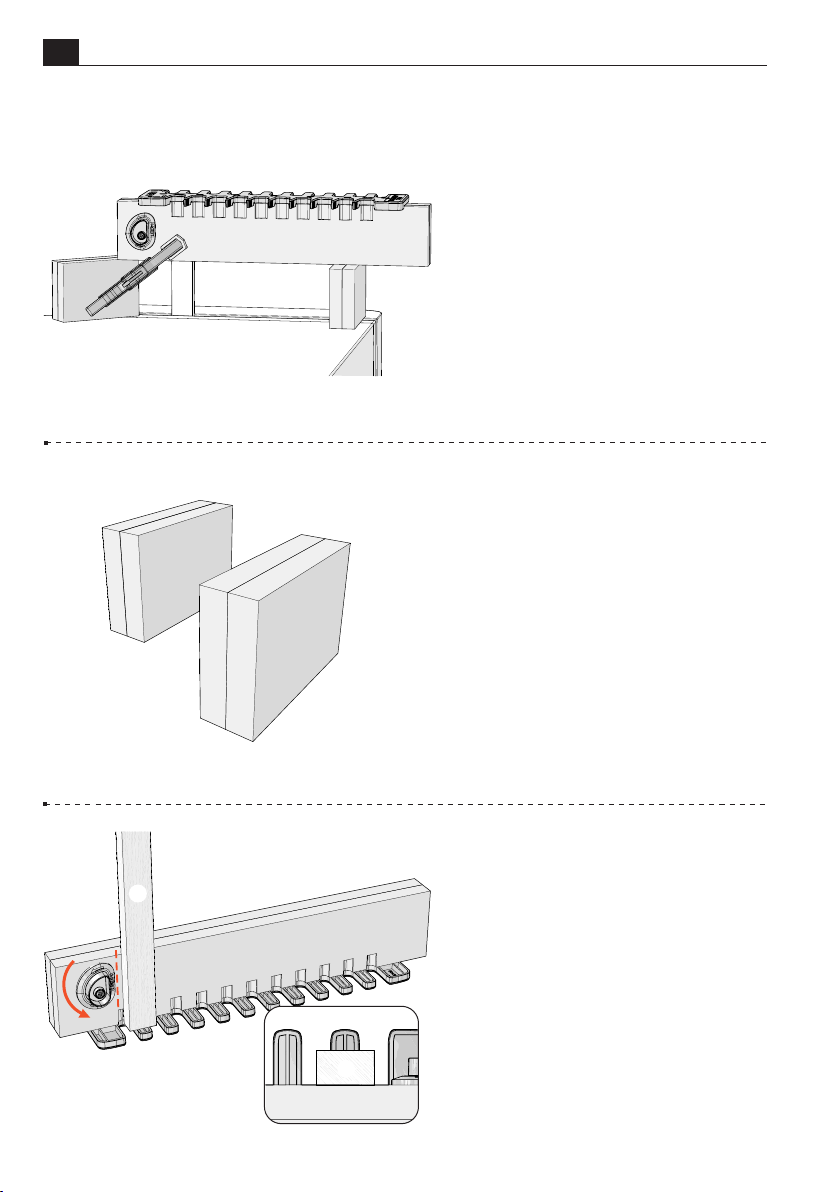

Turn both side stops until the
straight edge is vertical and facing the
middle of the jig.

5-11 Tail boards are always
routed first Unplug the router

and install the 1/2" 8º dovetail bit.
The bit goes through the guide
bushing and fits in the router collet.
Tighten the collet.

35

The collet and bit must not touch
the eBush or eBush nut. Rotate the
collet to ensure both spin freely.

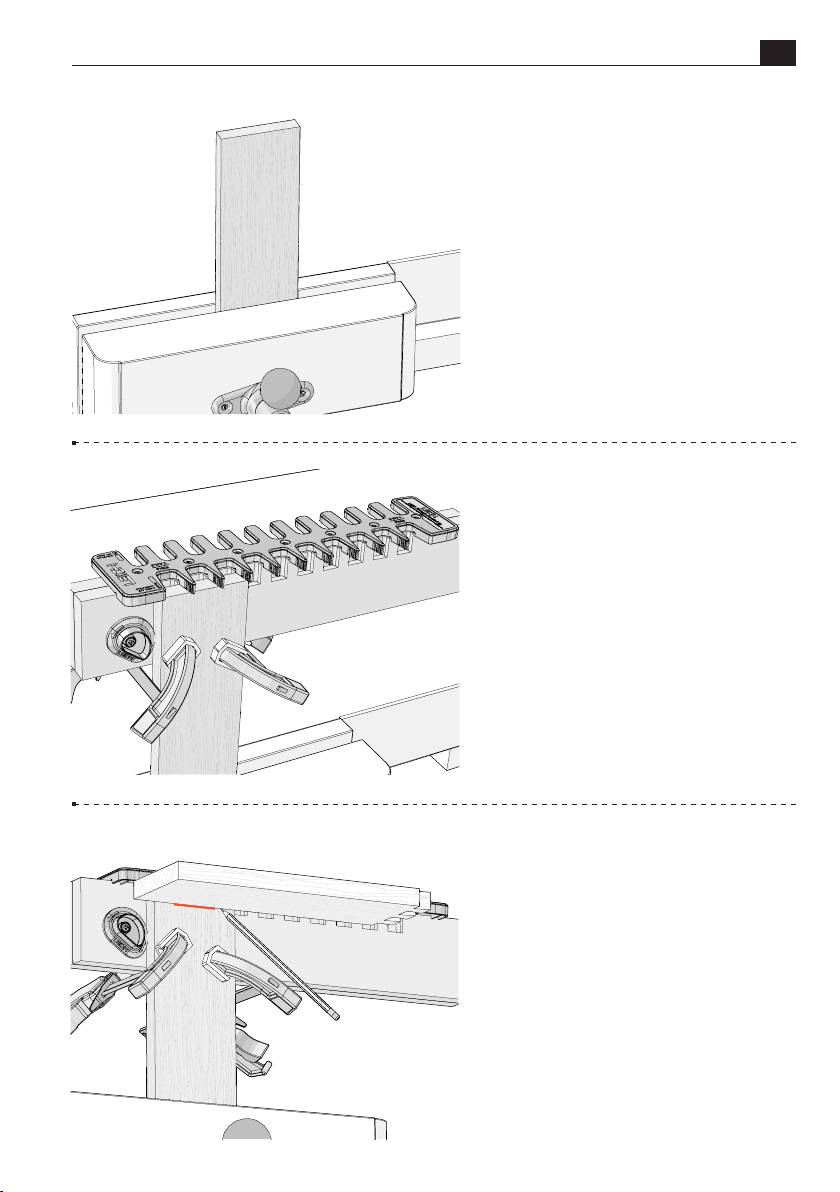

5-12 Clamp the test tail board in

the vice with the “T ” facing you.

36

Chapter 5 Routing Through Dovetails

TD330 User Guide

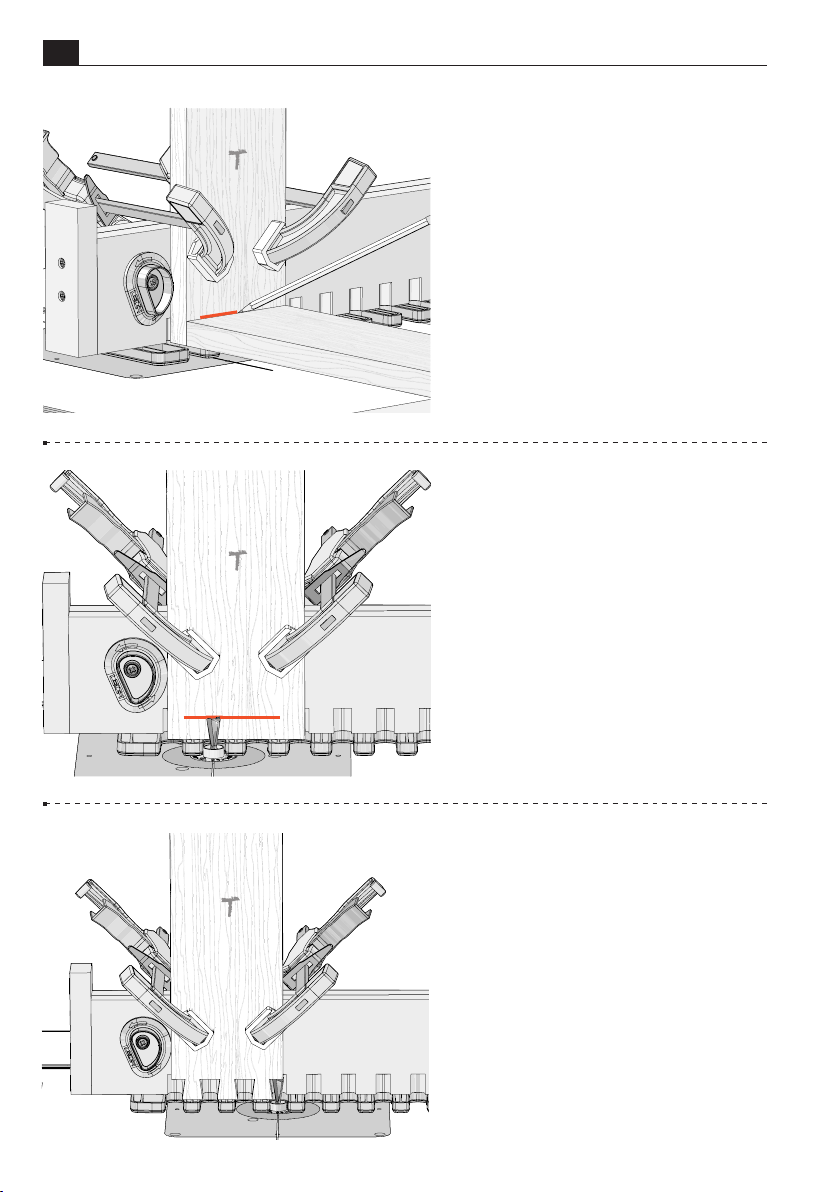

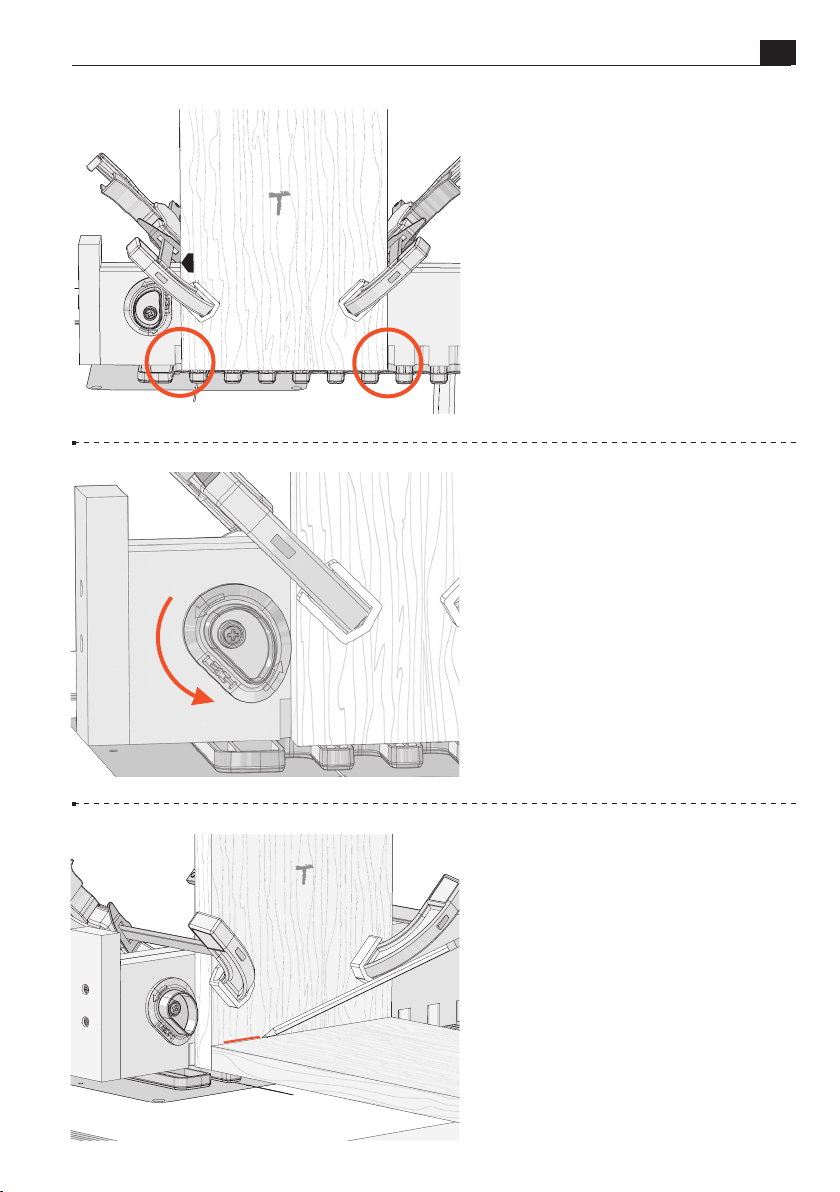

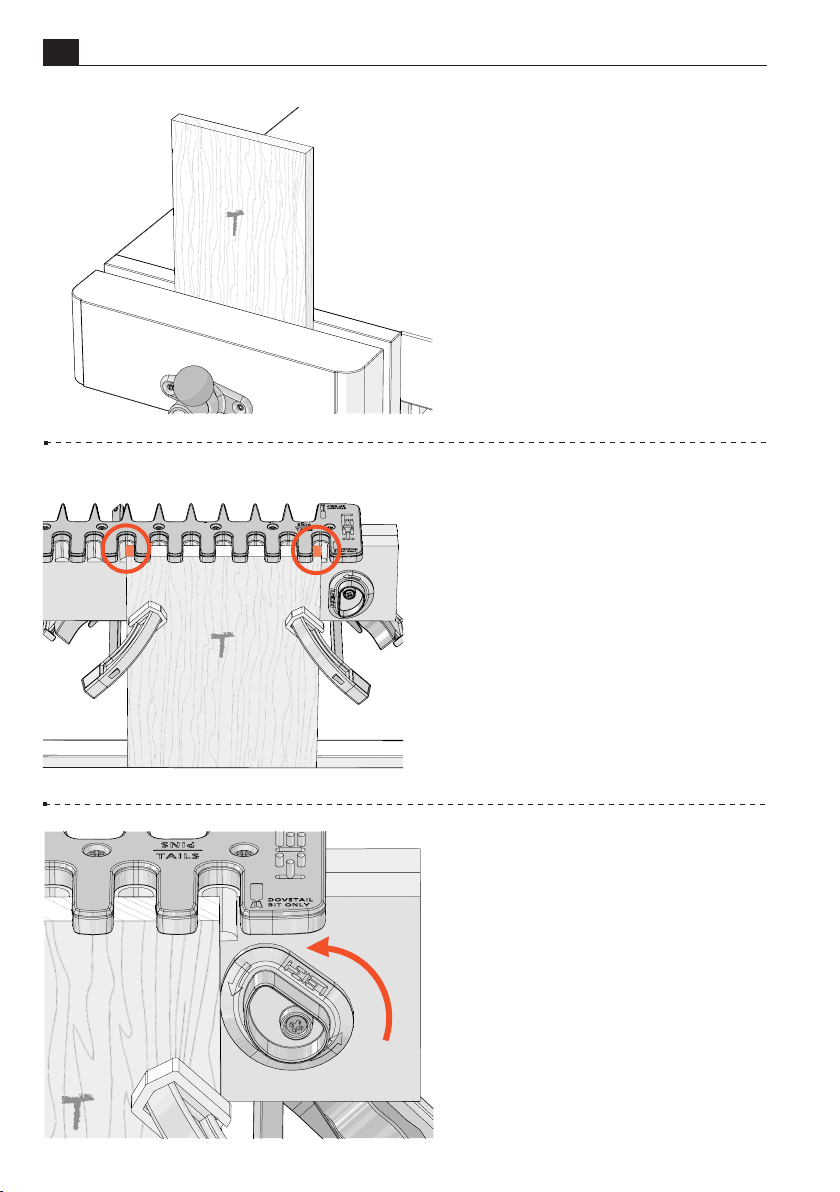

5-13 With the TAILS side of the jig

toward you, position the right end of
the jig over the test tail board, leaving
equal amounts of the board showing
at each edge, and clamp it in place.

5-14 Set the TAILS Side Stop

Rotate the side stop counter
clockwise until it touches the edge
of the board.

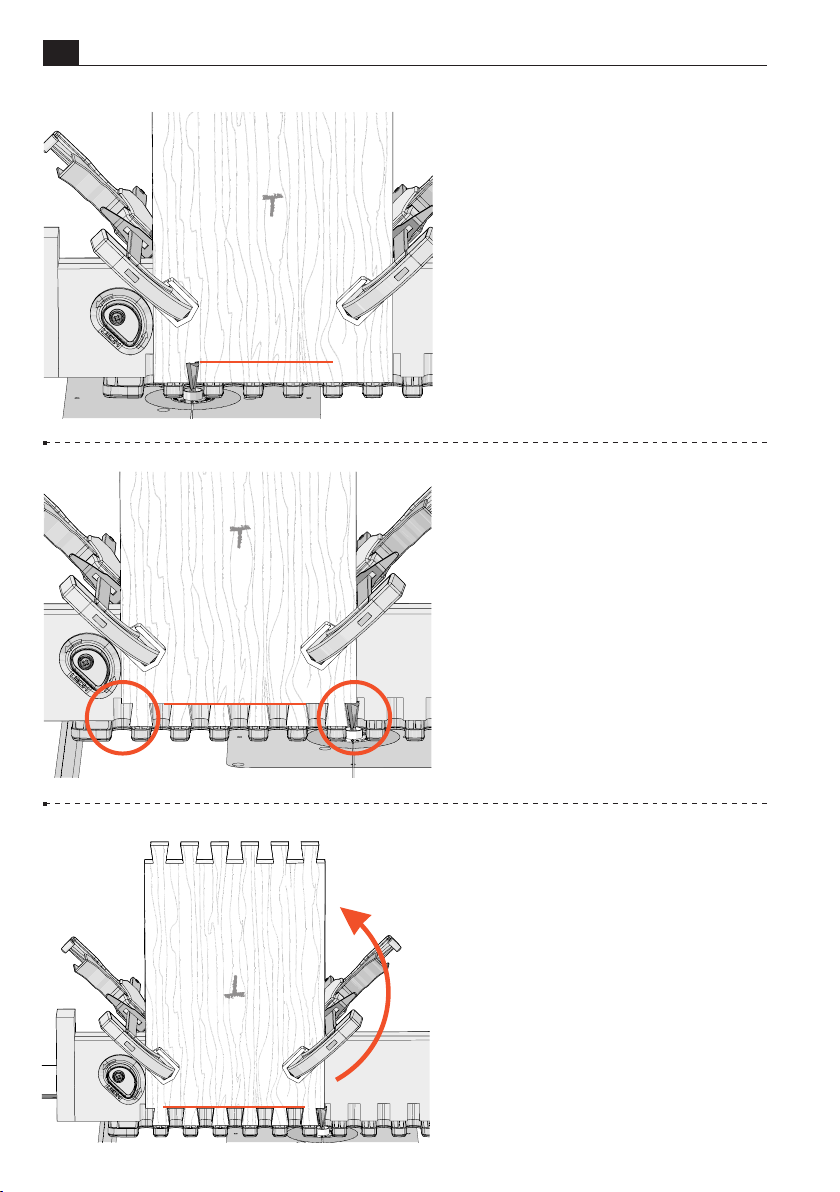

5-15

Pin and tail boards may differ
in thickness. Always use the mating
board to determine depth of cut.
Hold the mating pin board flush
under the template and mark a line
on the tail board, indicating depth
of cut.

TD330 User Guide

Chapter 5 Routing Through Dovetails

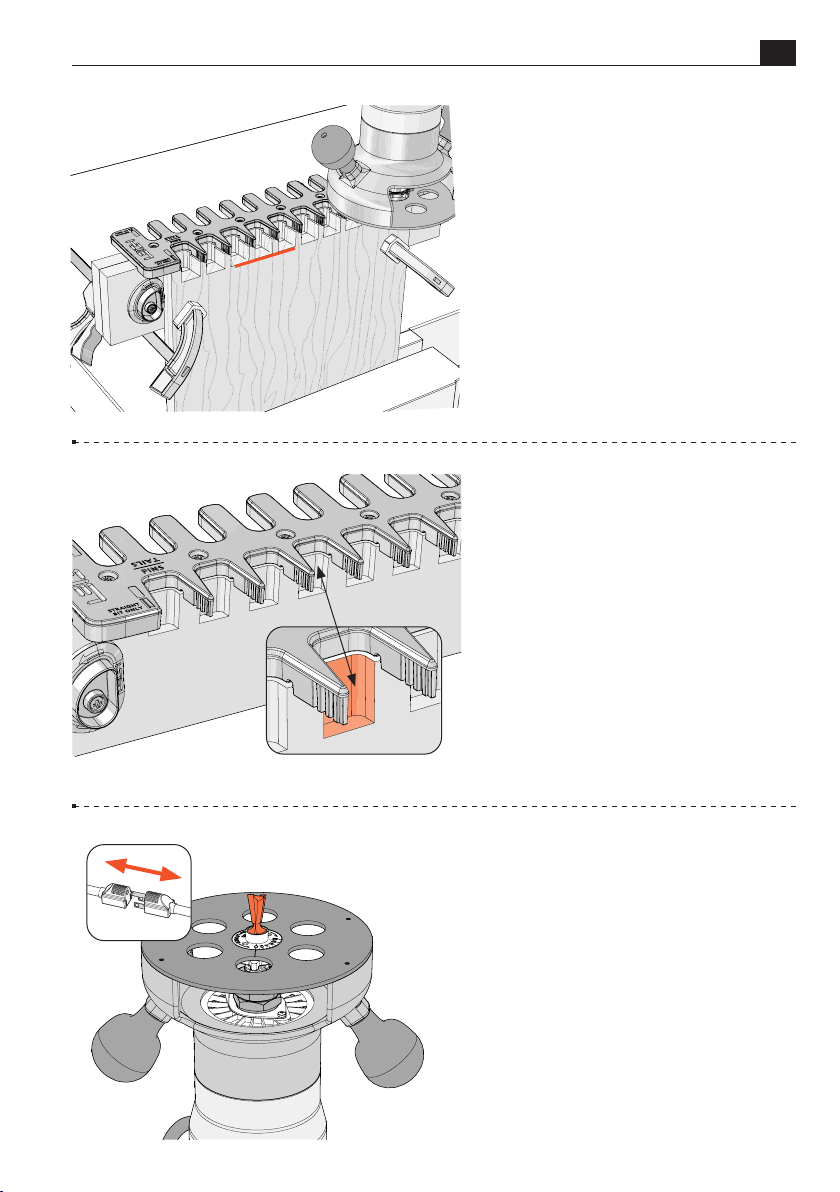

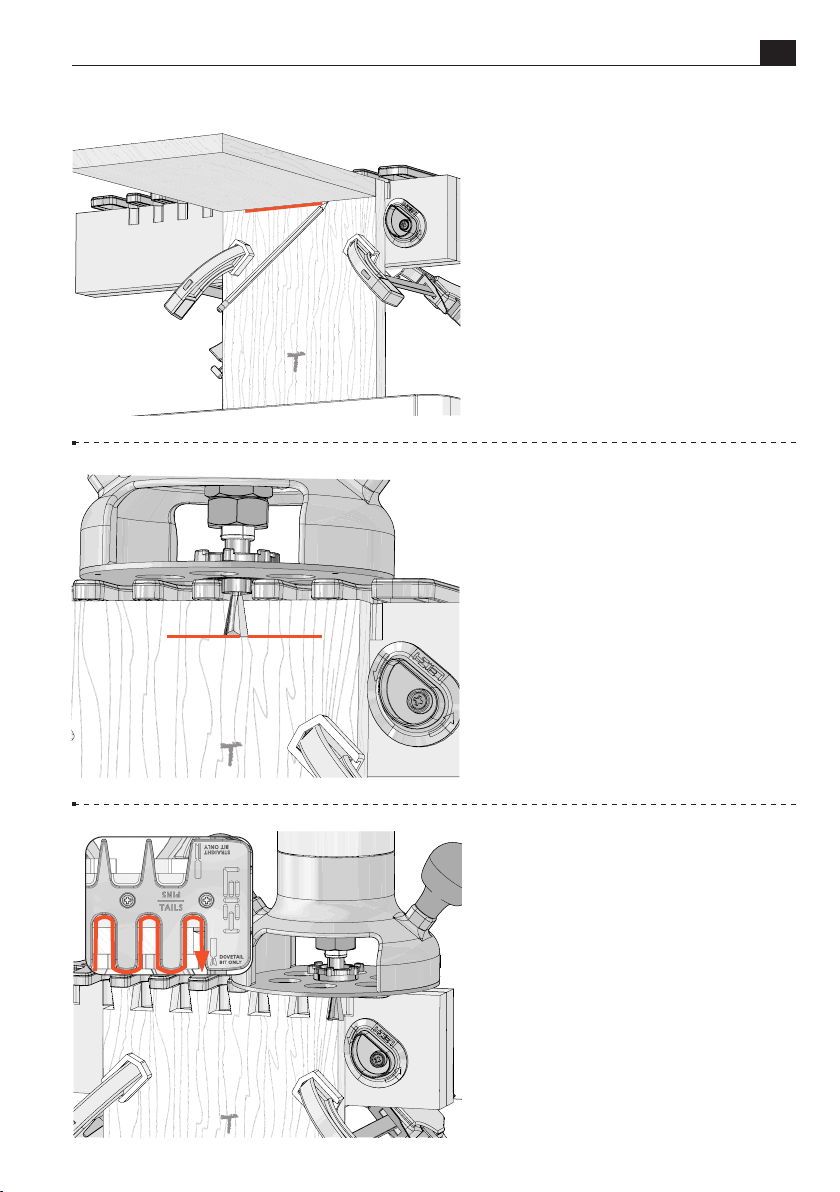

5-16 Place the router on the jig and

adjust the dovetail bit until the tip is
at the depth of cut line.

Rotate the collet to ensure it spins
freely.

5-17 Rout the Test Tail Board

Hold the router firmly as you rout
straight in and out of each template
opening.

The diameter of the guide bush is
slightly smaller than the openings in
the template, so be sure the guide
bushing touches both sides of the
template opening.

37

Do not rotate the router.

5-18 Remove the jig. There will

now be a half-pin socket at each edge
of the board.

Leave the tail board clamped in the
vice as it used to set the PINS side
stop.

38

Chapter 5 Routing Through Dovetails

A

TD330 User Guide

5-19

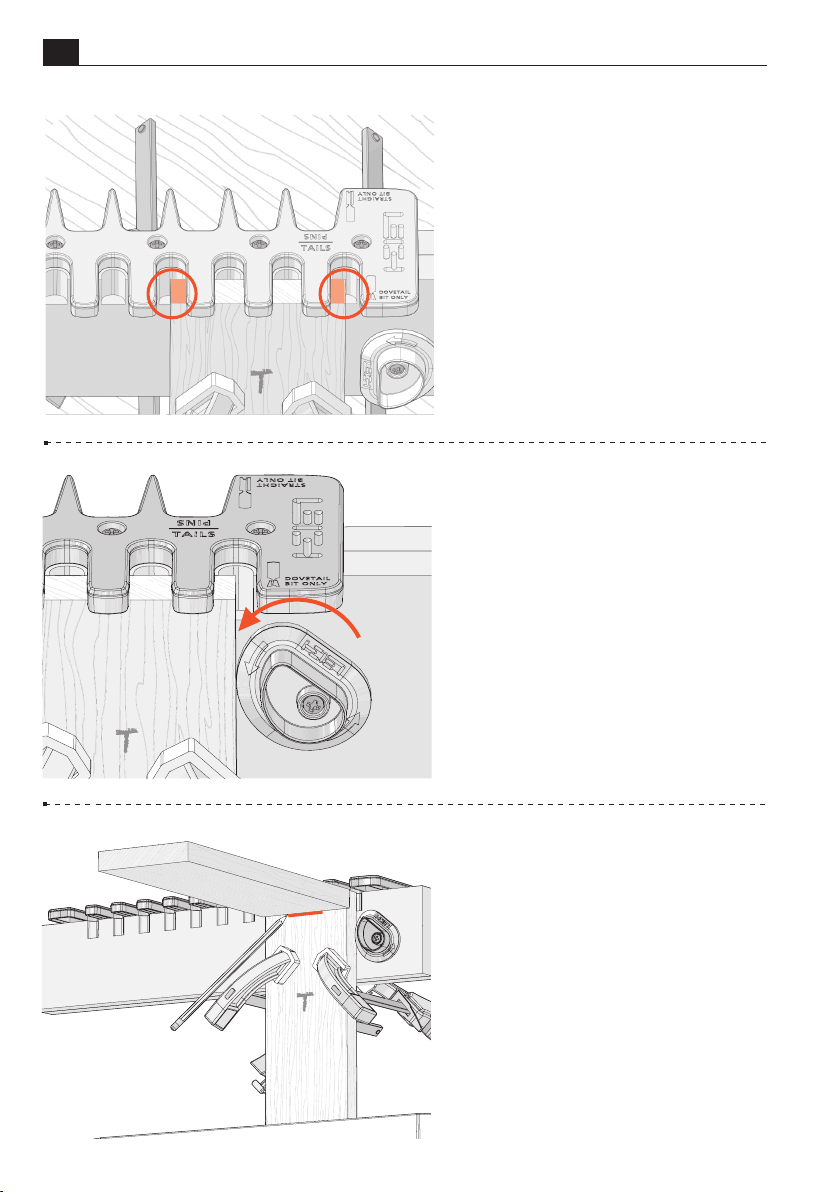

Set the PINS Side Stop

Leaving the tail board in the vice,
insert the pin side of the template into
the routed pin sockets. The rightmost
tail should be in the first template
opening closest to the side stop.

See 5-20 below which shows from the
back side.

5-20

There may be slight play
between the template pins and the
tail board pin sockets. Hold jig firmly
against tail board and move jig to the
left until the play is eliminated A.

While holding the jig firmly against
the tail board, turn the side stop
counter clockwise until it touches the
board edge. The side stop is now set
to rout the test pin board. Remove the
jig and tail board.

5-21

Rout the Test Pin Board

With the router unplugged, install
the 1/2" straight bit. The bit goes
through the guide bushing and fits
in the router collet.

Tighten the collet.

The collet and bit must not touch
the eBush or eBush nut. Rotate the
collet to ensure both spin freely.

TD330 User Guide

P

Chapter 5 Routing Through Dovetails

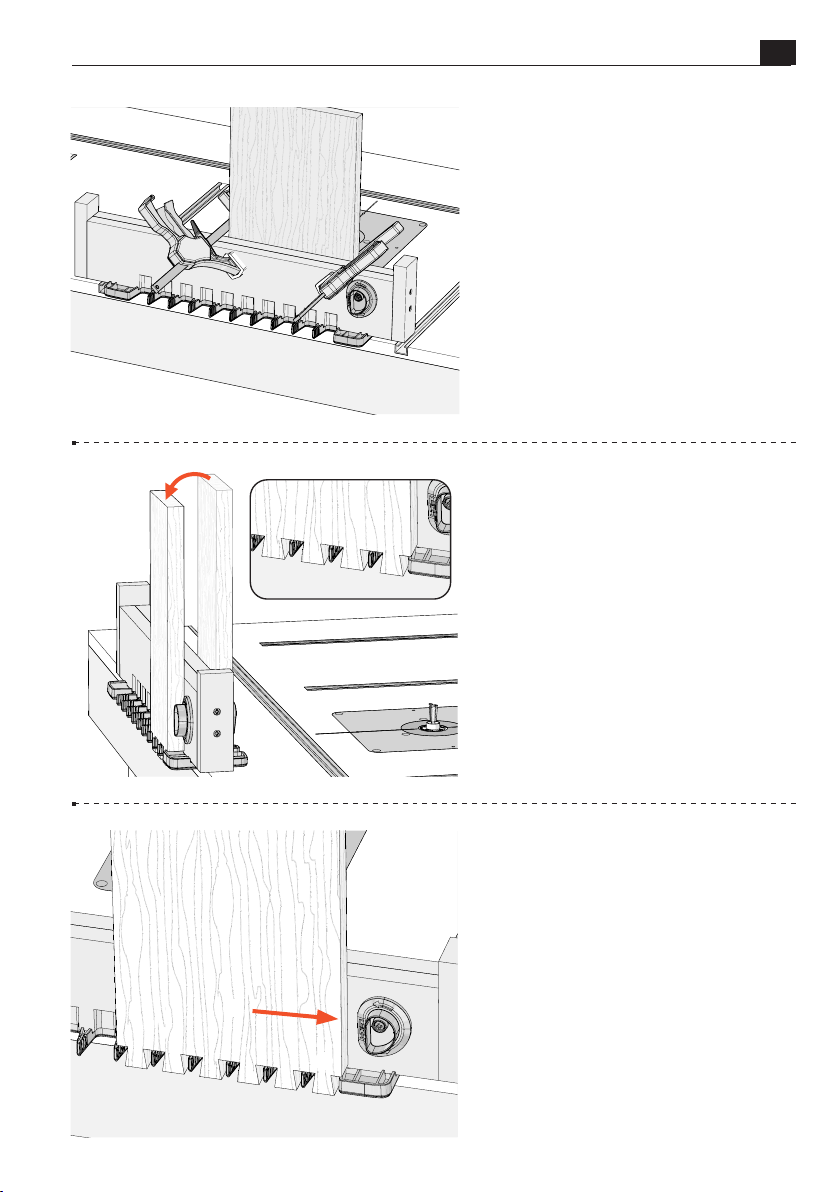

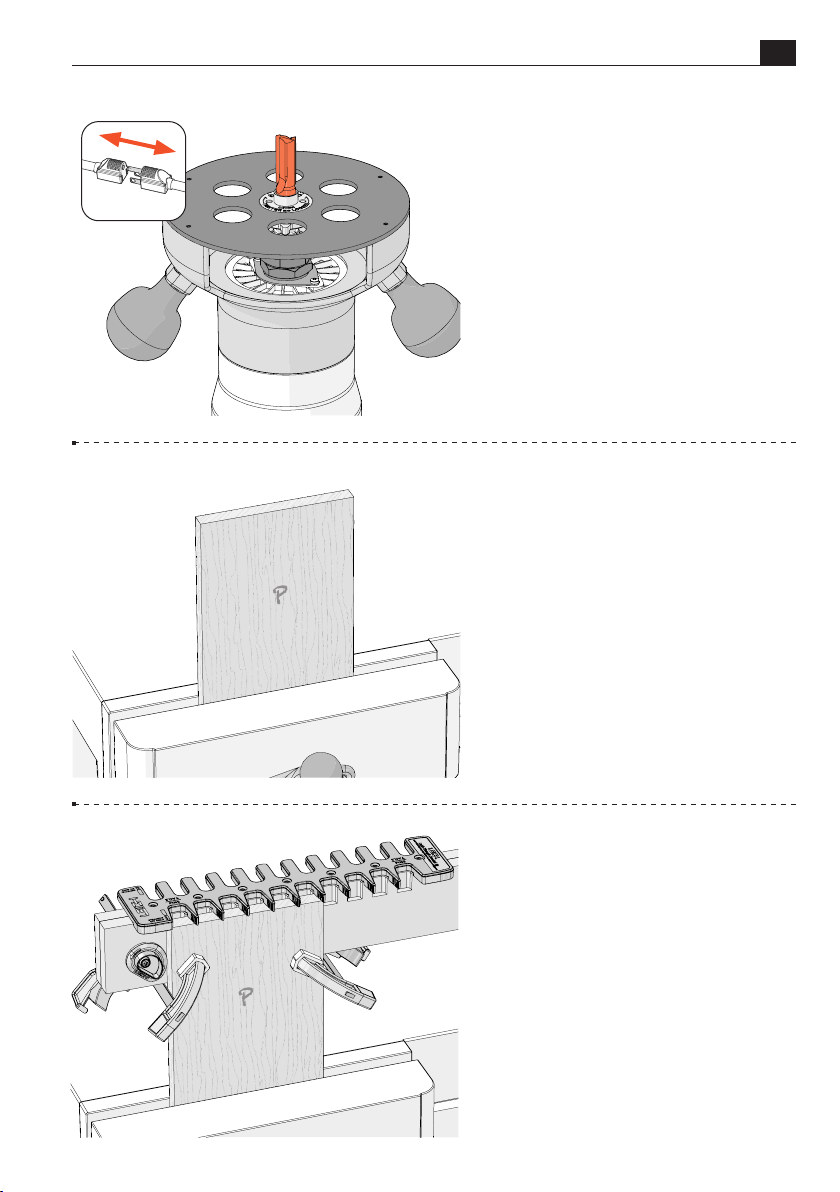

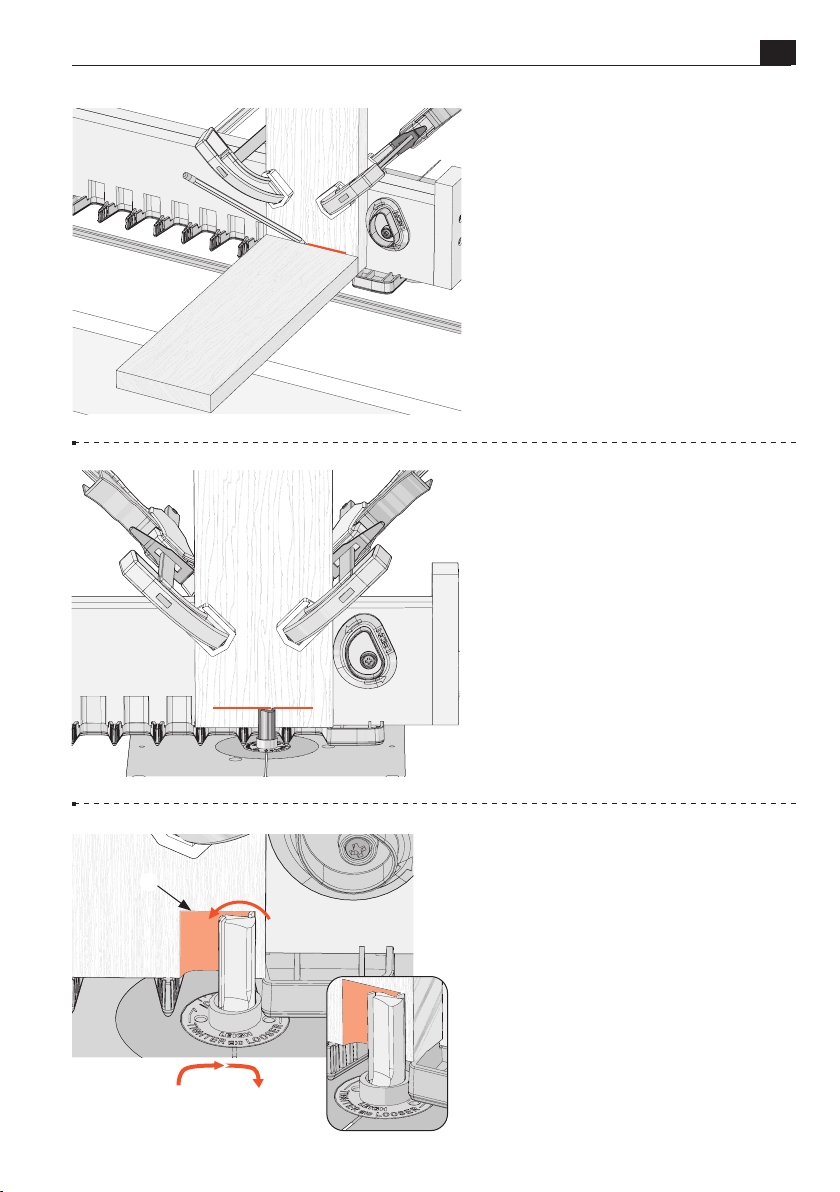

5-22 Clamp the test pin board in

the vice with the outside (marked)
face toward you.

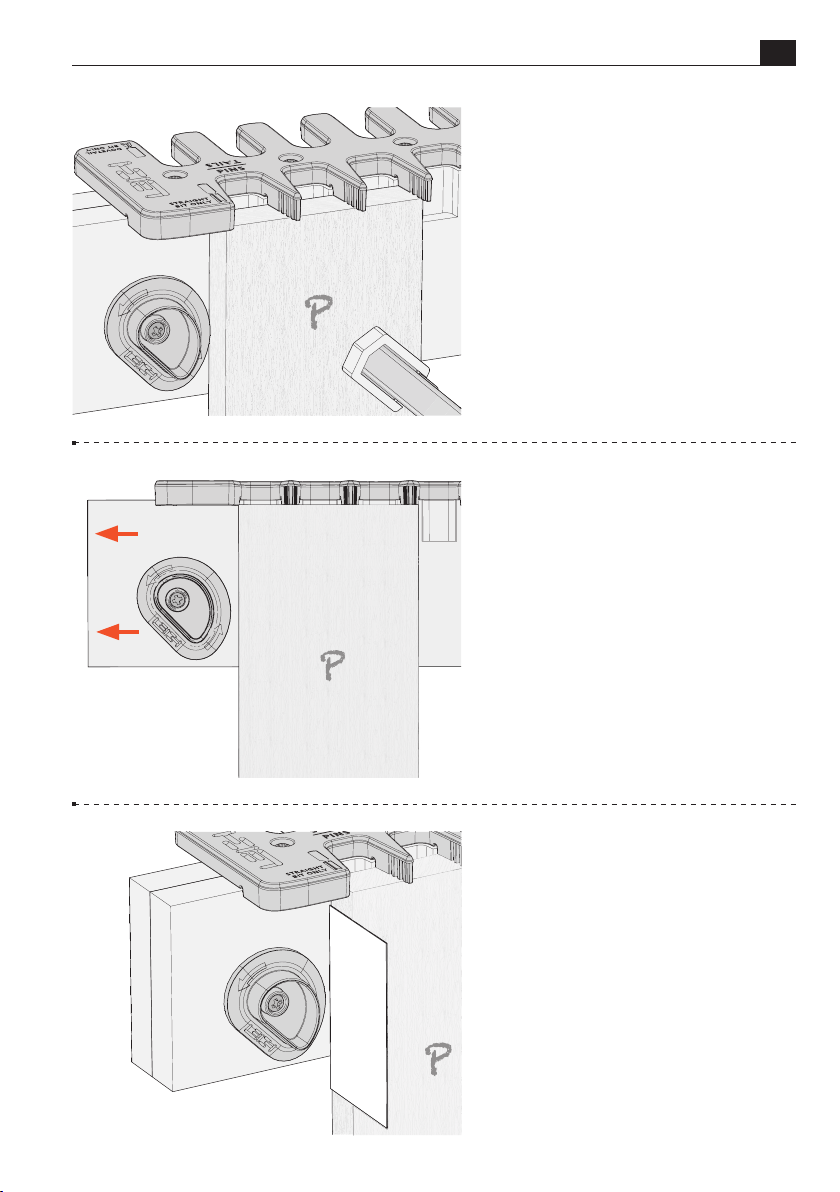

5-23 With the PINS side of the jig

facing you, place it on the pin board
and move it to the right until the side
stop touches the board edge.

Clamp the jig in place.

39

P

P

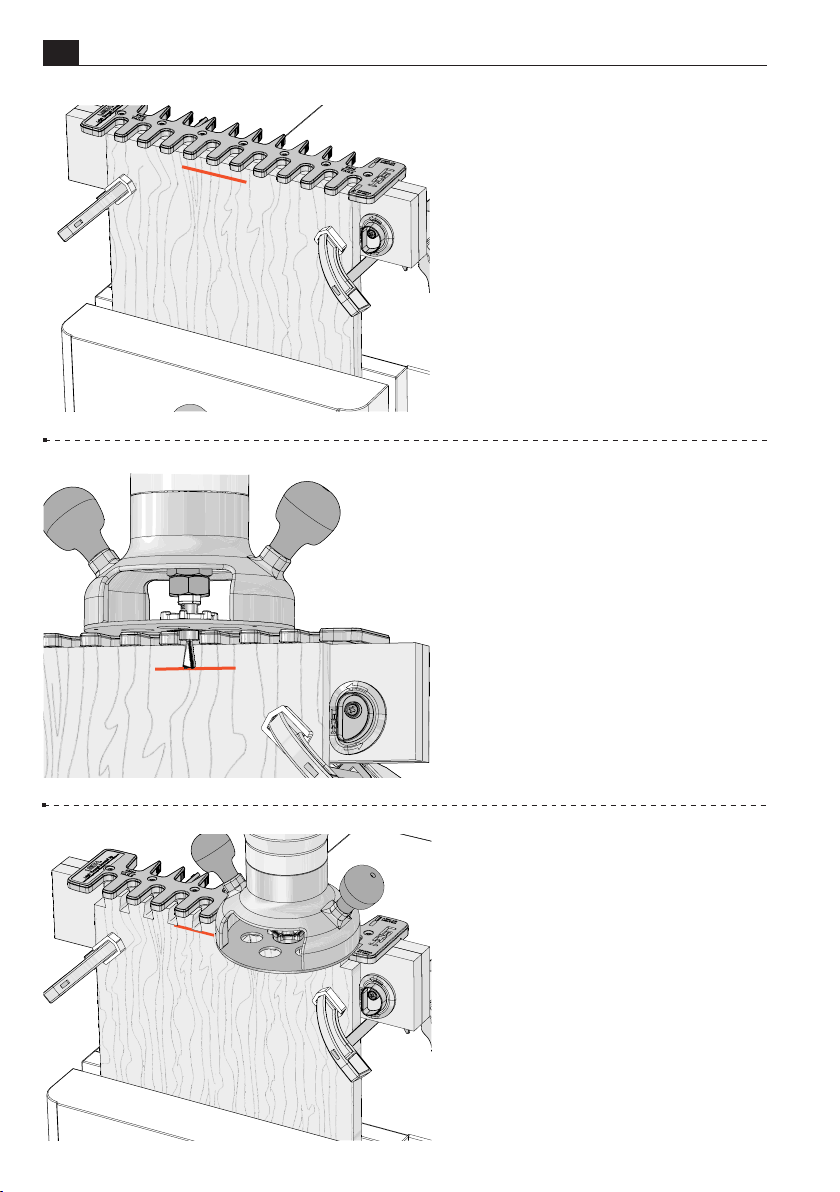

5-24 Always use the mating board

to determine depth of cut. Hold the
mating tail board flush under the
template and mark a depth of cut line
on the pin board.

40

Chapter 5 Routing Through Dovetails

P

Bit Rotation

A

Bit Rotation

TD330 User Guide

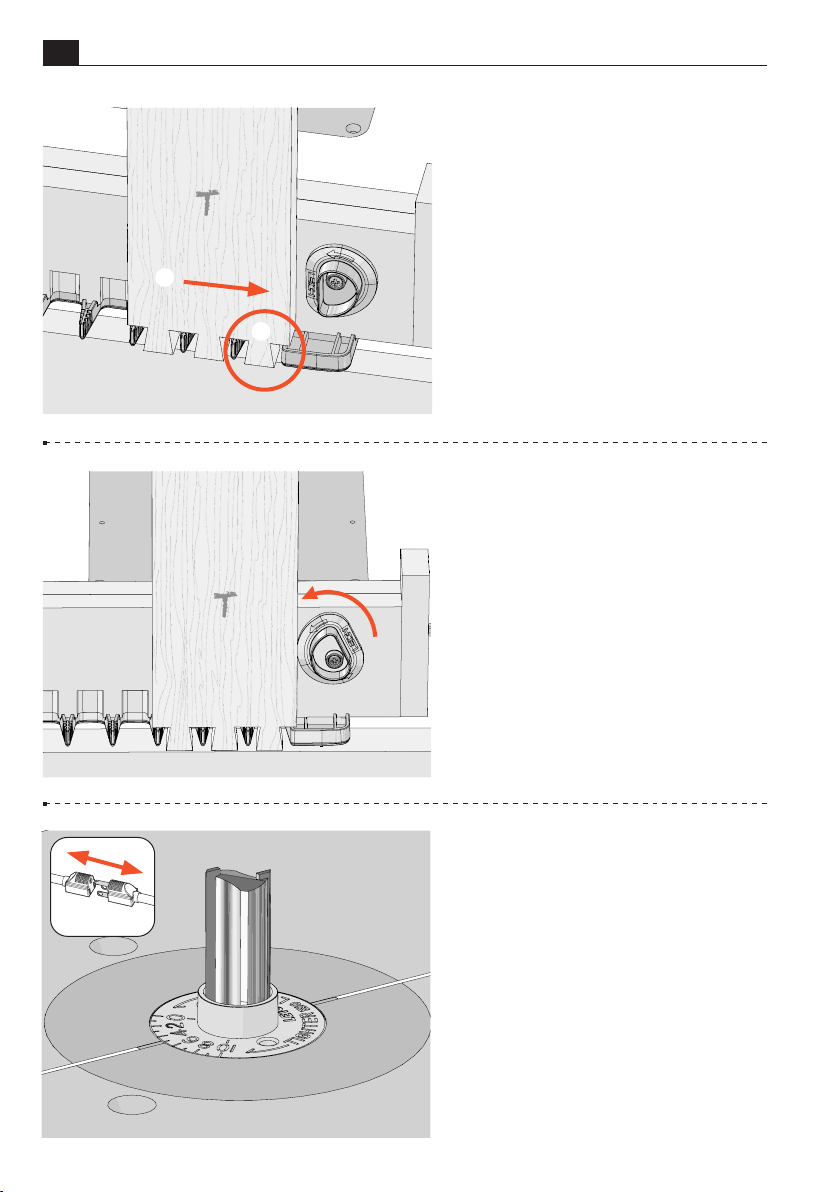

5-25

Place the router on the jig and
adjust the bit until the tip is at the depth
of cut line.

Rotate the collet to ensure it spins
freely.

5-26

How to Make a Climb Cut

When routing pins, you should
always start with a shallow climb cut,
as this will create a clean shoulder

A

A climb cut may pull the router to
the left, so be sure to hold it firmly
as you carefully make a shallow cut
from right to left.

.

Climb Cut Directon

P

Climb Cut Direction

Note: For clarity the guide
bushing is not shown.

5-27 After making the climb cut,

rout out the rest of the wood between
the pins, in all template openings
along the width of the board.

Be sure the e10 guide bushing
touches the left side of the template
opening on the way in, and the right
side on the way out. Do not rotate

the router.

TD330 User Guide

TOO LOOSE

P

TIGHTEN

Chapter 5 Routing Through Dovetails

5-28 You will now have a half-pin

on each edge of the board.

Do not adjust the side stops.

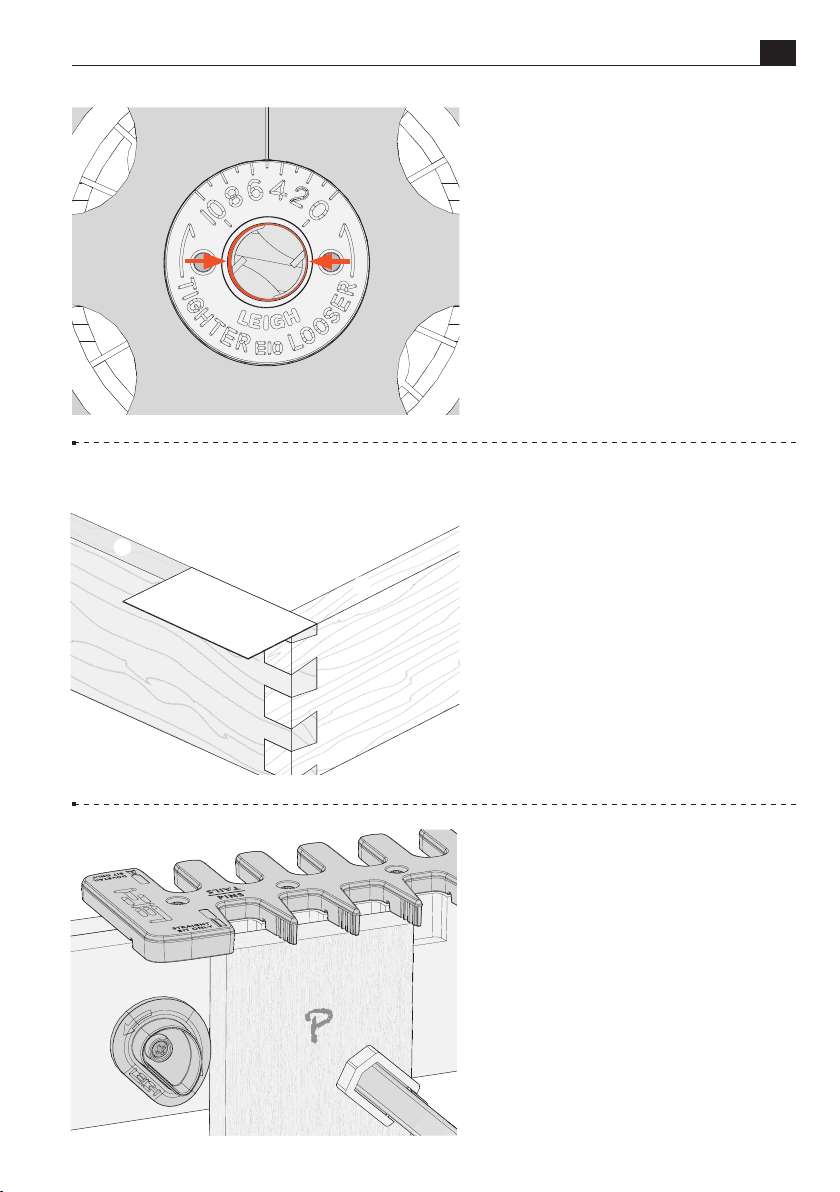

5-29 Joint Fit Adjustment

With the marked sides facing out,
assemble the test boards. If the joint
is too loose, use the pin wrench and
turn the eBush to a higher number

and rout a new pin board.

41

TOO TIGHT

TAILS

PINS

LOOSEN

AVERAGE

Tails + Pins = Divided by 2 =

5 + 3 = 8 ÷ 2 = 4

35

If the joint is too tight, turn the
eBush to a lower number and rout

a new pin board. One or two test

cuts should produce the proper fit.

5-30 Once the fit is correct, add

the two eBush settings together and
divide by two.

Example: 5 for tails, 3 for pins

(5 + 3 = 8) (8 ÷ 2 = 4). Record

setting “4” on an eBush diagram in
the next step.

This will be the new eBush setting for

pins and tails

Re‑tighten the eBush nut after
each guide bushing adjustment.

in all subsequent joints.

42

Chapter 5 Routing Through Dovetails

TD330 User Guide

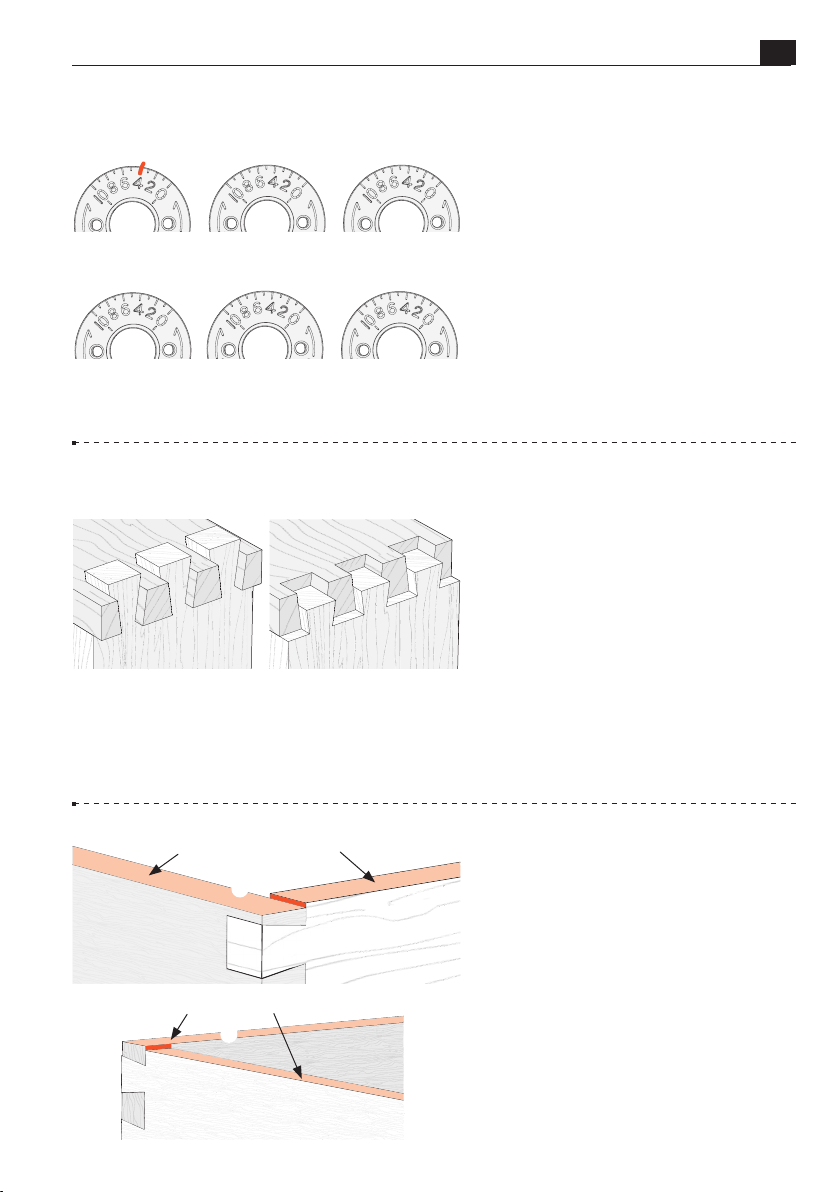

SAMPLE

June7, Maple

OVER FLUSH UNDER FLUSH

5-31 Use these eBush diagrams

to record the settings you used to
achieve a proper joint fit. The first
eBush is simply an example of how
to record your setting.

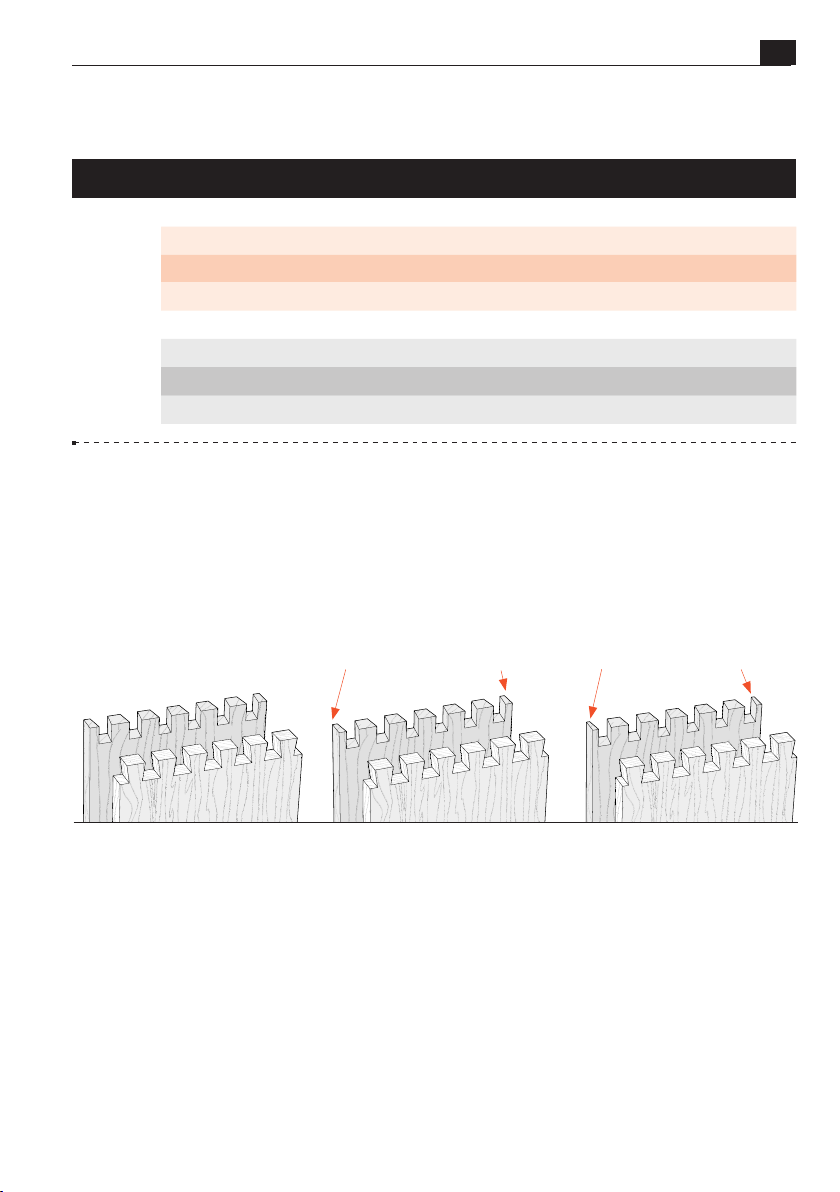

5-32 Joint flushness is determined

by the depth of cut.

If the joint is over flush, raise the bit
to decrease the depth of cut.

If the joint is under flush, lower the
bit to make a deeper cut.

These edges against side stop

A

These edges against side stop

B

5-33 Joint Edge Flushness

If the edges of your joints are not
flush, this could be due to bit
concentricity issues.

The pin board edge that goes against
the side stop might need to be raised

or lowered B slightly.

A

TD330 User Guide

A

P

PIN BOARD

B

A

TAIL BOARD

T

Chapter 5 Routing Through Dovetails

5-34 If each router bit is not centered

in the guide bushing, the board edges
may not be flush.

Some routers allow minor shifting
of the router base plate to correct
concentricity issues.

Otherwise, a slight adjustment to
the PINS side stop can solve this
problem.

5-35

With the board edges that were
against the side stops facing up A,
use a feeler gauge, or something as
simple as a business card B or two, to
determine the amount of adjustment
that is needed.

To raise the pin board edge, see Steps
5-36 to 5-40.

To lower the pin board edge, see Steps
5-41 to 5-44.

43

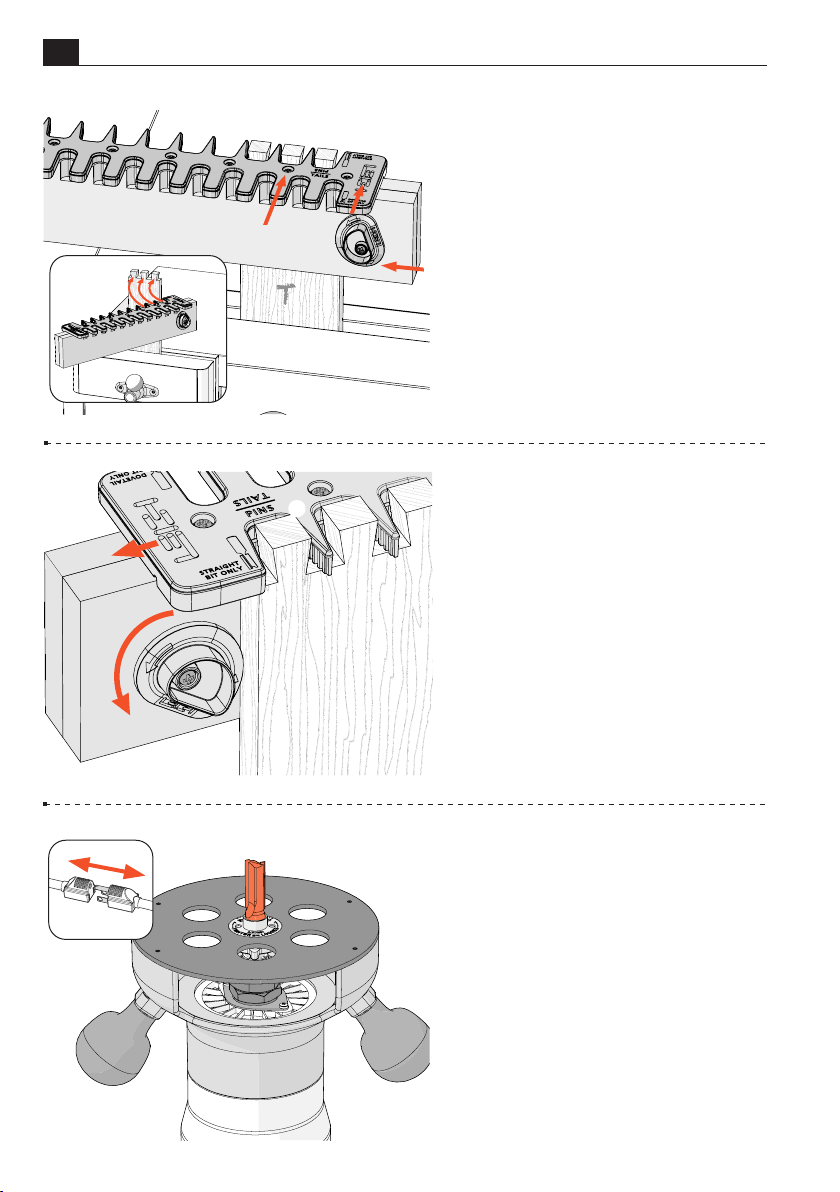

5-36 To raise the pin board

edge clamp the jig to a new test pin

board end with the edge against the
side stop.

44

Chapter 5 Routing Through Dovetails

A

P

TD330 User Guide

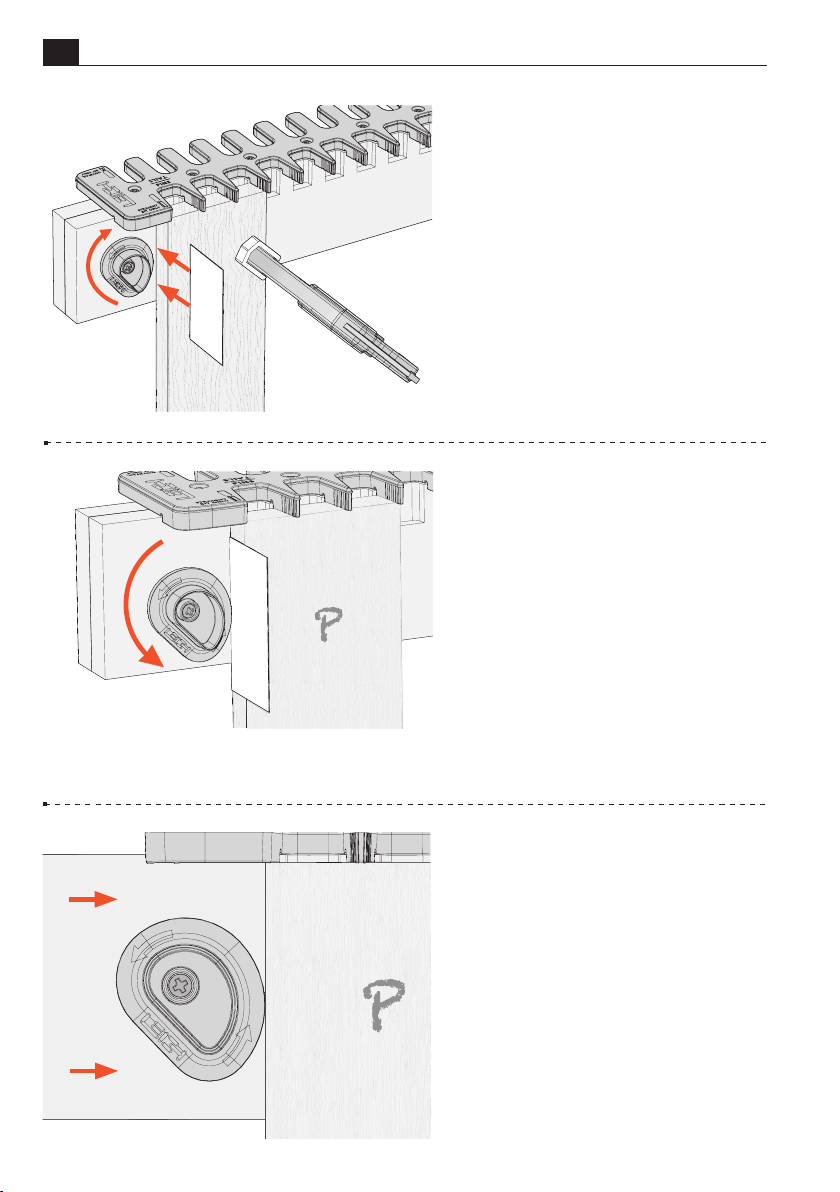

5-37 Rotate the side stop slightly

clockwise and place the spacer A
between the board edge and the side
stop.

5-38 Then rotate the side stop

counter-clockwise until it touches
the spacer.

Remove the spacer and clamp.

5-39 Shift the jig over until the side

stop touches the board edge.

TD330 User Guide

Chapter 5 Routing Through Dovetails

5-40 Clamp the jig in place.

Rout only a new test pin board end
to fit in the test tail board. Test the
edge flushness again and repeat the
process until the edge flushness is
correct.

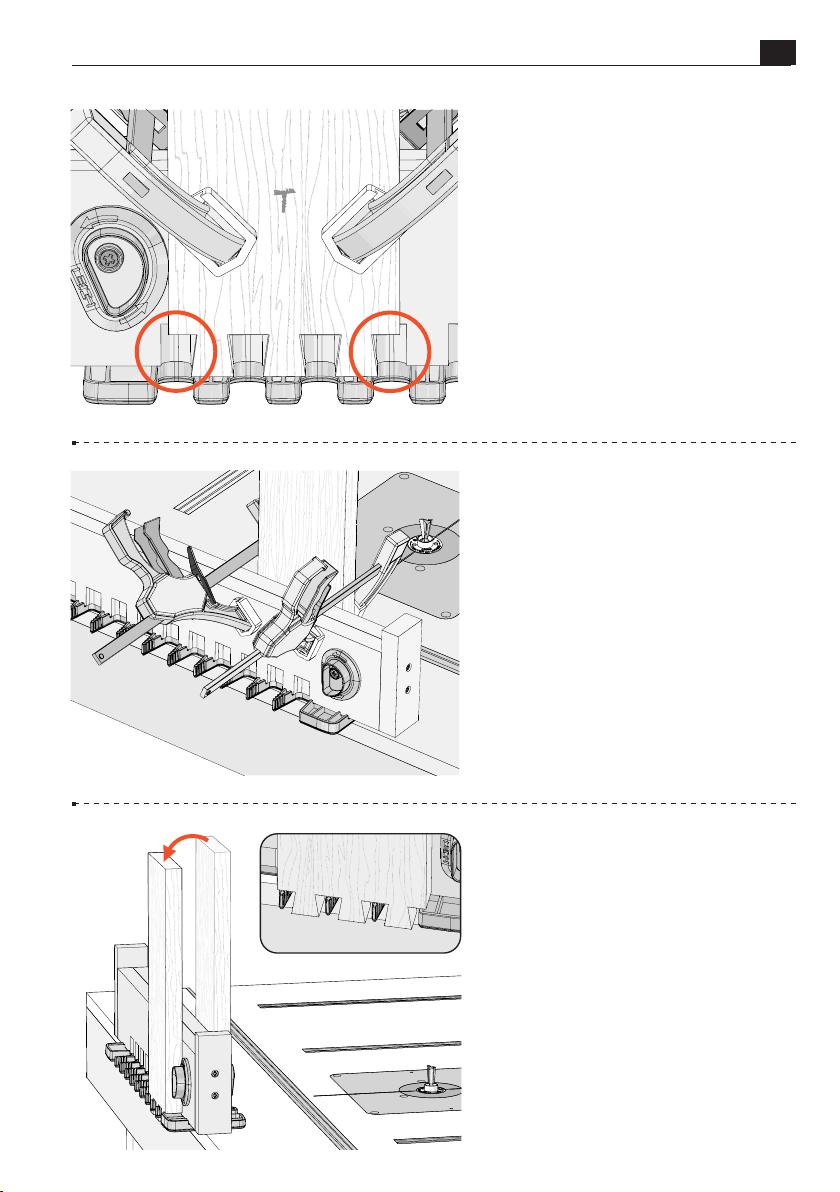

5-41

To lower the pin board
edge

, clamp a new test pin board
end in the vice. Without adjusting
the side stop, place the jig on top
with a slight gap between the side
stop and board edge.

45

Do not adjust the side stop yet.

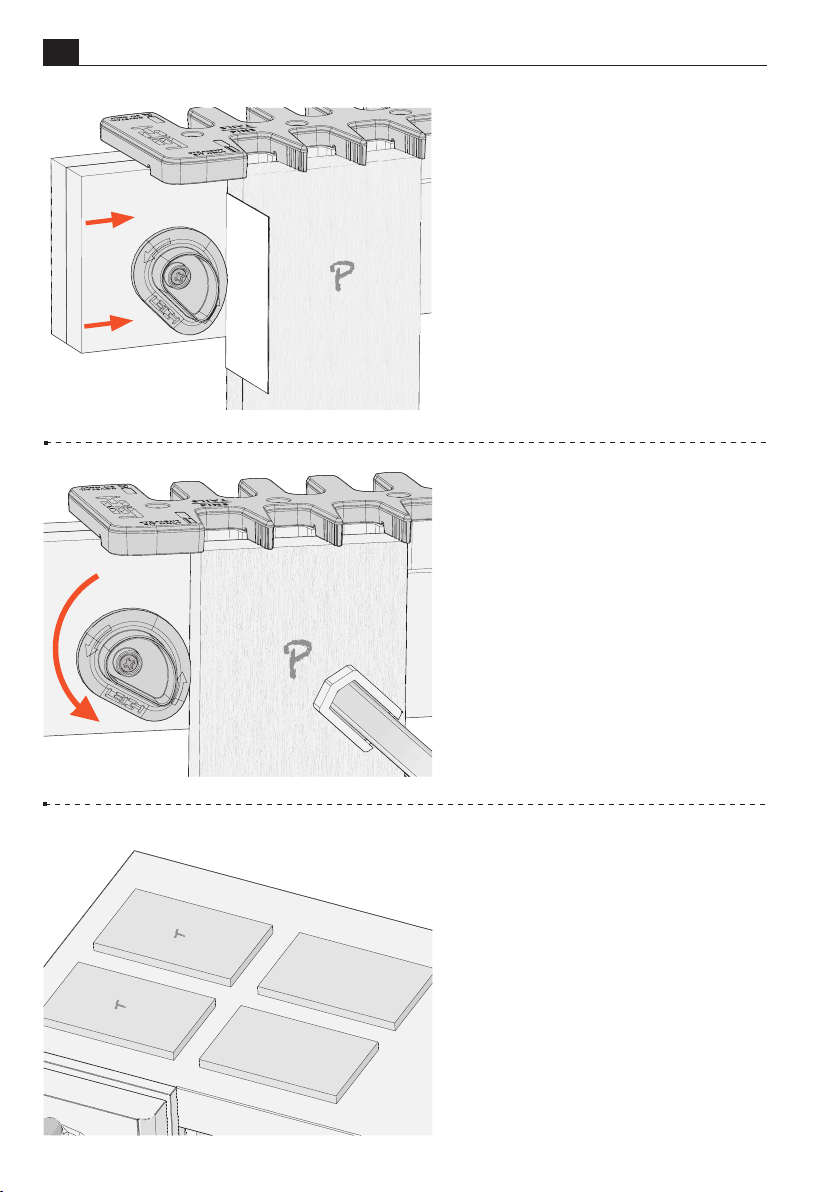

5-42 Place and hold the spacer

between the side stop and board edge.

46

Chapter 5 Routing Through Dovetails

TD330 User Guide

5-43

Shift the jig over until the side

stop touches the spacer.

5-44

Clamp the jig in place, then
remove the spacer and rotate the
side stop counter clockwise until it
touches the board edge.

Rout only a new test pin board end
to fit in the test tail board. Test the
edge flushness again and repeat the
process until the edge flushness is
correct.

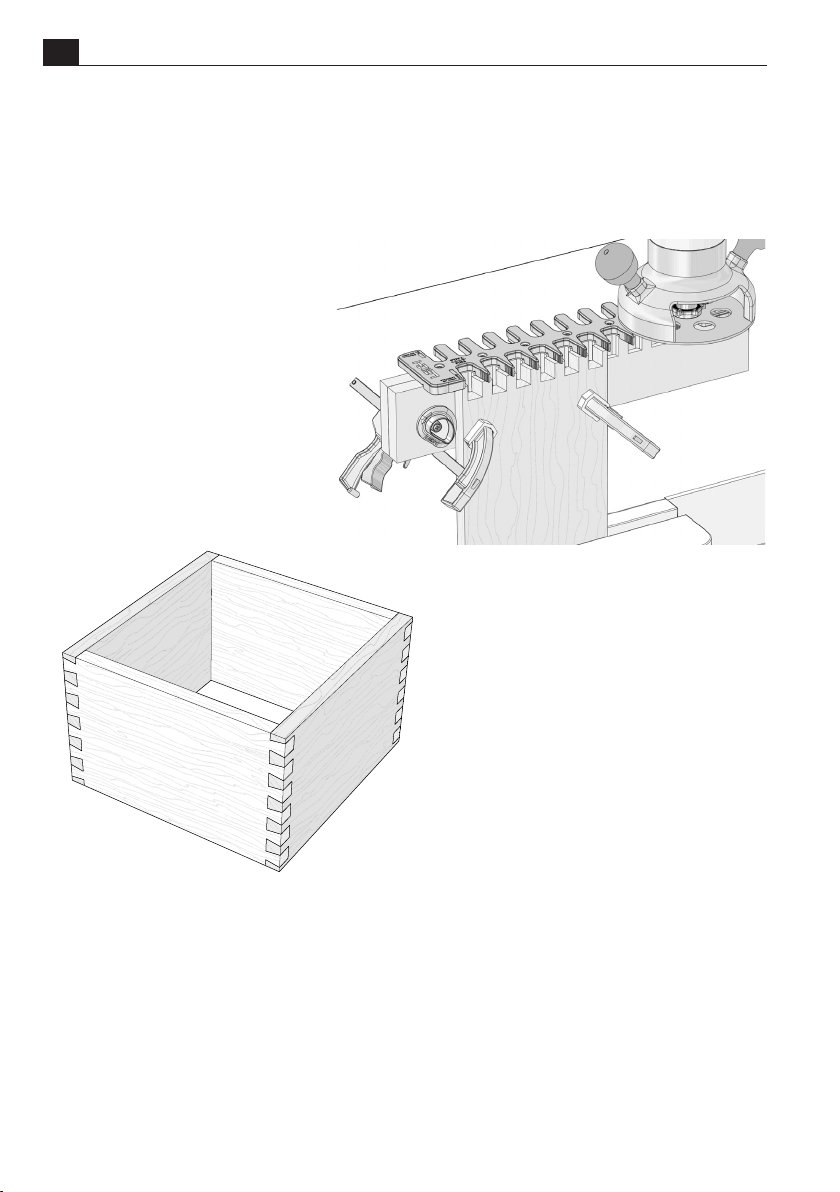

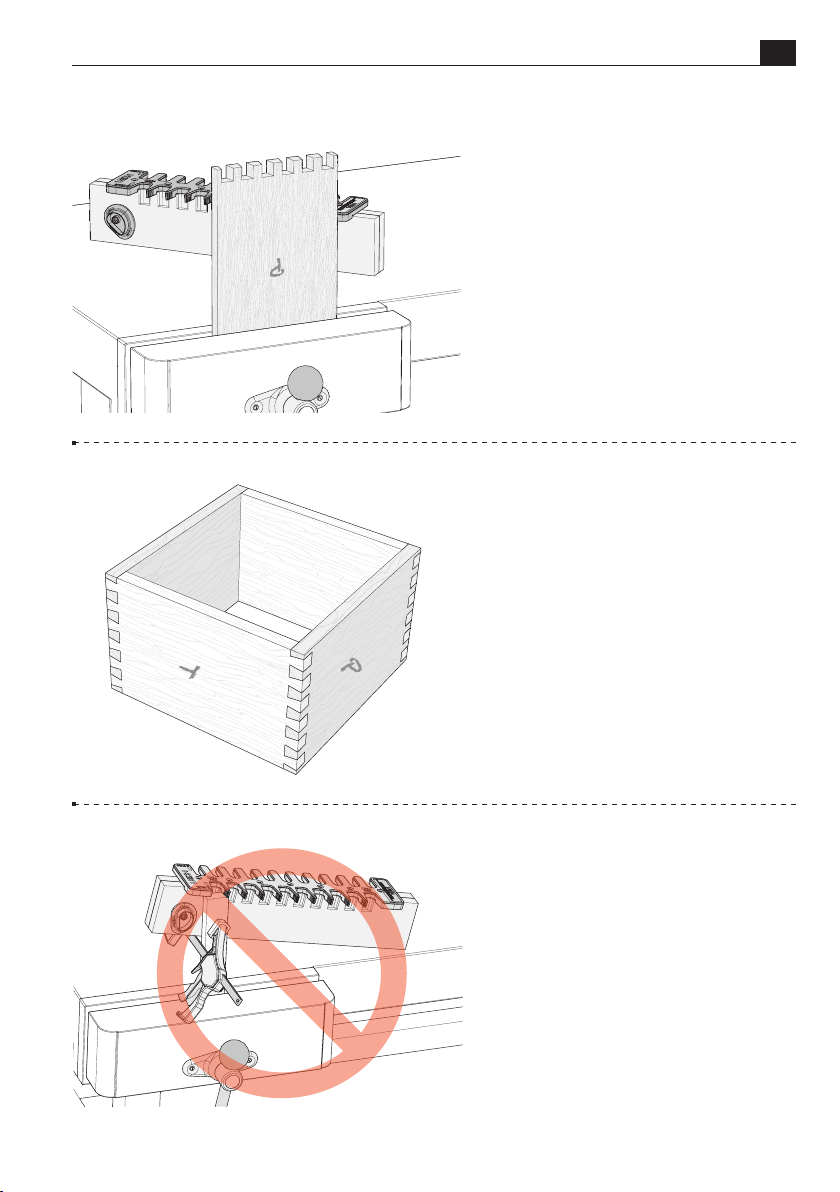

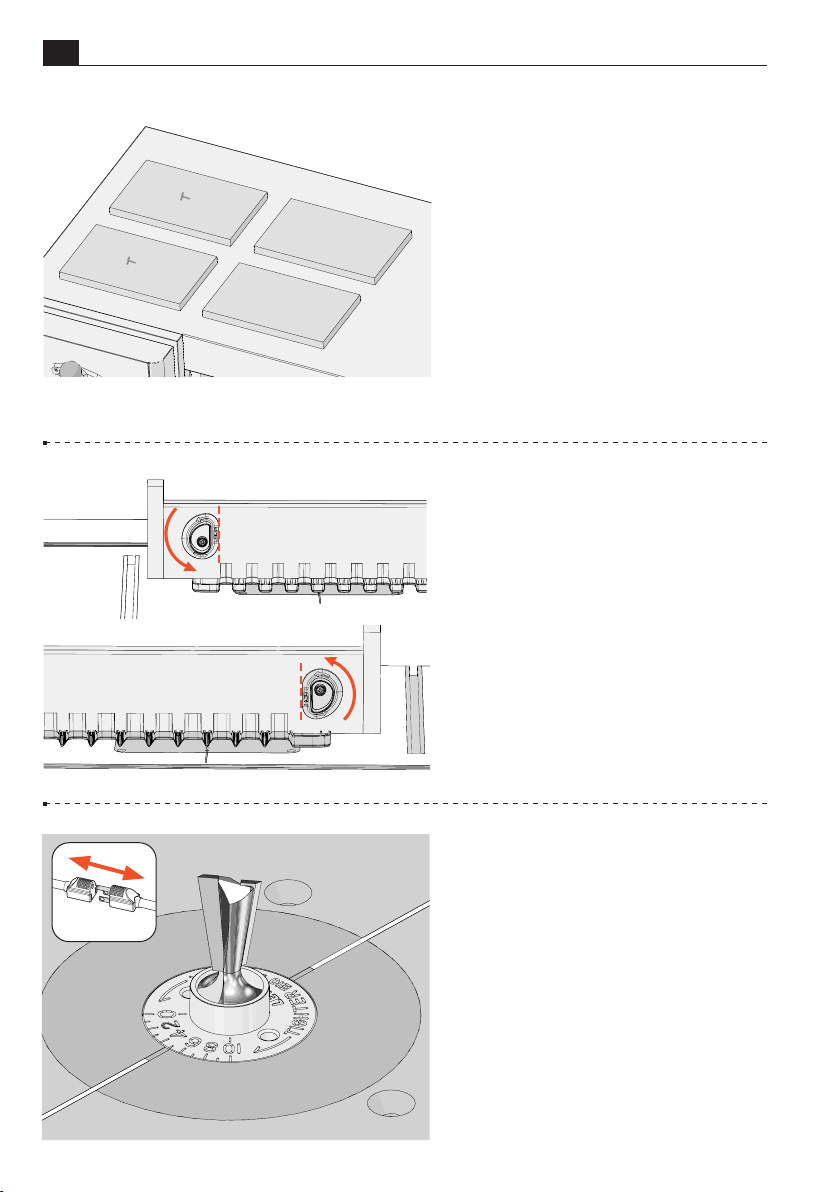

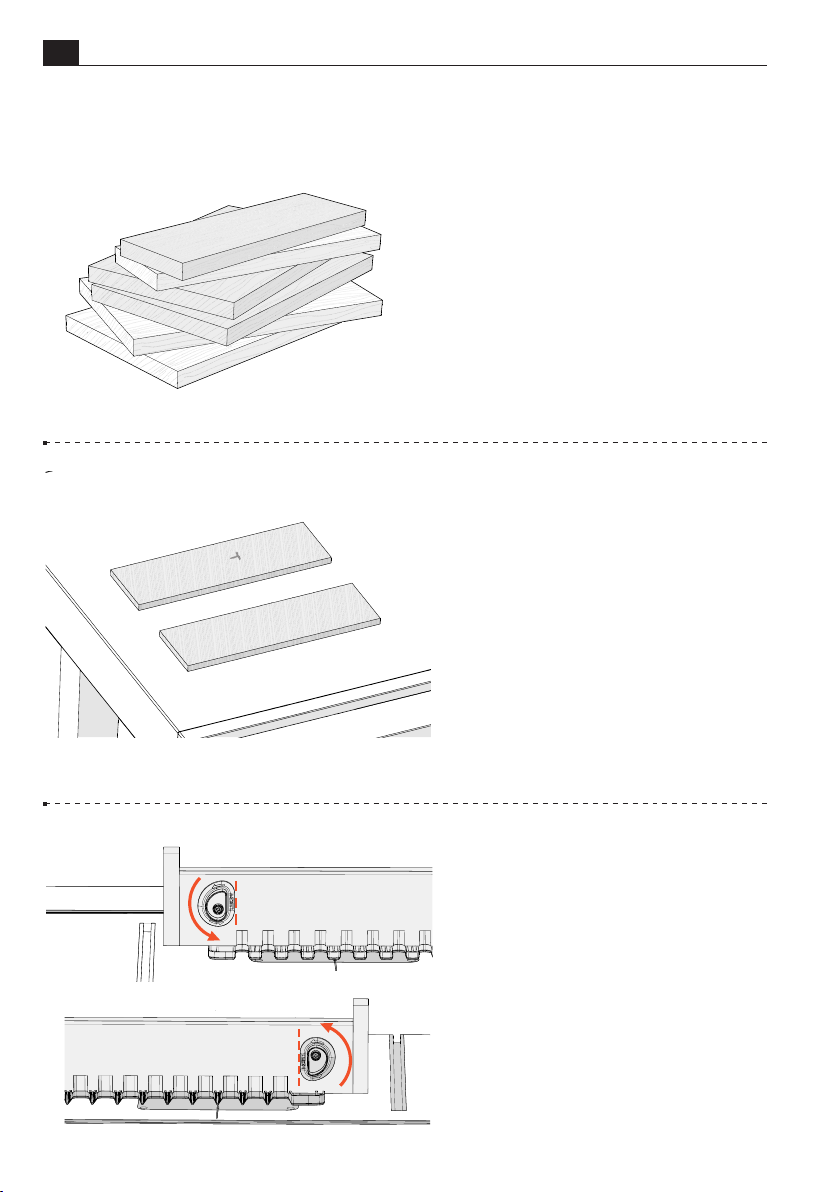

5-45 Let’s

Make a Box

First establish the outside faces.

Lay out the four boards and mark
the outside faces of two of the boards
with a “T ” (tail board) and the other

P

P

two boards wioth a “P” (pin board).

TD330 User Guide

PINS SIDE

TAILS SIDE

Chapter 5 Routing Through Dovetails

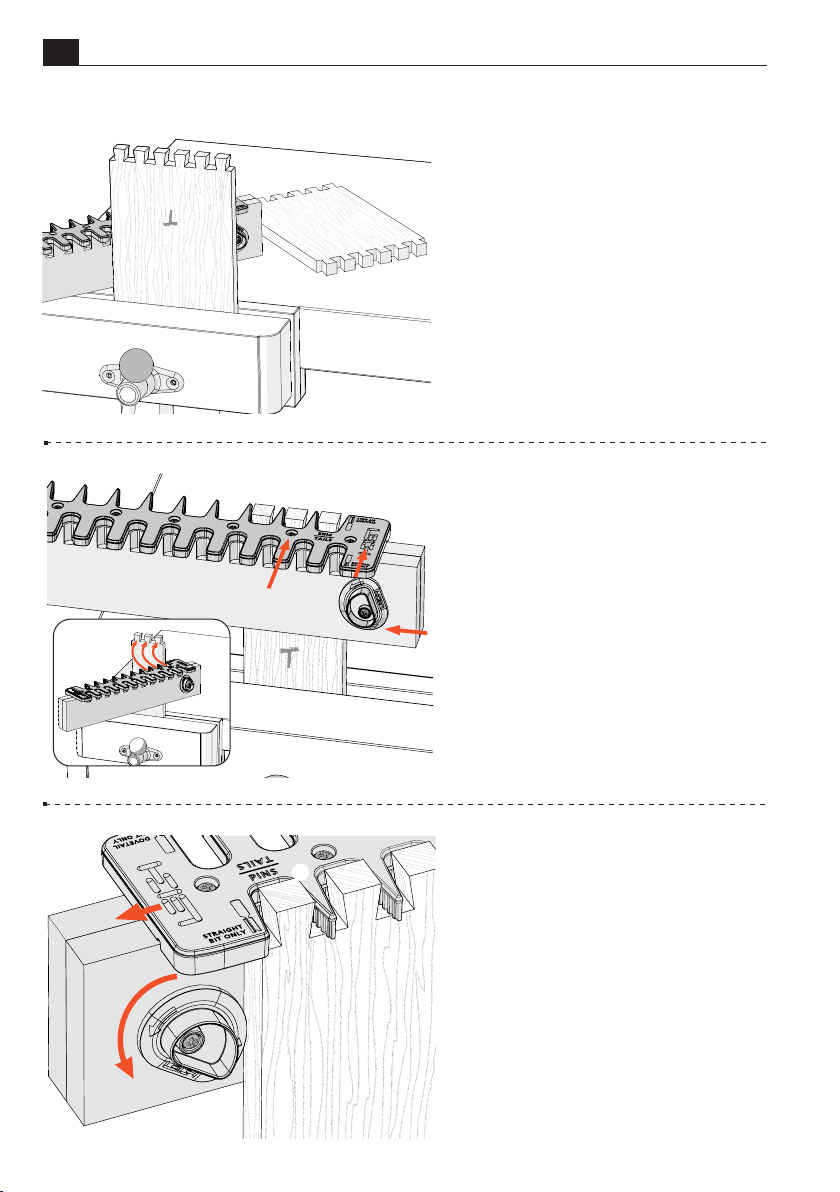

5-46

Turn both side stops until the
straight edge is vertical and facing
the middle of the jig.

5-47

Routing the Tail Boards

With the router unplugged, install
the 1/2" 8º dovetail bit.

The collet and bit must not touch the
eBush or eBush nut. Rotate the collet
to ensure both spin freely.

47

TAILS

PINS

AVERAGE

Tails + Pins = Divided by 2 =

5 + 3 = 8 ÷ 2 = 4

5-48 Set the eBush at the setting

determined in Step 5‑30.
(Example shown.)

48

Chapter 5 Routing Through Dovetails

TD330 User Guide

5-49

Clamp the first tail board in
the vice with the marked face toward
you.

5-50 With the TAILS side of the jig

facing you, position the right end of
the jig over the tail board, leaving
equal amounts of the board showing
at each edge, and clamp it in place.

5-51

Rotate the side stop counter
clockwise until it touches the edge
of the board. The side stop is now
set for all tail board routing.

TD330 User Guide

Chapter 5 Routing Through Dovetails

5-52

Place a pin board horizontally

flush under the template and draw a
depth of cut line on the tail board.

5-53

Place the router on the jig and
adjust the bit until the tip is at the
depth of cut line.

Rotate the collet to ensure it spins
freely.

49

5-54 Hold the router firmly as

you rout straight in and out of each
template opening. The diameter of
the guide bushing is slightly smaller
than the openings in the template,
so be sure the guide bushing touches
both sides or the template opening.

Do not rotate the router.

There will now be a half-pin socket
at each edge of the board.

50

Chapter 5 Routing Through Dovetails

TD330 User Guide

5-55

Unclamp the tail board, and
keeping the same face toward you,
rotate it end for end, and re-clamp in
vice. Place jig on board with side stop
against board edge. Clamp in place.

Rout the other end of the tail board and
repeat the procedure on both ends of
the second tail board.

Remove the jig, but leave the tail board
in the vice, as it is used to set the PINS
side stop.

5-56

Set the PINS Side Stop

Leaving the tail board in the vice,
insert the pin side of the template into
the routed pin sockets. The rightmost
tail should be in the first template
opening closest to the side stop.

A

See 5-57 below which shows it from
the back side.

5-57

There may be slight play
between the template pins and the
tail board pin sockets. Hold jig firmly
against tail board and move jig to the
left until the play is eliminated A.

While holding the jig firmly against
the tail board, turn the side stop
counter clockwise until it touches the
board edge. The side stop is now set
to rout the test pin board. Remove the
jig and tail board.

TD330 User Guide

Chapter 5 Routing Through Dovetails

5-58

Routing the Pin Boards

Unplug the router and install the
1/2" straight bit. The bit goes
through the guide bushing and fits in
the router collet.Tighten the collet.

The collet and bit must not touch
the eBush or eBush nut. Rotate the
collet to ensure both spin freely.

Do not change the eBush setting.

5-59

Clamp a pin board in the vice

with the outside face toward you.

51

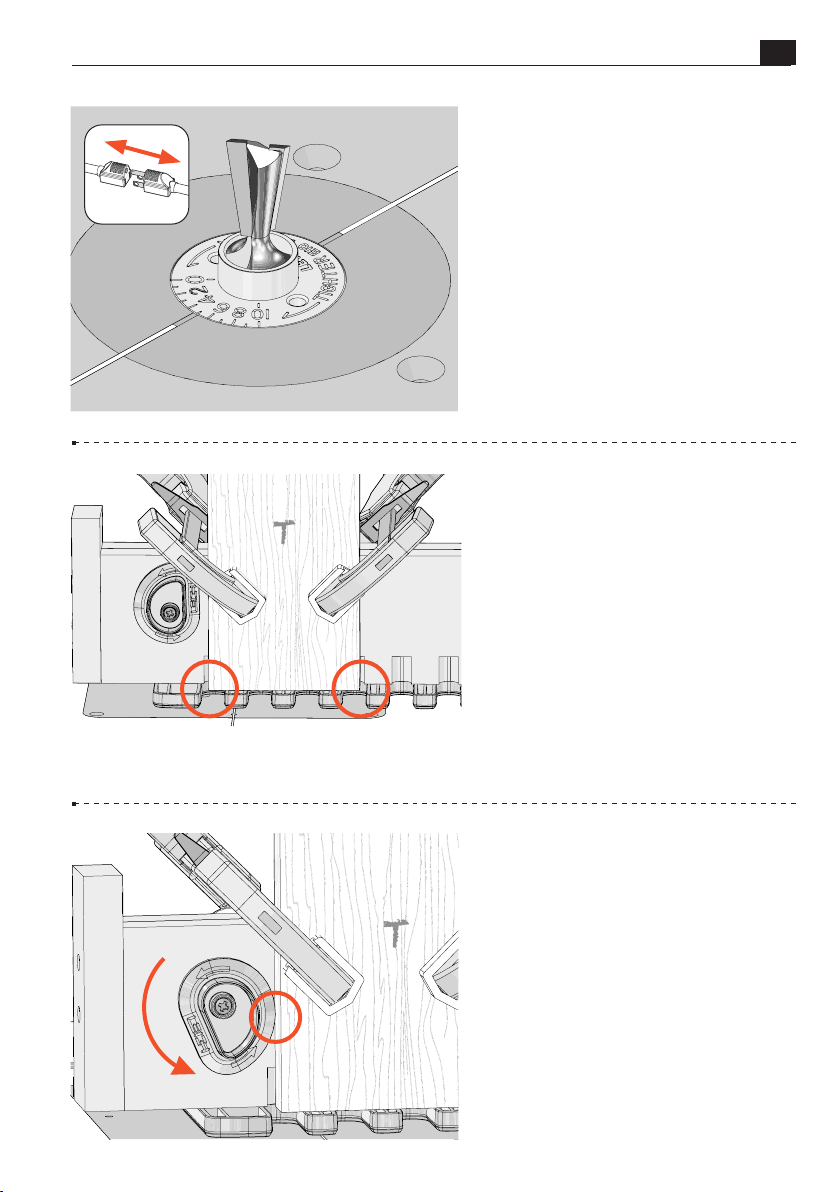

5-60 With the PINS side facing

you, lower the jig on the board and
move it to the right until the side
stop touches the left edge of the
board. Clamp the jig in place.

52

Chapter 5 Routing Through Dovetails

TD330 User Guide

5-61

Place a tail board horizontally
flush under the template and draw a
depth of cut line on the pin board.

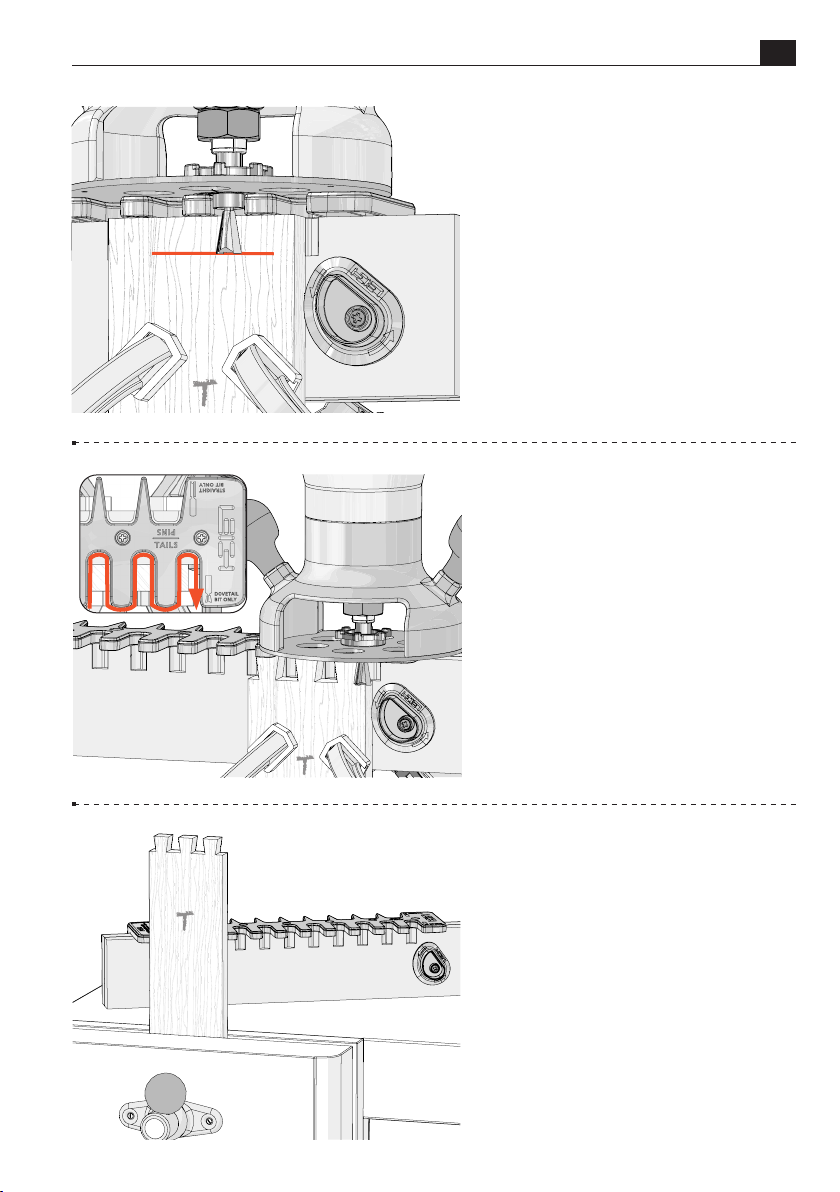

5-62 Place the router on the jig and

adjust the bit until the tip is at the
depth of cut line. Rotate the collet
to ensure it spins freely.

5-63 Hold the router firmly and

make a shallow climb cut from right
to left between the pins. (See Step
5-26).

Then rout out the remaining wood
between the pins. Be sure the e10
guide bushing touches the left side
of the template opening on the way
in, and the right side on the way out.

Do not rotate the router.

TD330 User Guide

Chapter 5 Routing Through Dovetails

5-64 Unclamp the pin board, and

keeping the same face toward you,
rotate it end for end, and re-clamp it
in the vice.

Rout the second end.

Repeat the procedure on the second
pin board.

All four boards are now complete.

5-65 Assemble the box keeping all

marked board faces outward.

Note: Any pin board end will fit any
tail board end.

53

Clamping Narrow Boards

5-66

When working with narrow
boards it may only be possible to use
one clamp, meaning the jig cannot
be held securely in place.

54

Chapter 5 Routing Through Dovetails

TD330 User Guide

5-67

It may be necessary to support

the beam to ensure secure clamping.

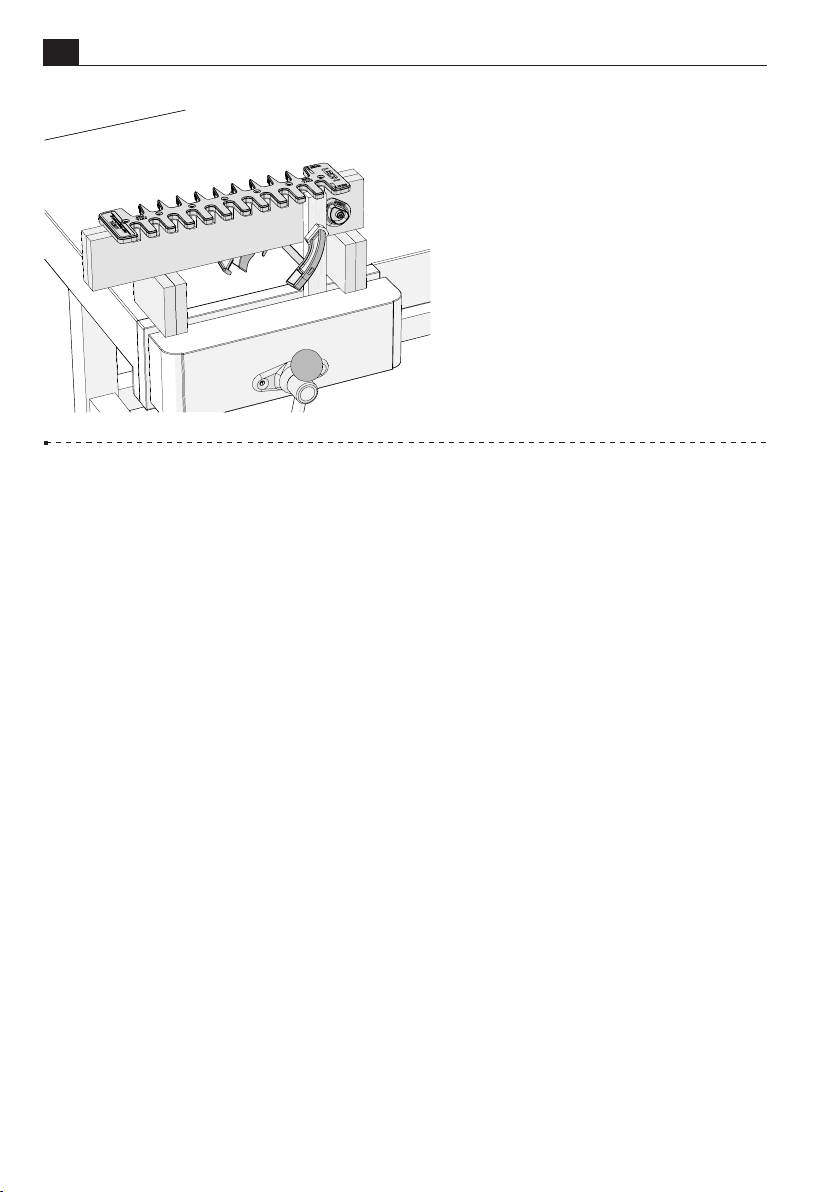

5-68 The jig can be supported

using two wood blocks of the same
height. The purpose of the blocks is
to provide room for the clamp and
to keep the jig level.

A

5-69 Place the jig upside down

and rotate both side stops until the
straight edge is vertical and facing
the middle of the jig.

Place the narrow board Aon the

TAILS side of the jig and center it

on the first template finger, closest
to the side stop.

A

TD330 User Guide

Chapter 5 Routing Through Dovetails

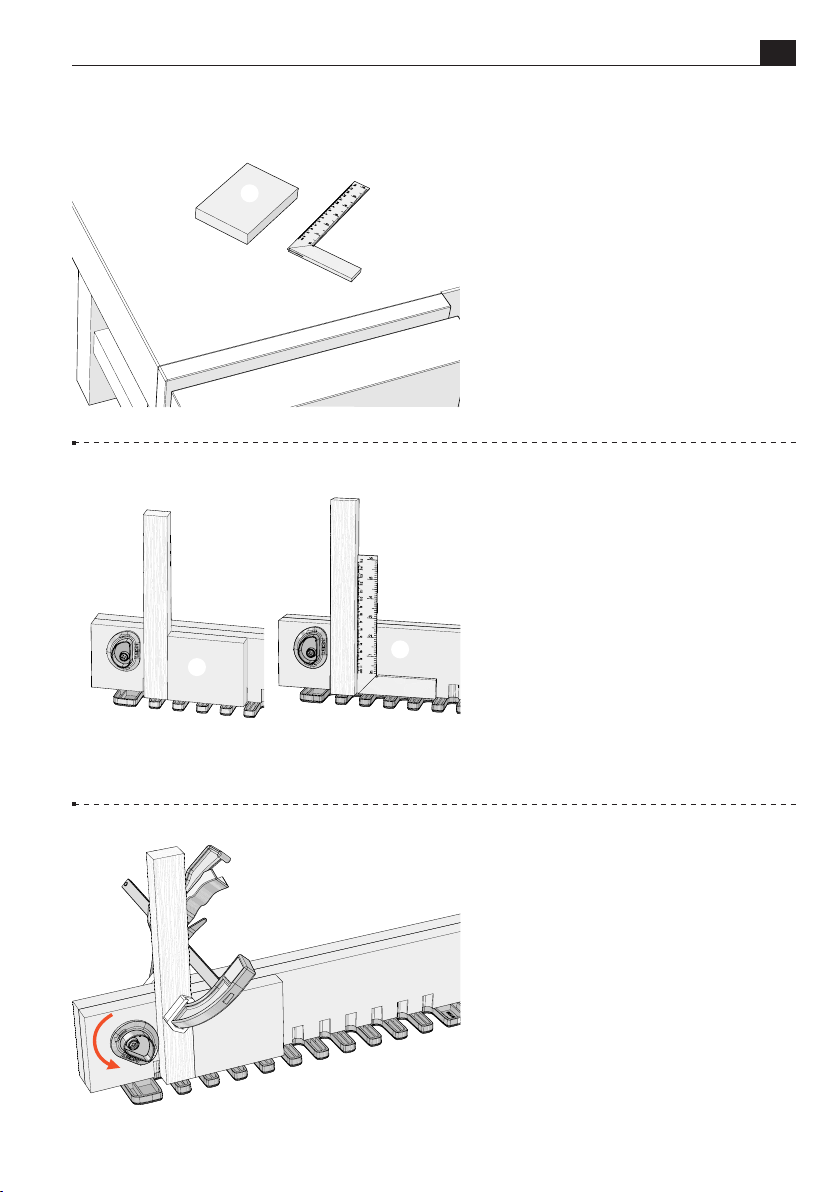

5-70 The narrow workpiece must

be perpendicular to the jig.

55

A

A

B

Use a square MDF block A or
square B to align the tail board with
the jig template.

5-71 While holding the tail board

over the first finger, use the MDF
block A or Square B on the template
and against the tail board.

The tail board will now be
perpendicular to the template.

B

5-72 Clamp the tail board to the

jig.

Turn the side stop counter clockwise
until it touches the board edge.

56

Chapter 5 Routing Through Dovetails

TD330 User Guide

5-73 Remove the square or block

and place the tail board in the vice
with the beam resting on the blocks.
Tighten the vice.

The jig is now held securely in place.

Use the square or block to align the
other end of the tail board and the
pin boards.

■

TD330 User Guide

CHAPTER 6

Router Table Operation

57

This chapter assumes you have set up your
jig following the Mounting & Assembly
instructions in Chapter 4, Steps 4‑16 to
4‑28. You should also be familiar with all
procedures in this user guide.

IMPORTANT SAFETY NOTE

Before using your Leigh TD330, you must
have completed the preparatory steps listed
in the previous pages, including reading the
jig safety recommendations in Chapter 2.

Watch the Online

Instructional

Video

Reduce your learning time dramatically! Stream to your
smart phone or tablet to use in your workshop while you're
working. See Instructional Videos section in Support menu at

leightools.com or scan QR code for instant video.

6-1 Watching the online video in addition to reading this user guide will
reduce your learning time dramatically. The video can be streamed to your smart

phone or tablet and used in your shop as a visual reference.Visit leightools.com and find
the video in the Support section.

P

Scan QR Code

6-2 Getting Started The

TD330 can be used to rout dovetail
joints on a router table, on boards
up to a maximum width of 12-7/8"
[327mm] and up to 13/16"
[20,6mm] thick. This example uses
3/4" [19mm] thick boards. Different
board thicknesses may be joined.

58

Chapter 6 Router Table Operation

TD330 User Guide

6-3 Parts Required All through dovetails are routed with the included Leigh

VM160CH 1/2" straight bit, Leigh VM80-500CH 1/2" 8º dovetail bit and Leigh e10 guide
bushing (eBush). No other bit diameters, angles and guide bushing combinations

may be used. Maximum board thickness for through dovetail tails is 13/16"[20,6mm].

Note: Optional 1/2" diameter spiral upcut bits may also be used.

Bit Cutting Depth

Spiral HSS (Optional)

0"

1/4"

1/2"

3/4"

13/16"

1"

1/2"
VM160CH
VM80-500CH

180

180C

e10

Guide Bushing

1/2"

1"

VM160CH

VM160CH

(Included Bits)

1/2"

13/16"

VM80-500CH

VM80-500CH

1/2"

1-1/4"

180 180C

1-1/4"

(Optional Bits)

1/2"

Bit Diameter
Item No. Carbide Tipped

Item No. Carbide Tipped

Item No.
Item No. Spiral Solid Carbide (Optional)

Depth of Cut

6-4 Router Table Requirements Router tables are typically used with a bearing bit

or fence, however, the Leigh TD330 is guided around a guide bushing mounted in the
router table. Leigh eBushes (guide bushings) are designed around the 1-3/8" diameter
industry standard. See specifications below.

3

1

/8"

3

1

/8"

0.100"

3

1

/16"

3

1

/16"

0.100"

Watch

Video

Scan QR Code

Leigh eBush and Nut

Insert Plate

eBush

Insert Ring

Router Table

TD330 User Guide

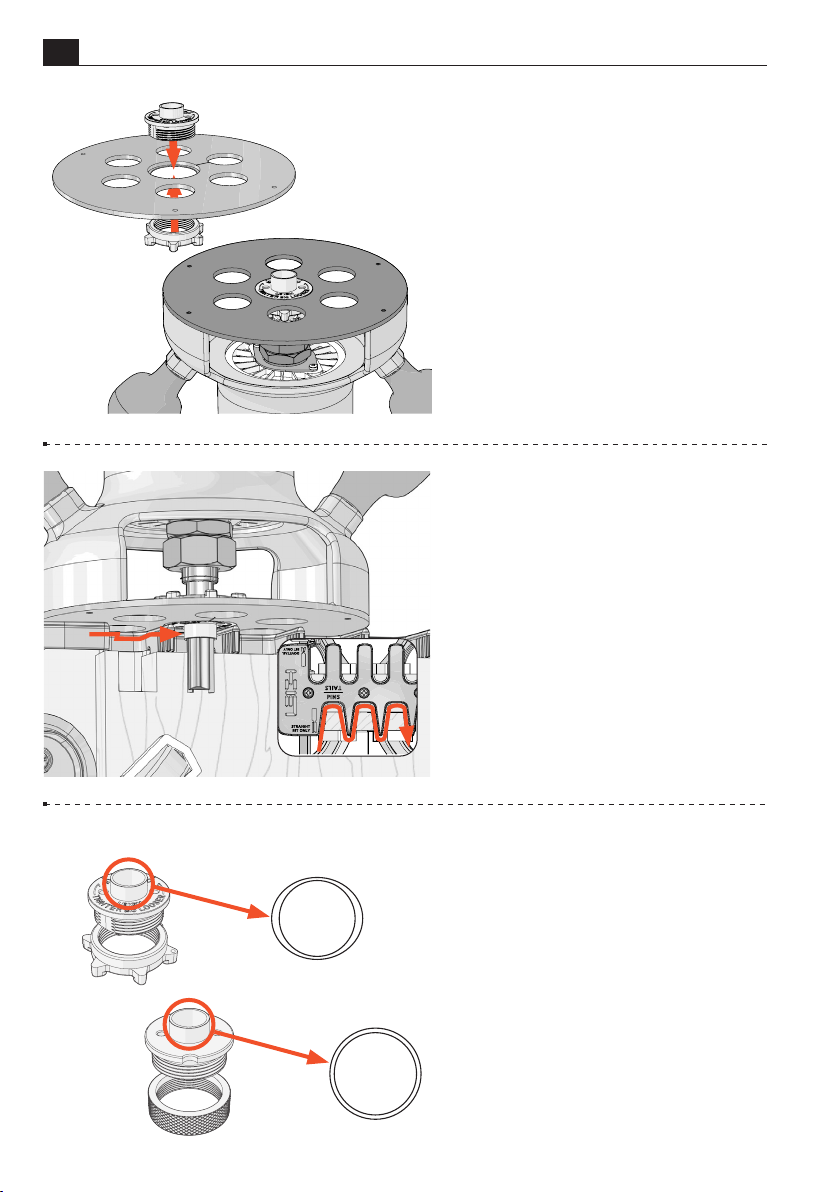

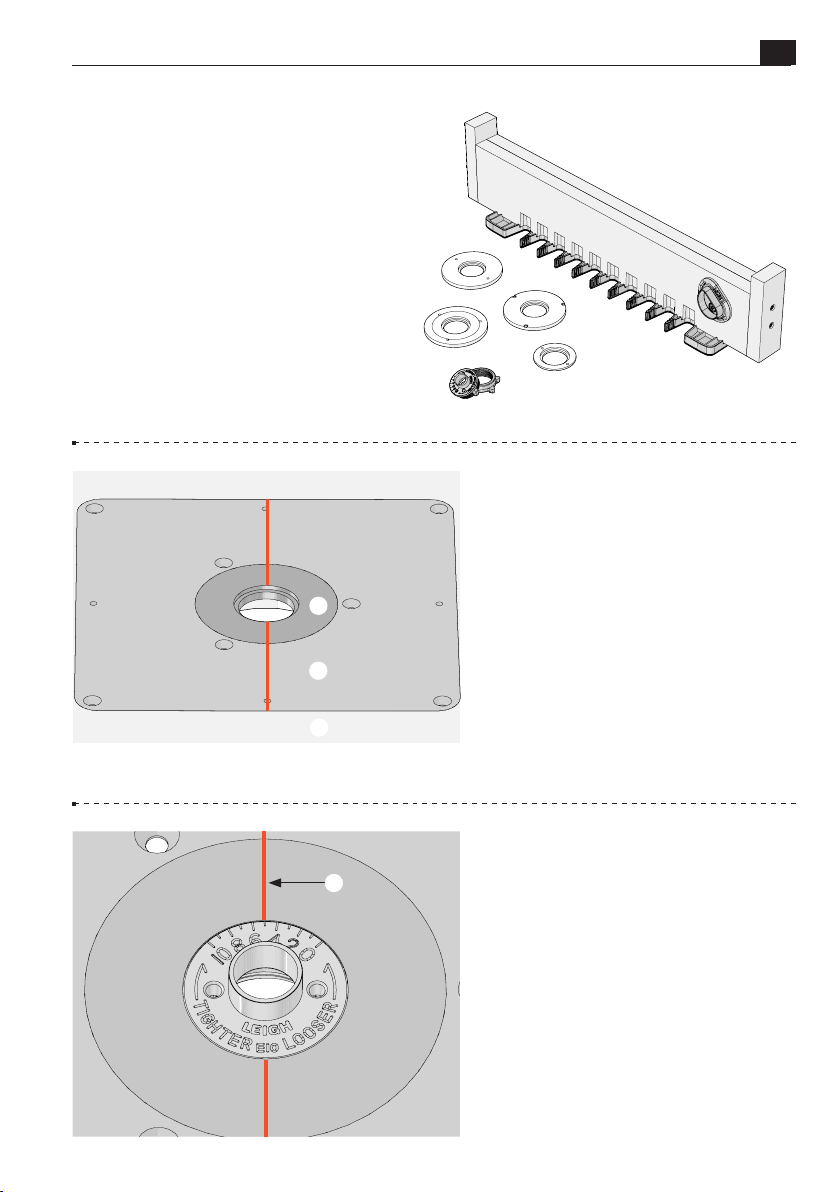

6-5 Insert Ring To install the

eBush in your router table insert
plate, you may need a 1-3/8"
diameter counter bore insert ring A.
See previous step for specifications.
Insert rings are not standard. You
will need to check with your router
table or insert plate (router lift)
manufacturer, as to what adaptation,
if any, is required.

A

Chapter 6 Router Table Operation

A

6-6 Draw a reference line with

a permanent marker on the router
table, from the 12 o’clock position
to the 6 o’clock position, centered on
the guide bushing opening. (shown
in red for clarity only).

59

B

C

A

This will ensure correct orientation
of the eBush to the insert ring A,
the insert plate B, and the router
table C.

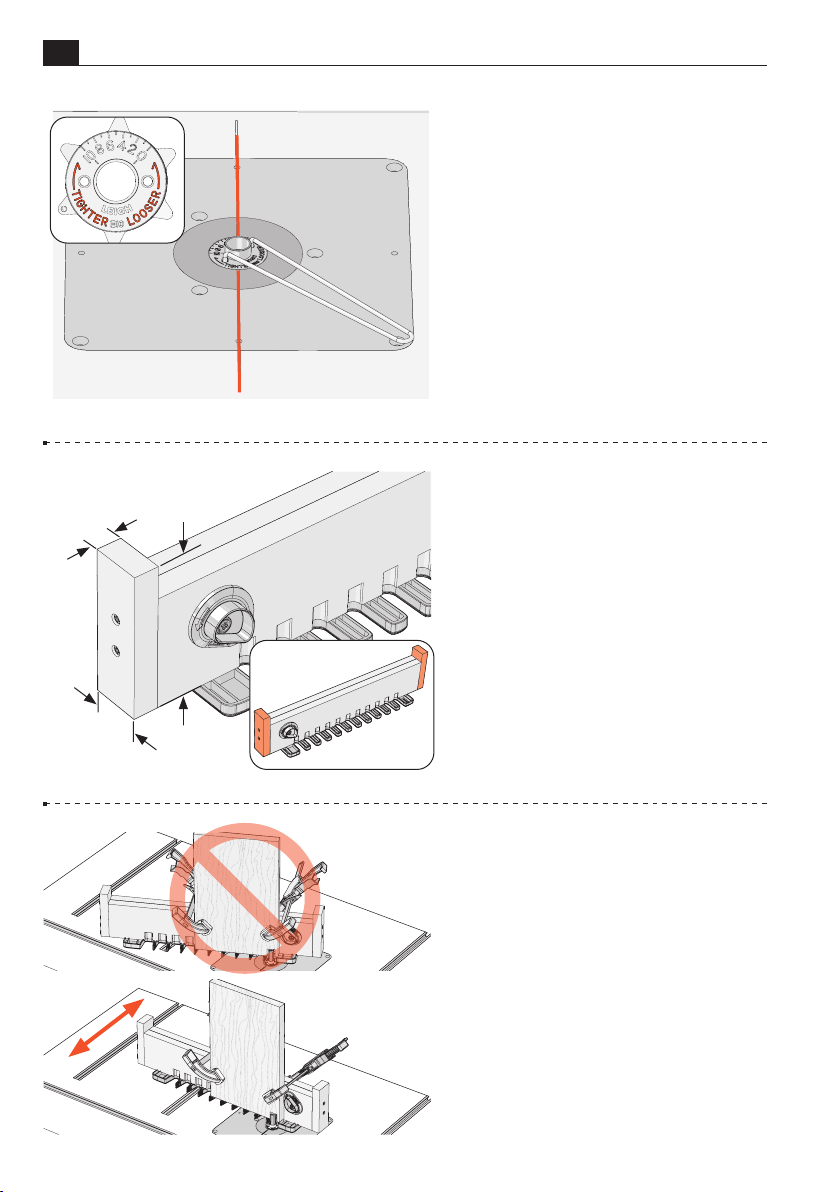

6-7 Install the e10 guide bushing

in the router table. Set the eBush to
the 5 position to start.

All settings for the eBush will be
aligned to the line Ayou’ve drawn
on the router table. The line will also
help guide the TD330 when routing.

60

Chapter 6 Router Table Operation

TD330 User Guide

6-8

eBush adjustments are made

with the included pin wrench.
Markings on the eBush indicate
which way to turn it for a looser or
tighter fit. See Chapter 3.

Remember, every time you adjust
the eBush you must re‑tighten the
eBush nut.

3/4"

[19mm]

1-1/2"

[38mm]

4-1/2"

[114mm]

6-9 Safety Before using the jig

on a router table, handles must be
attached to the ends of the beam.
Handles should be 3/4" x 1-1/2" x
4-1/2"[19mm x 38mm x 114mm].

The handles will help keep your
fingers away from the bit and help
control the jig during routing.

6-10 Remember the barrel of the

eBush is elliptical, so changing the
angle of the jig affects the diameter
of the guide bushing, resulting in
inconsistent pins and tails.

Always keep the jig parallel to the
router table.

TD330 User Guide

Chapter 6 Router Table Operation

61

6-11 Never tilt the jig. Keep the jig

flat on the router table at all times.

6-12

Chips and sawdust are thrown
out at high speed. Always stand
and use the jig away from chip and
sawdust ejection.

Operator’s

Position

6-13 Reminder If you haven’t

already done so, you must rout
grooves on each side of the beam
(see Chapter 4, Steps 4-16 to 4-28).

62

6-14 Identify the PINS and TAILS sides of the jig on the beam.

6-15 Through Dovetail Terminology

A
B
C
D
E
F

The pins fit in the pin sockets. Joints
should almost always end each side with
half-pins.

Chapter 6 Router Table Operation

Tails

Pins

Pin
Pin socket
Half-pin
Half-pin socket

Tail

Tail socket

F

A

TD330 User Guide

C

D

E B

TD330 User Guide

6-16

Board Width Selection

Board widths are determined by total number of pins and

sockets in joint design. Use this chart to determine board widths up to

Chapter 6 Router Table Operation

12-7/8"[327mm]

63

Board Width Selection for TD330

No. of Tails

Min 1 / 2 / 3 / 4 / 6 / 7 / 8 / 9 / 11 / 12 /

Exact 1 / 2 / 3 / 5 6 / 7 / 8 / 10 11 / 12 /

inches

Max 1 / 2 / 4 / 5 / 6 / 7 / 9 / 10 / 11 / 12 /

No. of Tails

Min 29 60 92 124 156 187 219 251 283 314

Exact 32 64 95 127 159 191 222 254 286 318

mm

Max 41 73 105 137 168 200 232 264 295 327

6-17

Board Width Selection

will produce

half‑pins

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9 10

Board widths indicated in the

exact

column of the chart

at each board edge. Board widths may be increased by 3/8" [9,5mm]
resulting in larger, but equally sized pins at each board edge. Similarly board widths may
be reduced by a maximum of 1/8"[3,2mm], resulting in smaller but equally sized pins at
each board edge. Narrower widths may result in very small and weak pins at the edges of
the pin board.

.

Symmetrical

Full size

pins and sockets

The EXACT width specified in the board
width chart results in half-pins and
sockets at each edge of the board.

Reduced size pins and sockets

When board width is reduced, the joint
will have smaller, but equal sized pins
and sockets at each edge of the board.

Small pins can break easily

When the board width is reduced
further, the result is very narrow and
fragile pins at each edge of the board.

64

Chapter 6 Router Table Operation

TD330 User Guide

 IMPORTANT:

Read the whole chapter before routing any boards.

6-18 Making a Box

Prepare four similar boards 3/4" thick
× 7-1/2" wide by about 12" long
[19mm×191mm×305mm], and
two test boards, 3/4"[19mm]thick
by about 4"[100mm] wide.

Note:

Boards of different thicknesses

may also be joined.

6-19 Routing a Test Fit Joint

The two test boards are used to
establish joint fit before making the
box.

P

Mark the outside face of one of the
test boards with a “T” (tail board) and
one with a “P” (pin board).

PINS SIDE

TAILS SIDE

6-20

Turn both side stops until the
straight edge is vertical and facing the
middle of the jig.

TD330 User Guide

Chapter 6 Router Table Operation

6-21 Rout the Test Tail Board

65

With the router unplugged, install
the included 1/2" 8º dovetail bit and
tighten the collet nut.

 The collet and bit must not

touch the eBush or eBush nut.
Rotate the collet to ensure both spin
freely before reconnecting the power.

Ensure the eBush is set to 5.

6-22 Place the test tail board on

the jig leaving equal amounts of
overhang on each board edge. Always
position the board edge in the first
template opening nearest the side
stop.

Clamp the board in place.

6-23 Rotate the side stop counter-

clockwise until it touches the edge of
the board. The side stop is now set
to rout the test tail board.

66

Chapter 6 Router Table Operation

TD330 User Guide

6-24

Pin and tail boards may differ

in thickness. Always use the mating
board to determine the depth of cut.
Hold the test pin board flush against
the template and draw a line on the
tail board, indicating depth of cut.

6-25 Adjust the tip of the bit until

it’s at the depth of cut line.

Rotate the collet to ensure it spins
freely.

6-26

Hold the jig firmly and rout
straight in and out of each template
opening. Be sure the e10 guide
bushing touches the left side of each
template opening on the way in, and
the right side on the way out.

rotate the jig.

Do not

Chips and sawdust can accumulate
between the template openings.
Check each routed slot to ensure it
has been routed completely.

TD330 User Guide

Chapter 6 Router Table Operation

6-27

You will now have a half-pin

67

socket at each board edge.

Do not remove the tail board as it is
used to set the PINS side stop.

6-28 Position the jig so that the

pin fingers overhang the edge of the
router table.

6-29 Unclamp the tail board.

Keeping the same face toward you,
move the tail board to the PINS side
of the jig and fit the pin sockets over
the pin fingers of the template.

68

Chapter 6 Router Table Operation

B

A

TD330 User Guide

6-30

The leftmost tail should be in
the first template opening closest to
the side stop A.

There will be some slight play in
the tail board. Hold the tail board
firmly against the PINS side of the
beam and the template, and move
the board toward the side stop B.

6-31

While holding the tail board
firmly in place, rotate the side stop
counter clockwise until it touches
the edge of the board.

The side stop is now set to rout the
test pin board.

Remove the tail board.

6-32 Rout the Test Pin Board

With the router unplugged, install
the included 1/2" straight bit and
tighten the collet nut.

 The collet and bit must not

touch the eBush or eBush nut.
Rotate the collet to ensure both spin
freely before reconnecting the power.

TD330 User Guide

Chapter 6 Router Table Operation

6-33 With the PINS side of the jig

69

facing you, set the test pin board
flush on the template with the edge
against the side stop.

Clamp it in place.

Use the mating tail board to mark
the depth of cut.

6-34

Adjust the bit until the tip is

at the depth of cut line.

Rotate the collet to ensure it spins
freely.

A

Bit Rotation

Climb Cut Directon

6-35

Make a Climb Cut

When
routing pins, you should always start
with a shallow climb cut as this will
produce a clean shoulder A.

A climb cut may pull the jig to the
right, so be sure to hold it firmly. Start
on the right of the template opening
and make a shallow cut as you move
the jig to the right.

70

Chapter 6 Router Table Operation

TOO LOOSE

TIGHTEN

TD330 User Guide

6-36

After making the climb cut,
rout out the rest of the wood between
the pins, in all template openings,
along the width of the board.

Be sure the guide bushing touches
both sides of the template opening.

6-37 Joint Fit Adjustment

With the marked sides facing out,
assemble the test boards. If the joint
is too loose, use the pin wrench and
turn the eBush to a higher number

and rout a new pin board.

TOO TIGHT

TAILS

PINS

LOOSEN

AVERAGE

35

Tails + Pins = Divided by 2 =

5 + 3 = 8 ÷ 2 = 4

If the joint is too tight, turn the
eBush to a lower number and rout

a new pin board.

One or two test

cuts should produce the proper fit.

Re‑tighten the eBush nut after
each guide bushing adjustment.

6-38 Once the fit is correct, add

the two eBush settings together and
divide by two.
3 for pins

Example:

(5 + 3 = 8) (8 ÷ 2 = 4)

5 for tails,

Record setting “4” on an eBush
diagram in the next step.

.

TD330 User Guide

SAMPLE

June7, Maple

Chapter 6 Router Table Operation

6-39 Use these eBush diagrams

71

to record the settings you used to
achieve perfect joint fit. The first
eBush is an example of how to record
your setting.

6-40

Joint flushness is determined

by the depth of cut.

If the joint is over flush, lower the bit
to make a shallower cut.

OVER FLUSH UNDER FLUSH

These edges against side stop

A

These edges against side stop

B

If the joint is under flush, raise the
bit to make a deeper cut.

Rout new test joints until fit and
flushness are perfect before routing
the final boards.

6-41 Joint Edge Flushness

If the edges of your joints are not flush,
this could be due to bit concentricity
issues.

The pin board edge that goes against
the side stop might need to be raised

or lowered B slightly.

A

For instructions on bit concentricity
adjustments, see Steps 5-33 to 5-44.

Note: The steps are the same,
but the jig will be upside down.

72

Chapter 6 Router Table Operation

P

TAILS SIDE

TD330 User Guide

6-42 Making a Box

First establish the outside faces.
Then lay out the four boards and
mark the outside faces of two of the

P

boards with a “T ” (tail board) and
two of the boards with a “P ” (pin
board).

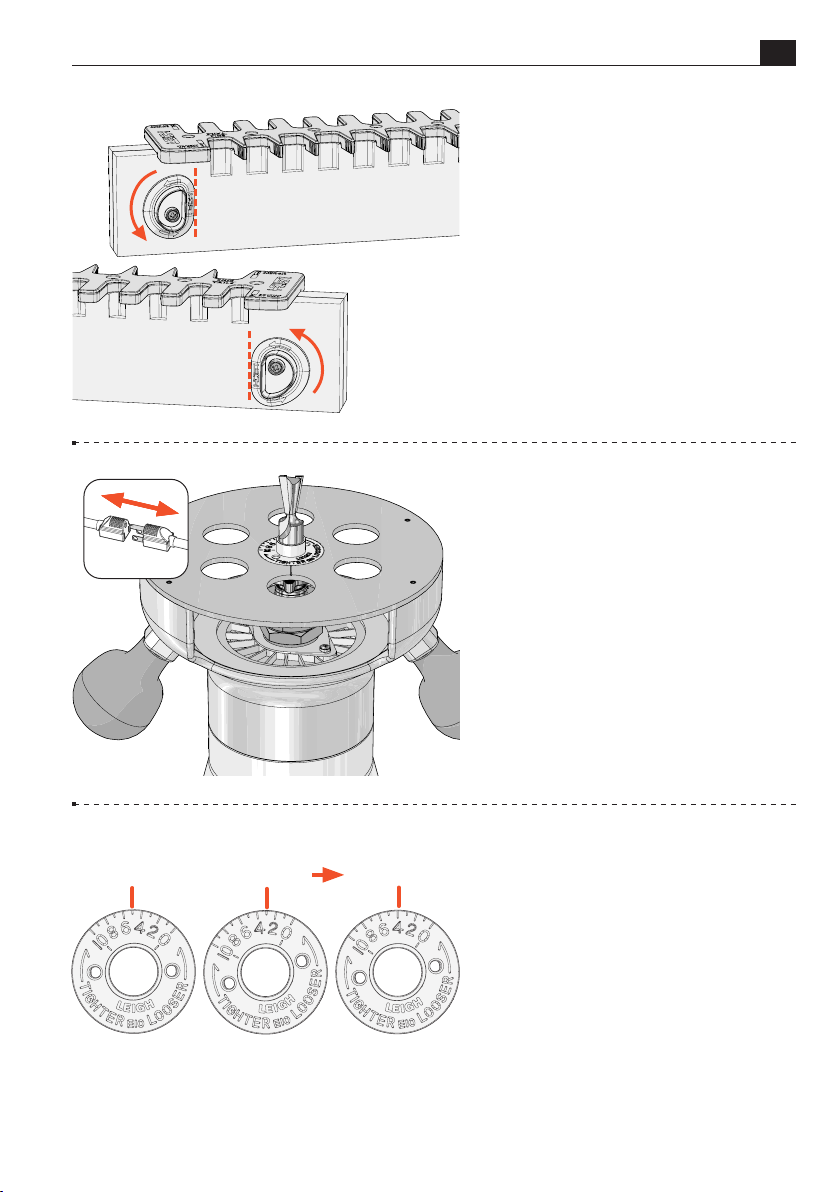

6-43

Turn both side stops until the
straight edge is vertical and facing
the middle of the jig.

PINS SIDE

6-44 Routing the Tail Boards

Turn the eBush to the setting
determined in the test joint.

With the router unplugged, install
the 1/2" 8º dovetail bit and tighten
the collet nut.

The collet and bit must not touch
the eBush or eBush nut. Rotate the
collet to ensure both spin freely
before reconnecting the power.

TD330 User Guide

Chapter 6 Router Table Operation

6-45

With the

TAILS

side of the jig

73

facing toward you, position the tail
board on the right side of the template,
leaving equal amounts of overhang on
each board edge.

Clamp the board in place.

6-46

Rotate the side stop counter
clockwise until it touches the edge
of the board.

The side stop remains in place for all
tail board routing.

6-47

Hold a pin board flush against
the template and draw a line on the
tail board, indicating depth of cut.

74

Chapter 6 Router Table Operation

TD330 User Guide

6-48

Adjust the bit until the tip is

at the depth of cut line.

6-49 Hold the router firmly as

you rout straight in and out of each
template opening. The diameter of
the guide bush is slightly smaller
than the openings in the template,
so be sure the guide bushing touches
both sides or the template opening.

Do not rotate the jig.

There will now be a half-pin socket
at each edge of the tail board.

6-50 Unclamp the tail board.

Keeping the same face toward you,
rotate the board 180º and set it down
flush on the template with the edge
against the side stop.

Clamp it in place.

Rout the other end of the tail board
and repeat for the second tail board.

Do not remove the tail board as it is
used to set the PINS side stop.

TD330 User Guide

Chapter 6 Router Table Operation

6-51 Position the jig so that the

75

pin fingers overhang the edge of the
router table.

6-52 Unclamp the tail board.

Keeping the same face toward you,
move the tail board to the PINS side
of the jig and fit the pin sockets over
the pin fingers on the template.

B

A

6-53

The leftmost tail should be in
the first template opening closest to
the side stop A.

There will be some slight play in the
tail board. Move the board toward
the side stop B.

76

Chapter 6 Router Table Operation

TD330 User Guide

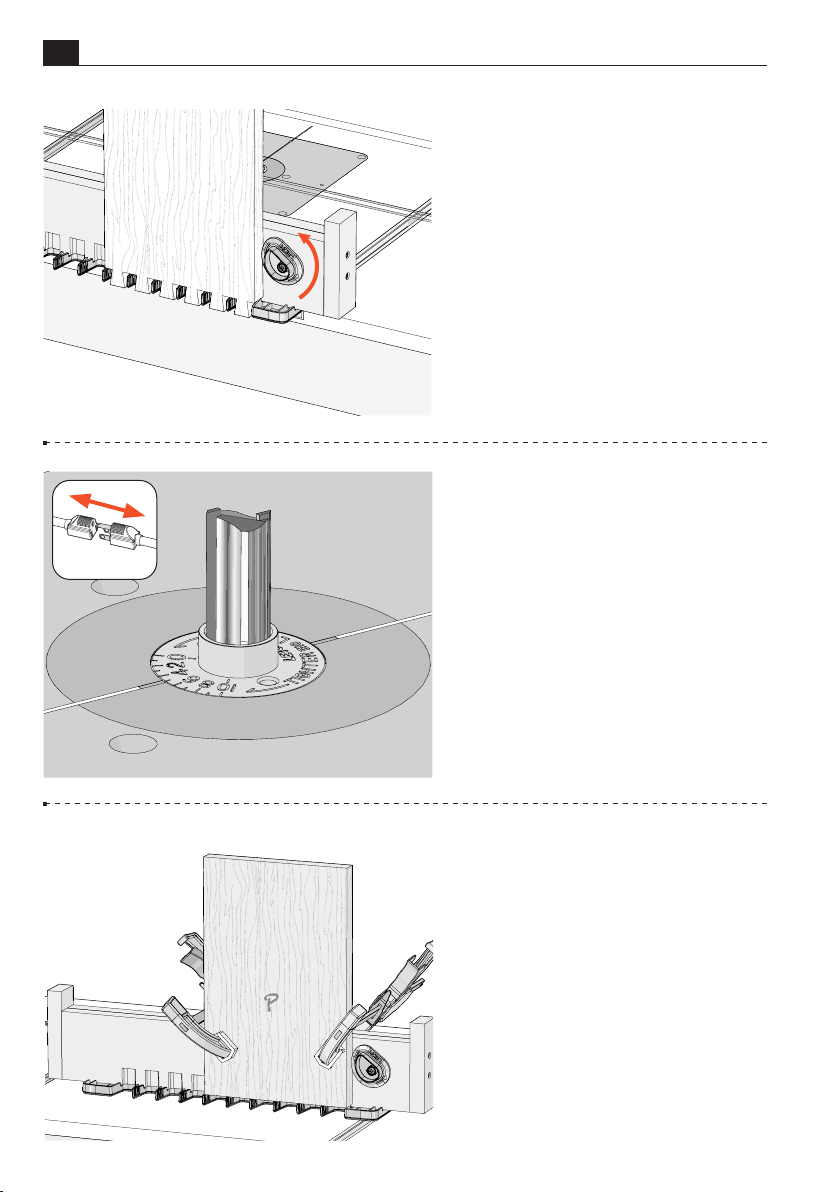

6-54 Hold the tail board firmly

against the beam and rotate the
side stop counter clockwise until it
touches the edge of the board. The
side stop is now set to rout the pin
boards.

Remove the tail board.

6-55 Routing the Pin Boards

Do not change the eBush setting.

With the router unplugged, install
the included 1/2" straight bit and
tighten the collet nut.

 The collet and bit must not

touch the eBush or eBush nut.
Rotate the collet to ensure both spin
freely before reconnecting the power.

6-56 With the PINS side of the jig

facing toward you, set the first pin
board flush on the template with the
edge against the side stop.

Clamp it in place.

TD330 User Guide

Chapter 6 Router Table Operation

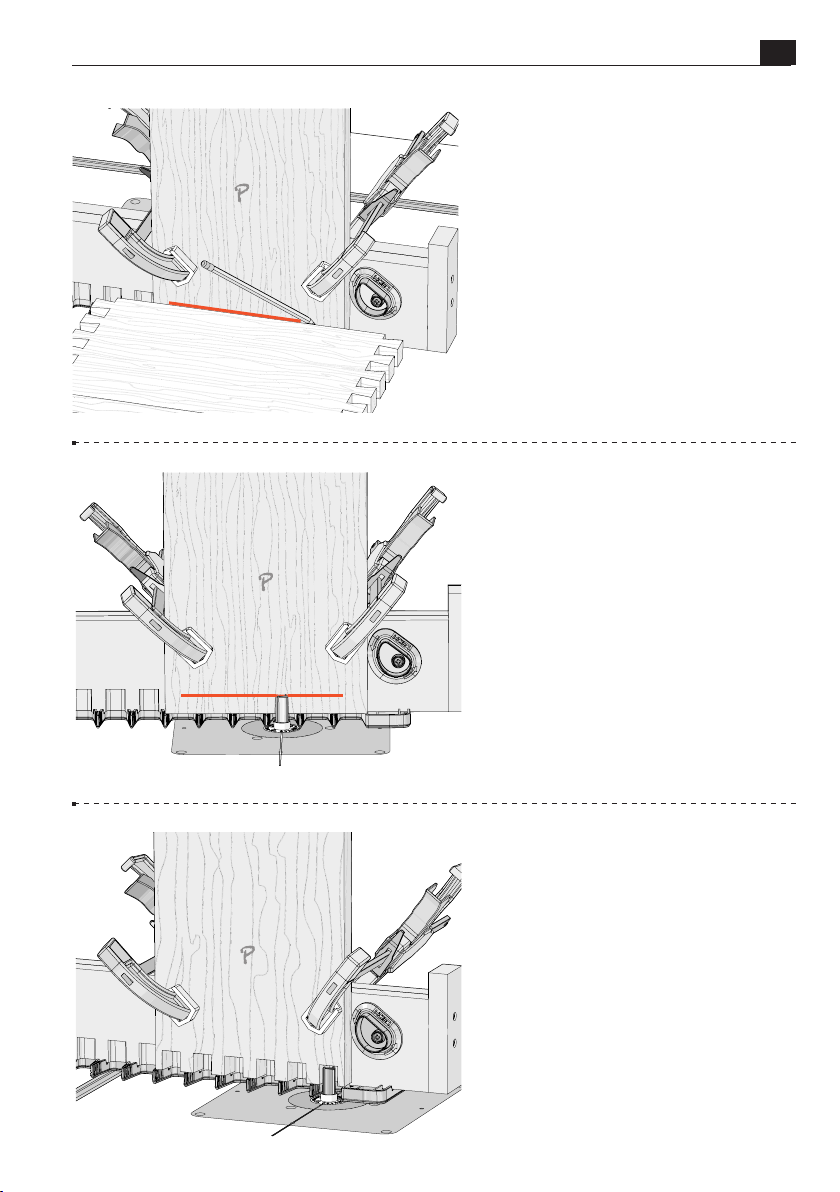

6-57

Hold a mating tail board flush

77

on the template and draw a line
indicating the depth of cut.

6-58

Adjust the bit until the tip is

at the depth of cut line.

6-59 Hold the jig firmly and make

a light climb cut (See Step 6-35).

Then rout out the rest of the wood
between the pins, along the full
width of the board.

Be sure the guide bushing touches
both sides of the template opening.

78

Chapter 6 Router Table Operation

TD330 User Guide

6-60 Unclamp the pin board.

Keeping the same face toward you,
rotate the board 180º and set it down
flush on the template with the edge
against the side stop.

Clamp it in place.

Rout the other end of the pin board
and repeat for the second pin board.

6-61 Assemble the box keeping all

marked board faces outward.

6-62 Clamping Narrow Boards

See Steps 5-66 to 5-73 for narrow
board clamping.

■

TD330 User Guide

CHAPTER 7

Guide
Bushing
Adaptor

Watch the Online

Instructional

Video

Reduce your learning time dramatically! Stream to your
smart phone or tablet to use in your workshop while you're
working. See Instructional Videos section in Support menu at
leightools.com or scan QR code for instant video.

Scan QR Code

79

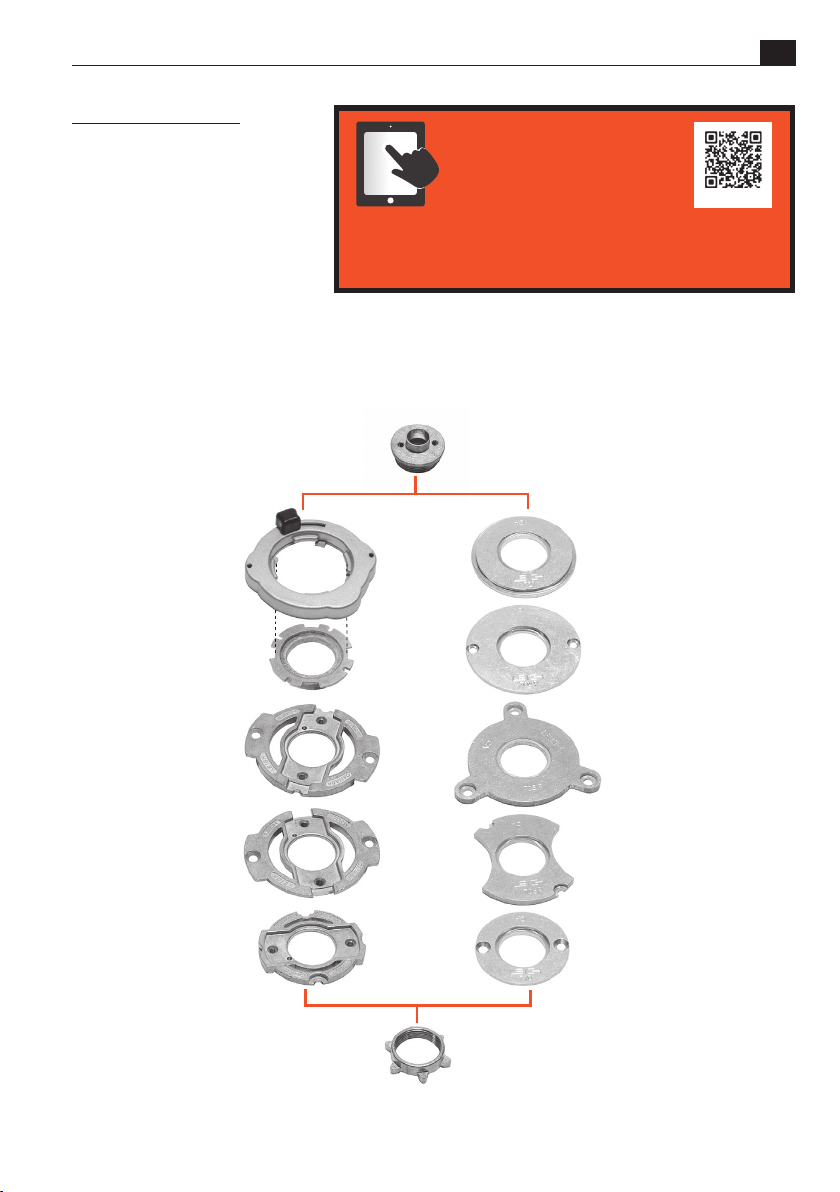

Selection

FOR HANDHELD ROUTERS ONLY

The TD330 requires a router fitted with the e10 guide bushing, and possibly an adaptor
to fit the bushing to the router. Leigh offers a variety of adaptors, as shown below. They
fit most common routers.

RA1126

RA1100

RA1129

Set of two Bosch
Adaptors: RA1126
and RA1100

702

702R

e10
eBush

721

704R

705R

706R

703

Nut for
e10 eBush

710

See the list of routers in the chart on the next page. For a complete list of routers see

www.leightools.com.

80

Chapter 7 Guide Bushing Adaptor Selection

TD330 User Guide

DIRECTIONS

A. Locate router maker and router model in Columns 1 and 2.
B. Locate adaptor required for your router in Column 3.

• Order Leigh adaptors (part no’s in red) in Column 3 from Leigh.

• Order Bosch adaptors RA1100 and RA1126 in Column 3 from Leigh or
your Bosch dealer.

• Order all other adaptors from the router manufacturer’s dealer.

Note: Adaptor mounting screws are included with router.

C. Note:

◆ The
in column 4 is supplied with the TD330 jig. Order only if you require a
replacement.

Adaptors for Router Tables

Leigh guide bushings and eBushes are based on the industry standard 1-3/8"
2-piece design. Most router tables have adaptors that accept these standard
guide bushings. If your router table does not have a suitable adaptor, please
check with the router table manufacturer.

e10 elliptical guide bushing (5/8" [15,8mm]) shown

1 BRAND 2 ROUTER MODEL 3 ROUTER ADAPTOR 4 e10 ◆

BLACK & DECKER

North American ROUTERS PRODUCED AFTER mid-2010: 1613EVS, 1613AEVS, 1617,
1617EVS, 1618, 1618EVS, 1619EVS, MR23EVS, MRC23EVS, MRF23EVS, MRP23EVS

BOSCH

CRAFTSMAN

(SEARS)

DEWALT

FEIN RT1800 Supplied w/router e10

FESTOOL

FREUD FT1700(2), FT2000, FT2200, FT3000 721 e10

HITACHI

MAKITA

MASTERCRAFT

MILWAUKEE

PORTER CABLE

(ROCKWELL)

RIDGID R2930 (for all others, please contact Leigh for assistance) 704R e10

RYOBI

SKIL

TREND T3, T4, T5, T9, T10, T11–UniBase required 710 e10

TRITON

North American ROUTERS PRODUCED BEFORE mid-2010 and others available

worldwide that include the RA1126 adaptor: 1613(EVS)(AEVS), 1614(EVS), 1617EVS,

1618EVS, 1619EVS, B1450, GOF900(CE)(ACE), GOF1200, GOF1250(CE)(LCE),

GOF1300(CE)(ACE), GOF1600CE, GOF2000CE, GMF1400, GMF1600CE, POF800ACE,

M363, MRP090, RP1800(F), RP1801(F), RP2300(FC), RP2301(FC), 3612C Europe Qk Fit Base

3600, 3606, 3608, 3612, 3612B, 3612BR, 3612C N. America, 3620, 3621, RP0900,

Please contact Leigh for assistance

All Professional, HD1250, RP400K, 7614 Not Required e10

SR100, 7AEE, KW780 series, KW800, KW850 710 e10

90085, 90088, 90098, 90140, 90150, 90300, 90303, 90305, 91264 Aftermarket base pla te required e10

1600, 1601, 1602, 1603, 1604, 1606, B1350 RA1110 required e10

POF1100AE, POF1200AE, POF1400ACE

1611, 1611EVS, 1615, 1615EVS, B1550, GOF1600, GOF1700ACE 702 e10

MD11 Plunge & Fi xed Base. MD9.5 F ixed Base Not Required e10

DW614, DW615, DW621, DW624, DW625, DW626 N. America Only, Supplied w/router e10

DW621K, DW622 and DW626 outside N. America 706R e10

DW625 Type 1,2,3,5 outside N. America 702 e10

DW624 & DW625 Type 4 outside N.America, DW625EK 702R e10

OF1E , OF2E, OF650, OF900E ,OF1000, OF1010E 704R e10

OF1400 and OF2200 North America Only Supplied w/router e10

RF1100, RF1101, RD1100, RD1101, RP1101 Not Required e10

R30, R50, R150, R151, RE155, R500, R501, R502 703 e10

R160, R161, R162, R163K, R165, R170,

R175, RE175, R180, R180PL, R181, R185, ERT1150

6200 720673-00 e10

RA1100 & RA1126 req’d. Sold only

as Set RA1129. Includes both.

RA1100 required

Sold only as Set RA1129

All non-plunge models Aftermarket base plate required e10

135275070 Plunge See Skil 1823 or 1835

Other plunge models 702 e10

DW610, DW616, DW618 Not Required e10

DW613, DW615(UK) 710 e10

OF2000, OF2000E 705R e10

OF1400 Outside North America 493566 e10

OF2200 Outside North America

TR8, TR12, FM8, M8, M12 Series 325211 OR 703 e10

M12VC, KM12SC, KM12VC Not Required e10

M12SA2, M12V2 325224 e10

RP900K

3601B 321 493-1 e10

RP0910, RP1110C 706R e10

5615, 5616, 5619 49-54-1040

5625 49-54-1026

5670 Not Required e10

All Not Required or Supplied w/router e10

R600, R601, RE600, RE601 702 e10

1823 or 1835 91803 e10

SK1810, 1815, 1820, 1825 RAS140 e10

All others Aftermarket base plate required e10

TRC001 TGA006 or 704R e10

JOF001, MOF001, TRA001

(Set includes RA1100 and RA1126)

494627 O-ring may be required

to keep bushing centered

721 e10

703 e10

(replacement base)

(replacement base)

706R e10

Accessory Kit (includes adaptor)

TGA001 or TGA250

e10

e10

e10

e10

e10

e10

81

TD330 USER GUIDE

CHAPTER 8

Customer Support

Our Commitment to You Leigh Industries takes pride in its commitment to providing

excellence in customer service and support. This user guide is designed to provide you with
the answers to any questions you have. However, if you require assistance, please feel free
to contact our technical support staff or a distributor listed below.

Manufacturer: Canada/USA

NOTE:

TEL/FAX
Customer Service

and Technical Support

800-663-8932

604-464-2700 (Tel.)
604 464-7404 (Fax.)

(Canada/USA)

EMAIL/ WEB

Customer Service

[email protected]

Technical Support

[email protected]

Website

www.leightools.com

Email can be useful, but technical

queries usually raise queries from us.
A phone call is the quickest and most
convenient way to get queries answered,
either directly to Leigh (toll free in North
America) or to your national distributor.

–Thanks!

MAILING ADDRESS

Leigh Industries Ltd.
P.O. Box 357
Port Coquitlam, B.C.
Canada V3C 4K6

LOCATION

Leigh Industries Ltd.
1615 Industrial Ave.
Port Coquitlam, B.C.
Canada V3C 6M9

Distributors listed on next page.

82

Chapter 8 Customer Support

Distributors

TD330 User Guide

AUSTRALIA & NEW ZEALAND

Maxis Distribution
128 Ingleston Rd., Wakerley, Qld., 4154
Australia
Tel: [phone]
Tel (Int.): [phone]
Email: [email protected]
Web: www.maxis.com.au

CHINA

Harvey Industries Co., Ltd.
68-10 Suyuan Avenue
Jiangning District Nanjing 211100, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.harveyworks.cn

FRANCE

Ets Bordet
98 Rue Louis Ampère, 93330
Neuilly Sur Marne, France
Tel: [phone]
Email: [email protected]
Web: www.bordet.fr

GERMANY, AUSTRIA & SWITZERLAND

Hacker GmbH
Holzbearbeitungsmaschinen
Traberhofstraße 103 D-83026 Rosenheim,
Deutschland
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.leigh.de

ITALY

Ferrari Macchine Legno SRL
Via Gallarata 74/76/78
20019 Settimo M.se (MI) Italy
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.ferrarimacchine.com

JAPAN

Off Corporation Inc.
785-1 Hirose, Shimizu-ku, Shizuoka-shi
Shizuoka, 424-0102, Japan
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.off.co.jp

KOREA

Leigh Korea
390-13, Ilsan-ri, Mohyeon-myeon, Cheoin-gu,
Youngin-si, Gyeonggi-do, 17033
South Korea
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.leigh.co.kr

NETHERLANDS, BELGIUM
& LUXEMBOURG

Houtbewerking Krielaart
9217RR Nijega, Netherlands
Tel: [phone]
Email: [email protected]
Web: www.leighjigs.nl

RUSSIA

Unicom Ltd.
Nikitsky Blvd, 12, Moscow, Russia, 119019
Tel: +7 ( 926) 911-0500
Email: [email protected]
Web: www.leighjigs.ru

SOUTH AFRICA

Hardware Centre
PO Box 4059, Randburg 2125
South Africa
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.hardwarecentre.co.za

SWEDEN

Toolbox Sweden AB
Bruksgatan 3, S-597 30
Atvidaberg, Sweden
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.toolbox.se

UNITED KINGDOM & IRELAND

Axminster Tools & Machinery
Headquarters, Unit 10, Weycroft Avenue
Axminster, Devon
EX13 5PH United Kingdom
Tel: [phone]
Text: 07786 200699
Email: [email protected]
Web: www.axminster.co.uk/leigh

©

2019 Leigh Industries Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of Leigh Industries Ltd. 06/2019

TD330 User Guide

Chapter 8 Customer Support

83

5 Year Warranty

Leigh stands behind its products with a 5 year limited warranty. Contact Leigh for warranty
service. Proof of purchase may be required. Postage is to be prepaid and insured to Leigh
Industries Ltd. Return shipping is by means chosen by Leigh Industries Ltd.

Leigh Industries Ltd. warrants that this product is free of defects

in factory workmanship and materials during normal use. If this

product fails during normal use because of such a defect, Leigh

Industries Ltd. will, at its option, repair or replace, free of charge,

any part or parts shown to be so defective. This warranty applies

to the original owner, who purchases for use and not for resale,
for a period of five years from the date of purchase. Failure resulting from alteration,

modification, misuse, abuse or neglect or after repairs have been attempted or made

by others will result in no coverage. The scope of this warranty is limited. This warran-

ty constitutes the sole and exclusive remedy of the purchaser against Leigh Industries

Ltd. from whatever cause, including without limitation, any cause relating to a breach

of condition, representation or warranty, express or implied, whether by statute, com-

mon law or otherwise, or for damages for negligence or for any other claim for death,

personal injury, property damage or economic loss of any kind, direct or consequen-

tial, arising out of the purchase, installation or use of this product. This warranty shall

be governed by and construed in accordance with the laws in the Province of British

Columbia, Canada which shall be deemed to be the proper law hereof.

Satisfaction Guarantee

Products purchased directly from Leigh carry a 90-day Customer Satisfaction Guarantee.
Those purchased from an authorized Leigh dealer may also carry a Customer Satisfaction
Guarantee; see your Leigh dealer for details. Proof of purchase is required.

Quick Reference

No. of Tails

Min 1 / 2 / 3 / 4 / 6 / 7 / 8 / 9 / 11 / 12 /

Exact 1 / 2 / 3 / 5 6 / 7 / 8 / 10 11 / 12 /

inches

Max 1 / 2 / 4 / 5 / 6 / 7 / 9 / 10 / 11 / 12 /

No. of Tails

Min 29 60 92 124 156 187 219 251 283 314

Exact 32 64 95 127 159 191 222 254 286 318

mm

Max 41 73 105 137 168 200 232 264 295 327

Board Width Selection for TD330

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9 10

Leigh Router Joi nery Jigs

Printed in China
