Leicke EP18141 Users guide
Manual
Bluetooth Speaker DJ Roxxx Shower
Product number: EP18141
PACKAGE CONTENTS
Before attempting to use this device, please check the packaging and make sure the
following items are contained in the package:
Number of |
Name |
Note |
Pieces |
|
|
|
|
|
1 |
Bluetooth speaker |
integrated battery |
|
|
|
1 |
charging cable |
- |
|
|
|
1 |
carabiner |
- |
|
|
|
1 |
user's manual |
- |
|
|
|
|
TECHNICAL DETAILS |
|
|
Frequency |
100Hz-20KHz |
|
|
|
|
Output |
5 Watt |
|
|
|
|
Supported audio format |
MP3 |
|
|
|
|
SD / TF card |
up to 16GB |
|
|
|
|
Sensitivity |
83dB +-2dB |
|
|
|
|
Bluetooth version |
4.1+EDR |
|
|
|
|
Bluetooth transmission range |
≤ 10m |
|
|
|
|
Bluetooth usage current |
< 30mA |
|
|
|
|
Bluetooth stand-by current |
< 15mA |
|
|
|
|
Bluetooth transmission frequency |
2.4GHz-2.480GHz |
|
|
|
|
Bluetooth frequency band |
UHF |
|
|
|
|
Bluetooth transmission rate |
24Mbp |
|
|
|
|
Max. transmission |
2.51 mW |
|
|
|
|
Stand-by usage |
Up to 40 h |
|
|
|
|
Charging voltage |
DC 5V / 100mA |
|
|
|
|
Battery capacity |
400 mAh |
|
|
|
|
Working temperature |
-10~60°C |
|
|
|
FM |
87,5-108MHz |
|
|
Max. playtime |
Up to 5 h |
|
|
Size, Weight |
90mm*90mm*50mm, 155g |
|
|
!Note:
•Please charge the battery for about 10 hours with the enclosed power supply before the first use. This will ensure maximum battery life.
•Only use charging cables provided for this purpose.
COMPATIBILTY
Compatible with iPhones, tablets, smartphones, PCs, game consoles etc., which have Bluetooth or AUX output.
BLUETOOTH PAIRING
Step 1: Switch on the speaker. To use the Bluetooth function, no memory card must be inserted in the speaker. Either use NFC or proceed with step 2.
Step 2: Open your phone's settings and locate the Bluetooth option. It must be enabled. The list of found devices should now contain a device with the name "LEICKE EP18141". Connect your phone to it. If a code is requested, you can enter "0000".
Step 3: The speaker is now connected. The pairing will be saved for future usage.

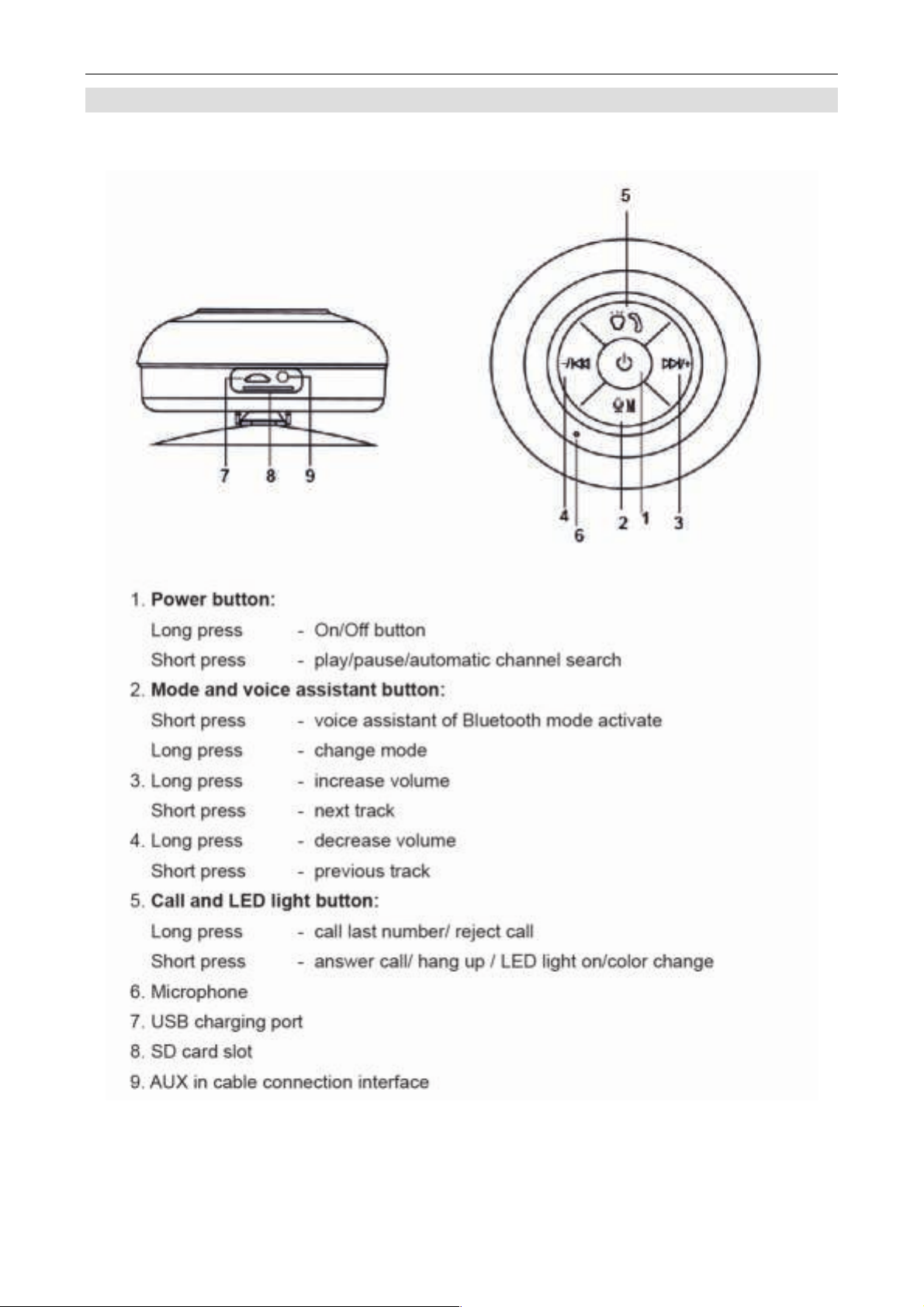

Step 4: The music is selected via the connected device, the volume as well as the forward and backward switching between the songs can be done via the loudspeaker (see Functions and Controls).
SD CARD MODE (MP3 PLAYER)
The MP3 player function is activated by inserting a memory card. Long press the Mode button to switch to another mode. Also see Functions and Controls.
RADIO
Before switching on the speaker and using the radio function, please plug in the charging cable with the other end of the cable free. It works as an antenna. After switching on, press the Mode button long press to switch to radio mode. You can activate the automatic station search via the on/off switch. Also see Functions and Controls.
AUX MODE
When you connect an audio cable via the AUX input, the speaker plays the audio signal
