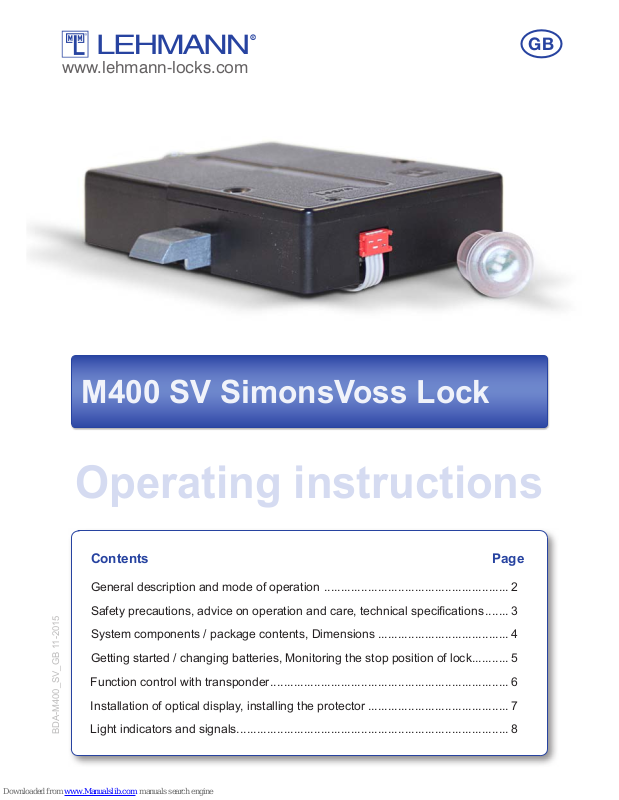

Contents Page
General description and mode of operation ....................................................... 2
Safety precautions, advice on operation and care, technical specications ....... 3
System components / package contents, Dimensions ....................................... 4
Getting started / changing batteries, Monitoring the stop position of lock ........... 5
Function control with transponder ....................................................................... 6
Installation of optical display, installing the protector .......................................... 7
Light indicators and signals ................................................................................. 8
www.lehmann-locks.com
Operating instructions
M400 SV SimonsVoss Lock
BDA-M400_SV_GB 11-2015
BDA-M400_SV_GB 11-2015
2
GENERAL DESCRIPTION
The M400 electronic locking system is an electronic furniture lock. It is intended for indoor use in the home
and ofce. Using the system in applications for which it is not intended may result in irreparable damage
to it and render any claims null and void. The user manual tells you how to install and operate the M400
system in the proper manner. To program the furniture lock, you will need the management software as
well as the requisite hardware from SimonsVoss Technologies GmbH in Munich. The M400 system can
be tailored to your personal requirements as it is very easy to use. It can be upgraded from a stand-alone
system into a complex, convenient locking system and integrated into existing locking systems from
SimonsVoss Technologies GmbH.
Wording and graphics have been prepared for you with care. However, no liability will be assumed for any
mistakes that may have occurred. Copyright 2014 by LEHMANN Vertriebsgesellschaft mbH &Co. KG,
D-32429 Minden. All rights reserved.
These instructions must not be reproduced in any way (print, photocopy, microlm or other process) or
processed, duplicated or distributed using electronic systems either in whole or in part without written
consent from LEHMANN Vertriebsgesellschaft mbH & Co. KG The scope of items included by the
manufacturer in the system as well as technical specications are subject to change without notice.
OPERATING DESCRIPTION
The M400 electronic locking system provides you with a convenient means of locking and unlocking your
furniture electronically. The M400 system allows you to issue selective access authorisations so that only
authorised personnel are given access to specic items of furniture. Entire locking systems with different
access levels can be congured without a problem. Each electronic control unit in the M400 system works
autonomously, without being connected by cable to other control electronics or the power supply system.
You can program different transponders with ease in each electronic control unit. In normal operation, the
control electronics only respond to the transponders programmed.
Please note: The distance between the furniture locks must be at least 50 cm. A distance of at least
120 cm between the furniture locks is required, when several furniture locks are authorised with
one transponder.
To operate the system, you will also need a transponder from SimonsVoss GmbH that is already in your
possession or which you may purchase from your supplier or retailer.
BDA-M400_SV_GB 11-2015
3
SAFETY PRECAUTIONS
UU On changing the batteries, ensure correct battery polarity and position!
UU Dispose of spent batteries in the proper manner.
UU Do not heat batteries, take them apart or short-circuit them.
UU Never throw batteries into re.
UU The batteries must not be charged.
UU Keep batteries out of children‘s reach.
UU Any person swallowing batteries must seek immediate medical advice.
UU Damaged and/or leaking batteries may cause acid burns and / or poisoning.
ADVICE ON OPERATION AND CARE
UU Do not pour any liquids into or over any of the system‘s components and never immerse the
components in liquids.
UU Transmission / reception range as well as reception quality may be affected by the building‘s structure,
sources of electronic interference or superimposed frequencies.
UU The receiver should not be exposed to direct sunlight.
UU Clean the system with a clean, soft, damp cloth only.
UU Do not use any cleaning products containing abrasives or solvents, such as glass, thinner, alcohol,
benzene or ammonia, as they may react adversely with the enclosure.
UU Treating any of the electronic and mechanical components improperly or in any way other than
described in this user manual may lead to malfunctions.
NOTE
Our locks and locking systems can basically be used together with mechanisms made by other
manufacturers, but their compatibility must be checked by the processor in each individual case.
We cannot accept any liability for damage or losses due to incompatibility.
TECHNICAL SPECIFICATIONS
U# To operate the system there must be a line of vision between transponder and receiver.
U# The distance between the furniture locks must be at least 50 cm.
U# Frequency: 25KHz. Be sure to observe national legislation on permissible wireless frequencies.
U# The average transmission range of the transponder is approx. 30 cm. Depending on the structural
conditions, the transmission/reception range may be limited or signicantly increased.
U# To program and start the system please refer to the system manual from Firma SimonsVoss
Technologies GmbH. www.simons-voss.com
U# Power supply for control electronics: battery type: 2x AA mignon cell, alkaline 1.5V.
U# NiCd, NiMH or other rechargeable batteries as well as zinc-carbon or lithium batteries must not be
used.
Temperature range:
Operation: +5 °C to +40 °C in 30% to 80% relative air humidity, non-condensing.
In storage: -25 °C to +70 °C in 30% to 80% relative air humidity, noncondensing.
All other aspects are subject to the technical information and regulations issued by
SimonsVoss Technologies GmbH in Munich. www.simons-voss.com
M400 SV
Furniture lock
2 x Spax 3x30 Indicator unit 2 x 1,5V AA Operating instructions
3 x Spax 3x13 Bolt protector Striker plate 3 x Spax 3x13
2
3
4
5 7 8
Contents Page
General description and mode of operation .......................................................2
Safety precautions, advice on operation and care, technical specifi cations .......3
System components / package contents, Dimensions .......................................4
Getting started / changing batteries, Monitoring the stop position of lock ...........5
Function control with transponder .......................................................................6
Installation of optical display, installing the protector ..........................................7
Light indicators and signals .................................................................................8
www.lehmann-locks.com
Operating instructions
M400 SV SimonsVoss Lock
BDA-M400_SV_GB 11-2015
5
7
8
2
6
4
6
3
SYSTEM COMPONENTS / PACKAGE CONTENTS
DIMENSIONS
BDA-M400_SV_GB 11-2015
44
Indicator unit
M400 Electronics
Striker plate
BDA-M400_SV_GB 11-2015
5
GETTING STARTED / CHANGING BATTERIES
Before installing the system, insert the batteries into the control electronics and program the furniture
lock as described in the system manual from SimonsVoss GmbH. After programming, make sure the
system works properly. Only install the furniture lock in furniture in an unlocked state.
Only install the furniture lock in furniture in an unlocked state.
Use only LR6, AA, alkaline type batteries. Make sure that the polarity is correct!
Rechargeable batteries, zinc-carbon batteries or lithium batteries are not permitted!
MONITORING THE STOP POSITION OF LOCK
The M400 is provided with a sensor that identies when the bolt is extended and has reached its end position. A visual warning signal (indicator‘s red LED ashes) is given if the bolt fails to reach the end position
after a locking command. If the bolt is already in the end position on receiving a locking command, no
additional locking action is given. The spring mechanism allows you to close furniture even after engaging
the lock with the door open.
Undo screw.
Open battery
compartment lid.
2
Change
batteries.
3
Close battery
compartment lid.
Fit xing screw.
Block
the lock
2
Closing command
from the device
3
Warning
signal lights up
Test function
Optical warning
on the display unit
LED colour: RED
Stop position
of lock not
reached
The closing
operation could not
be completed.
Locking bolt is
blocked.
A detailed overview of all the optical
signals on page 8.
BDA-M400_SV_GB 11-2015
6

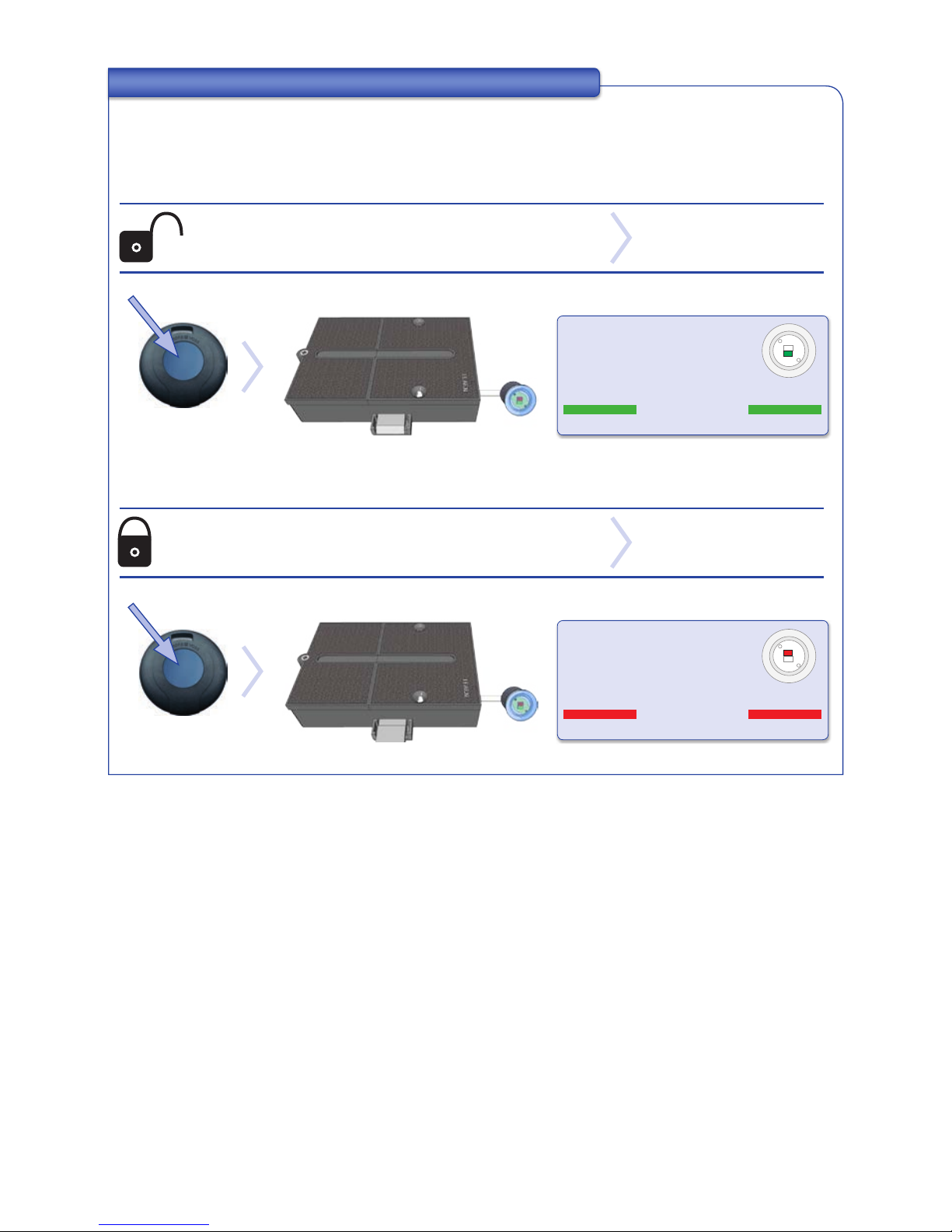

FUNCTION CONTROL WITH TRANSPONDER
Check the open / close function of M400 before installation with the appropriate
authorized transponder.
A detailed overview of all the optical signals on page 8.
Transponder:
Press button
2 Bolt retracts
Open
Optical display
LED-colour: GREEN
Pause
about 1 sec.
Transponder:
Press button
2 Bolt extends
Close
Optical display
LED-colour: RED
Pause
about 1 sec.
2 3
BDA-M400_SV_GB 11-2015
7
INSTALLATION OF OPTICAL DISPLAY
The visual indicator should be installed in such a way as to
provide a good line of vision. If you install the visual indicator
physically separated from the control electronics, the connecting
cable between these system components must not exceed a
length of 1 m.
Please refer to the tting instructions from the manufacturer of
your furniture for the correct way to attach the M400 system to
your furniture. If you have any questions concerning system
installation, contact a rm of cabinetmakers or your supplier
before commencing installation.
INSTALLING THE PROTECTOR
The bolt protector provided with the M400 can be used for additionally guarding the system against
external mechanical manipulation. Depending on the purpose the M400 is being used for and where it
is installed, we recommend tting this additional, easy-to-mount guard.
Postfach / P.O.B 2620
D - 32383 Minden
Telefon +49 (0) 571/505 99 - 0
info@lehmann-locks.com
LEHMANN Vertriebsgesellschaft mbH & Co. KG
BDA-M400_SV_GB 11-2015
8
LIGHT INDICATORS AND SIGNALS
Light indicators
ashingt
ashing
lit
Light indicators in normal operation on
locking and unlocking.
Warning indicators on locking
Warning indicators on unlocking
Unlock
1 sec.
Pause
Lock is opened
Lock
1 sec.
Pause
Lock is engaged
Low-battery warning level 1 based on example of „locking“
Lock is engaged but batteries in
lock are virtually spent.
Change the batteries soon.
1 sec.
Pause
Low-battery warning level 2 based on example of „unlocking“
Lock cannot be engaged any
more. The batteries in the lock
are spent. Change the batteries.
1 sec.
Pause
Bolt does not reach end position
Locking action could not be
completed. Lock bolt is blocked.
Transponder lowbattery warning
1 sec.
Pause
6 x
Lock is opened but transponder
battery is spent. Contact Service.
Unauthorised transponder
The transponder is not authorised
at this lock and is rejected.
No locking action takes place.
www.lehmann-locks.com
