Size Face: 2x2 Module
Size Backbody: 2x2 Module(device)
3x2 Module(Wall Mount)
A
3rd Party Compliance: cETLus LISTED
Ratings: 120 VAC
Termination: Back Wire Only
Misc: Copper Wire Only
For Use With adorne System Only
Simply push on this innovative nightlight to
remove it from the wall
and use it as a flashlight. Device recharges
while mounted in
wall and operates for up to 10 hours during a
power failure.
1.9
[47,88]
1.7
[44,06]
1.2
[30,88]

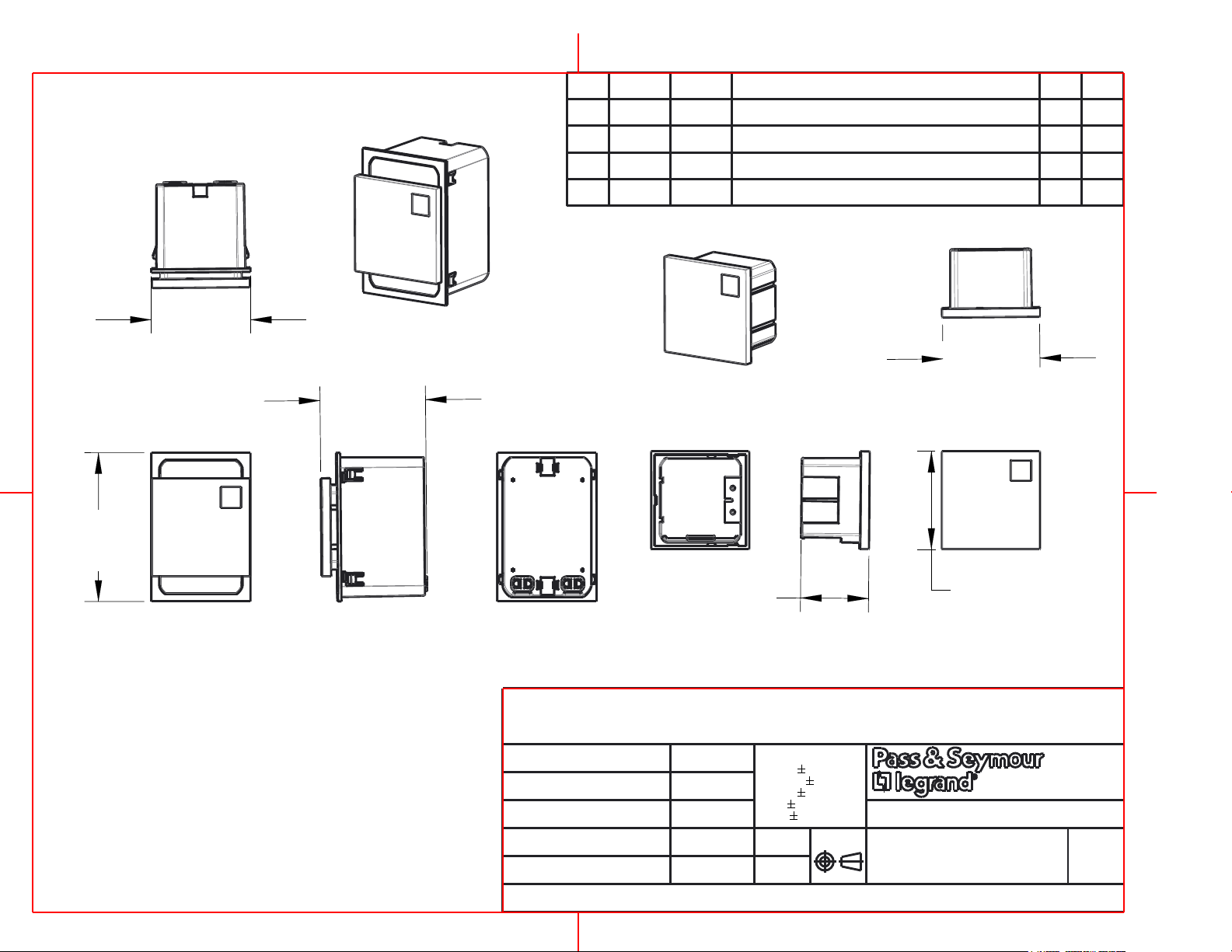

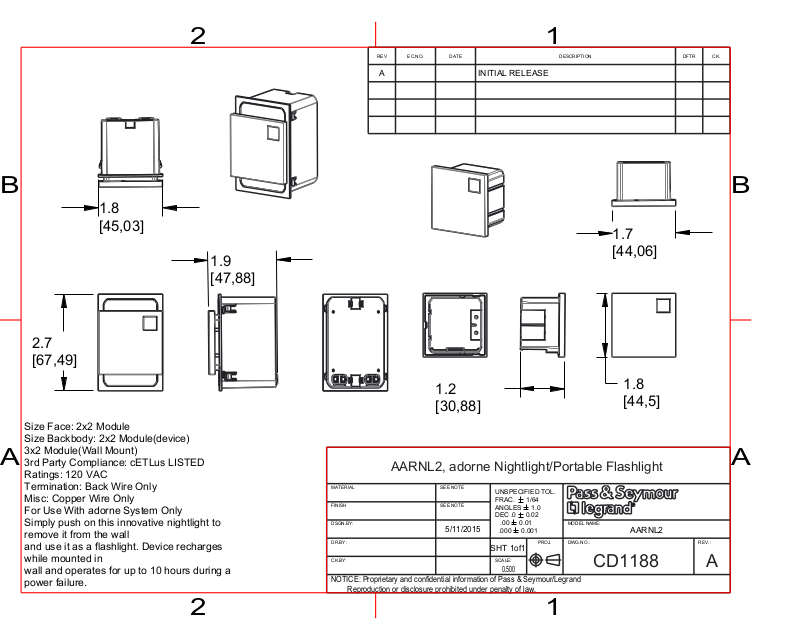

AARNL2, adorne Nightlight/Portable Flashlight
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
5/11/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.001
SHT
0.500
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1188 A
B
1.8
[44,5]
A
AARNL2
