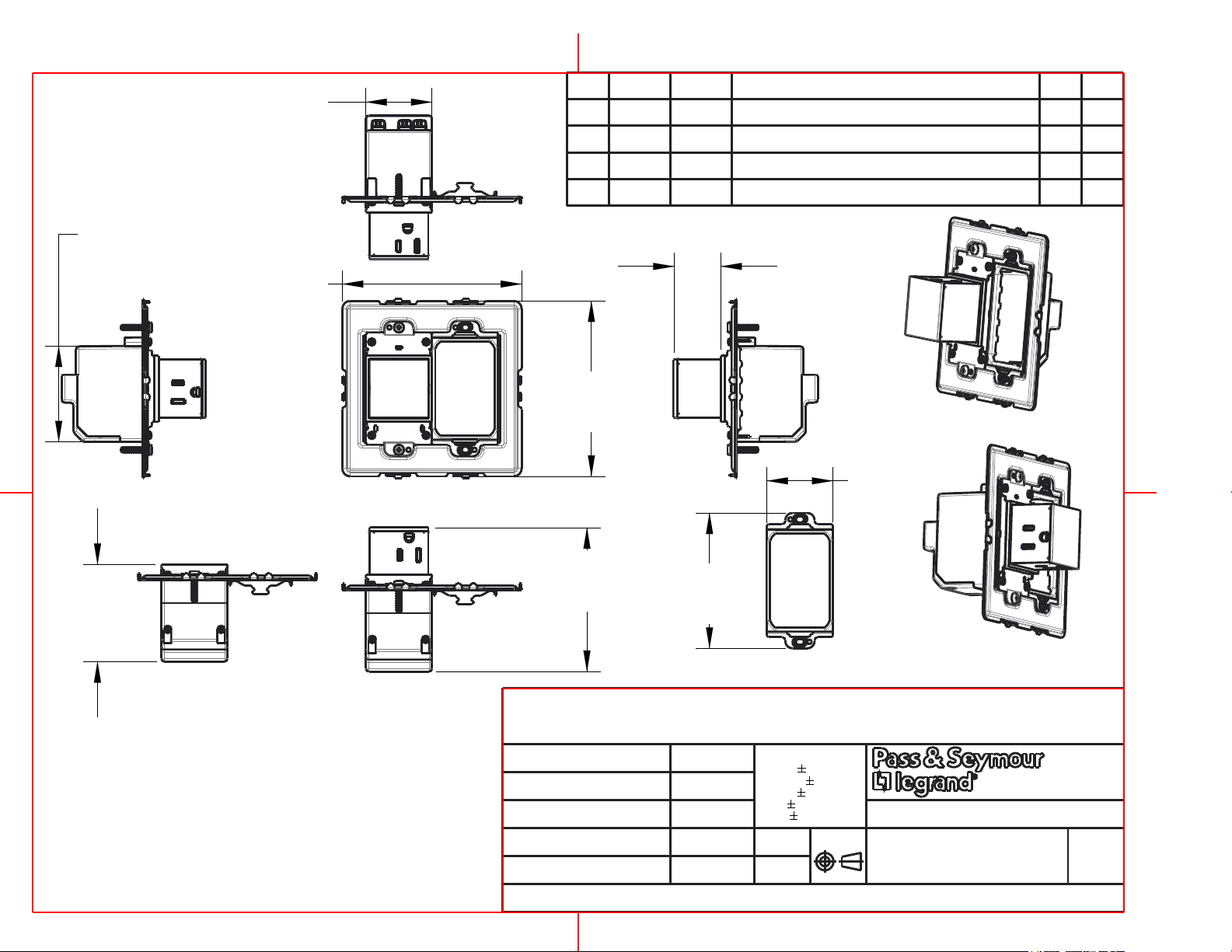

B
2.6
[65,27]
1.8
[45]
4.8
[122,1]
2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
1.3
[31,75]
4.7
[119,5]
B
1.8
[45]
2.6
[66,05]
A
Includes 2-Gang Dedicated Subframe
Includes Frame Adapter For
Combination With Another adorne
Device
Must Use Deep Wallbox (ex. SI22R)
For Use With adorne System Only
3rd Party Compliance: cULus LISTED
Rating: 15amp
3.9
3.6
[98,05]
[92,2]

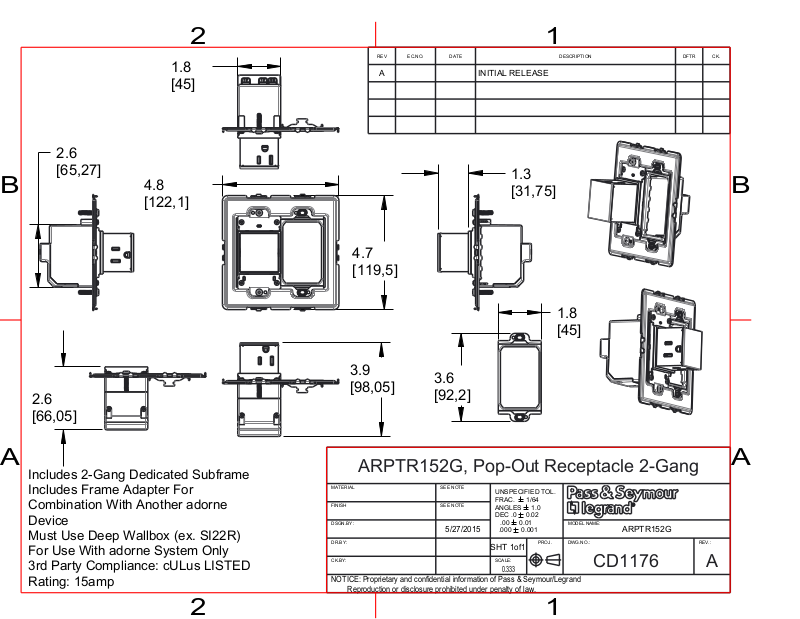

ARPTR152G, Pop-Out Receptacle 2-Gang
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
5/27/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.001
SHT
0.333
PROJ. DWG.NO.: REV.:
1of1
2 1
MODEL NAME:
ARPTR152G
CD1176 A
A
