Size Face: 2x2 Module
Size Backbody: 3x2 Module
3rd Party Compliance: cULus LISTED
Rating:
25W-1100W, Incandescent
25W-1100W, Halogen
Termination: Back Wire Only
Misc: Copper Wire Only
Accepts Locator Status Light
For Use With adorne System Only
2 1
1.59
[40,4]

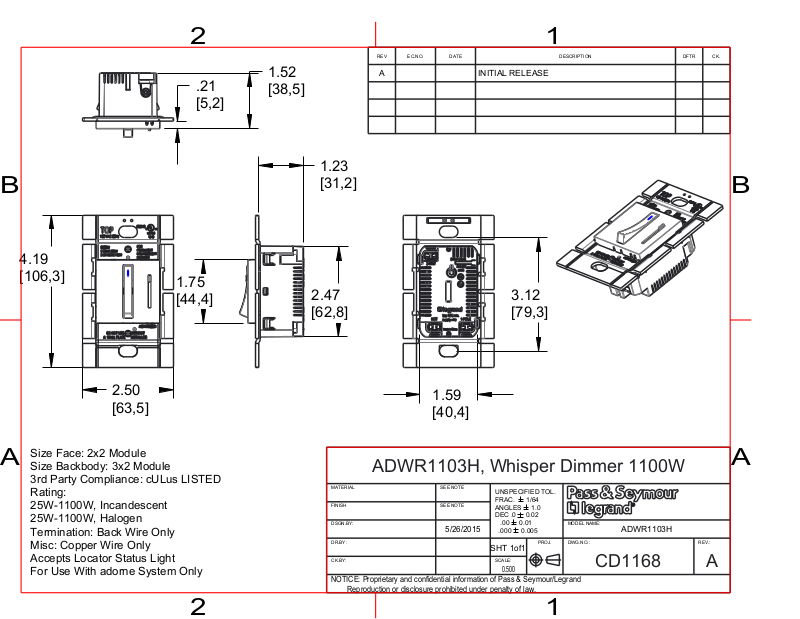

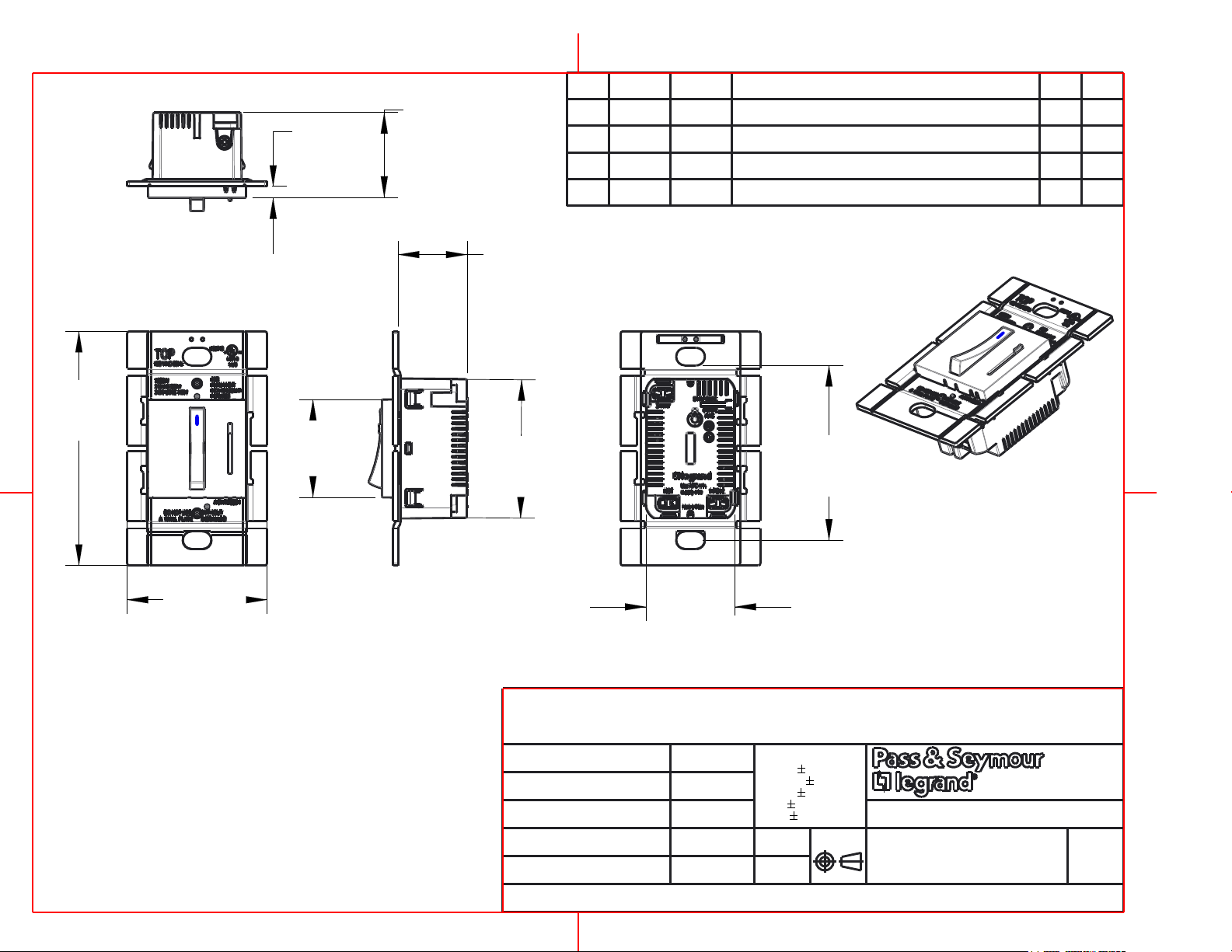

ADWR1103H, Whisper Dimmer 1100W
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
5/26/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.500
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1168 A
A
ADWR1103H
