2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
1.75
[44,5]
B
Size Face: 2x2 Module
Size Backbody: 3x2 Module
3rd Party Compliance: cULus LISTED
A
Rating:
6W-700W, Incandescent
6W-700W, Halogen
6W-700W, Forward-Phase ELV
6W-700W, MLV
6W-700W, Fluorescent
6W-450W, CFL
6W-450W, LED
6W-450W, Reverse-Phase ELV
Termination: Back WIre Only
Misc: Use Copper Wire Only
For Use With adorne System Only
1.75
[44,5]
1.77
[45]
4.19
[106,3]
3.28
[83,3]
SCALE 0.500

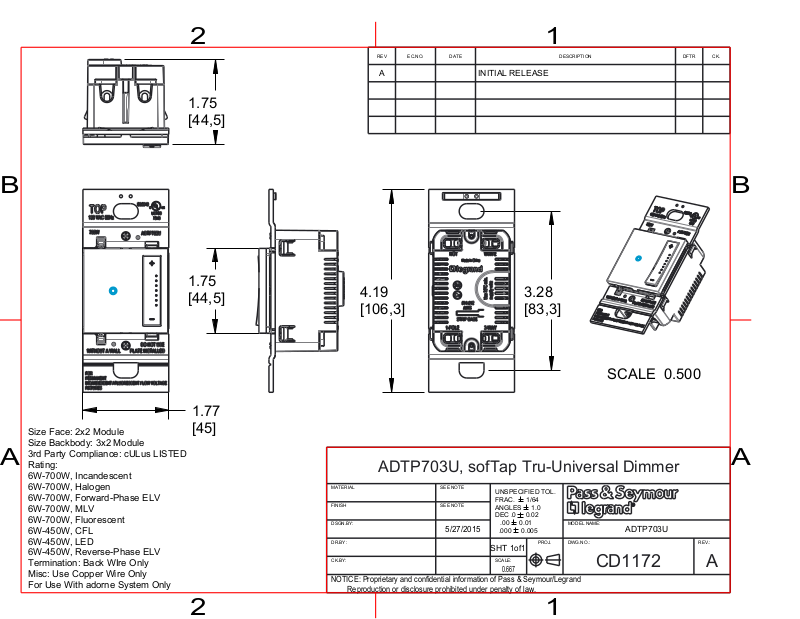

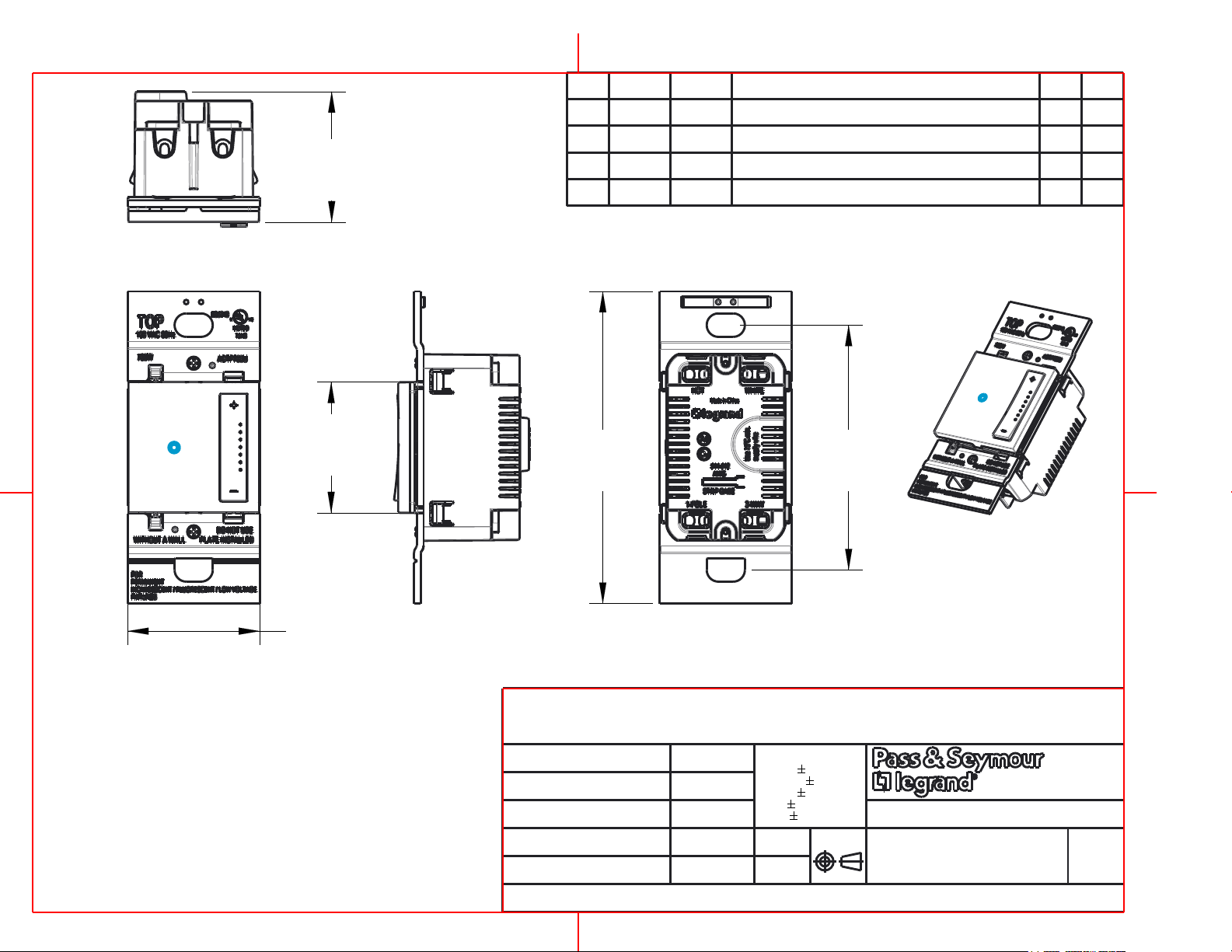

ADTP703U, sofTap Tru-Universal Dimmer
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
5/27/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.667
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1172 A
B
A
ADTP703U
2 1
