2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
1.53
[38,9]
1.77
B
[45]
4.19
[106,3]
A
Size Face: 2x2 Module
Size Backbody: 3x2 Module
3rd Party Compliance: cULus LISTED
Rating:
25W-700W, Incandescent
25W-700W, Halogen
Termination: Back Wire Only
Misc: Copper WIre Only
Accepts Locator Status Light
For Use With adorne System Only
1.75
[44,5]
1.21
[30,7]
2.49
[63,3]
3.28
[83,3]

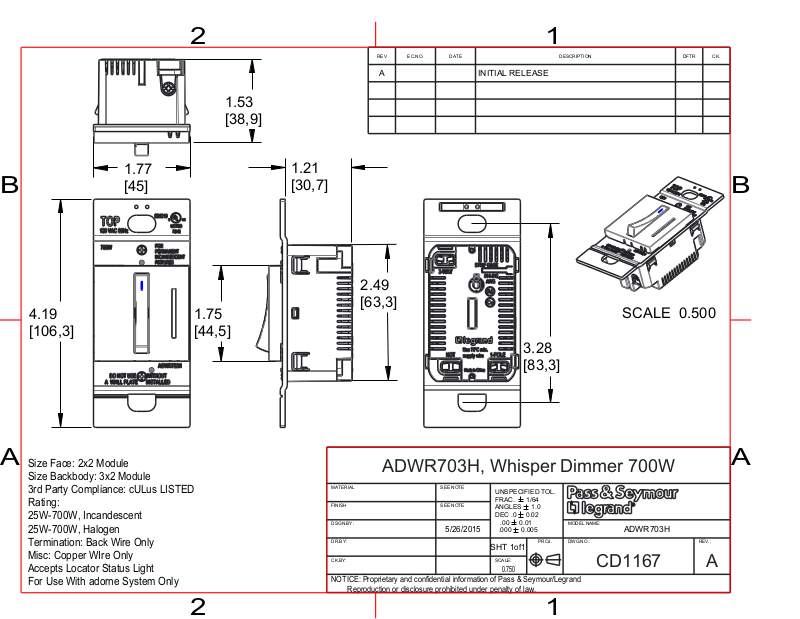

ADWR703H, Whisper Dimmer 700W
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
5/26/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.750
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1167 A
B
SCALE 0.500
A
ADWR703H
2 1
