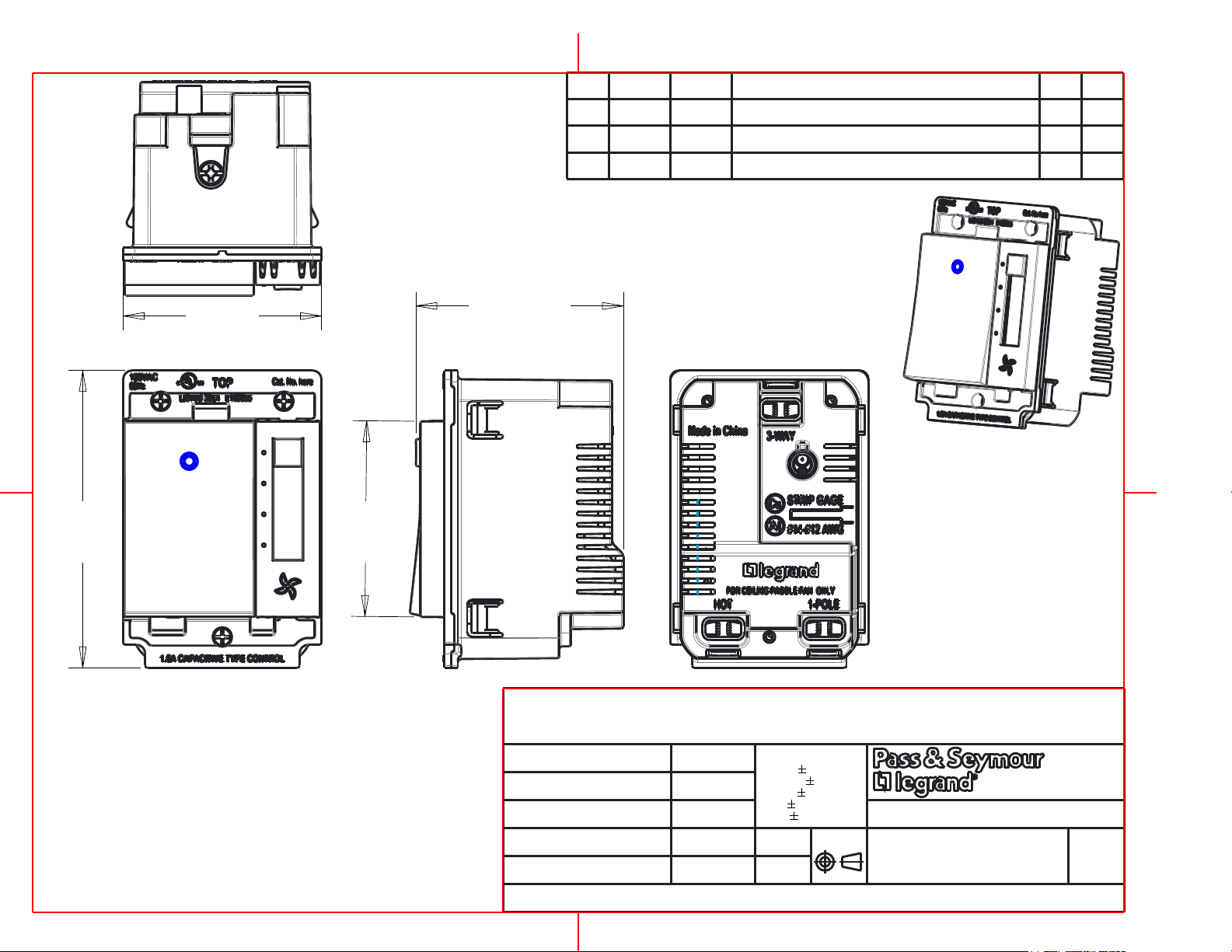

1.77
[45]
2.66
[67,5]

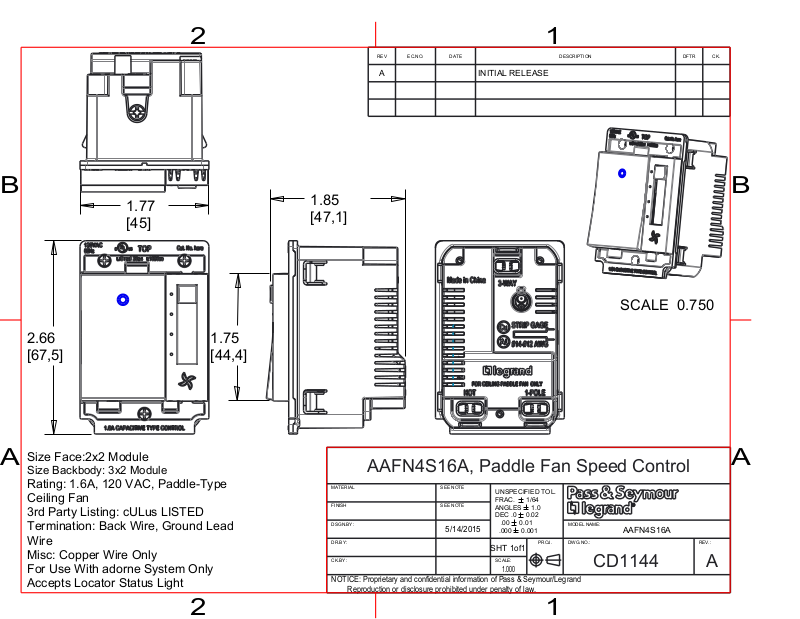

Size Face:2x2 Module
A
Size Backbody: 3x2 Module
Rating: 1.6A, 120 VAC, Paddle-Type
Ceiling Fan
3rd Party Listing: cULus LISTED
Termination: Back Wire, Ground Lead
Wire
Misc: Copper Wire Only
For Use With adorne System Only
Accepts Locator Status Light
1.75
[44,4]
1.85
[47,1]
AAFN4S16A, Paddle Fan Speed Control
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
5/14/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.001
SHT
1.000
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
B
SCALE 0.750
A
AAFN4S16A
CD1144 A
