Page 1
.69
[17,6]
1.74
[44,2]
2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
A1 REVISION TO DRAWING
.52
[13,3]
B
A
5.12
[130]
8.88
[225,5]
3rd Party Compliance: cULus LISTED,
cETLus LISTED
Includes Wallplate, Subframe And Spacers
Shown
For Use With adorne System Only
All adorne System Subframes Are Grounded
All adorne Wallplates Containing Metal
Are Grounded
.38
[9,7]
5.44
[138,1]
.13
[3,2]
4.88
[124]
8.43
[214]

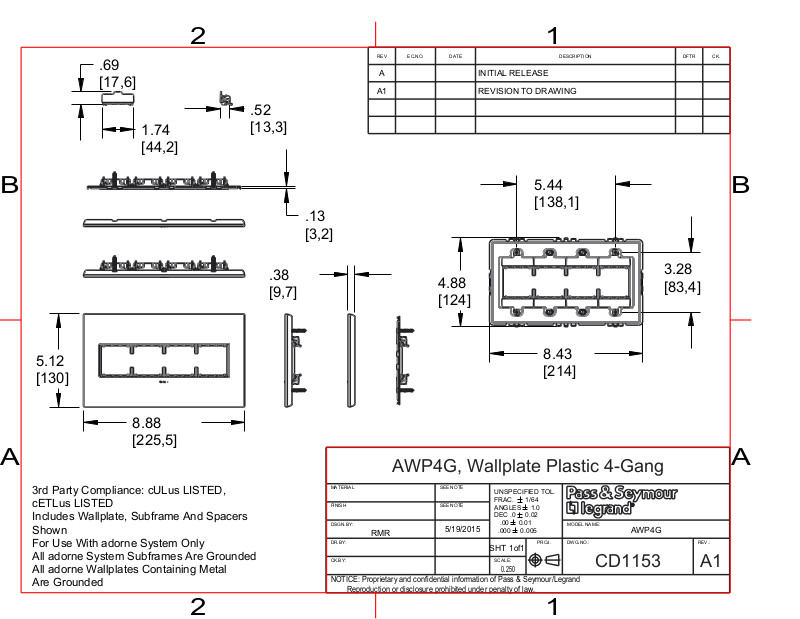

AWP4G, Wallplate Plastic 4-Gang
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
RMR
5/19/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.250
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
AWP4G
CD1153 A1
B
3.28
[83,4]
A
2 1
