Page 1
2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
A1 REVISION TO DRAWING
B
A
5.12
[130]
5.26
[133,5]
3rd Party Compliance: cULus LISTED,
cETLus LISTED
Includes Wallplate, Subframe And Spacers
Shown
For Use With adorne System Only
All adorne System Subframes Are Grounded
All adorne Wallplates Containing Metal Are
Grounded
.38
[9,7]
.13
[3,2]
1.81
[46]
4.88
[124]
3.28
[83,4]
4.80
[122]
1.74
[44,2]
.69
[17,6]

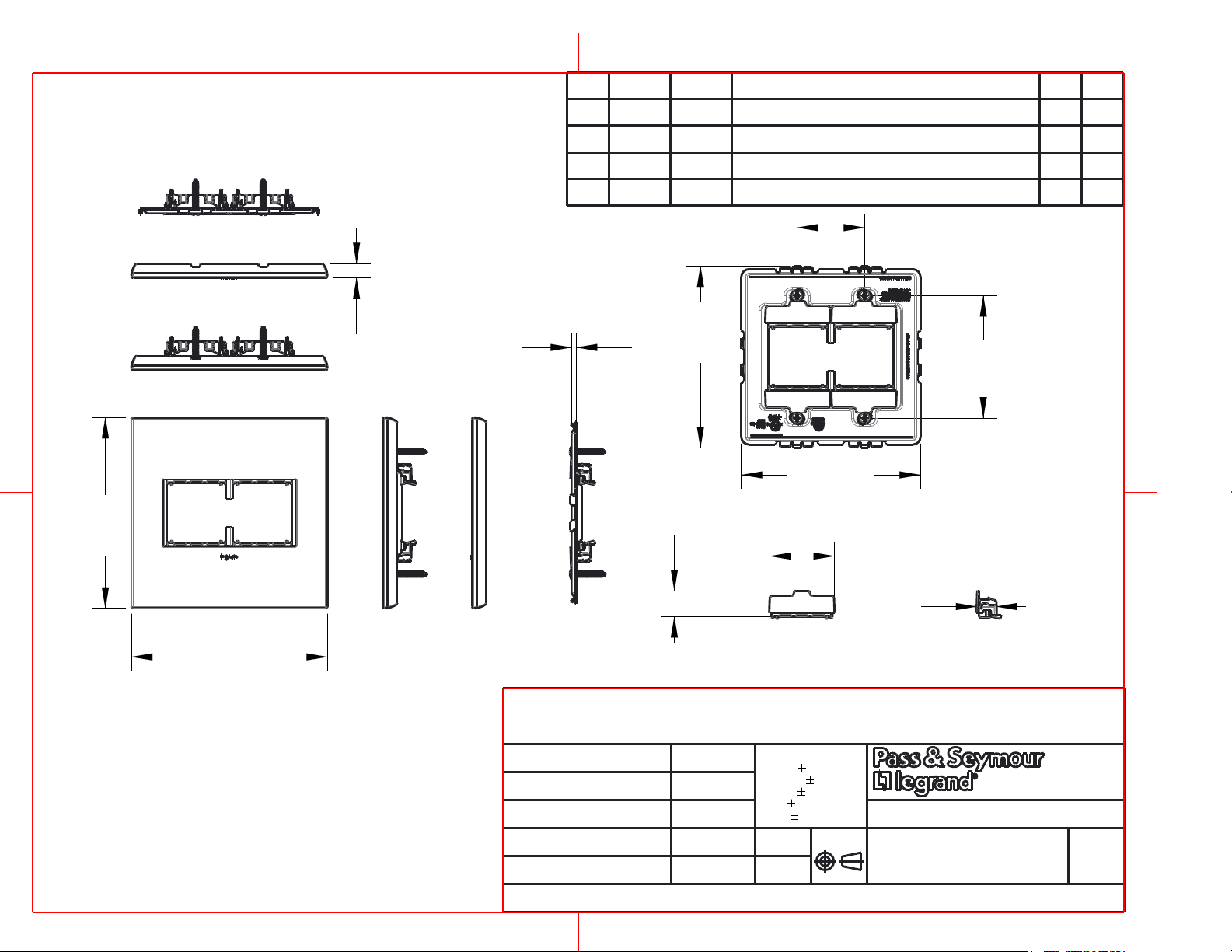

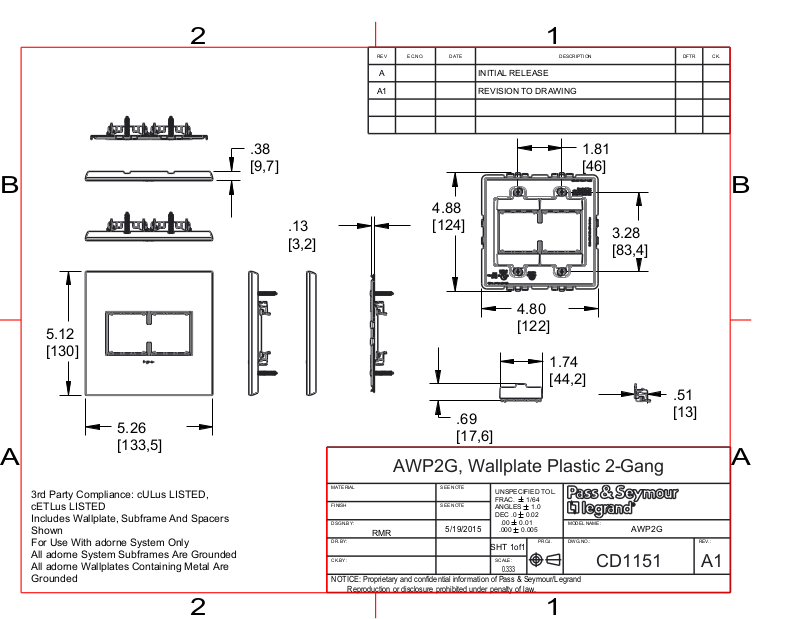

AWP2G, Wallplate Plastic 2-Gang
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
RMR
5/19/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.333
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1151 A1
B
.51
[13]
A
AWP2G
2 1
