Page 1
B
2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
.13
[3,2]
7.24
[184]
B
5.12
[130]
10.69
[271,5]
A
3rd Party Compliance: cULus LISTED,
cETLus LISTED
Includes Wallplate, Subframe And
Spacers Shown
For Use With adorne System Only
All adorne System Subframes Are
Grounded
All adorne Wallplates Containing
Metal Are Grounded
4.88
.38
[124]
[9,7]
10.24
[260]
1.74
[44,2]
.63
[16]

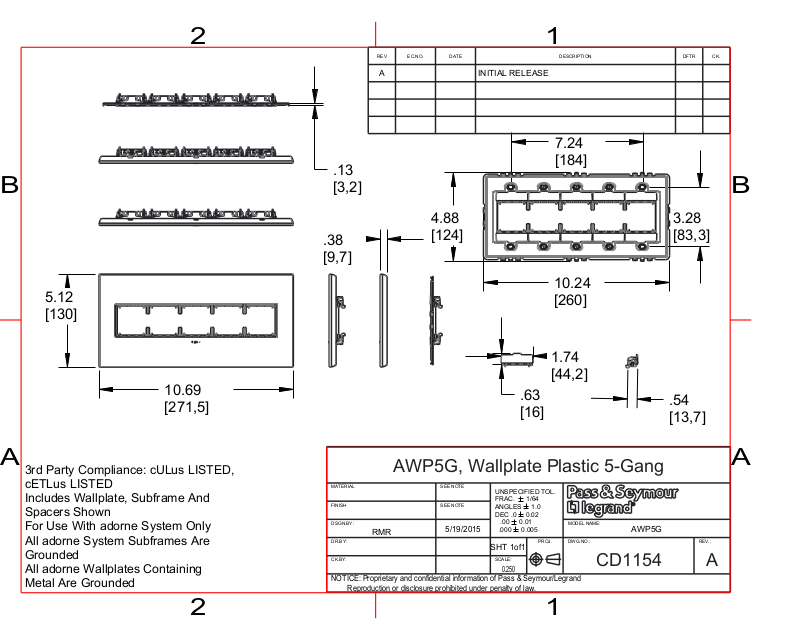

AWP5G, Wallplate Plastic 5-Gang
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
RMR
5/19/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.250
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1154 A
3.28
[83,3]
.54
[13,7]
A
AWP5G
2 1
