Page 1
2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INTIAL RELEASE
9.06
[230]
B
12.49
[317,3]
5.12
[130]
12.50
[317,5]
A
3rd Party Compliance: cULus LISTED,
cETLus LISTED
Includes Wallplate, Subframe And Spacers
Shown
For Use With adorne System Only
All adorne System Subframes Are Grounded
All adorne Wallplates Containing Metal
Are Grounded
.38
[9,6]
4.88
[124]
12.05
[306]
.63
[16]
1.74
.13
[44,2]
[3,2]

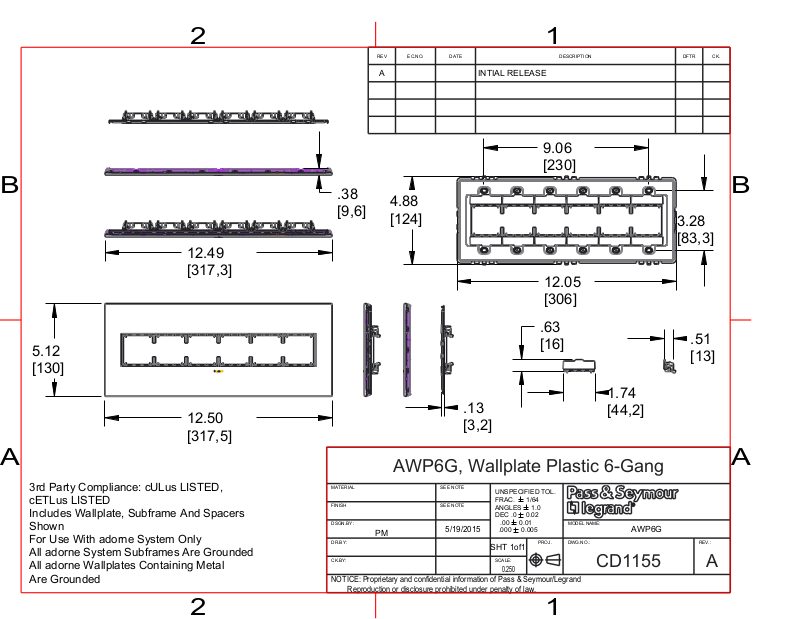

AWP6G, Wallplate Plastic 6-Gang
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
PM
5/19/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.250
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1155 A
B
3.28
[83,3]
.51
[13]
A
AWP6G
2 1
