REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
.41
[10,4]
B
A
5.18
[131,6]
3.50
[88,9]
1.74
[44,2]
.51
.13
[3,2]
.63
[16]
[13]
4.88
[124]
2.99
[76]
3.28
[83,4]

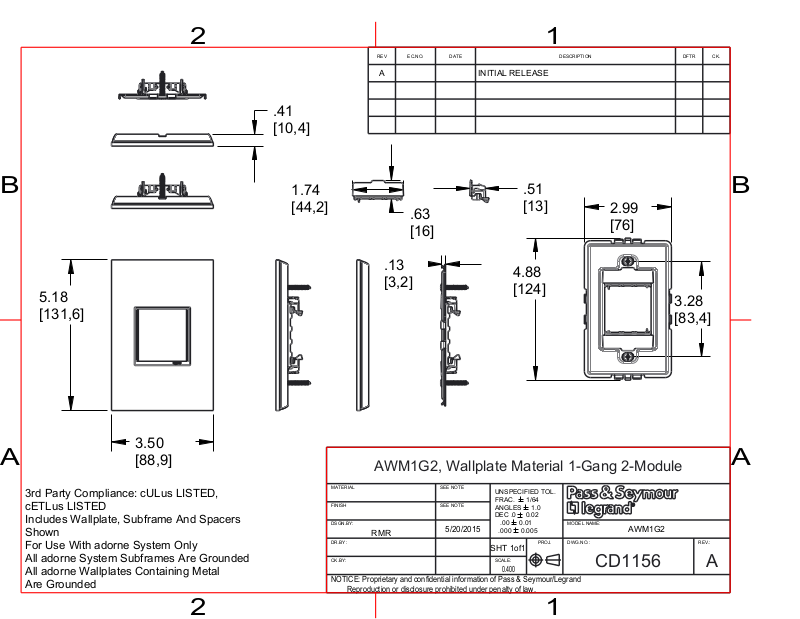

AWM1G2, Wallplate Material 1-Gang 2-Module
B
A
3rd Party Compliance: cULus LISTED,
cETLus LISTED
Includes Wallplate, Subframe And Spacers
Shown
For Use With adorne System Only
All adorne System Subframes Are Grounded
All adorne Wallplates Containing Metal
Are Grounded
2 1
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
RMR
5/20/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.400
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1156 A
AWM1G2
