B
5.17
[131,3]
2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
.69
.13
[3,2]
.40
[10,3]
.52
[13,3]
1.74
[44,2]
[17,6]
1.81
[46]
4.88
[124]
B
3.28
[83,4]
5.31
[134,8]
A
3rd Party Compliance: cULus LISTED,
cETLus LISTED
Includes Wallplate, Subframe And Spacers Shown
For Use With adorne System Only
All adorne System Subframes Are Grounded
All adorne Wallplates Containing Metal Are
Grounded
2 1
4.80
[122]

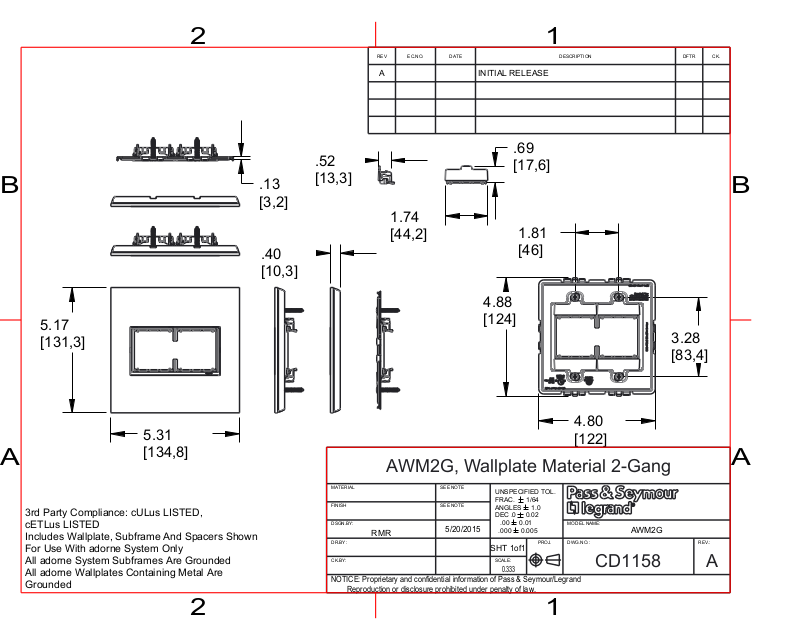

AWM2G, Wallplate Material 2-Gang
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
RMR
5/20/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.333
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1158 A
A
AWM2G
