Page 1
B
1.74
[44,2]
.69
[17,5]
2 1
REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
.51
[13]
3.64
[92,5]
1.81
[46]
B
5.17
[131,3]
7.11
A
3rd Party Compliance: cULus LISTED,
cETLus LISTED
Includes Wallplate, Subframe And Spacers
Shown
For Use With adorne System Only
All adorne System Subframes Are Grounded
All adorne Wallplates Containing Metal
Are Grounded
[180,5]
.40
[10,3]
4.88
[124]
.13
[3,2]
6.61
[168]

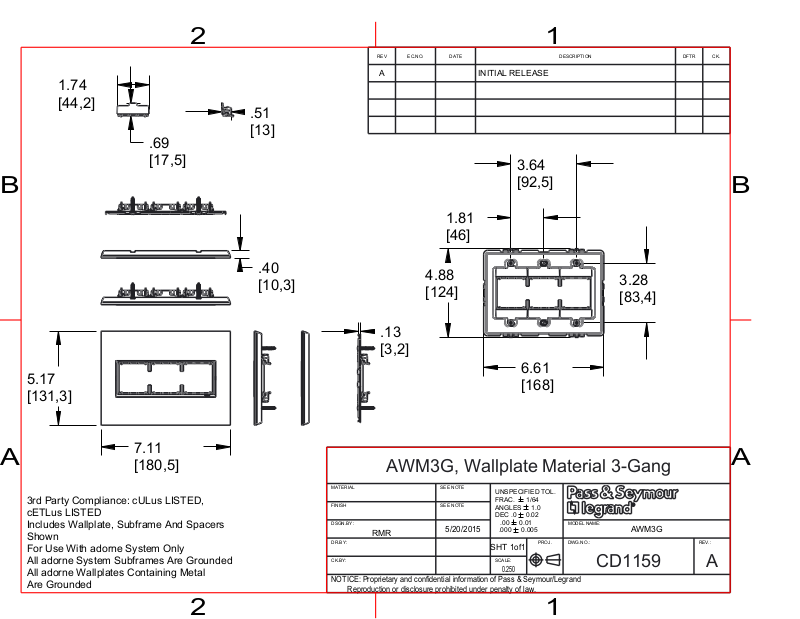

AWM3G, Wallplate Material 3-Gang
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
RMR
5/20/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.250
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1159 A
3.28
[83,4]
A
AWM3G
2 1
