REV EC.NO. DATE DESCRIPTION DFTR CK.
A INITIAL RELEASE
A1 REVISION TO DRAWING
.38
[9,7]
B
5.12
[130]
3.44
[87,5]
3rd Party Compliance: cULus LISTED,
A
cETLus LISTED
Includes Wallplate And Subframe
Shown
For Use With adorne System Only
All adorne System Subframes Are
Grounded
All adorne Wallplates Containing
Metal Are Grounded
.13
[3,2]
4.88
[124]
2.99
[76]

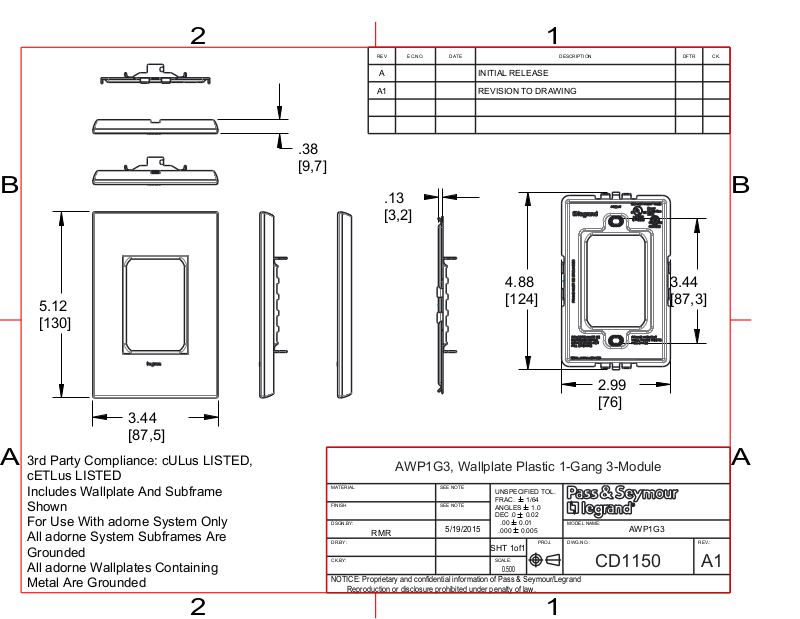

AWP1G3, Wallplate Plastic 1-Gang 3-Module
MATERIAL SEE NOTE
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
RMR
5/19/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.005
SHT
0.500
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
CD1150 A1
B
3.44
[87,3]
A
AWP1G3
2 1
