Legrand KP User Manual

deQuorum

™

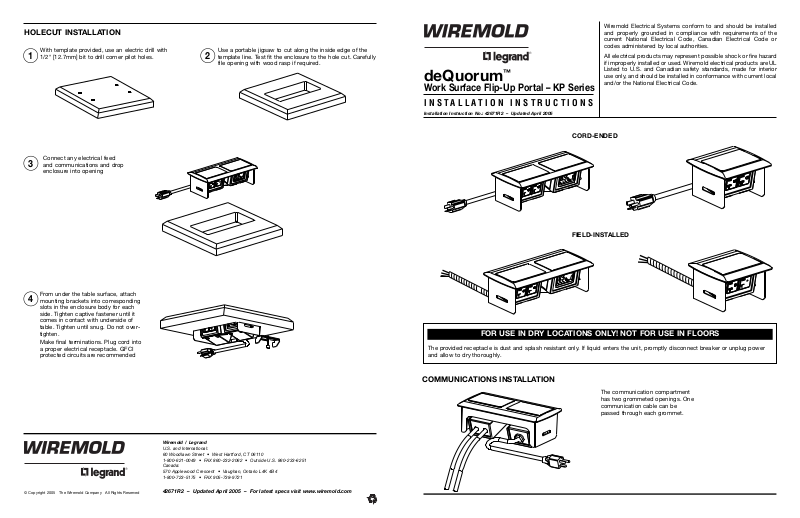

Work Surface Flip-Up Portal – KP Series

INSTALLATION INSTRUCTIONS

Installation Instruction No.: 42671R2 – Updated April 2005

Wiremold Electrical Systems conform to and should be installed
and properly grounded in compliance with requirements of the
current National Electrical Code, Canadian Electrical Code or
codes administered by local authorities.

All electrical products may represent possible shock or fire hazard
if improperly installed or used. Wiremold electrical products are UL
Listed to U.S. and Canadian safety standards, made for interior
use only, and should be installed in conformance with current local
and/or the National Electrical Code.

COMMUNICATIONS INSTALLATION

FOR USE IN DRY LOCATIONS ONLY! NOT FOR USE IN FLOORS

The provided receptacle is dust and splash resistant only. If liquid enters the unit, promptly disconnect breaker or unplug power
and allow to dry thoroughly.

The communication compartment
has two grommeted openings. One
communication cable can be
passed through each grommet.

© Copyright 2005 The Wiremold Company All Rights Reserved

With template provided, use an electric drill with
1/2" [12.7mm] bit to drill corner pilot holes.

Use a portable jigsaw to cut along the inside edge of the
template line. Test fit the enclosure to the hole cut. Carefully
file opening with wood rasp if required.

From under the table surface, attach
mounting brackets into corresponding
slots in the enclosure body for each
side. Tighten captive fastener until it
comes in contact with underside of
table. Tighten until snug. Do not over­tighten.

Make final terminations. Plug cord into
a proper electrical receptacle. GFCI
protected circuits are recommended

HOLECUT INSTALLATION

1

3

4

2

Connect any electrical feed
and communications and drop
enclosure into opening

Wiremold / Legrand

U.S. and International:
60 Woodlawn Street • West Hartford, CT 06110
1-800-621-0049 • FAX [phone] • Outside U.S. 860-233-6251
Canada:
570 Applewood Crescent • Vaughan, Ontario L4K 4B4
1-800-723-5175 • FAX [phone]

42671R2 – Updated April 2005 – For latest specs visit www.wiremold.com

CORD-ENDED

FIELD-INSTALLED

For additional dimensional information

and installation templates –

please visit the CAD file section at

www.wiremold.com

CAUTION: When printing copies of this template, be

sure the template is scaled correctly and
that it is the correct size once it is printed
before proceeding.

1/2" [12.7mm]
drill (4 places)

HOLECUT TEMPLATE

DO NOT COPY OR SCALE!

8 1/2"

[216mm]

4" [102mm] minimum distance

from rear edge of work surface

4 1/8"

[105mm]

HOLECUT TEMPLATE

DO NOT COPY OR SCALE!

4 1/8"

[105mm]
