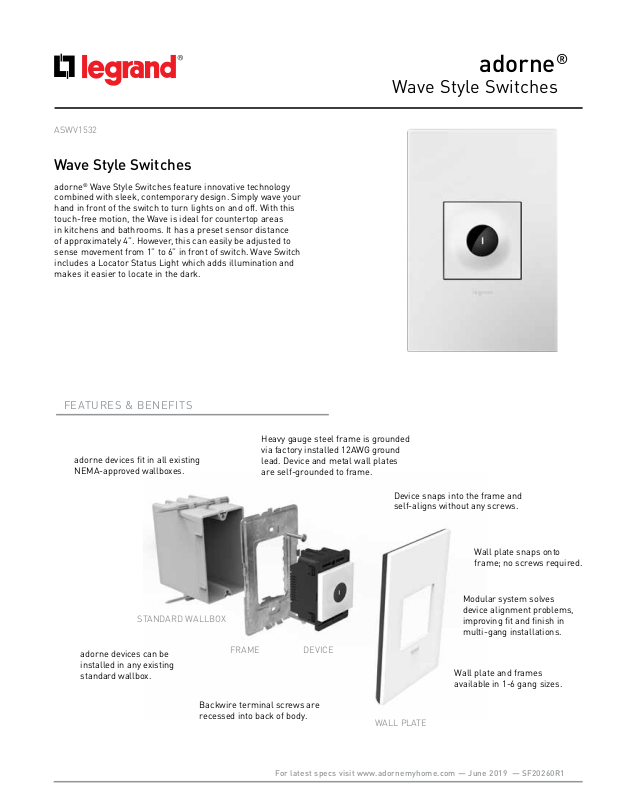

Page 1
ASWV1532
Wave Style Switches
adorne® Wave Style Switches feature innovative technology
combined with sleek, contemporary design. Simply wave your
hand in front of the switch to turn lights on and off. With this
touch-free motion, the Wave is ideal for countertop areas
in kitchens and bathrooms. It has a preset sensor distance
of approximately 4”. However, this can easily be adjusted to
sense movement from 1” to 6” in front of switch. Wave Switch
includes a Locator Status Light which adds illumination and
makes it easier to locate in the dark.
adorne
Wave Style Switches
®
FEATURES & BENEFITS
adorne devices fit in all existing
NEMA-approved wallboxes.
STANDARD WALLBOX
adorne devices can be
installed in any existing
standard wallbox.
Heavy gauge steel frame is grounded
via factory installed 12AWG ground
lead. Device and metal wall plates
are self-grounded to frame.
Device snaps into the frame and
self-aligns without any screws.
Wall plate snaps onto
frame; no screws required.
Modular system solves
device alignment problems,
improving fit and finish in
multi-gang installations.
FRAME DEVICE
Wall plate and frames
available in 1-6 gang sizes.
Backwire terminal screws are
recessed into back of body.
For latest specs visit www.adornemyhome.com — June 2019 — SF20260R1
WALL PLATE
Page 2
adorne
Wave Style Switches
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION RATING COMPATIBLE LOADS COMPLIANCE COLORS COO
ASWV1532M2 Single-Pole/3-Way 15A, 120VAC, 1/2Hp All Loads Magnesium China
ASWV1532W2 Single-Pole/3-Way 15A, 120VAC, 1/2Hp All Loads White China
ASWV1532G2 Single-Pole/3-Way 15A, 120VAC, 1/2Hp All Loads Graphite China
COMPLEMENTARY PRODUCTS
®
adorne® also offers Paddle Style Dimmers and Fan Control
Devices to pair with our Paddle Style Switches for an overall,
aesthetically pleasing and multi-functional installation.
adorne® Wall Plates provide the perfect complement to
adorne Switches, Dimmers, Outlets, and Accessories.
The collection includes a variety of finishes, from metals
to leather and wood, as well as plastic plates that are
available in contemporary and classic colors.
Each wall plate is packaged with a metal frame to enable
easy installation when paired with a device. All plates are
screwless and simply snap onto the included metal frame.
All adorne wall plates are UL and ETL-approved.
VERTICAL MARKETS
· Residential
· Hospitality
· Luxury Office
· Light Commercial
2-Module
Paddle Dimmer
2-Module
Paddle Fan
Speed Control
1-Module
Paddle Switch
2SF20260R1 — June 2019 — For latest specs visit www.adornemyhome.com
Page 3
adorne
Wave Style Switches
®
TECHNICAL SPECIFICATIONS
3rd Party Compliance
cULus Listed, File Number E350248, Standard UL508
Performance
ELECTRICAL
Maximum Working Voltage 120VAC
Ratings
MECHANICAL
Terminal Accommodations #14AWG-#12AWG
ENVIRONMENTAL
Flammability UL94 V2
Operating Temperature
15A Resistive, 15A General Purpose, 15A Incandescent,
1/2 HP 15A Standard Ballast, 15A Electronic Ballast
Maximum continuous +60°C, minimum -40°C without
impact
1.77"
[45mm]
1.77"
[45mm]
Materials
Face Polycarbonate Terminal Brass
Back Body Polycarbonate Termination
Contacts Silver
Warranty
Lifetime Limited Warranty
Steel Plated
Scews
1.27"
2.48"
1.77"
3 For latest specs visit www.adornemyhome.com — June 2019 — SF20260R1
Page 4
FOLLOW US
COMPLEMENTARY DEVICES & ACCESSORIES
sofTap™
Switches & Dimmers – designed with
an innovative micro-movement that
turns lights on and off with just a soft
“tap” of the finger.
SensaSwitch™
Switches & Dimmers – Sensor turns
lights on when you enter a room and
off when you leave. (Also available in
Manual-ON/Auto-OFF format.)
Whisper™
Switches & Dimmers – A smart design
that features elegant lines and a quiet,
fluid motion.
Touch™
Switches & Dimmers – A stunning
translucent face works just like an
®
iPhone
the circle to turn lights on and off.
— simply touch your finger on
Wave™
Switches – Smart technology combined
with sleek, modern design. Simply wave
your hand to turn lights on and off.
Push™
Switches – A tactile, finger-sized
impression lets you turn lights on and
off with a simple push-button motion.
Tamper-Resistant Outlets/
Tamper-Resistant GFCI Outlets
USB Charging Outlets
Paddle™
Switches, Dimmers & Fan Speed
Controls – A wide, graceful curve
works with a simple up-and-down
motion, allowing you to turn lights
on and off with ease.
PLUS: Compatible Wall Plates, Accent Lights, Locator Lights, Under-Cabinet Lighting System
NOTE: All brand and product names referenced in this document are
registered trademarks or trademarks of their respective holders.
NOTE: The paper used to print this document is an environmentally responsible paper with 10% post consumer
waste, with FSC and SFI Chain of Custody certifications, Lacey Act complaint. 100% of the electricity
used to manufacture Flo sheets is generated with Green-e certified renewable energy.
Nightlight/Portable
Nightlight Flashlight
Legrand, North America
60 Woodlawn Street
West Hartford, CT 06110
1.877.BY.LEGRAND (295.3472)
www.legrand.us
Canada
905.738.9195
www.legrand.ca
©2019 Legrand All Rights Reserved SF20260R1
