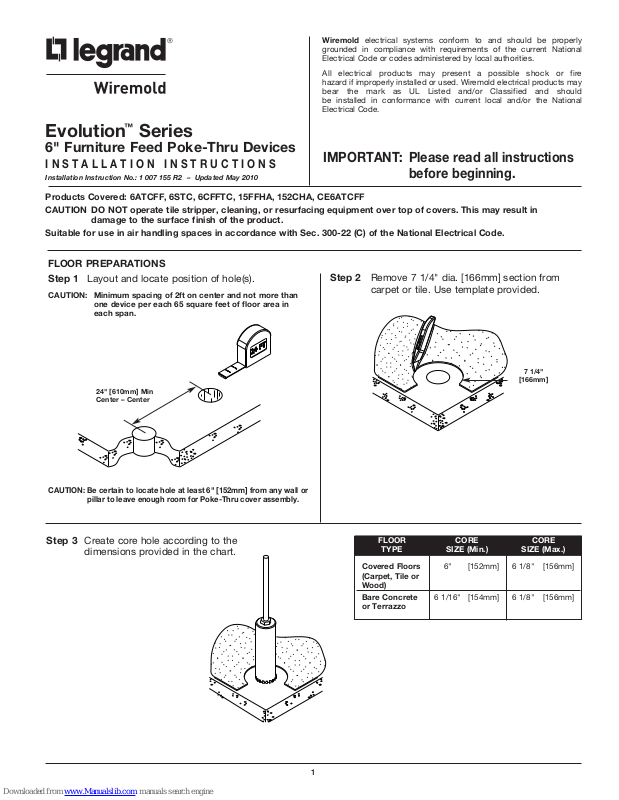

Evolution™Series
6" Furniture Feed Poke-Thru Devices
I N S T A L L A T I O N I N S T R U C T I O N S
Installation Instruction No.: 1 007 155 R2 – Updated May 2010
Products Covered: 6ATCFF, 6STC, 6CFFTC, 15FFHA, 152CHA, CE6ATCFF
CAUTION DO NOT operate tile stripper, cleaning, or resurfacing equipment over top of covers. This may result in
damage to the surface finish of the product.
Suitable for use in air handling spaces in accordance with Sec. 300-22 (C) of the National Electrical Code.
FLOOR PREPARATIONS
Step 1 Layout and locate position of hole(s).
CAUTION: Minimum spacing of 2ft on center and not more than
one device per each 65 square feet of floor area in
each span.
IMPORTANT: Please read all instructions
before beginning.

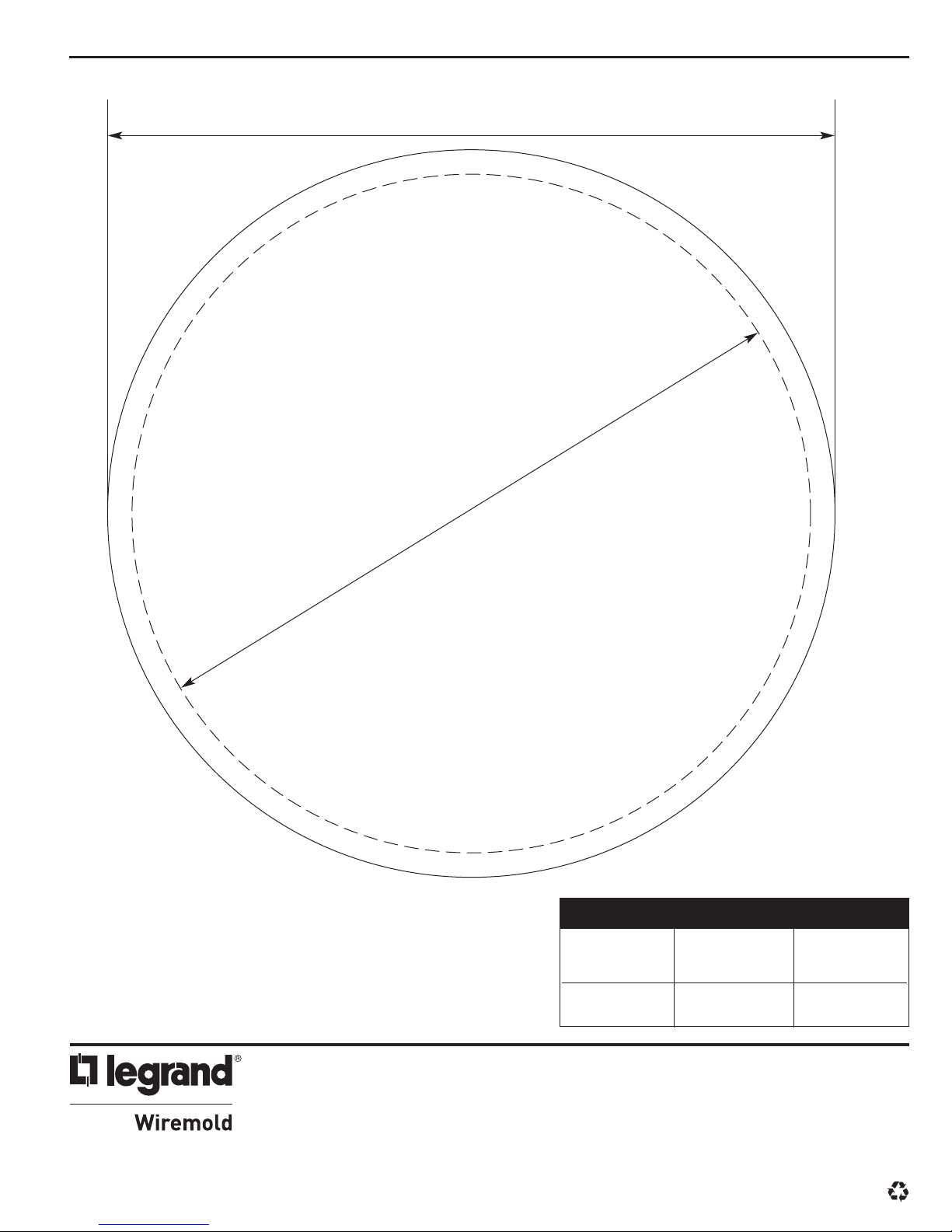

Step 2 Remove 7 1/4" dia. [166mm] section from
carpet or tile. Use template provided.
24" [610mm] Min
Center – Center
CAUTION: Be certain to locate hole at least 6" [152mm] from any wall or
pillar to leave enough room for Poke-Thru cover assembly.
Step 3 Create core hole according to the
dimensions provided in the chart.
7 1/4"
[166mm]
FLOOR CORE CORE
TYPE SIZE (Min.) SIZE (Max.)
Covered Floors 6" [152mm] 6 1/8" [156mm]
(Carpet, Tile or
Wood)
Bare Concrete 6 1/16" [154mm] 6 1/8" [156mm]
or Terrazzo
1
NSTALLING COMPLETE ASSEMBLY
I

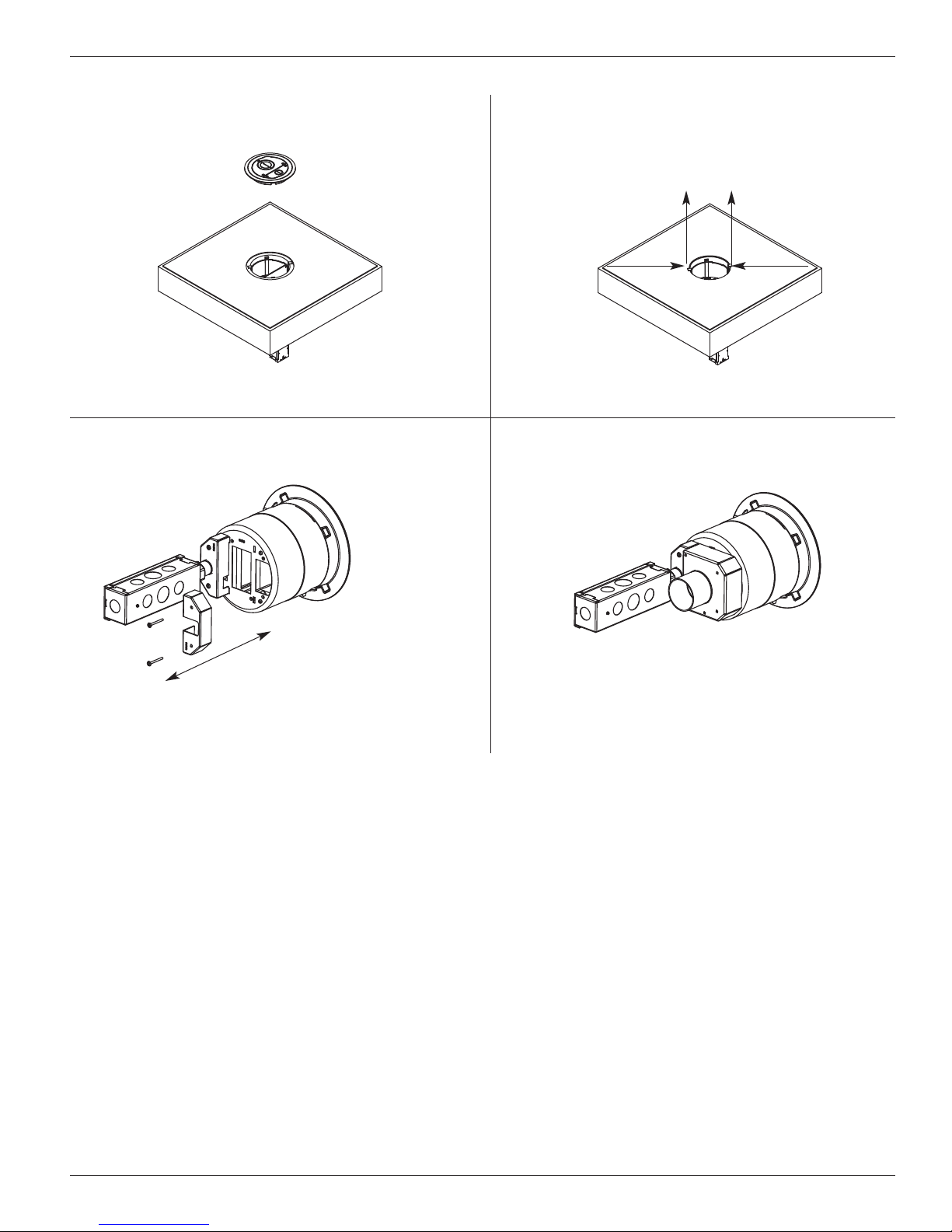

Step 1 Place appropriate gasket
around Poke Thru and
slide under flange. Use
flat foam gasket for tile
pplications or use round
a
neoprene gasket for
carpet applications.
ile Gasket
T
Carpet
asket
G
Step 2 Remove cover plates by
removing (5) 8-32 screws.
Step 3 Remove 3/4" plug from small
cover plate by rotating counterclockwise using a large straight
lade screwdriver. Install 3/4"
b
conduit fitting (provided) into
opening on large cover. Repeat
procedure for 2" conduit fitting,
on large cover plate. (provided)
Step 4 Feed 3/4" inch flexible conduit
into 3/4" conduit fitting on cover
plate. Feed power wires through
small compartment and into the
junction box. Make wiring connections in the junction box.
Refer to copper cross section
chart to determine quantity of
wires to pass through each opening. Attach cover to the flange
using (2) 8-32 x 3/8" screws.
Step 5 Feed data wires through larger compartment and through
2" conduit fitting on cover plate. Refer to copper cross
section chart to determine quantity of cables to pass
through each opening. Attach cover to the flange using
(3) 8-32 x 3/8" screws.
NOTE: Splices must be made in junction box.
NOTE: If necessary remove Feed Plates to pull communications wires through
Poke-Thru device. Replace Feed Plates when finished pulling wires.
CAUTION: To maintain fire classification, Feed Plates must be installed.
2

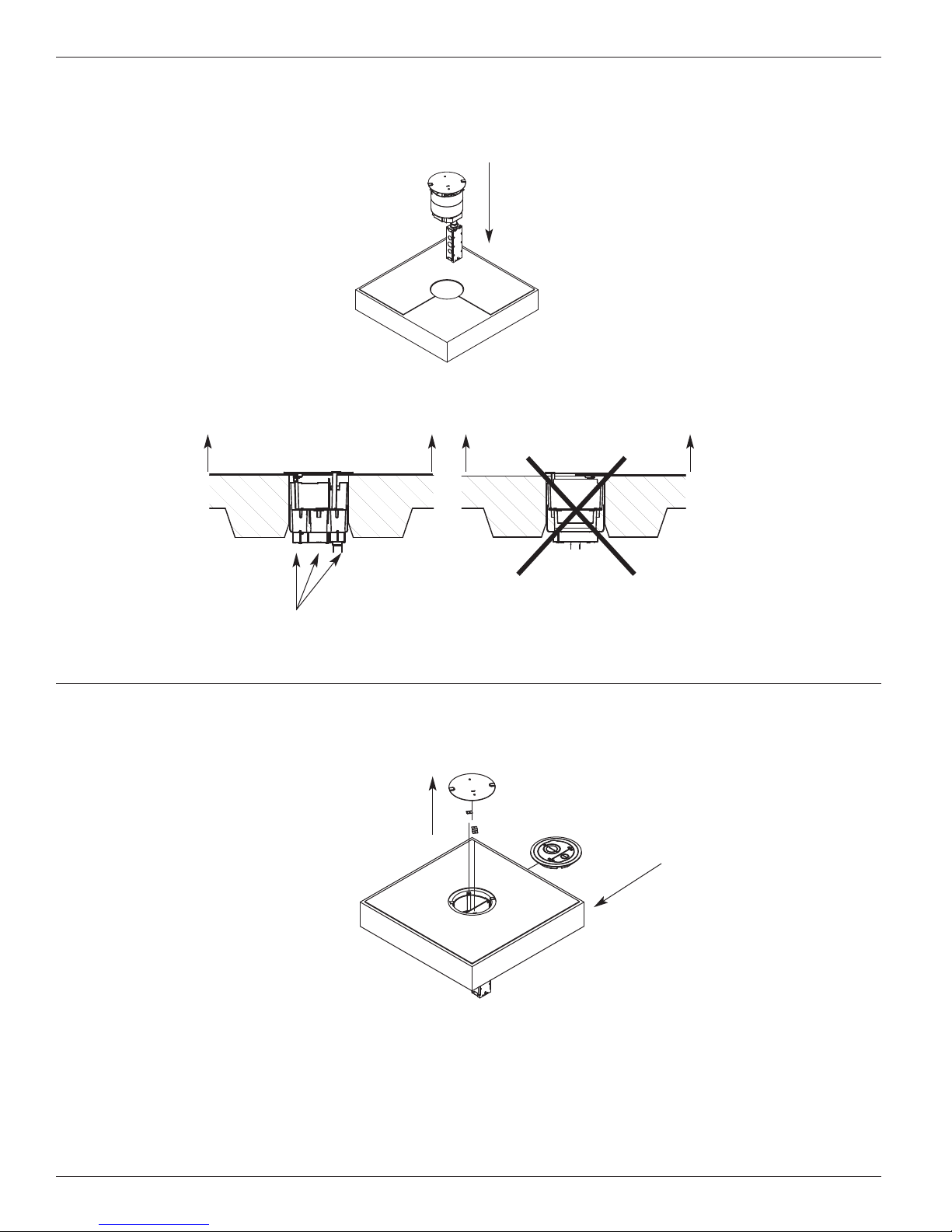

Step 6 Orient Poke Thru so that the three channels span across the corrugations of the deck.
Push Poke-Thru into floor.
B BA A
Device openings must
span across deck
CAUTION: Cover must be removed to rotate Poke Thru once it has been installed in the floor.
Step 7 Installation complete.
