LEGRAND 4 305 21, 4 305 22, 4 305 23, 4 305 24/25 User Manual

3.6-44.3mm 12X

motorized day/night dome colour camera

4 305 21

3.5-94.5 mm 27X motorized day/night dome colour camera
4 305 22

3.6-44.3mm 12X

weatherproof motorized day/night dome colour camera

4 305 23

3.5-94.5 mm 27X weatherproof motorized day/night dome colour camera
4 305 24

3.5-129.5 mm 37X weatherproof motorized day/night dome colour camera
4 305 25

USER MANUAL

LE03668

AB

4 305 21 4 305 22

4 305 23 4 305 24/25

2

Important Safety Guide

Read, heed and follow all the Instructions

Read all the safety and operating instructions before using the product.

Keep this manual

Keep this manual for reference in future.

Attachments / Accessories

Use only the attachments or accessories specified by the manufacturer.

Installation

 Do not install near any heat resources such as radiators, heat registers, stoves, or other appratus including amplifiers that

product heat. Improperly installed product may fall, cause serious injury to a child or adult and damage the product.

 Do not block any ventilation holes or openings. Install in accordance with the manufacturer’s instructions.

 Use only with the cart, stand, tripod, bracket, mounting devices, or table specified by the manufacturer.

 Installation should be done only by qualified personnel and conform to all the instructions by the manufacturer.

 Refer all servicing to qualified service personnel.

 Unless the product is specifically marked as IP67, more than IP67 or confirmed by the manufacturer, it is designed for

indoor use only and it must not be installed where exposed to rain and moisture.

 Do not load on the product.

 Use stainless steel hardware to fasten the mount.

 To prevent damage from water leakage when installing a mount outdoors on a roof or wall, apply sealant properly

around holes.

 These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not

perform any servicing other that contained in the operation instructions unless you are qualified to do so.

 Use only replacement parts specified by the manufacturer.

Power source

This product should be operated only from the type of the power source indicated on the marking label.

3

CAUTION

Operating

 Before using, make sure that the power supply and others are properly installed.

 While operating, if any abnormal condition or malfunction is observed, stop using the product immediately and then

contact your local dealer.

Handling

 Do not disassemble or tamper with the parts inside the product.

 Do not drop or subject the product to shock and vibration as this can damage the product.

 Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin the quality of the product.

Installation and Storage

 Do not install the product in areas of extreme temperature, which exceed the allowable range.

 Avoid installing in humid or dusty places.

 Avoid installing in places where radiation is present.

 Avoid installing in places where there are strong magnetic fields and electric signals.

 Avoid installing in places where the product would be subject to strong vibrations.

4

Table of contents

Important Safety Guide...............................................................................................................................2

CAUTION........................................................................................................................................................ 3

1 INTRODUCTION......................................................................................................................................6

1.1 MODEL CODE............................................................................................................................................... 6

1.2 FEATURES.................................................................................................................................................... 6

1.3 Package Component................................................................................................................................... 9

1.4 Main Part Description............................................................................................................................... 11

2 INSTALLATION.....................................................................................................................................15

2.1 DIP Switch Setup....................................................................................................................................... 15

2.2 In-Ceiling Mount Installation (4 305 21 Model)..................................................................................... 19

2.3 Installation with Surface Mount Bracket (4 305 21 Model).............................................................. 20

2.4 Direct Installation on the Ceiling (4 305 22 model)............................................................................. 21

2.5 Installation using In-Ceiling Mount Bracket (4 305 22 model)......................................................... 22

2.6 Installation using Ceiling Mount Bracket (4 305 22 model)............................................................... 23

2.7 Installation using Wall Mount Bracket (4 305 22 model).................................................................... 24

2.8 Installation with Ceiling Mount Bracket (4 305 23/4 305 24/4 305 25 Models)................................ 25

2.9 Installation with Wall Mount Bracket (4 305 23/4 305 24/4 305 25 Models) .................................... 26

2.10 Wiring and Cabling (4 305 21/4 305 23/4 305 24/4 305 25) ................................................................. 27

3 Operation...............................................................................................................................................32

3.1 Check Points before Operation .............................................................................................................. 32

3.2 Check Points for Preset and Pattern Function before Operation.................................................... 32

3.3 OSD Menu................................................................................................................................................... 33

3.4 Reserved Presets (Hot Keys).................................................................................................................. 33

3.5 Preset........................................................................................................................................................... 34

3.6 Swing........................................................................................................................................................... 34

3.7 Pattern.........................................................................................................................................................35

3.8 Group........................................................................................................................................................... 36

3.9 Other Functions......................................................................................................................................... 37

3.10 OSD Display ............................................................................................................................................... 38

4 OSD MENU ............................................................................................................................................39

4.1 Quick Programming Guide......................................................................................................................39

4.2 Main Menu................................................................................................................................................... 39

4.3 Display setup.............................................................................................................................................. 40

4.4 Privacy Zone Mask Setup ........................................................................................................................41

5

4.5 Camera Setup (Dome Camera Setup Menu)......................................................................................... 43

4.6 Motion Setup.............................................................................................................................................. 47

4.7 Preset Setup............................................................................................................................................... 50

4.8 Swing Setup ............................................................................................................................................... 53

4.9 Pattern Setup.............................................................................................................................................. 54

4.10 Group Setup...............................................................................................................................................55

4.11 System Initialization.................................................................................................................................. 58

5 Specifications.......................................................................................................................................60

5.1 Dimension................................................................................................................................................... 65

6

1 INTRODUCTION

1.1 MODEL CODE

Ref. 4 305 21 4 305 22 4 305 23 4 305 24 4 305 25

Serie

Mini plastic
small

Mini
Aluminium
with
fan/heater

Mini Aluminium
with fan/heater

Aluminium with
fan/heater

Aluminium
with
fan/heater

Outdoor serie

NO YES

Video signal

PAL

Wall mount

bracket

NO YES

Rated power :

12 VDC

In / Out Trigger

alarm

3 In / 1 Out 4 In / 2 Out 3 In / 1 Out

1.2 FEATURES

Powerful Zoom Camera & Setup Options

4 305 21 4 305 22 4 305 23 4 305 24 4 305 24

Optical Zoom

12

x27 x12 x27 x37

Digital Zoom 12

x12 x12 x12 x12

Max. zoom

magnification

144 324

x144 x324 x444

High light compensation

NO

NO NO

YES YES

Privacy Masks

8 8 8 8 8

Day & Night

YES

WDR

NO YES

Focus Mode

Auto-Focus, Manual Focus, Semi-Auto Focus

OSD Menu

YES

Sensor

¼”super HAD
color CCD

¼” super HAD
color CCD

¼” super HAD
color CCD

¼” super HAD color CCD

Powerful Pan/Tilt Functions

 MAX. 360/sec High Speed Pan/Tilt Motion

 With the Vector Drive Technology, Pan/Tilt motions are accomplished along the shortest path. As a result, the time

to target view is remarkably short and the video on the monitor is very natural in monitoring.

7

 With the Micro-Stepping Control Technology, the video looks very natural at high zoom magnification during a jog

operation on a controller since the camera can be controlled by 0.05/sec. Hence it is very easy to make the camera
focus on desired target views at high zoom magnification. Additionally it is easy to make the camera focus on
desired positions with zoom-proportional pan/tilt movement.

Preset, Pattern, Swing, Group, Privacy Mask and More…

 MAX. 127 Presets are programmable and each preset can have its own parameter values independently from the

other presets.

 For an example, refer to the below table.

Preset No.

White

Balance

Auto Exposure

•••

Label Remarks

Preset 1 Case A Case 3 “ENTRANCE”

Preset 2 Case C Case 5

“WAREHOUS
E”

Preset 3 Case V Case 2 “OFFICE”

•••

Preset 95

   

Reserved for OSD Menu

•••

Preset 128 Case K Case 9 “TERRACE”

 MAX. 4 Patterns are programmable. This function is that the camera memorizes the path (mostly curve path) by the

joystick of the controller and revives the trajectory operated by the joystick as closely as possible.

 MAX. 8 sets of Group are programmable. This function is that the camera memorizes the combination of Presets,

Pattern and/or Swings sequently and runs Presets, Pattern and/or Swings repetitively. A Group can be combined
upto 20 functions with any of Preset/Pattern/Swing.

 8 Privacy Masks are programmable, not to intrude on any other’s privacy :

PTZ (Pan/Tilt/Zoom) Control

 With the RS-485 communication connection, MAX. 255 units of cameras can be connected to a single controller.

 Pelco-D or Pelco-P protocols can be selected as a control protocol in the current firmware version.

OSD (On Screen Display) Menu

 OSD menu is provided to display the status of camera and to configure the functions interactively.

 The information such as Camera ID, Pan/Tilt Angle, Direction, Alarm Input and Preset is displayed on screen.

Alarm In/Out Function

 4 305 22 : 4 alarm sensor inputs and 2 alarm output relays

 4 305 21/4 305 23/4 305 24/4 305 25 : 3 alarm sensor inputs and 1 alarm sensor outputs

 Alarm sensor input is decoupled with photo-couplers to avoid external electric noise and shock perfectly.

8

 Both of N.O.(Normal Open) sensors and N.C.(Normal Close) sensors can be used and the signal range of the sensor

input is from DC 5.0V to 12.0V for various applications.

 The camera can be set to move to a Preset position or to run functions such as Pattern, Swing and Group when

there are external sensor activations. Also “Post Alarm” function is possible, which is supposed to activate after
user-defined time period and sequentially in succession to the action by external sensor activations.

Reserved Presets (Hot Keys)

 Most camera setup options can be set up easily and directly with the reserved presets (Hot Keys), without entering

into OSD menu. For more information, refer to “Reserved Presets (Hot Keys)” in this manual.

Perfect Outdoor Environment Compatibility and Easy Installation

 4 305 23/4 305 24/4 305 25 : The fans and heaters are built-in in the camera for cold and hot temperature

environment. Also idealistic mechanical design protects the camera from water and dust. (IP67 when installed
properly with wall mount bracket only)

1.3 Package Component

(4 305 21 Model)

Product & Accessories

Main Body & Surface Mount Bracket

I/O Cable

(4 305 22 Model)

Product & Accessories

Main Body / Terminal Cover

Optional brackets

In-Ceiling Mount Bracket

4 305 96

Ceiling Mount Bracket

9

Default

Accessories

[Main Cable, Calblock, Screws : Tapping M4

Machine M3

6, Machine M3

Dome Cover

Screws

4 305 97

Corner bracket

4 305 98

16, Tapping M425,

8]

Wall mount bracket

4 305 94

(4 305 23/4 305 24/4 305 25 Model

s)

Main Body & Surface Mount Bracket

Accessories for The Models with Alarm In/Out

Function [I/O Cable]

Optional Brackets

Corner bracket 4 30

5

Pole bracket 4 305

99

10

Product & Accessories

Default Accessories

[Main Cable, Wrench]

Wall Mount Bracket

[Screws : Machine M5

15, Hex Lag #14

98 Ceiling Mount Bracket

99

50]

4 305 95

11

1.4 Main Part Description

(4 305 21 Model)

Surface Mount Bracket

Mounting Screw Hole

Dome Cover

Assembly

Stud

DIP Switch

Sensor I/P Port

Main Connector

Dome Cover

Dome Cover Lock

-

up Screw

 Dome Cover Do not detach the protection vinyl from the dome cover before finishing all the

installation process to protect the dome cover from scratches or dust.

 Dome Cover Lock-up

Screw

Used to lock up the dome cover after assembling the dome cover with the main
body.

 Dome Cover Assembly

Stud

Used to line up the stud on the main body and the stud on the dome cover when
assembling the dome cover with the main body.

 DIP Switch Used to set up camera IDs and protocols.

 Surface Mount Bracket

& Mounting Screw Hole

Used for surface mount type, wall mount type and ceiling mount type. They are not
used for in-ceiling mount type.

 Main Connector Used for the power wire, the video cable and the RS-485 communication cable

connection.

 Sensor I/O Port Used for the sensor in/out connection.

(4 305 22 Model)

 Dome Cover

Do not detach protection vinyl from dome cover before finishing all installation

process to protect dome cover from

 Terminal Cover

This is used to install the camera directly on the ceiling or attach to the other

brackets such as in

and then attach this directly to ceiling or to the other

assembled

 Drop Prevention Spring

Drop Prevention Hook

This part keeps the camera from dropping during installation and

install the Terminal Cover, please, hang the spring to the drop

main body as shown in picture for further tasks.

 Lockup Screw

After assembling Terminal Cover to main body, screw Terminal Cover to main body

to protect them from

 Fuse

If the fuse is burnt to protect your came from over

be replace with new one. The fuse specification is 250V 2A. However, we

consulting with supplier to remove the cause

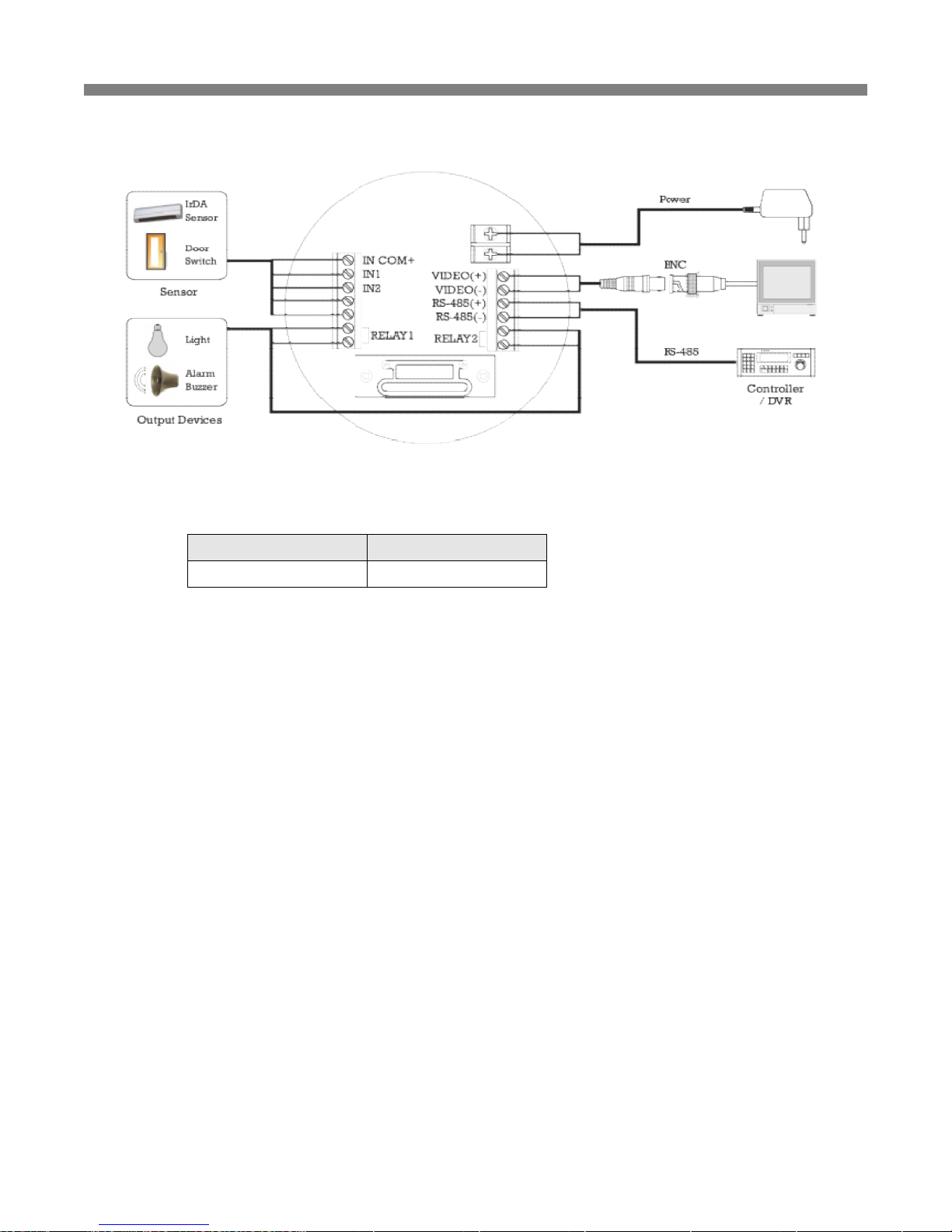

 Cabling Terminal Block

During installation, Power, Video, C

on to this cabling terminal block.

12

scratch

es or dust

-

ceiling, ceiling and wall mount. After

at the last stage.

separation by vibration and so on.

-

current

of over

ommunication

, Alarm I/O cables are

separating this cover first

bracket. Camera must be

maintenance. After

prevention hook of

damage, the fuse have to

recommend

-current.

connected

13

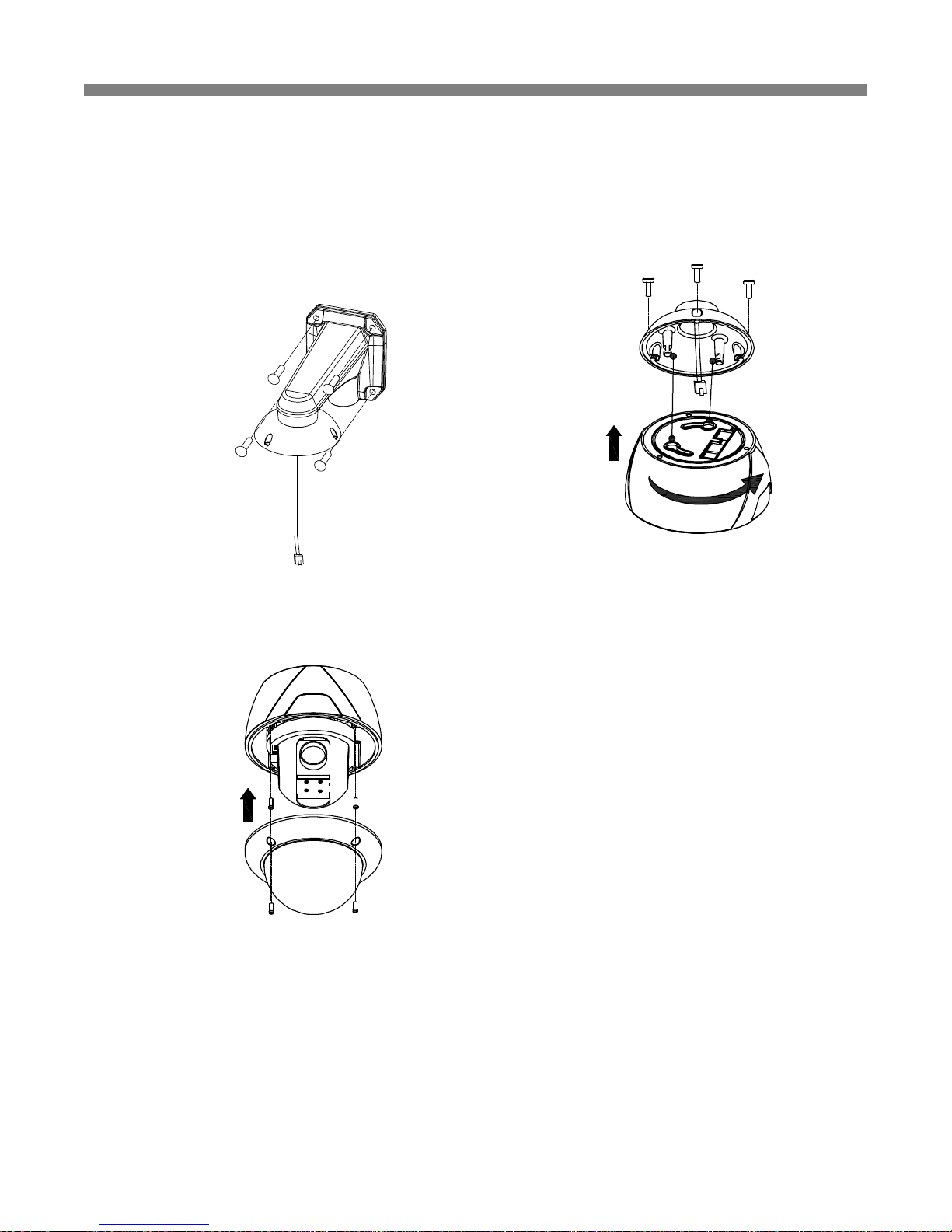

Terminal Cover Disassembling

① Remove the Lockup Screw as shown bellow.

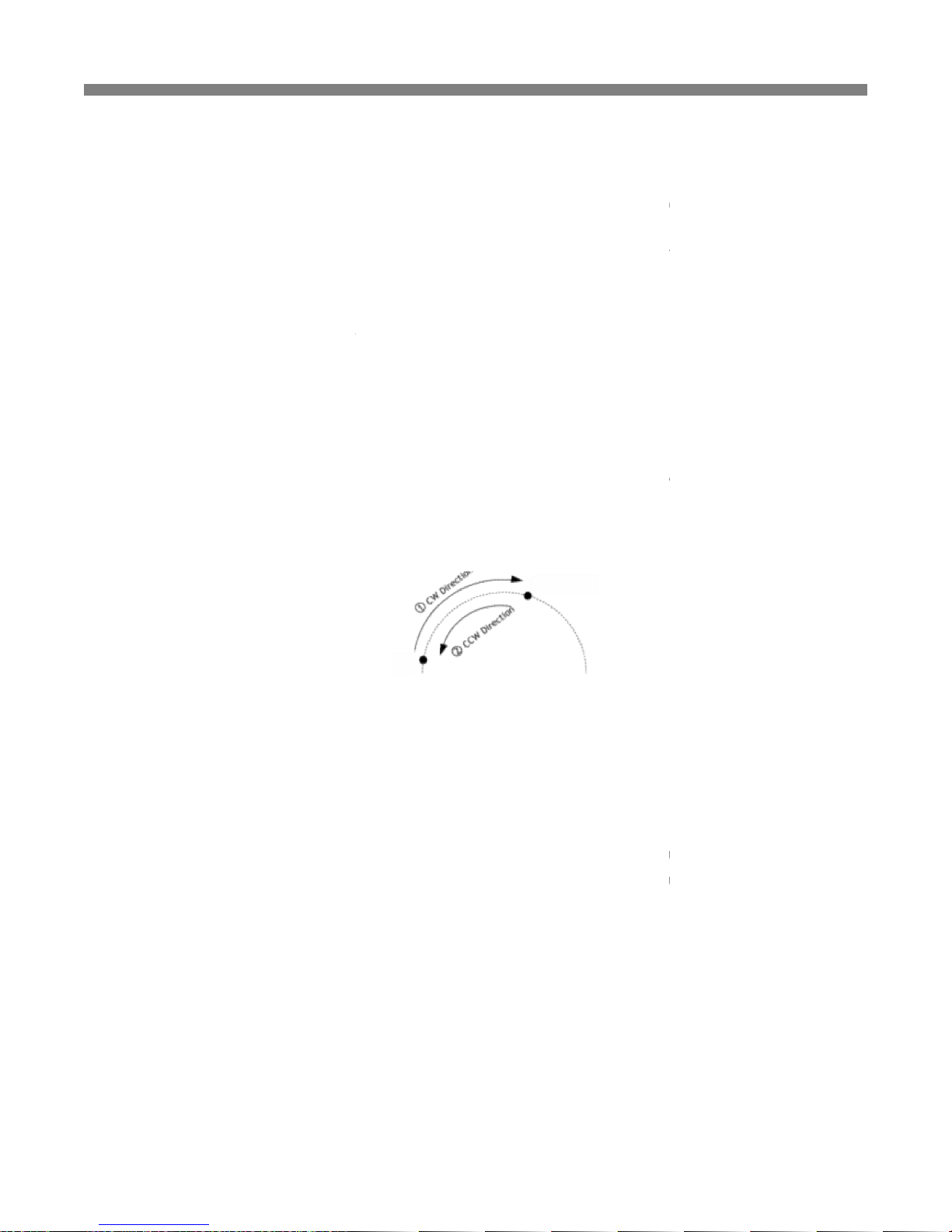

② Turn main body on its axis in

CCW(Counter-clockwise) direction and separate
it from Terminal Cover.

Terminal Cover Assembling

① Check if the summit of the Plate Spring is

located at the arrow mark as shown in the dotted
circle.

② Check the 2 mold line for assembly before

starting assembly. Line up the mold lines as
shown in the dotted circle and turn main body
on its axis in CW(Clockwise) direction and
assemble main body to Terminal Cover. After
assembling them, screw main body to Terminal
Cover to protect them from separation by
vibration and so on.

14

(4 305 23 Model)

Mou nting Hook

DIP Switch

Main Connector

Sen sor I/ O Port

Dom e Cover

Mou ntin g Screw Hole

Main Body / Terminal Cover

 Dome Cover Do not detach the protection vinyl from the dome cover before finishing all

the installation process to protect the dome cover from scratches or dust.

 DIP Switch Used to set up camera IDs and protocols.

 Mounting Hook Used to assemble the main body with wall mount bracket or ceiling mount

bracket. Insert the mounting hooks into the holes on the surface of the
main body and turn the main body.

 Mounting Screw Hole Used to assemble the main body with a bracket with screws.

 Main Connector Used for the power wire, the video cable and the RS-485 communication

cable connection.

 Sensor I/O Port Used for the sensor in/out connection.

2 INSTALLATION

2.1 DIP Switch Setup

(4 305 21/4 305 23/4 305 24/

4 305 25

Before installing the camera, set up the DIP switch to configure the camera ID and the

(4 305 22 model)

Before you install the camera, you should set the DIP switches to configure the camera ID,

the ISP connector. (Authorized person only !)

ON

ON

1 2 3 4 5 6

15

models)

communication

communication

7 8

protocol.

protocol. Do not use

Camera ID Setup



ID numbers of cameras are set up with binary numbers. See the

Pin

Binary Value

Ex : ID=5

Ex : ID=10

The camera ID range is “1~255”.

Camera ID must not be



The factory default of the camera ID is



Match the camera ID with the Cam ID setting of your DVR or Controller to control the camera.



If you are connecting a single camera to a controller, terminate the camera. When connecting more than one camera to

single controller, terminate the last camera on the communication line. The last camera means the camera farthest in

cable length from the controller.



Note that the total length of the communication cable between a controller and the camera(s) on the sam

communication line must be less than 1.2Km

Communication Protocol Setup

 Select the appropriate

Protocol with DIP switch combination.

Switch State

P0

(Pin 1)

P1

(Pin 2)

OFF

OFFONOFF

OFF

ON

ON

ON

Otherwise



If you want to control using DVR or P/T controller, their protocol must be identical to camera. Otherwise, you can not

control the camera.



If you changed camera protocol by changing DIP S/W, the change will be effective after you reboot the camera.

 Factory default of protocol is “Pelco-

D, 2400 bps

16

examples shown below.

1 2 3 4 5 6

1 2 4 8 16 32

on off on off off off

off on off on off off

“0”! Factory default of Camera ID is 1.

“1”.

Protocol/Baud rate

P2

(Pin 3)

OFF PELCO-

D, 2400 bps

OFF PELCO-

D, 9600 bps

OFF PELCO-

P, 4800 bps

OFF PELCO-

P, 9600 bps

Reserved

D, 2400 bps

”.

7 8

64 128

off off

off off

a

e

Terminal resistor Setup

Terminal resistor is used if your system is one of following two



Case1: Control cable between camera and controller is relatively very long (1:1 connection)

If communication

cable is very long, the electrical signal will bound in the

original signal. Accor

dingly, the camera can be out of control. In this case, the

controller must be set to ‘ON’ state.

 Case2: Multiple

cameras are controlled at the same time

Due to similar reasons with case 1, the

terminal

means decided by cable length. Do not turn on the terminal resistor of all

17

cases.

terminal

point. This reflected signal cause distortion of

terminal

resistor of both sides i.e. camera and

resi

sters of controller and the last camera must be set to

cameras.

‘ON’ state. Last camera

18

Sensor Type Setup

 If you want to use Alarm Input, the types of sensor must be selected. The sensor types are Normal Open and Normal.

 Normal Open Output Voltage is high state when sensor is activated.

 Normal Close Output Voltage is high state when sensor is not activated.

Pin No Switch State Sensor Type

ST1 (Pin 4)

ON Sensor 1 : Normal Close Type

OFF Sensor 1 : Normal Open Type

ST2 (Pin 5)

ON Sensor 2 : Normal Close Type

OFF Sensor 2 : Normal Open Type

ST3 (Pin 6)

ON Sensor 3 : Normal Close Type

OFF Sensor 3 : Normal Open Type

ST4 (Pin 7)

ON Sensor 4 : Normal Close Type

OFF Sensor 4 : Normal Open Type

 If sensor type is not selected properly, the alarm can be activated reversely.

19

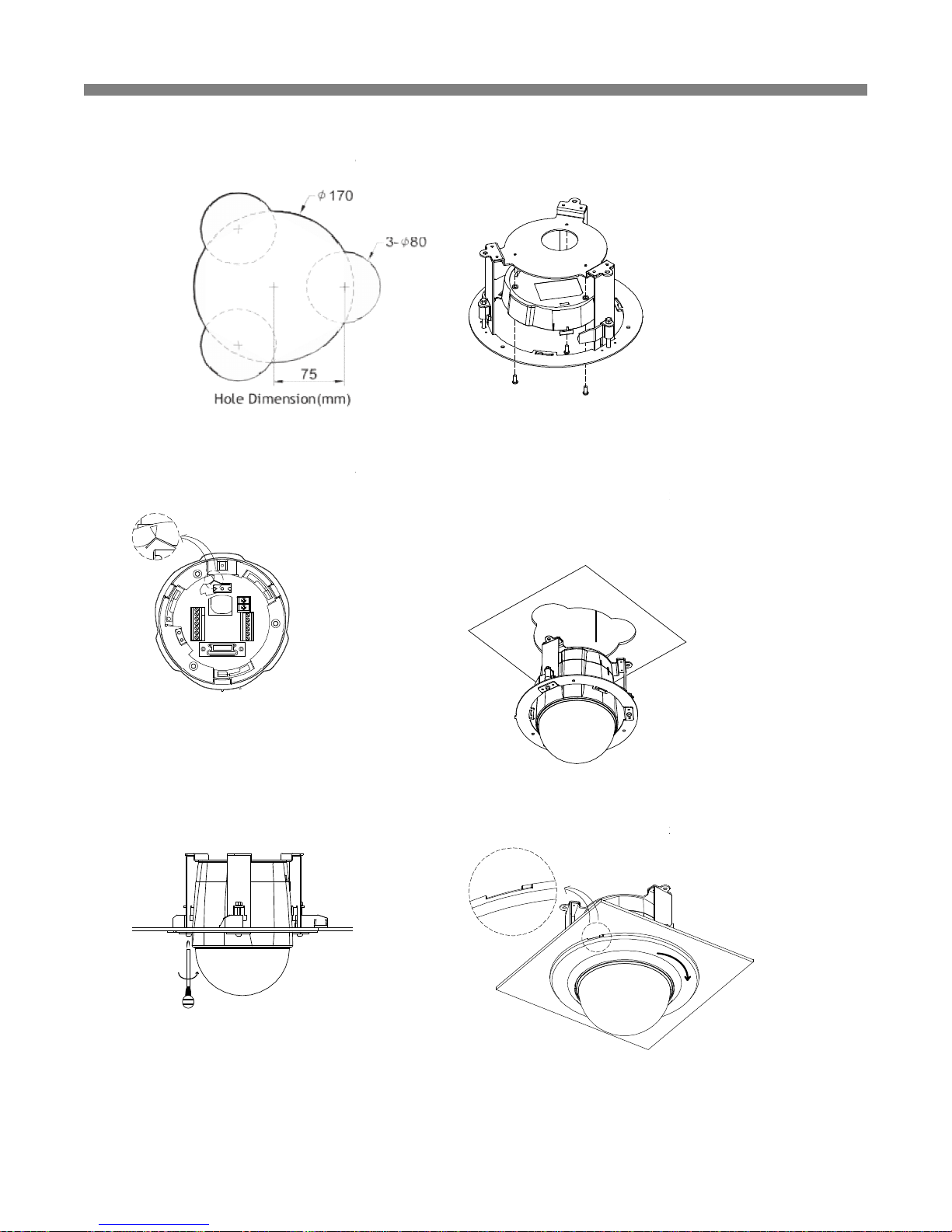

2.2 In-Ceiling Mount Installation (4 305 21 Model)

① Remove the ceiling tile from the ceiling and cut a
hole whose diameter is 110mm on the ceiling tile to pass
the wires and cables through to the upside of ceiling.

② Connect the wiring and cabling and attach the

camera to the ceiling tile. (Tapping M416).

③ Align the dome cover stud with the dome cover
assembly stud and slightly push the dome cover to the
ceiling tile.

④ Turn the dome cover clockwise and screw on the
dome cover lock-up screw. Then remove the protection

vinyl from the dome cover. (Machine M36)

Important Notice

Before starting the installation, make sure that the Camera ID and Protocol are set up properly.

20

2.3 Installation with Surface Mount Bracket (4 305 21 Model)

① Remove the ceiling tile from the ceiling and

cut a hole whose diameter is 30~40mm on the ceiling
tile to pass the wires and cables through to the upside
of the ceiling. (In case of wiring and cabling through
the ceiling tile only)

② Prepare the surface mount bracket. Pull the wires and

cables for the system as below. Attach the surface mount

bracket to the mounting surface. (Tapping M425)

③ Connect the wires and cables to the ports and

install the main body. (Machine M38)

④ Align the dome cover stud with the dome cover

assembly stud and slightly push the dome cover to the ceiling.
Turn the dome cover clockwise and screw on the dome cover
lock-up screw. Then remove the protection vinyl from the dome

cover. (Machine M36)

Important Notice

Before starting the installation, make sure that the Camera ID and Protocol are set up properly.

When the pipe hole for wiring and cabling on side of the Surface Mount Bracket is not used, make sure that the hole is
properly sealed with the supplied Hole Plug.

2.4

Direct Installation on the Ceiling (

①

To pass cables to upside of ceiling, please,

make about 50~60mm hole on the ceiling

③

After assembling the Rubber Gasket to

the Terminal Cover, install Terminal Cover on

ceiling tex and connect cables to terminal blocks.

⑤

Check the 2 mold line for assembly before

starting assembly. Line up the mold lines as shown

in the dotted circle and turn main body on its axis

in CW(Clock-

Wise) direction and assemble

body to Terminal Cover.

21

4 305 22 model)

panel.

② For

cable connection, remove the pre

the Rubber Gasket

and locate the summit of the Plate Spring at the

arrow mark as shown in the dotted circle.

④ Connect the “Drop Pr

evention Spring

prevent camera from drop.

main

⑥

Tighten the Lockup Screw as shown bellow.

-defined hole mark on

” to the main body to

2.5 Installation using In-

Ceiling Mount Bracket

①

Cut the panel of ceiling as shown bellow.

③

Locate the summit of the plate spring at the

arrow mark as shown in the dotted circle.

⑤ Screw camera to ceiling

tex with 3 screws

22

(4 305 22 model)

②

Assemble Terminal Cover of camera to the

In-Ceiling Mount

Bracket as shown bellow.

④

Assemble main body to Terminal Cover and

insert the assembly into ceiling tex.

Holes are to be used to sustain the device.

tightly. ⑥ Assemble Deco.

Ring with camera and turn

Deco. Ring on its axis in CW(Clockwise) direction.

23

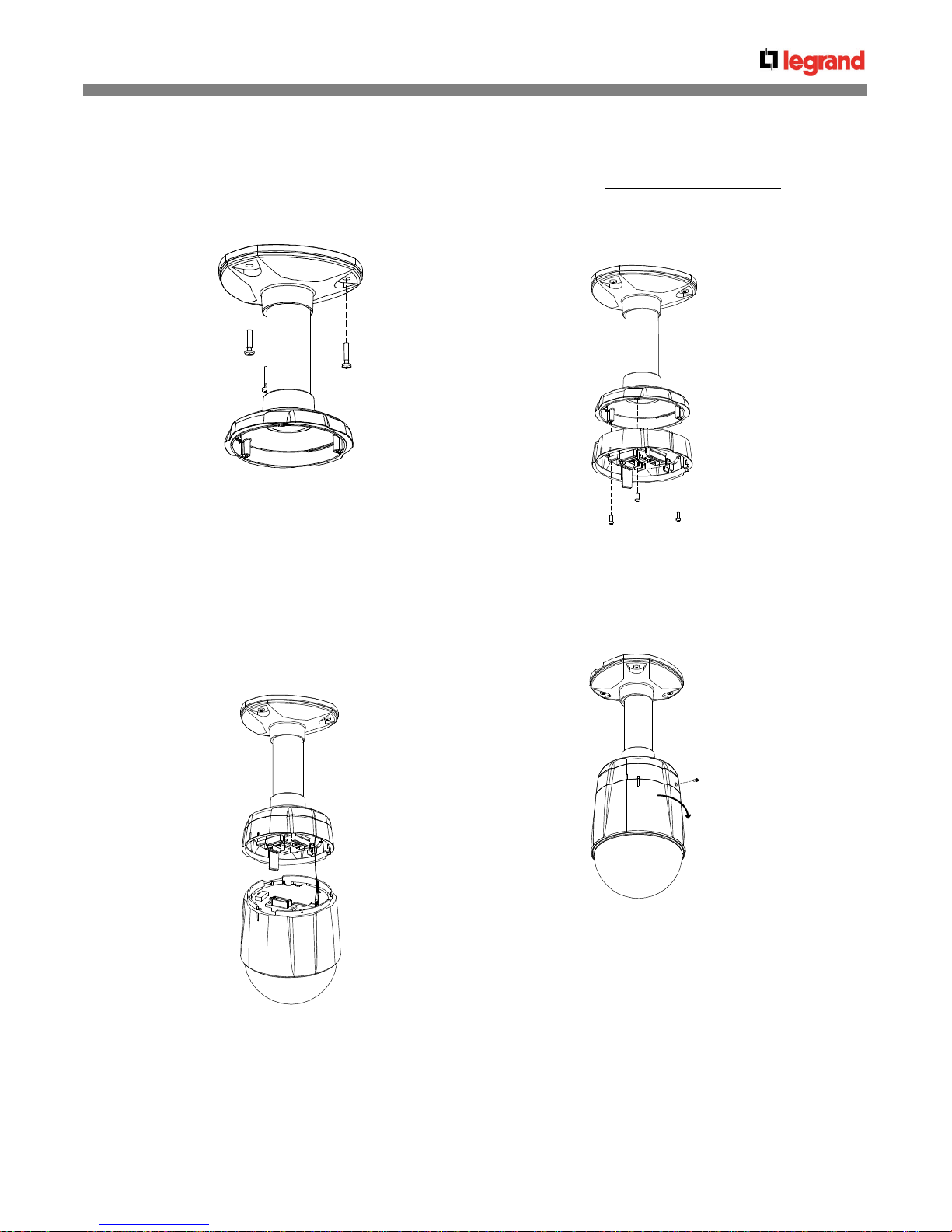

2.6 Installation using Ceiling Mount Bracket (4 305 22 model)

① To pass cables to upside of ceiling, please

make about 50~60mm hole on the ceiling panel and
attach the Ceiling mount bracket on it.

② Assemble Terminal Cover to Ceiling Mount

Bracket with 3 screws. (Do not use Rubber Gasket !)

Locate the summit of the Plate Spring at the
arrow mark. (For more information, refer to the “Terminal
Cover Assembling” section)

③ Connect “Drop Prevention Spring” to main
body to prevent camera from drop. Line up the
mold lines and turn main body on its axis in
CW(Clockwise) direction and assemble main body to
Terminal Cover.

④ After assembling them, screw main body to
Terminal Cover to protect them from separation by
vibration and so on.

24

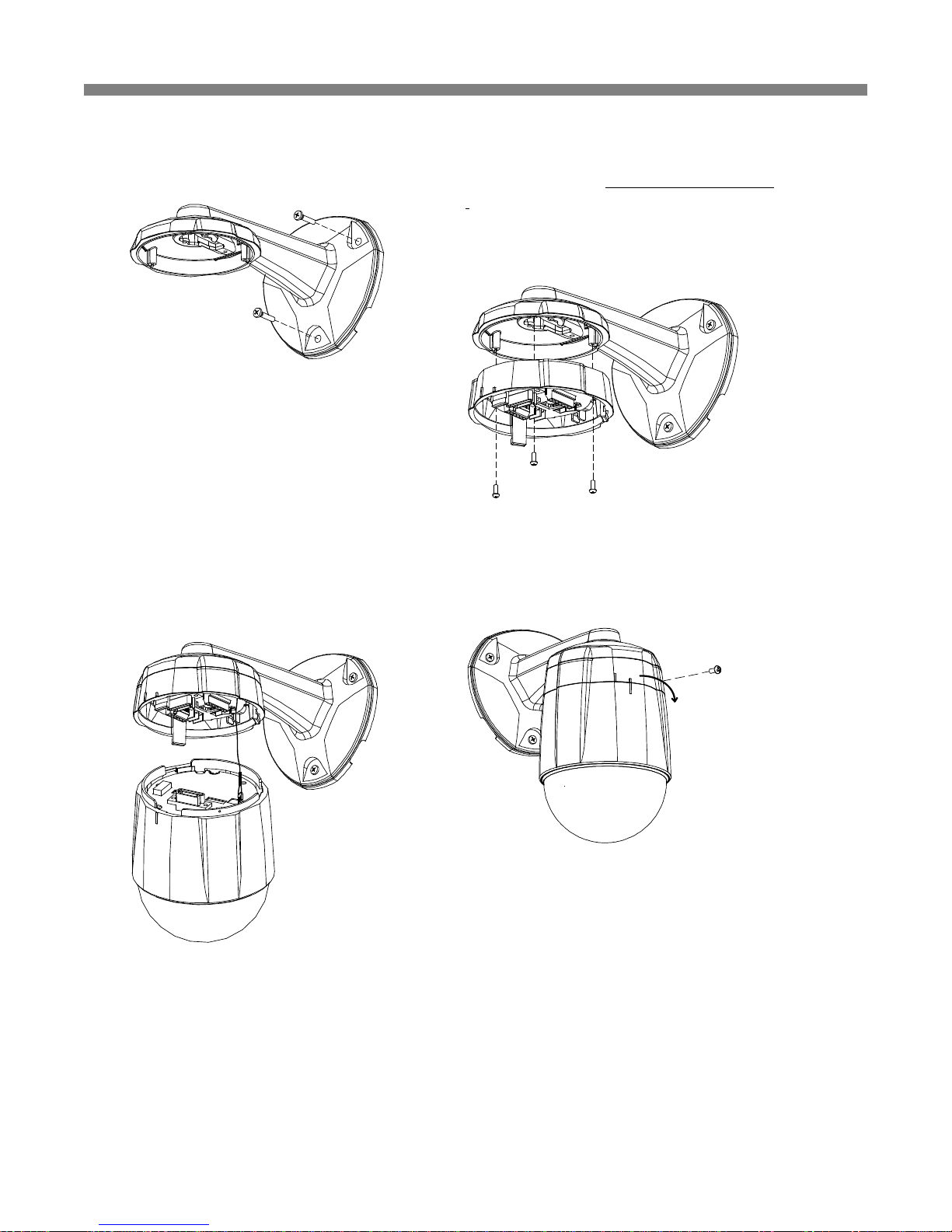

2.7 Installation using Wall Mount Bracket (4 305 22 model)

① Install Wall Mount Bracket on wall. ② Assemble Terminal Cover to Wall Mount

Bracket with 3 screws. (Do not use Rubber Gasket

!)

Locate the summit of the Plate Spring at the
arrow mark. (For more information, refer to the
“Terminal Cover Assembling” section)

③ Connect “Drop Prevention Spring” to main

body to prevent camera from drop. Line up the
mold lines and turn main body on its axis in
CW(Clockwise) direction and assemble main body to
Terminal Cover.

④ After assembling them, screw main body to

Terminal Cover to protect them from separation by
vibration and so on.

25

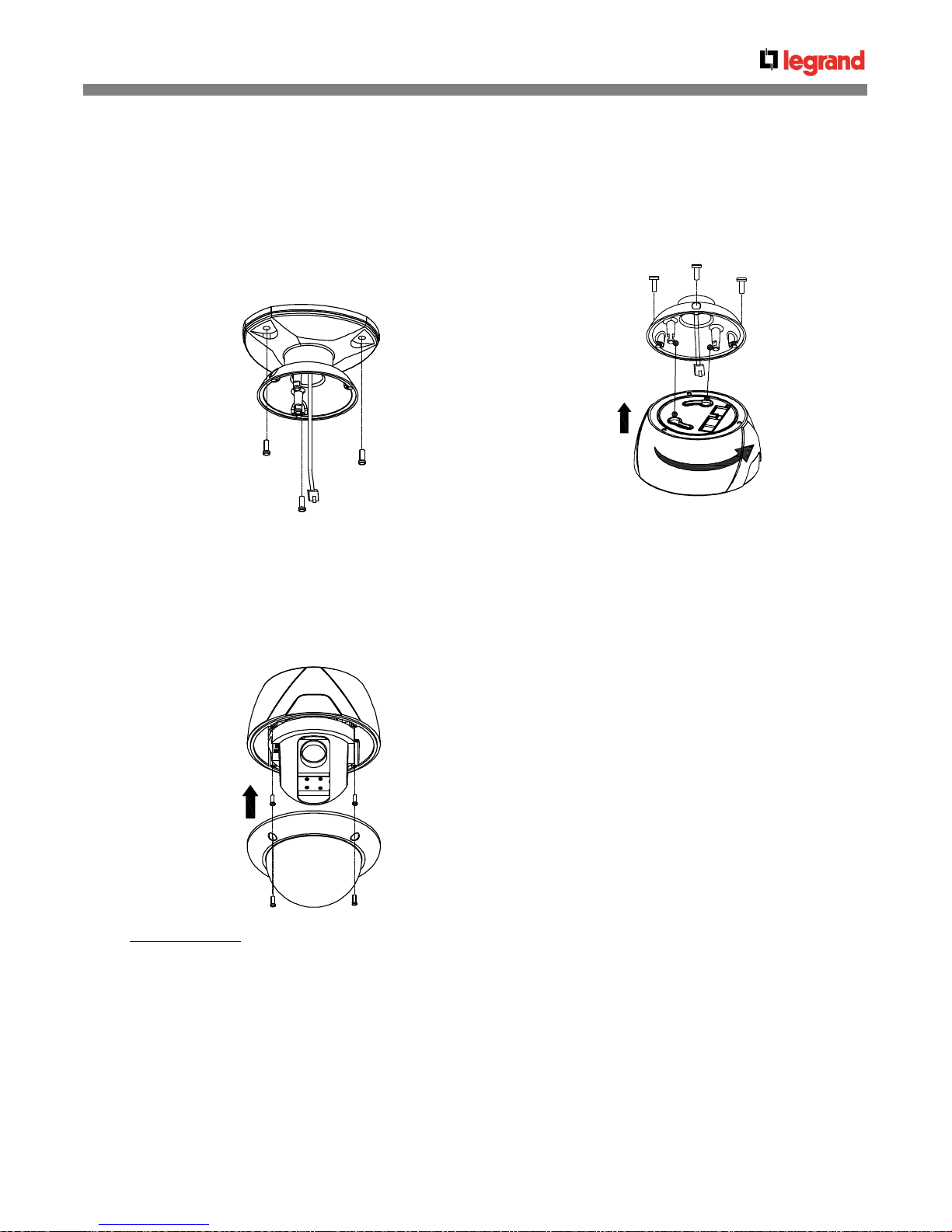

2.8 Installation with Ceiling Mount Bracket (4 305 23/4 305 24/4 305 25 Models)

① Remove the ceiling tile from the ceiling and cut a

hole whose diameter is 30~40mm on the ceiling tile to pass
the wire(s) and cable(s) through to the upside of the
ceiling. (In case of the wiring and cabling through the
mounting surface only) Then prepare the ceiling mount
bracket. Pull the wire(s) for the system as below. (Anchor

Bolt 3/8"70)

② Pull the wire(s) and cable(s) for the system as

below. Wire the cable(s) to the ports. Insert the mounting
hooks into the holes on the surface of the main body and
turn the main body. Assemble the main both with the

camera mount adaptor with the 3 screws. (Machine M515)

③ Screw the dome cover to the main body and

remove the protection vinyl from the dome cover.

Important Notice

Before starting the installation, make sure that the Camera ID and Protocol are set up properly.

To adjust the installation height from the mounting surface, the pipe and coupler should be needed between the surface
mount part of the ceiling mount bracket and the camera mount part of the ceiling mount bracket. Note that they are not
supplied by the manufacturer.

26

2.9 Installation with Wall Mount Bracket (4 305 23/4 305 24/4 305 25 Models)

① Make a hole whose diameter is 30~40mm on the

mounting surface to pass the wire(s) and cable(s) through
the mounting surface. (In case of the wiring and cabling
through the mounting surface only) Then prepare the wall
mount bracket. Pull the wire(s) and cable(s) for the system
as below. Attach the wall mount bracket to the mounting

surface. (Hex Lag #1450)

② Pull the wire(s) and cable(s) for the system as

below. Wire the cable(s) to the ports. Insert the mounting
hooks into the holes on the surface of the main body and
turn the main body. Assemble the main both with the

camera mount adaptor with the 3 screws. (Machine M515)

③ Screw the dome cover to the main body and

remove the protection vinyl from the dome cover.

Important Notice

Before starting the installation, make sure that the Camera ID and Protocol are set up properly.

27

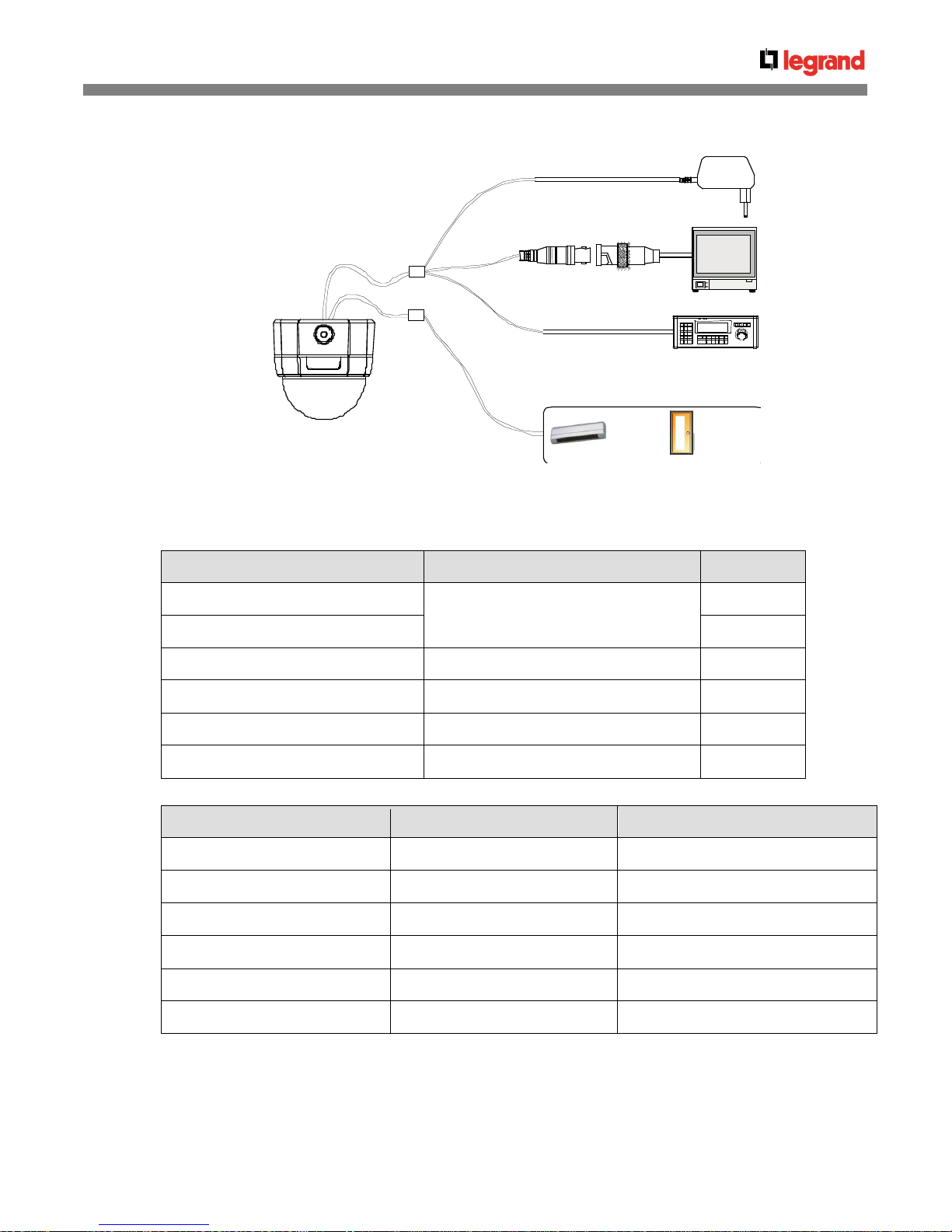

2.10 Wiring and Cabling (4 305 21/4 305 23/4 305 24/4 305 25)

RS-485

BNC

SENSOR I/O

I/O CABLE

MONITOR

CONTROLLER / DVR

.

IR

SENSOR

DOOR

SWITCH

Port Description

 Main Cable

Port Pin Number (RJ45) Connector / Wire Color Signal

1

BNC Connector

Video +

2,4

Video 

5 Red RS-485 +

3 Yellow

RS-485 

7 Orange Power +

6,8 White

Power 

 I/O Cable

Port Pin Number (RJ25) Wire Color Signal

1 Blue IN COM +

2 Yellow

IN 1 

3 Green

IN 2 

4 Red

IN 3 

5 Black OUT A

6 White OUT B

Power Description



Carefully check the voltage and current capacity of the rated power. The rated power is indicated in the back of main

unit.

Model

4 305 21

4 305 23/4 305 24/4 305 25



For the DC input models, be careful with the polarity of DC power. The system should be permanentally damaged by

wrong DC input.



In case that the length of the power wire is very long, there may be voltage drop and the syatem may not work properly.

Make the length of the power wire as short as possible.

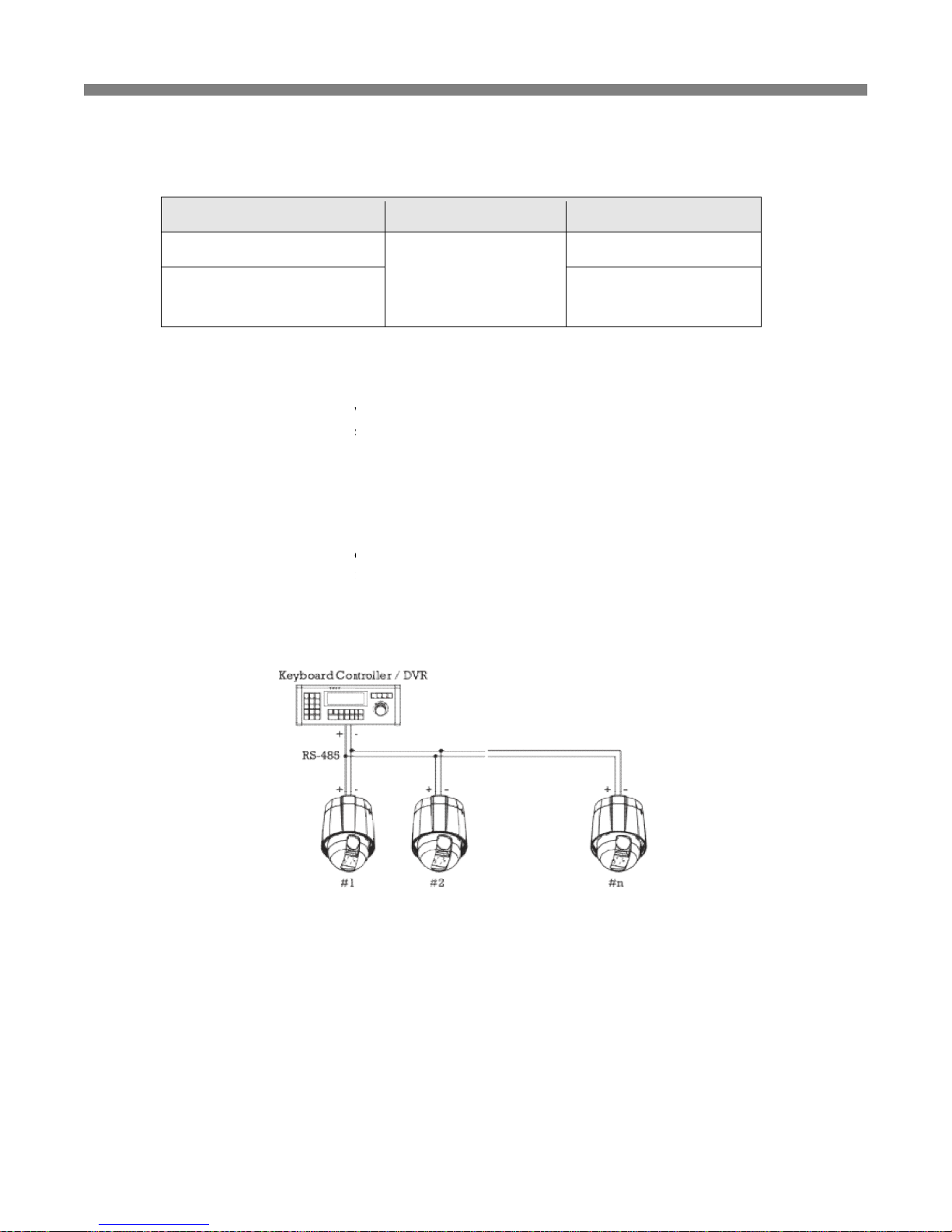

RS-485 Communication



For PTZ control, connect the cable(s) to your keyboard or DVR. To connect multiple cameras to a single controller, RS

communication should be connected in

terminate the cam

era. When connecting more than one camera to a single controller, terminate the last camera on the

communication line. The last camera means the camera farthest in cable length from the controller.

length of the communication cable betw

less than 1.2Km.

28

Input Voltage Range

Current Consumption

DC 11V ~ 15V

0.8 A

2.5 A

parallel

as shown below. If you are connecting a single camera to a controller,

een a controller and the camera(s) on the same communication line must be

-485

Note that the total

Video

 Use BNC coaxial cable only.

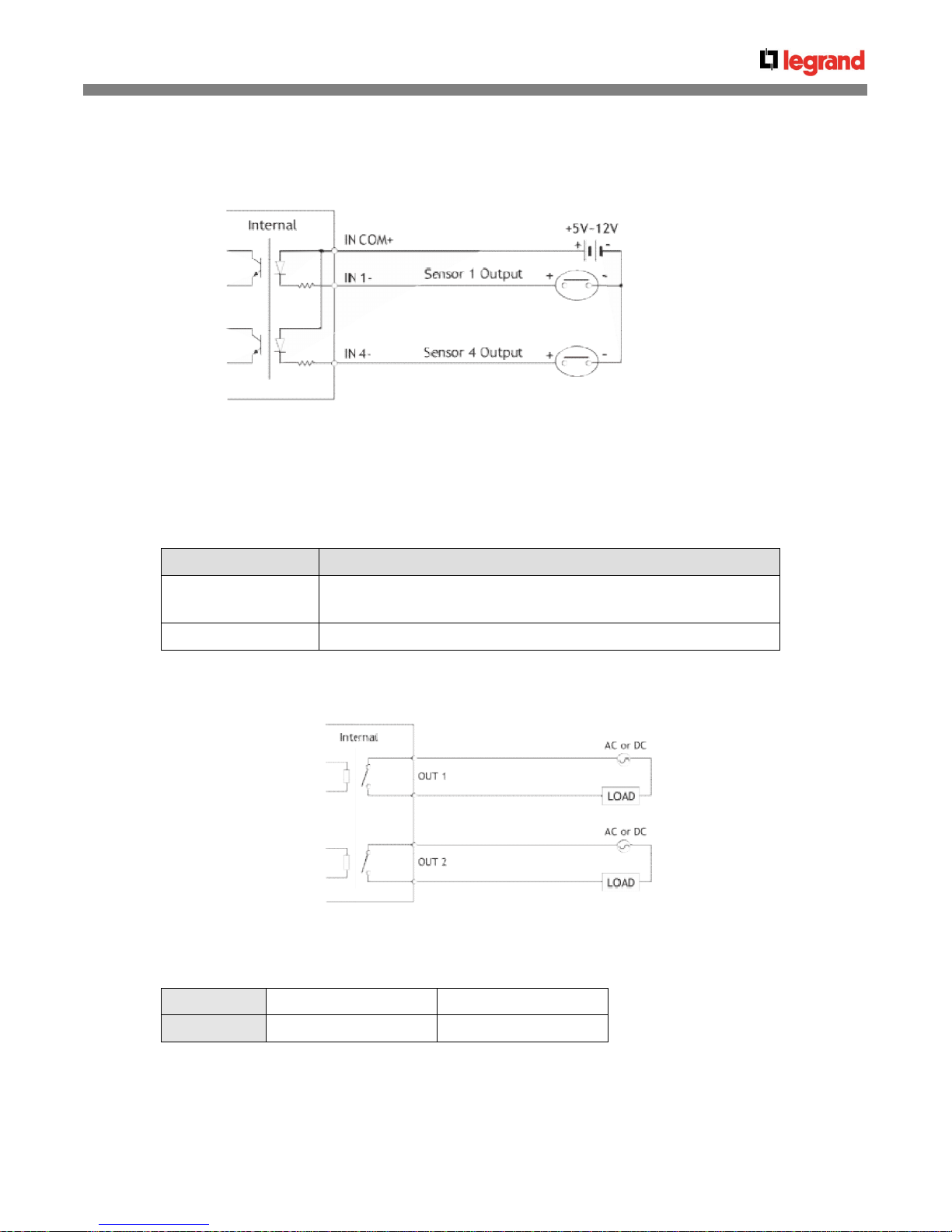

Alarm Input

Before connecting sensors, check driving voltages and output signal types of the sensors. Since output signal

are divided into Open Collector type and Voltage Output type in general, the wiring must be done properly after considering

those types.

Signal

Description

IN COM+

The electric power source to drive input circuit. Connect the (+) wire

electric power source to drive the Sensors to this port as shown in the above

circuit.

IN1 -, IN2 -, IN3 -

Connect the outputs of sensors to each port as shown in the above circuit.

If you want to use Alarm Input, the types of sensors must be selected in OSD menu.

Open and Normal Close. If wrong sensor types are selected, alarms should be activated reversely to sensor inputs.

 Normal Open Outp

ut Voltage is high state when sensor is activated

 Normal Close

Output Voltage is high state when sensor is not activated

Relay Output

The maximum loads are as follow

s: 24 VDC ; 1A.

29

T

he sensor types are divided into Normal

types of the sensors

of

Wiring and Cabling (4 305 22

model)

Power Connection

 Please,

check the voltage and current capacity of rated power carefully. Rated power is indicated in the back of main unit.

Input Voltage Range

11-15 VDC

Video Connection

 Connect with BNC coaxial cable.

30

Current Consumption

0.75 A

Alarm I/O Connection

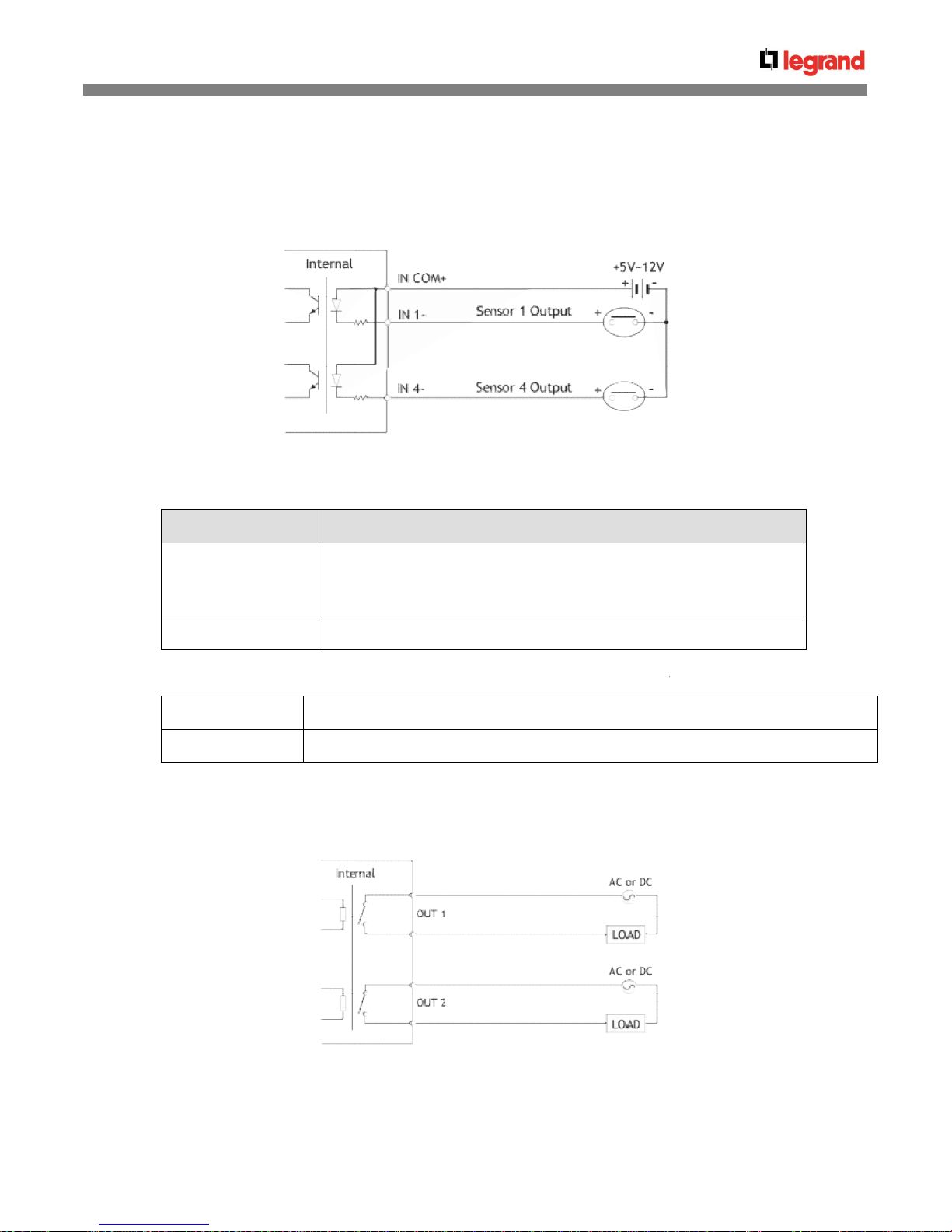

 Sensor Input

Before connecting sensors, check driving voltage and output signal type of the sensor. Since output signal types of

the sensors are divided into Open Collector and Voltage Output type in general, the cabling must be done properly

after considering these ty

ped. Also, the sensor type, i.e.

of camera must be set properly.

Signal

Description

IN COM+

Connect (+) cable of electric power source for Sensors to this port as

shown in the circuit

IN1, IN2, IN3, In4

Connect output of sensors for each port as shown in the circuit

 Relay Output

Maximum allowable electrical load of relay is shown bellow table.

Drive Power DC Power

Max. Load DC 28V, 3A

31

“Normal Open” or “

Normal Close

above.

AC 110V Power

AC110V, 3A

” in Dip switch in main body

above.

32

3 Operation

3.1 Check Points before Operation

 Before turning on the system, check if the wire(s) and cable(s) are connected properly.

 Check if the camera ID on the controller is properly selected. The camera ID must be identical to that of the target

camera. The camera ID can be checked by reading the DIP switch of the camera or on OSD.

 If your controller supports multi-protocols, the protocol must be changed to match to that of the camera.

 Adjust the DIP switch after turning off the camera. If you changed the camera protocol by changing the DIP S/W, the

change will be effective after you reboot the camera.

 Since the operation method can be different by controllers, refer to your controller manual if the camera can not be

controlled properly. The operation of this manual is based on the standard Pelco® Controller.

3.2 Check Points for Preset and Pattern Function before Operation

 Check fully how to operate preset function and pattern function with your controller or DVR in advance to operate the

camera functions when using a controller or a DVR.

 Refer to the following table when using standard Pelco® protocol controllers.

< Go Preset > Input [Preset Number] and press [Preset] button shortly.

< Set Preset > Input [Preset Number] and keep pressing [Preset] button for more than 2 seconds.

< Run Pattern > Input [Pattern Number] and press [Pattern] button shortly.

< Set Pattern > Input [Pattern Number] and keep pressing [Pattern] button for more than 2 seconds.

 If your controller or DVR has no pattern button or function, use the Hot Keys with preset numbers. For more information,

refer to “Reserved Presets(Hot Keys)” in this manual.

33

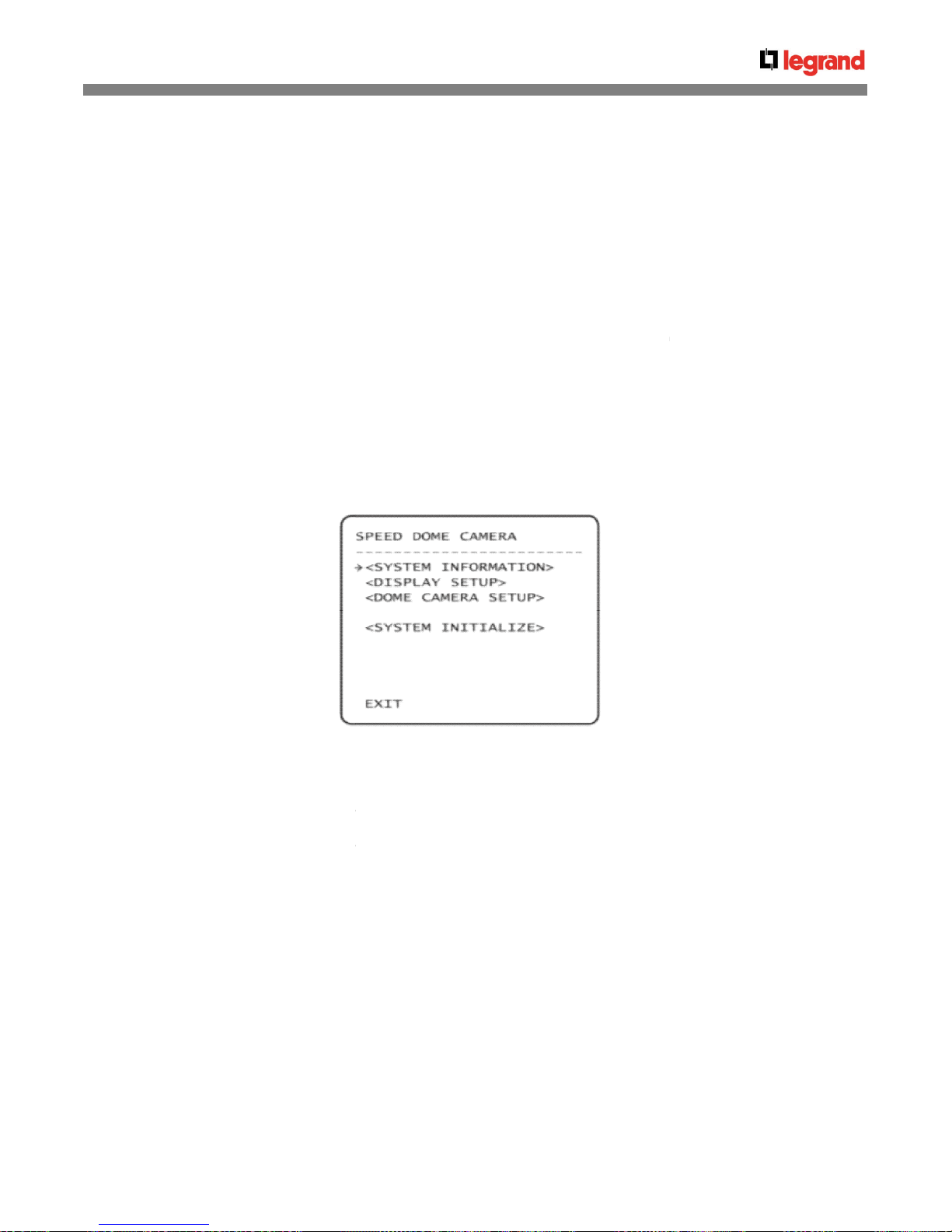

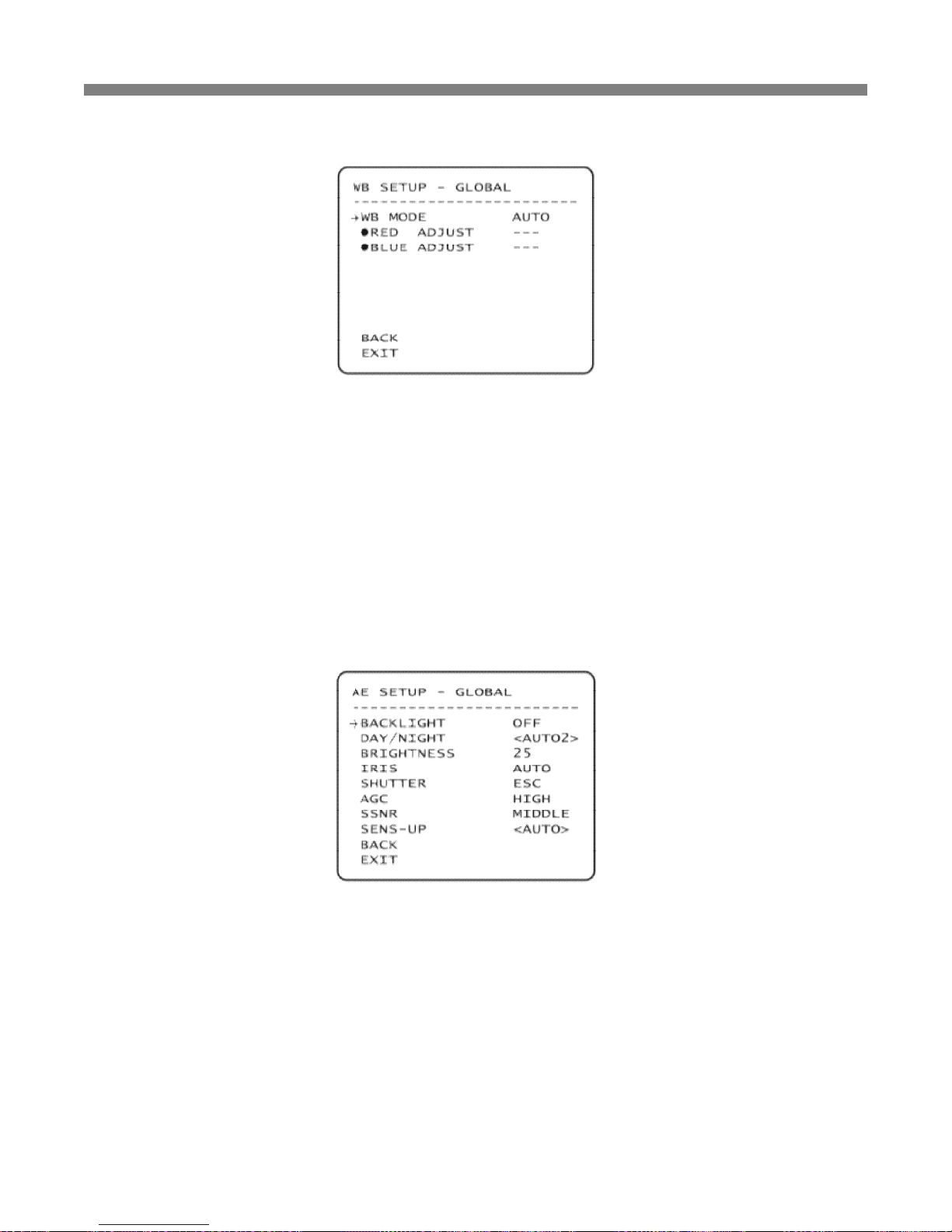

3.3 OSD Menu

 Function With OSD menu, the system can be properly configured for each application.

 Entering into OSD Go Preset [95]

3.4 Reserved Presets (Hot Keys)

 Description Some Preset numbers are reserved to change some parameters without entering into OSD menu.

 Hot Keys Go Preset [95] : Entering into OSD menu

Go Preset [131~134] : Running Pattern Function 1 ~ 4

Go Preset [141~148] : Running Swing Function 1 ~ 8

Go Preset [151~158] : Running Group Function 1 ~ 8

Go Preset [161] : Turning off Relay Output

Set Preset [161] : Turning on Relay Output

Go Preset [167] : Setting Zoom Proportional Function to ON

Set Preset [167] : Setting Zoom Proportional Function to OFF

Go Preset [170] : Setting Camera BLC Mode to OFF

Go Preset [171] : Setting Camera BLC Mode to ON

Go Preset [174] : Setting Camera Focus Mode to AUTO

Go Preset [175] : Setting Camera Focus Mode to Manual

Go Preset [176] : Setting Camera Focus Mode to SEMI-AUTO

Go Preset [177] : Setting Day & Night Mode to AUTO

Go Preset [178] : Setting Day & Night Mode to NIGHT

Go Preset [179] : Setting Day & Night Mode to DAY

Go Preset [190] : Setting OSD Display Mode to AUTO (Except Privacy Mask)

Go Preset [191] : Setting OSD Display Mode to OFF (Except Privacy Mask)

Go Preset [192] : Setting OSD Display Mode to ON (Except Privacy Mask)

Go Preset [193] : Setting all Privacy Mask Display to OFF

Go Preset [194] : Setting all Privacy Mask Display to ON

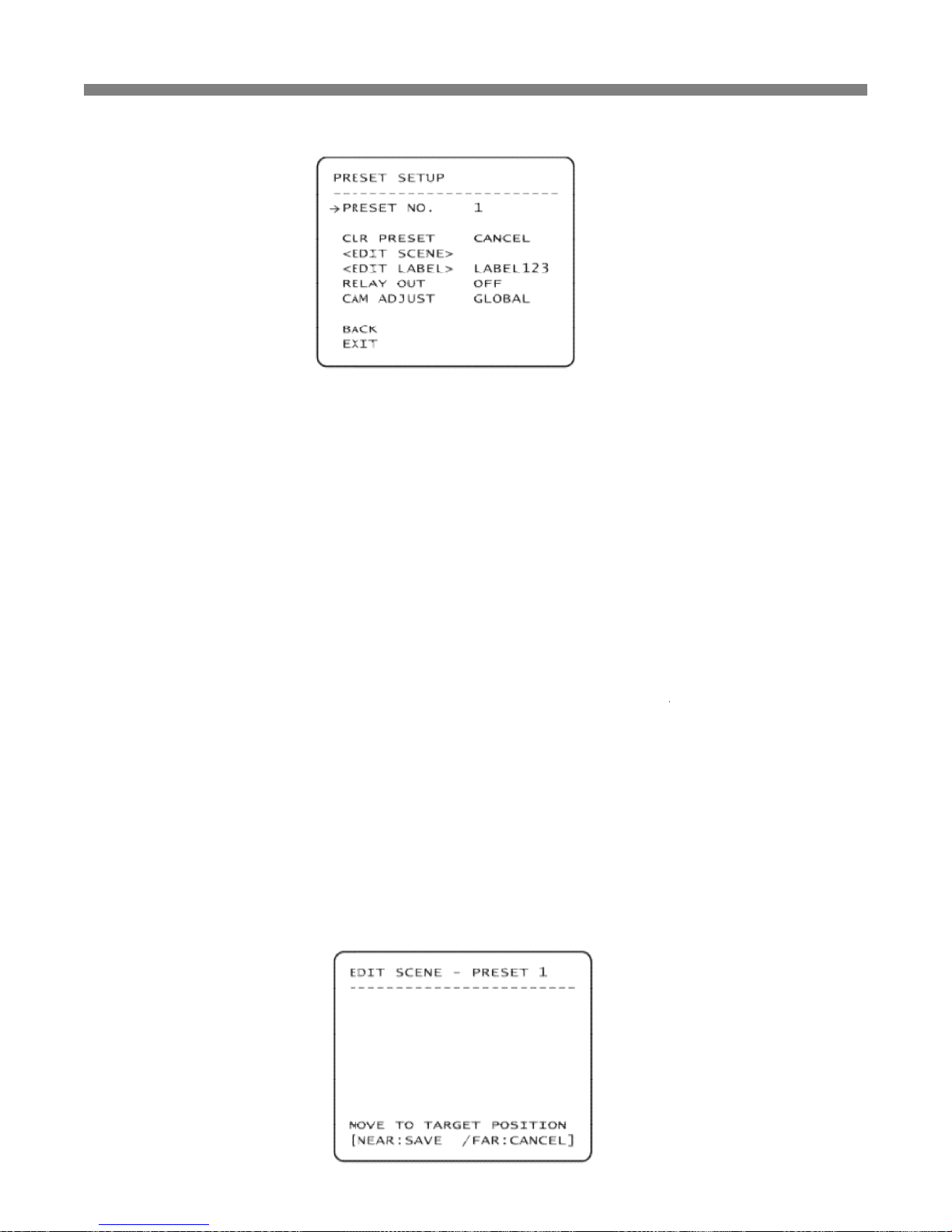

3.5 Preset

 Function MAX. 127

positions

except 95. Preset 95 is reserved for entering into OSD menu. Camera parameters such as

White Balance, Auto Exposure and others can be set up independently and each preset can

have its own parameter values independently from the other persets

presets with a controller, Label should be blank and "Camera Adjust" should be set to

"GLOBAL" as the default.

 Setting Presets

Set Preset [1~128]

 Running Presets

Go Preset [1~128]

 Deleting Presets

To delete Presets, enter into

3.6 Swing

 Function This

function

programmed speeds. When a swing function runs, the camera moves from the preset

assigned as the 1st point to the preset assigned as the 2nd point in CW(Clockwise) direction.

Then the camera moves from the preset assigned as

the 1st point in CCW(Counterclockwise) direction.

In case that the preset assigned as the 1st point and the preset assigned as the 2nd point are

same, the camera turns on its axis by 360

on its axis by 360

1

/sec to 180

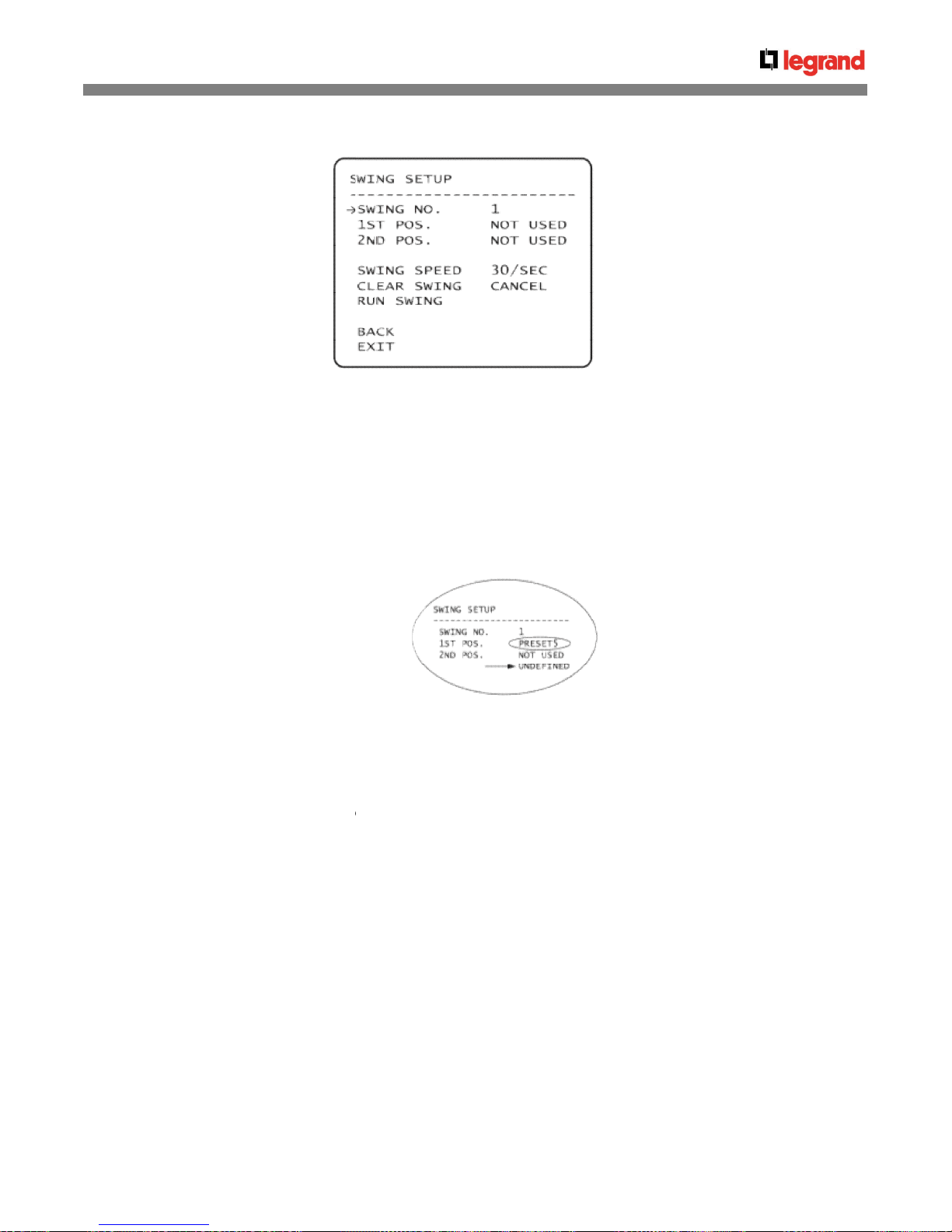

 Setting Swings

To set Swing, enter into

 Running Swings

Method 1) <Run Pattern> [Swing NO. + 10]

Method 2) <Go Preset> [Swing NO. + 140]

 Deleting Swings

To delete Swings, enter into

34

are programmable.

The Preset number can be

T

o change the parameters, enter into OSD menu.

OSD menu.

is that the camera moves repetitively

between two preset positions at

the 2nd point to the preset assigned as

 in CW(Clockwise) dire

ction and then it turns back

 in CCW

(Counterclockwise) direction. The Swing speed is defined from

/sec.

OSD menu.

ex) Run Swing 3 : <Run Pattern> [13]

ex) Run Swing 3 : <Go Preset> [143]

OSD menu.

assigned from 1 to 128

. When setting up

3.7 Pattern

 Function This function

is that the camera memorizes the path (mostly

controller and revives the trajectory operated by joystick as closely as possible.

MAX. 4 Patterns are programmable and Maximum 1200 communication commands can be

programmed in a pattern.

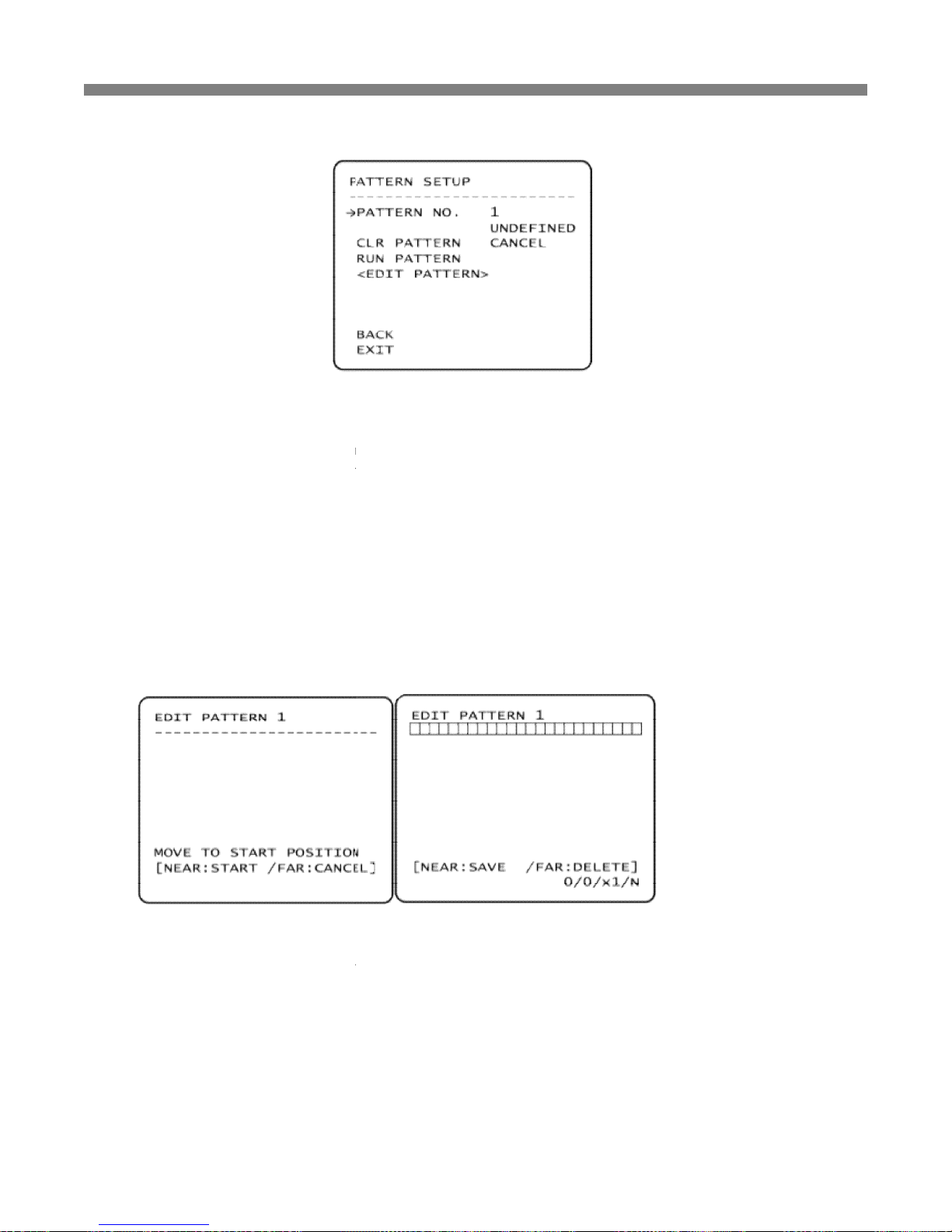

 Setting Patterns

A Pattern can be created by the following

Method 1) <Set

Pattern

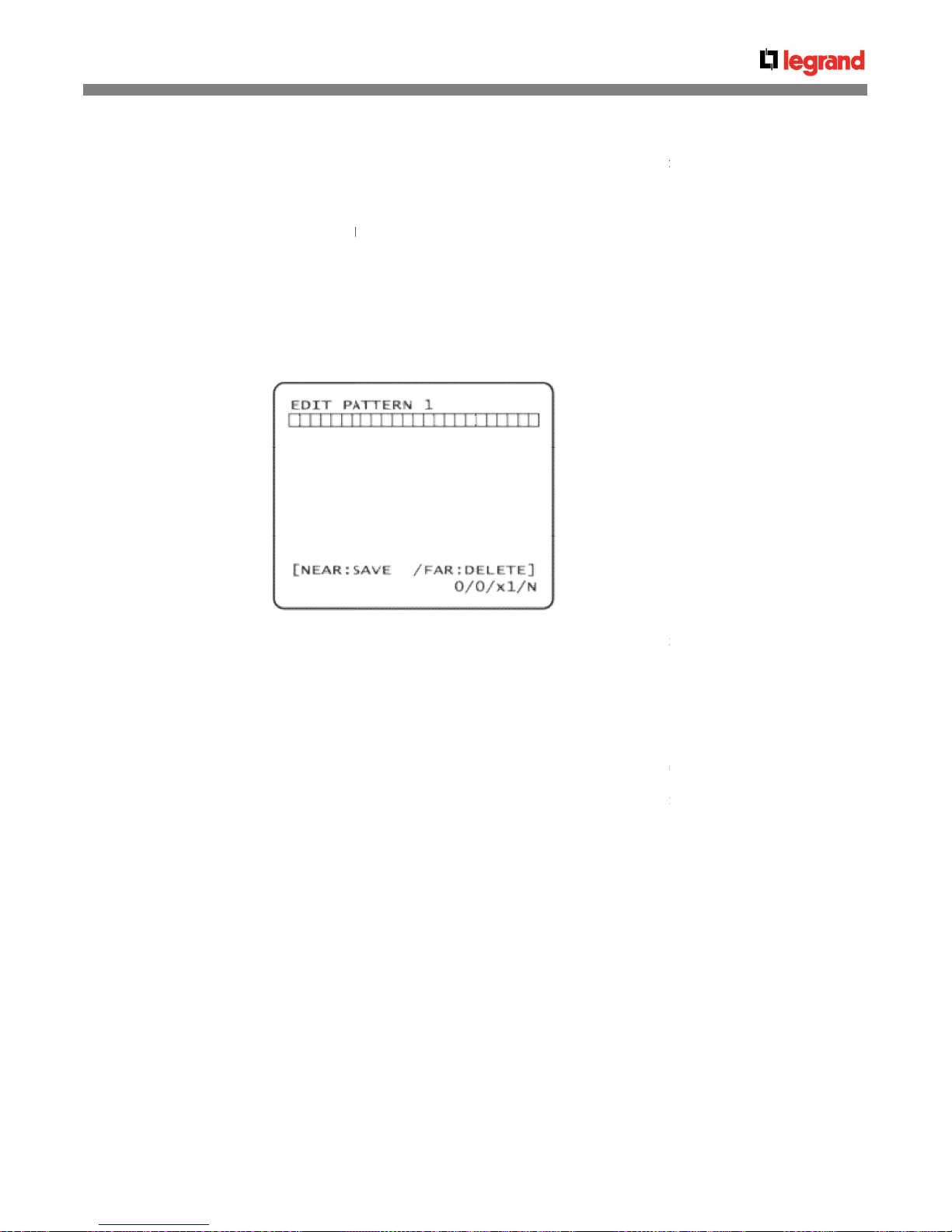

The Pattern programming window appears on the monitor as below.

The movement by Joystick and the preset movement can be memorized in a pattern.

After a pattern is

programmed, the remaining

screen.

To save the recording, press

Method 2) Programming in OSD Menu : See the section

 Running
Patterns

Method 1) <

Run Pattern> [Pattern NO.]

Method 2) <Go Preset> [Pattern NO. +

130]

 Deleting
Patterns

To delete Patterns, enter into

Note:

When the system memorizes Patterns, the c

Pan/Tilt/Zoom. Hence there might be small differences between the original path and the revived path by path type of

Patterns. Note that it is not a problem in position precision.

35

curve path) by the joystick of the

methods.

> [Pattern NO.]

storage

is displayed in progress bar on the

NEAR key and to cancel, press FAR key.

“

How to use OSD Menu

Ex:

Run Pattern 2 : <Run Pattern> [2]

Ex:

Run Pattern 2 : <Go Preset> [132]

OSD menu.

ommands are stored in the momories, not the positions of

”.

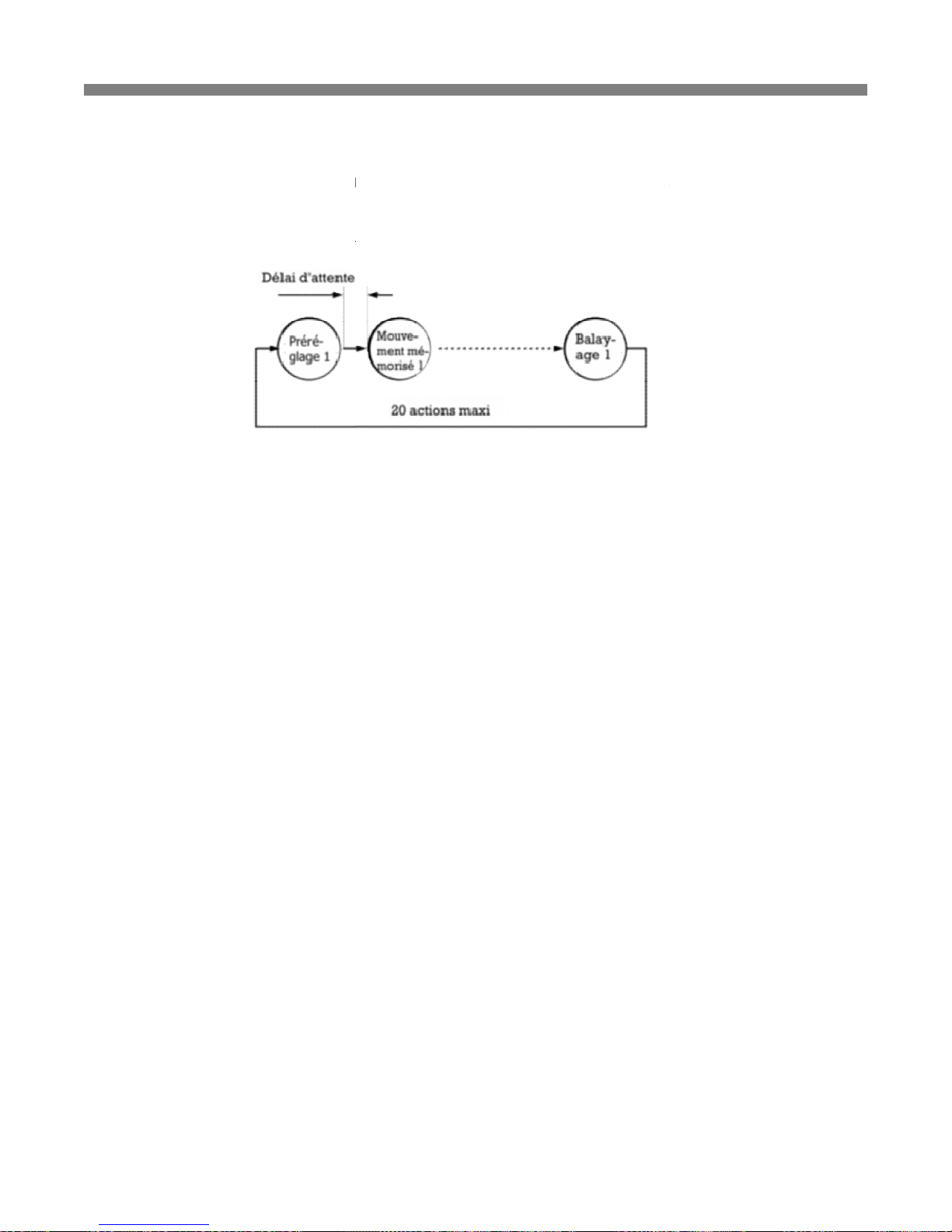

3.8 Group

 Function This function

is that the camera memorizes the combination of

sequently and runs

Preset

programmable.

Each group can have

and Swing. Preset speed can be set up and the repeat number of Pattern & Swing can be set up in

Group setup. Dwell time between actions can be set up also.

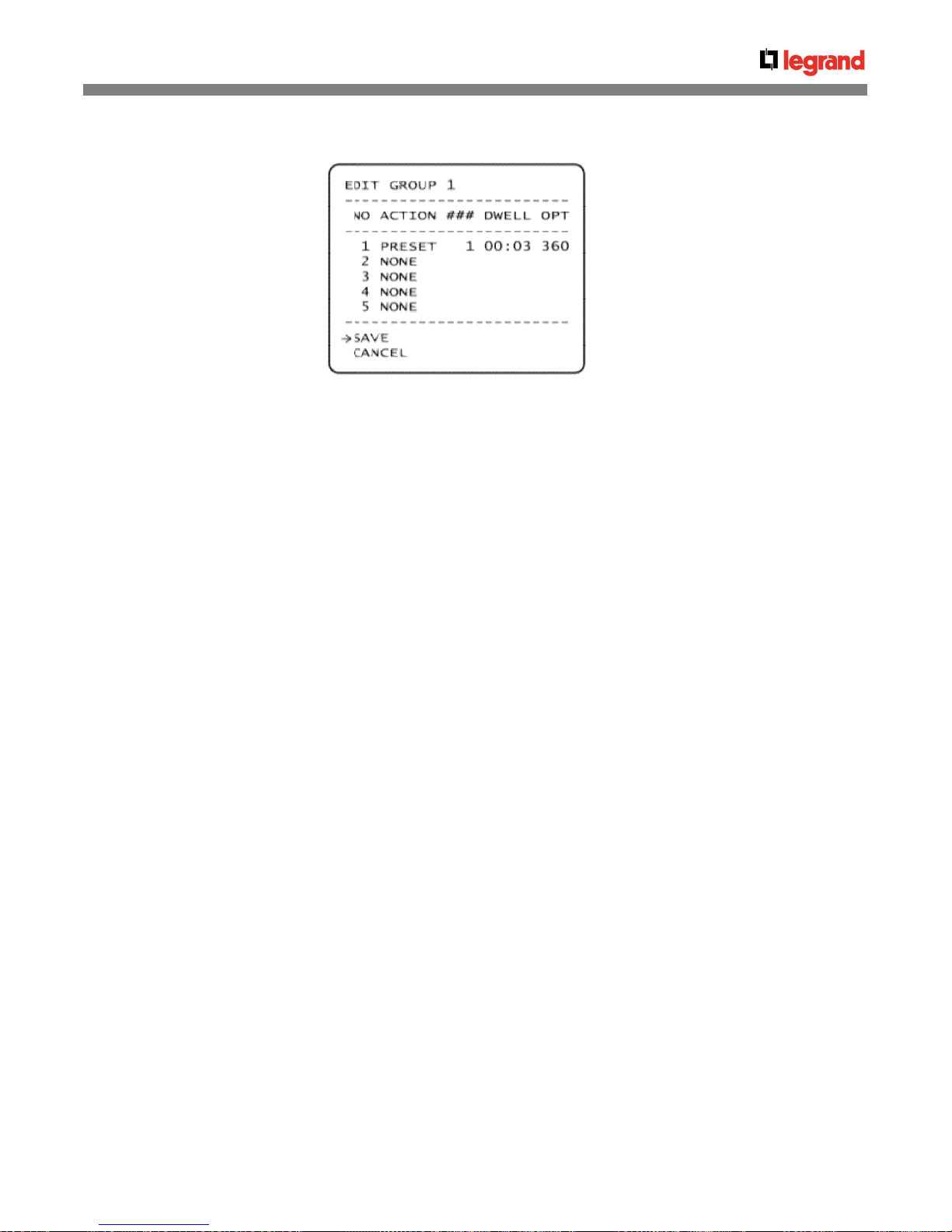

 Setting Groups

To set Groups, enter into

 Running
Groups

Me

thod 1) <Run Pattern> [Group NO. + 20]

Method 2) <Go Preset> [Group NO. + 150]

 Deleting
Groups

To delete Groups, enter into

36

Preset

s, Pattern and/or Swings

s, Pattern and/or Swings repetitively.

MAX. 8 sets of Group are

MAX. 20

actions which are the combinati

OSD menu.

ex) Run Group 7 : <Run Pattern> [27]

ex) Run Group 7 : <Go Preset> [157]

OSD menu.

on of Preset, Pattern

37

3.9 Other Functions

 Power Up
Action

This setting defines a specific activity (Preset, Pattern, Swing and Group) to be performed in the
event that the power to the camera is cycled. This function enables the user to resume, after
turning on power, the last action being executed before turning off the power. Most of actions
such as Preset, Pattern, Swing and Group are available for this function but Jog actions are not
available to resume.

 Auto Flip In case that tilt angle arrives at the top of tilt orbit(90°), zoom module camera turns on its axis by

180° at the top of tilt orbit and moves to opposite tilt direction (180°) to keep tracing targets.

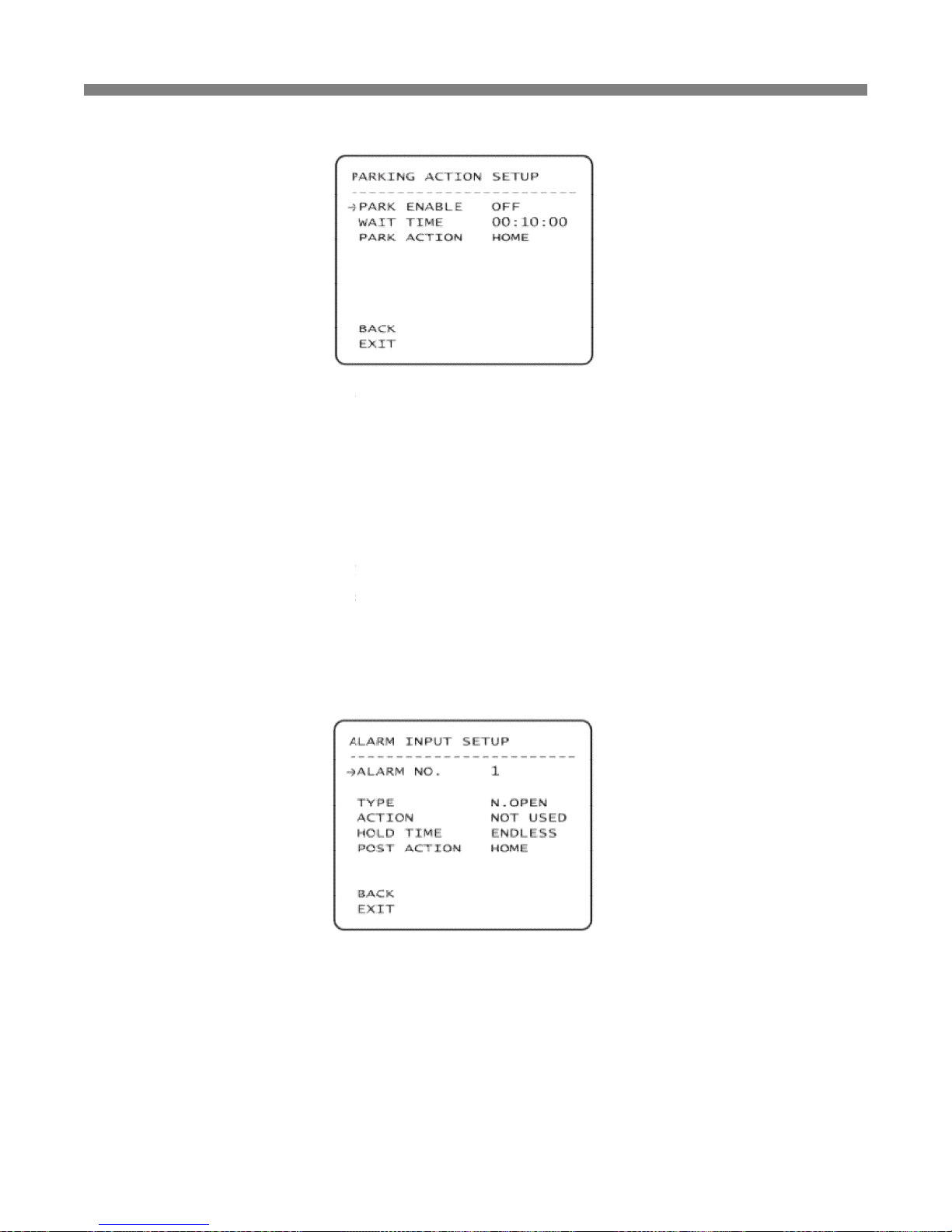

 Parking Action This feature allows the camera to begin a specified operation after a programmed time of

inactivity. This function makes the camera automatically run a pre-defined action if there is no
command from controller for a pre-defined time period. “Wait Time” means how long a camera
should wait for from the previous-last (most recent) command before running the pre-defined
action. It can be set to 1 second ~ 3 hours.

 Alarm Input 3 Alarm Inputs are available. When external sensors activate, the camera runs pre-defined actions

such as Preset, Pattern, Swing and Group. After the pre-defined time period passed, “Post Alarm”
activates, which is pre-defined. Note that only the latest alarm input is effective when multiple
sensors are activated at the same time.

 Privacy Zone
Mask

Privacy Zone Mask allows the user to program 8 rectangulars that can not be viewed by the
operator of the system. To protect others’ privacy, MAX. 8 Privacy Masks can be created on the
arbitrary position to hide objects such as windows, shops or private house. With the Spherical
Coordinates system, powerful Privacy Zone Mask function is possible. A mask area will move with
pan and tilt functions and automatically adjust in size as the lens zooms telephoto and wide.

 GLOBAL/LOCAL

Image Setup

WB(White Balance) and AE(Auto Exposure) can be set up independently for each preset. There are
2 modes, "Global" mode & "Local" mode. The Global mode is that WB and/or AE are/is set up
totally and simultaneously for all presets. The Global parameter setup such as WB and AE can be
done in "ZOOM CAMERA SETUP" menu. The Local mode is that WB and/or AE are/is set up
independently or separately for each preset. The Local parameter setup for WB and AE can be
done in each preset setup menu. Each Local parameter such as WB and AE activates
correspondingly when the camera arrives at each preset position. During jog operation, Global
WB/AE value should be applied. All Local WB/AE values do not change although Global WB/AE
value changes. The Local mode has the prior to the Global mode.

 Semi-Auto
Focus

This mode automatically exchanges focus modes between Manual Focus mode and Auto Focus
mode by operation. Manual Focus mode activates in preset operation and Auto Focus mode
activates during jog operation. With Manual mode at presets, Focus data is memorized in each
preset in advance and the camera calls focus data in correspondence with presets as soon as the
camera arrives at presets. It should shorten time to get focuses. The focus mode automatically
changes to Auto Focus mode when jog operation starts.

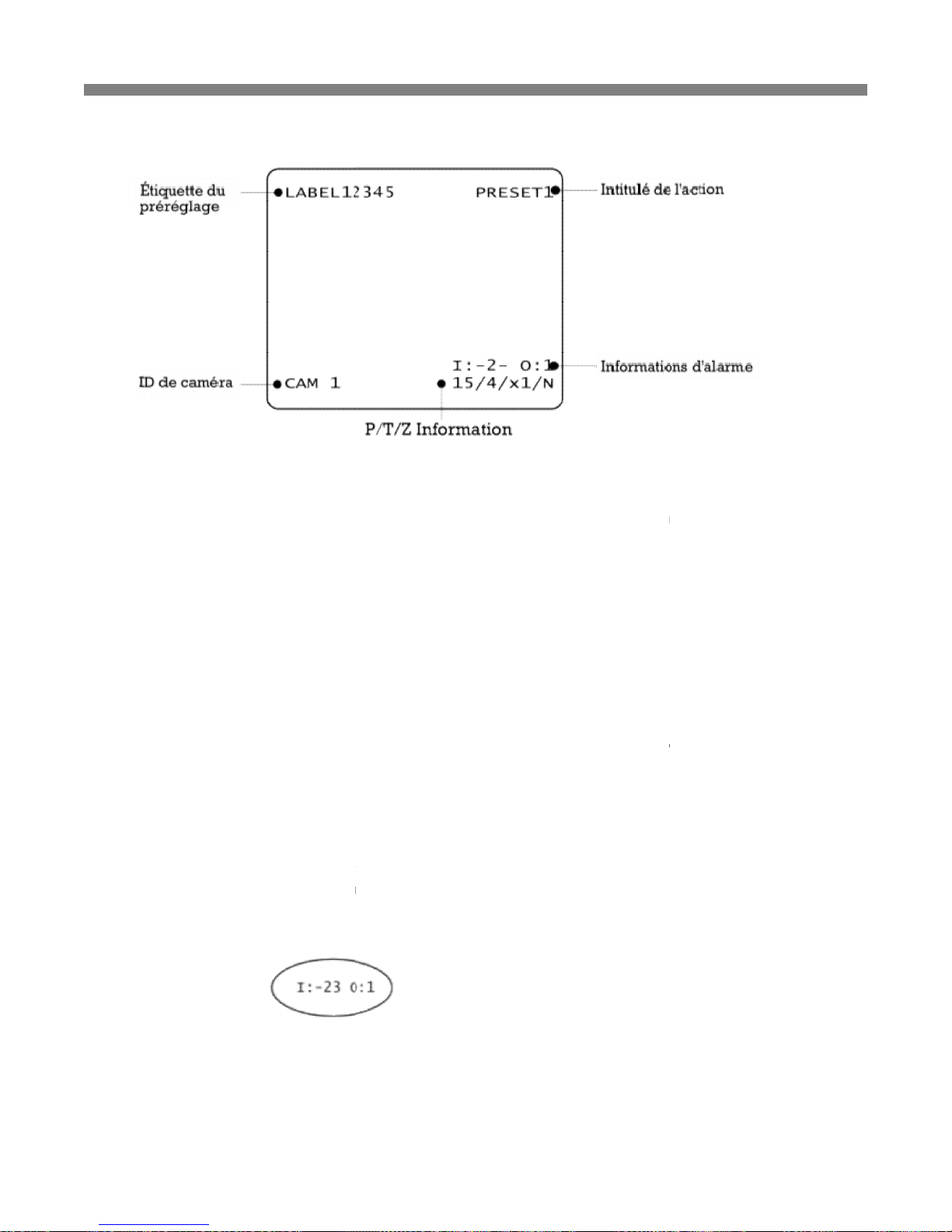

3.10 OSD Display

 P/T/Z Information

Displays the amount of pan from zero degree

horizontal and c

magnification.

 Camera ID

Displays the selected

 Action Title

Identfies Actions

"SET PRESET xxx"

"PRESET xxx"

"PATTERN x"

"SWG

/PRESET xxx"

"UNDEFINED"

 Preset Label

Displays preset labels when the camera arrives at presets.

 Alarm Information

Displays activated alarms.

Outputs. If an I

nput

Input point is

OFF

Example:

The p

38

vertical, the amount of tilt from zero degree

urrent

compass direction. Also identifies the amount of the zoom

Camera ID (Address).

When Preset xxx is memorized.

When the camera reaches Preset xxx.

When Pattern x is in action.

When Swing x is in action. Displays both of Swing number and

Preset number.

When a undefined function

is called to

This information shows current state of Alarm I

point is ON state,

it will show a number corresponding to each

state, '-' will be displayed.

oint 2 & 3 of inputs are ON and Output is ON,

OSD will show as below

run

nputs and Relay

point. If an

.

4 OSD MENU

4.1 Quick Programming Guide

 The menu items with < > always ha

ve

 To go to submenu

s or make the cursor move to the right

 To go to the previous-upper level

menu

 To make a selection, press NEAR

key

 To cancel a selection, press FAR key

 To move the cursor

in the menu, use

 To change a value of an item, use

Up/Down

 To save changes, press NEAR key.

 To cancel changes, press FAR key.

4.2 Main Menu

 System Information

Displays the system information and configuration. The system setting can not be

changed using the OSD menu and the information is for reference only.

 Display Setup

Enables the user to program how labels are displayed on the monitor.

 Dome Camera Setup

Enables the user to configure various functions of the camera.

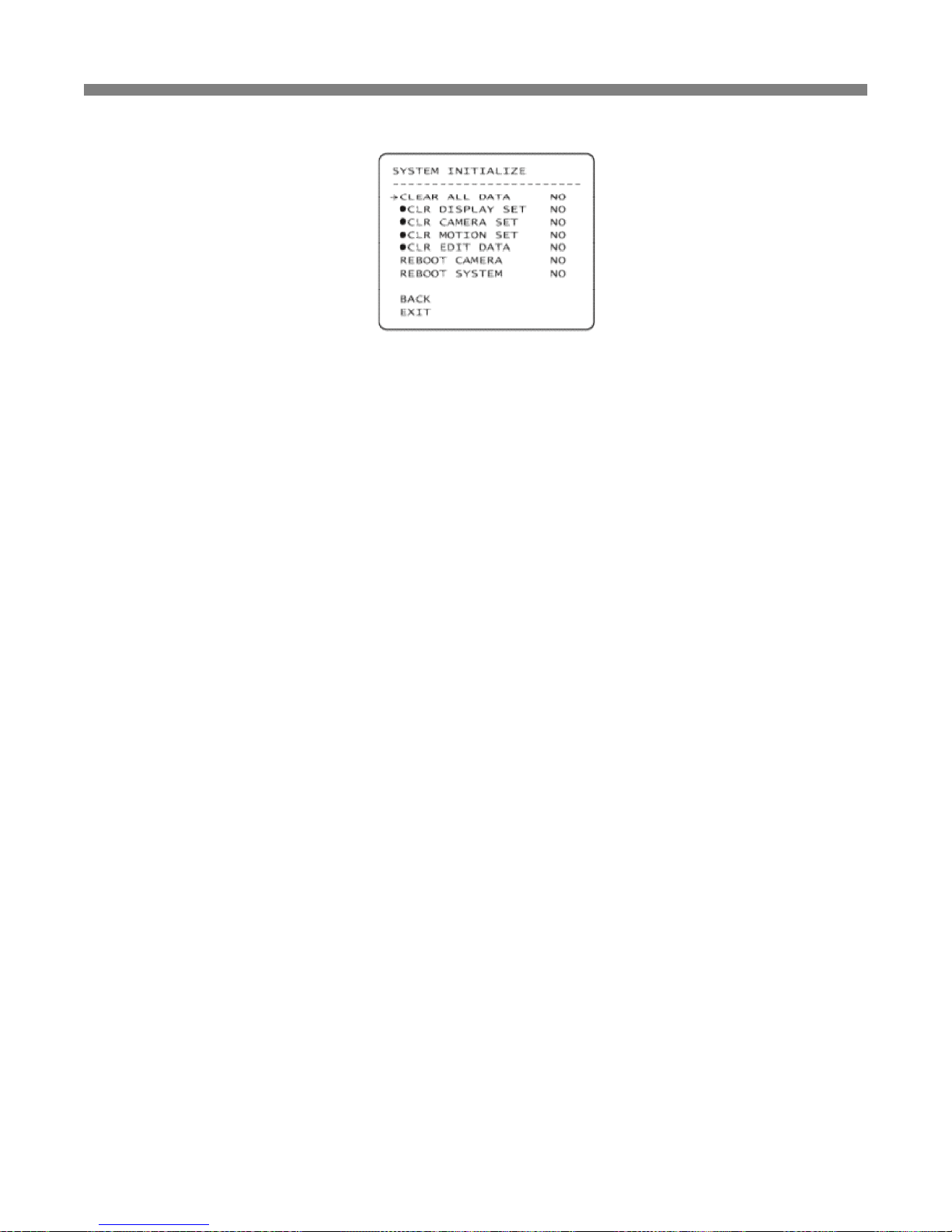

 System Initialize

Initializes all system

39

sub-menus.

, press NEAR key.

s, press FAR key.

the joystick to the Up/Down direction or

Left/Right

of the joystick in the controller.

configurations and all data to the f

actory default

direction.

parameters.

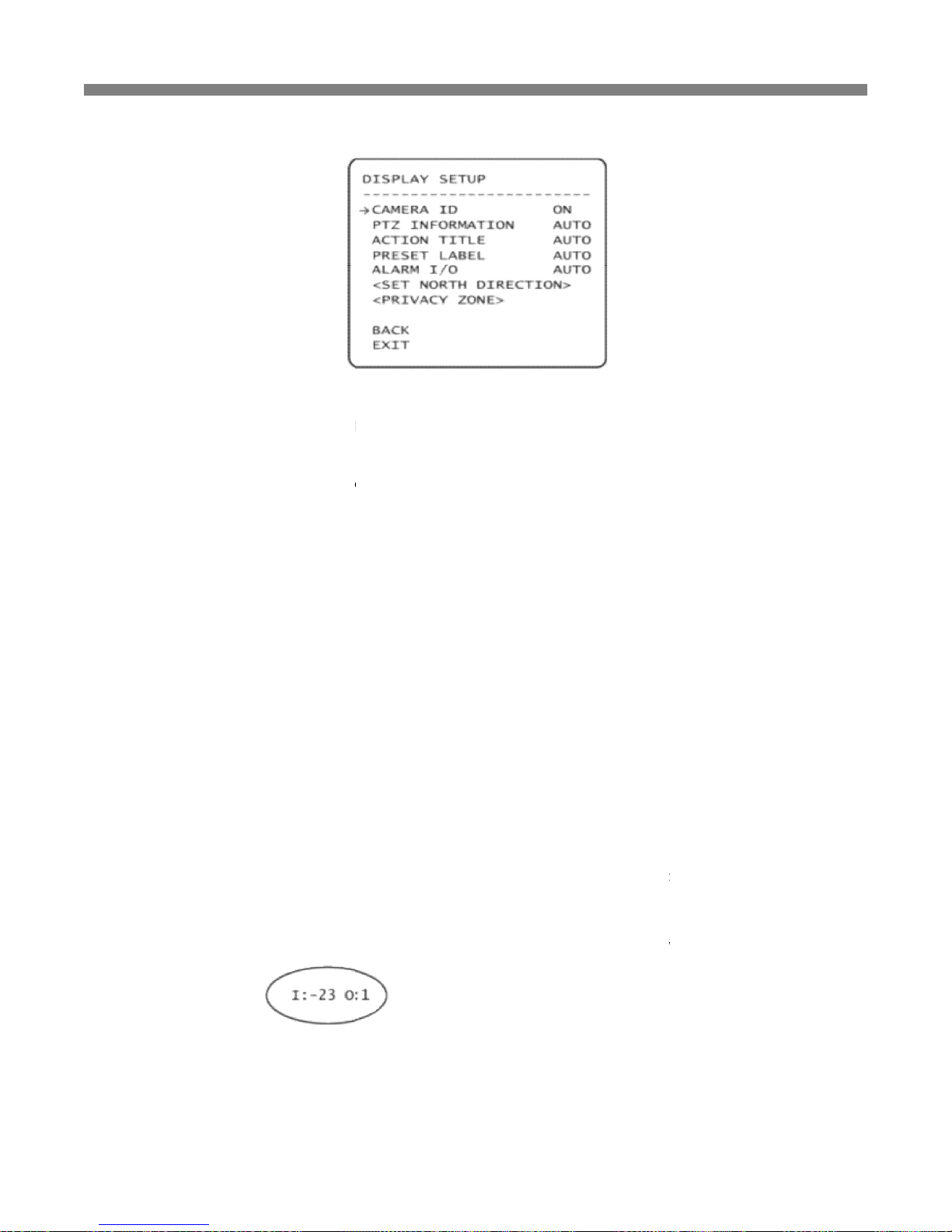

4.3 Display setup

Display setup allows you to program how labels are

the monitor when there are any changes in parameters.

 Camera ID [ON/OFF]

Displays the selected

 PTZ Information

[ON/OFF/AUTO]

Displays the amount of pan from

horizontal and c

 Action Title

[ON/OFF/AUTO]

Identfies Actions.

"SET PRESET xxx"

"PRESET xxx"

"PATTERN x"

"SWG/PRESET

xxx"

"UNDEFINED"

 Preset Label

[ON/OFF/AUTO]

Displays the preset labels when the camera arrives at presets.

 Alarm I/O

[ON/OFF/AUTO]

Displays the activated alarms.

Outputs. If an I

nput

Input point is

OFF

Example: The p

oint 2 & 3 of inputs are

40

displayed on the monitor. In case of AUTO, the labels are displayed on

Camera ID (Address).

zero degree vertical, the amount of tilt from zero degree

urrent

compass direction. Also identifies the amount of the zoom magnification.

This information shows the

current state of Alarm I

point is ON state,

it will show a number corresponding to each

state, '-' will be displayed.

ON and Output is ON,

OSD will show as below

nputs and Relay

point. If an

.

Compass Direction setup

Move the camera to a target position and press

direction to assign other compass directions

4.4 Privacy Zone Mask Setup

Privacy Zone Mask allows the user to program 4 rectangulars

protect privacy, MAX. 4 Privacy M

asks can be created on the arbitrary position to hide

private house.

With the Spherical Coordinates system, powerful Privacy Zone Ma

move with pan and tilt functions and automatically adjust in size as the lens zooms telephoto and wide.

 Mask NO [1~8]

Selects a Mask number to program. If the selected mask has already data, the camera moves as

was programmed

 Display [ON/OFF]

Sets if the mask of the selected mask number shows or not on the screen.

 Clear Mask [CANCEL/OK]

Deletes the mask data of the selected mask number.

41

NEAR

button to save the direction as North. The direction is the reference

that can not be viewed by the operator of the system. T

objects such as windows, shops or

sk function is possible. A mask area will

. Otherwise, “UNDEFINED”

will be displayed under the Mask number.

o

it

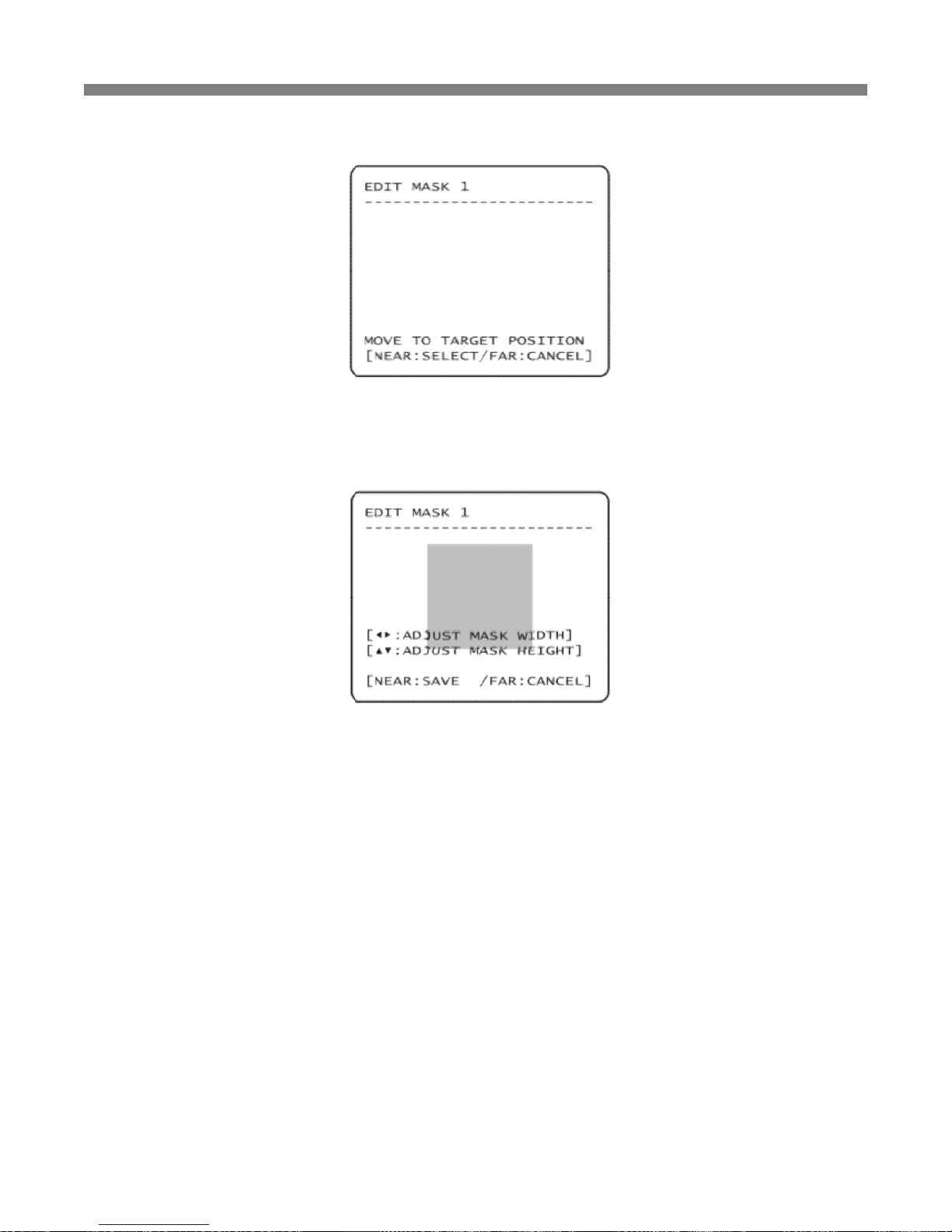

Privacy Zone Mask Area Setup

Move your camera to an area to mask. Then a mask and the menu to adjust the mask size will be displayed.

Privacy Zone Mask Size Setup

Adjusts the mask size. Use the joystick or the arrow buttons of your controller to

  (Left/Right)

Adjusts the mask width.

  (Up/Down)

Adjusts the mask height.

42

adjust mask size.

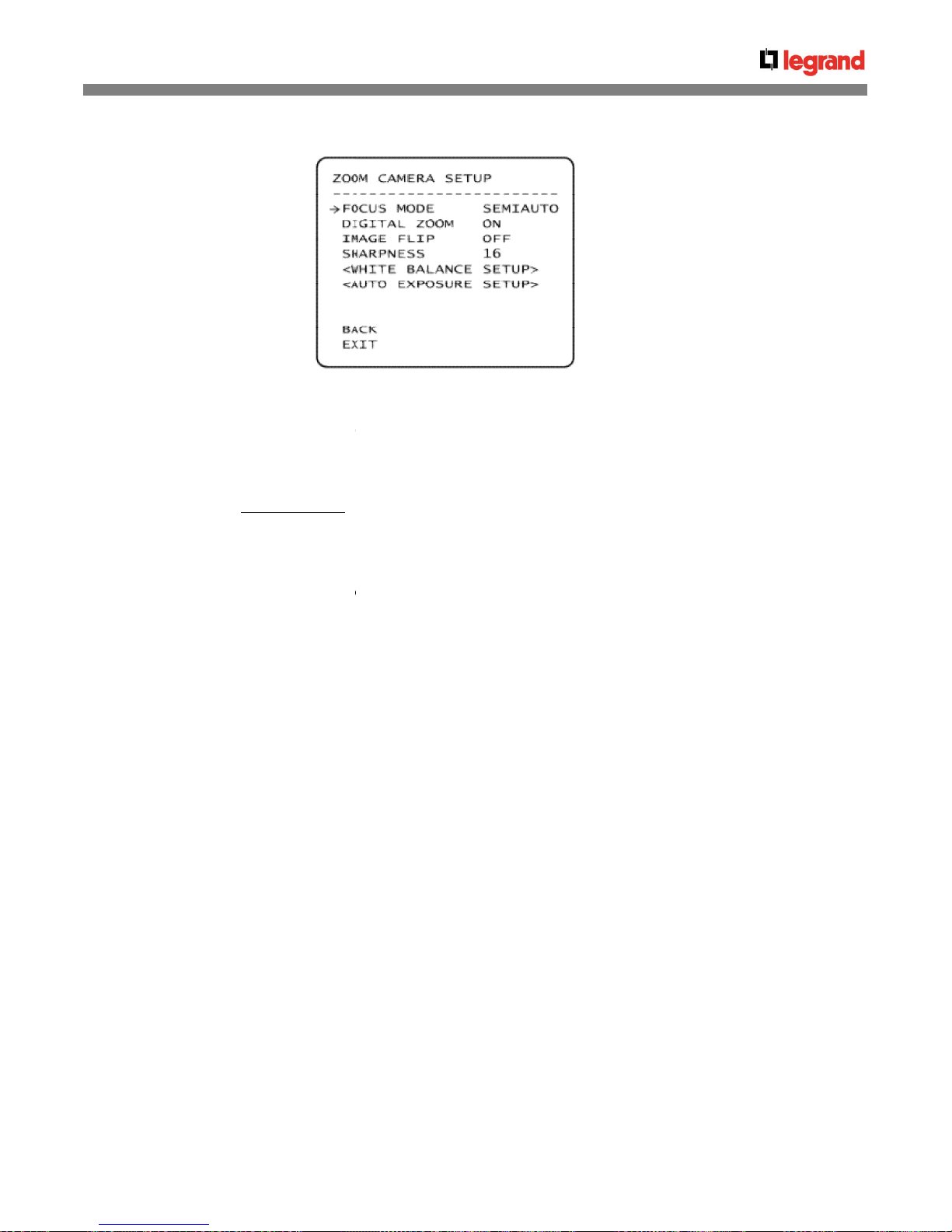

4.5 Camera Setup

(Dome Camera Setup Menu)

Sets the general functions of zoom camera module.

 Focus Mode

[AUTO/MANUAL/SEMIAUTO]

Sets camera Focus

mode.

 SEMIAUTO Mode

This mode automatically exchanges focus modes between Manual Focus mode and Auto Focus

mode by operation. Manual Focus mode activates in preset operation and Auto Focus mode activates

during jog operation. With Manual mode at presets

advance and the camera calls focus data in correspondence with presets as soon as camera arrives at

presets. It should shorten time to get focuses

mode when jog ope

ration starts.

 Digital Zoom [ON/OFF]

Sets the digital

zoom functions

zoom function stops at the end of optical zoom magnification.

 Image Flip [ON/OFF]

Sets System Image Flip Function to ON/OFF.

come out. When the camera is installed as Desktop type, set to ON to get proper images.

 Sharpness [0~3]

Sets image sharpness to enhance pictures.

43

, Focus data is memorized in each preset in

.

Focus mode automatically changes to Auto Focus

to ON/OFF. If this is set to OFF, the optical zoom function runs but the

W

hen this function is set to ON, flipped images always

White Balance Setup

 WB Mode [AUTO/MANUAL]

Retains color balance over a color temperature range. In auto mode, this feature automatically

processes the viewed image. In Manual mode, Red and Blue level can be set up manually.

 Red Adjust [10~255]

Adjusts

the picture output in the red range.

 Blue Adjust [10~255]

Adjusts the picture output in the blue range.

Auto Exposure Setup

 Backlight [ON/OFF]

Sets Backlight Compensation to ON/OFF. If a bright backlight is present, the subjects in the picture

may

appear dark or as a silhouette. Backlight compensation enhances objects in the center of the


. The camera uses the center of the picture to adjust the iris. If there is a bright light source

outside of this area, it will wash out to white. The camer

sensitive area is properly exposed.

 Day/Night [AUTO//DAY/NIGHT]

Sets Day&Night mode. You can increase sensitivity in low light conditions by switching to black

white mode (removing the IR cut filter or

lighting conditions. The time to change a mode is 10 sec.

. If this is set to DAY

mode, ACG is fixed to HIGH.

44

a will adjust the iris so that the object in the

turning on DSS). Color mode is preferred in normal

-

45

 Brightness [0~64]

Adjusts the brightness of the images. Iris, The Shutter Speed and Gain are adjusted automatically in
correspondence with each numeric value.

 IRIS [AUTO/MANUAL(0~64)]

Sets Iris to operate automatically or at a user-defined level. If Iris is set to Auto, Iris has higher
priority in adjusting AE and Shutter Speed is fixed. Auto iris is the lens function that automatically
opens closes the iris in response to changing light conditions.

If Iris is set to Manual, Iris is fixed and Iris has lower priority in adjusting AE, in comparison with
others. The Iris level range is 0 ~ 100.

 Shutter Speed [A.Flicker/Manual(1/60(50) ~ 1/10000 sec)]

Sets Shutter Speed. Shutter Speed is the duration of the electronic shutter. If Iris is set to Manual
and Shutter Speed is set to ESC, Shutter Speed has higher priority. If Shutter Speed is set to
A.Flicker, to remove Flicker, Shutter Speed should be set to 1/100 sec. for NTSC and 1/120 for PAL.

 AGC [OFF/LOW/HIGH]

Sets AGC. This setting enhances image brightness automatically in case that luminance level of
image signal is too low.

 SSNR [OFF/LOW/MIDDLE/HIGH]

Sets SSNR. This setting enhances the images by deducting noises when the gain level of the mages
is too high.

 SENS-UP [AUTO(2~256)/OFF]

Sets SENS-UP. This setting activates Slow Shutter function when luminance of image (signal) is too
dark.

It is possible to set up the maximum number of frames piled up one on another by Slow Shutter
function.

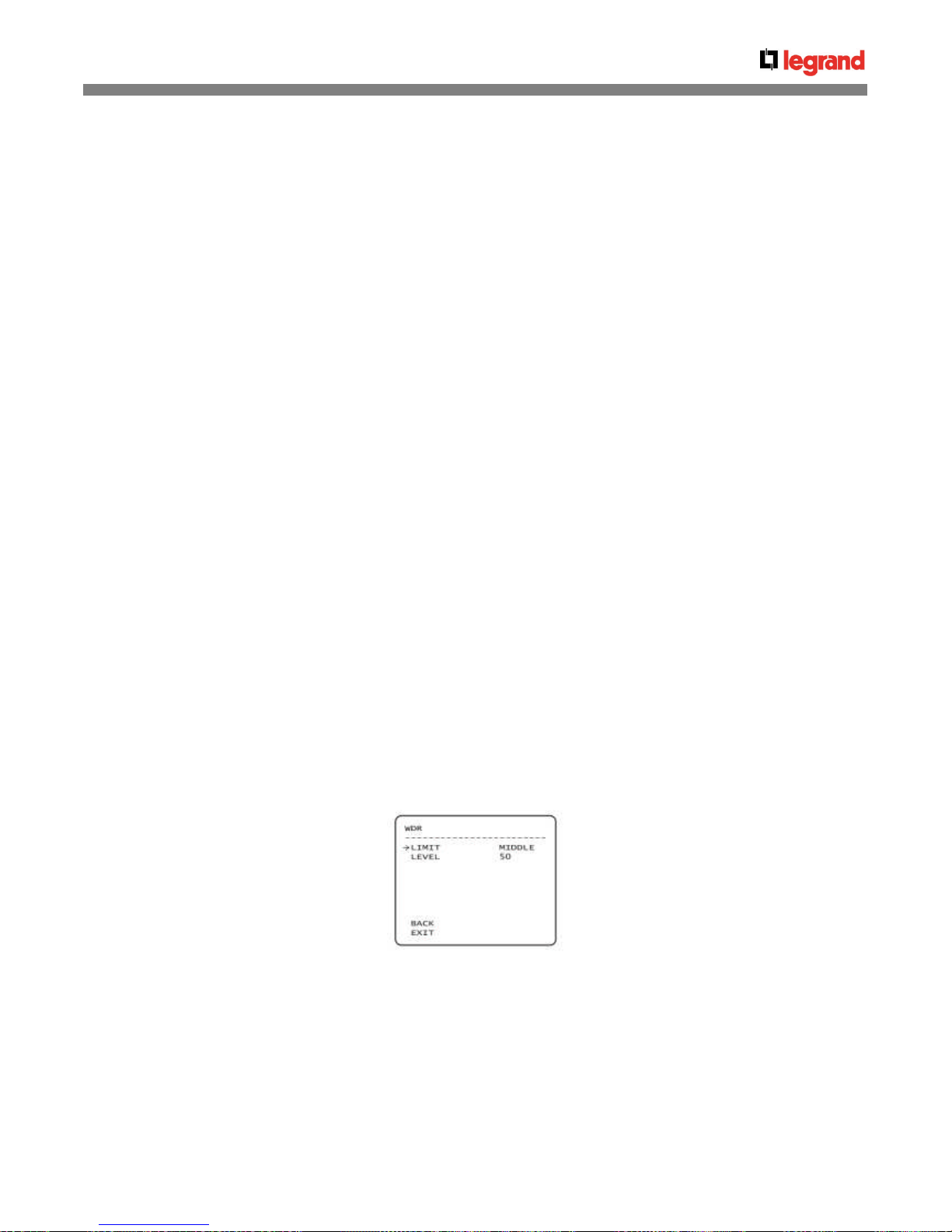

(Wide Dynamic Range) Setup

 Limit [LOW/MIDDLE/HIGH]

 Level [0~100]

46

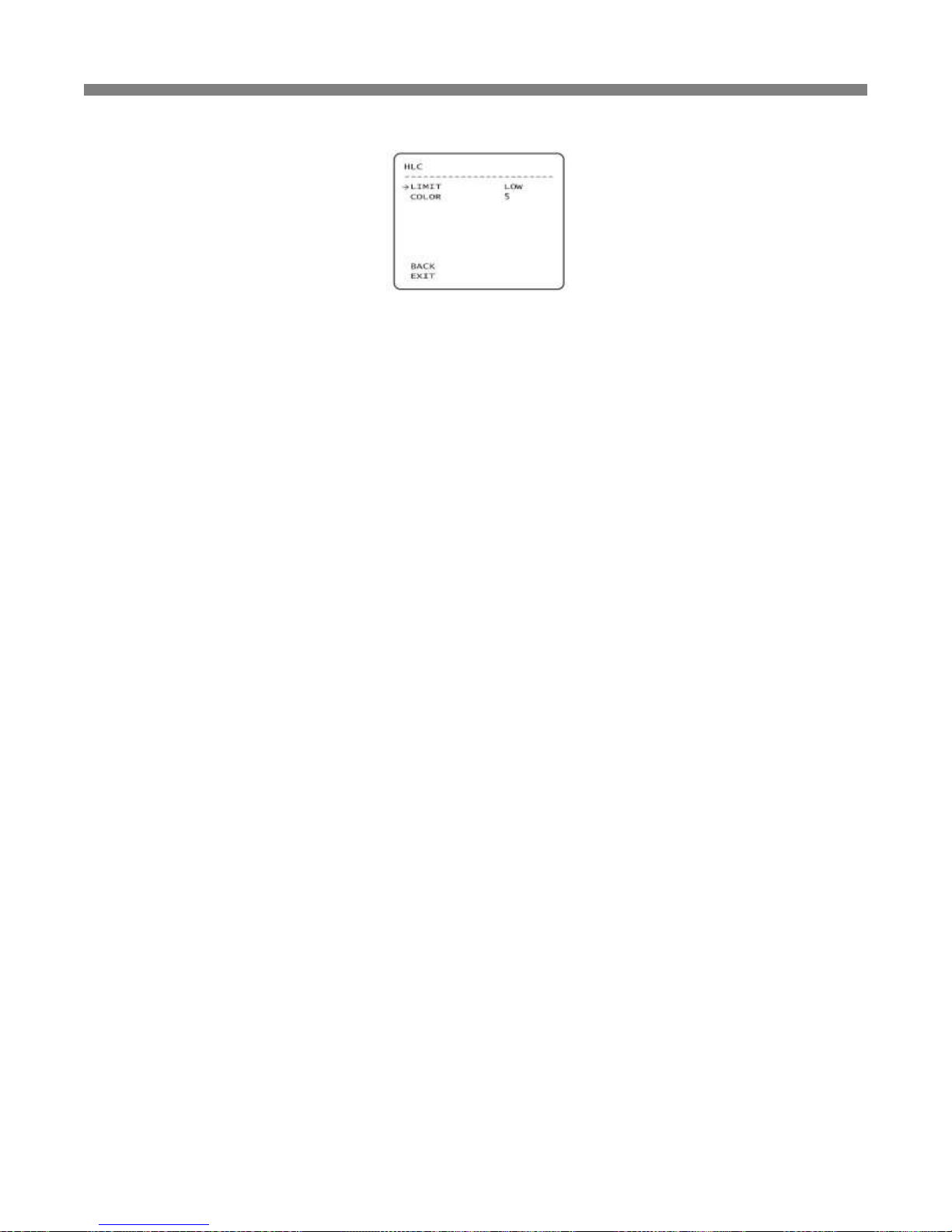

HLC (High Light Compensation) Setup

 Limit [AUTO/MANUAL]

When there are too bright lights, this function blocks light sources on the images to have
better images. For example, when there is a car coming to a camera at night, this function
bocks car headlights to recognize its number plate.

 Level [0~10]

Assigns colors of masks to block light sources

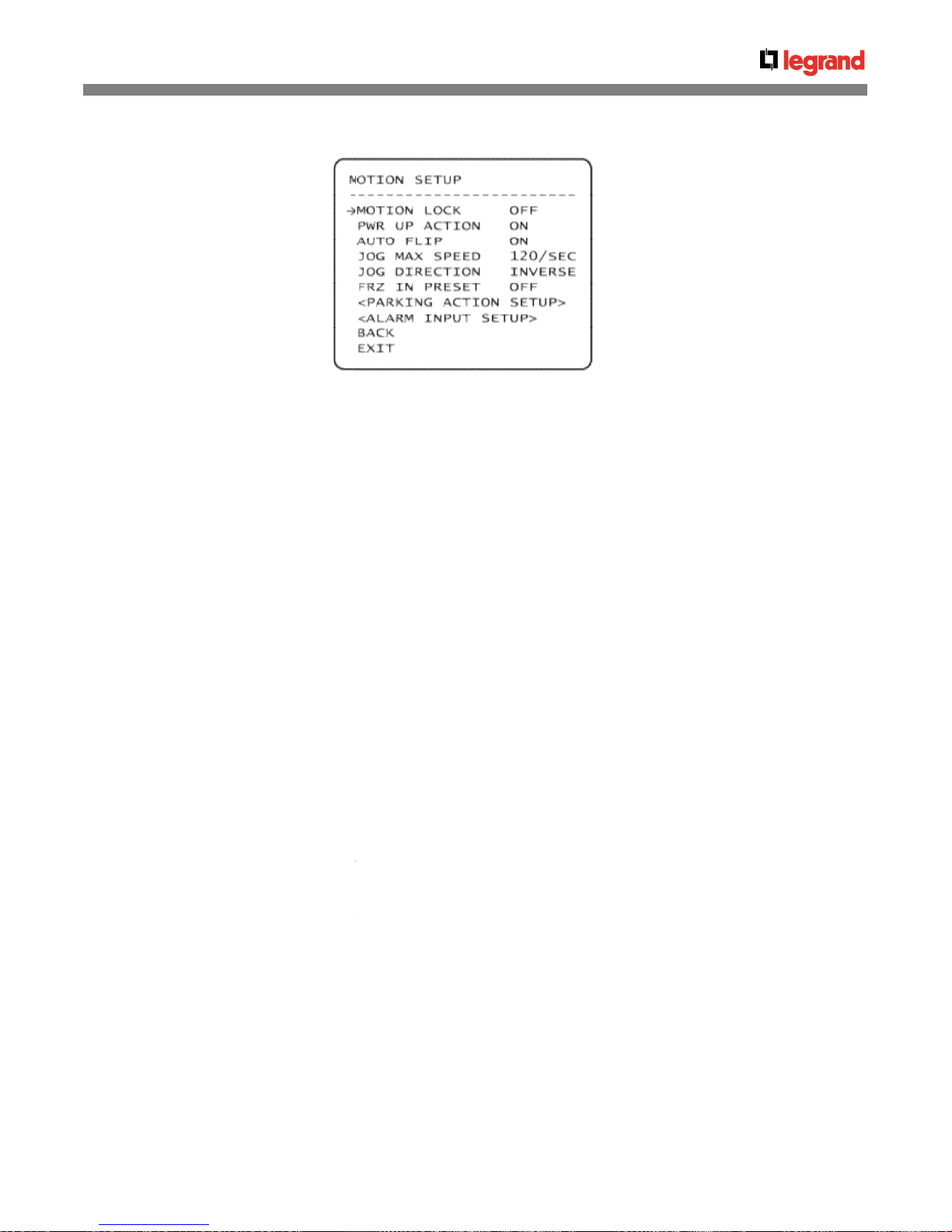

4.6 Motion Setup

Sets the general functions of Pan/Tilt motions.

 Motion Lock [ON/OFF]

If Motion Lock is set to ON, it is impossible to set up and delete Preset, Swing, Pattern and Group. It is

possible only to run those functions. To set up and delete those functions, e

 Power Up Action [ON/OFF]

Refer to “

Other Functions" section.

 Auto Flip [ON/OFF]

Refer to “

Other Functions" section.

 Jog Max Speed

[1/sec ~360/sec]

Sets the maximum jog speed. Jog speed is inversely proportional to the zoom magnifications. As the zoom

magnification goes up, the pan/tilt speed goes down.

 Jog Direction [INVERSE/NORMAL]

Sets the Jog Direction. If this is set to

joystick. If this is set to

 Freeze in Preset [ON/OFF]

Sets Frame Freeze Function. This feature freezes the sce

start point of a preset movement, a camera starts freezing the image of the start point. Camera keeps

displaying the image of the start point during preset movement and does not display the images which

came

ra gets during preset movement. As soon as camera stops at preset end point, camera starts

displaying live images which it gets at the end preset point. This feature also reduces bandwidth when

working with digital systems or digital network systems.

This f

unction availability should be different by models

47

‘Inverse’

, the view direction in the screen is same as the direction of

‘Normal’

, the view direction in the screen is the reverse dirction of joystick.

ne on the monitor when going to a preset. At the

.

nter into OSD menu.

Parking Action Setup

This feature allows the camera to begin a specified action after a

 Park Enable [ON/OFF]

If Park Enable is set to ON, the camera runs an

command during the programmed "Wait Time".

 Wait Time

[1~59 sec. / 1~180 min.]

Wait Time can be programmed from 1 second to 180 minutes.

 Park Action

[HOME/PRESET/PATTERN/SWING/GROUP/PREV ACTION]

This feature defines the activity when the camera parks. If Park Action is set to

moves to the home position which is memorized when the system boots. If Park Action is set to

“PREV. ACTION”

, the camera runs the previous action which it

Alarm Input Setup

Defines Alarm Function. When an alarm is receive, an input signal to the camera triggers the user

for the alarm.

 Alarm No [1~3]

Selects a sensor number to set up.

 Type [Normal

OPEN/Normal CLOSE]

Selects sensor operation type.

 Action

[NOT USED/PRESET/PATTERN/SWING/GROUP]

Selects an action to run when a sensor signal is input.

48

programmed

time of inactivity.

assigned function automatically if there is no PTZ

ran most recently.

“HOME”, the camera

-defined action programmed

49

 Hold Time [ENDLESS / 1~59 SEC. / 1~180 MIN.]

Sets the time period for the action which is run by external sensor activation. After the time period
passes, the action pre-defined in “Post Action” runs sequentially in succession to the action by external
sensor activation. If this option is set to “ENDLESS”, “Post Action” does not activate.

 Post Action [HOME/PRESET/PATTERN/SWING/GROUP/PREV ACTION]

Selects the action that a camera will run after the time period in“HOLD TIME” passes. If Post Action is
set to “PREV. ACTION”, the camera runs the previous action which it ran most recently.

4.7 Preset Setup

 Preset Number [1~128]

Selects a preset number to set up. If a selected preset is already defined, the camera moves to the

pre-

defined position and preset parameters such as Label and CAM Adjust show on the monitor. If a

selected preset is not defined,

 Clear Preset [CANCEL/OK]

Deletes the data of the selected Preset.

 Edit Preset Scene Re-

defines the scene position of the selected Preset.

 Edit Preset Label

Edits the label of the selected Preset to show on the monitor when the preset runs.

alphanuberic characteristics are allowed.

 Relay Out

Defines the relay output.

 CAM Adjust [GLOBAL/LOCAL]

WB(White Balance) and AE(Auto Exposure) can be set up independently for each preset. There are 2

modes, "Global" mode &

simultaneously for all presets. The Global parameter setup such as WB and AE can be done in "ZOOM

CAMERA SETUP" menu. The Local mode is that WB and/or AE are/is set up independen

separately for each preset. The Local parameter setup for WB and AE can be done in each preset

setup menu. Each Local parameter such as WB and AE activates correspondingly when the camera

arrives at each preset position. During jog operation, Global

WB/AE values do not change although Global WB/AE value changes. The Local mode has the prior to

the Global mode.

Preset Scene Setup

50

“UNDEFINED” shows on the monitor.

"Local" mode. The Global mode is that WB and/or AE are/is set up totally and

WB/AE value should be applied. All Local

MAX. 10

tly or

○,

1

Use the Joystick to move the camera to a desired position.

○,2Save the preset position by pressing

NEAR

○,3Press FAR

key to cancel targeting the preset position.

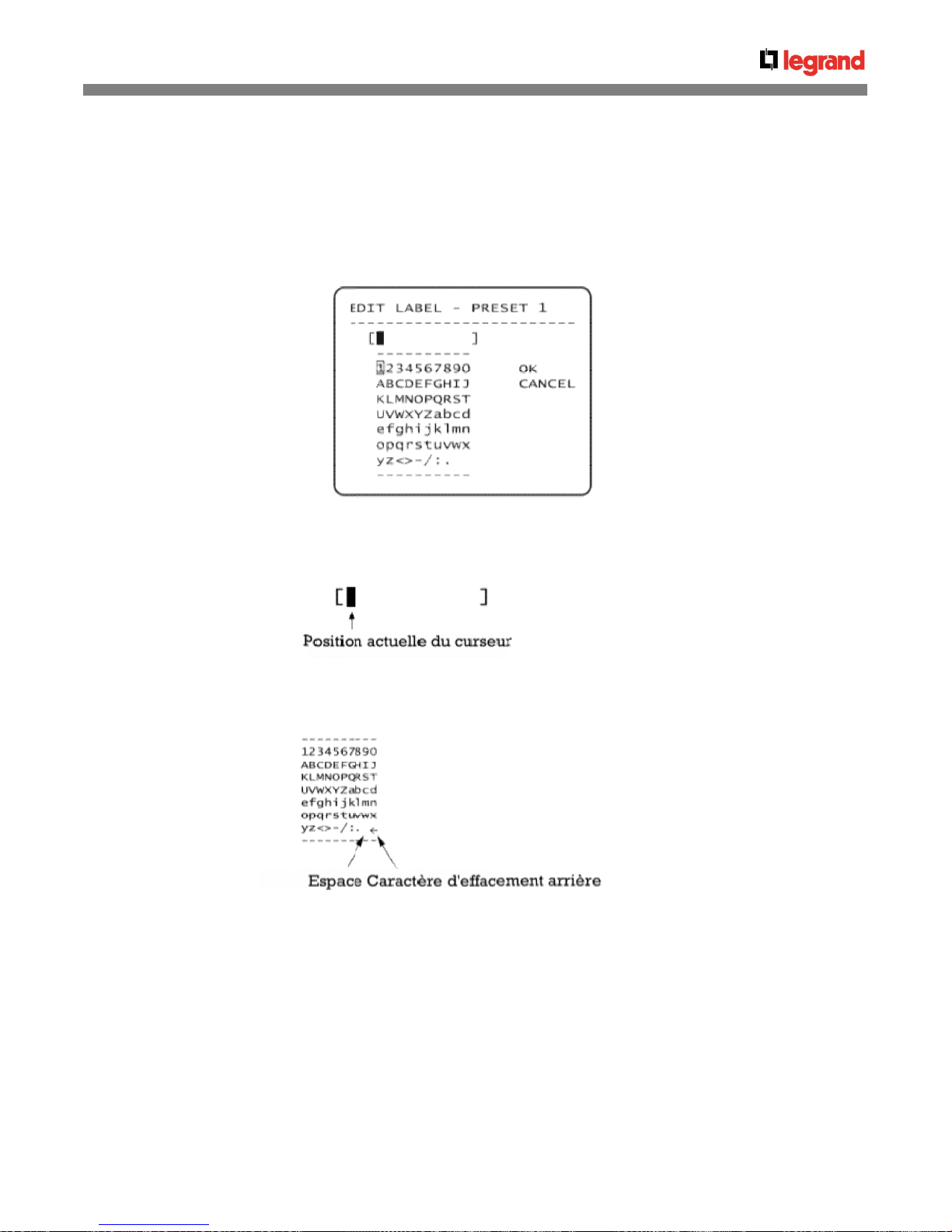

Preset Label Setup

Edit the label of the selected preset to show on the monitor when camera arrives at the preset. In

rectangular is the cursor. As soon as finishing selecting an alphabet or a number, the cursor moves to the next digit.

1)

With Left/Right/Up/Down of the joystick, move to a desired Alphabet or a desired number in the Alphanumeric set. To select

a desired Alphabet or a desired number, press the NEAR key.

If you want to use a blank, select the

double quotation mark

space character (" ").

2)

If you complete the Label editing, move the cursor to "OK" and press the NEAR key to save the completed label. To abort the

current change, move the cursor to

"Cancel" and press the NEAR key.

51

key.

(" "). If you want to delete an Alphabet or a number, use the back

the Edit Label menu, the dark

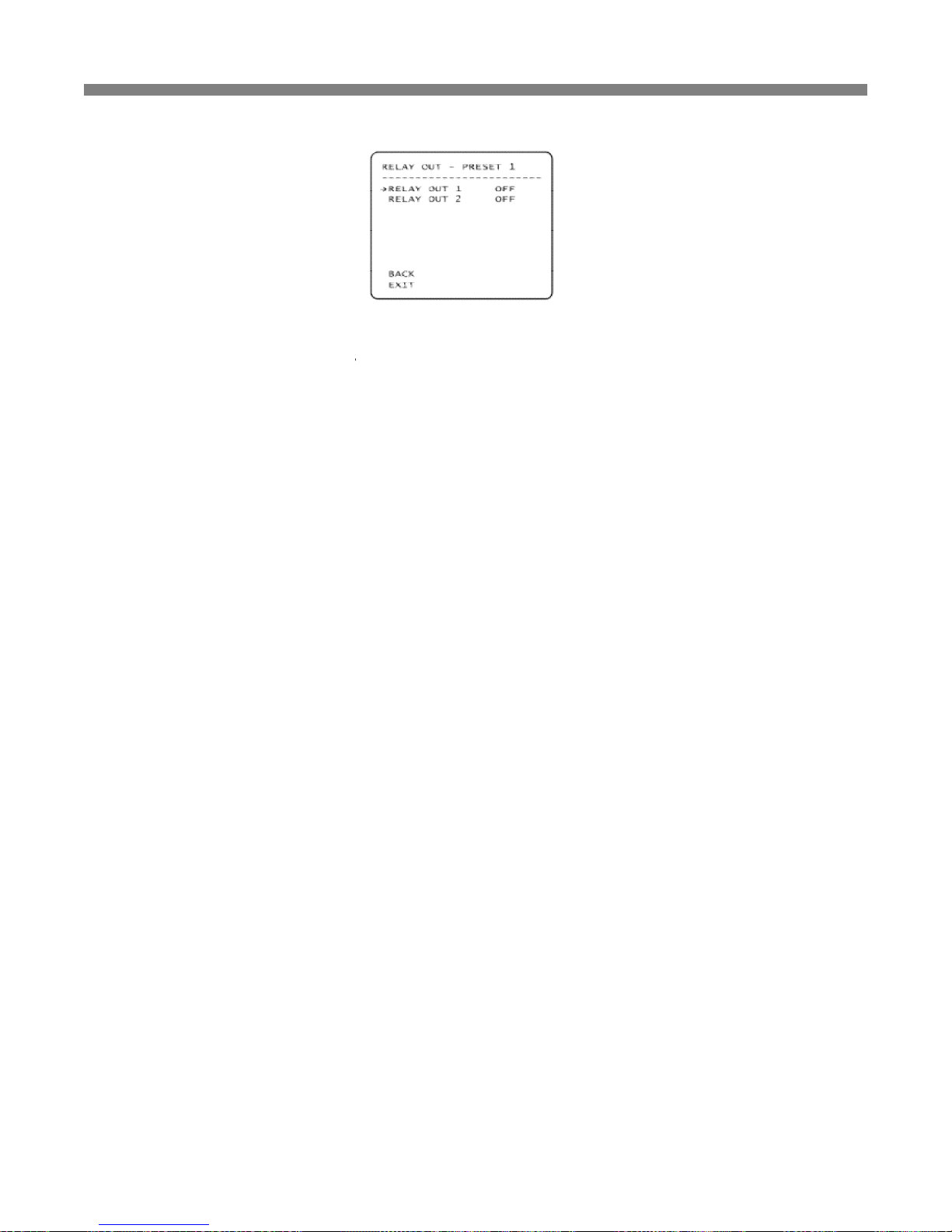

Relay Out Setup (4 305 22)

 Relay Out 

[ON/OFF]

Sets Relay Outputs for assigned preset.

52

4.8 Swing Setup

 Swing Number [1~8]

Selects a Swing number to edit. If the selected Swing is not defined, "NOT USED" is

the 1st Position and the 2nd Position.

 1st Position

2nd Position

[PRESET 1~128]

Sets the 2 positions for a Swing function. If the selected preset is not defined, "UNDEFINED" is

displayed as shown below.

When a

swing function runs,

preset a

ssigned as the 2nd point in CW(Clock

preset assigned as the 2nd point to the preset assigned as the 1st point in CCW

(Counterclockwise)

direction. In case that the preset assigned as the 1st point and the preset

assigned as the 2nd point are same or only 1 Preset position is assigned, the camera turns on its

axis by 360

in CW direction and then it turns on its axis by 360

 Swing Speed

[1/sec. ~180/sec.]

Defines Swing s

peed

 Clear Swing [CANCEL/OK]

Deletes the data of the selected Swing.

 Run Swing

Runs Swing for the test purposes to check if it works

53

the camera moves from the

preset assigned as the 1st point to the

wise) direction. Then the

camera moves from the



in CCW directi

between the 2 Preset positions from 1/sec to 180



properly.

displayed in

on.

/sec

4.9 Pattern Setup

 Pattern Number [1~4 ]

Selects a Pattern number to edit. If the selected pattern number is not defined, "UNDEFINED" will

be displayed under the selected pattern number.

 Clear Pattern [CANCEL/OK]

Deletes

the data of the

 Run Pattern Runs the

Pattern for the test purposes to check if it works properly.

 Edit Pattern

Edits the selected pattern.

Pattern Edit

1)

With the Joystick of your controller, move the camera to the start position with an appropri

start the pattern recording, press

NEAR

2)

Move camera with joystick of controller or run preset function to

pattern. The

movement by Joystick and preset movement will be memorized in a pattern.

programmed, the remaining storage is displayed in progress bar on the screen.

3) To save the data and exit, press N

EA

54

selected pattern.

key. To exit, press FAR key.

memorize the path (mostly curve path) in the selected

R key. To cancel saving the data and delete the d

ata, press

ate zoom magnafication. To

After a pattern is

FAR key.

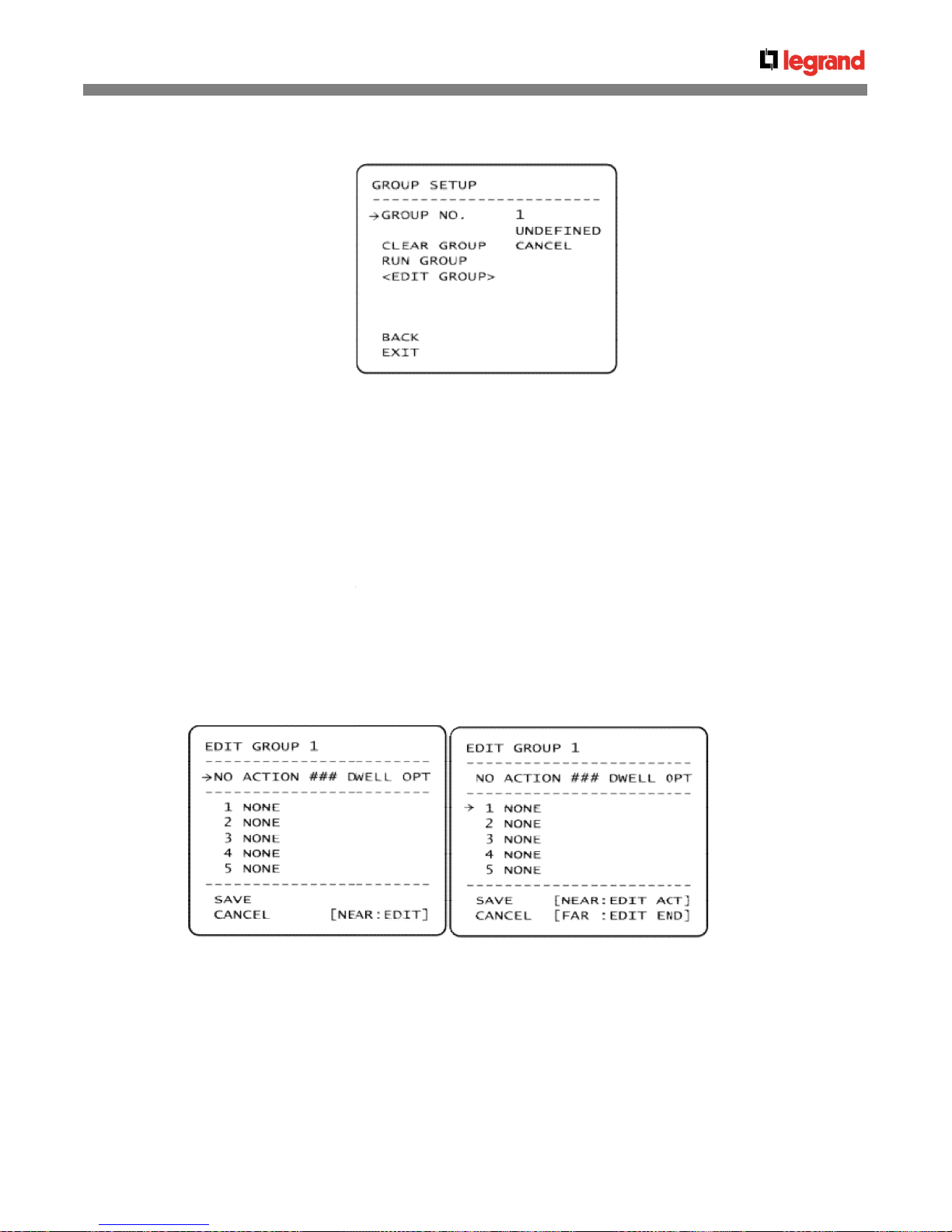

4.10 Group Setup

 Group Number [1~8]

Selects a

Group number to edit.

If the

selected Group number is not defined, "UNDEFINED" will be displayed under

the

selected Group number.

 Clear Group [CANCEL/OK]

Deletes the

data

 Run Group Runs

the Group

 Edit Group

Edit the selected

Group Edit

1) Press Near

key when the cursor is at

2)

Note that MAX. 20 actions are allowed in a Group. Move the cursor up/down to select an Action.

55

of the selected Group.

for the test purposes to check if it works properly.

Group.

“NO” to start editing the selected Group.

Press Near key to edit.

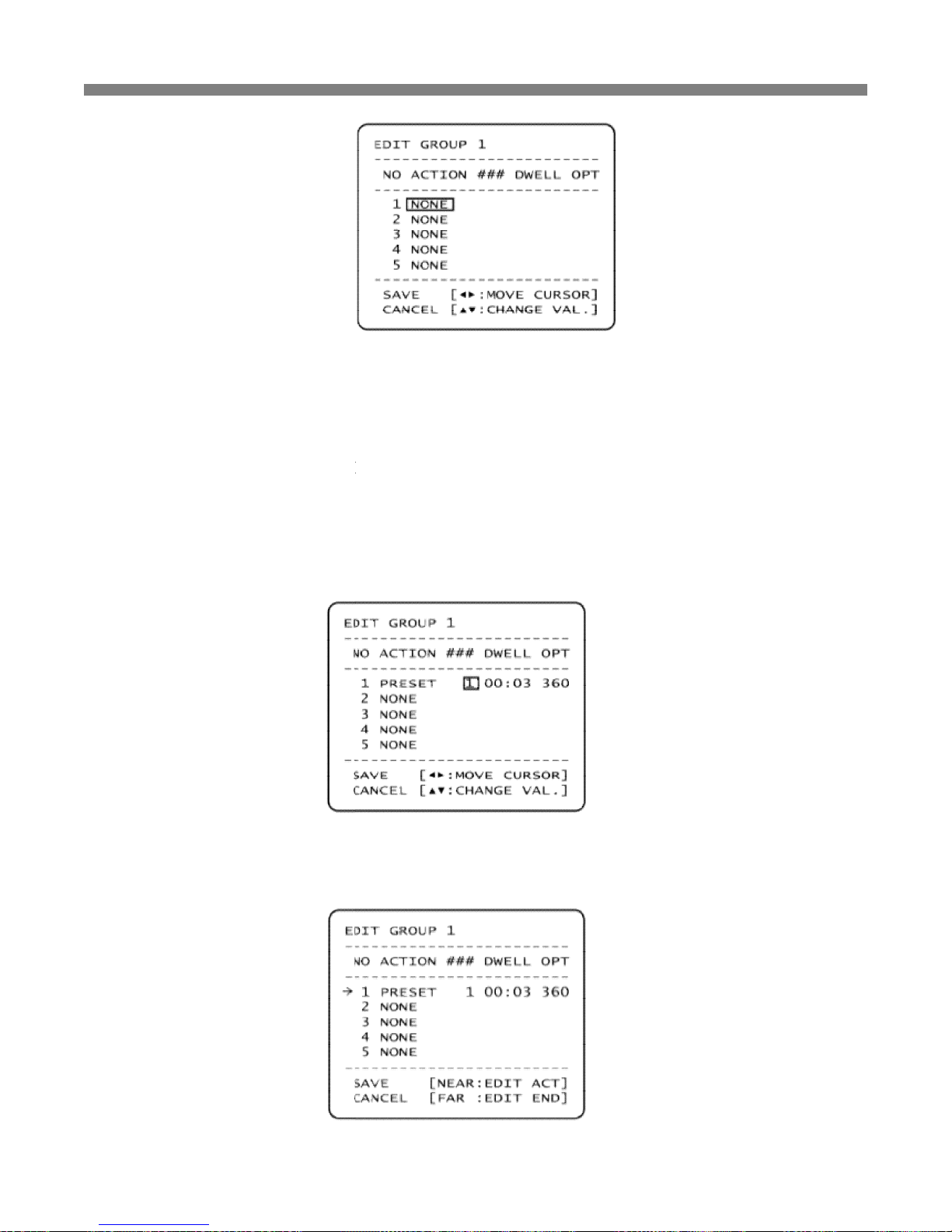

3)

Define Action, Dwell time and Option.

an item and move cursor Up/Down

to change each parameter.

 Action ###

[NONE/PRESET/SWING/PATTERN]

 DWELL

[0 SEC. ~ 4 MIN.]

Sets the Dwell Time between functions.

 OPT

Option. It is a preset speed when a preset is selected in the Action. It is the number of repeat

when a Pattern or a Swing is selected in the A

4)

Edit the items such as Action, ###, Dwell and OPT by moving the cursor.

56

Note that the dark rectangular is the cursor. Move the cursor

ction.

Left/Right to select

5) After finishing editing

a Action, press Near key to go to

Up/Down to select an

Action number and repeat Step

6) After finishing setting up, press

FAR

57

the previous-upper level menu (

Step

② ~ Step ④ to keep editing

the selected

key to exit. Then the cursor will move to “SAVE”.

Press

②). Move the cursor

Group.

Near key to save the data.

4.11 System Initialization

 Clear All Data

Deletes all configuration data and the system is set to the factory default.

 Clear Display Set

Initializes all the configuration data for Display.

 Clear Camera Set

Initializes all the configuration data for Camera.

 Clear Motion Set

Initializes all the configuration data for Motion.

 Clear Edit Data

Deletes all the

 Reboot Camera

Reboots the zoom camera module.

 Reboot System

Reboots the system.

58

configuration

data for Preset, Swing, Pattern and Group.

59

Factory Default



Display Parameters



Camera Parameters

Camera ID ON Focus Mode SemiAuto

PTZ Information AUTO Digital Zoom ON

Action Title AUTO Image Flip OFF

Preset Label AUTO Sharpness 2

Stabilization OFF

Alarm I/O AUTO White Balance AUTO

North Direction

Pan 0

Backlight OFF

Privacy Zone Undefined Day&Night AUTO

Brightness 32

Iris AUTO

Shutter -



Motion Parameters

AGC -

Motion Lock OFF SSNR MIDDLE

Power Up Action ON SENS-UP AUTO (4 Frame)

Auto Flip ON

Jog Max Speed

120/sec



User

-

Defined Data

Jog Direction INVERSE Preset 1~128 Undefined

Freeze In Preset OFF Swing 1~8 Undefined

Park Action OFF Pattern 1~4 Undefined

Alarm Action OFF Group 1~8 Undefined

60

5 Specifications

CAMERA PART (4 305 21/4 305 23)

Video Signal Format PAL

Image Sensor Sony 1/4'' Super HAD CCD

Total Pixels

795(H)596(V) 470K

Effective Pixels

752(H)582(V) 440K

Horizontal Resolution 560 TV Lines(Color), 600 TV Lines(B/W)

Video Signal-to-Noise 52 dB (AGC Off)

Zoom 12x Optical Zoom, 12x Digital Zoom

Forcal Length F1.6 (Wide)/F2.0(Tele), f=3.6~44.3 mm

Angle of View

H : 5444(Wide)~4.64(Tele) / V : 41.42(Wide)~3.52(Tele)

Minimum Illuminance 2.0 Lux (Color, Sens Off) / 0. 0008 Lux (B/W, Sens x256), 50 IRE, F1.6

Day & Night Auto / Day / Night(ICR)

Focus Auto / Manual / SemiAuto

Iris Auto / Manual

Shutter Speed 1/60(50) ~ 1/10000 sec (x2~ 256 Sens UP)

AGC Auto / Manual

White Balance

Auto / Manual(Red, Blue Gain Adjustable. 2000K~10000K)

BLC ON/ Off

Flickerless Selectable

SSNR Low / Middle / High / Off

Privacy Zone 8 Masks, Spherical Coordinate

61

Specifications (4 305 22)

Model 4 305 22

Video Signal System PAL

Camera

CCD 1/4'' Super HAD color CCD

Max. Pixels

795(H)596(V) 470K

Effective Pixels

752(H)582(V) 440K

Horizontal Res. 550 TV Line(Color), 680 TV Line(B/W)

S/N Ratio 50 dB (AGC Off)

Zoom 27x Optical Zoom, 12x Digital Zoom

Focal length f=3.5~94.5mm (F1.6~2.9)

Min. illumination 0.4 Lux/F1.6 (Color), 0. 02 Lux/F1.6 (B/W), 50 IRE

Day & Night Auto / Day / Night(ICR)

Focus Auto / Manual / SemiAuto

Iris Auto / Manual

Shutter Speed x256 ~ 1/120000 sec

AGC Low / Middle / High / Manual / Off

White Balance Auto / Manual(Red, Blue Gain Adjustable)

BLC BLC / HLC / Off

Flickerless Selectable

SSNR Low / Middle / High / Off

Stabilization On / Off

Pan/Tilt

Range

Pan 360(Endless) / Tilt 95

Pan/Tilt Speed

Preset :

360/sec

Manual :

0.05 ~ 360/sec (proportional to zoom)

Swing :

1~ 180/sec

Preset 127 Preset (Label, Camera Image Setting)

Pattern 4 Pattern, 1200 commands(about 5 minute)/Pattern

Swing 8 Swing

Group 8 Group (20 action entities per Group)

Other Functions Auto Flip, Auto Parking, Power Up Action etc.

General

Communication RS-485

Protocol

Pelco-D, Pelco-P selectable

Alarm I/O 4 Input / 2 Output

Privacy Mask Zone 8 Zone

OSD Menu / PTZ information etc.

Dimension

Dome :

149

Housing :

160  212(H) mm

Weight about 2 kg

Operating Temp.

0C ~ 40C

* Specifications of this product can be subjected to change without notice.

62

Specifications (4 305 24 – 4 305 25

CAMERA PART 4 305 24 4 305 25

Video Signal Format

PAL

Image Sensor

1/4'' Interline Transfer CCD

Total Pixels

795(H)596(V) 470 K

Effective Pixels

752(H)582(V) 440 K

Horizontal Resolution

550 TV Lines(Color), 680 TV Lines(B/W)

Video Signal-to-Noise

50 dB (AGC Off)

Optical Zoom

27x 37x

Digital Zoom

12x

Forcal Length

F1.6~2.9, f=3.5~94.5 mm F1.6~3.9, f=3.5~129.5 mm

Angle of View (H)

55.5(Wide)~2.24(Tele) 55.5(Wide)~1.59(Tele)

Angle of View (V)

42.5(Wide)~1.79(Tele) 42.5(Wide)~1.19(Tele)

Zoom Speed (Wide to Tele)

1.8 sec 2.5 sec

Minimum Illuminance

0.4 Lux (Color) / 0.02 Lux (B/W), 50 IRE
/ F1.6

0.7 Lux (Color) / 0. 6 Lux
(B/W), 50 IRE / F1.6

Day & Night

Auto / Day / Night(ICR)

Focus

Auto / Manual / SemiAuto

Iris

Auto / Manual

Shutter Speed

256 ~ 1/120000 sec

AGC

Low/Middle/High/Manual/Off

White Balance

Auto / Manual(Red, Blue Gain Adjustable.

1800 K~10500 K)

BLC

BLC/HLC/Off WDR/BLC/HLC/Off

Flickerless

Selectable

SSNR

Low / Middle / High / Off

Stabilization

ON/OFF

Privacy Zone

8 Masks, Spherical Coordinate

63

MECHANISM PART

Movement Range

Pan

360(Endless)

Tilt

90

Speed

Preset

360/sec.

Jog

0.05 ~ 360/sec. (Proportional to Zoom)

Swing

1~ 180/sec.

Preset

127 Presets (Label, Independent Camera Parameter Setting)

Pattern

4 Patterns [1200 Commands(Approx. 5 Minute) / Pattern]

Swing

8 Swings

Group

8 Groups (MAX. 20 Actions with The Combination of Preset, Pattern and

Swing)

Other Pan/Tilt Functions

Auto Flip, Auto Parking, Power Up Action and etc.

Communication

RS-485

Protocol

Pelco-D, Pelco-P Selectable

OSD

English, Menu / PTZ information etc

Sensor Input

3 Inputs, Photo-Coupler Type, DC 5V~12V

Alarm Outputs

1 Output, Relay Output, MAX. Load DC24V 1A / AC125V 0.5A

Fan

Always ON

Heater

Operation Start from Internal Temperature 10C

Operation Temperature

0C ~ 40C (4 305 21/4 305 22 Models)

-30C ~ 50C (4 305 23/4 305 24/4 305 25 Models)

RATED POWER

4 305 21

DC 12V / 0.8 A

4 305 22

DC 12 V / 0.75 A

4 305 23/4 305 24/4 305 25

DC 12V / 2.5 A

64

MECHANICAL

4 305 21 Model

Surface Mount Ceiling Mount Wall Mount

Material

Dome

Polycarbonate

Internal

Polycarbonate, ABS

External

Polycarbonate

Dome Size

107.5 mm /  4.2”

Dimension

132.4129.5 mm 132.4187.5 mm 213.2207.5 mm

Weight (kg)

Approx 0.7 Approx 0.8 Approx 0.85 kg

MECHANICAL

4 305 23 Model 4 305 24/4 305 25 Models

Ceiling Mount Wall Mount Ceiling Mount Wall Mount

Material

Dome

Polycarbonate

Internal

Polycarbonate, ABS

External

Aluminium

Dome Size

107. 5mm /  4.2” 150mm /  5.9”

Dimension

158.2216 mm 274.5227.3 mm 192x265.3mm

296x276.6mm

Weight (kg)

Approx 2.6 kg Approx 2.8 kg Approx 3.2 kg Approx 3.8 kg

[Note]

1) Specification and features are subject to change without prior notice.

2) Specification and features are different by models.

3) Check the voltage and current capacity of rated power carefully.

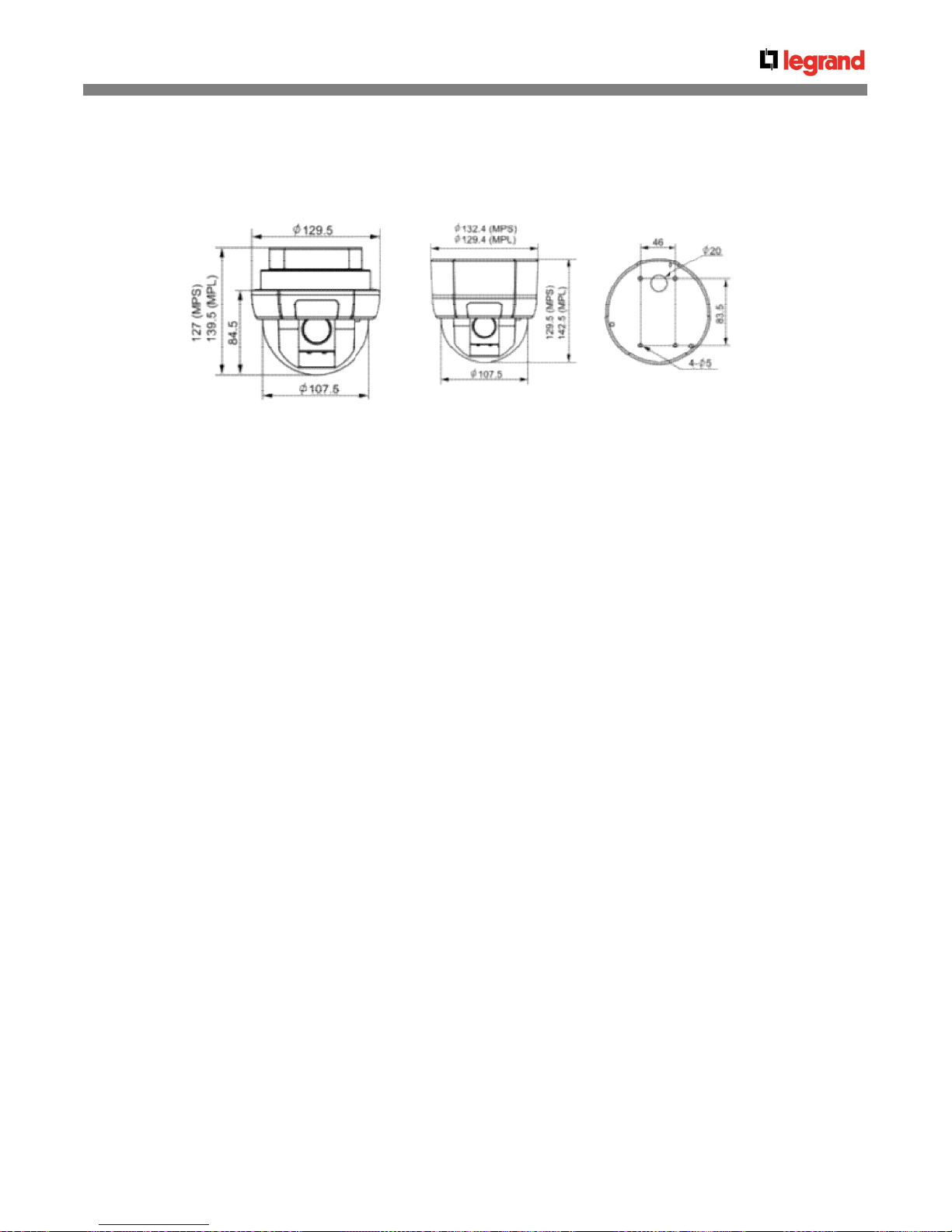

5.1 Dimension

(4 305 21 Model)

 Main Body

[Unit : mm]

65

 Surface Mount Type

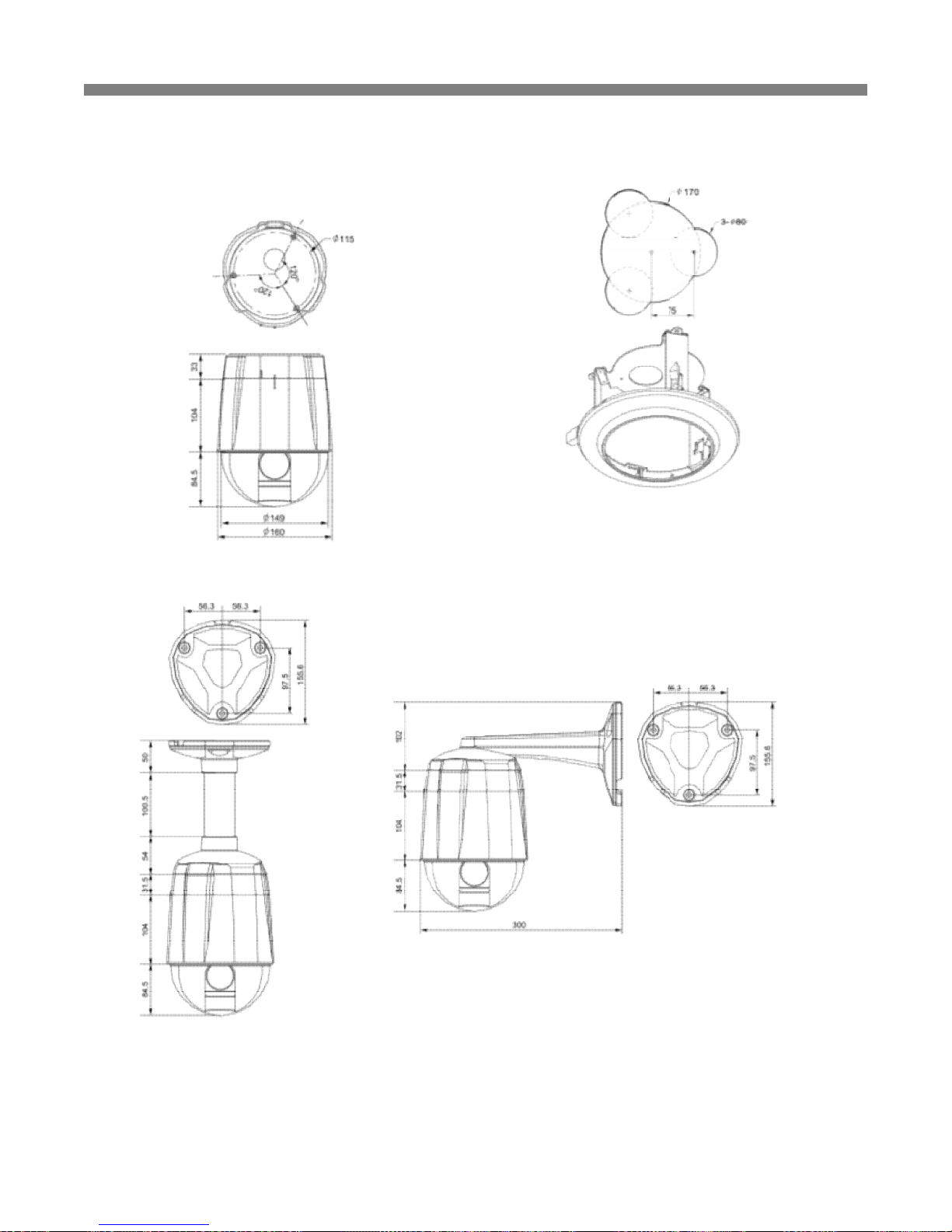

(4 305 22 Model)

 Main Body & Terminal Cover

 Ceiling Mount Bracket

Unit (mm)

66

 In-Ceiling Mount Bracket

 Wall Mount Bracket

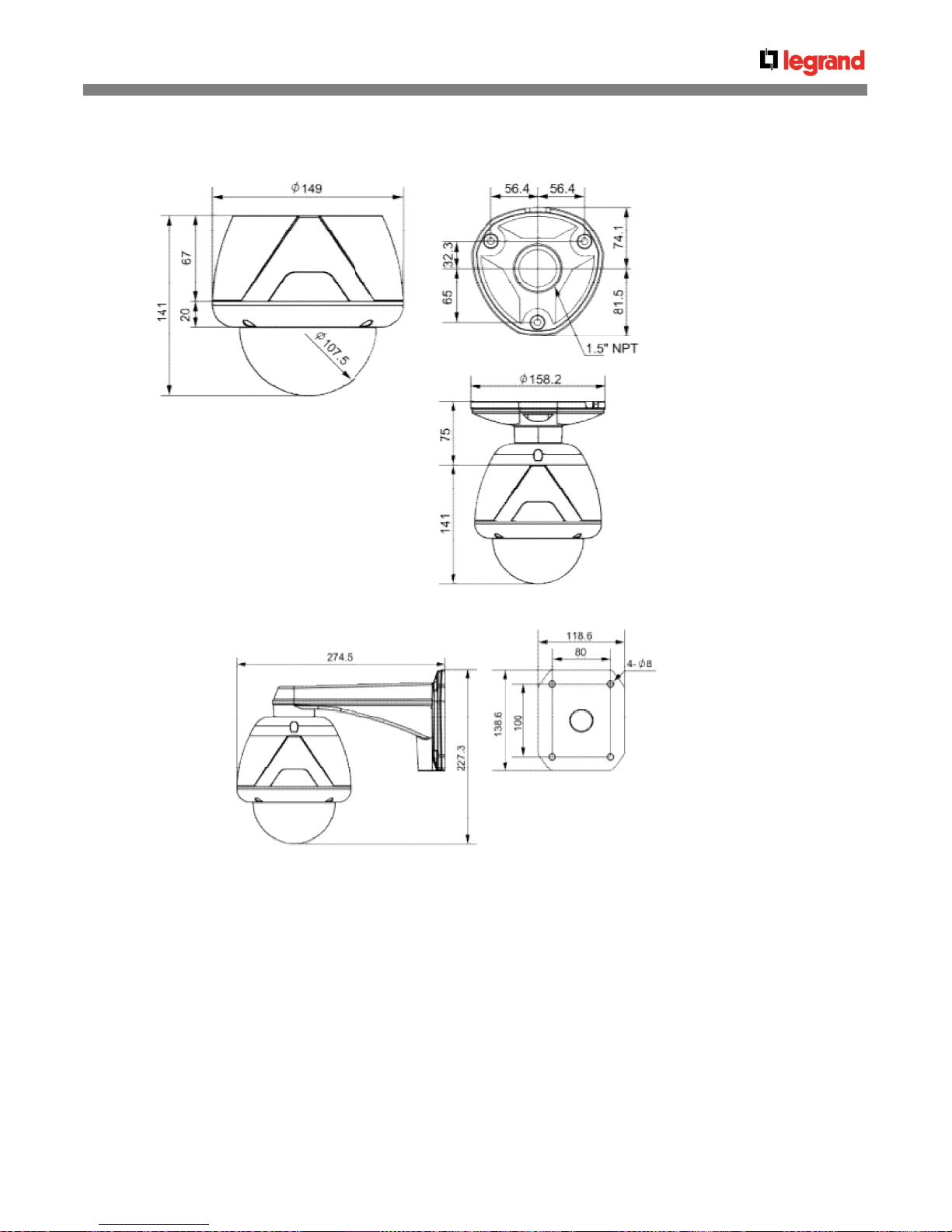

(4 305 23 Model)

 Main Body

 Wall Mount Type

[Unit : mm]

67

 Ceiling Mount Type

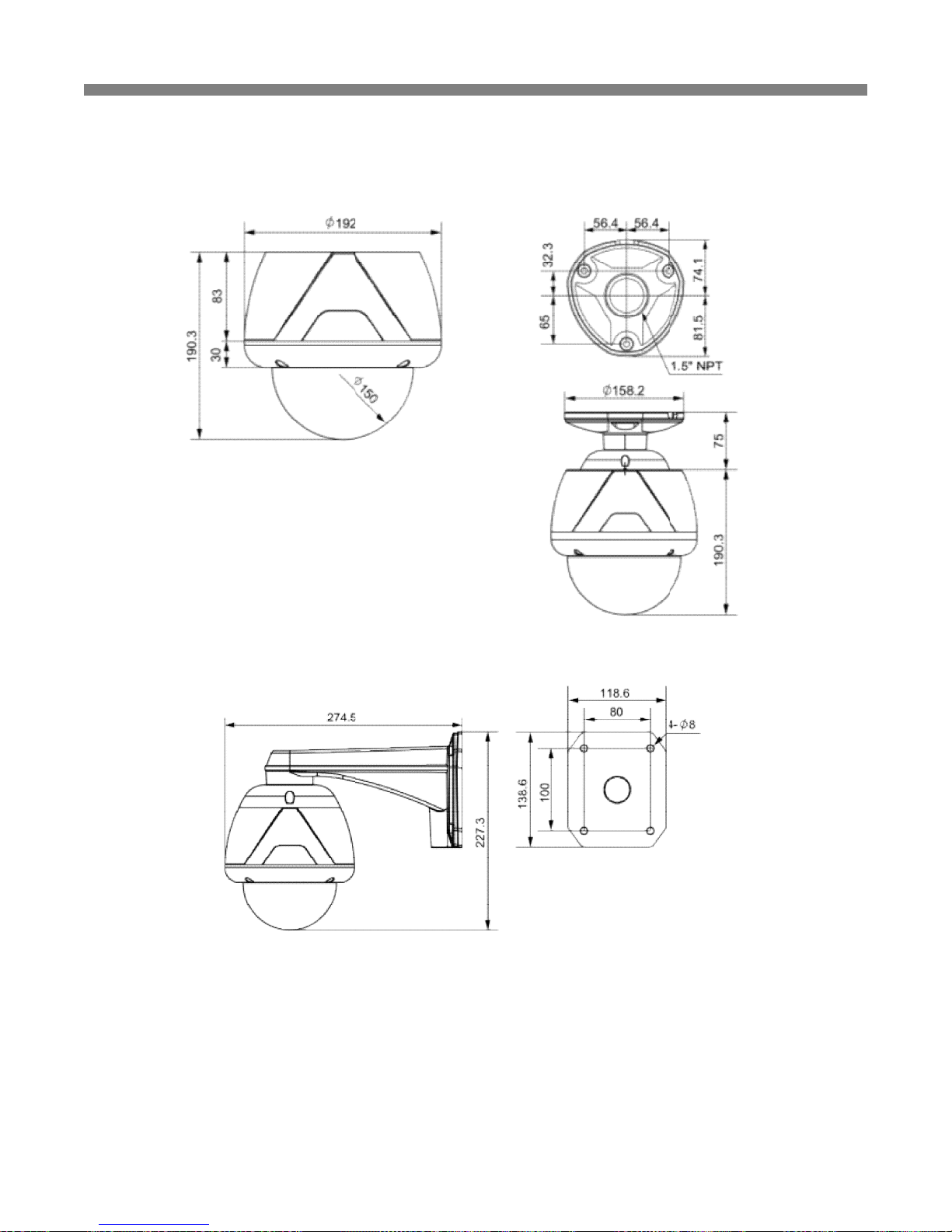

(4 305 24/4 305 25 Model)

 Main Body

 Wall Mount Type

[Unit : mm]

68

 Ceiling Mount Type
