Legrand 400 User Manual
2300BACD
Cable Type Category/Designation Typical OD 400BAC 800BAC 2300BAC Each Compartment
Inches [mm]
20% FIll* 40% Fill** 20% FIll* 40% Fill** 20% FIll* 40% Fill** 20% FIll* 40% Fill**
Unshielded
4-pair, 24AWG Cat 3 UTP
0.190 [4.8] 0 1 1 3 5 11 2 5
Twisted Pair
4-pair, 24AWG Cat 5e UTP
0.210 [5.3] 0 1 1 3 4 9 2 4
4-pair, 24AWG Cat 6 UTP
0.250 [6.3] 0 1 1 2 3 6 1 3
Telephone
2-pair, 24 AWG
0.140 [3.6] 1 3 3 7 11 22 5 11
3-pair, 24 AWG
0.150 [3.8] 1 2 3 6 9 19 4 9
4-pair, 24 AWG
0.190 [4.8] 0 1 1 3 5 11 2 5
25-pair, 24 AWG
0.410 [10.4] 0 0 0 0 1 2 0 1
Coaxial RG58/U 0.195 [5.0] 0 1 1 3 5 11 2 5
RG59/U 0.242 [6.1] 0 1 1 2 3 7 1 3
RG62/U 0.242 [6.1] 0 1 1 2 3 7 1 3
RG6/U 0.270 [6.9] 0 0 0 1 2 5 1 2
TWINAXIAL 100 Ohm 0.330 [8.4] 0 0 0 1 1 3 0 1
Shielded Type 1 0.390 [9.9] 0 0 0 0 1 2 0 1
Twisted Pair Type 2 0.465 [11.8] 0 0 0 0 1 2 0 1
Type 3 0.245 [6.2] 0 1 1 2 3 7 1 3
Fiber Mini ZipCord 0.079 x 0.157 [2 x 4] 2 4 4 8 13 27 6 13
ZipCord 0.118 X 0.236 [3 X 6] 0 1 1 3 6 12 3 6
Round 4 Strand Fiber 0.187 [4.8] 0 1 1 3 6 12 3 6
Round 6 Strand Fiber 0.256 [6.5] 0 1 1 2 3 6 1 3
4

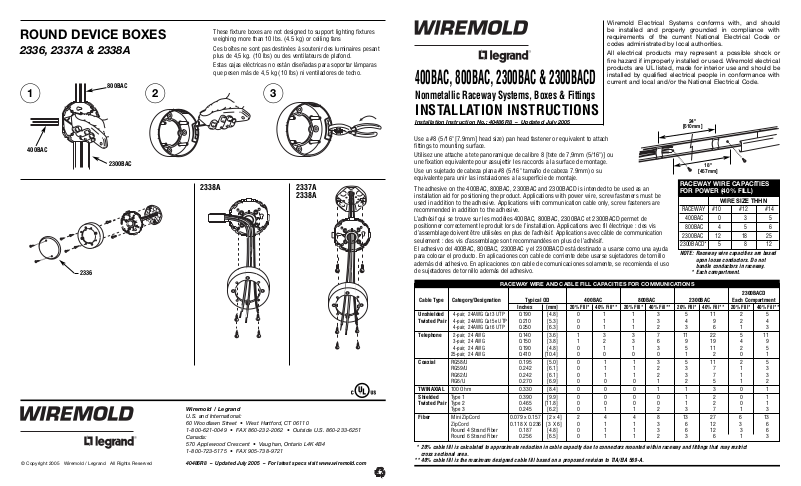

00BAC, 800BAC, 2300BAC & 2300BACD
Nonmetallic Raceway Systems, Boxes & Fittings
INSTALLATION INSTRUCTIONS
Installation Instruction No.: 40486R8 – Updated July 2005
Wiremold Electrical Systems conforms with, and should
be installed and properly grounded in compliance with
requirements of the current National Electrical Code or
codes administrated by local authorities.
All electrical products may represent a possible shock or
fire hazard if improperly installed or used. Wiremold electrical
products are UL listed, made for interior use and should be
installed by qualified electrical people in conformance with
current and local and/or the National Electrical Code.
These fixture boxes are not designed to support lighting fixtures
weighing more than 10 lbs. (4.5 kg) or ceiling fans
Ces boîtes ne sont pas destinées à soutenir des luminaires pesant
plus de 4,5 kg. (10 lbs) ou des ventilateurs de plafond.
Estas cajas eléctricas no están diseñadas para soportar lámparas
que pesen más de 4,5 kg (10 lbs) ni ventiladores de techo.
Use a #8 (5/16" [7.9mm] head size) pan head fastener or equivalent to attach
fittings to mounting surface.
Utilisez une attache a tete panoramique de calibre 8 [tete de 7,9mm (5/16")] ou
une fixation equivalente pour assujettir les raccords a la surface de montage.
Use un sujetado de cabeza plana #8 (5/16" tamaño de cabeza 7.9mm) o su
equivalente para unir las instalaciones a la superficie de montaje.
The adhesive on the 400BAC, 800BAC, 2300BAC and 2300BACD is intended to be used as an
installation aid for positioning the product. Applications with power wire, screw fasteners must be
used in addition to the adhesive. Applications with communication cable only, screw fasteners are
recommended in addition to the adhesive.
L’adhésif qui se trouve sur les modèles 400BAC, 800BAC, 2300BAC et 2300BACD permet de
positionner correctement le produit lors de l’installation. Applications avec fil électrique : des vis
d’assemblage doivent être utilisées en plus de l’adhésif. Applications avec câble de communication
seulement : des vis d’assemblage sont recommandées en plus de l’adhésif.
El adhesivo del 400BAC, 800BAC, 2300BAC y el 2300BACD está destinado a usarse como una ayuda
para colocar el producto. En aplicaciones con cable de corriente debe usarse sujetadores de tornillo
además del adhesivo. En aplicaciones con cable de comunicaciones solamente, se recomienda el uso
de sujetadores de tornillo además del adhesivo.
RACEWAY WIRE AND CABLE FILL CAPACITIES FOR COMMUNICATIONS
RACEWAY WIRE CAPACITIES
FOR POWER (40% FILL)
WIRE SIZE THHN
RACEWAY #10 #12 #14
400BAC 0 3 5
800BAC 4 5 6
2300BAC 12 18 25
2300BACD* 5 8 12
NOTE: Raceway wire capacities are based
upon loose conductors. Do not
bundle conductors in raceway.
* Each compartment.
* 20% cable fill is calculated to approximate reduction in cable capacity due to connectors mounted within raceway and fittings that may restrict
cross sectional area.
** 40% cable fill is the maximum designed cable fill based on a proposed revision to TIA/EIA 569-A.
© Copyright 2005 Wiremold / Legrand All Rights Reserved
ROUND DEVICE BOXES
2336, 2337A & 2338A
18"
[457mm]
24"
[610mm]
1 2 3
800BAC
400BAC
2300BAC
2338A 2337A
2338A
2336
Wiremold / Legrand
U.S. and International:
60 Woodlawn Street • West Hartford, CT 06110
1-800-621-0049 • FAX 860-232-2062 • Outside U.S. 860-233-6251
Canada:
570 Applewood Crescent • Vaughan, Ontario L4K 4B4
1-800-723-5175 • FAX 905-738-9721
40486R8 – Updated July 2005 – For latest specs visit www.wiremold.com
j
SURE-SNAP®DEVICE BOXES
For 400, 800, 2300:
2344, 2344-2, 2347, 2347-2, 2348, 2348-2, 2348-3 & 2348S/51
1
2
2348D
2310DFO
2311DFO 2317DFO 2318DFO
2344SD-2A
2300BACD
2300BACD
2300BACD
2300BACD
2300BACD
2300BACD
Series II
Inserts
S2-EPL
5507 Series
Faceplate
Disassemble
1
2
4
3
400BAC
800BAC
2300BAC
FIBERREADY®FITTINGS
For 2300 & 2300D:
2310DFO, 2311DFO, 2317DFO, 2318DFO
For 2300D Divided:
2344D, 2348D, 2344SD-2A
