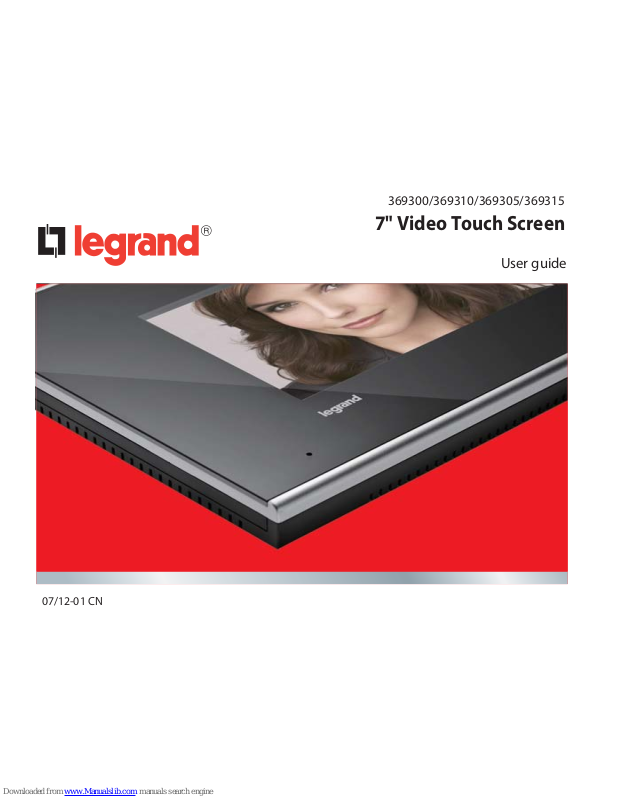

Page 1
369300/369310/369305/369315
7" Video Touch Screen
User guide
07/12-01 CN
Page 2
2
Page 3
User guide
7" VIDEO KIT TOUCH SCREEN
3
Table of contents
1. Calling Function 6
2. Entrance Panel Activation
6
3. Intercom calling
4. Work Mode
6. Guest Photos
7. Digital Photos Frame
8. Settings
6
7
8
8
9
9
10
10
8.1 Ring Setting
10
8.2 Video Setting
10
8.3 Date Time Setting
8.4 Touch Screen Calibration Setting
8.5 Welcome message
5. Guest records
7
Page 4
4
IMPORTANT WARNING
On the rights of people involved in the taking of pictures and the recording of sounds.
•
The
7" video kit touch screen
which you have purchased contains technological devices
which allow the taking of images.
•
the subject of copyright or other rights of intellectual ownership by third parties.
•
Consequently, anyone using the equipment is obliged to respect:
– legislation regarding the protection of personal data;
– data security obligations;
– picture and portrait rights, as well as the regulations on copyright and
intellectual and industrial property.
•
Legrand is not responsible for the illegitimate use of its equipment by its customers.
The images, sounds, voice and names are personal data - sometimes sensitive - and can be
Page 5
5
8
1
2
4
9
10
6
7
3
5
1.Speaker
2.Intercom
3.Entrance panel switching ON key / Answering key
4.Call LED
5.Power LED
6.Optional button (G+/G- connector)
7.Door lock button (L+/L- connector)
8.Microphone
9.USB
10.SD
Entrance panel activation
Your
7" VIDEO KIT TOUCH SCREEN
Main screen:
7:04pm
25-12- 2011
Detection of SD cardDate
Time
Intercom Call
Guest Voice Record
Guest Photo Record
Digital Photo Frame
Settings
Answering machine activation
Stand-by
Mute
Page 6
User guide
When a call arrives, internal unit switch on showing
video from Entrance camera.
Press to answer.
: When pressed, ending talking and return to
main screen.
: When pressed, you can unlock the optional
gatelock.
: When pressed, you can unlock doorlock.
: When pressed, the video change to fullscreen;
touch the screen to came back to normal view.
: When pressed, You can take photo and save
to Guest Photo.
6
1. Calling Function
When press in main screen, you will activate
the entrance panel camera. Press to activate a
call with entrance panel.
2. Entrance Panel activation
When press in main screen, you will call the
other internal units:
Press just to end your calling and return to main
screen.
3. Intercom calling
Page 7
7
5. Guest Records
When you press in main screen, you enter in
the guest record menu:
Note: when having new record , icon will
change to .
: Quit and return to main page.
: Click this icon, you can check previous record.
: Click this icon, you can check next record.
: Play guest voice records.
: Delete guest records.
: Stop playing voice record.
4. Work Mode
: Select this icon in main screen to set all calls to
mute (without ring).
: Select this icon in main screen to go to standby
and power off screen.
: Select this icon to activate answering machine.
Note: the answering machine can be activated
just in one internal unit for apartment.
Page 8
User guide
7:04
p
: Go to see the vistor photo that link to the
record.
: Lock voice record to avoid to delete.
When press in main screen, you enter in the
guest photos menu:
6. Guest Photos
: Quit and return to main page.
: Select one picture and double click ,you will
enter single mode.
: Delete selected photo.
: move to previous guests photo page.
: move to next guests photo page.
8
7. Digital Photo Frame
: Return to main screen.
: Select one picture and double click ,you will
enter single mode.
: Delete selected photo.
: Move to previous photos.
: Move to next photos.
: Enter slideshow.
In order to see photos you must have inserted a SD card,
you can see icon on top right corner in main
screen. When press in main screen, you will see
alll the available photos:
Page 9
9
8.1 Ring Setting
:Select entrance panel ring.
: Enter Ring setting.
: Enter Video setting.
: Display Date Time setting.
: Enter the touch screen calibratation.
: Enter the leaving message setting.
: Quit and return to main page.
8. Settings
When press in main screen, you will enter in the
settings menu:
: Increasing volume setting.
: Decreasing volume setting.
:Move with arrows to select song for this ring.
:Select intercom ring.
:Move with arrows to select song for this ring.
Page 10
User guide
10
8.2 Video Setting
: Increasing color, brightness or contrast setting.
: Decreasing color, brightness or contrast setting.
8.3 Date Time Setting
: Increasing year/month/day/hour/minute.
: Decreasing year/month/day/hour/minute.
8.4 Touch Screen Calibration Setting
: Coordinates calibration, 3 points to calibrate the
screen.
You can record more than one message, but only the
selected one will be performed.
8.5 Welcome message
: Record welcome message.
