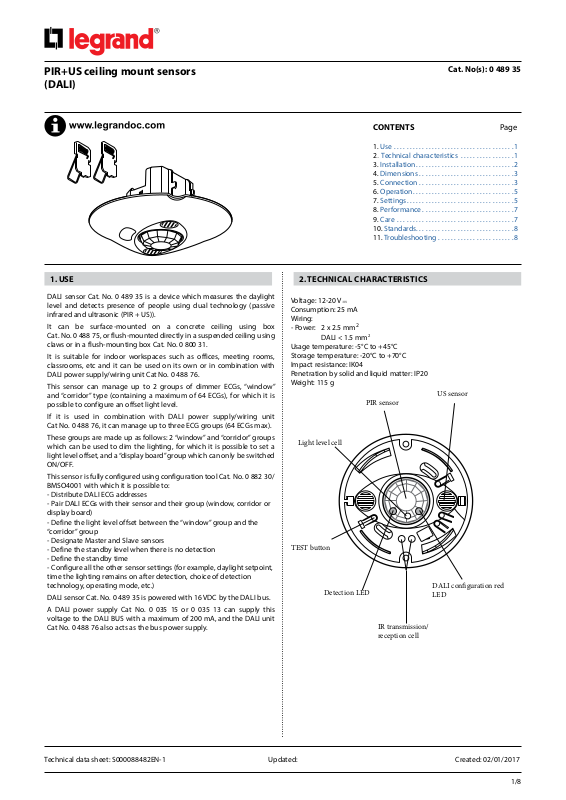

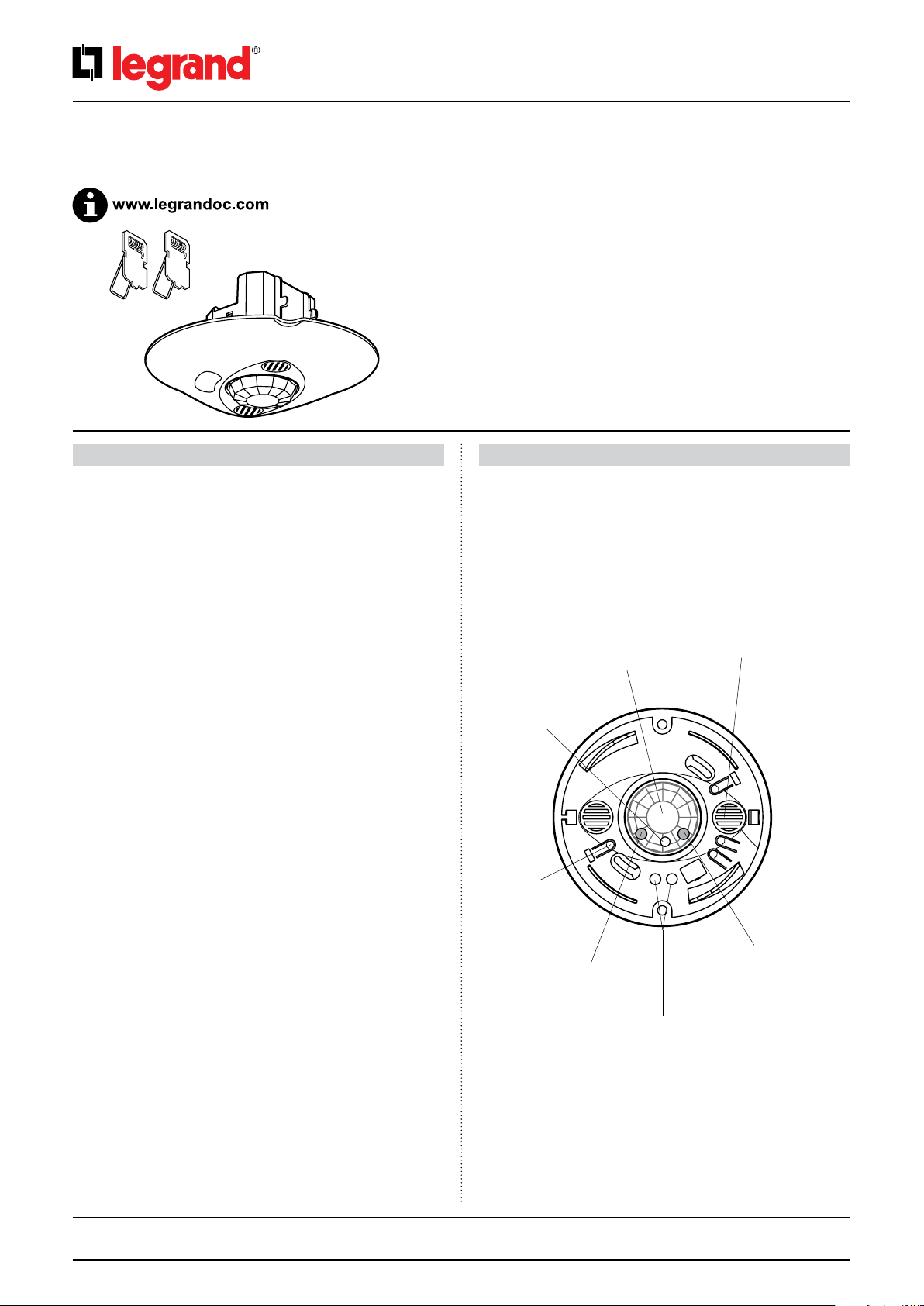

Page 1
PIR+US ceiling mount sensors
(DALI)
CONTENTS Page
1. Use ......................................1
2. Technical characteristics .................1
3. Installation...............................2
4. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Connection ..............................3
6. Operation................................5
7. Settings..................................5
8. Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
9. Care .....................................7
10. Standards...............................8
11. Troubleshooting ........................8
1. USE 2. TECHNICAL CHARACTERISTICS
Cat. No(s): 0 489 35
DALI sensor Cat. No. 0 489 35 is a device which measures the daylight
level and detects presence of people using dual technology (passive
infrared and ultrasonic (PIR + US)).
It can be surface-mounted on a concrete ceiling using box
Cat. No. 0 488 75, or flush-mounted directly in a suspended ceiling using
claws or in a flush-mounting box Cat. No. 0 800 31.
It is suitable for indoor workspaces such as offices, meeting rooms,
classrooms, etc and it can be used on its own or in combination with
DALI power supply/wiring unit Cat No. 0 488 76.
This sensor can manage up to 2 groups of dimmer ECGs, “window”
and “corridor” type (containing a maximum of 64 ECGs), for which it is
possible to configure an offset light level.
If it is used in combination with DALI power supply/wiring unit
Cat No. 0 488 76, it can manage up to three ECG groups (64 ECGs max).
These groups are made up as follows: 2 “window” and “corridor” groups
which can be used to dim the lighting, for which it is possible to set a
light level offset, and a “display board” group which can only be switched
ON/OFF.
This sensor is fully configured using configuration tool Cat. No. 0 882 30/
BMSO4001 with which it is possible to:
- Distribute DALI ECG addresses
- Pair DALI ECGs with their sensor and their group (window, corridor or
display board)
- Define the light level offset between the “window” group and the
“corridor” group
- Designate Master and Slave sensors
- Define the standby level when there is no detection
- Define the standby time
- Configure all the other sensor settings (for example, daylight setpoint,
time the lighting remains on after detection, choice of detection
technology, operating mode, etc.)
DALI sensor Cat. No. 0 489 35 is powered with 16 VDC by the DALI bus.
A DALI power supply Cat No. 0 035 15 or 0 035 13 can supply this
voltage to the DALI BUS with a maximum of 200 mA, and the DALI unit
Cat No. 0 488 76 also acts as the bus power supply.
Voltage: 12-20 V=
Consumption: 25 mA
Wiring:
- Power: 2 x 2.5 mm
DALI < 1.5 mm
Usage temperature: -5°C to +45°C
Storage temperature: -20°C to +70°C
Impact resistance: IK04
Penetration by solid and liquid matter: IP20
Weight: 115 g
Light level cell
TEST button
Detection LED
2
2
PIR sensor
IR transmission/
reception cell
US sensor
DALI conguration red
LED
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
1/8
Page 2
PIR+US ceiling mount sensors
50
(DALI)
Cat. No(s): 0 489 35

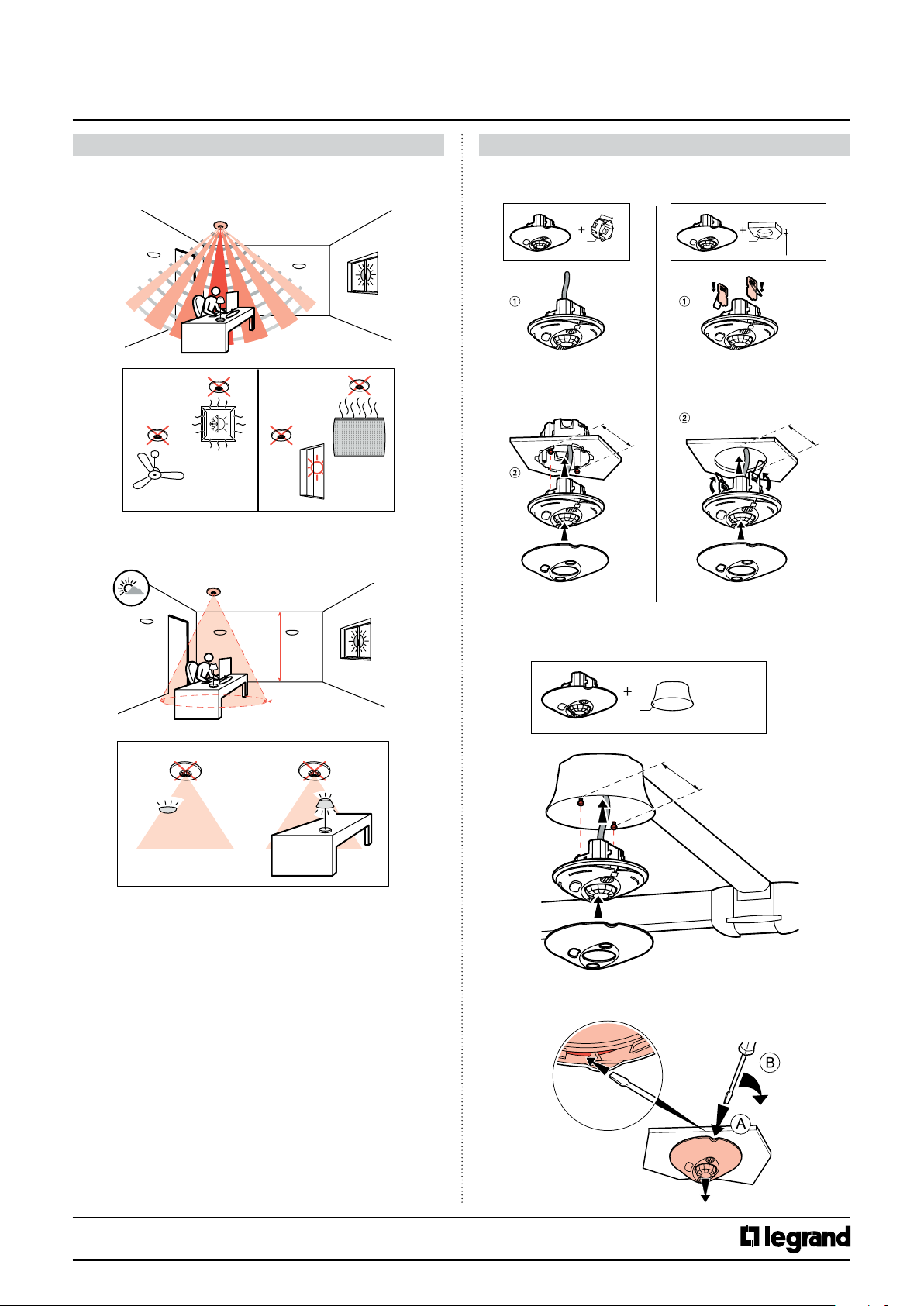

3. INSTALLATION
3.1 Sensor location
US PIR
3.2 Recommended light exposure
3. INSTALLATION (CONTINUED)
3.3 Mounting
Ø 68
Ø 68
Ø 65
0.3 to
20 mm
Ø 65
2.5 m
3.4 Recommended light exposure
0 488 75
1.5 m
Ø 120
Ø 120
3.5. Removal
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
CONTENTS
2/8
Page 3
PIR+US ceiling mount sensors
50 58
Ø : 122
D
(DALI)
Cat. No(s): 0 489 35

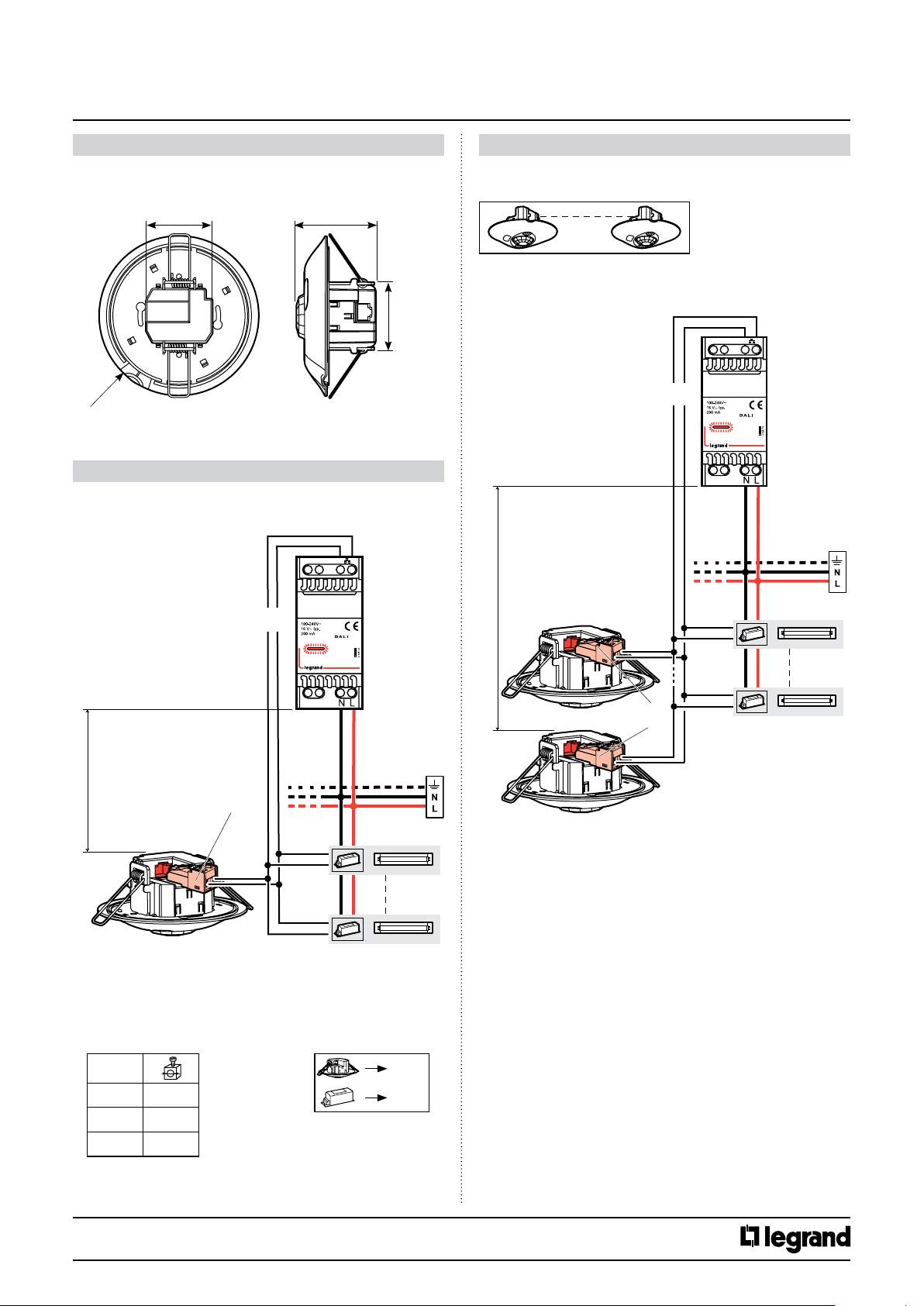

4. DIMENSIONS
5. CONNECTION
5.1 Wiring with a single sensor:
5. CONNECTION (CONTINUED)
5.2 Wiring with several sensors
50
Cat. Nos. 0 035 13/15
200 mA max.
Cat. Nos. 0 035 13/15
200 mA max.
0 488 72
D
x 64 max.
0 488 72
x 64 max.
D
2
≤ 100 m
≤ 150 m
≤ 300 m
0.5 mm
0.75 mm
1.5 mm
2
2
25 mA
2 mA
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
CONTENTS
3/8
Page 4
PIR+US ceiling mount sensors
D
D
(DALI)
5. CONNECTION (CONTINUED) 5. CONNECTION (CONTINUED)
Cat. No(s): 0 489 35

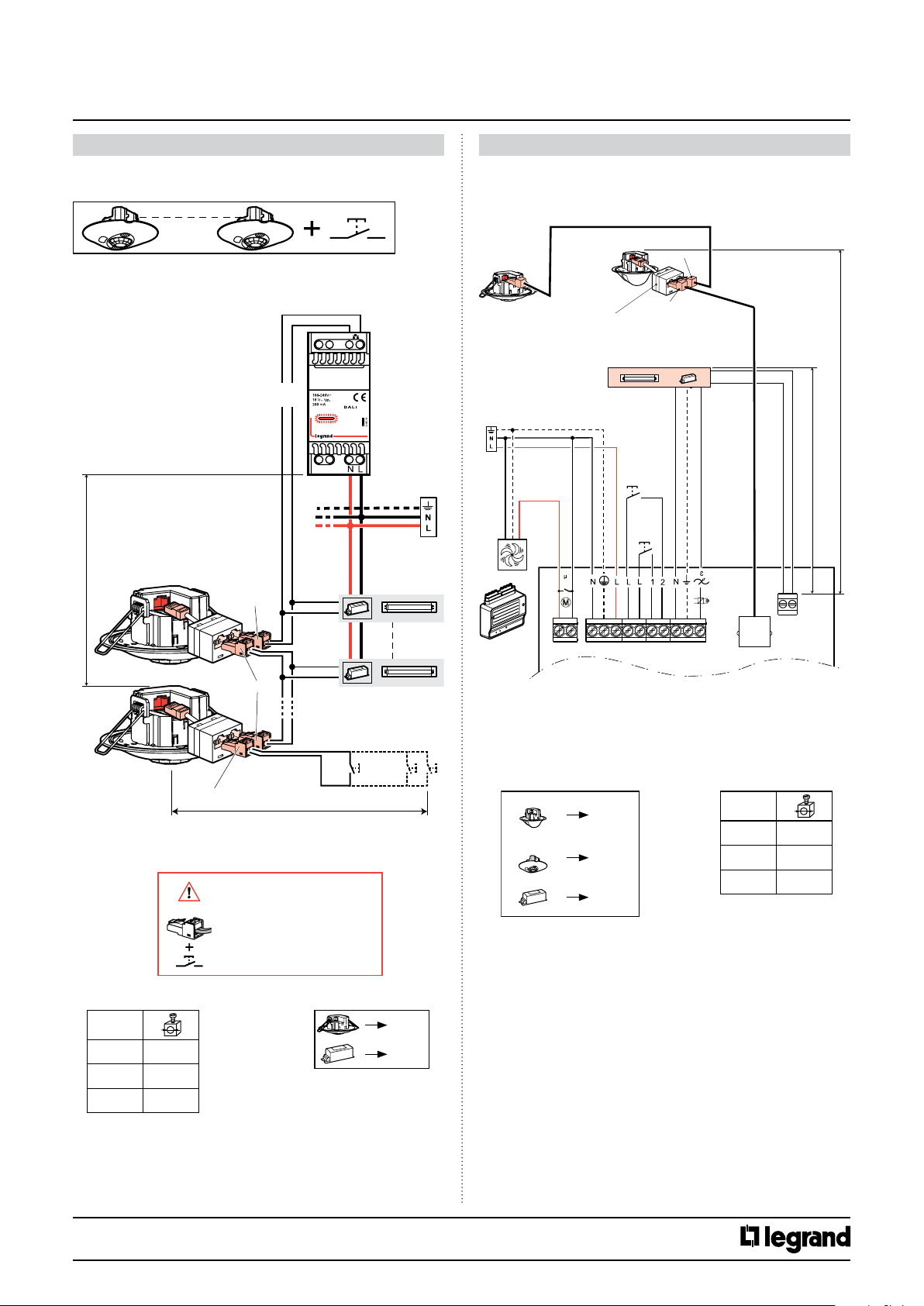

5.3 Wiring with several sensors and one control unit:
Cat. Nos. 0 035 13/15
200 mA max.
0 488 72
5.4 Wiring with several sensors, one control unit and a DALI unit
Cat. No. 0 488 76
0 489 35
RJ 45
0 489 36
0 488 68
(2)
RJ 45
x 64 max.
(1)
RJ 45
D
DA +
DA -
RJ45
0 488 72
x 64 max.
0 488 76
(1): Classroom
(2): Display board
0 488 78
150m. max.
• The push-button must be
0 488 78
D
≤ 100 m
≤ 150 m
≤ 300 m
0.5 mm
0.75 mm
1.5 mm
connected to a master sensor
via Cat. No. 0 488 78.
2
2
2
25 mA
2 mA
0 489 36
0 489 35
10 mA
25 mA
2 mA
D
≤ 100 m
≤ 150 m
≤ 300 m
0.5 mm
0.75 mm
1.5 mm
2
2
2
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
CONTENTS
4/8
Page 5
PIR+US ceiling mount sensors
Advanced
(DALI)

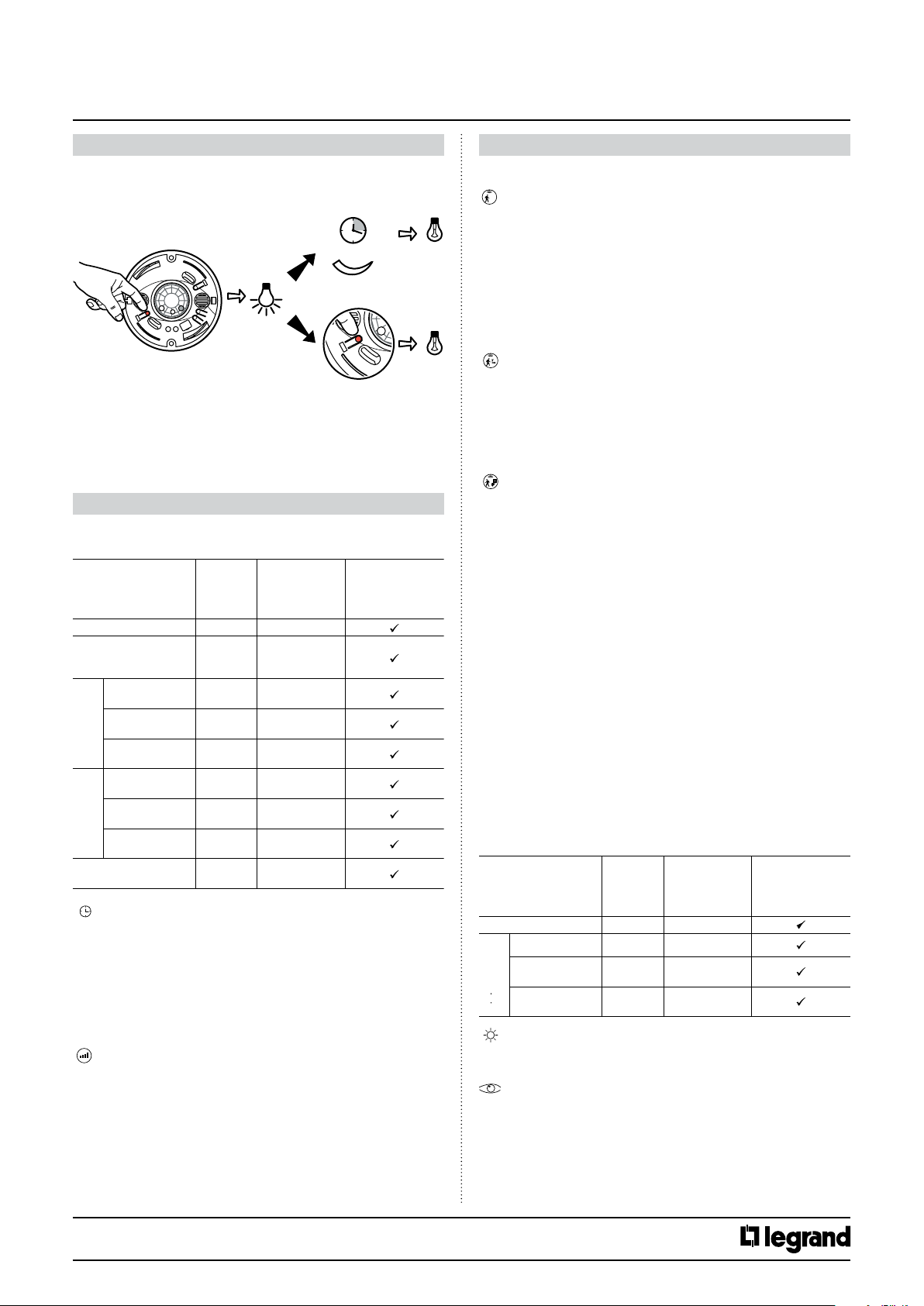

6. OPERATION 7. SETTINGS (CONTINUED)
Cat. No(s): 0 489 35
6.1 TEST function
6.2 Configuration
Configuration of a DALI installation is described in the DALI programming
manual.
7. SETTINGS
7.1 Detection settings
Conguration
Sensor settings
Time delay 15 min 5 s - 2 hrs
Sensitivity
Auto on/Auto o Active
Walkthrough Inactive
Modes
Manual on/
Auto o
Initial PIR and US
Maintain PIR or US
system
Detection
Restart
Alarm Inactive
Default
value
PIR
(very high)
US (high)
Inactive
PIR or US
Modiable
parameters
Low, medium,
high, very high
Enable/
Disable
Enable/
Disable
Enable/
Disable
PIR and/or US,
PIR, US
PIR and/or US,
PIR, US
PIR and/or US, PIR,
US/Disable
Enable/
Disable
BMSO4001
Time delay: Length of time the load is on after detection.
Pulse mode (= push-button mode): If the time delay is set to
0, the sensor is in push-button mode. In this case, there is a
10-minute time delay before the load is switched off. If the setting
is overridden or there is a new detection, the 10-minute time delay
starts again.
Possible with configuration tool 0 882 30/BMSO4001.
Sensitivity: Detection range setting.
tools
0 882 30
7.1 Detection settings (continued)
Auto on/Auto off mode:
The lighting switches on automatically:
- On detection of presence if the natural light level is insufficient
The lighting switches off automatically:
- Where no presence is detected and at the end of the time delay
set
- Or if the natural light level is sufficient (regulation activated)
Another detection causes automatic switch-on if there is
insufficient light.
Walkthrough mode:
- If no presence is detected in the 20 seconds following an initial
detection, the device will switch off the load after 3 minutes.
- If another movement is detected in the 3 minutes following
initial detection, the device will switch off the load at the end of
the set time delay.
Manual on/Auto off mode:
The lighting is switched on via a manual control, but switches off
automatically:
- Where no presence is detected and at the end of the time delay
set
After switch-off, if another movement is detected within a
30-second period, the lighting switches on automatically.
The Restart function must be enabled.
After 30 seconds, the lighting has to be switched on manually.
Detection system:
Initial detection: The load is switched on as soon as the first detection
occurs if the natural light level is below the light level threshold.
Maintain: The load remains active if another presence is detected.
Restart: In manual mode. After switch-off, any new detection within a
30-second period triggers an automatic switch-on.
After 30 seconds the device must be switched on manually.
Possible in Manual on/Auto off mode only.
Alarm: An audible signal is emitted before switch-off. 1 minute before,
then 30 seconds, then 10 seconds.
7.2 Light level settings
Sensor settings Default
Daylight setpoint 500 lux 5 - 1275 lux
Calibration −0 - 99995 lux
Light regulation Active
mode
Light
contribution
value
Auto Auto - 1275 lux
Modiable
parameters
Enable/
Disable
Conguration
tools
0 882 30
BMSO4001
Daylight setpoint: Value at which the load comes on if the natural
light level is less than the setting.
Eye function: Value 0 (eye on configuration tool 0 882 30/BMSO4001)
is used to save the ambient light level in the room as a daylight
setpoint.
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
CONTENTS
5/8
Page 6
PIR+US ceiling mount sensors
562
085
Height
(DALI)
Cat. No(s): 0 489 35
7. SETTINGS (CONTINUED)
7.2 Light level settings
Advanced mode:
Calibration: The ambient light level measured with a luxmeter
must then be transmitted to the sensor.
Regulation: Automatic switch-off of the load 10 minutes after the
daylight setpoint is exceeded with an additional safety threshold
(to avoid lights switching off at the wrong moment).
Light contribution: Quantity of additional lux provided by the load
being switched on.
When the light contribution parameter is set to "Auto" on configuration
tool Cat. No. 0 882 30/BMSO4001, the sensor automatically calculates
how much light is provided.
Offset function: Luminaires controlled according to the daylight level.
Used to manage an increased light contribution on the “corridor group”
and thus obtain an even light level in the classroom. This setting consists
of entering a value (% of desired difference in light level) using tool 0 882
30/BMSO4001. See the DALI product programming manual.
Example of 30% offset:
Window
group
10% 40%
Display board
group
Corridor
group
(*)

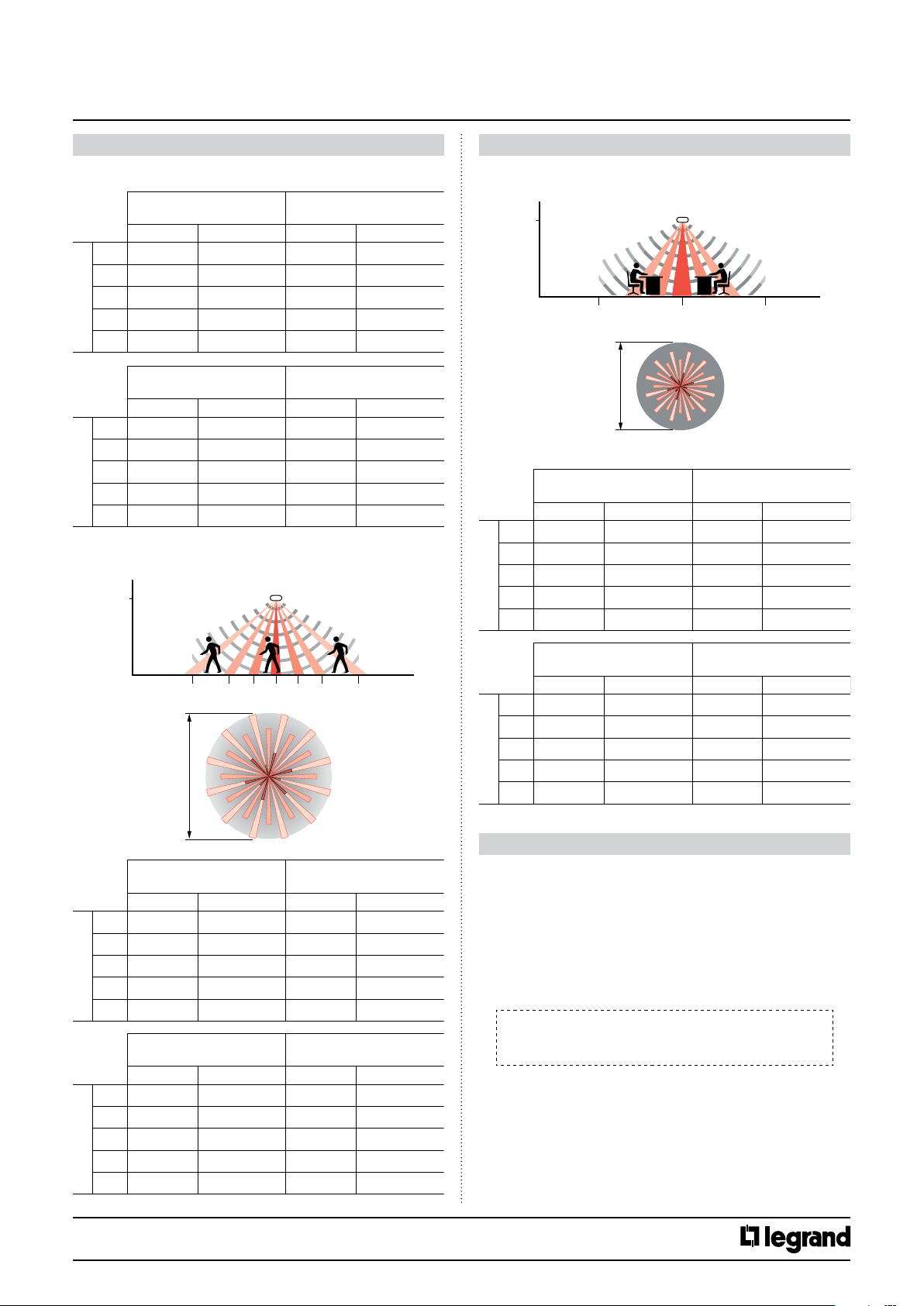

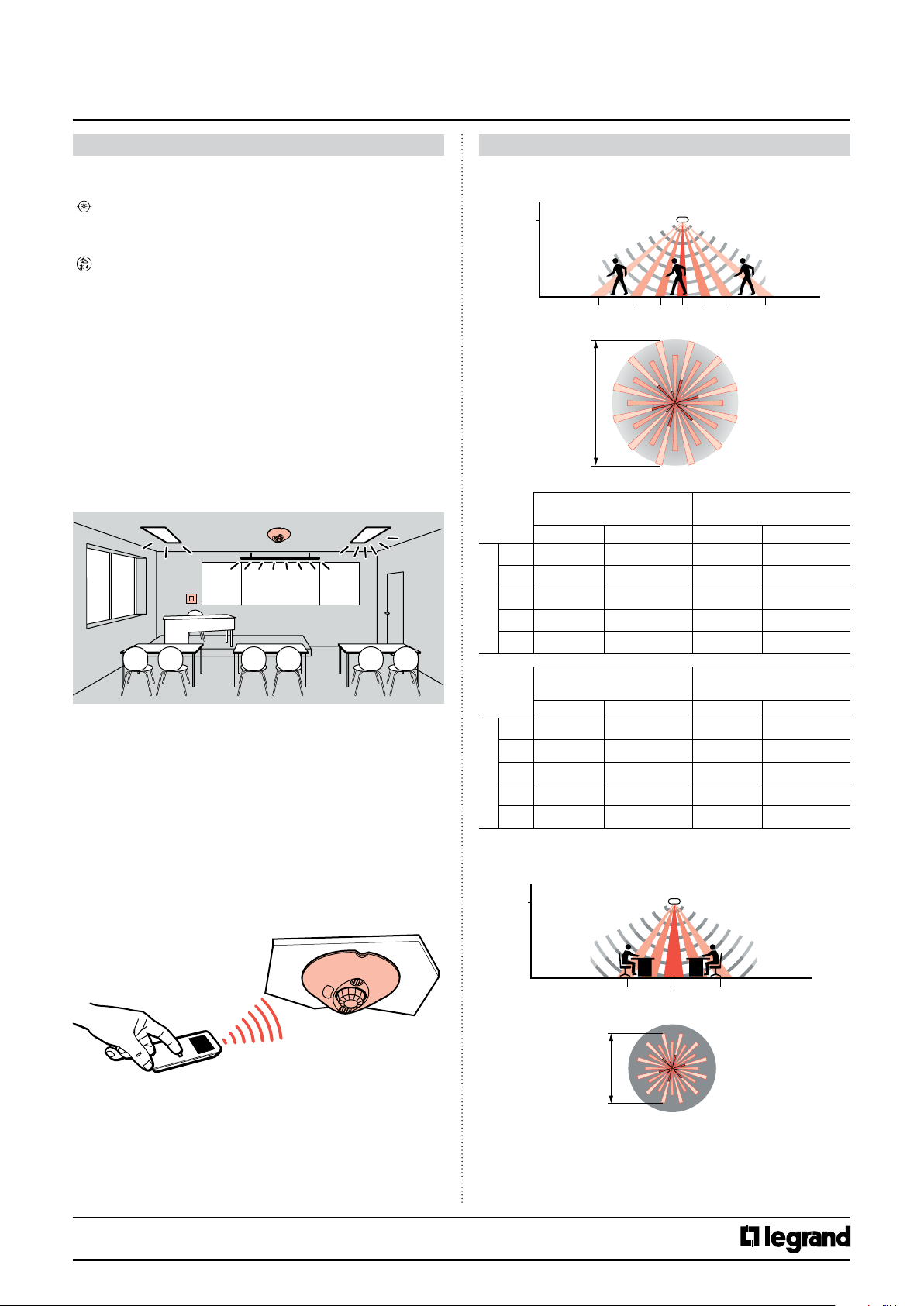

8. PERFORMANCE
8.1 PIR - Motion detection
Height
m :4 422110
Ø
Low Sensitivity
(25%)
Ø (m) surface (m2)
2.5 41
3 5.5 25 6.5 35
4 6.5 35 7.5 45
5 630 10.5 90
Height (m)
6 415 5.5 25
Medium Sensitivity
Ø (m) surface (m2)
(50%)
5
(*) The Display board group is only possible if the installation includes
a DALI unit Cat. No. 0 488 76. The lighting is only switched on when
presence is detected and can be switched off with a push-button.
Master/Slave parameter setting:
By default, all the sensors are supplied as Slaves, but to manage lighting
they must be configured as the Master.
When configured as the Master, the sensor manages presence and
lighting regulation.
When configured as a Slave, the sensor only manages presence.
7.3 Modifying settings using the configuration tool
0 882 30/BMSO4001: Advanced configuration tool
When the sensor receives an IR command via the configuration tool, a
red LED lights up acknowledging the modification.
For more information about setting parameters, refer to the data sheet
for the configuration tool Cat. No. 0 882 30.
High sensitivity
(75%)
Ø (m) surface (m2)
Very high sensitivity
(100%)
Ø (m) surface (m2)
2.5 6.5 3
3 8.5 60 11.5 100
4 12.5 125 14 155
5 12 115 16.5 215
Height (m)
6 8.5 60 12.5 125
8.2 PIR - Presence detection
m : 2.5 2.50
Ø
0
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
CONTENTS
6/8
Page 7
PIR+US ceiling mount sensors
59
63
19
541
063
063
063
19
(DALI)
8. PERFORMANCE (CONTINUED) 8. PERFORMANCE (CONTINUED)
Cat. No(s): 0 489 35
8.2 PIR - Presence detection (continued)
Low sensitivity
(25%)
Ø (m) surface (m)
Medium sensitivity
(50%)
Ø (m) surface (m)
2.5 415625
3 5.5256.5 35
4 6.5357.5 45
5 630 10.
Height (m)
6 4155.5 25
High sensitivity
(75%)
Ø (m) surface (m)
Very high sensitivity
(100%)
Ø (m) surface (m)
2.5 6.530850
3 8.560 11.5 100
4 12.5 125 14 155
5 12 115 16.5 215
Height (m)
6 8.560 12.5 125
8.2 US - Motion detection
Height
8.4 US - Presence detection
Height
0
m :3 30
Ø
Low sensitivity
(25%)
Ø (m) surface (m)
2.5 41
3 63
4 63
5 63
Height (m)
Medium sensitivity
(50%)
Ø (m) surface (m)
5
0
0
0
6 00630
m :4 422110
Ø
Low sensitivity
(25%)
Ø (m) surface (m
2
Medium sensitivity
(50%)
Ø (m) surface (m)
)
2.5 415415
3 630630
4 630630
5 630630
Height (m)
6 00
High sensitivity
(75%)
Ø (m) surface (m)
2.5 6301
3 85013 150
Very high sensitivity
(100%)
Ø (m) surface (m)
4 10 80 13 150
5 10 80 13 130
Height (m)
6 10 80 13 130
High sensitivity
(75%)
Ø (m) surface (m)
2.5 6301
Very high sensitivity
(100%)
Ø (m) surface (m)
5
3 85013 150
4 10 80 13 150
5 10 80 13 130
Height (m)
6 10 80 13 130
9. CARE
Keep the lens clean.
Clean the surface with a cloth.
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: - Hexane
0
Caution:
Always test before using other special cleaning products.
5
- Methylated spirit
- Soapy water
- Diluted ammonia
- Bleach diluted to 10%
- Window-cleaning products
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
CONTENTS
7/8
Page 8
PIR+US ceiling mount sensors
(DALI)
10. STANDARDS
Directive: EC
Installation standards: NFC 15-100
Product standards: NF EN 50428
Environmental standards:
- European directive 2002/96/EC:
WEEE (Waste Electrical and Electronic Equipment)
- European directive 2002/95/EC:
RoHS (Restriction of Hazardous Substances)
- Decrees and/or regulations: Public buildings
Workplace buildings
High-rise buildings
NB:
All technical information is available online at
www.legrandoc.com
Cat. No(s): 0 489 35
11. TROUBLESHOOTING
PROBLEMS CAUSES SOLUTIONS
The lighting stays on when there is no-one
present
The lighting does not switch o during the
day when there is an adequate natural light
level
The lighting switches o when there are
people present and the natural light level is
inadequate (darkness)
Sources of interference such as draughts,
vibration or radiators may cause nuisance
tripping
Regulation function inactive
Daylight setpoint too high
Too much light provided
Time delay too short
Detection sensitivity too low
Daylight setpoint too low
1- Reduce the sensitivity level
If the interference continues with the
2-
conguration tool, go into Detection
system, select Maintain and then choose
PIR or US detection
If the interference still continues, move
3-
the sensor away from sources of
interference
Enable the regulation function
Reduce the daylight setpoint
Check that the sensor is positioned correctly
in relation to the window
Decrease the power of the luminaires
Increase the time delay
5 to 15 minutes is recommended for
work areas
Increase the sensitivity
Move the sensor closer to the work area
Increase the threshold
Technical data sheet: S000088482EN-1 Updated: Created: 02/01/2017
CONTENTS
Loading...
