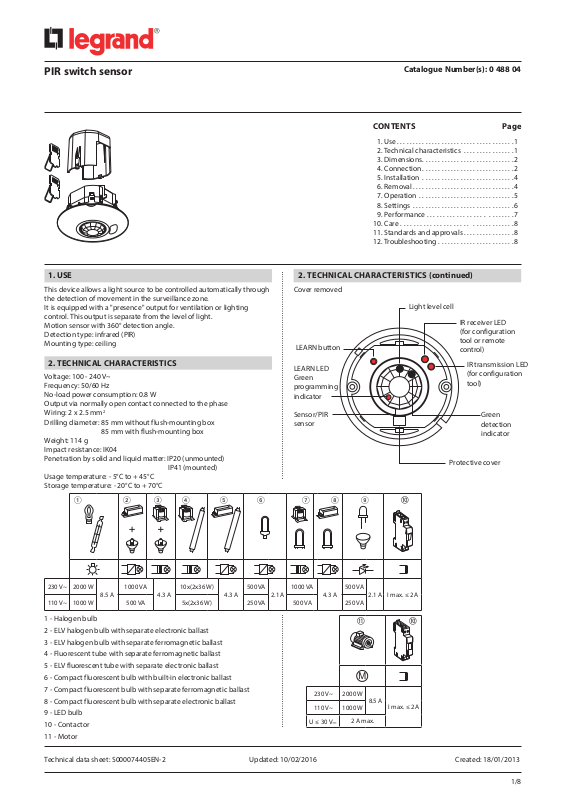

LEGRAND 0 488 04 User Manual

PIR switch sensor

Catalogue Number(s): 0 488 04

CONTENTS Page

1. Use.....................................1

2. Technical characteristics . . . . . . . . . . . . . . . .1

3. Dimensions.............................2

4. Connection .............................2

5. Installation .............................4

6. Removal ................................4

7. Operation ..............................5

8. Settings ................................6

9. Performance . . . . . . . . . . . . . . . . . . ........7

10. Care . . . . . . . . . . . . . . . . . . . . . .............8

11. Standards and approvals ................8

12. Troubleshooting ........................8

1. USE

This device allows a light source to be controlled automatically through
the detection of movement in the surveillance zone.
It is equipped with a "presence" output for ventilation or lighting
control. This output is separate from the level of light.
Motion sensor with 360° detection angle.
Detection type: infrared (PIR)
Mounting type: ceiling

2. TECHNICAL CHARACTERISTICS

Voltage: 100 - 240 V~
Frequency: 50/60 Hz
No-load power consumption: 0.8 W
Output via normally open contact connected to the phase
Wiring: 2 x 2.5 mm
Drilling diameter: 85 mm without flush-mounting box

Weight: 114 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP20 (unmounted)
IP41 (mounted)
Usage temperature: - 5°C to + 45°C
Storage temperature: - 20°C to + 70°C

1 2 3 4 5 6 7 8 9

2

85 mm with flush-mounting box

2. TECHNICAL CHARACTERISTICS (continued)

Cover removed

Light level cell

IR receiver LED
(for configuration

LEARN button

LEARN LED
Green
programming
indicator

Sensor/PIR
sensor



tool or remote
control)

Protective cover

IR transmission LED
(for configuration
tool)

Green
detection
indicator

230 V~ 2000 W

110 V~ 1000 W 500 VA 5x(2x36 W) 250 VA 500 VA 250 VA

1 - Halogen bulb

8.5 A

1000 VA

4.3 A

10x(2x36 W)

4.3 A

500 VA

2.1 A

1000 VA

4.3 A

500 VA

2.1 A I max. ≤ 2A



2 - ELV halogen bulb with separate electronic ballast

3 - ELV halogen bulb with separate ferromagnetic ballast

4 - Fluorescent tube with separate ferromagnetic ballast

5 - ELV fluorescent tube with separate electronic ballast

6 - Compact fluorescent bulb with built-in electronic ballast

7 - Compact fluorescent bulb with separate ferromagnetic ballast

8 - Compact fluorescent bulb with separate electronic ballast

9 - LED bulb

10 - Contactor

230 V~ 2000 W

110 V~ 1000 W

U ≤ 30 V=

2 A max.

8.5 A
I max. ≤ 2A

11 - Motor

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

1/8

PIR switch sensor

Catalogue Number(s): 0 488 04

3. DIMENSIONS

Without protective cover

66 72

Ø: 105

With protective cover

71 73

4. CONNECTION

Number of terminals: 6
Type of terminals: automatic
Terminal capacity: 2 x 2.5 mm
Stripping length: 8 mm

4.1 Wiring with auxiliary control:

230

VAC

110

62

PB

100 m max.

U≤30V=

2

2 A

8.5 A

L1

Ø: 105

Wiring

Ext. supply

2 A

8.5 A

L1

DC

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

CONTENTS

2/8

PIR switch sensor

4. CONNECTION (continued)

4.2 Wiring for a single load connected in parallel

S1

PB

4.3 Wiring for several loads connected in parallel

100 m

S2

Catalogue Number(s): 0 488 04

2 A

SN

8.5 A

L

PB

S1

8.5 A

S2

8.5 A 8.5 A

L1

100 m

L2

SN

2 A

LN

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

CONTENTS

3/8

PIR switch sensor

Catalogue Number(s): 0 488 04

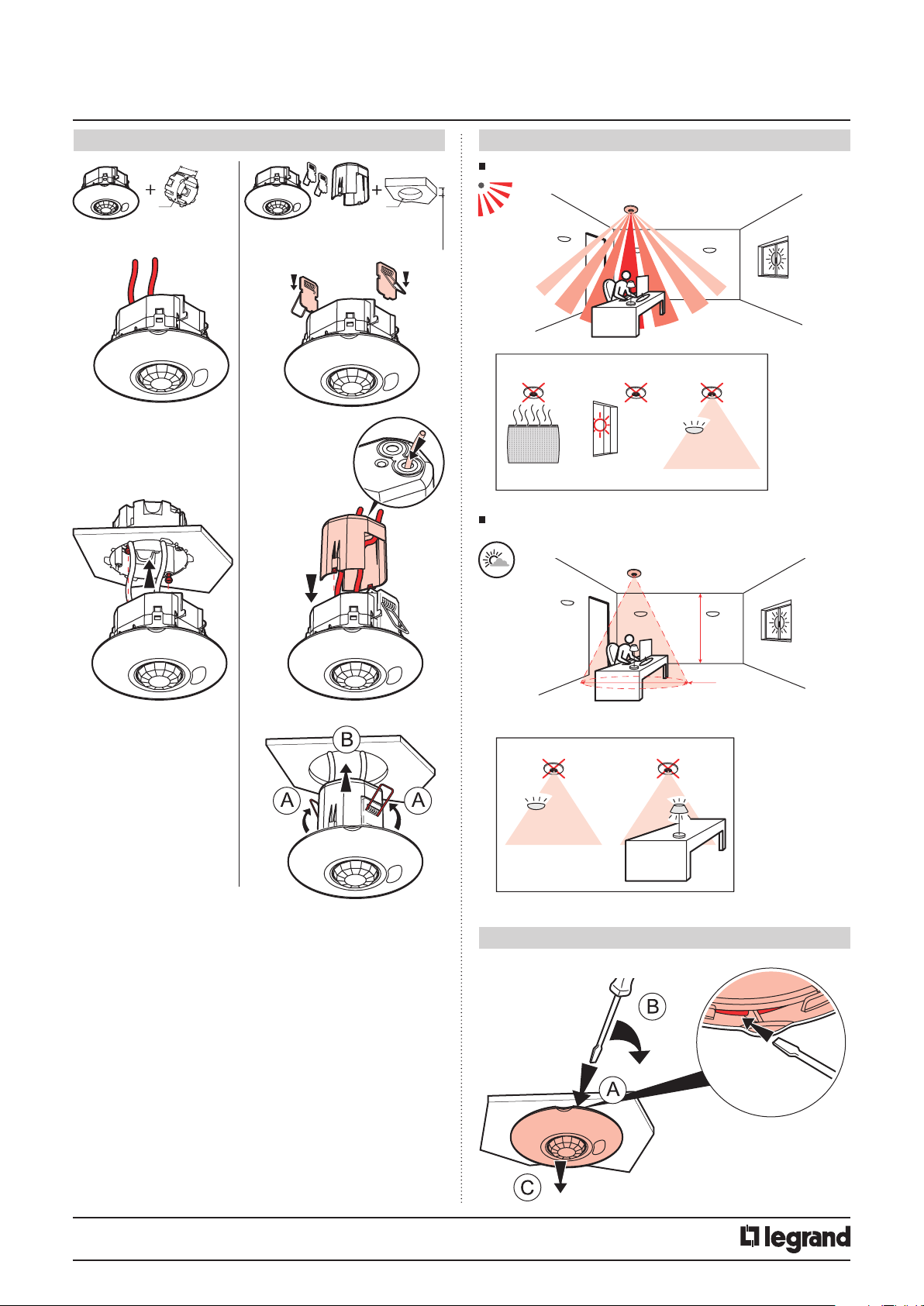

5. INSTALLATION

Ø85 Ø85

1

50

5. INSTALLATION continued

5.1 Sensor positioning

0.3 to

20 mm

1

5.2 Recommended light exposure

2

2

2.5 m

4 m

3

6. REMOVAL

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

CONTENTS

4/8

PIR switch sensor

Catalogue Number(s): 0 488 04

7. OPERATION

Manual ON/Automatic OFF mode

Pressing the auxiliary control allows the load to be switched on or off
manually. If the control is not pressed, the sensor will cut off the load
at the end of the time delay or when the light level threshold has been
reached.

Auto ON/OFF mode:
The load will be switched on and off automatically.

Option: It is possible to control the sensor by infrared remote control

using Cat. Nos. 0 882 00/01/20/31/32/33.

7.1 More than one sensor and more than one load

The products can be synchronised in two steps:

- one long press (>1s) - all the sensors (S) change to ON

- one short press - all the sensors (S) invert their state from OFF to ON
and ON to OFF

L1 OFF

L2 OFF

Ln OFF

L1 ON

L2 ON

Ln ON

S1 OFF

S2 OFF

Sn OFF

S1 ON

S2 ON

Sn ON

PB

< 1 s

PB

< 1 s

L1 ON

L2 ON

Ln ON

L1 OFF

L2 OFF

Ln OFF

S1 ON

S2 ON

Sn ON

S1 OFF

S2 OFF

Sn OFF

7. OPERATION (continued)

6.1 Several sensors connected to a single load

L OFF

L ON

L ON

L ON

S1 OFF

S2 OFF

Sn OFF

S1 ON

S2 ON

Sn ON

S1 ON

S2 OFF

Sn OFF

S1 ON

S2 OFF

Sn OFF

PB

< 1 s

PB

< 1 s

PB

< 1 s

PB

> 1 s
+
< 1 s

L ON

L OFF

L ON

L OFF

S1 ON

S2 ON

Sn ON

S1 OFF

S2 OFF

Sn OFF

S1 OFF

S2 ON

Sn ON

S1 OFF

S2 OFF

Sn OFF

L1 ON

L2 OFF

Ln OFF

L1 ON

L2 OFF

Ln OFF

L1 ON

L2 OFF

Ln OFF

S1 ON

S2 OFF

Sn OFF

S1 ON

S2 OFF

Sn OFF

S1 ON

S2 OFF

Sn OFF

PB

< 1 s

PB

> 1 s
+
< 1 s

PB

> 1 s

L1 OFF

L2 ON

Ln ON

L1 OFF

L2 OFF

Ln OFF

L1 ON

L2 ON

Ln ON

S1 OFF

S2 ON

Sn ON

S1 OFF

S2 OFF

Sn OFF

S1 ON

S2 ON

Sn ON

L ON

S1 ON

S2 OFF

Sn OFF

PB

> 1 s

L ON

S1 ON

S2 ON

Sn ON

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

CONTENTS

5/8

PIR switch sensor

Catalogue Number(s): 0 488 04

8. SETTINGS

8.1 Detection parameters

Sensor parameter Default

Time delay 15 min

Sensitivity

Auto on/Auto off Inactive

Walk-through
mode

Modes

Manual on/
Auto off

Initial PIR Non-modifiable −

Maintain PIR Non-modifiable −

system

Detection

Restart

Alarm Inactive

value

(very high)

Active

Inactive

Time delay: Length of time the load is on after detection.

Sensitivity: Detection range setting.

Modes:

Auto on/Auto off mode:

Automatic switch-on:

- On detection of presence if there is insufficient natural light.
Automatic switch-off:

- If no presence is detected and at the end of the set time delay.

- Or if there is sufficient natural light (regulation activated)
Another detection causes automatic switch-on if there is insufficient
light.

Walk-through mode:

- If no presence is detected in the 20 seconds following an initial
detection, the product will cut off the load after 3 minutes.

- If another presence is detected in the 3 minutes following initial
detection, the device will cut off the load at the end of the set time
delay.

Manual on/Auto off mode:

Manual switch-on, automatic switch-off:

- When no presence is detected and at the end of the set time delay.

After switch-off, any new detection within a 30 second period triggers
an automatic switch-on. The Restart function must be activated.
After 30 seconds the device is switched on via a manual switch.

Detection system:

Initial detection: The load is switched on as soon as the first detection

occurs if the natural light level is below the light level threshold.

Maintain: The load remains active if another presence is detected.

Restart: In manual mode. After switch-off, any new detection within a

30 second period triggers an automatic switch-on.
After 30 seconds the device must be switched on manually.
Possible in Manual on/Auto off mode only.

Alarm: An audible signal is emitted before switch-off (1 minute before,
then 30 seconds, then 10 seconds).

Modifiable
parameters

3, 5, 10, 15, 20min −

0 - 59 min 59 s −

PIR

Low, medium,
high, very high

Activate/
Deactivate

Activate/
Deactivate

Activate/
Deactivate

PIR PIR, Deactivate −

Activate/
Deactivate

Configuration

tools

0 882 30 0 882 35

−

8. SETTINGS (continued)

8.2 Light parameters

Sensor parameter Default

Light level threshold 500 lux

Calibration − 0 - 99995 lux −

Regulation Active

mode

Advanced

Light
contribution

value

Light level threshold: Value at which the load comes on if the

natural light level is less than the setting.

Eye function: Value 0 (eye on configuration tool 0 882 30) is

used to save the ambient light level in the room as the light level
threshold.

Advanced mode:

Calibration: The ambient light level measured with a luxmeter

must then be transmitted to the sensor.

Regulation: Automatic switch-off of the load 10 minutes after the

light level threshold is exceeded with an additional safety threshold
(to avoid lights switching off at the wrong moment).

Light contribution: Quantity of additional lux provided by the load
being switched on.
When the light contribution parameter is set to "Auto" (value 0) on the
configuration tool Cat. No. 0 882 30, the sensor automatically calculates
the light contribution.

8.3 Modifying the parameters using the configuration tools

• 0 882 35: Simplified configuration tool

• 0 882 30: Advanced configuration tool
When the sensor receives an IR command via a configuration tool,
itemits a beep confirming that the modification has been taken into
account.
For more information about setting parameters, refer to the data sheet
for the configuration tool Cat. No. 0 882 30.

- Restore to factory settings:

1st press: Short press on LEARN: the LED flashes slowly.
2nd press: Press and hold down LEARN for 10 seconds until the

LEDflashes quickly.

Modifiable
parameters

20, 100, 300, 500,
1000 lux

0 - 1275 lux −

Activate/
Deactivate

Auto Auto - 1275 lux −

Configuration

tools

0 882 30 0 882 35

−

−

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

CONTENTS

6/8

PIR switch sensor

Catalogue Number(s): 0 488 04

9. PERFORMANCE

9.1 Walk-through

Height

m: 4 42 1 0 1 2

Ø

Sensitivity
Low (25%)

Ø (m) Ø (m)

2.5 4 6
3 5.5 6.5
4 6.5 7.5
5 6 10.5

Height (m)

6 4 5.5

Sensitivity

Medium (50%)

9. PERFORMANCE continued

9.2 Presence

Height

1.2 m

m: 2.5 0 2.5

Ø

Sensitivity
Low (25%)

Ø (m) Ø (m)

2.5 2.5 4
3 3.5 4
4 4 5
5 4 6.5

Height (m)

6 2.5 3.5

(PIR) (PIR)

Medium (50%)

Sensitivity

Sensitivity

High (75%)

Ø (m) Ø (m)

2.5 6.5 8
3 8.5 11.5
4 12.5 14
5 12 16.5

Height (m)

6 8.5 12.5

Sensitivity

Very high

(100%)

Sensitivity

High (75%)

Ø (m) Ø (m)

2.5 4 5
3 5 7
4 8 9
5 7.5 10

Height (m)

6 5 8

Sensitivity

Very high

(100%)

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

CONTENTS

7/8

PIR switch sensor

Catalogue Number(s): 0 488 04

10. CARE

Keep the lens clean.
Clean the surface with a cloth.
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: - Hexane (EN 60669-1)

- Methylated spirit

- Soapy water

- Diluted ammonia

- Bleach diluted to 10%

- Window-cleaning products

11. STANDARDS

Directive: CE

Product standards: IEC 60669-2-1

Environmental standards:

- European Directive 2002/96/EC:

WEEE (Waste Electrical and Electronic Equipment)

- European Directive 2002/95/EC:

RoHS (Restriction of Hazardous Substances)

Note:

Always test before using other special cleaning products.

12. TROUBLESHOOTING

PROBLEM CAUSES SOLUTIONS

Lighting stays on when there is no-one present Sources of interference, such as draughts,

Lighting does not switch off during the day
when there is an adequate level of natural light

Lighting switches off when there are people
present and the natural light level is not
adequate (darkness)

vibration or radiators, may cause nuisance
tripping

Regulation function not active

Light level threshold set too high

Light contribution too high

Time delay too short

Detection sensitivity too low

Light level threshold too low

1- Reduce the sensitivity level

2- If the interference continues: using the

configuration tool, go into the Detection
system parameters, select Maintain and then
choose PIR and US

3- If the interference still continues, move

the sensor away from the source(s) of
interference

Activate the regulation function

Reduce the light level threshold

Check that the sensor is positioned correctly in
relation to the window

Decrease the power of the luminaires

Increase the time delay

10 to 1 minutes is recommended for work
areas

Increase the sensitivity

Move the sensor closer to the work area

Increase the threshold

Technical data sheet: S000074405EN-2 Updated: 10/02/2016 Created: 18/01/2013

CONTENTS

8/8
