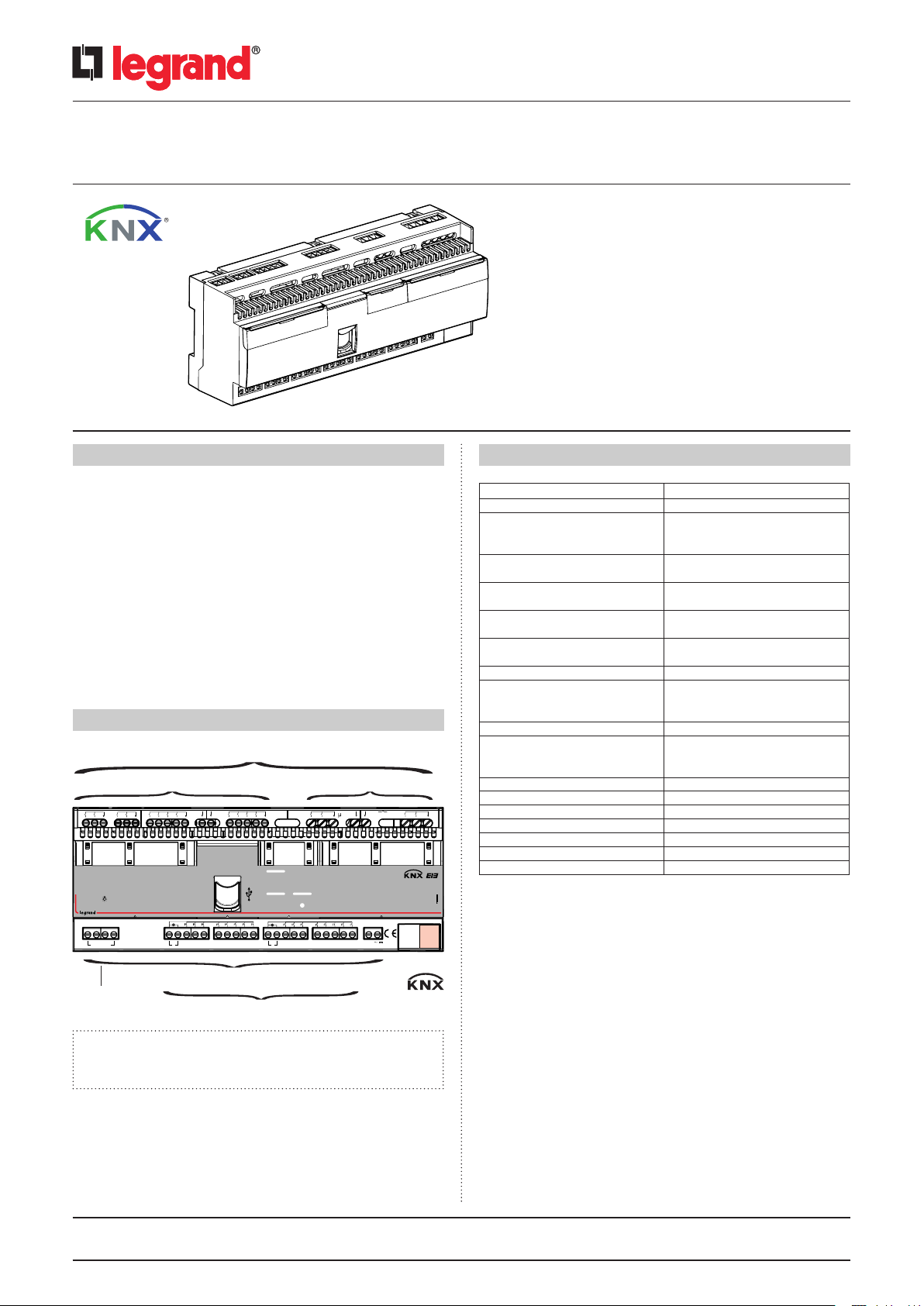

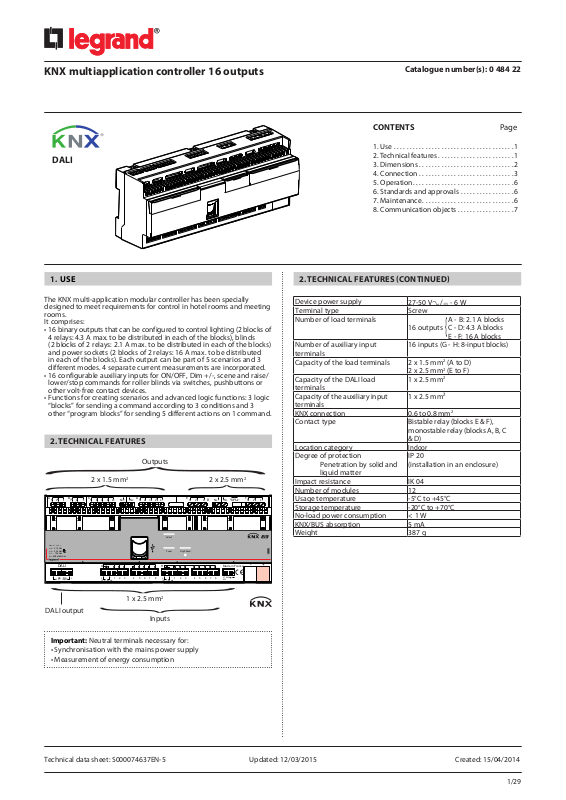

KNX multiapplication controller 16 outputs
Catalogue number(s): 0 484 22
CONTENTS Page
1.Use......................................1
DALI
2. Technical features . . . . . . . . . . . . . . . . . . . . . . . .1
3. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4.Connection..............................3
5. Operation................................6
6. Standards and approvals . . . . . . . . . . . . . . . . .6
7.Maintenance.............................6
8. Communication objects . . . . . . . . . . . . . . . . . .7
1. USE 2. TECHNICAL FEATURES CONTINUED
The KNX multi-application modular controller has been specially
designed to meet requirements for control in hotel rooms and meeting
rooms.
It comprises:
• 16 binary outputs that can be configured to control lighting (2 blocks of
4 relays: 4.3 A max. to be distributed in each of the blocks), blinds
(2 blocks of 2 relays: 2.1 A max. to be distributed in each of the blocks)
and power sockets (2 blocks of 2 relays: 16 A max. to be distributed
in each of the blocks). Each output can be part of 5 scenarios and 3
different modes. 4 separate current measurements are incorporated.
• 16 configurable auxiliary inputs for ON/OFF, Dim +/-, scene and raise/
lower/stop commands for roller blinds via switches, pushbuttons or
other volt-free contact devices.
• Functions for creating scenarios and advanced logic functions: 3 logic
“blocks” for sending a command according to 3 conditions and 3
other “program blocks” for sending 5 different actions on 1 command.
2. TECHNICAL FEATURES
Outputs
AB
12 12
Power:27 - 56 VA/=
A=B= 2,1 A max
4,3A max
C=D=
E=F=
16Amax
64Ballasts max
DALI:
DALI
-
+
DA DA
12V= 128mA
2 x 1.5 mm
C
G
-
+
12V= 12V= 60 mA60mA
2
DE
D
NCN
234
L4321
123487
L1
Default
Power Prog& Reset
H
-
+
65
123487
12
2 x 2.5 mm
NEN
L
65
110/230VA
F
50/60Hz
Made in France
27-50V /
6W
2
F
12
L
-
+
Device power supply
27-50 V±/= - 6 W
Terminal type Screw
Number of load terminals
16 outputs
Number of auxiliary input
16 inputs (G - H: 8-input blocks)
terminals
Capacity of the load terminals 2 x 1.5 mm
2 x 2.5 mm
Capacity of the DALI load
1 x 2.5 mm
terminals
Capacity of the auxiliary input
1 x 2.5 mm²
terminals
KNX connection 0.6 to 0.8 mm
Contact type Bistable relay (blocks E & F),
monostable relay (blocks A, B, C
&D)
Location category
Degree of protection
Penetration by solid and
Indoor
IP 20
(installation in an enclosure)
liquid matter
Impact resistance IK 04
Number of modules 12
Usage temperature -5°C to +45°C
Storage temperature -20°C to +70°C
No-load power consumption < 1 W
KNX/BUS absorption 5 mA
Weight 387 g
22
4
48
0
A - B: 2.1 A blocks
C-D:4.3Ablocks
{
E-F:16Ablocks
2
(A to D)
2
(E to F)
2
2
1 x 2.5 mm
2
DALI output
Inputs
Important: Neutral terminals necessary for:
• Synchronisation with the mains power supply
• Measurement of energy consumption
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014
1/29

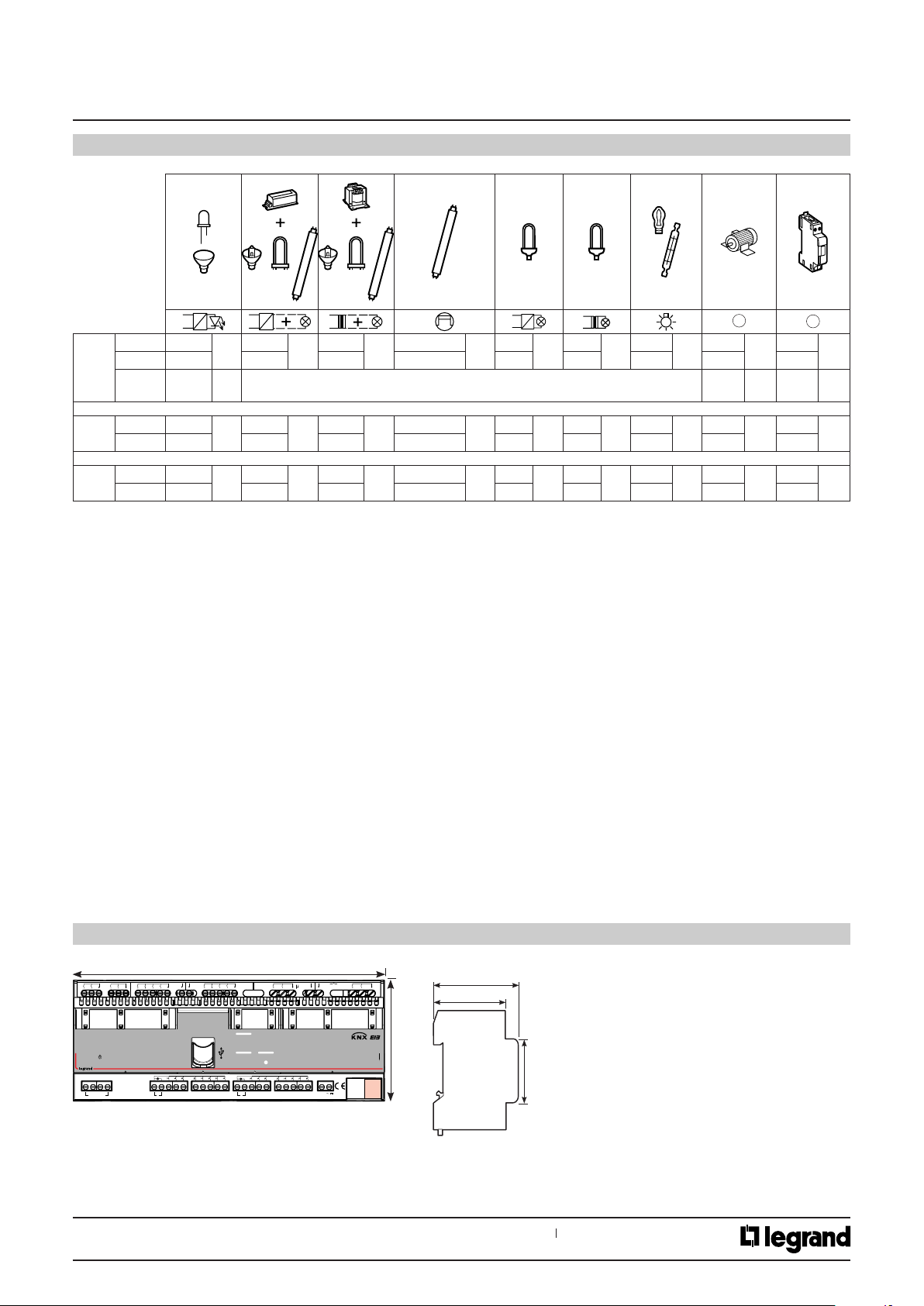

Page 2
KNX multiapplication controller 16 outputs KNX multiapp
//
//
M
Catalogue number(s): 0 484 22
2. TECHNICAL FEATURES CONTINUED 4. CONNECTION
1 2 3 4 567 8 9
M
Outputs
A-B
230 V
110 V
12 - 48
V
±/V=
80 VA
±
40 VA 125 VA 125 VA 1 (2 x 36) W 40 VA 40 VA 250 W 125 VA 125 VA
±
4-15 VA 0.3 A
0.3 A
250 VA
1.1 A
250 VA
1.1 A
2(2x36)W
0.8 A
80 VA
0.3 A
80 VA
0.3 A
500 W
2.1 A
250 VA
13-52
VA
1.1 A
1.1 A
250 VA
13-52
VA
1.1 A
1.1 A
Outputs
C-D
Outputs
E-F
230 V
110 V
230 V
110 V
160 VA
±
80 VA 250 VA 250 VA 2 (2 x 36) W 80 VA 80 VA 500 W 250 VA 250 VA
±
500 VA
±
250 VA 500 VA 500 VA 5 (2 x 36) W 250 VA 250 VA 1760 W 250 VA 250 VA
±
1 LED bulbs
2 ELV halogen, compact fluorescent and fluorescent bulbs with separate
electronic ballast
3 ELV halogen, compact fluorescent and fluorescent bulbs with separate
ferromagnetic ballast
0.7 A
2.1 A
500 VA
1000 VA
2.1 A
4.3 A
500 VA
1000 VA
2.1 A
4.3 A
4(2x36)W
10 (2 x 36) W
1.7 A
4.3 A
160 VA
500 VA
0.7 A
2.1 A
160 VA
500 VA
0.7 A
2.1 A
1000 W
3680 W
4.3 A
16 A
500 VA
500 VA
2.1 A
2.1 A
5 Compact fluorescent bulbs with built-in electronic ballast
6 Compact fluorescent bulbs with built-in ferromagnetic ballast
7 Halogen bulbs
8 Motors
9 Contactors
500 VA
500 VA
4 Fluorescent tubes
Power supply unit
The device must be powered by an external power supply. Permitted voltage range: 27 to 50 V A/=,6Wmin.
Power outputs
-Blocks A and B (2 blocks of 2 relays: 2.1 A max. to be distributed in each of the blocks).
For roller blind control functions, exclusive signs (e.g. Do not disturb/Room service) and ON/OFF functions (for AC or DC load).
-Blocks C and D (2 blocks of 4 relays: 4.3 A max. to be distributed in each of the blocks).
For controlling 4 separate loads per block. Each block includes energy measurement.
-Blocks E and F (2 blocks of 2 relays: 16 A max. to be distributed in each of the blocks).
For controlling 2 separate loads per block. Each block includes energy measurement.
DALI output
For controlling 64 DALI ballasts in Broadcast mode. Pairing between the device and the DALI output is not necessary.
The DALI BUS power supply is incorporated in the device. Imax 128 mA/12 V=
. If I is greater than 128 mA, use an external power supply (remove the
jumpers from the DALI terminals).
Control inputs
- Blocks G and H.
The device has 2 blocks each one having power supply output (12 V=) and 8 auxiliary inputs. Switches or pushbuttons can be connected to the
inputs in order to send ON/OFF, dimming, shutter raising/lowering or scenario control commands, their settings can be configured using the ETS
configuration software. The power supply enables the controls to have pilot lights (standby).
2.1 A
2.1 A
3. DIMENSIONS
AB
12 12
Power:27 - 56 VA/=
A=B= 2,1 Amax
4,3A max
C=D=
E=F=
16Amax
64Ballasts max
DALI:
DALI
-
+
DA DA
12V= 128 mA
C
G
+
12V= 12V= 60 mA60mA
DE
D
NCN
234
L4321
-
123487
L1
Default
Power Prog& Reset
H
-
+
65
12
L
65
123487
NEN
110/230VA
F
50/60Hz
Made in France
27-50V /
6W
F
12
L
-
+
83
22
484
0
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
213
66
50
45
2/29
Page 3
KNX multiapplication controller 16 outputs

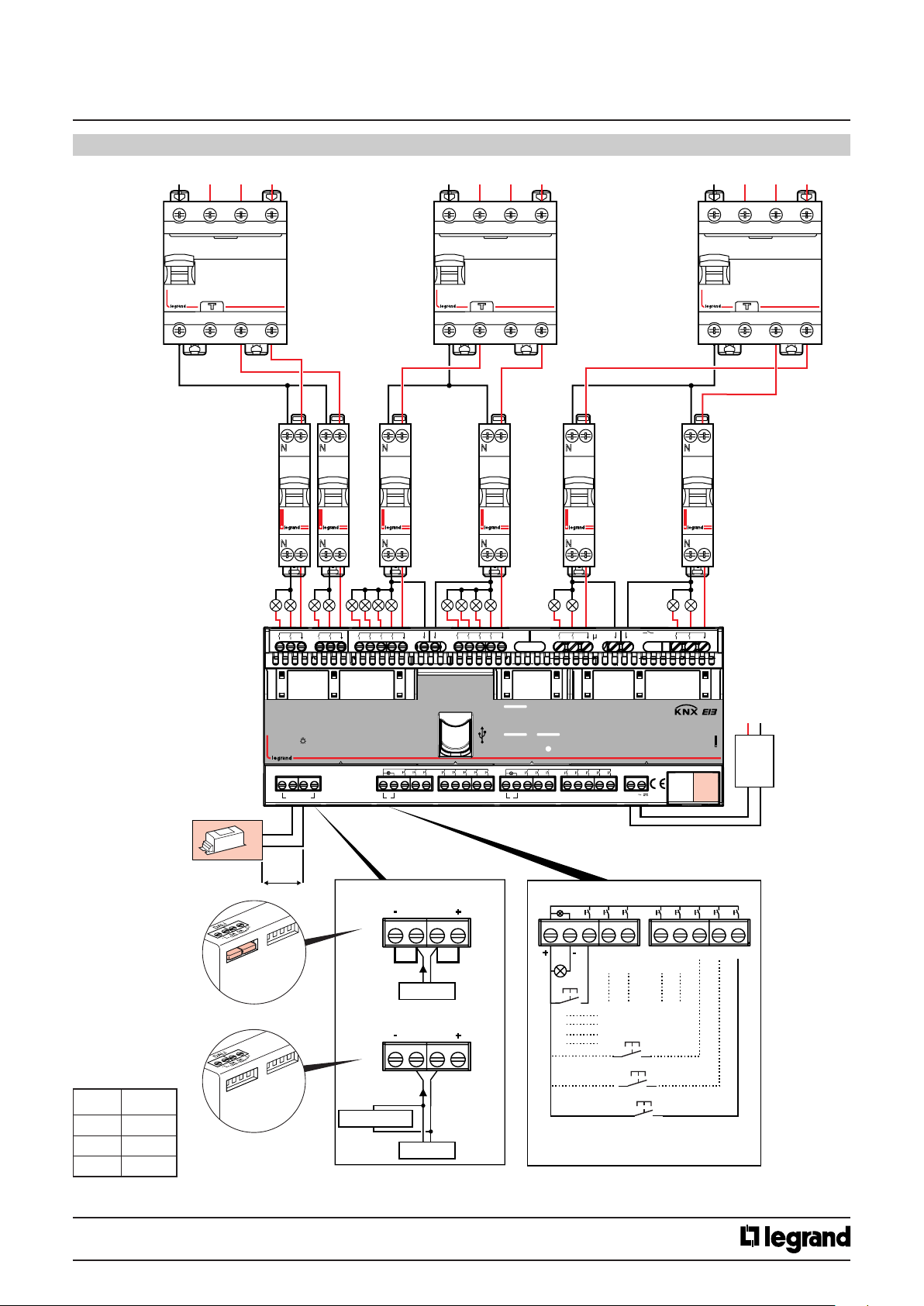

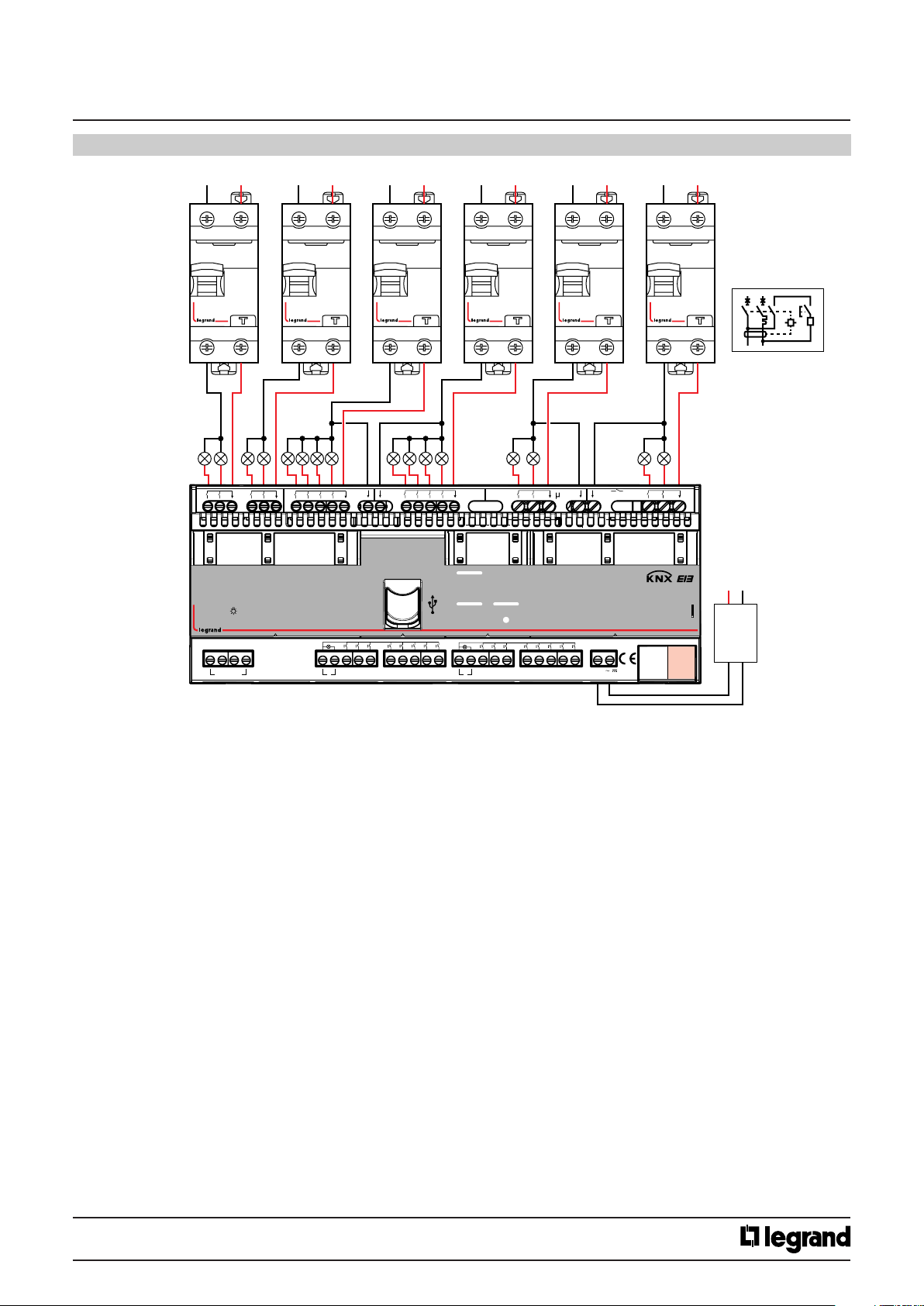

4. CONNECTION
• Single phase
LN LN LN LN LN LN
6 A 6 A 10 A 10 A 16 A 16 A
AB
12 12
30 mA
Power:27- 56 VA/=
A=B= 2,1Amax
4,3A max
C=D=
E=F=
16Amax
64Ballastsmax
DALI:
DALI
-
+
DA DA
12 V= 128 mA
C
L4321
G
-
+
123487
12 V= 12 V=
60 mA 60 mA
DE
D
NCN
234
65
L1
Default
Power Prog&Reset
H
+
12
-
123487
NEN
L
Made in France
27-50 V /
65
6W
50/60 Hz
12
F
110/230 VA
F
L
LN
22
484
0
Power
-
Supply
+
N
T
N
30 mA
27 - 50 VA/=
6Wmin.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

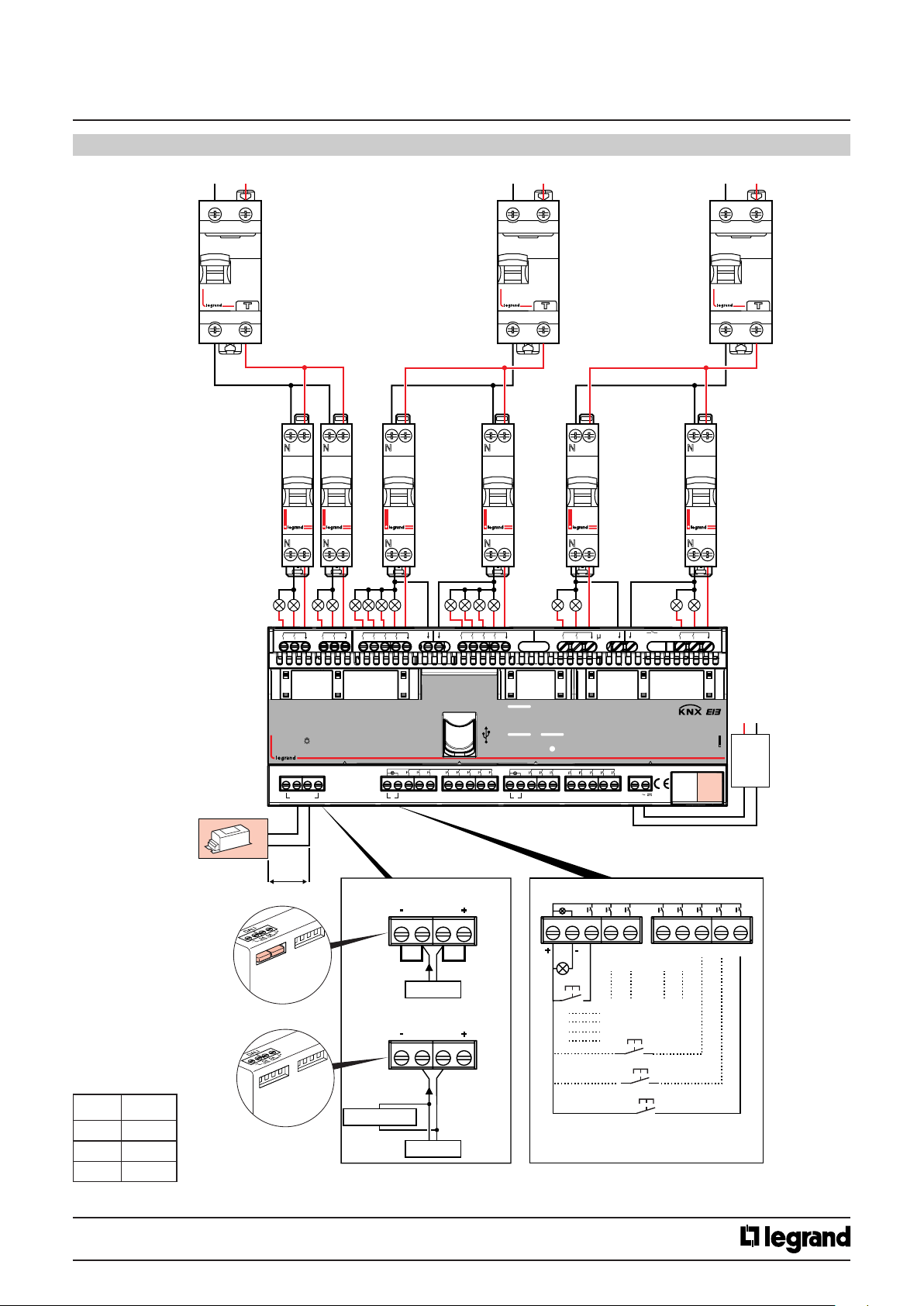

Page 4
KNX multiapplication controller 16 outputs KNX multiapp
LNLN
Catalogue number(s): 0 484 22
4. CONNECTION CONTINUED 4. CONNECTION
• Single phase • Three-phase
LN
30 mA 30 mA 30 mA
6A 10A 10A
16 A16 A6A
AB
12 12
30 mA
Power:27- 56 VA/=
A=B= 2,1Amax
4,3A max
C=D=
E=F=
16Am ax
64Ballastsmax
DALI:
DALI
-
+
DA DA
12 V= 128 mA
D
C
G
-
+
12 V=
60mA
I<128mA
I>128mA
DE
D
NCN
L4321
123487
234
65
DA DA
I
DALI BUS
DA DA
L1
Default
Power Prog& Reset
H
-
+
123487
12 V=
60mA
G/H
12
NEN
L
Made in France
27-50 V /
65
6W
50/60 Hz
12
F
110/230 VA
F
123 45678
L
LN
22
4
48
0
-
Power
Supply
+
27 - 50 VA/=
6Wmin.
D
≤ 100 m
≤ 150 m
≤ 300 m
Ø
0.5 mm
0.75 mm
1.5 mm
2
2
2
12 V= supply
I
DALI BUS
The room controller has a 12 V - 128 mA power supply for the DALI output. With the jumpers connected, it can power the DALI BUS.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
4/29
Page 5
KNX multiapplication controller 16 outputs
L1L2L3N L1L2L3N L1L2L3N
4. CONNECTION CONTINUED
• Three-phase
30 mA 30 mA
AB
12 12
30 mA
Power:27- 56 VA/=
A=B= 2,1Amax
4,3A max
C=D=
E=F=
16Amax
64Ballastsmax
DALI:
DALI
-
+
DA DA
12 V= 128 mA
D
6A 10A 10A
C
L4321
G
-
+
12 V= 12 V=60mA 60mA
DE
D
NCN
123487
I<128mA
DA DA
234
65
L1
Default
Power Prog&
H
-
+
123487
G/H
12
Reset
16 A16 A6A
F
110/230 VA
F
NEN
L
Made in France
27-50 V /
65
6W
50/60 Hz
12
L
22
4
48
0
-
+
LN
Power
Supply
27 - 50 VA/=
6Wmin.
123 45678
I
DALI BUS
I>128mA
DA DA
D
≤ 100 m
≤ 150 m
≤ 300 m
Ø
0.5 mm
0.75 mm
1.5 mm
2
2
2
12 V= supply
The room controller has a 12 V - 128 mA power supply for the DALI output. With the jumpers connected, it can power the DALI BUS.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014
I
DALI BUS

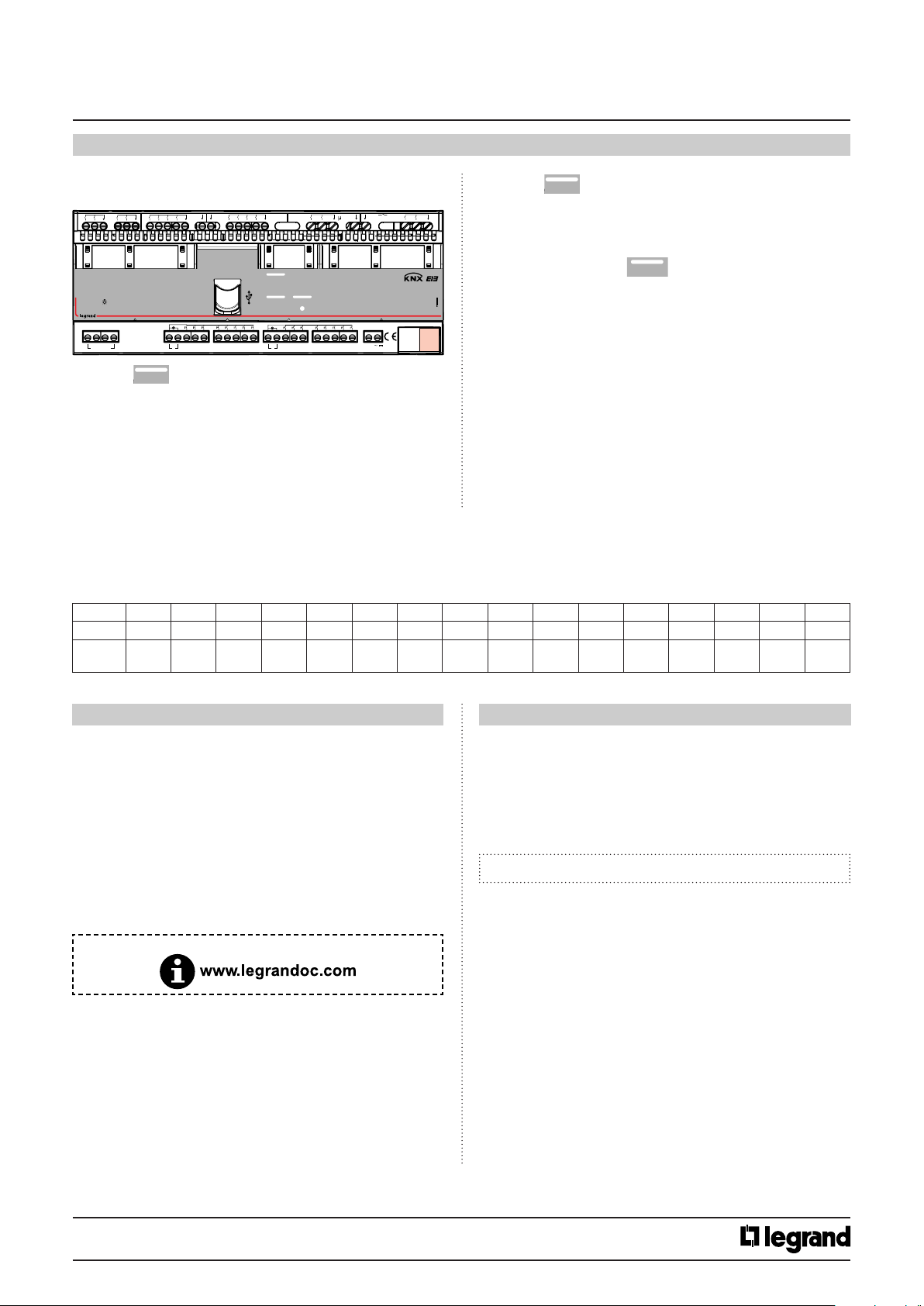

Page 6
KNX multiapplication controller 16 outputs KNX multiapp
P
Catalogue number(s): 0 484 22
5. OPERATION
All device settings must be done using the ETS software tool (version 3f or
later).
AB
12 12
C
DE
D
NCN
234
L4321
L1
12
NEN
L
12
50/60Hz
L
F
110/230VA
F
“Fault” LED
- ON: indicates a fault. The device must be restarted by switching the
power off and then back on.
Default
- Flashing: the device is “busy”. Do not switch off the power supply
- OFF: no fault
Power:27 - 56 VA/=
A=B= 2,1 A max
4,3A max
C=D=
E=F=
16Amax
64Ballasts max
DALI:
DALI
-
+
DA DA
12V= 128mA
Power LED
Power
G
-
+
123487
12V= 12V= 60 mA60mA
Default
Power Prog& Reset
H
-
+
65
123487
Made in France
27-50V /
65
6W
- ON steady: an ETS application is programmed
- Flashing in 3-flash cycles: default settings (no ETS application
programmed)
- Flashing in 1-flash cycles: the device is initialising
Programming & Reset LED
- OFF: the device is not in programming mode.
22
4
- Short press (less than 1 second):
48
0
-
+
• On steady: the device is in programming mode and the KNX cable is
correctly connected/powered
• Flashing (1 cycle of 3 flashes): the KNX cable is not correctly connected/
powered. The device is not in programming mode
- Short press (less than 1 second) + long press (10 seconds): restoration of
default settings. All the LEDs flash during the reset phase
USB (do not use)
Reserved for firmware update by the manufacturer.
rog & Reset
-OFF:
• USB not connected: the device is not powered by the external power
supply.
• USB connected and device powered: the device is awaiting a software
update
Default settings (without ETS configuration)
Outputs A and B are configured by default for roller blind operation (30 s time delay).
Outputs C1 to F2 are configured by default for ON/OFF with no time delay.
Inputs G1 to H8 are configured by default for switch operation.
The actions of the default settings are defined in the table below.
Inputs G1 G2 G3 G4 G5 G6 G7 G8 H1 H2 H3 H4 H5 H6 H7 H8
Outputs A1/A2 B1/B2 C1 C2 C3 C4 D1 D2 D3 D4 E1 E2 F1 F2 DALI DALI
Action UP/
DOWN
UP/
DOWN
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
100%/
OFF
100%/
OFF
6. STANDARDS AND APPROVALS
• Conforme: CE
• Product standards: IEC 60669-2-1
• Environmental standards:
- EU directive 2002/96/EC:
WEEE (Waste Electrical and Electronic Equipment)
- EU directive 2002/95/EC:
RoHS (Restriction of Hazardous Substances)
- Regulations: ERP (public buildings)
ERT (workplace buildings)
IGH (high-rise buildings)
• KNX certicate n° 11/11130/13
Note: All technical information is available at
7. MAINTENANCE
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: - Hexane (En 60669-1)
- Methylated spirit
- Soapy water
- Diluted ammonia
- Bleach diluted to 10%
- Window-cleaning products
Caution: Always test before using other special cleaning products.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
6/29

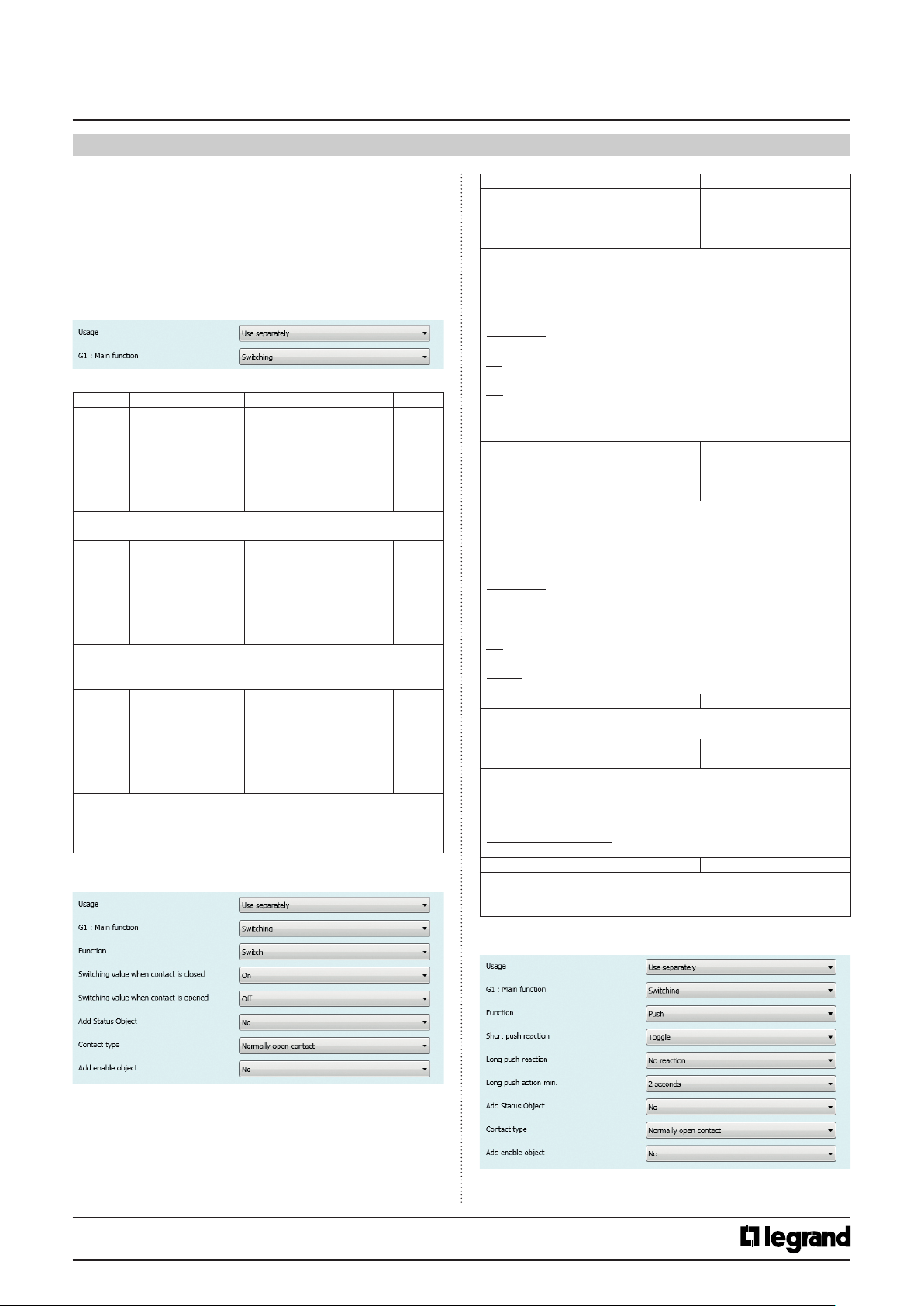

Page 7
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS
8.1 Inputs
Inputs can each be used as “Inputs, separately congurable”or as “Inputs,
jointly congurable". According to this setting the available functions and
objects change.
8.1.1 Use separately
Not used
Input is not usable, no accessible communication objects
Switching
The following objects are automatically inserted:
No. Object name Function Size Flags
2
(9, 16, 23,
30, 37, 44,
51, 58, 65,
72, 79, 86,
93, 100,
Switching telegrams are sent via the group address linked with this
object
(10, 17,
24, 31, 38,
45, 52, 59,
66, 73, 80,
87, 94,
101, 108)
Switching states are received via the group address linked with this
object.
They are only visible if“Add status object”parameter value is set to yes.
(11, 18,
25, 32, 39,
46, 53, 60,
67, 74, 81,
88, 95,
102, 109
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to yes.
• Switch
Input G(,H)1 (2 8)
107)
3
Input G(,H)1 (2 8)
4
Input G(,H)1 (2 8)
Switching 1.001 DPT_
Switching
Status
Enable 1.003 DPT_
Switch
1.001 DPT_
Switch
Enable
CWT
CW
CW
Parameters Setting
Switching value when contact is closed No reaction
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after a
rising edge in the signal status at the channel (input). The rising edge
corresponds to a change in the signal status at the input from logical
“0”to “1”.
“No reaction”: An edge change at the input does not change the object
value and also does not send a telegram.
“On”: In the event of a rising edge the switching value“ON” (binary
value,“1”) is transferred into the communication object and sent.
“O”: In the event of a rising edge the switching value “OFF”(binary
value,”0”) is transferred into the communication object and sent.
“Toggle”: In the event of a rising edge, the switching value stored in
the communication object is inverted and the new value is sent.
Switching value when contact is
opened
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after a
falling edge in the signal status at the channel (input). The falling edge
corresponds to a change in the signal status at the input from logical
“1”to “0”.
“No reaction”: An edge change at the input does not change the object
value and also does not send a telegram.
“On”: In the event of a rising edge the switching value“ON” (binary
value,“1”) is transferred into the communication object and sent.
“O”: In the event of a rising edge the switching value “OFF”(binary
value,”0”) is transferred into the communication object and sent.
“Toggle”: In the event of a rising edge, the switching value stored in
the communication object is inverted and the new value is sent.
Add status object Yes / No
The parameter determines if an additional communication object (status) shall be used to perform toggle functionality or other purposes.
Contact type Normally open contact
The contact type of the input connected to the channel is adjusted
here.
“Normally open contact” : the contact of the input is active when
closed, inactive when opened.
“Normally closed contact” : the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. I
changes at this input are not transmitted.
f an input is blocked (Enable value = 1) the status
On
O
Toggle
No reaction
On
O
Toggle
Normally closed contact
• Push
This function is used, for binary inputs to which a switch button is atta-
ched, to send a switching telegram (ON, OFF orTOGGLE) as a reaction
to a rising and / or falling signal edge at this input. Each time the push
button is pressed and / or released resp. the contact is closed and / or
opened a telegram is sent, i.e. this function can be used e.g. to implement the behavior of a bell switch.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

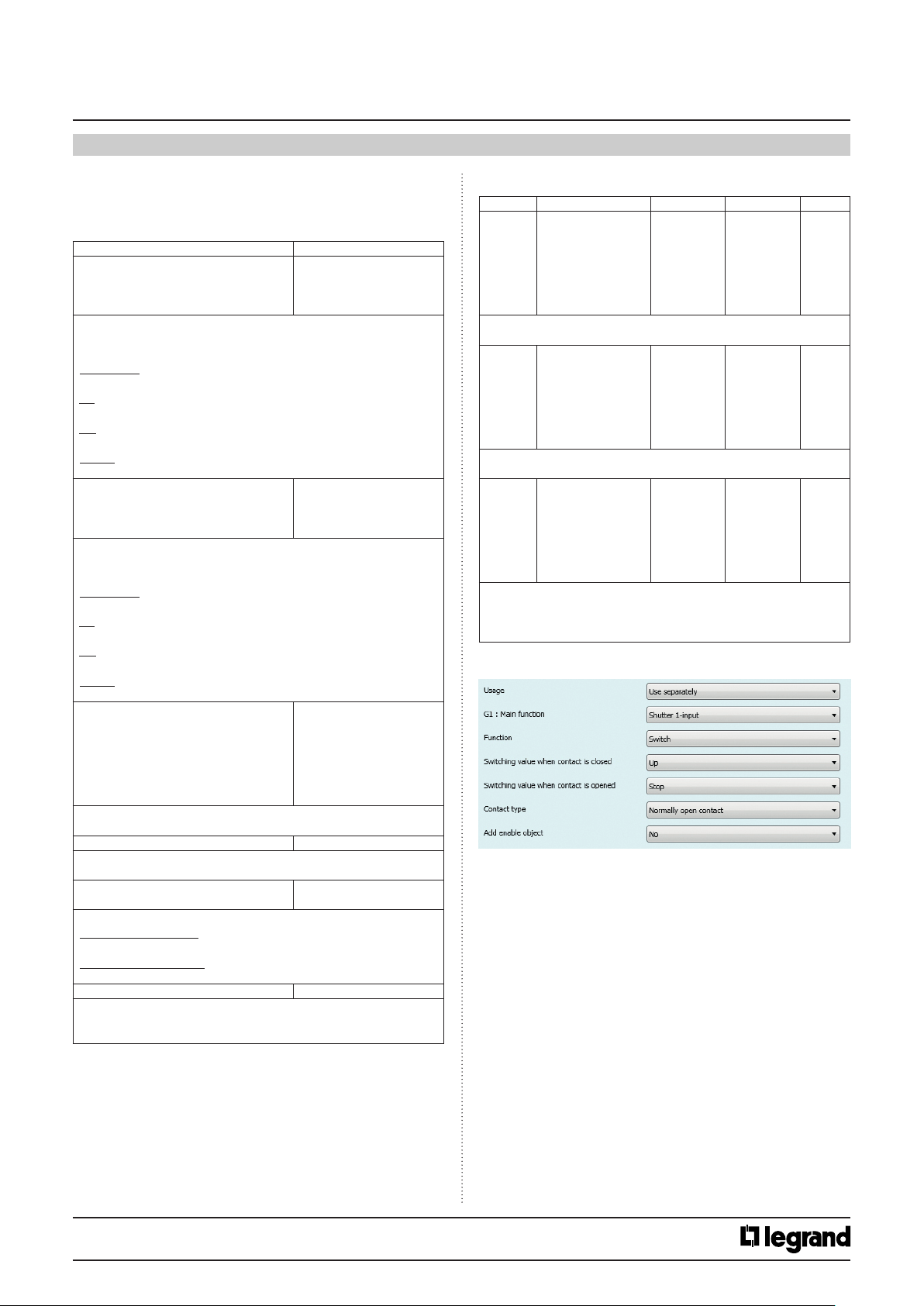

Page 8
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
8. COMMUNICATION OBJECTS CONTINUED 8. COMMUNICA
This function is used, for binary inputs to which a push button is atta-
ched, to send a switching telegram (ON, OFF orTOGGLE) as a reaction to
a short or long push button action, i.e. this function can be used e.g. to
recall a scene.
Parameters Setting
Short push reaction No reaction
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after short
pressing of the push attached to the input.
“No reaction”: A short push button action does not change the object
value and also does not send a telegram.
“On”: After a short push, the switching value“ON”(binary value, “1”) is
transferred into the communication object and sent.
“O”: After a short push, the switching value“OFF” (binary value,”0”) is
transferred into the communication object and sent.
“Toggle”: After a short push, the switching value stored in the communication object is inverted and the new value is sent.
Long push reaction No reaction
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after long
pressing the push button attached to the input.
“No reaction”: A long push does not change the object value and also
does not lead to the sending of a telegram.
“On”: After a long push, the switching value“ON” (binary value,“1”) is
transferred into the communication object and sent.
“O” : After a long push, the switching value“OFF”(binary value,”0”) is
transferred into the communication object and sent.
“Toggle”: After a long push, the switching value stored in the communication object is inverted and the new value is sent.
Long push action min. 0.5 second
This parameter determines the minimum period for detecting a long
push.
Add status object Yes / No
The parameter determines if an additional communication object (status) shall be used to perform toggle functionality or other purposes.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact” : the contact of the input is active when
closed, inactive when opened.
“Normally closed contact” : the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. I
changes at this input are not transmitted.
f an input is blocked (Enable value = 0) the status
On
O
Toggle
On
O
Toggle
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
Normally closed contact
Shutter 1-input
No. Object name Function Size Flags
2
(9, 16, 23,
30, 37, 44,
51, 58, 65,
72, 79, 86,
93, 100,
The movement commands Up/Down are sent via the address linked
with this object in order to raise/lower the solar protection.
(15, 22,
29, 36, 43,
50, 57, 64,
71, 78, 85,
92, 99,
106, 113)
The command“STOP” or“Slats OPEN/CLOSE” are sent via the group
address linked with this object.
(11, 18,
25, 32, 39,
46, 53, 60,
67, 74, 81,
88, 95,
102, 109)
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to yes.
• Switch
This function allows using just one swich for moving a shutter up or
down and to stop its motion. To achieve this a distinction is made
between closed and open contact action.
Input G(,H)1 (2 8)
107)
8
Input G(,H)1 (2 8)
4
Input G(,H)1 (2 8)
Shutter Up/
Down
Shutter Stop
-slats
Enable 1.003 DPT_
1.008 DPT_
UpDown
1.009 DPT_
OpenClose
Enable
CWT
CWT
CW
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
8/29

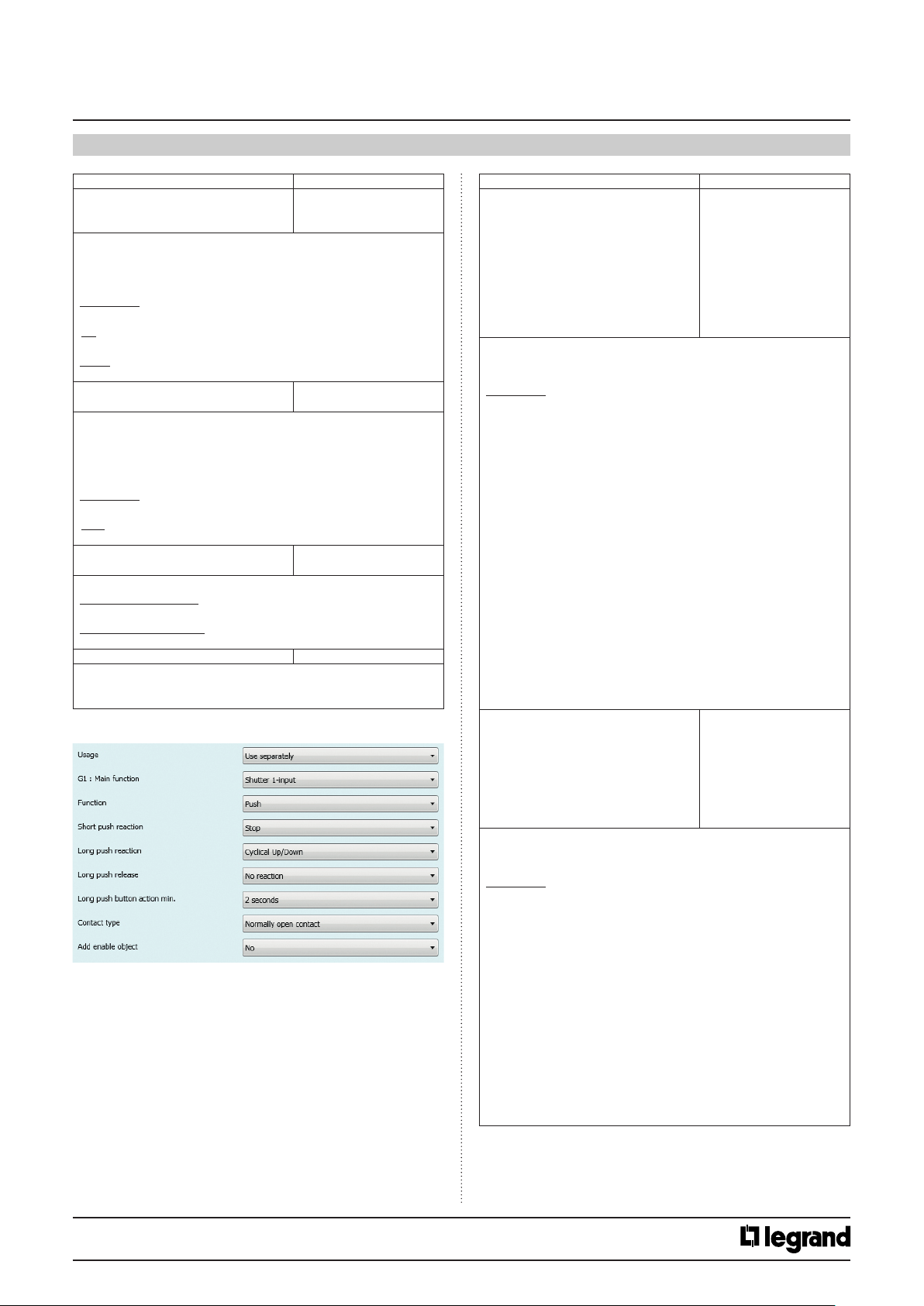

Page 9
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Parameters Setting
Switching value when contact is closed No reaction
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after a rising edge. The rising edge corresponds to a change in the
signal status at the input from logical“0” to“1”.
“No reaction”: action does not change the object value and also does
not send a telegram.
“Up”: when the contact is active, the command UP is transferred into
the communication object and sent.
“Down”: when the contact is active, the command DOWN is transferred
into the communication object and sent.
Switching value when contact is
opened
Here an adjustment is made to dene which switching movement
command is written into the storage cell of the communication object
and sent after a falling edge in the signal status at the channel (input).
The falling edge corresponds to a change in the signal status at the
input from logical“1” to“0”.
“No reaction”: action does not change the object value and also does
not send a telegram.
“Stop”: when the contact is inactive, the command stop is transferred
into the communication object and sent.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
• Push
This function allows using just one push button for moving shutter up and
down, stopping of the motion and opening and closing of the slats. To achieve
this a distinction is made between short and long push action.
Up
Down
No reaction
Stop
Normally closed contact
Parameters Setting
Short push reaction No reaction
Cyclical Up / Down + stop
Up + stop
Down + stop
Cyclical Up / Down
Stop
Open slats
Close slats
Up
Down
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after a short press the push button attached to the input.
“No reaction”: action does not change the object value and also does
not send a telegram.
Cyclical Up / Down + stop: each short push transfers the following
sequence command values into the communication object: Up, Stop,
Down, Stop, Up, Stop, Down, Stop, etc.
Up + stop: each short push transfers the following sequence command
values into the communication object: Up, Stop, Up, Stop, etc.
Down + stop: each short push transfers the following sequence command values into the communication object: Up, Stop, Up, Stop, etc.
Cyclical Up / Down: each short push transfers the following sequence
command values into the communication object: Up, Down, Up, Down,
etc.
Stop: a short push transfers into the communication object the stop
command value (“1”or “0”).
Open slats: a short push transfers into the communication object the
stop (open slats) command value (“0”).
Close slats: a short push transfers into the communication object the
stop (close slats) command value (“1”).
Up: a short push transfers into the communication object the Up
command (value“0”).
Down: a short push transfers into the communication object the Down
command (value“1”).
Long push reaction No reaction
Up
Down
Cyclical Up/Down
Stop
Cyclical Open/Close slats
Open slats
Close slats
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after long pressing the push button attached to the input.
“No reaction”: action does not change the object value and also does
not send a telegram.
Up: a long push action transfers into the communication object the Up
command (value“0”).
Down: a long push action send the Down command (value“1”)
Cyclical Up / Down: each push sends only one telegram as toggle reaction depending on the previous value: Up, Down, Up, Down, etc.
Stop: a long push action sends the stop command (value“1” or“0”)
Cyclical Open /Close slats: on each long push, the same telegram is
sent every 800ms as long as the contact is closed (or opened, depending on the “Normally open/closed contact” parameters value).The
value transferred into the communication object alternates between
"Open" and "Close", depending on the previous value.
Open slats: a long push action transfers into the communication object
the stop (open slats) command (value“0”).
Close slats: a long push action transfers into the communication object
the stop (close slats) command (value“1”).
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

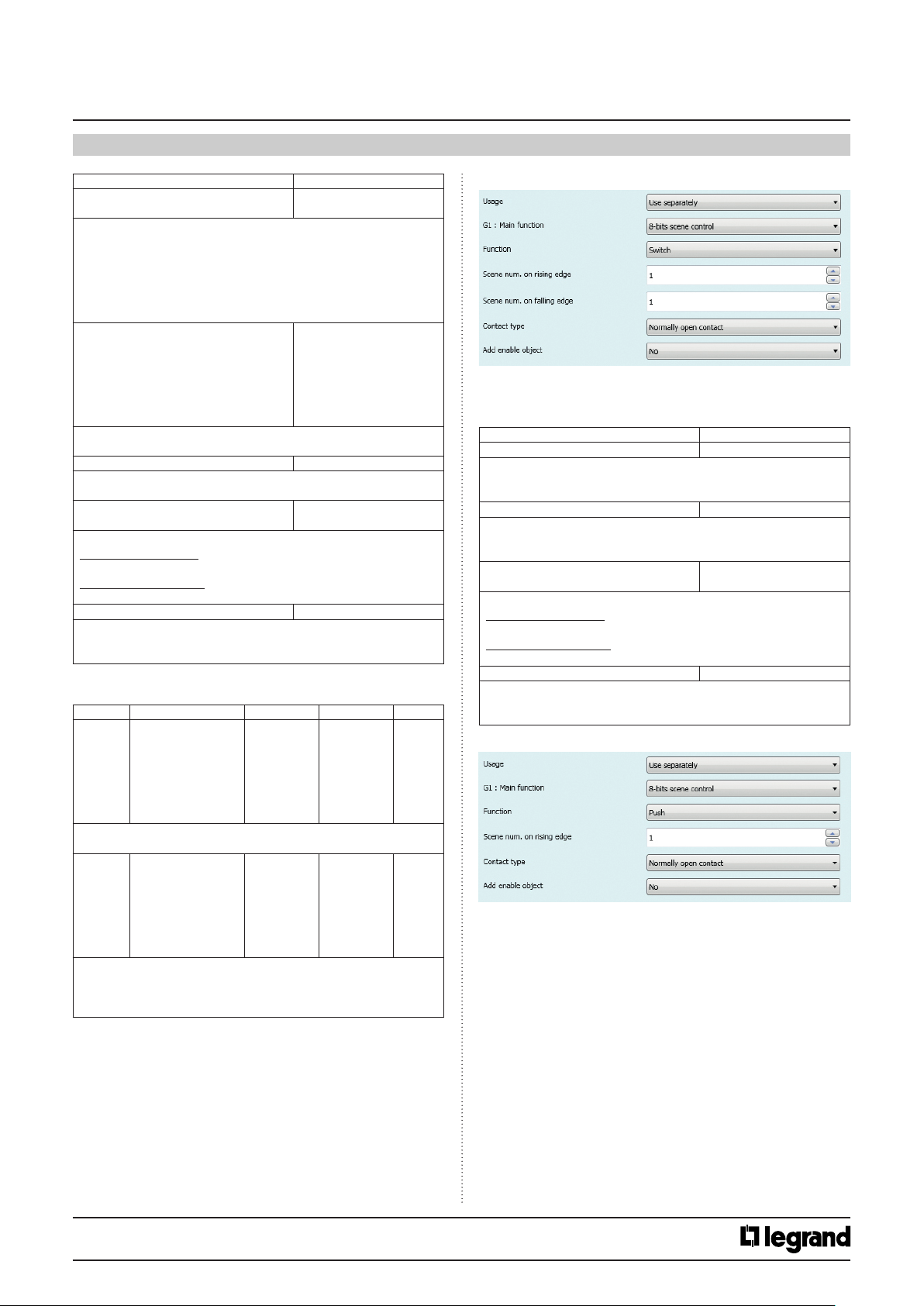

Page 10
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
8. COMMUNICATION OBJECTS CONTINUED 8. COMMUNICA
Parameters Setting
Long push release No reaction
Here an adjustment is made to dene which value is written into the
storage cell of the communication object and sent when releasing the
push button after a long press.
No reaction: action does not change the object value and also does not
send a telegram.
Stop: the stop command (value“1” or“0”) is transferred into the communication object and sent.
Long push action min. 0.5 second
This parameter determines the minimum period for detecting a long
push.
Add status object Yes / No
The parameter determines if an additional communication object
(status) shall be used to realize toggle functionality or other purposes.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
8-bits scene control
No. Object name Function Size Flags
5
(12, 19,
26, 33, 40,
47, 54, 61,
68, 75, 82,
89, 96,
103, 110)
The telegrams to recall the scene with the congured number
(between 1 and 64) are sent via the group address link with this object.
(11, 18,
25, 32, 39,
46, 53, 60,
67, 74, 81,
88, 95,
102, 109)
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to yes.
Input G(,H)1 (2 8)
4
Input G(,H)1 (2 8)
8-bits scene 17.001
Enable 1.003 DPT_
Stop
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
Normally closed contact
CT
DPT_SceneNumber
CW
Enable
• Switch
Using one button, the scene with the congured number (between 1
and 64) can be recalled via a short push.
If Scene number is set to the value “0”, no scene is going to be recalled.
Parameters Setting
Scene num. on rising edge
This parameters determines which scene (between 1 and 64) is to be
recalled on rising edge.
If value “0”is set, no scene is going to be recalled
Scene num. on falling edge
This parameters determines which scene (between 1 and 64) is to be
recalled on falling edge
If value “0”is set, no scene is going to be recalled
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. I
changes at this input are not transmitted.
• Push
Using one button, the scene with the congured number (
can be recalled via a short push. If Scene number is set to the value “0”, no scene
is going to be recalled.
f an input is blocked (Enable value = 0) the status
1 64
1 64
Normally closed contact
between 1 and 64
)
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
10/29

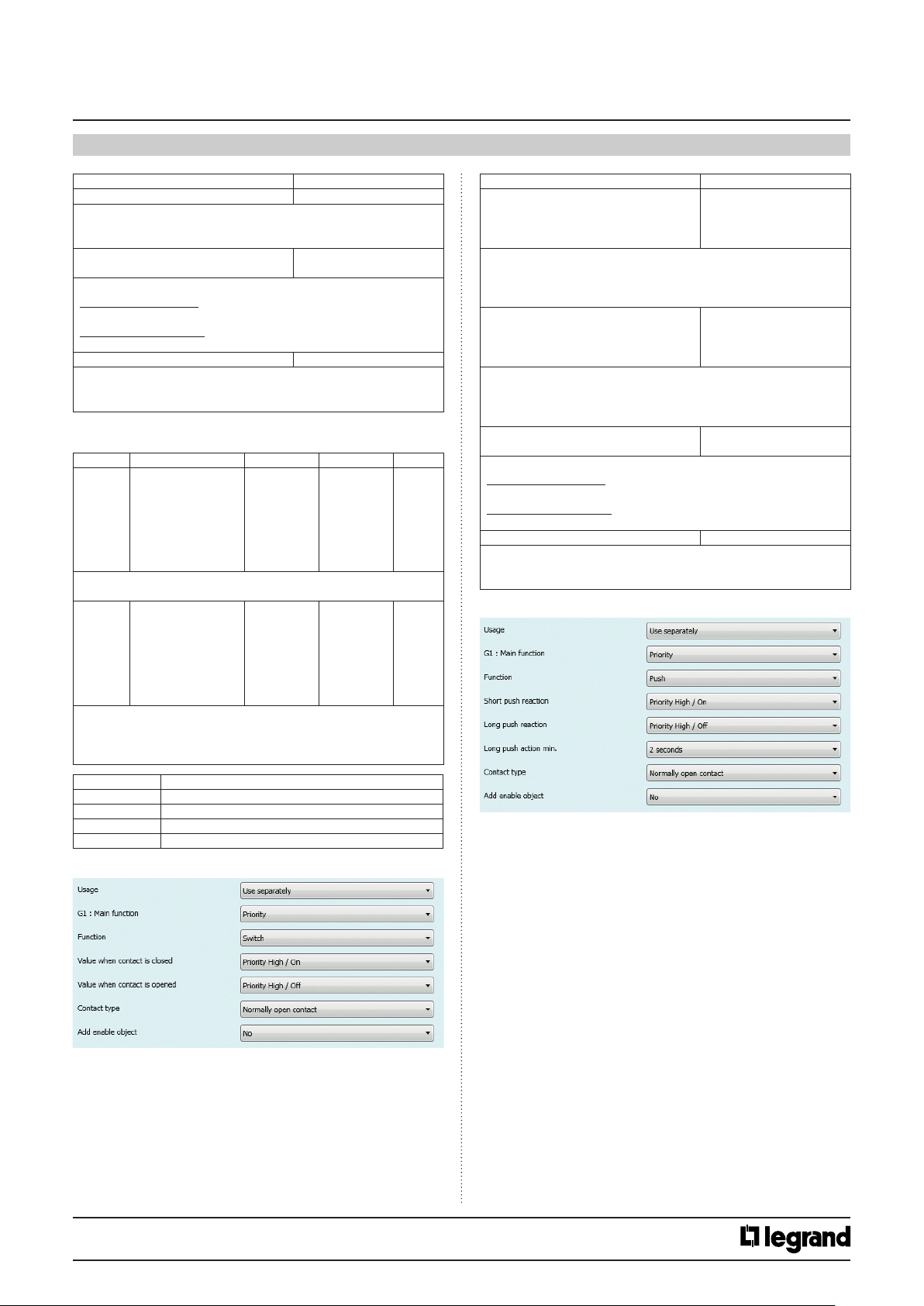

Page 11
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Parameters Setting
Scene num. on rising edge
This parameter determines which scene (between 1 and 64) is to be
recalled on rising edge.
If value “0”is set, no scene is going to be recalled.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
Priority
No. Object name Function Size Flags
5
(12, 19,
26, 33, 40,
47, 54, 61,
68, 75, 82,
89, 96,
103, 110)
The telegrams with the override commands are sent via the address
linked with this object in order to raise/lower the solar protection.
(11, 18,
25, 32, 39,
46, 53, 60,
67, 74, 81,
88, 95,
102, 109
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to yes.
Value Behaviour
00b Low Priority, O-State
01b Low Priority, On-State
10b High Priority, O-State
11b High Priority, On-State
• Switch
Input G(,H)1 (2 8)
4
Input G(,H)1 (2 8)
Override
2bits
Enable 1.003 DPT_
1 64
Normally closed contact
2.001
DPT_Switch_
Control
Enable
CT
CW
Parameters Setting
Value when contact is closed Priority High / On
Priority High / O
Priority Low / On
Priority Low / O
Here an adjustment is made to dene which value is written into the
storage cell of the communication object and sent after a rising edge
in the signal status of the channel (input). The rising edge corresponds
to a change in the signal status at the input from logical“0” to“1”.
Value when contact is opened Priority High / On
Priority High / O
Priority Low / On
Priority Low / O
Here an adjustment is made to dene which value is written into the
storage cell of the communication object and sent after a falling edge
in the signal status of the channel (input). The falling edge corresponds
to a change in the signal status at the input from logical“1” to“0”.
Contact type Normally open contact
Normally closed contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
• Push
This function is used for inputs with a push button to send a priority
telegram, the push is short or long, a telegram is sent.
This function is used for inputs with a switch to send a priority telegram,
the contact is closed or opened, a telegram is sent.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

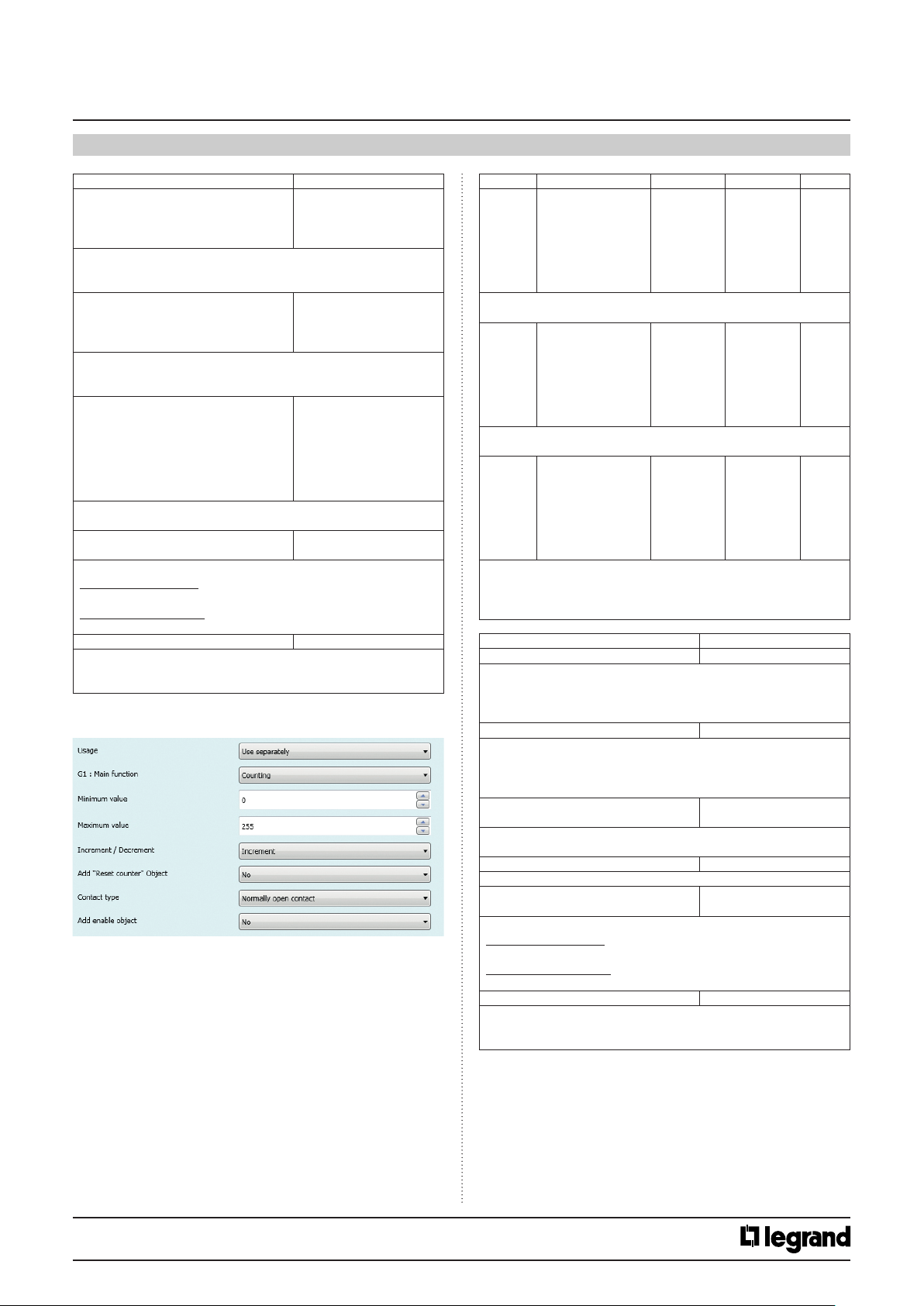

Page 12
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
8. COMMUNICATION OBJECTS CONTINUED 8. COMMUNICA
Parameters Setting
Short push reaction Priority High / On
Priority High / O
Priority Low / On
Priority Low / O
Here an adjustment is made to dene which positive drive value is
written into the storage cell of the communication object and sent
after short pressing the push button attached to the input.
Long push reaction Priority High / On
Priority High / O
Priority Low / On
Priority Low / O
Here an adjustment is made to dene which value is written into the
storage cell of the communication object and sent after long pressing
the push button attached to the input.
Long push action min. 0.5 second
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
This parameter determines the minimum period for detecting a long
push.
Contact type Normally open contact
Normally closed contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
• Counting
No. Object name Function Size Flags
5
(12, 19,
26, 33, 40,
47, 54, 61,
68, 75, 82,
89, 96,
103, 110)
The telegrams with the counter value are sent via the group address
linked with this object.
(10, 17,
24, 31, 38,
45, 52, 59,
66, 73, 80,
87, 94,
101, 108)
If a telegram linked with this object is received, then the counter value is
reset to the minimum value set by the“minimum value”parameter.
(11, 18,
25, 32, 39,
46, 53, 60,
67, 74, 81,
88, 95,
102, 109)
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to yes.
Parameters Setting
Minimum value
An adjustment is made via this parameter to dene which minimum is
the minimum possible counter value.
In case of “decrement”value of “Increment decrement” parameter, the
next counter value is set to the maximum value.
Maximum value
An adjustment is made via this parameter to dene the maximum
which is the maximum possible counter value.
In case of “increment” value of“Increment decrement” parameter, the
next counter value is set the minimum value.
Increment / Decrement Increment
Here an adjustment is made to dene if the counter has to be incremented/decremented by 1 after each rising edge.
Add“Reset counter” Object Ye s / No
This parameter determines if the“Reset Counter” object is visible or not
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
Input G(,H)1 (2 8)
3
Input G(,H)1 (2 8)
4
Input G(,H)1 (2 8)
Counting 5.010
Reset
Counter
Enable 1.003 DPT_
DPT_Value_1_
Ucount
1.015
DPT_Reset
Enable
0 255, 0
0 255, 255
Decrement
Normally closed contact
CT
CW
CW
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
12/29

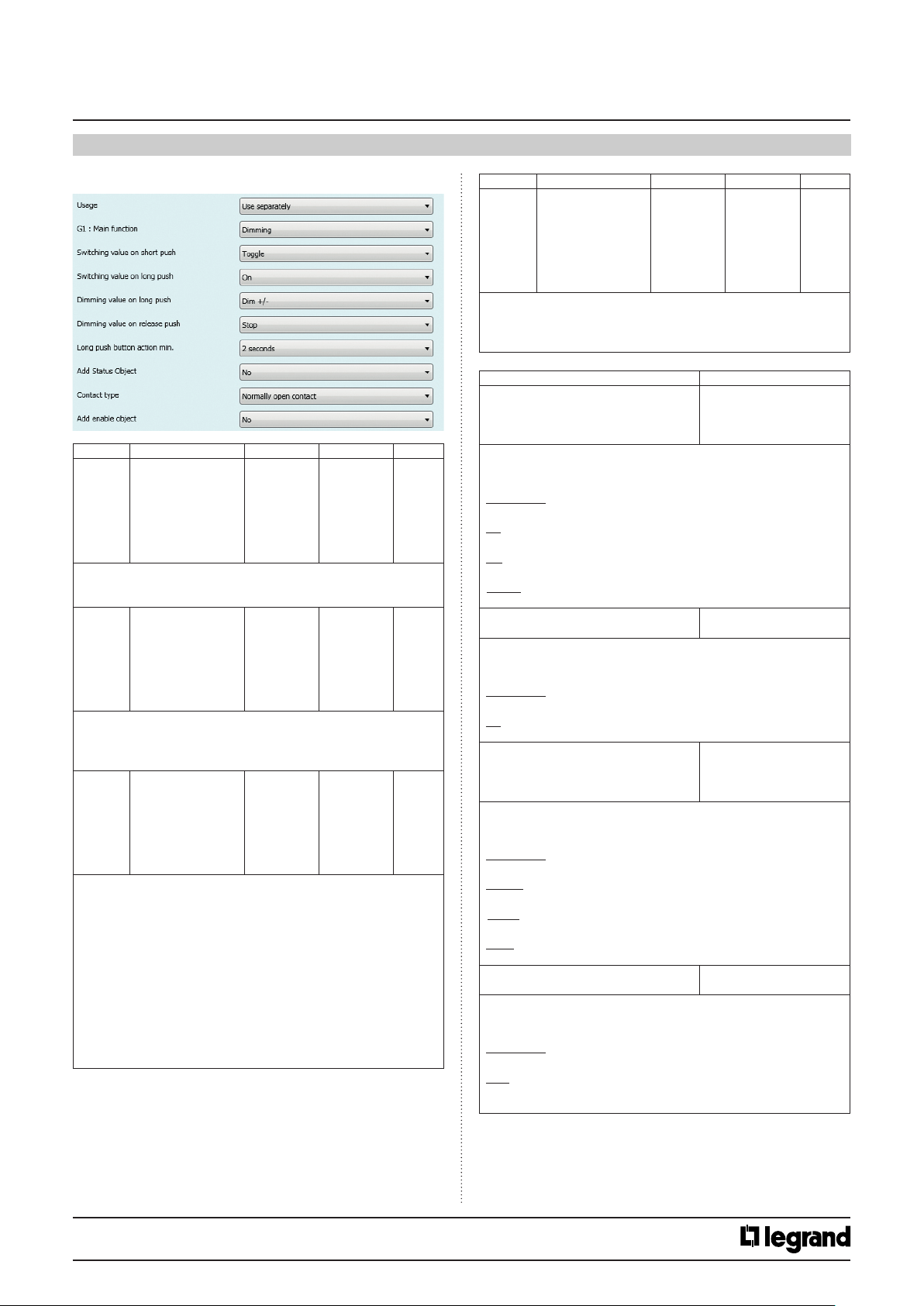

Page 13
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Dimming
No. Object name Function Size Flags
2
(9, 16, 23,
30, 37, 44,
51, 58, 65,
72, 79, 86,
93, 100,
Switching telegrams are sent via the group address linked with this
object.
In the process, a short push button an ON, OFF or TOGGLE telegram.
(13, 20,
27, 34, 41,
48, 55, 62,
69, 76, 83,
90, 97,
104, 111)
The dimming telegrams are sent to the dimming actuator via the group
address linked with this object. In the process, a long push produces
a “100% dimming”telegram. A stop command is sent when the push
button is released if“Dimming value on release push”is set to“stop’”.
(14, 21,
28, 35, 42,
49, 56,
63, 70, 77,
84, 91, 98,
105, 112)
The dimming status telegrams are received from the dimming actuator
via the group address linked with this object. This object is only visible
when the parameter“Add status object”is set to“yes”.
If Dimming value on long push is set to Dim+/-:
f the dimming actuator is at a dimming value between 1 and 99%, the
I
dimming direction last enabled is inverted and then dimmed in the new
direction. This allow several operation locations to synchronize and to
always invert the last applied dimming direction.
Note:
If this object is not linked with a group address or the last dimming
status has not been received when the push button is pressed, the
dimming direction is inverted when Dimming value on long push is set
to Dim+/-.
Input G(,H)1 (2 8)
107)
6
Input G(,H)1 (2 8)
7
Input G(,H)1 (2 8)
Switching 1.001 DPT_
Switch
Dimming 3.007 DPT_
Control_
Dimming
Value Status 5.001 DPT_
Scaling
CWT
CT
CW
No. Object name Function Size Flags
4
(11, 18,
25, 32, 39,
46, 53,
60, 67, 74,
81, 88, 95,
102, 109)
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to "Yes".
Parameters Setting
Switching value on short push No reaction
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after short
pressing the push button attached to the input.
“No reaction”: A short push does not change the object value and also
does not send a telegram.
“On”: After short push, the switching value“ON”(binary value, “1”) is
transferred into the communication object and sent.
“O”: After short push, the switching value“OFF” (binary value ”0”) is
transferred into the communication object and sent.
“Toggle”: After short push, the switching value stored in the communication object is inverted and the new value is sent.
Switching value on long push No reaction
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after long
pressing the push button attached to the input.
“No reaction”: A short push does not change the object value and also
does not send a telegram.
“On”: After short push, the switching value“ON”(binary value, “1”) is
transferred into the communication object and sent.
Dimming value on long push Dim +/-
Here an adjustment is made to dene which dimming value is written
into the storage cell of the communication object and sent after long
pressing the push button attached to the input.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“Dim+/-”: After long push, the dimming value stored in the communication object is inverted and the new value is sent.
“Dim +”: After short push, the dimming value “Increase 100%”is transferred into the communication object and sent.
“Dim -”: After short push, the dimming value “Decrease 100%”is transferred into the communication object and sent.
Dimming value on push release No reaction
Here an adjustment is made to dene which dimming value is written
into the storage cell of the communication object and sent when releasing a push button after a long press.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“Stop”: When the push button is released after a long push, the dimming value“Stop”is transferred into the communication object and
sent.
Input G(,H)1 (2 8)
Enable 1.003 DPT_
Enable
On
O
Toggle
On
Dim +
Dim –
No reaction
Stop
CW
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

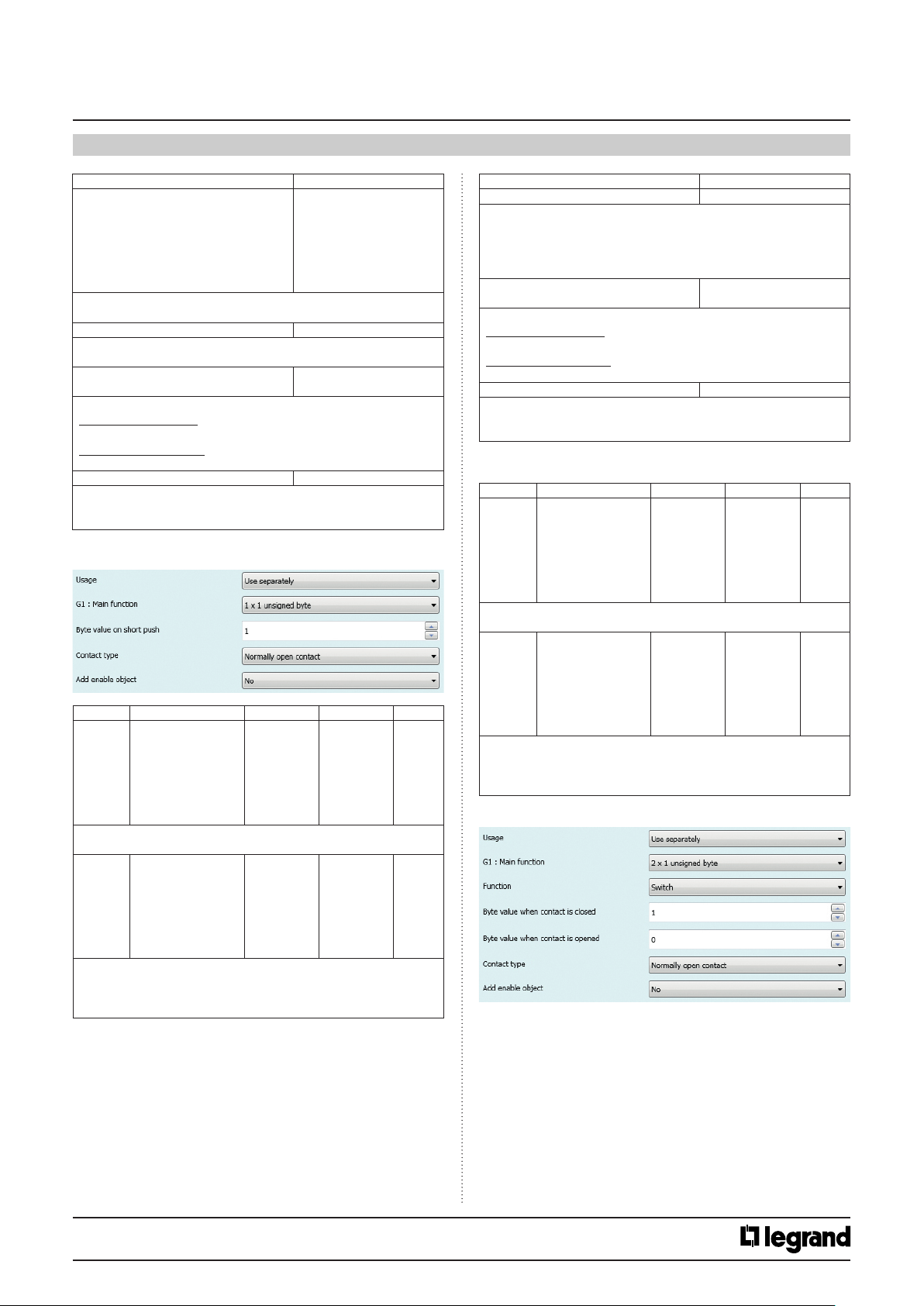

Page 14
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
Parameters Setting
Long push action min. 0.5 second
This parameter determines the minimum period for detecting a long
push.
Add status object Yes / No
The parameter determines if an additional communication object (status) shall be used to perform toggle functionality or other purposes.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. I
changes at this input are not transmitted.
1 x 1 unsigned byte
No. Object name Function Size Flags
5
(12, 19,
26, 33, 40,
47, 54, 61,
68, 75, 82,
89, 96,
103, 110)
The telegrams with the unsigned value are sent via the group address
linked with this object.
(11, 18,
25, 32, 39,
46, 53, 60,
67, 74, 81,
88, 95,
102, 109)
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to yes.
Input G(,H)1 (2 8)
4
Input G(,H)1 (2 8)
f an input is blocked (Enable value = 0) the status
Unsigned
Value
Enable 1.003 DPT_
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
Normally closed contact
5.010
DPT_
Value_1_
Ucount
Enable
CT
CW
Parameters Setting
Byte value when contact is closed
Here an adjustment is made to dene which unsigned 8-bit value is
written into the storage cell of the communication object and sent
after a rising edge in the signal status at the channel (input). The rising
edge corresponds to a change in the signal status at the input from
logical“0” to“1”.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
2 x 1 unsigned byte
No. Object name Function Size Flags
5
(12, 19,
26, 33, 40,
47, 54, 61,
68, 75, 82,
89, 96,
103, 110)
The telegrams with the unsigned value are sent via the group address
linked with this object
(11, 18,
25, 32, 39,
46, 53, 60,
67, 74, 81,
88, 95,
102, 109)
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add status object”parameter value is set to yes.
• Switch
This function is used for inputs with a switch to send a byte value telegram, the contact is closed or opened, a telegram is sent.
Input G(,H)1 (2 8)
4
Input G(,H)1 (2 8)
Unsigned
Value
Enable 1.003 DPT_
0 255, 1
Normally closed contact
5.010
DPT_Value_1_
Ucount
Enable
CT
CW
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
14/29

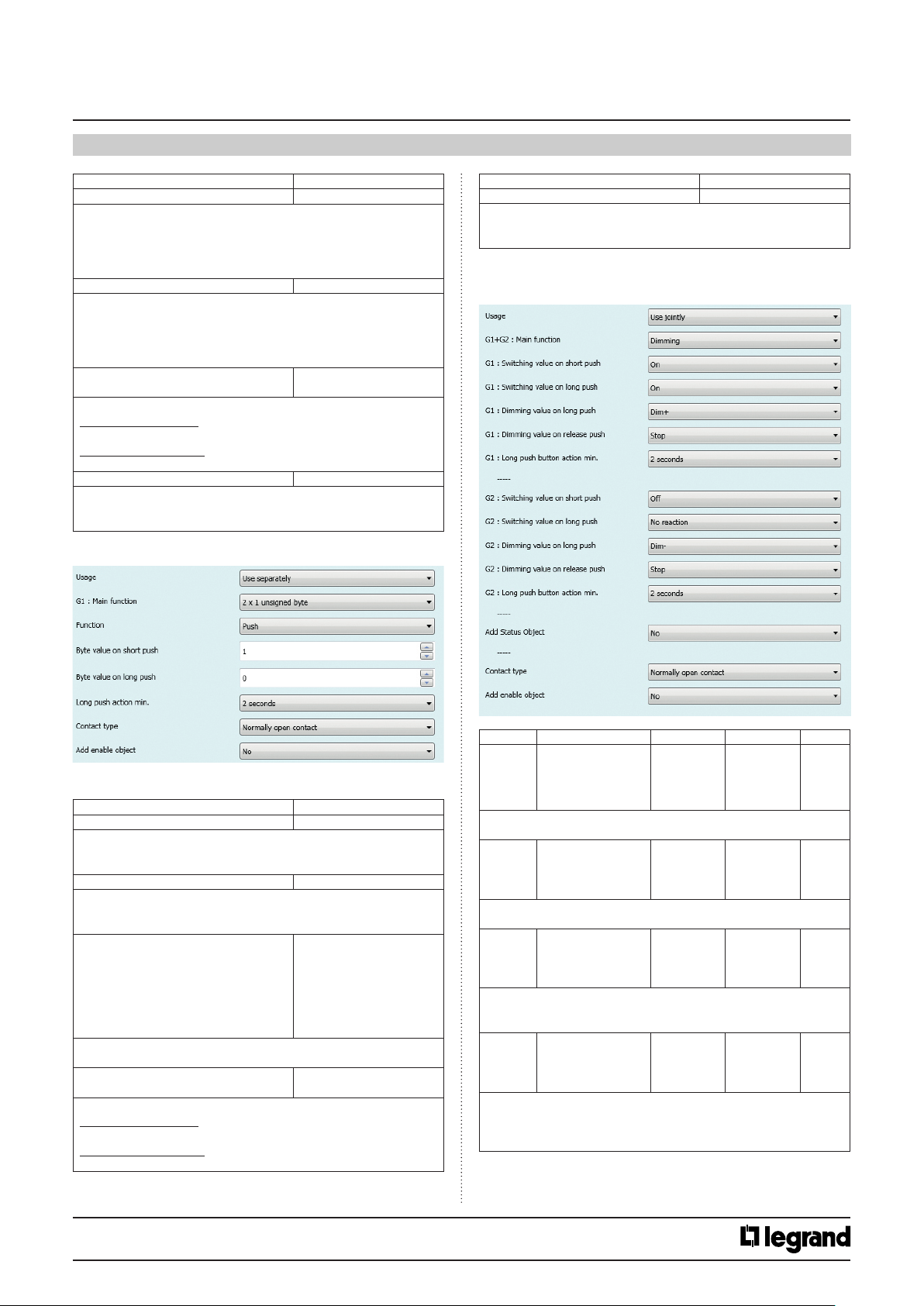

Page 15
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Parameters Setting
Byte value when contact is closed
Here an adjustment is made to dene which unsigned unsigned 8-bit
value is written into the storage cell of the communication object and
sent after a rising edge in the signal status at the channel (input). The
rising edge corresponds to a change in the signal status at the input
from logical“0” to“1”.
Byte value when contact is opened
Here an adjustment is made to dene which unsigned 8-bit value is
written into the storage cell of the communication object and sent
after a falling edge in the signal status at the channel (input). The
falling edge corresponds to a change in the signal status at the input
from logical“1” to“0”.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. I
changes at this input are not transmitted.
• Push
f an input is blocked (Enable value = 0) the status
0 255, 1
0 255, 0
Normally closed contact
Parameters Setting
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
8.1.2 Use Jointy
Dimming
This function is used for inputs with a push button to send a byte value telegram, the push is short or long, a telegram is sent.
Parameters Setting
Byte value on short push
Here an adjustment is made to dene which unsigned 8-bit value is
written into the storage cell of the communication object and sent
after short pressing the push button attached to the input.
Byte value on long push
Here an adjustment is made to dene which unsigned 8-bit value is
written into the storage cell of the communication object and sent
after long pressing the push button attached to the input.
Long push action min. 0.5 second
This parameter determines the minimum period for detecting a long
push.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
0 255, 1
0 255, 0
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
Normally closed contact
No. Object name Function Size Flags
2
(16, 30,
44, 58, 72,
86, 100)
Switching telegrams are sent via the group address linked with this
object.
(20, 34,
48, 62, 76,
90, 104)
Dimming telegrams are sent via the group address linked with this
object.
(21, 35,
49, 63, 77,
91, 105)
The dimming status telegrams are received from the dimming actuator
via the group address linked with this object. This object is only visible
when the parameter“Add status object”is set to“yes”.
(18, 32,
46, 60, 74,
88, 102)
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add enable object”parameter value is set to yes.
Input G(,H)1 (3 7)+
G(,H)2 (4 8),
6
Input G(,H)1 (3 7)+
G(,H)2 (4 8)
7
Input G(,H)1 (3 7)+
G(,H)2 (4 8)
4
Input G(,H)1 (3 7)+
G(,H)2 (4 8)
Switching 1.001 DPT_
Switch
Dimming 3.007 DPT_
Control_Dimming
Value Status 5.001 DPT_
Scaling
Enable 1.003 DPT_
Enable
CWT
CT
CW
CW
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014
Page 16
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
Parameters Setting
Xn - Switching value on short push No reaction
On
O
Toggle
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after short
pressing of the push button attached to the input.
“No reaction”: A short push does not change the object value and also
does not send a telegram.
“On”: After short push, the switching value“ON”(binary value, “1”) is
transferred into the communication object and sent.
“O”: After short push, the switching value“OFF” (binary value ”0”) is
transferred into the communication object and sent.
“Toggle”: After short push, the switching value stored in the communication object is inverted and the new value is sent.
Xn - Switching value on long push No reaction
On
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after long
pressing of the push button attached to the input.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“On”: A long push, the switching value“ON” (binary value,“1”) is transferred into the communication object and sent.
Xn - Dimming value on long push Dim +
Dim –
No reaction
Here an adjustment is made to dene which dimming value is written
into the storage cell of the communication object and sent after long
pressing the push button attached to the input.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“Dim +”After short push, the dimming value “Increase 100%”is transferred into the communication object and sent.
“Dim -”: After short push, the dimming value “Decrease 100%”is transferred into the communication object and sent.
Xn - Dimming value on release push No reaction
Stop
Here an adjustment is made to dene which dimming value is written
into the storage cell of the communication object when releasing the
push button after a long press.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“Stop”: When the push button is released after a long push, the dimming value“Stop”is transferred into the communication object and
sent.
Xn – Long push button action min. 0.5 second
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
This parameter determines the minimum period for detecting a long
push.
Parameters Setting
Xn+1-Switchingvalueonshortpush No reaction
On
O
Toggle
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after short
pressing of the push button attached to the input.
“No reaction”: A short push does not change the object value and also
does not send a telegram.
“On”: After short push, the switching value“ON”(binary value, “1”) is
transferred into the communication object and sent.
“O”: After short push, the switching value“OFF” (binary value ”0”) is
transferred into the communication object and sent.
“Toggle”: After short push, the switching value stored in the communication object is inverted and the new value is sent.
Xn+1 - Switching value on long push No reaction
On
Here an adjustment is made to dene which switching value is written
into the storage cell of the communication object and sent after long
pressing of the push button attached to the input.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“On”: A long push, the switching value“ON” (binary value,“1”) is transferred into the communication object and sent.
Xn+1 - Dimming value on long push Dim + / Dim –
No reaction
Here an adjustment is made to dene which dimming value is written
into the storage cell of the communication object and sent after long
pressing the push button attached to the input.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“Dim +”After short push, the dimming value “Increase 100%”is transferred into the communication object and sent.
“Dim -”: After short push, the dimming value “Decrease 100%”is transferred into the communication object and sent.
Xn+1 - Dimming value on release push No reaction
Stop
Here an adjustment is made to dene which dimming value is written
into the storage cell of the communication object and sent when releasing the push button after a long push.
“No reaction”: A long push does not change the object value and also
does not send a telegram.
“Stop”: When the push button is released after a long push, the dimming value“Stop”is transferred into the communication object and
sent.
Xn+1 - Long push button action min. 0.5 second
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
This parameter determines the minimum period for detecting a long
push.
Add status object Yes / No
The parameter determines if an additional communication object (status) shall be used to perform toggle functionality or other purposes.
Contact type Normally open contact
Normally closed contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
16/29

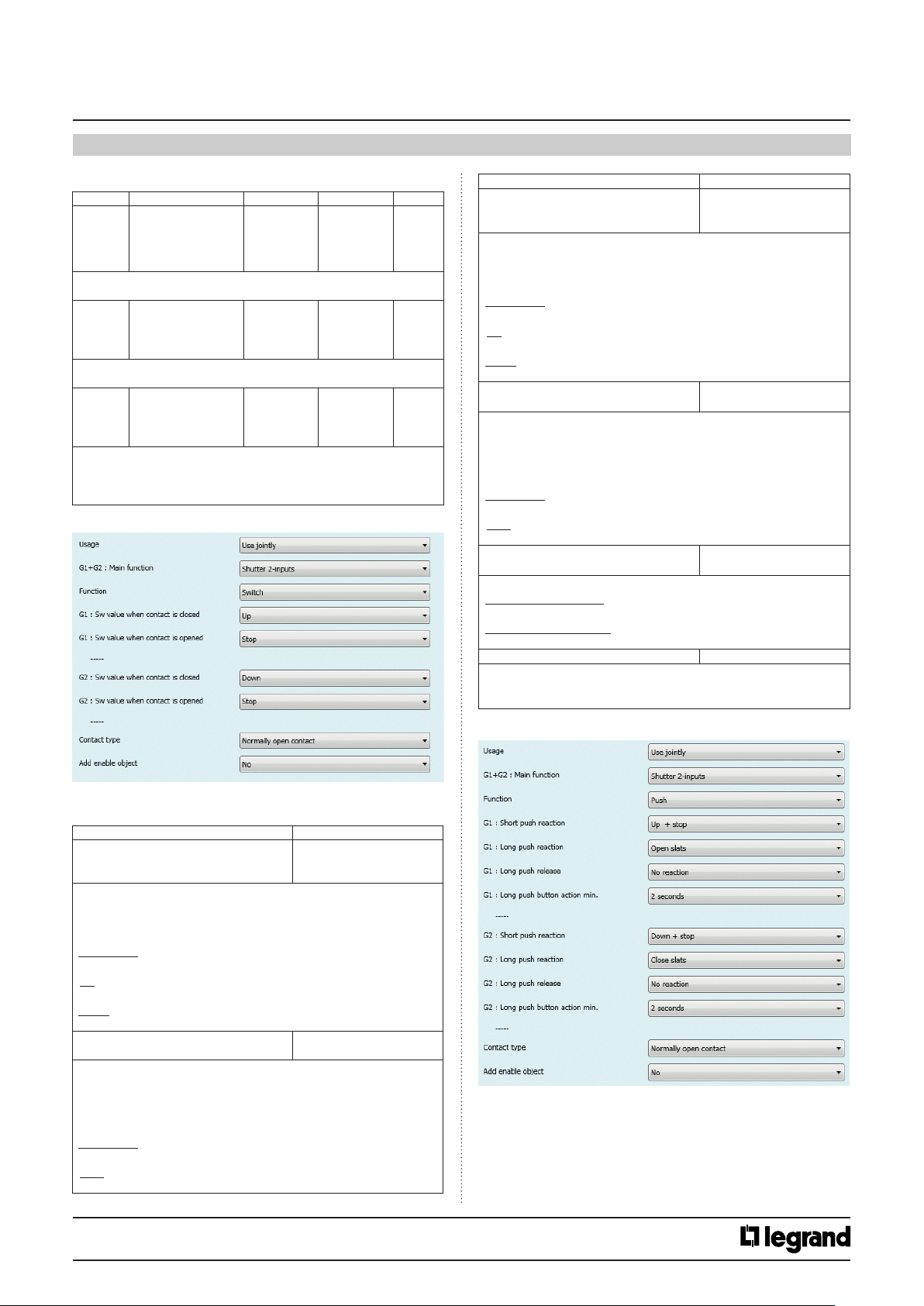

Page 17
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Shutter 2-input
No. Object name Function Size Flags
2
(16, 30,
44, 58, 72,
86, 100)
The movement commands Up/Down are sent via the address linked
with this object in order to raise/lower the solar protection.
(22, 36,
50, 64, 78,
92, 106)
The commands“STOP” or“Slats OPEN/CLOSE” are sent via the group
address linked with this object.
(18, 32, 46,
60, 74, 88,
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
They are only visible if“Add status object”parameter value is set to yes.
• Switch
Input G(,H)1 (3 7)+
G(,H)2 (4 8)
8
Input G(,H)1 (3 7)+
G(,H)2 (4 8)
4
Input G(,H)1 (3 7)+
G(,H)2 (4 8)
102)
Shutter Up/
Down
Shutter Stop
- slats
Enable 1.003 DPT_
1.008 DPT_
UpDown
1.009 DPT_
OpenClose
Enable
CWT
CWT
CW
Parameters Setting
Xn+1 - Switching value when contact
is closed
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after a rising edge. The rising edge corresponds to a change in the
signal status at the input from logical“0” to“1”.
“No reaction”: action does not change the object value and also does
not send a telegram.
“Up”: when the contact is active, the command UP is transferred into
the communication object and sent.
“Down”: when the contact is active, the command DOWN is transferred
into the communication object and sent.
Xn+1 - Switching value when contact
is opened
Here an adjustment is made to dene which switching movement
command is written into the storage cell of the communication object
and sent after a falling edge in the signal status at the channel (input).
The falling edge corresponds to a change in the signal status at the
input from logical“1” to“0”.
“No reaction”: action does not change the object value and also does
not send a telegram.
“Stop”: when the contact is inactive, the command stop is transferred
into the communication object and sent
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
• Push
No reaction
Up
Down
No reaction
Stop
Normally closed contact
This function is used for 2 inputs with a switch to send a up,stop or down
telegram : the contact is closed or opened, a telegram is sent.
Parameters Setting
Xn - Switching value when contact is
closed
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after a rising edge. The rising edge corresponds to a change in the
signal status at the input from logical“0” to“1”.
“No reaction”: action does not change the object value and also does
not send a telegram.
“Up”: when the contact is active, the command UP is transferred into
the communication object and sent.
“Down”: when the contact is active, the command DOWN is transferred
into the communication object and sent.
Xn - Switching value when contact is
opened
Here an adjustment is made to dene which switching movement
command is written into the storage cell of the communication object
and sent after a falling edge in the signal status at the channel (input).
The falling edge corresponds to a change in the signal status at the
input from logical“1” to“0”.
“No reaction”: action does not change the object value and also does
not send a telegram.
“Stop”: when the contact is inactive, the command stop is transferred
into the communication object and sent.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014
No reaction
Up
Down
No reaction
Stop
This function is used for 2 inputs with push button to send a up,stop or down
telegram : the push is short or long, a telegram is sent.
Page 18
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
Parameters Setting
Xn - Short push reaction No reaction
Up+stop
Down + stop
Stop
Open slats
Close slats
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after short pressing of the push button attached to the input.
“No reaction”: action does not change the object value and also does
not send a telegram.
Up + stop: each short push transfers the following sequence command
values into the communication object: Up, Stop, Up, Stop, etc.
Down + stop: each short push transfers the following sequence command values into the communication object: Down, Stop, Down, Stop,
etc.
Stop: a short push transfers into the communication object the stop
command value (“1”or “0”).
Open slats: a short push transfers into the communication object the
stop (open slats) command value (“0”).
Close slats: a short push transfers into the communication object the
stop (close slats) command value (“1”).
Xn - Long push reaction No reaction
Up
Down
Stop
Open slats
Close slats
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after long pressing of the push button attached to the input.
“No reaction”: action does not change the object value and also does
not send a telegram.
Up: a long push action transfers into the communication object the Up
command (value“0”)
Down: a long push action send the Down command (value“1”)
Stop: a long push action sends the stop command (value“1” or“0”)
Open slats: a long push action transfers into the communication object
the stop (open slats) command (value“0”)
Close slats: a long push action transfers into the communication object
the stop (close slats) command (value“1”)
Xn - Long push release No reaction
Stop
Here an adjustment is made to dene which value is written into the
storage cell of the communication object and sent when releasing the
push button after a long press.
“No reaction”: action does not change the object value and also does
not send a telegram.
Stop: the stop command (value“1” or“0”) is transferred into the communication object and sent.
Xn - Long push action min. 0.5 second
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
This parameter determines the minimum period for detecting a long
push.
Parameters Setting
Xn+1 - Short push reaction No reaction
Up + stop
Down + stop
Stop
Open slats
Close slats
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after short pressing of the push button attached to the input.
“No reaction”: action does not change the object value and also does
not send a telegram.
Up + stop: each short push transfers the following sequence command
values into the communication object: Up, Stop, Up, Stop, etc.
Down + stop: each short push transfers the following sequence command values into the communication object.
Stop: a short push transfers into the communication object the stop
command value (“1”or “0”).
Open slats: a short push transfers into the communication object the
stop (open slats) command value (“0”).
Close slats: a short push transfers into the communication object the
stop (close slats) command value (“1”).
Xn+1 - Long push reaction No reaction
Up
Down
Stop
Open slats
Close slats
Here an adjustment is made to dene which movement command is
written into the storage cell of the communication object and sent
after long pressing of the push button attached to the input.
“No reaction”: action does not change the object value and also does
not send a telegram.
Up: a long push action transfers into the communication object the Up
command (value“0”)
Down: a long push action sends the Down command (value“1”)
Stop: a long push action sends the stop command (value“1” or“0”)
Open slats: a long push action transfers into the communication object
the stop (open slats) command (value“0”)
Close slats: a long push action transfers into the communication object
the stop (close slats) command (value“1”)
Xn+1 - Long push release No reaction / Stop
Here an adjustment is made to dene which value is written into the
storage cell of the communication object and sent when releasing the
push button after a long press.
“No reaction”: action does not change the object value and also does
not send a telegram.
Stop: the stop command (value“1” or“0”) is transferred into the communication object and sent.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
18/29

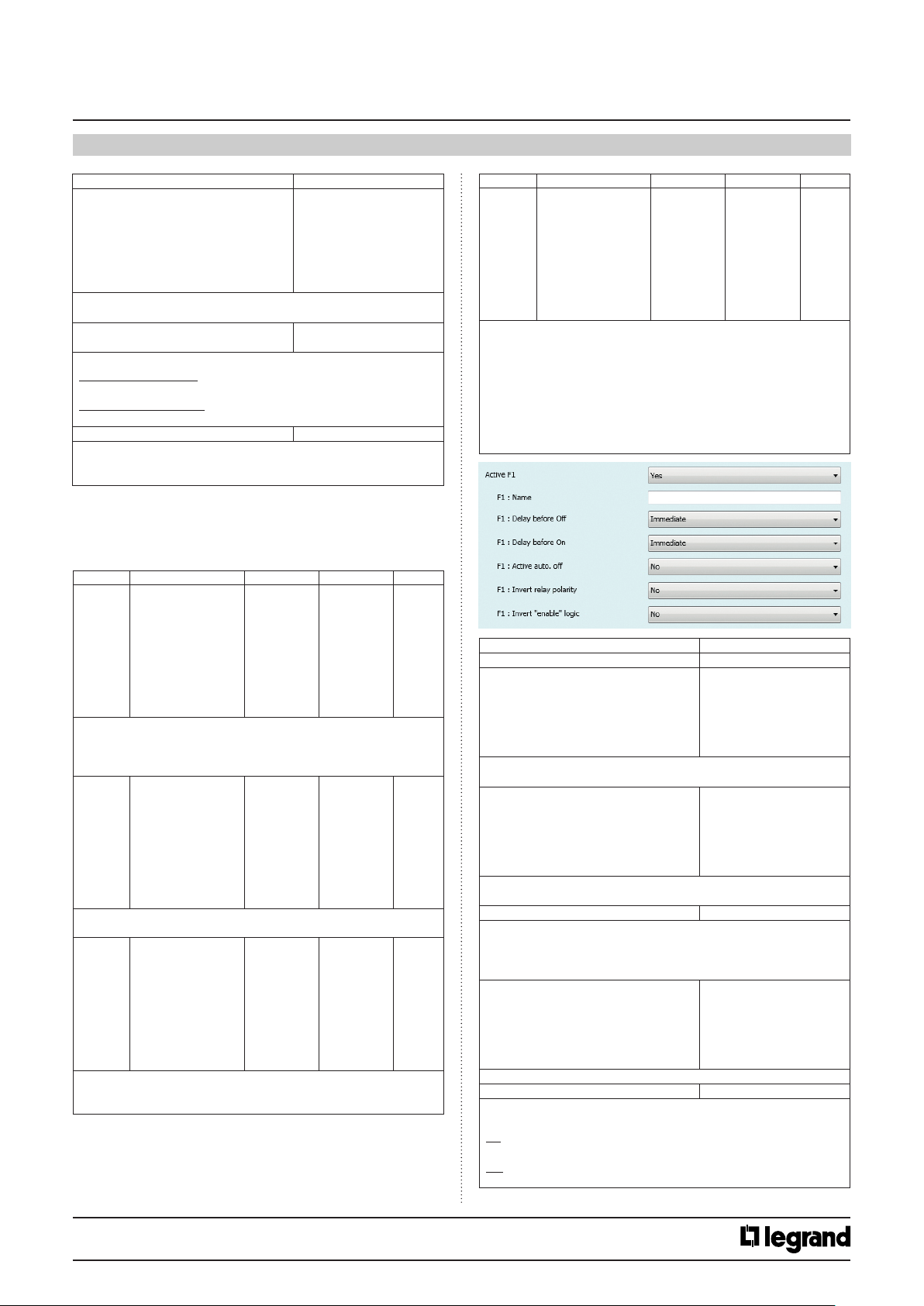

Page 19
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Parameters Setting
Xn+1 - Long push action min. 0.5 second
This parameter determines the minimum period for detecting a long
push.
Contact type Normally open contact
The contact type of the input attached to the channel is adjusted here.
“Normally open contact”: the contact of the input is active when
closed, inactive when opened.
“Normally closed contact”: the contact of the input is active when
opened, inactive when closed.
Add enable object Yes / No
The parameter determines if the input can be blocked via an additional
Enable object or not. If an input is blocked (Enable value = 0) the status
changes at this input are not transmitted.
8.2 Outputs
8.2.1 Relays
Function On/Off
No. Object name Function Size Flags
114
(118, 122,
126, 130,
134, 138,
142, 146,
150, 154,
158, 162,
166, 170,
This object is used to receive the swithing telegrams that are transferred to the relay channel.
Switching telegrams are sent via the group address linked with this
object.
(119, 123,
127, 131,
135, 139,
143, 147,
151, 155,
159,163,
167, 171,
The current switching state of the channel is saved in the status object. It
is automatically sent each time the object value changes.
(120, 124,
128, 132,
136, 140,
144, 148,
152, 156,
160, 164,
168, 172,
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
Output Xn Switching 1.001 DPT_
174)
115
Output Xn, Switching
175)
Output Xn Enable 1.003 DPT_
116
176)
Status
1 second
2 seconds
3 seconds
4 seconds
5 seconds
10 seconds
Normally closed contact
Switch
1.001 DPT_
Switch
Enable
CW
CRT
CW
No. Object name Function Size Flags
117
(121, 125,
129, 133,
137, 141,
145, 149,
153, 157,
161, 165,
169, 173,
Override telegrams are received via the group address linked with this
object.
Output Xn can be forcibly operated (e.g. by a higher-level control). The
value of the communication object directly denes the forced position
of the contact:
0 or 1 = The output is not forcibly operated (0 switched o, 1 switched
on).
2 = The output is forcibly switched o.
3 = The output is forcibly switched on.
Parameters Setting
Active Xn Yes / No
Xn : Delay before O Immediate, 500 ms,
This parameter sets the wanted OFF delay time. A set OFF delay acts
only on the object “Output Xn, Switch”
Xn : Delay before On Immediate, 500 ms,
This parameter sets the wanted ON delay time. A set ON delay acts only
on the object “Output Xn, Switch”.
Xn : Active auto. o Yes / No
This parameter denes if the ouput is to be permanently switched on
using the manual command and has to be switch o again using the
manual command (No), or if it is switched on manually for a limited
period and then automatically switched o (Yes).
Xn : Auto. o delay Immediate, 500 ms,
This parameter determines the delay before automatic switch-o.
Xn : Invert relay polarity Yes / No
The polarity type of the output attached to the channel is adjusted
here.
“No”: the contact of the output is close when active, open when
inactive
“Yes”: the contact of the output is open when active, closed when
inactive
Output Xn 2bits Over-
ride
177)
2.001
DPT_Switch_
Control
1 second, 2 seconds,
5 seconds, 10 seconds,
30seconds
2 min., 10 min., 15 min.,
30min., 45 min., 1h, 90 min.
1 second, 2 seconds,
5 seconds,10 seconds,
30seconds
2 min., 10 min., 15 min.,
30min., 45 min., 1h, 90 min.
1 second, 2 seconds,
5 seconds,10 seconds,
30seconds
2 min., 10 min., 15 min.,
30min., 45 min., 1h, 90 min.
CW
, 1 minute, 90 s,
, 1 minute, 90 s,
, 1 minute, 90 s,
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

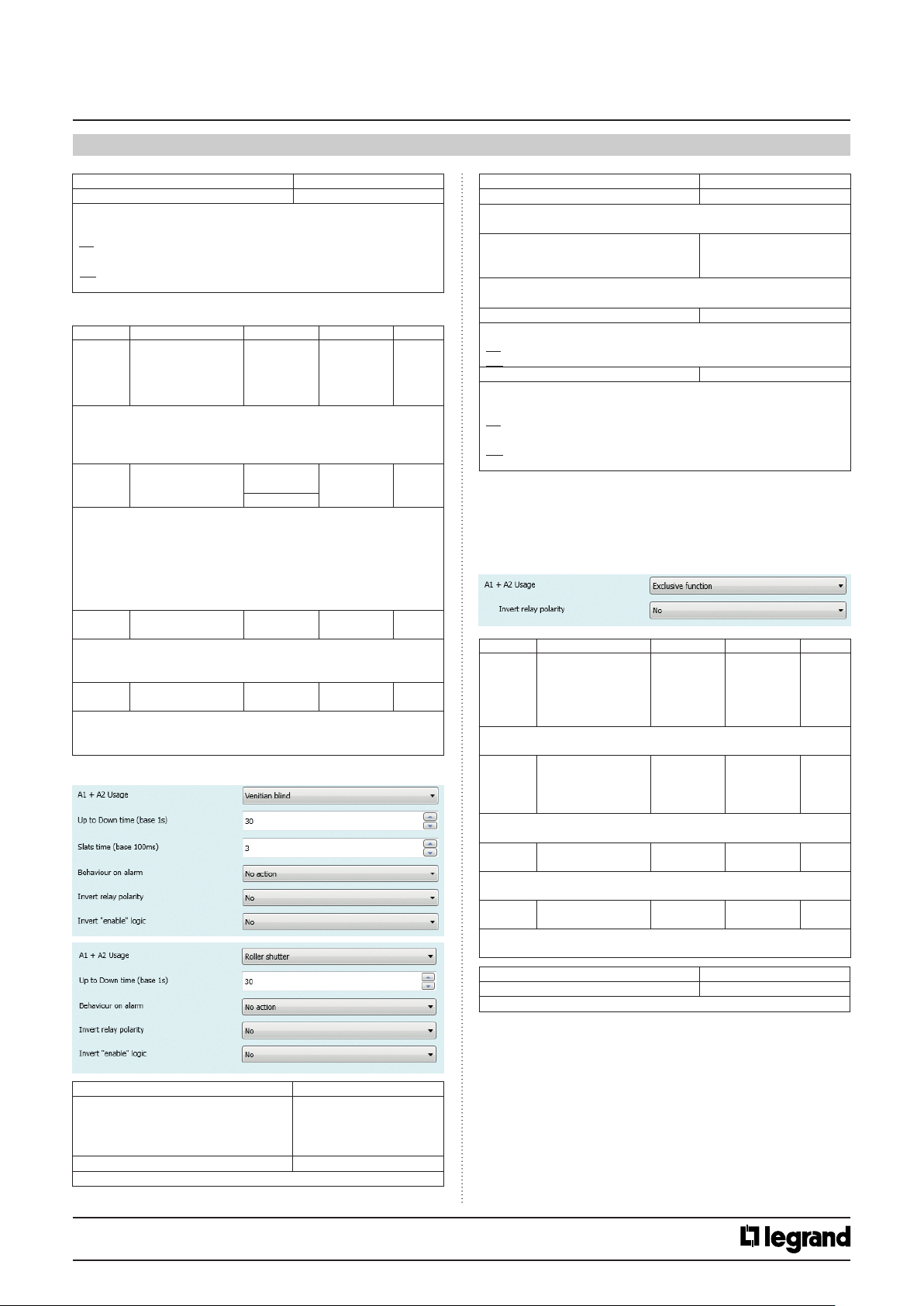

Page 20
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
Parameters Setting
Xn : Invert enable logic Yes / No
The Enable logic of the output attached to the channel is adjusted
here.
“No”: the contact of the output is Disable when“Output Xn, Enable”
object value is 0.
“Yes”: the contact of the output is Disable when“Output Xn, Enable”
object value is 1.
8.2.2 Shutter (for Ports A and B only)
No. Object name Function Size Flags
114,122 Outputs A (B) Shutter Up/
The Up/Down movement for the corr
these objects. The shutter is raised on receipt of a logical 0 and lowered
on receipt of a logical 1. The drive mechanism remains switched on
until either a stop command is received
115,123 Outputs A (B) Open/Close
Via these objects, the movement of a blind/shutter is stopped
regardless of whether the telegram contains a logical 0 or a logical 1.
If the output is congured as "Venitian blind" and the blind is stationary, the slats are opened by one step on receipt of a logical 0 and
closed by one step on receipt of a logical 1.
If the output is congured as "Roller shutter" and a stop command is
received when the roller shutter is stationary, the command is ignored.
117,125 Outputs A (B) Shutter
This object can be linked with an alarm signal from a wind, rain or ice
detector, which sends a logical 0 in the idle state and a logical 1 in the
event of an alarm.
116,124 Outputs A (B) Shutter
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
In ventian blind use you have the parameters for slat control
Down
esponding channel is initiated via
Slats
Shutter Stop
Alarm
Enable
1.008 DPT_
UpDown
1.009 DPT_
OpenClose
1.005 DPT_
Alarm
1.003 DPT_
Enable
CW
CW
CW
CW
Parameters Setting
Up to Down time (base 1s)
Only available if“Xn+(n+1) Usage” is set to “Venitian blind” or “Roller
shutter”
Behaviour on alarm No action
Only available if“Xn+(n+1) Usage” is set to “Venitian blind” or “Roller
shutter”
Invert relay polarity Yes / No
Allows to invert the move up/down command.
“No”: X1 is move up, X2 move down
“Yes”: X1 is move down, X2 is move up
Invert Enable logic Yes / No
The Enable logic of the output attached to the channel is adjusted
here.
“No”: the contact of the output is Disable when“Output Xn, Enable”
object value is 0.
“Yes”: the contact of the output is Disable when“Output Xn, Enable”
object value is 1.
(*): See the previous parameters description and communication object
description table
8.2.3 Exclusive function (Ports A and B only)
This functionality is used to perform logical XOR functions between two
relays on the same port.
No. Object name Function Size Flags
115 (122) Outputs A (B) A2 on & A1
o | O
(B2 on & B1
o | O)
1 : Activates A2, Deactivates A1
0 : Deactivates A1 and A2
114 (123) Outputs A (B) A1 on & A2
o | O
(B1 on & B2
o | O)
1 : Activates A1, Deactivates A2
0 : Deactivates A1 and A2
121 (129) Outputs A (B) A2 Status
(B2 Status)
1 : A2 (B2) is activated
0 : A2 (B2) is deactivated
117 (125) Outputs A (B) A1 Status
(B1 Status)
1 : A1 (B1) is activated
0 : A1 (B1) is deactivated
Parameters Setting
Xn, Invert relay polarity Yes / No
Allows to invert the logic of the exclusive function
30 (0 255)
Move up
Move down
1.002 DPT_
Bool
1.002 DPT_
Bool
1.002 DPT_
Bool
1.002 DPT_
Bool
CW
CW
CRT
CRT
Parameters Setting
Xn+(n+1) Usage Use separately(*)
Slat time (base 100ms)
Only available if“Xn+(n+1) Usage” is set to “Venitian blind”
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
Venitian blind
Roller shutter
Exclusive function
3 (0 255)
20/29

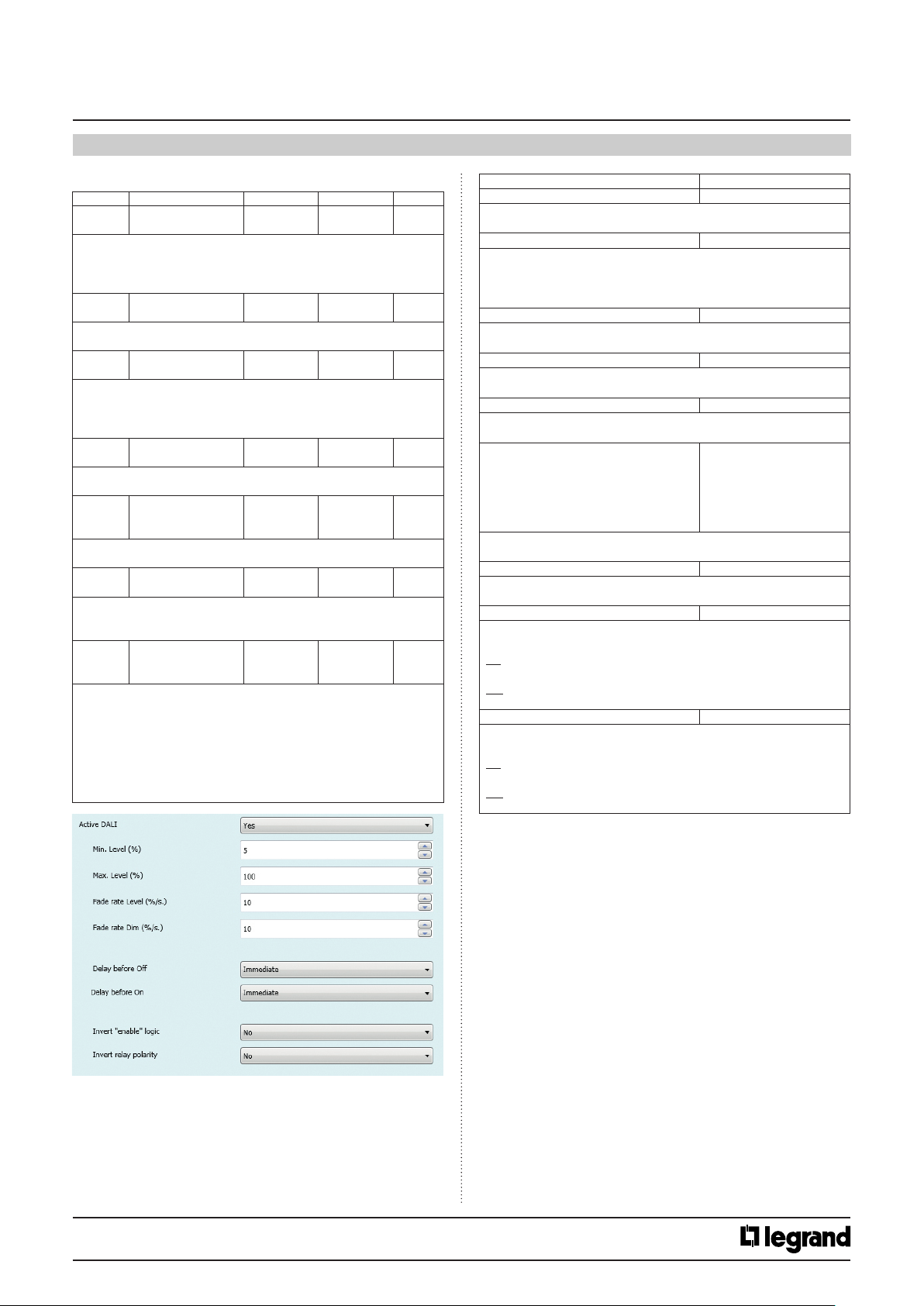

Page 21
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
8.2.4 DALI
No. Object name Function Size Flags
178 DALI Switching 1.001 DPT_
This object is used to receive the switching telegrams that are transferred to the DALI bus in broadcast mode.
Switching telegrams are sent via the group address linked with this
object.
179 DALI Switching
Status
The current switching state of the channel is saved in the status object.
It is automatically sent each time the object value changes.
180 DALI Level 5.001 DPT_
This object is used to receive the level value telegrams that are transferred to the DALI bus in broadcast mode.
Level value telegrams are sent via the group address linked with this
object.
181 DALI Level Status 5.001 DPT_
The current level state of the channel is saved in the status object. It is
automatically sent each time the object value changes.
184 DALI Dimming 3.007 DPT_
Dimming control telegrams are received via the group address linked
with this object.
182 DALI Enable 1.003 DPT_
Enable telegrams are received via the group address linked with this
object. They are used to lock (disable) or unlock (enable) the corresponding input.
183 DALI 2bits Over-
ride
Override telegrams are received via the group address linked with this
object.
Output Xn can be forcibly operated (e.g. by a higher-level control). The
value of the communication object directly denes the forced position
of the contact:
0 or 1 = The output is not forcibly operated. (0 switched o, 1 switched on)
2 = The output is forcibly switched o.
3 = The output is forcibly switched on.
Switch
1.001 DPT_
Switch
Scaling
Scaling
Control_Dimming
Enable
2.001
DPT_Switch_
Control
CW
CRT
CW
CRT
CW
CW
CW
Parameters Setting
Use DALI Yes / No
Yes: communication objects and parameters are visible.
No: communication objects and parameters are hidden.
Min. Level (%)
This parameter is used to set the minimum level that shall be used for
the dimmer.
Attention, this value can be overridden by the dali ballast physical
minimum level.
Max. Level (%)
This parameter is used to set the maximum level that shall be used for
the dimmer.
Fade rate level (%/s)
This parameter is use to set the fade rate that shall be used with the
Level and switching communication objects.
Fade rate Dim (%/s)
This parameter is use to set the fade rate that shall be used with the
dimming communication object.
Delay before O Immediate, 500 ms,
This parameter sets the wanted OFF delay time. A set OFF delay acts
only on the object “Output Xn, Switch”.
TimeBeforeOn No reaction / Stop
This parameter sets the wanted ON delay time. A set ON delay acts only
on the object “Output Xn, Switch”.
Xn, Invert Enable logic Ye s / No
The Enable logic of the output attached to the channel is adjusted
here.
“No”: the contact of the output is Disable when“DALI, Enable”object
value is 0.
“Yes”: the contact of the output is Disable when “DALI, Enable”object
value is 1.
Xn, Invert relay polarity Yes / No
The polarity type of the output attached to the channel is adjusted
here.
“No”: the contact of the output is closed when active, open when
inactive.
“Yes”: the contact of the output is open when active, close when
inactive.
8.3 MODE
Four modes are applicable. Each mode determines if an output should
be available or not.
An additional parameter allows to determine the action to do when the
desired mode is launched.
If an output is active, objects “Scene”, “Override”, “Enable/Disable”, “On/
O” are usable.
If an output is inactive, the output cannot be managed by any object
as long as the current mode is active. If the additional parameter
“Authorize a last Manual O” is set to “yes” it is possible to swich o the
output before the output locks.
The additional parameter“Authorize a last Manual O” is only available
if output is set as inactive in the current mode and the parameter
“Action on change” is set to “none” or“On” or“Enable+on”.
Mode management is not available for Block A and B when they are
congured as " Roller shutter", "Venitian blind", "Exclusive function".
0 100 (default 5%)
0 100 (default 100%)
0 100 (default 10%)
0 100(default 10%)
1 second, 2 seconds,
5 seconds,10 seconds,
30seconds
s., 2 min., 10 min., 15 min.,
30 min., 45 min., 1 h, 90 min.
, 1 minute, 90
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

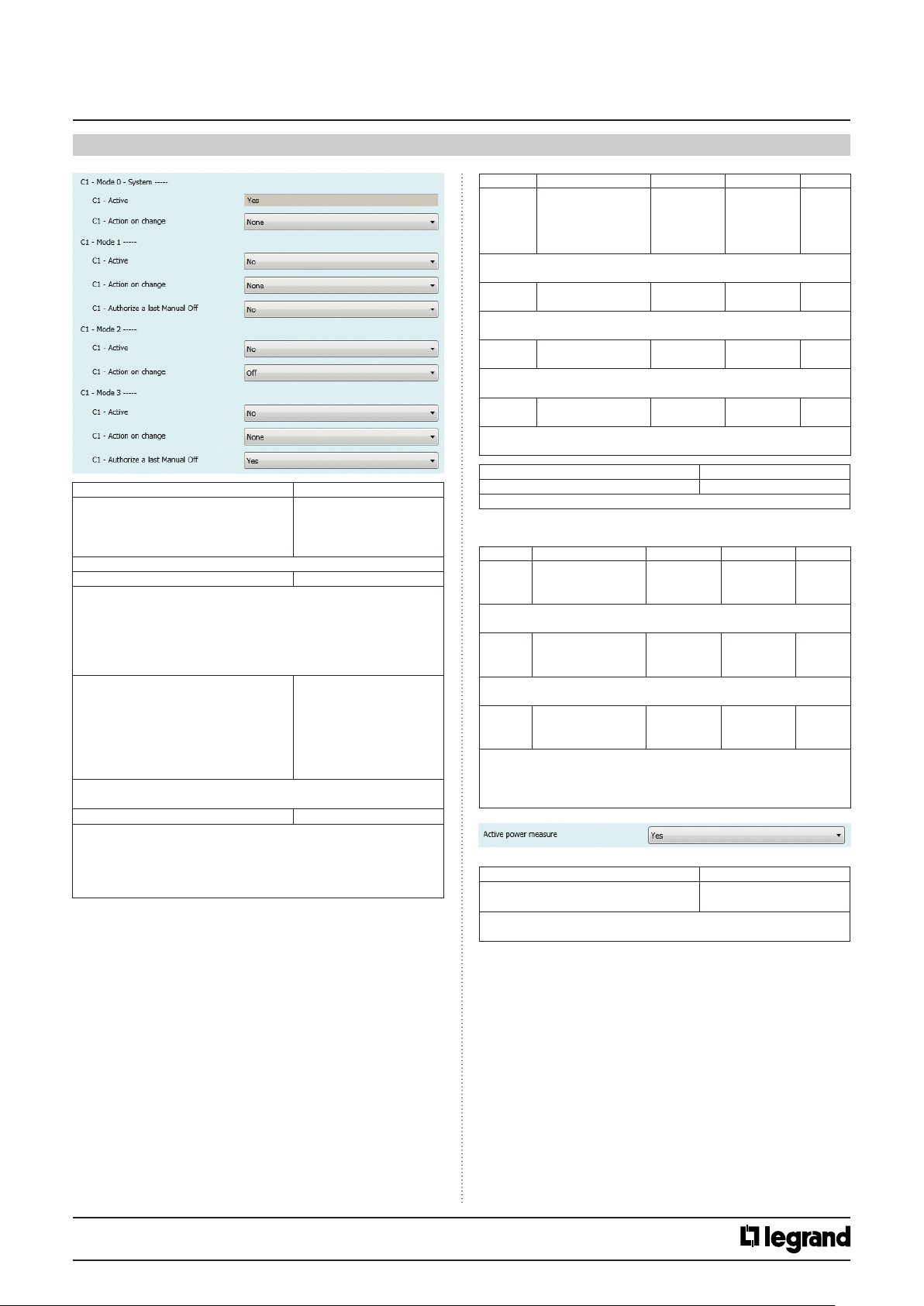

Page 22
KNX multiapplication controller 16 outputs KNX multiapp
No. Object name Function Size Flags
198 Mode_Sytem Mode_Sytem 1.010 DPT_
1 : Enables System mode, disables all other modes
0 : No reaction
199 Mode_1 Mode_1 1.010 DPT_
1 : Enables mode 1, disables all other modes
0 : No reaction
200 Mode_2 Mode_2 1.010 DPT_
1 : Enables mode 2, disables all other modes
0 : No reaction
201 Mode_3 Mode_3 1.010 DPT_
1 : Enables mode 3, disables all other modes
0 : No reaction
Parameters Setting
Parameters Setting
Mode Mode 1
Mode 2
Mode 3
Mode 0 (System)
This is a virtual parameter in order to congure each mode.
Xn, Active Yes / No
Here it is possible to do an adjustment to make the output available or
not within the 4 dierent modes.
This is a very high priority,“Override” actions and “Enable” actions will
have no eect on the output if“Xn Active”is set to “No”.
With“Mode 0 (System)”, this parameter has a ReadOnly permission and
locked to“Yes”.
Xn, Action on change None
On
O
Enable + On
Enable + O
On + Disable
O + Disable
Here it is possible to make an adjustment to set an automatic order
command when mode under conguration is active.
Xn, Authorize a last manual o Yes / No
Here it is possible to make an adjustment to allow a last OFF order
command on Xn when“Xn, Active” parameter is set to “No”(before
output becomes unavailable).
This parameter is visible only if“Xn, Active”is set to “No”and “Xn Action
on change”is set to “None”,“On”or“Enable+On”.
Xn, Invert relay polarity Yes / No
Allows to invert the move DND/MUR command.
8.4 Power Measure Management
No. Object name Function Size Flags
185
(186, 187,
The value saved into this communication object represents the measured active energy.
(190, 191,
Start: resets the active energy counter
Stop: No reaction
(194, 195,
The value of this communication object represents the measured
electrical power.
If the object communication “write” ag is set, the current value is
automatically sent each time the object value changes.
Parameters Setting
Active power measure Yes
This parameter is used to hide or display the communication objects
relating to power measure management.
Outputs C (D, E, F) Energy 13.010
188)
189
Outputs C (D, E, F) Energy Reset 1.010 DPT_
192)
193
Outputs C (D, E, F) Power
196)
Catalogue number(s): 0 484 22
CRW
CRW
CRW
CRW
CR
CW
CR
mesure
Start
Start
Start
Start
DPT_
ActiveEnergy
Start
14.56 DPT_
Value_Power
No
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
22/29

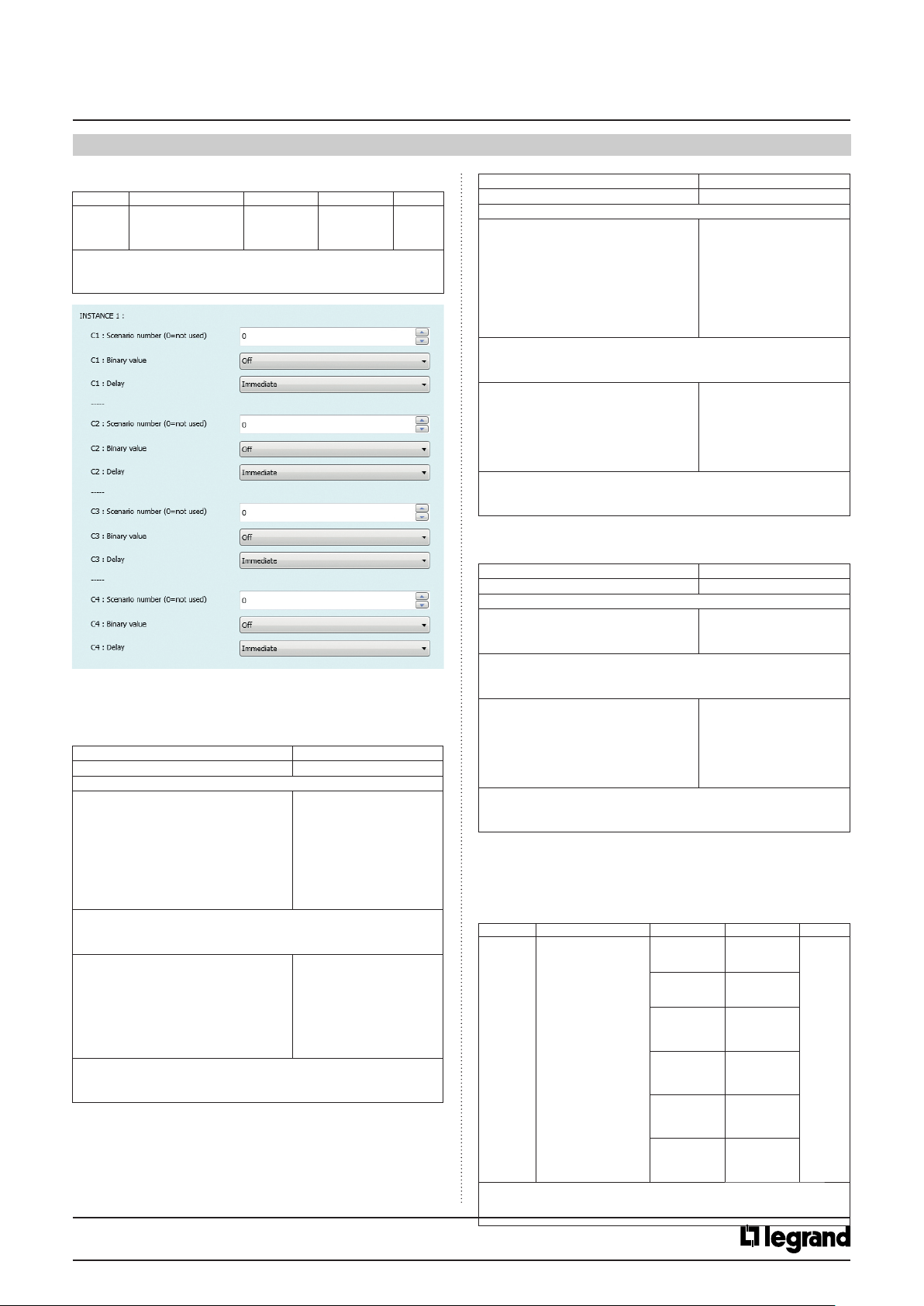

Page 23
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
8.5 Scenes
No. Object name Function Size Flags
1 Input Scene Recall scene 17.001
Scenes telegrams are received via the group address linked with this
object.
The scene value aects all ouputs using this scene number.
Each output channel can be assigned to 5 dierent instances.
Each output channel can be assigned to 5 dierents scenario instances.
For Outputs A1, A2, B1, B2, those parameters are only available when
outputs are congured as switch "use separatly".
Parameters Setting
Xn, Scenario Number
0:Noscenario
Xn, Scenario Order O
Here it is possible to make an adjustment to dene the order action
that should be executed on the output when the corresponding scene
number is received.
Xn, Delay Immediate, 500 ms,
Here it is possible to make an adjustment todene a delay before
executing the order action on the output when the corresponding scene
number is received.
For Outputs A and B, those parameters are only available when they are
congured as "Roller shutter" or "Venitian blinds".
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014
DPT_SceneNumber
0 64
On
O + Disable
On + Disable
Enable + O
Enable + On
Enable
Disable
1second, 2 seconds,
5 seconds,10 seconds,
30seconds
90 sec., 2 min., 10 min.,
15 min., 30 min., 45 min.,
1h, 90 min.
CW
, 1 minute,
Parameters Setting
Xn+(n+1), Scenario Number
0:Noscenario
Xn+(n+1), Scenario Order Up
Here it is possible to make an adjustment to dene the order action
that should be executed on the output when the corresponding scene
number is received.
Xn+(n+1), Delay Immediate, 500 ms,
Here it is possible to make
executing exclusive function the order action on the output when the
corresponding scene number is received.
For Outputs A and B, those parameters are only available when they are
congured as "Exclusive function".
Parameters Setting
Xn+(n+1), Scenario Number
0:Noscenario
Xn+(n+1), Scenario Order Do Not disturb
Here it is possible to make
that should be executed on the output when the corresponding scene
number is received.
Xn+(n+1), Delay Immediate, 500 ms,
Here it is possible to make an adjustment to dene a delay before
executing the order action on the output when the corresponding
scene number is received.
8.6 Program Functions
3 program functions are available.
Each program function allows to generate up to 5 dierent commands
(fully congurable) triggered by one input condition (fully congurable).
No. Object name Function Size Flags
214
(220, 226)
This object is used to trigger the program function.
Depending on the “Input Size”parameter, this communication can have
dierent datapoint types.
Program Fn Program Fn
an adjustment to dene a delay before
an adjustment to dene the order action
Input 1bit
Program Fn
Input 2bits
Program Fn
Input 4bits
Program Fn
Input 1bytes
Program Fn
Input 2bytes
Program Fn
Input 4bytes
0 64
Down
Up + Disable
On + Disable
Enable + Up
Enable + Down
Enable
Disable
1 second, 2 seconds,
5 seconds, 10 seconds,
30seconds, 1 minute, 90
s., 2 min., 10 min., 15 min.,
30 min., 45 min., 1 h, 90 min.
0 64
Make Up Room
Stop
1 second, 2 seconds,
5 seconds, 10 seconds,
30seconds, 1 minute, 90 s.,
2 min., 10 min., 15 min.,
30 min., 45 min., 1 h, 90 min.
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
CRW
Page 24
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
No. Object name Function Size Flags
215
(221, 227)
The Program function Output 1 value is sent via the address linked with
this object when the program is triggered.
(222, 228)
The Program function Output 2 value is sent via the address linked with
this object when the program is triggered.
(223, 229)
The Program function Output 3 value is sent via the address linked with
this object when the program is triggered.
Program Fn Program Fn
216
Program Fn Program Fn
217
Program Fn Program Fn
Output 1 1bit
Program Fn
Output 1
2bits
Program Fn
Output 1
4bits
Program Fn
Output 1
1bytes
Program Fn
Output 1
2bytes
Program Fn
Output 1
4bytes
Output 21bit
Program Fn
Output 2
2bits
Program Fn
Output 2
4bits
Program Fn
Output 2
1bytes
Program Fn
Output 2
2bytes
Program Fn
Output 2
4bytes
Output 3 1bit
Program Fn
Output 3
2bits
Program Fn
Output 3
4bits
Program Fn
Output 3
1bytes
Program Fn
Output 3
2bytes
Program Fn
Output 3
4bytes
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
CT
CT
CT
No. Object name Function Size Flags
218
(224, 230)
The Program function Output 4 value is sent via the address linked with
this object when the program is triggered.
(225, 231)
The Program function Output 5 value is sent via the address linked with
this object when the program is triggered.
Parameters Setting
Active Program X Yes / No
This is a parameter that indicates if Program X should be used or not. If
not, no communication object paramet
Program X name string
This is a parameter to name the program.There is no inuence on the
program behavior.
Name Px_input string
This is a parameter to name the input function.
Input Size 1bit
Here it is possible to make an adjustment to set the datapoint size of
the “Program Fn Input XXX”communication object.
Program Fn Program Fn
219
Program Fn Program Fn
2 bits
4 bits
1Byte
2 Bytes
4 Bytes
Output 4 1bit
Program Fn
Output 4
2bits
Program Fn
Output 4
4bits
Program Fn
Output 4
1bytes
Program Fn
Output 4
2bytes
Program Fn
Output 4
4bytes
Output 5 1bit
Program Fn
Output 5
2bits
Program Fn
Output 5
4bits
Program Fn
Output 5
1bytes
Program Fn
Output 5
2bytes
Program Fn
Output 5
4bytes
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
ers will be visible.
CT
CT
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
24/29

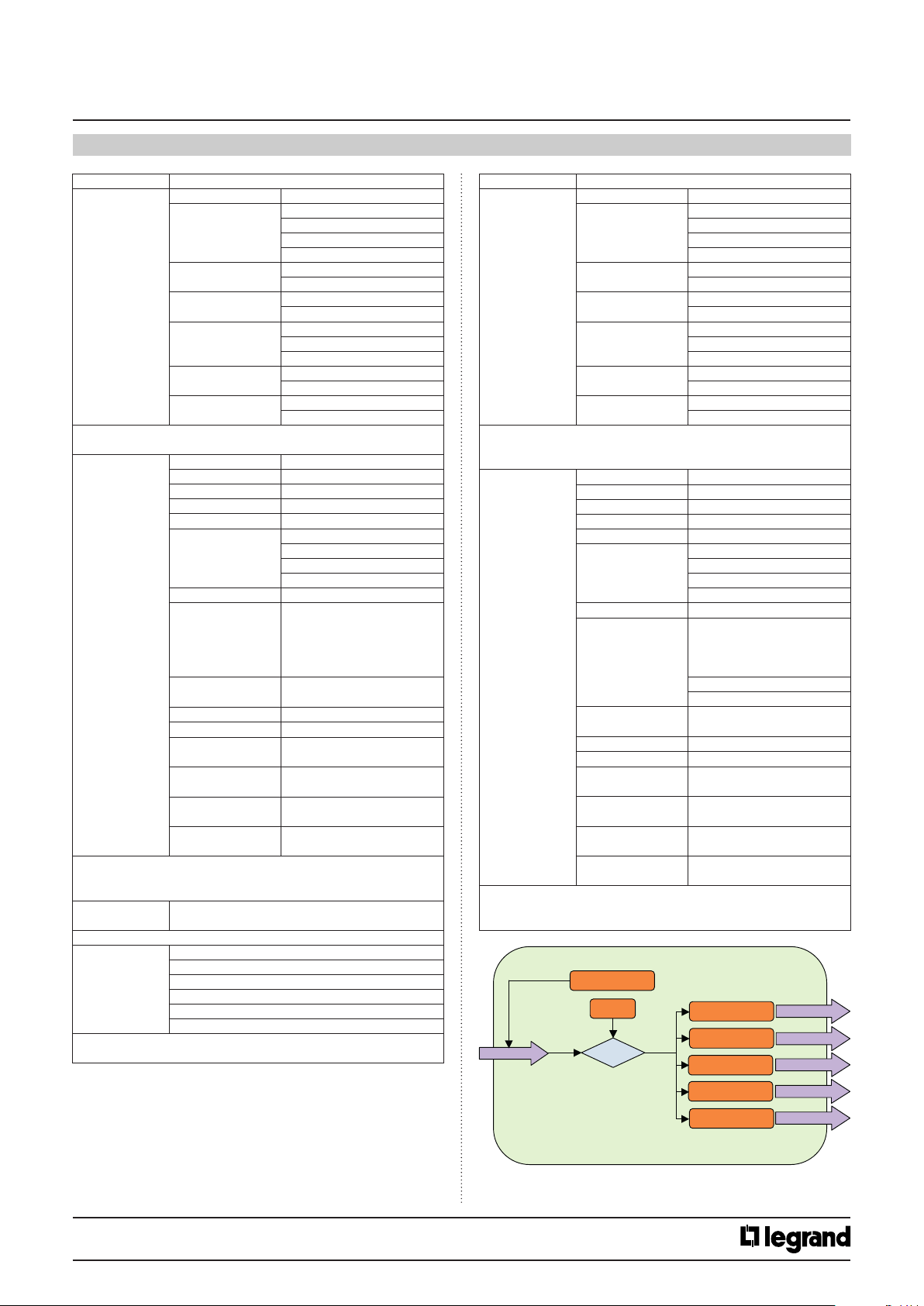

Page 25
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Parameters Setting
Value Type "Input Size" value Possible setting values
1 bit Value
On/O
Enable/Disable
Up/Down
2 bits Value
Control Value
4 bits Value
Dimming
1 Byte Non-scaled value
Scaled value
Scene
2 Bytes Unsigned value
Floating value
4 Bytes Unsigned value
Floating value
Here it is possible to make an adjustment to set the datapoint type of
the comparison value.
Value 1 bit | Value 0, 1
1 bit On/O On, O
1 bit Enable/Disable Enable / Disable
1 bit Up/Down Up / Down
2 bits Value 0, 1, 2, 3
2 bits Control Value Priority High / On
Priority High / O
Priority Low / On
Priority Low / O
4 bits Value
0 15
4 bits Dimming Up 100%, Up 50%, Up 25%,
Up12%, Up 6%, Up 3%,
Up1%, Stop, Stop, Down 1%,
Down 3%, Down 6%, Down
12%, Down 25%, Down 50%
1 Byte Non-scaled
0 255
value
1 Byte Scaled value
1 Byte Scene
2 Bytes Unsigned
0 100%
1 64
0 65535
value
2 Bytes Floating
0 65535
value
4 Bytes Unsigned
0 4294967295
value
4 Bytes Floating
0 4294967295
value
Here it is possible to make an adjustment to set the value that should
be compared to Program Fn Input XXX value. If equal, then the
program sequence starts.
Name Px_ Out-
string
put 1 (2 5)
This is a parameter to name the output X function.
Output 1
(2 5) Size
1 bit
2 bits
4 bits
1Byte
2 Bytes
4 Bytes
Here it is possible to make an adjustment to set the datapoint size of
the “Program Fn OutputY XXX” communication object.
Parameters Setting
Output 1 (2 5)
Value Type
"Input Size" value Possible setting values
1 bit Value
On/O
Enable/Disable
Up/Down
2 bits Value
Control Value
4 bits Value
Dimming
1 Byte Non-scaled value
Scaled value
Scene
2 Bytes Unsigned value
Floating value
4 Bytes Unsigned value
Floating value
Here it is possible to make an adjustment to set the datapoint type of
the value that should be sent on the bus via the Program Fn OutputY
XXX communication object.
Output 1 (2 5)
Value
1 bit | Value 0, 1
1 bit On/O On, O
1 bit Enable/Disable Enable / Disable
1 bit Up/Down Up / Down
2 bits Value 0, 1, 2, 3
2 bits Control Value Priority High / On
Priority High / O
Priority Low / On
Priority Low / O
4 bits Value
0 15
4 bits Dimming Up 100%, Up 50%, Up 25%,
Up 12%, Up 6%, Up 3%,
Up1%, Stop, Stop, Down 1%,
Down 3%
Down 6%, Down 12%
Down 25%, Down 50%
1 Byte Non-scaled
0 255
value
1 Byte Scaled value
1 Byte Scene
2 Bytes Unsigned
0 100%
1 64
0 65535
value
2 Bytes Floating
0 65535
value
4 Bytes Unsigned
0 4294967295
value
4 Bytes Floating
0 4294967295
value
Here it is possible to make an adjustment to set the value that should
be sent on the bus via the Program Fn OutputY XXX communication
object.
Input object description
Input value
Value
Equal ?
Yes
Output 1 object description
Output 2 object description
Output 3 object description
Output 4 object description
Output 5 object description
Output 1 value
Output2value
Output 3 value
Output4value
Output 5 value
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

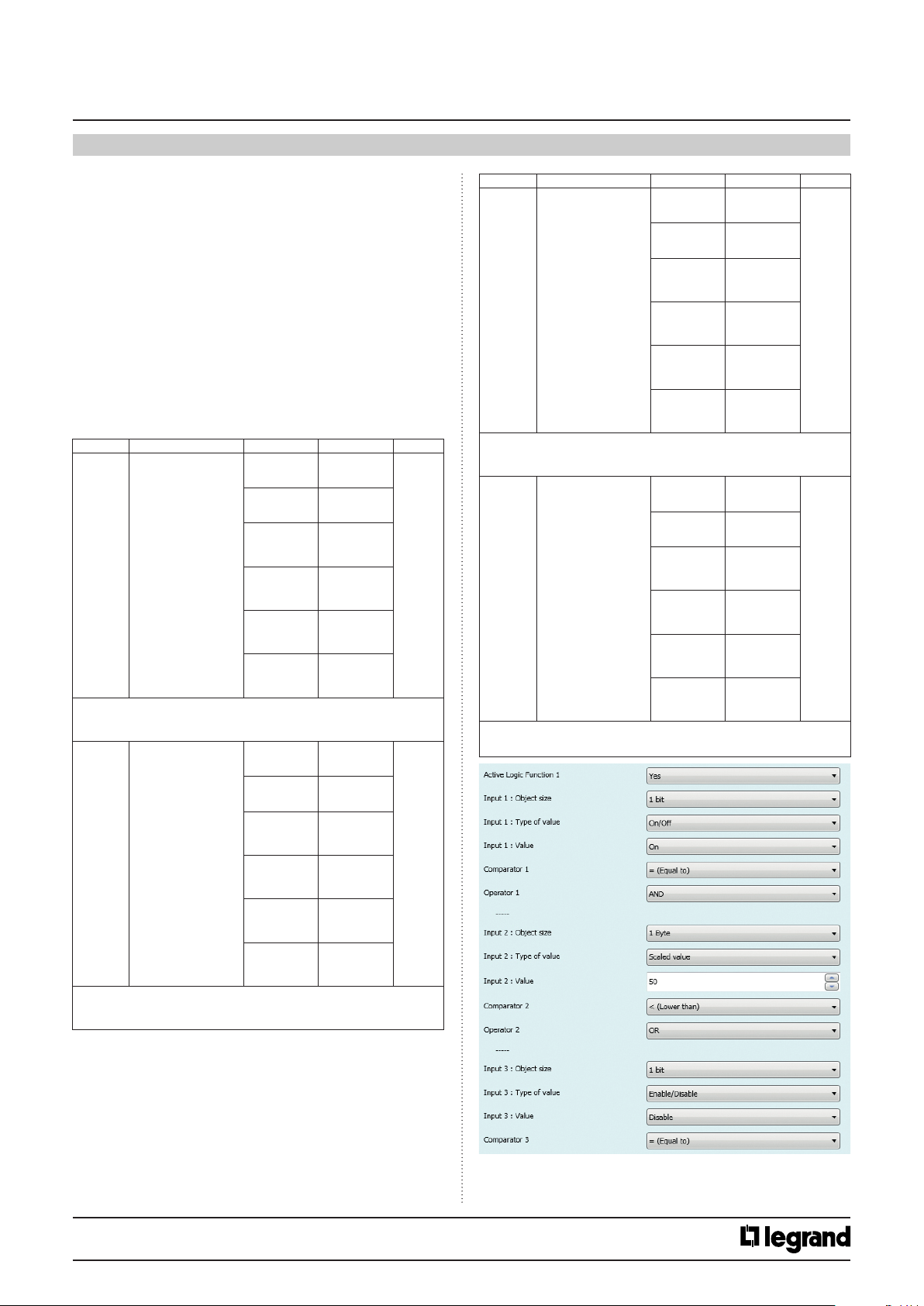

Page 26
KNX multiapplication controller 16 outputs KNX multiapp
Catalogue number(s): 0 484 22
8.7 Logical functions
3 logical functions are available.
A logical function consists in generating an output command resulting
from a logic operation comprising up to 3 input conditions.
Each input (fully congurable) is compared with a preset value
depending of the communication objects size selected. The element
of comparison between the preset value and the value received into
the input communication object is also congurable (equal, dierent,
higher, lower, etc.).
The logical result of each comparison (true or false) is then operated by
up to 2 operators (depending on whether dierent inputs are used or
not) in order to generate a logic operation result.This result is used to
trigger the output telegram (fully congurable).
The output telegram value can be the logic operation result or a preset
value (the preset value size depends on the chosen output communication object size). Also, there is a condition (congurable) that triggers
the output telegram sending (see parameter“Output SendCondition”).
No. Object name Function Size Flags
202
(206, 210)
This object is used, as an event, to trigger the logical function.
Depending on the “Input 1: Object size” parameter, this communication
can have dierent datapoint type.
(207, 211)
This object is used, as event, to trigger the logical function.
Depending of “Input 1: Object size” parameter, this communication can
have dierent datapoint type.
Logic Fn Logic Fn
203
Logic Fn Logic Fn
Input 1 1bit
Logic Fn
Input 1 2bits
Logic Fn
Input 1 4bits
Logic Fn
Input 1
1bytes
Logic Fn
Input 1
2bytes
Logic Fn
Input 1
4bytes
Input 2 1bit
Logic Fn
Input 3 2bits
Logic Fn
Input 3 4bits
Logic Fn
Input 3
1bytes
Logic Fn
Input 3
2bytes
Logic Fn
Input 3
4bytes
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
CRW
CRW
No. Object name Function Size Flags
204
(208, 212)
This object is used, as an event, to trigger the logical function.
Depending on the “Input 1: Object size” parameter, this communication
can have dierent datapoint type.
(209, 213)
The Logic Fn Output xx object value is sent via the address linked with
this object depending on the logical function conguration.
Logic Fn Logic Fn
205
Logic Fn Logic Fn
Input 3 1bit
Logic Fn
Input 3 2bits
Logic Fn
Input 3 4bits
Logic Fn
Input 3
1bytes
Logic Fn
Input 3
2bytes
Logic Fn
Input 3
4bytes
Output 1bit
Logic Fn Out-
put 2bits
Logic Fn Out-
put 4bits
Logic Fn Output 1bytes
Logic Fn Output 2bytes
Logic Fn Output 4bytes
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
1.002 DPT_
Bool
2.002 DPT_
Bool_Control
3.007 DPT_
Control_Dimming
5.010 DPT_
Value_1_
Ucount
7.001 DPT_
Value_2_
Ucount
12.001 DPT_
Value_4_
Ucount
CRW
CT
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
26/29

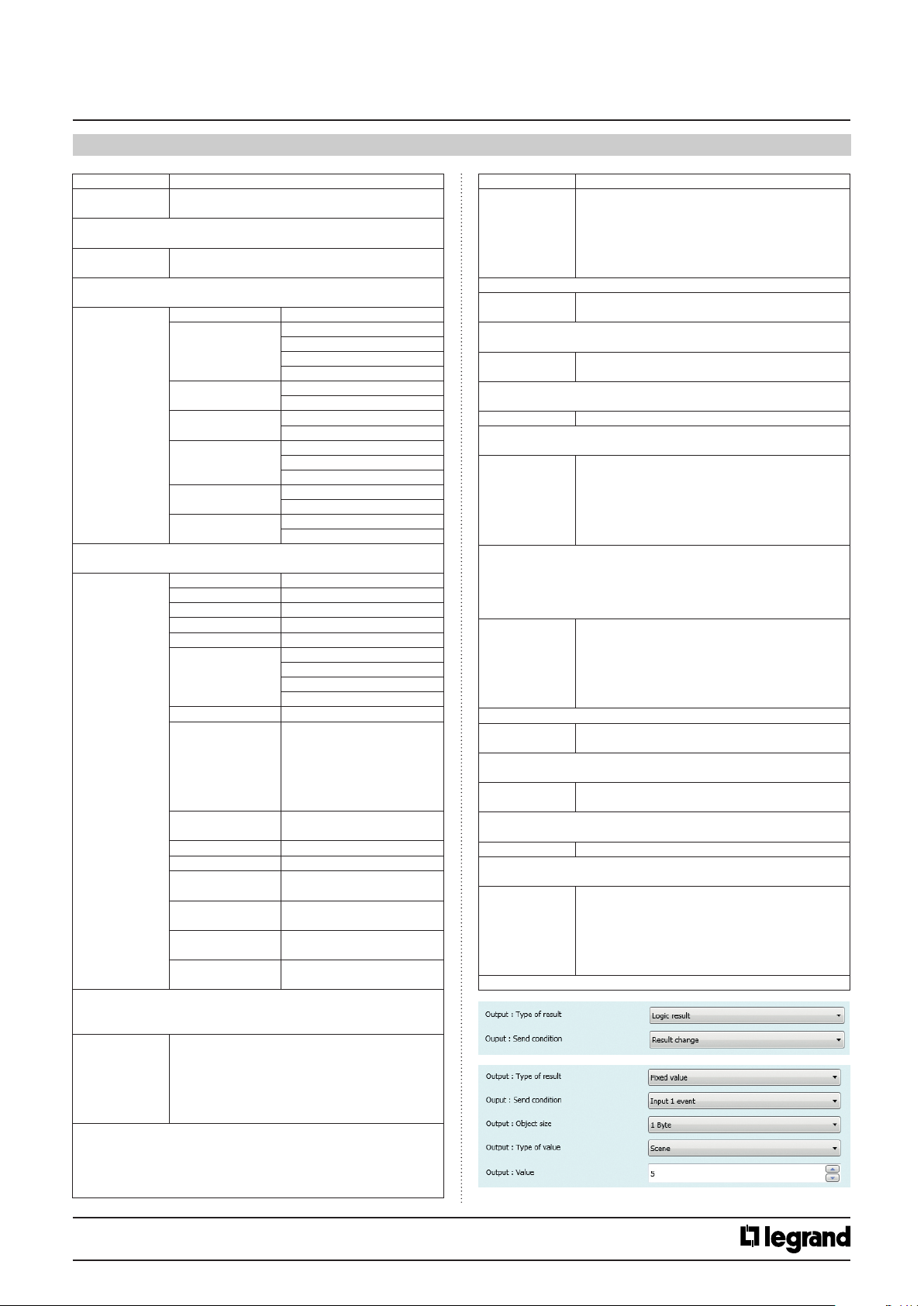

Page 27
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Parameters Setting
Active Logic
function X
This is a parameter that indicates if Logic function X should be used or
not. If not, no communication object parameters will be visible.
Input 1 : Object
size
Here it is posible to make an adjustment to set the datapoint size of the
“Logic Fn Input XXX”communication object.
Input 1 : Type of
value
Here it is posible to make an adjustment to set the datapoint type of
the comparison value.
Input 1 : value 1 bit | Value 0, 1
Here it is posible to make an adjustment to set the value that should be
compared to Logic Fn Input 1 XXX value (received from the bus).
*: Only the positive integer part is used.
Comparator 1 =(equalto)
This is an adjustment to choose which comparator should be used to
compare Value 1 parameter and the value received from the bus (Logic
Fn Input 1 XXX).
Attention : Due to errors of precision, it’s strongly recommended not to
use the “=”and “!=”comparator with oating value or scaled value.
Yes / No
1 bit/2 bits/4 bits/1 Byte/2 Bytes/4 Bytes
"Input Size" value Possible setting values
1 bit Value
2 bits Value
4 bits Value
1 Byte Non-scaled value
2 Bytes Unsigned value
4 Bytes Unsigned value
1 bit On/O On, O
1 bit Enable/Disable Enable / Disable
1 bit Up/Down Up / Down
2 bits Value 0, 1, 2, 3
2 bits Control Value Priority High / On
4 bits Value
4 bits Dimming Up 100%, Up 50%, Up 25%,
1 Byte Non-scaled
value
1 Byte Scaled value
1 Byte Scene
2 Bytes Unsigned
value
2 Bytes Floating
value*
4 Bytes Unsigned
value
4 Bytes Unsigned
value
!= (not equal to)
< (lower than)
<= (lower than or equal to)
> (higher than)
>= (higher than or equal to)
On/O
Enable/Disable
Up/Down
Control Value
Dimming
Scaled value
Scene
Floating value
Floating value
Priority High / O
Priority Low / On
Priority Low / O
0 15
Up 12%, Up 6%, Up 3%,
Up1%, Stop, Stop, Down
1%, Down3%, Down 6%,
Down 12%, Down 25%,
Down 50%
0 255
0 100%
1 64
0 65535
0 65535
0 4294967295
0 4294967295
Parameters Setting
Operator 1 None
Operator 1
Input 2 : Object
size
Here it is posible to make an adjustment to set the datapoint size of the
“Logic Fn Input XXX”communication object.
Input 2 : Type of
value
Here it is posible to make an adjustment to set the datapoint type of
the compared value.
Input 2 : value See "Input 1 : value" parameter description
Here it is posible to make an adjustment to set the value that should be
compared to Logic Fn Input 2 XXX value (received from the bus).
Comparator 2 = (equal to)
Here it is posible to make an adjustment to choose which comparator
should be used to compare Value 2 parameter and the value received
from the bus (Logic Fn Input 2 XXX).
Attention : Due to errors of precision, it’s strongly recommended not to
use the “=”and “!=”comparator with oating value or scaled value.
Operator 2 None
Operator 2
Input 3 : Object
size
Here it is posible to make an adjustment to set the datapoint size of the
“Logic Fn Input XXX”communication object.
Input 3 : Type of
value
Here it is posible to make an adjustment to set the datapoint type of
the compared value.
Input 3 : value See " Input 1 : value" parameter description
Here it is posible to make an adjusment to set the value that should be
compared to Logic Fn Input 3 XXX value (received from the bus).
Comparator 3 =(equalto)
Comparator 3
AND
OR
XOR
NAND
NOR
See "Input 1 : Object size" parameter description
See "Input 1 : Type of value" parameter description
!= (not equal to)
< (lower than)
<= (lower than or equal to)
> (higher than)
>= (higher than or equal to)
AND
OR
XOR
NAND
NOR
See "Input 1 : Object size" parameter description
See "Input 1 : Type of value" parameter description
!= (not equal to)
< (lower than)
<= (lower than or equal to)
> (higher than)
>= (higher than or equal to)
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014

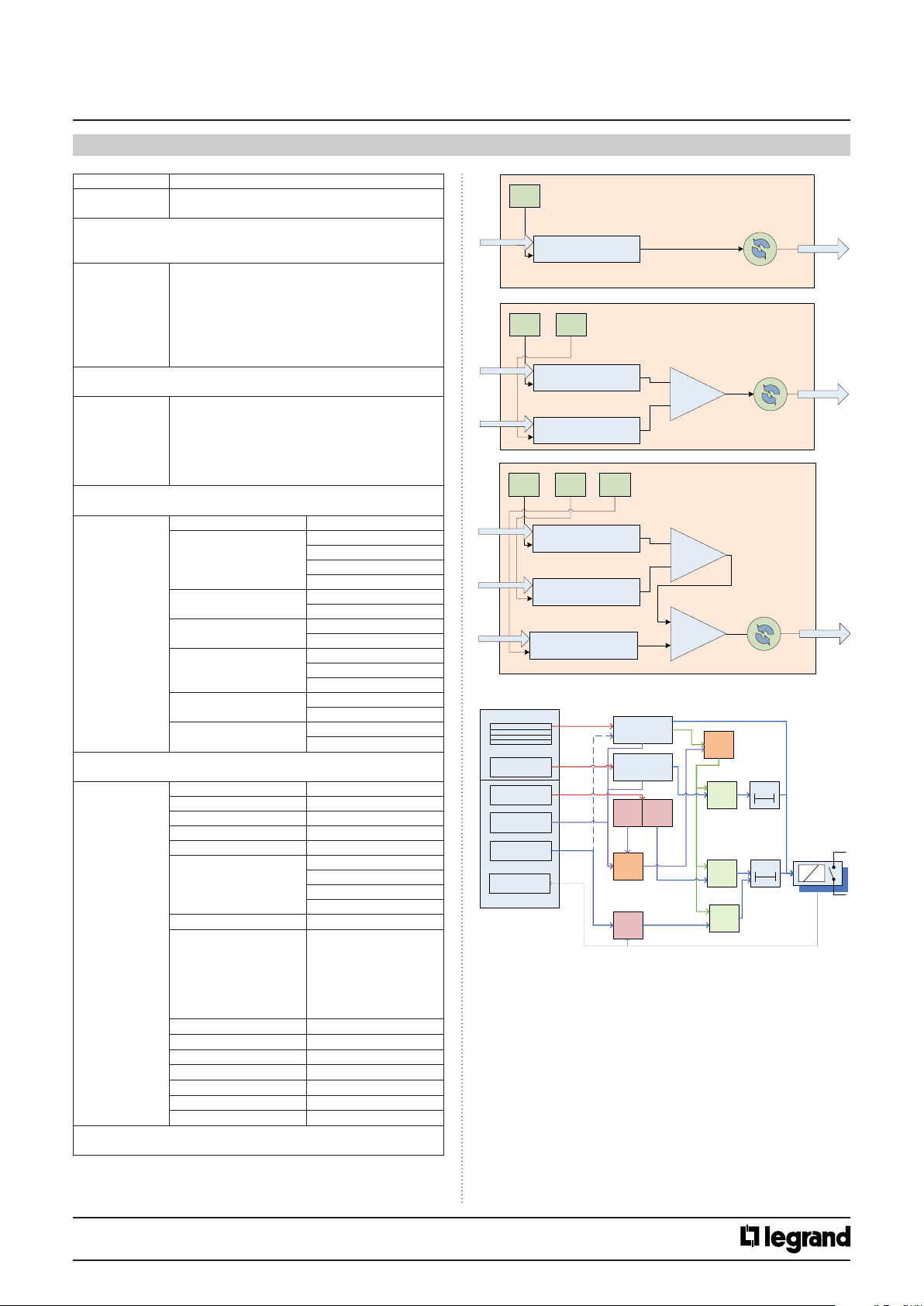

Page 28
KNX multiapplication controller 16 outputs KNX multiapp
Of
Of
Off
Catalogue number(s): 0 484 22
Parameters Setting
Output Result Logic Result
Fixed value
This is a parameter that determines which kind of value should be sent
into Logic Fn Output object. It can be the logic operation result or a
preset value (xed value).
Output SendCondition
Result change
Result is true
Result is false
Input 1 event
Input 2 event
Input 3 event
Input 1 or 2 or 3 event
Here it is posible to make a parameter that determines the trigger
condition of the Logic Fn Output object telegram sending.
Input 1 Size 1bit
2 bits
4 bits
1Byte
2 Bytes
4 Bytes
Here it is posible to make an adjustment to set the datapoint size of the
“Logic Fn Output”communication object.
Value 1 Type "Input Size" value Possible setting values
1bit Value
On/O
Enable/Disable
Up/Down
2 bits Value
Control Value
4 bits Value
Dimming
1 Byte Non-scaled value
Scaled value
Scene
2 Bytes Unsigned value
Floating value
4 Bytes Unsigned value
Floating value
Here it is posible to make an adjustment to set the datapoint type of
the comparison element.
Value 1 1 bit | Value 0, 1
1 bit On/O On, O
1 bit Enable/Disable Enable / Disable
1 bit Up/Down Up / Down
2 bits Value 0, 1, 2, 3
2 bits Control Value Priority High / On
Priority High / O
Priority Low / On
Priority Low / O
4 bits Value
0 15
4 bits Dimming Up 100%, Up 50%,
Up25%, Up 12%, Up6%,
Up 3%, Up 1%, Stop, Stop,
Down 1%, Down3%,
Down 6%, Down 12%,
Down 25%, Down 50%
1 Byte Non-scaled value
1 Byte Scaled value
1 Byte Scene
2 Bytes Unsigned value
2 Bytes Floating value
4 Bytes Unsigned value
4 Bytes Floating value
0 255
0 100%
1 64
0 65535
0 65535
0 4294967295
0 4294967295
This is an adjustment to set the value that should be compared to
Logic Fn Input XXX value.
Value 1
1
lue
va
ut
p
In
Input value 1
Input value 2
Input value 1
Input value 2
Input value 3
Comparator 1
Value 2
Value 1
Comparator 1
Comparator 2
Value 1 Value 2
Comparator 1
Comparator 2
Comparator 3
Operator 1
Value 3
Operator 1
Operator 2 Output
Output
Output
Synoptic: output behaviours
Mode
Scene
Override 2bits
Enable / Disable
On / Off
On / Off status
(1)
Mode manager
Mode Manager
Scene manager
Bit 1 Bit0
Enable
Cmd
value
(1)
(2)
Mode
Priority
Scenes
Override
(1)
&
t
&
t
&
Cmd
Four modes are applicable. Each mode determines if the output should
be available or not (very high priority) I
f the output is inactive, the
output cannot be managed by any object as long as the current mode is
active, otherwise, objects “Scene”, “Override”, “Enable/Disable”, “On/O”
are usable.
It’s possible to determine the action to do when the desired mode is
launched.
(2)
Scene manager
Each output can be assigned to 5 instances of scenes. An instance scene
is dened by a scene number and a value preset. If the scene number is
set to the value“0”, the scene instance is not used.
Scenes action can be executed after a time delay.This time delay is
independent and overrides the outputs’delay parameters“time before
o” and“time before on”.
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014 Technical data sheet
28/29

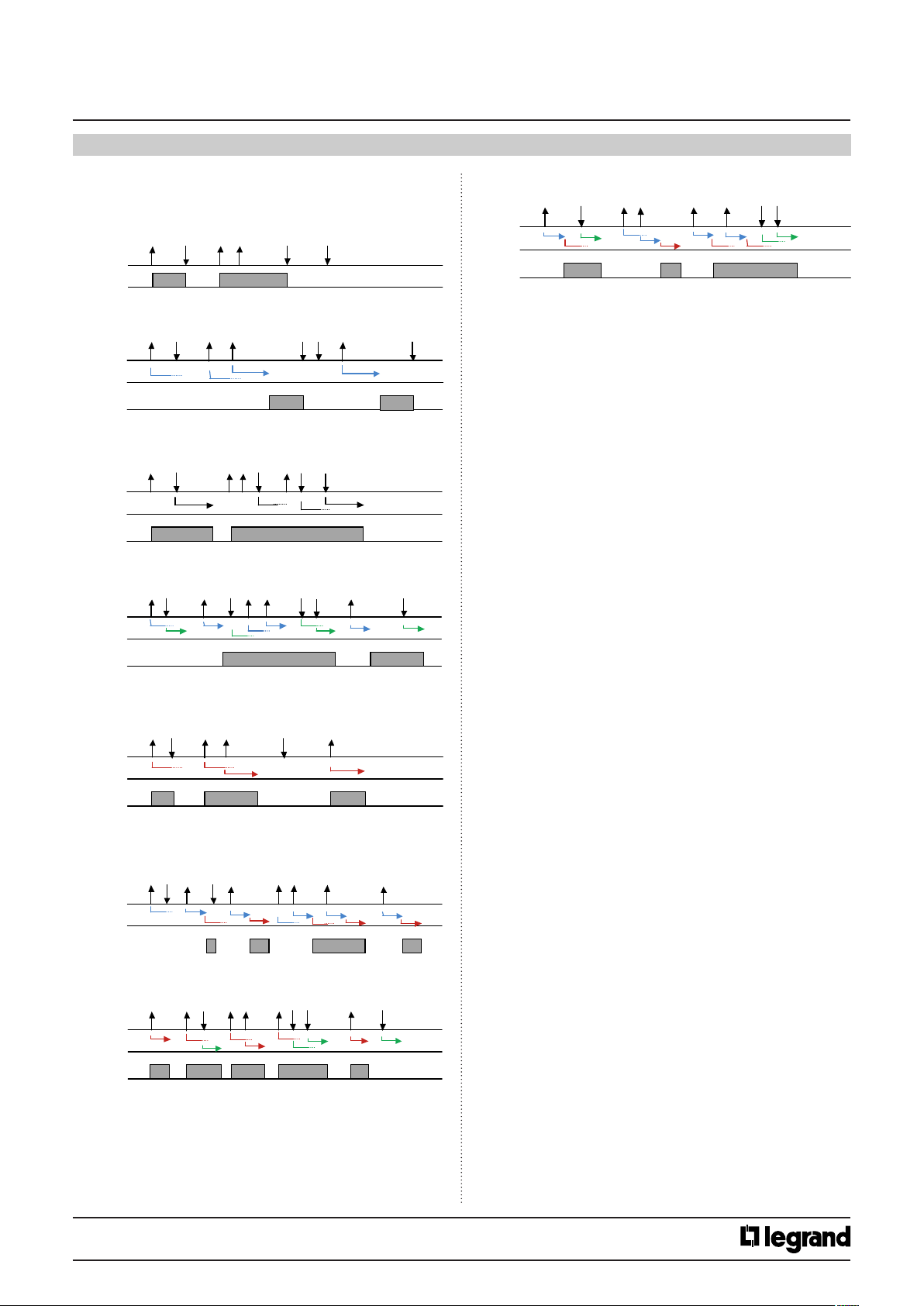

Page 29
KNX multiapplication controller 16 outputs
8. COMMUNICATION OBJECTS CONTINUED
Output delay parameters
a) Without any delay
Switching
telegrams
Relay contact
On On OnOff Off Off
b) Delay before ON
Switching
telegrams
Time delay
Relay contact
On Off On On Off On Off
c) Delay before OFF
Switching
telegrams
Time delay
Relay contact
On Off On OnOffOn
d) Delay before OFF + delay before ON
Switching
telegrams
Time delay
Relay contact
On Off On OnOff On Off
h) Delay before ON + Delay before OFF + Auto Switch OFF
Switching
telegrams
Time delay
Relay contact
On Off
On
Off
Off
Off
On Off
Off
On
OnOn Off Off
e) Auto Switch OFF
Switching
telegrams
Time delay
Relay contact
On Off On On Off
f) Delay before ON + Auto Switch OFF
Switching
telegrams
Time delay
Relay contact
On Off
Off
On On
g) Delay before OFF + Auto Switch OFF
Switching
telegrams
Time delay
Relay contact
On OffOn On On
On On On
On
On
On
On OffOffOff
Technical data sheet: S000074637EN-5 Updated: 12/03/2015 Created: 15/04/2014
Loading...
