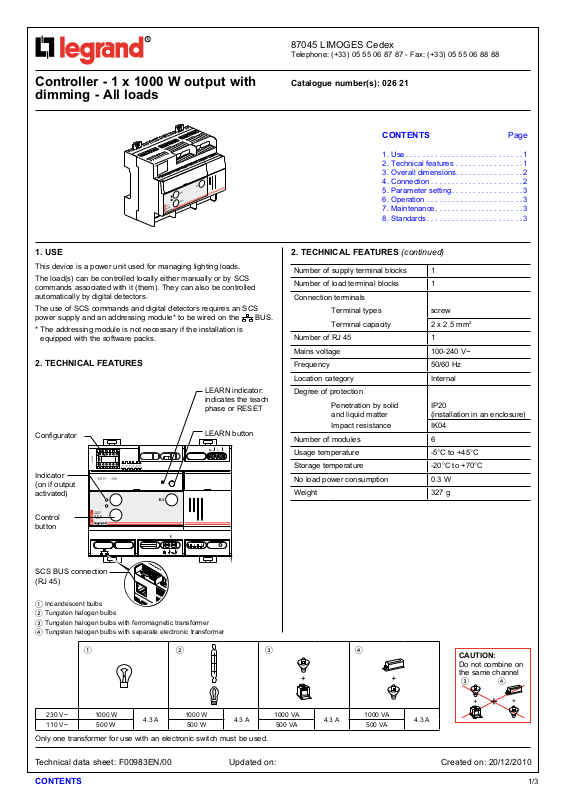

LEGRAND 026 21 Quick Start Manual

Page 1
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Controller - 1 x 1000 W output with dimming - All loads
1. USE
This device is a power unit used for managing lighting loads.
The load(s) can be controlled locally either manually or by SCS commands associated with it (them). They can also be controlled automatically by digital detectors.
The use of SCS commands and digital detectors requires an SCS power supply and an addressing module* to be wired on the
* The addressing module is not necessary if the installation is
equipped with the software packs.
2. TECHNICAL FEATURES
LEARN indicator: indicates the teach phase or RESET
Configurator
Indicator (on if output activated)
LEARN button
BUS.
Catalogue number(s): 026 21
CONTENTS Page
1. Use............................1
2. Technical features ................1
3. Overall dimensions................2
4. Connection ......................2
5. Parameter setting .................3
6. Operation .......................3
7. Maintenance.....................3
8. Standards .......................3
2. TECHNICAL FEATURES (continued)
Number of supply terminal blocks 1
Number of load terminal blocks 1
Connection terminals
Terminal types screw
Terminal capacity 2 x 2.5 mm
Number of RJ 45 1
Mains voltage 100-240 V~
Frequency 50/60 Hz
Location category Internal
Degree of protection
Penetration by solid and liquid matter
Impact resistance IK04
Number of modules 6
Usage temperature -5°C to +45°C
Storage temperature -20°C to +70°C
No load power consumption 0.3 W
Weight 327 g
IP20 (installation in an enclosure)
2
Control button
SCS BUS connection (RJ 45)
Incandescent bulbs
1 2 Tungsten halogen bulbs 3 Tungsten halogen bulbs with ferromagnetic transformer 4 Tungsten halogen bulbs with separate electronic transformer
1 2 3 4
230 V~ 1000 W
110 V~ 500 W 500 W 500 VA 500 VA
Only one transformer for use with an electronic switch must be used.
4.3 A
Technical data sheet: F00983EN/00
1000 W
4.3 A
1000 VA
4.3 A
Updated on: Created on: 20/12/2010
1000 VA
4.3 A
CAUTION: Do not combine on the same channel
3
4
+
1/3
Page 2
Controller - 1 x 1000 W output with dimming - All loads
Catalogue number(s): 026 21
2. TECHNICAL FEATURES (continued)
BUS wiring:
RJ 45 cord or cable or BUS/SCS cable to be fitted with RJ 45 connector ( power supply and the furthest product).
Peripherals compatible with the offer:
- Digital detectors: infrared, ultrasound or dual technology
- Pushbutton lighting controls
- Switch multifunction controls
- Scenario management
500 m max. cord or BUS/SCS cable between the
3. OVERALL DIMENSIONS
108
66
50
83
45
4. CONNECTION
All the wiring must be carried out with the mains power off.
Technical data sheet: F00983EN/00 Updated on: Created on: 20/12/2010
2/3
Page 3
Controller - 1 x 1000 W output with dimming - All loads
Catalogue number(s): 026 21
5. PARAMETER SETTING
Configuration of the product in a system:
- Manual, using the Push and Learn method
- Virtual, via software packs
- Physical, via configurators
Consult the relevant technical data sheets for detailed parameter setting of digital detectors that are compatible with the offer
Note: All technical information is available at
www.legrandoc.com
6. OPERATION
By default, the product automatically recognises the load as soon as the channel concerned is activated.
In certain cases, this recognition does not take place.
This function can be forced manually.
Display of the type of load
6. OPERATION (continued)
Manual forcing of the type of load
< 1 s
< 1 s = ON
< 1 s
< 1 s
Capacitive
Forced
inductive
Inductive
Forced
capacitive
< 1 s
< 1 s
10 s = confirmation < 1 s = exit forcing
mode without saving
7. MAINTENANCE
Do not use: acetone, tar-removing cleaning agents or trichloroethylene. Maintenance with the following products: - Hexane (En 60669-1)
- Methylated spirit
- Soapy water
- Diluted ammonia
- Bleach diluted to 0%
- Window-cleaning products
Load status indicator
Load status indicator
2 indicators displaying load 1 status
: OFF load : ON load (1% to 100%) : Load short-circuit fault
Load type indicator
Inductive
Capacitive
Control buttons
ON/+ load command:
Short press: ON Long press: Dim+
OFF/- load command:
Short press: OFF Long press: Dim-
Load type indicator
ATTENTION: An initial test is required for the use of other special
maintenance products.
8. STANDARDS
Directive: CE
Installation standards: NFC 15-100
Product standards: IEC 60669-2-1
Environmental standards:
- EU Directive 2002/96/EC: WEEE (Waste Electrical and Electronic Equipment)
- EU Directive 2002/95/EC: RoHS (Restriction of Hazardous Substances)
- Regulations: ERP (public buildings)
ERT (workplace buildings) IGH (high-rise buildings)
Technical data sheet: F00983EN/00 Updated on: Created on: 20/12/2010
3/3
