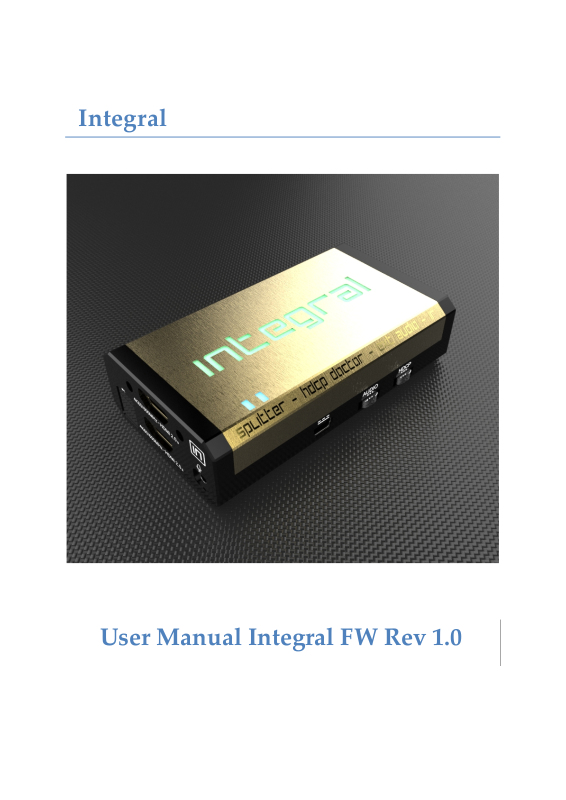

LEGENDSKY TECH INTEGRAL V01 User Manual
Integral
UserManualIntegralFWRev1.0
2 4K Integral – User Manual
TableofContents
Overview …...................................................................................................
... 3
Connecting
Cables …........................................................................................ 4
Power
Status/LED ….........................................................................................
5
Reset HPD/Factory
Default…...........................................................................6
EDID Mode
Selection ......................................................................................7
CEC Trigger
Button ……….................................................................................. 8
Input Switching and Matrix
Mode................................................................... 9
HDCP
Settings………………………..…………………………………………………
…………………. 10
Audio
Settings…...............................................................................................
11
Integral USB GUI for Windows
PC..............................................................…… 12
Integral Total Control
APP............................................................................... 14
Frequently Asked Questions
(FAQ) ............................................................... 16
Specifications...............................................................................................
.... 19
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this
manual.
3 4K Integral – User Manual
Overview
The HDfury team would like to thank you personally for purchasing the Integral!
This unique HDMI2.0a and HDCP2.2 device with support of 4K60 4:4:4 600MHz 18Gbps
bandwidth will allow you to solve any HDCP error, Split any SD/HD/Full HD/4K or PC signals up
to 600MHz, replace or extract HDMI audio, Input any CEC commands, Update and switch
between multiple edid banks and more. Operations can be completed through slide switch and
push buttons on the unit, via wired USB connection or through wireless Bluetooth connection
with any Smartphone or Tablet running Android. (IOS support underway)
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this
manual.
4 4K Integral – User Manual
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this
manual.
5 4K Integral – User Manual
ConnectingCables
To use your Integral:
• Connect a HDMI input cable to the HDMI input.
• Connect a HDMI output cable to the HDMI output.
• Connect the Integral power supply.
• Connect any additional HDMI input/output cable or any audio input /output cable (optional).
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this
manual.
6 4K Integral – User Manual
As shipped, the Integral defaults to HDCP1.4 on the Bottom output port. Top Output port can be
configured to any HDCP revision. Make sure that you are using 600MHz certified HDMI 4K
cable if you plan to set up a 4K60 4:4:4 600MHz 18Gbps link in your setup.
Power/StatusLED
The Integral logo will glow Green when in use. When the Integral first receives an HDMI signal
the logo will quickly turn on, then off, and then on permanently to indicate that the 4-letters
handshake has been completed.
The status of the green logo may be used for troubleshooting:
Logo OFF: Insufficient power. Use the Integral power supply.
Logo BLINKING (on for split second, off for 5 seconds): The Integral is receiving
power and is ready to accept an HDMI signal.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this
manual.
7 4K Integral – User Manual
Logo ON: The Integral is powered and receiving and decoding the HDMI signal.
ResetHPD(ShortPress)orResettofactorydefault(LongPress)
The Integral offers 2 functions per push button.
Short Press on Reset Button will generate Hot Plug Detection event.
Long Press (over 10s for security) will reset the integral to factory default.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this
manual.
8 4K Integral – User Manual
EDIDModeSelection
EDID slide switch have 3 positions.
Switch should be set to middle position to allow control via USB, IR or Bluetooth device.
EDID Automix Mode: Create EDID based on mutual least capabilities so both displays will
always show a picture and audio. Use this mode for 4K60 4:4:4 TVs.
Custom Use [BT]: this can be updated via BT or via USB. By default, it’s a 4K60 4:2:0 with Full
Audio capabilities.
Fixed EDID with L/R Audio: This mode is a 1080p60 2channel stereo basic table.
Disclaimer: 3rd party and/or custom firmware providing extra features are not covered in this
manual.
