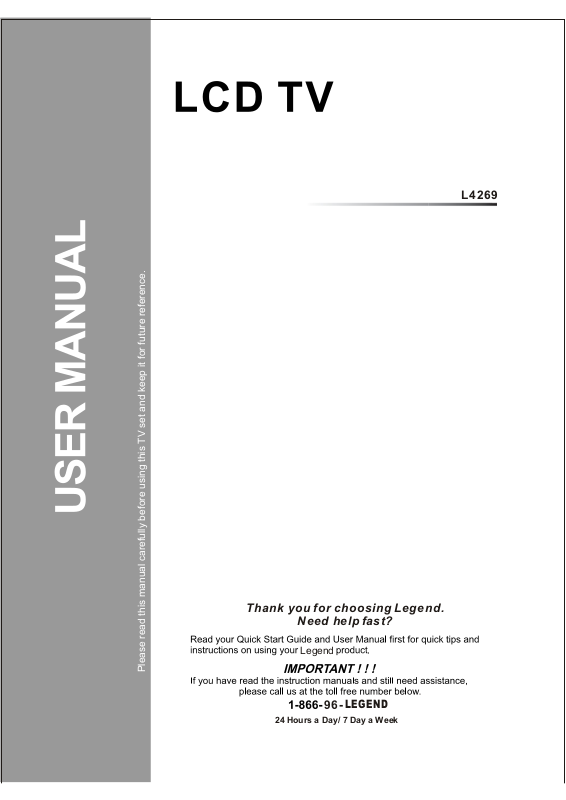

Legend Audio L4269 User Manual

L4269

Please read this manual carefully before using this TV set and keep it for future reference.

Thank you for choosing Legend.

Need help fast?

Legend

LEGEND

24 Hours a Day/ 7 Day a Week

Warning

!

!

The lightning flash with arrowhead symbol, within an

CAUTION

RISK ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the
risk of electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.

Energy Star compliant( )
By being Energy Star compliant you are assured that your Haier model is helping the environment by using less
energy while saving you money. ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and
the U.S. Department of Energy promoting energy efficiency.

models - HL26R1, HL32R1, HL26K1, HL32K1, HL32XK1

2 TV LCD-TFT

Safety Instructions

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
Apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15)The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.

16)The mains plug or appliance inlet is used as the disconnect device, remain it readily operable during the
apparatus normal use.

Class I apparatus shall be connected to a mains socket outlet with a protective earthing connection.

Owner s Manual 3

Contents

Introduction

War ning . . . . . . . ....... .. .. ... . . . . . . . . . . . . . . . . . . . . .

Safety Instr uc ti ons . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .. .. ....

Connection O pt io ns . . . . . . . . . . . . . . . . . . . . . .........

Remote control . ............ . . . . . . . . .......... . . .........

Installation

Accessorie s . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. ....

Antenna Connection . . . . . . . . . . ..........................

Connecting a V CR . . . . . . . . . . . . . . . . . . . . . .. .........

External A/V Source Setup . . . . .. . . . . ..................

Connecting a D VD p la yer . . . . . ...... . . . . . . . . . . . . .

Connecting a DTV(digital TV) ..............................

Connecting digital audio output . . . . . . . . . . . . . . . . .

Connecting a c om pu ter. . . . . . . . . . . . . . . . . . . . . . . .

Monitor Out Setup. . . . . . . . . . . . . . . . . . . . .. .. .. .......

HDMI and DVI inp ut . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cable sample......................................................

Connecting Headphones . . . . . . . . . . . . . . . . . . . .....

Power source................ . . . . . . . . . . . . . . . . . . . . . .

Removing the table stand and installing a
wall mount bracket

Operation

Switching On/Off the TV set . . . . . ... . . . . . . . . . . ....

Choose the Menu Language . . . . ..... ....................

Choose the input source......................................

Channel Menu

Channel Scan............... . . . . . . . . . . . . . . . . . . . . . . .

Channel Skip .. .. ... . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Select the des ir ed p rogram. . . . . . . . . . . . . . . . . . . . .

Select the des ir ed s ound. . . . . . . . . . . . . . . . . . .. . . .

Mute. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

2
3

5
6
7

8
8
9
10
10
11
11
12
13
13
14
15
15

16

17
17
17

18
18
19
19
19

Video Menu

How to select picture mode..................................

How to customize your own picture status .............

VGA Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Audio Menu

How to select audio mode....................................

How to customize your own audio status ...............

SAP Broadcasts Setup........................................

Function Menu

Menu Language...................................................

OSD Timeout.......................................................

OSD Transparency...............................................

Screen Mode.......................................................

Blue Screen.........................................................

DPMS.................................................................

Time zone setting.................................................

Date /Time setting................................................

Sleep Timer setting..............................................

DTV Caption Style................................................

Lock Menu

Parental Control rating and categories...................

Lock setup...........................................................

Other Functions

Brief Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. ......

Using the Guid e. . . . . . . . . . . . . . . . . . . . . . . . .. .........

Quick program view..............................................

CC (Closed Caption Display) . . . . . . . . . . . . . ... . .. .

USB Input............................................................

Universal Remote Control

Setting up your remote control ..............................

Remote Control Codes ........................................

Maintenance . . .... .. . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Specification . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.

20
20
21

.

22
22

.

22

4 TV LCD-TFT

Controls

L - AUDIO - R

VIDEO

This is a simplified representation of the TV front panel, side panel control buttons and side inputs.

TV Side panel controls and connections

HL26R1/HL32R1/HL42XR1

L - AUDIO - R

VIDEO2 IN

VIDEO

Introduction

MENU INPUT VOL+ VOL- CH+ CH- POWER MENU INPUT VOL+ VOL- CH+ CH- POWER

HDMI4 INHDMI3 IN USB

HL26K1/HL32K1/HL32XK1/HL42XK1

1.MENU: Menu display.

2.INPUT: Press to the input source mode.

watch. In the MENU screen, the INPUT button serves as the ENTER button.

3.VOL +/-: Press to adjust the volume. In the MENU screen, these buttons serve as left/right buttons.

4.CH +/- : Press to scan through channels. To scan quickly through channels, press and hold down
either +/- . In the MENU screen, these buttons serve as up/down buttons.

5.POWER: Press to turn on and off the TV.

USB input: Connect a USB flash drive to view JPEG images or listen to MP3 songs.

6.

7.Av2 AUDIO IN: Connect the audio L/R cables from the video signal source to these jacks.

8.AV2 VIDEO IN: Connects the composite video cable from an external signal source to this jack.

9.Headphone jack : Headphone audio output terminal.

10.HDMI IN: Connect a

11. Remote Sensor Receives signals from the remote control.

Do not put anything near the sensor ,

Press to access the on-screen menu display

access Press repeatedly to change the source to the one you want to

HDMI device to receive digital audio and uncompressed digital video signals.

IR

which may block the remote control signal.

Owner s Manual 5

Connection Options

2

1

1

Y

Pb

Pr

L

R

L L

R R

VIDEO

S-VIDEO

VGA

VGA AUDIO

AUDIO AUDIO

L

R

DVI AUDIO

AUDIO

2

L

R

AUDIO

COMPONENT IN

VIDEO IN

1

AV O UT

VGA IN

HDMI IN

ANT IN

OPTICAL OUT

Back panel connections

Introduction

ANT IN

OPTICAL OUT

COMPONENT IN

VIDEO IN

VIDEO

1. Digital Audio Output:

DVI AUDIO

VGA

AUDIO

VGA AUDIO

AUDIO

AUDIO

S-VIDEO

Connect various types of digital audio equipment.

VGA IN

AV O UT

NOTE: In standby mode, these ports will not work.

2. DVI Audio In:

When using a DVI to HDMI adapter, connect the audio signal to these jacks.

3. Antenna Input: Connect cable or antenna signals to the TV, either directly or through your cable box.

4. HDMI In:

Connect a HDMI device to receive digital audio and uncompressed digital video.

5.VGA Audio In: Connect the audio L/R cables from a computer to this jack.

6.VGA Video In: Connect a video cable from a computer to this jack.

7. VIDEO In: Connects the video signal from a video device.

Component Video

8. In: Connect a component video device to these jacks.

9. AUDIO In: Connect the audio L/R cables from the video signal source to these jacks.

10. S-VIDEO In: Connect the S-Video cable from an external signal source to this jacks.

11. COMPONENT AUDIO In: Connect the audio L/R cables from the component video signal source to these jacks.

12. AUDIO In: Connect the audio L/R cables from the S-Video signal source to these jacks.

13. AUDIO Out: Connect the audio L/R cables to

your audio equipment.

6 TV LCD-TFT

Universal Remote control

The remote control cannot be operated unless the batteries are properly loaded.
When using the remote control, aim it at the remote sensor on the TV.

Introduction

Function introduction

1

2

3
4

5

6

7

8

9

10

11

12

13
14

TV

STB

CABLE VCR AUD

PICTURE AUDIO PC HDMI

INPUT

MUTE

VOL CH

MENU

ENTER

SLEEP DISPLAY

PLAY/PAUSE

REV

REPEAT

MTS/SAP

FREEZE

GUIDE

CCD ARC

DVD

RECALL

EXIT

STOPUSB REC

PREV NEXT

CH.LIST

FAVORITE

1.POWER
Press to turn on and off the TV.

2.TV DVD SETBOX CABLE VCR

AUD

To select one of the system modes in which the remote control

can be used.

3.PICTURE

Press repeatedly to cycle through the available picture modes.

4. AUDIO

Press to cycle through different sound settings.

5.INPUT

15

16

Show the input source.

6.MUTE

Switches the sound on or off.

video

7.VOLUME UP/DOWN

Press to adjust the volume.

8.MENU

Press to open the on-screen menu.

17

9.THUMBSTICK (Up/Down/Left/Right/ )

ENTER

Allows you to navigate the on-screen menus and adjust

the system settings to your preference.

10.SLEEP button

18

19

Press to display the sleep timer option.

11.

USB: Press to switch input source to USB in.

12. MTS/SAP

Selects MTS sound: Mono, Stereo, and SAP in Analog

mode. Change the audio language in DTV mode.

13.GUIDE

20

Press to display the guide when you are watching analog or

digital channels.

14.CCD(closed caption)

21

Select a closed caption.

15.

HDMI:Press to select a device connected to the HDMI input

16.PC:Press to select the computer connected to the VGA input

17.Number buttons

22

Press to change a channel.

18. button

Press to select digital channels. For example, to enter

“54-3”, press “54”, “ ” and “3”.

19.RECALL

23

24

Press to jump back and forth between two channels.

20.CHANNEL UP/DOWN

Press to scan through channels. T

o scan quickly between the

last two channels, press and hold down either +/- .

21.EXIT

Clears all on-screen displays and returns to TV viewing

25
26

27
28

from any menu.

22.

ENTER

Accesses the highlighted item in the on-screen menu

23.DISPLAY

Press to display the TV status information on the top of the TV

screen.

24. Functions

USB

Control the USB System.

/ Rewind / Fast / backward /Forward

Stop Play/Pause REC

REPEAT Repeat

25.FREEZE

Press once to display a frozen image of the current program,

but audio continues. Press again to return to the program.

26.CH.LIST

Open the channel list .

in TV

27.FAV.LIST

Press to open the favorite channel list .

in TV

28.ARC(Aspect Ratio Control)

Press to change the aspect ratio.

Owner s Manual 7

ANT IN

ANT IN

Installation

External Equipment Connections

Accessories

DVD

TV

CABLE VCR AUD

STB

PICTURE AUDIO PC HDMI

INPUT

RECALL

MUTE

VOL CH

MENU

EXIT

ENTER

SLEEP DISPLAY

PLAY/PAUSE

STOPUSB REC

PREV NEXT

REV

CH.LIST

REPEAT

MTS/SAP

FREEZE

GUIDE

CCD ARC

FAVORITE

Remote control Owner`s manual Alkaline battery(AAA) 2

Antenna Connection

Over-the-air TV reception quality will depend on your antenna type, antenna location and antenna positioning.

R

TFT-LCD TV

OWNER S MANUAL'

Please READthis manual carefully before
operatingyour TV, and retain it for future
reference.

MODEL:S

HL37T

HL26K

HL52T

HL32K
HL37K
HL42K
HL47K

VHF Antenna
UHF Antenna

ANT IN

Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Wall Antenna
Socket

Bronze Wire

RF Coaxial Wire (75 ohm)

Turn clockwise to tighten

Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna

To improve the picture quality in a poor signal area,

please purchase a signal amplifier and install properly.

If the antenna needs to be split for two TV`s, install a
2-Way Signal Splitter in the connections.
To install the antenna properly please contact a

professional in your area.

Bronze Wire

Be careful not to bend the bronze wire
when connecting the antenna.

8 TV LCD-TFT

2

1

1

Y

Pb

Pr

L

R

L L

R R

VIDEO

VIDEO

S-VIDEO

VGA

VGA AUDIO

AUDIO

AUDIO

L

R

DVI AUDIO

AUDIO

2

L

R

AUDIO

COMPONENT IN

VIDEO IN

1

AV O UT

VGA IN

HDMI IN

ANT IN

OPTICAL OUT

External Equipment Connections

NOTE: All cables shown are not included with the TV.

Choose Your Connection

There are several ways to connect your television,
depending on the components you want to connect and
the quality of the signal you want to achieve. The
following are examples of some different ways to connect
your TV with different input sources.

Connecting a VCR

To avoid picture noise (interference), leave an adequate
distance between the VCR and TV.

Installation

Connection Option 1

Set VCR output switch to channel 3 or 4 and then tune
the TV to the same channel number.

Connection Option 2

1. Connect the audio and video cables from the VCR's
output jacks to the TV input jacks, as shown in the figure.
When connecting the TV to VCR, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
If you connect a S-VIDEO output from VCR to the
S-VIDEO input, the picture quality is improved;
compared to connecting a regular VCR to the Video input.

2. Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner`s manual.)

3. Select the input source with using the
INPUT button on the remote control, and
then press / button to select the source,
press ENTER button to confirm.

OPTICAL OUT

COMPONENT IN

VIDEO IN

VIDEO

AUDIO

AUDIO

S-VIDEO

AUDIO

DVI AUDIO

VGA AUDIO

VIDEO

AUDIO

ANT IN

VGA IN

AV O UT

Owner s Manual 9

2

1

1

Y

Pb

Pr

L

R

L L

R R

VIDEO

VIDEO

S-VIDEO

VGA

VGA AUDIO

AUDIO AUDIO

L

R

DVI AUDIO

AUDIO

2

L

R

AUDIO

COMPONENT IN

VIDEO IN

1

AV O UT

VGA IN

HDMI IN

ANT IN

OPTICAL OUT

2

1

1

Y

Pb

Pr

L

R

L L

R R

VIDEO

VIDEO

S-VIDEO

VGA

VGA AUDIO

AUDIO

AUDIO

L

R

DVI AUDIO

AUDIO

2

L

R

AUDIO

COMPONENT IN

VIDEO IN

1

AV O UT

VGA IN

HDMI IN

ANT IN

OPTICAL OUT

External Equipment Connections

External A/V Source Setup

Installation

How to connect

Connect the audio and video cables from the external
equipment's output jacks to the TV input jacks, as shown
in the figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).

How to use

1. Select the input source with using the INPUT button on
the remote control.

2. Press / button to select the desired source.

3. Press button to confirm.

ENTER

4. Operate the corresponding external equipment.

Connecting a DVD player

How to connect

1. Connect the DVD video outputs (COMPONENT) to
the Y Pb Pr jacks on the TV and connect the DVD audio
outputs to the YPbPr Audio IN jacks on the TV, as
shown in the figure.

2. If your DVD only has an S-VIDEO output jack,
connect this to the S-VIDEO input on the TV. as shown
in the figure.

Note

If your DVD player does not have component video
output, use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use INPUT button on the remote control to select
component mode.

3. Press Play button on external equipment for program
play.

4. Refer to the DVD player's manual for operating
instructions.

OPTICAL OUT

COMPONENT IN

VIDEO IN

OPTICAL OUT

COMPONENT IN

VIDEO IN

VIDEO

VIDEO

AUDIO

S-VIDEO

S-VIDEO

AUDIO

AUDIO

VGA AUDIO

DVI AUDIO

VGA AUDIO

VIDEO

AUDIO

Camcorder

Video Game Set

VIDEO

ANT IN

HDMI IN

VGA IN

AV O UT

ANT IN

HDMI IN

VGA IN

AV O UT

Component Input ports

To get better picture quality, connect a DVD player to the
component input ports as shown below.

Component ports
on the TV

Y Pb Pr

Y Pb Pr

Video output ports
on DVD player

10 TV LCD-TFT

Y B-Y R-Y
Y Cb Cr

Y P P

BR

2

1

1

Y

Pb

Pr

L

R

L L

R R

VIDEO

VIDEO

S-VIDEO

VGA

VGA AUDIO

AUDIO

AUDIO

L

R

DVI AUDIO

AUDIO

2

L

R

AUDIO

COMPONENT IN

VIDEO IN

1

AV OUT

VGA IN

HDMI IN

ANT IN

OPTICAL OUT

Installation

!

2

1

1

Y

Pb

Pr

L

R

L L

R R

VIDEO

VIDEO

S-VIDEO

VGA

VGA AUDIO

AUDIO AUDIO

L

R

DVI AUDIO

AUDIO

2

L

R

AUDIO

COMPONENT IN

VIDEO IN

1

AV O UT

VGA IN

HDMI IN

ANT IN

OPTICAL OUT

External Equipment Connections

Connecting a DTV(digital TV)

This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive
Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).

How to connect

Use the TV`s COMPONENT , VGA or HDMI
jack for video connections, depending on
your set-top box connector. Then, make
the corresponding audio connections.

ANT IN

How to use

1. Turn on the digital set-top box. (Refer to the
owner`s manual for the digital set-top box.)

2. Use INPUT on the remote control to select
COMPONENT , VGA or HDMI source.

Signal

480i

480p

720p

1080i

1080p

COMPONENT

Yes

Yes

Yes

Yes

Yes

HDMI

Yes

Yes

Yes

Yes

Yes

Connecting a digital audio output

Send the TV`s audio to external audio equipment (stereo
system) via the Digital Audio Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital
Audio(Optical) Output port.

2. Connect the other end of the optical cable to the digital
audio (optical) input on the audio equipment.
See the external audio equipment instruction manual for
operation.

Note

When connecting with external audio equipments, such
as amplifers or speakers, please turn the TV speakers off.

OPTICAL OUT

COMPONENT IN

VIDEO

AUDIO

S-VIDEO

AUDIO

Digital Set-top Box

OPTICAL OUT

COMPONENT IN

VIDEO IN

VIDEO

S-VIDEO

VGA AUDIO

AUDIO

DVI AUDIO

VIDEO

DVI AUDIO

VGA AUDIO

AUDIO

HDMI

VIDEO

HDMI IN

VGA IN

AV O UT

ANT IN

HDMI IN

VGA IN

Caution: Do not look into the optical output
port. Looking at the laser beam may damage
your vision.

Owner s Manual 11

2

1

1

Y

Pb

Pr

L

R

L L

R R

VIDEO VIDEO

S-VIDEO

VGA

VGA AUDIO

AUDIO

AUDIO

L

R

DVI AUDIO

AUDIO

2

L

R

AUDIO

COMPONENT IN

VIDEO IN

1

AV O UT

VGA IN

HDMI IN

ANT IN

OPTICAL OUT

Installation

External Equipment Connections

Connecting a computer

How to connect

1. To get the best picture quality, adjust the VGA graphics card to 1024x768 .

2. Use the TV`s VGA or DVI (Digital Visual Interface)Audio IN port for audio connections, depending on your computer
connector.

If the graphic card on the computer does not output analog and digital RGB simultaneously, connect only one of

either VGA IN or HDMI IN to display the VGA on the TV.

If the graphic card on the computer does output analog and digital RGB simultaneously, set the TV to either VGA or

HDMI ; (the other mode is set to Plug and Play automatically by the TV.)

3. Then, make the corresponding audio connection. If using a sound card, adjust the VGA sound as required.

How to use

1. Turn on the computer and the TV.

2. Use INPUT on the remote control to select VGA or HDMI source.

3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in VGA mode. If noise is present, change the VGA mode to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the VGA
graphic card can not be changed, change the VGA graphic card or consult the manufacturer of the VGA graphic card.

Note

1.Use a DVI cable.

2.Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become permanently
imprinted on the screen.

3. The synchronization input form for Horizontal and Vertical frequencies is separate.

Resolution

Mode

VGA

SVGA

XGA

Resolution

640x480

800x600

1024x768

Frame
frequency
(Hz)

60Hz

60Hz

75Hz

60Hz

75Hz

OPTICAL OUT

COMPONENT IN

VIDEO IN

VIDEO

AUDIO

AUDIO

S-VIDEO

DVI AUDIO

VGA AUDIO

AUDIO

ANT IN

HDMI IN

VGA IN

AV O UT

12 TV LCD-TFT

Installation

External Equipment Connections

HDMI and DVI input

When the source device(DVD player or Set Top Box) supports HDMI

How To Connect

1. Connect the source device to HDMI port of this TV with an HDMI cable(not supplied with this product).

2. No separated audio connection is necessary.

How To Use

If the source device supports Auto HDMI function, the output resolution of the source device will be automatically
set to 1280x720p.
If the source device does not support Auto HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
Select HDMI input source in input source option of Select Main source menu.

When the source device(DVD player or Set Top Box) supports DVI

How To Connect

1. Connect the source device to HDMI port of this TV with a HDMI-to-DVI cable(not supplied with this product).

2. A separated audio connection is necessary.

3. If the source device has an analog audio output connector, connect the source device audio output to DVI Audio
In port located on the left side of HDMI port.

How To Use

If the source device supports Auto DVI function, the output resolution of the source device will be automatically
set to 1280x720p.
If the source device does not support Auto DVI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
Press the INPUT button to select HDMI input source in input source option of Select Main source menu.

Owner s Manual 13

Cable sample

Installation

HDMI Cable
(not supplied with the product)

HDMI to DVI Cable
(not supplied with the product)

Analog Audio Cable
(Stereo to RCA type)
(not supplied with the product)

14 TV LCD-TFT

External Equipment Connections

Connecting Headphones

You can connect a set of headphones to your set if you wish to watch a
TV programme without disturbing the other people in the room.

Installation

HDMI4 INHDMI3 IN

Power source

Plug a set of headphones into the 3.5mm
mini-jack socket on the side panel of the set.

Note

Prolonged use of headphones at a high volume

may damage your hearing.

You will not receive sound from the speakers

when you connect headphones to the system.

Wider Hole
and Blade

Polarized AC Cord Plug

AC Outlet

TO USE AC POWER SOURCE

Use the AC polarized line cord provided for
operation on AC. Insert the AC cord plug into
a standard polarized AC outlet.

Note

Never connect the AC line cord plug to other
than the specified voltage. Use the
attached power cord only.

If the polarized AC cord does not fit into a non­polarized AC outlet, do not attempt to file or cut
the blade. It is the user`s responsibility to have
an electrician replace the obsolete outlet.

If you cause a static discharge when touching
the unit and the unit fails to function, simply
unplug the unit from the AC outlet and plug it
back in. The unit should return to normal operation.

Owner s Manual 15

Removing the table stand and installing a
wall mount bracket

HL42XK1

Installation

Remove 4X M4 screws securing the
stand to the TV, then remove the stand.

Use 4X M6 screws to secure the wall
bracket (not supplied) to the back of your TV.

16 TV LCD-TFT

Operation

In the manual, the OSD (on screen display) may be
different from your TV`s, because it is just an example to
help you with the TV operation.
There are several options you might need to set up in order
for your TV to work properly. Read the instructions that
follow.
Initial Setup: Set according to the screen display.

Switching On/Off the TV set

.

1 First, connect power cord correctly.

.

2 Select the viewing source by using INPUT button on
the remote control.

.

3 When finished using the TV, press POWER button on
the remote control. The TV reverts to standby mode.
4 If you intend to be away on vacation, disconnect the

.

power plug from the wall power outlet.

Note

If the TV in power on , the screen show information
according the type of input signal . the information will
disappear. If there is no signal , No Signal will display
on the screen.

Operation

Choose the Menu Language

When you start using your set for the first time, you must

select the language which will be used for displaying menus

and indications.

1. Choose TV Input and then press MENU button.

2. Press / button to selectFunction menu.

3. Press ENTER button and then use / button to

/

select Language.

4. Press button to select language.

/

English Spanish or French

Choose the Input source

Change the picture source so you can watch your TV,
VCR, DVD, Cable , or any other devices that are
connected to your TV.

1. Press INPUT button to enter the Select Source menu
and then use / button to select the desired items
(TV, Video1, Video2, S-Video,Component1, Component2,

, HDMI1,HDMI2,HDMI3,HDMI4).

PC

2. Press ENTER button to confirm .

Video

Audio

Channel

Function

Lock

Function

Language English

OSD Timeout Short

OSD Transparency Middle

Screen Mode Normal

Blue Screen On

DPMS On

Time Setup

Closed Caption

Default

Select Source

TV

Video1

Video2

S-Video

Component1

Component2

PC

HDMI1

HDMI2

HDMI3

HDMI4

Select

EXIT

/

Back

Owner s Manual 17

Channel menu

This TV set has two methods to set channels, which are

respectively Channel Scan, Channel Skip.

In this section, how to use the remote control to set
channel is explained. You can also use buttons on the TV to
set channel.

Note

The Channel menu will be only operated in normal TV mode.

Channel Scan

1. Press MENU button and then use / button to select

Channel menu.

2. Press ENTER button to select Tuner.

3. Press button to selectCable or Antenna mode.

4. Press / button to selectChannel Scan.

5. Press ENTER button to start searching.

6. To cancel searching, press EXIT button.

/

/

/

Video

Audio

Channel

Function

Lock

Channel

Operation

Tuner Antenna

Channel Scan

Channel Skip

ENTER

Select

/

EXIT

BackScan

Note

When Antenna is selected, the TV will detect antenna
signals and will search for antenna TV (NTSC and
ATSC) channels available in your local area.

When Cable is selected, the TV will detect cable
company supplied signals and will search for cable TV

(NTSC,QAM modulated) channels available in your
Area.

Channel Skip

A skip channel is skipped when using / button to

browse the channels. A skip channel can be watch

by key-in the channel number or select by list.

Default un-scanned analog channels are skip.

Channel with a check icon is a skipped channel.

.

1 Press MENU button and then use / button to select

Channel menu.

. ENTER

2 Press button and then use / button to select

Channel Skip.

3 Press / button to select a channel, then press

. ENTER

button to toggle between and .

/

Video

Audio

Channel

Function

Lock

Channel Scan

Video

Audio

Channel

Function

Lock

Channel

Video

Audio

Channel

Function

Lock

Status: Antenna

Scanning

Analog Channels: 19

Digital Channels: 0

64%

EXIT

Cancel

Tuner Antenna

Channel Scan

Channel Skip

Enter

Select

EXIT

/

Back

1

Analog

2

Analog

3

Analog

4

Analog

5

Analog

5-1

Digital KPIX-DT

6

Analog

7

Analog

8

Analog

9

Analog

10

Analog

ENTER

18 TV LCD-TFT

Channel Skip

ENTER

Select

EXIT

Set

/

Back

Select the desired program

Using CH+/- buttons.

1

.

Press CH+ button to select a channel number in

number increasing direction.

Press CH- button to select a channel number in

number decreasing direction.

Note

If skip is ON on one channel, press CH+/- button, the
channel will not appear.

Also can enter channel number directly,eg:2-0.

2.

Select the desired sound

Press VOL-/+ buttons on the remote or the front of the
TV set to adjust the volume level. The range is 0~100.
When the volume buttons are pressed the volume level
is displayed automatically on the TV screen.

Mute

Operation

Volume

1 Press MUTE button on the remote control and

.

will display on the screen. At this time, the sound

icon

of the TV set is turned off.

2 If you want to recover the sound, press MUTE

.

button again or directly press VOL+ button.

Owner s Manual 19

Video menu

The TV menu gives you an overview of the menus you can select.

Note

Depending on the input signal, one or more menu items may not be selectable.

How to select picture mode

The picture mode provides the pre-defined images settings:

Standard, Vivid, Custom and Mild .

1. Press MENU button and then use / button to select

Video menu.

2. Press ENTER button and then use / button to

select Mode.

3. Press / button to select the option Standard, Vivid,

Custom and Mild.

You can also press PICTURE button on the remote control

to select the option .Standard, Vivid, Custom and Mild

/

Video

Video

Audio

Channel

Function

Lock

Mode Custom
Brightness
Contrast
Color
Tint
Sharpness
Color Temperature
Advanced Video

Select

/

Operation

59
59
59

7

58

EXIT

Back

How to customize your own picture
status

.

1 Press MENU button and then use / button to select

Video menu.

. ENTER

2 Press button and then use / button to

select the desired items.

. ENTER

3 Press button and then use / button to

adjust the setting.

Mode

Select the mode of picture( ).

Brightness
This will adjust the light output of the complete picture,
which will mainly affect the darker areas of the picture.

Contrast
This will adjust the intensity of bright parts in the picture
but keep the dark parts unchanged.

Color
This will adjust the saturation level of the colors to suit
your personal preference.

Tint
Allows you to select the color mix (Tint) of the picture.

/

/

Standard/ Vivid/ Custom/ Mild

Note

Only when the item of mode is custom , the

Brightness, Contrast, Color, Tint, Sharpness
and Color Temperature

can be set by user .

In other mode the value of them are preset.

Sharpness
This will adjust the sharpness of fine details in the picture.

20 TV LCD-TFT

Video menu

Color temperature
This will increase or decrease Warm (red) and Cool (blue)
colors to suit personal preferences.
Select Cool to give the white colors a blue tint, Standard
to give the white colors a neutral tint, Warm to give the
white colors a red tint.

Advanced Video
To adjust the picture in advanced: DNR, Black Level Extender,
White Peak Limiter, CTI, Flech Tone, Adaptive Luma Control.

DNR

To adjust reduce the appearance of digitizing error by the compression:
Off, Weak, Medium, Strong, Auto.

Black Level Extender

To adjust the ability in the black areas detail of the picture: On and Off.

White Peak Limiter

To adjust the ability in the white areas detail of the picture: On and Off.

CTI

To adjust the picture for color errors: Off, Weak, Medium and Strong.

Flesh Tone

To adjust the flesh color: On and Off.

Adaptive Luma Control

To adjust changes in the luminance of the picture: On and Off.

Video

Audio

Channel

Function

Lock

Advanced Video

DNR
Black Level Extender
White Peak Limiter
CTI
Flesh Tone
Adaptive Luma Control

Operation

Medium
On
On
Medium
On
On

Select

EXIT

/

Back

VGA Set

When you select the VGA input, this function is used.

Adjustment for screen Position, Clock, Phase, Setting
Display adjust menu by pressing INPUT button then use

/ button to select the the source of VGA item.

Auto sync: Automatically adjust display of the picture

(Only available in VGA source).

Position : Adjust the screen position.

Phase : Adjust the phase of Pixel clock.

Clock : Adjust the clock of input signal.

1. Press MENU button and then use / button to select
Video menu.

2. Press ENTER button and then use / button to
select VGA.

3. Press ENTER button and then use / button to
adjust the setting.

/

/

Video

Audio

Function

Lock

Video

Video

Audio

Function

Lock

VGA

Mode Custom
Brightness
Contrast
Color Temperature
Advanced Video
VGA

/

Auto Sync

H Position

V Position

Phase

Clock

ENTER

/

Select

Select

EXIT

EXIT

59
59

Back

59

59

59

59

BackEnter

Owner s Manual 21

Audio menu

How to select audio mode

.

1 Press MENU button and then use / button to select
Audio menu.

. ENTER

2 Press button and then use / button to
select Mode.

. ENTER

3 Press button to select the option Off, Concert,
Living Room, Hall, Bathroom, Cave, Arena and Church.
You can also press AUDIO button on the remote control
to select the Audio Mode Off, Concert, Living Room, Hall,
Bathroom, Cave, Arena and Church.

/

/

Video

Audio

Channel

Function

Lock

Balance
Bass
Treble
Sound Surround On
Mode Off
Equalizer Off
SPDIF Type PCM
AVL Off

Operation

0
59
59

How to Customize your own audio
status

.

1 Press MENU button and then use / button to select
Audio menu.

. ENTER

2 Press button and then use / button to

/

select desired items.

. ENTER

3 Press button and then use / button to

/

adjust the setting.

Balance

Adjust to emphasize left or right speaker balance.

Bass

Adjust to increase or decrease lower-pitched sounds.

Treble

Adjust to increase or decrease higher-pitched sounds.

Sound Surround

To turn the simulated surround sound on and off.

Mode

To adjust the audio mode: Off, Concert, Living Room, Hall,
Bathroom, Cave, Arena and Church.

Equalizer

To adjust the equalizer: Off, Rock, Pop, Live, Dance,
Techno, Classic and Soft.

SPDIF Type

To Adjust the SPDIF output: Off, Dolby Digital and PCM.

AVL(Automatic Volume Control)

This will reduces the differences in volume level among
broadcasters.

SAP Broadcasts Setup

This TV can receive MTS stereo programs and SAP
(Secondary Audio Program) that accompanies the stereo
program; if the station transmits an additional sound
signal as well as the original one.
When having selected SAP button on the remote control,
this TV can only receive the signal when the TV station
transmits the proper signals.
Mono sound is automatically received if the broadcast is
only in Mono; even though Stereo or SAP has been
selected.
Select Mono if you want to listen to mono sound during
stereo/SAP broadcasting. Stereo or SAP can be received
in a Analog channel.

1. Use SAP button to select your desired MTS mode in a
analog signal.
Each time you press SAP button, Mono, Stereo or SAP
appear.
If other languages are available on the digital signal,
select them with the SAP button.

2. Press EXIT button to save and return to TV viewing.

Audio

ENTER

Select

EXIT

/

BackAdjust

22 TFT-LCD TV

Function menu

Menu Language

When you start using your set for the first time, you must

select the language which will be used for displaying menus

and indications.

.

1 Press MENU button and then use / button to select

Function menu.

. ENTER

2 Press button and then use / button to

select Language.

3 Press button to select language.

. /

English Spanish or French

OSD Timeout

1. Press MENU button and then use / button to
select Function menu.

2. Press ENTER button and then use / button to
select OSD Timeout.

3. Press / button to select Short, Middle or Long.
(Short is for 5 seconds; Middle is for 10 seconds;
Long is for 15seconds)

/

/

Video

Audio

Channel

Function

Lock

Function

Operation

Language English

OSD Timeout Short

OSD Transparency Middle

Screen Mode Normal

Blue Screen On

DPMS On

Time Setup

Closed Caption

Default

Select

/

EXIT

Back

OSD Transparency

1. Press MENU button and then use / button to select
the Function menu.

2. Press ENTER button and then use / button to

/

select OSD transparency.

3. Press / button to select Low ,Middle or High.

Screen Mode

Lets you choose the way an analog picture with a 4:3 aspect
ratio is displayed on your TV with a 16:9 ratio picture format.

Note

If a fixed image is displayed on the screen for a long time,
the image may become permanently burned on the screen
and remain visible.

1. Press MENU button and then use / button to select
Function menu.

2. Press ENTER button and then use / button to
select Screen Mode.

3. Press / button to select Normal, Zoom, Wide or

Cinema.

Normal

Choose normal when you want to view the picture with
4:3 mode .

Zoom

Choose Zoom when you want to view the picture without
any alteration. However, the top and bottom portions
of the picture will be cropped.

/

Video

Audio

Channel

Function

Lock

Function

Language English

OSD Timeout Short

OSD Transparency Middle

Screen Mode Normal

Blue Screen On

DPMS On

Time Setup

Closed Caption

Default

Select

/

EXIT

Back

Owner s Manual 23

Function menu

Wide

Choose wide when you want to adjust the picture
horizontally, in a linear proportion to fill the entire screen.

Cinema

For letterbox pictures, bars may appear on the top and
bottom on some programs.
You can also press button on the remote control to
select

the desired picture format: Normal, Zoom, Wide or

Cinema.

Blue Screen

1. Press MENU button and then use / button to select
Function menu.

2. Press ENTER button and then use / button to

/

select Blue Screen.

3. Press / button to select On or Off.

DPMS

PC Power Management. To set On, the set will be in
standby mode automatically if no signal in 2 minutes; if
signal input, the set will be on again automatically.
Note: DPMS is useful only in VGA source.

ARC

Operation

Time zone setting

This function allows you to select your local time zone.
Broadcasted time information will correct the clock display
for your local time.

.

1 Press MENU button and then use / button to

select Function menu.

. ENTER

2 Press button and then use / button to

/

select Time Setup.

3 Press button and then use / button to

. ENTER

/

select Time Zone.

4 Press button to select your viewing area time zone:

. /

Eastern, Central, Mountain, Pacific, Alaska or Hawaii .

Date /Time setting

Setting the clock is necessary in order to use the various
timer features of the TV. Also, you can check the time
while watching the TV.

.

1 Press MENU button and then use / button to

select Function menu.

2 Press button and then use / button to

. ENTER

select Time Setup.

3 Press button and then use / button to

.orENTER

select

4. Press ENTER button and then use / button to

select On or Off.

/

Date/Time.

/

Video

Audio

Channel

Function

Lock

Time Setup

Video

Audio

Channel

Function

Lock

Date/Time

Time Zone Pacific

Date/Time

Sleep Timer Off

Auto On

Date

Time

Timer Off

On Time

Off Time

2008/01/01
11:54 AM

11:54 AM
12:00 AM

Select

EXIT

Select

EXIT

Back

Back

/

/

24 TV LCD-TFT

Function menu

Sleep Timer setting

The sleep timer automatically shuts off the TV after a
preset time (from 5 to 240 minutes).

1. Press MENU button and then use / button to
select menu.

Function

Press button and then use / button to

2. ENTER

select Time Setup

3. Press ENTER button and then use / button to
select Sleep Timer.

4. Press / button to select the number of minutes.
Select Off,5Min,10Min, 15Min, 30Min, 45Min,60Min,
90Min, 120Min, 180Minor 240Min.
The time begins to count down from the number of
minutes selected.

5. To cancel the set sleep timer: Press button to select
Off.

You can SLEEP button to select quickly the
sleep timer.

DTV Caption Style (In DTV mode)

This allows you to modify how digital captions are displayed

on your TV. Select from the following options to change the

visual characteristics of your TV`s digital captioning.

Customize the DTV/CADTV captions that appear on your

screen.

.

1 Press MENU button and then use / button to select

Function menu.

. ENTER

2 Press button and then use / button to

select Closed Caption .

. ENTER

3 Press button and then use / button to

select DTV Caption Style.

. ENTER

4 Press button and then use / button to

select the Style, Size, etc., press / button to

customize to your preference.

Style

Select this option to select the font style of caption display
according to your own preference.
Press / button to select Default or Custom.

Size

Select this option to select the size of caption display
according to your own preference.
Press / button to selectSmall, Normal or Large.

Text color

Select this option to select the text color or the opacity of
the text box of caption display according to your own
preference.
Select a color and one of the opacity options.

Text Opacity

Specify the opacity for the text color.

BG Color

Select a background color.

BG Opacity

Select the opacity for the background color.

Window Color

Select a window color.

Window Opacity

Select the opacity for the window color.

/

/

also press

/

/

/

Video

Audio

Channel

Function

Lock

Time Setup

Video

Audio

Channel

Function

Lock

Function

Video

Audio

Channel

Function

Lock

Closed Caption

Video

Audio

Channel

Function

Lock

DTV Caption Style

Operation

Time Zone Pacific

Date/Time

Sleep Timer Off

Select

/

Language English

OSD Timeout Short

OSD Transparency Middle

Screen Mode Normal

Blue Screen On

DPMS On

Time Setup

Closed Caption

Default

Select

ENTER

NTSC Caption Off

DTV Caption Off

DTV Caption Style

ENTER

Style

Size

Text Color

Text Opacity

BG Color

BG Opacity

Window Color

Window Opacity

/

Select

/

Custom

Normal

Black

Solid

Black

Solid

White

Solid

Select

/

EXIT

EXIT

EXIT

EXIT

Back

BackEnter

BackEnter

Back

Owner s Manual 25

Operation

Lock Menu

Parental Control can be used to block specific channels, ratings and other viewing sources.

The parental control function is used to block program viewing based on the ratings sent by the broadcasting station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program
and the categories.

Parental Control rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be
blocked by TV Rating or Individual Categories. Movies that have been shown at the theaters or direct-to-video
movies use the Movie Rating System (MPAA) only.

Ratings for Television programs :

Parental Guide

TV-Y (All children)
TV-Y7 (Children 7 years older)
TV-G (General audience)
TV-PG (Parental guidance suggested)
TV-14 (Parents strongly cautioned)
TV-MA (Mature audience only)

Ratings for Movies previously shown in theaters:
MPAA Rating :

G (General audience)
PG (Parental guidance suggested)
PG-13 (Parents strongly cautioned)
R (Restricted)
NC-17 (No one 17 and under admitted)
X (Adult only)

If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.

CA Eng Rating

C Children
C8+ Children eight years and older
G General Programming, suitable for all audiences
PG Parental Guidance
14+ Viewers 14 years and older
18+ Adult Programming

CA Fren Rating

G General
8 ans+ Not recommended for young children
13 ans+ Programming may not be suitable for children under the age of 13
16 ans+ Programming is not suitable for children under the age of 16
18 ans+ Programming restricted to adults

TV Rating :

A (Age)
D (Dialogue - sexual dialogue)
L (Language - adult language)
S (Sex - sexual situations)
V (Violence)
FV (Fantasy Violence)

26 TV LCD-TFT

(applies to TV-Y, TV-Y7,TV-G,TV-PG,TV-14, TV-MA)
(applies to TV-PG, TV-14)
(applies to TV-PG, TV-14, TV-MA)
(applies to TV-PG, TV-14, TV-MA)
(applies to TV-PG, TV-14, TV-MA)
(applies to TV-Y7)

Lock Menu

Lock setup

Set up blocking schemes to block specific channels, ratings,

and external viewing sources.

A password is required to gain access to this menu.

1. Press MENU button and then use / button to select
Lock menu. Then, press button.

The TV is set up with the initial password 0-0-0-0 and
security default password is 9-4-4-3.

2. Use / button to select the desired items, and press
or ENTER button to enter the next menu. Once the option

is selected, change the settings to your preference.

Password

Change the password by inputting a new password twice.

Channel Block

1. Press MENU button and then use / button to select

Lock menu.

2. Press ENTER button and then use / button to

select Channel Block.

3. Press / button to select the item, Press OK button

to set.

/

Video

Audio

Channel

Function

Lock

Lock

Video

Audio

Channel

Function

Lock

Channel Block

Enter Password

2

Analog

3

Analog

4

Analog

5

Analog

6

Analog

7

Analog

8

Analog

9

Analog

10

Analog

11

Analog

12

Analog

ENTER

Operation

EXIT

Back

EXIT

Select

Set

/

Back

Parental Lock

1. Press / button to select Lock item.

Parental

2. Press / button to select On or Off.

Note

If the Parental Lock is setting as Off, the change of the

Parental Guide , MPAA Rating ,CA Eng Rating and CA

Fren Rating will be no useful.

Parental Guide

Note

The Parental control will automatically block certain

categories that are more restrictive . For example, if

you block TV-Y category, then all the categories in

the young adult group will be blocked (TV-Y, TV-Y7,

TV-G, TV-PG, TV-14 and TV-MA).

The sub-ratings (D, L, S, V, FV) work together similarly.

How to set the D, L, S, V and FV sub-ratings.

First, press / button select one of these Ratings:

TV-Y, TV-Y7, TV-G, TV-PG,TV-14, or TV-MA , and press

/ button.

Video

Audio

Channel

Function

Lock

Lock

Video

Audio

Channel

Function

Lock

Program Block

Channel Block

Program Block

Password

Clean All

ENTER

Enter

Parental Lock On

Parental Guide

MPAA Rating

CA Eng Rating

CA Fren Rating

Digital Rating

Block Unrated On

Enter

ENTER

Select

EXIT

Select

EXIT

Back

Back

/

/

Owner s Manual 27

Lock Menu

Lock setup

A symbol will be displayed for each sub-rating.

While is selected, press button to go to a sub

rating. To select a different Rating, press / buttons

and then repeat the process.

Note

The V-chip will automatically block certain categories

that are More restrictive .For example, if you block

sub-rating in TV-PG, then the sub-ratings in

TV-14 and TV-MA will automatically be blocked.

MPAA Rating

Blocks movies according to the movie ratings limits

specified, so children cannot view certain movies. You

can set the ratings limit by blocking out all the movies with

the ratings above a specified level. Keep in mind that the

movie ratings limit only applies to movies shown on TV,

not TV programs, such as soap operas.

1. Press / button to select MPAA Rating item.

2. Press ENTER button and then use / button to

/

select the rating.

3. Press ENTER button to set block or unblock.

ENTER

Video

Audio

Channel

Function

Lock

Parental Guide

Video

Audio

Channel

Function

Lock

MPAA Rating

Operation

A D L S V FV
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA

Allowed Rating Blocked Rating

Select

Set

ENTER

G
PG
PG-13
R
NC-17
X

Allowed Rating Blocked Rating

Set

ENTER

EXIT

/

EXIT

Select

/

Back

Back

CA Eng Rating

Canadian English Language Rating

1. Press / button to selectCA Eng Rating item.

2. Press ENTER button and then use / button to

/

select the rating.

3. Press ENTER button to confirm.

CA Fren Rating

Canadian French Language Rating

1 Press / button to selectCA Fren Rating item.

.

2 Press button and then use / button to

. ENTER

/

select the rating.
3 Press button to confirm.

. ENTER

Video

Audio

Channel

Function

Lock

CA Eng Rating

Video

Audio

Channel

Function

Lock

CA Fren Rating

C
C8+
G
PG
14+
18+

Allowed Rating Blocked Rating

ENTER

Set

G
8 ans+

ans

13 +
16 +

ans

18 +

ans

Allowed Rating Blocked Rating

Set

ENTER

EXIT

Select

/

Select

EXIT

/

Back

Back

28 TV LCD-TFT

Other Functions

Brief Info

Brief Info shows the present screen information.
Press DISPLAYbutton to show the Brief Info on the screen.
Press DISPLAYbutton or EXIT button to exit.

Function:

Show the present screen information.
Press button or EXIT button to exit.

DISPLAY

A: Video resolution
B: Program name
C: Program rating categories
D: program show time
E: Program title
F: Channel Lable
G:Tuner mode
H:Program details

Operation

Using the Guide

The guide allows you to select the channels from a channel
list.
The guide allows provides information about the current
program being shown on each channel(if information is
available from the station).

Note

Program information in the guide is provided by the
broadcasters. As a result, it may sometimes include only
the channel number, without a program title or description.

A: Program title
B: program options
C: program show time
D: Program details
E: Program rating categories

Owner s Manual 29

Other Functions

Quick program view

Press to jump back and forth between two channels. The TV
alternates between the current channel and the last channel that
was selected.

.

Suppose the channel number you used just now is 8 and the

1

channel number you are using is 18 (as shown in the figure).

If you want to return to the last watched program channel 8,

.

2

you can simply press RECALL button.

.

If you want to return to channel 18, press the button again.

3

CC (Closed Caption Display)

Closed Captions

Closed captioning is a process which converts the audio
portion of a television program into written words which
then appear as subtitles on the television screen. Closed
captions allow viewers to read the dialogue and narration
of television programs.

Using Closed Captions

Captions are the subtitles of the dialogue and narration of
television programs. For prerecorded programs, program
dialogue can be arranged into captions in advance. Its
possible to caption a live program by using a process called
real-time captioning, which creates captions instantly.
Real-time captioning is normally done by professional
reporters using a machine shorthand system and computer
for translation into English. Captioning is an effective
system for the hearing-impaired, and it can also aid in
teaching language skills.

In ATV mode CCD function allows you to configure the way
you choose to view the digital captioning (Off,).CC1, CC2,

CC3, CC4, Text1, Text2, Text3 or Text4

CAPTION

The term for the words that scroll across the bottom of the
TV screen; usually the audio portion of the program
provided for the hearing impaired.

TEXT

The term for the words that appear in a large black frame
and almost cover the entire screen; usually messages
provided by the broadcaster.

Operation

Note

The captions do not always use correct spelling

and grammar. Not all TV programs and product

commercials are made for broadcast with Closed

Caption information included. Refer to your area`s

TV program listings for the TV channels and times

of Closed Caption shows. The captioned programs

are usually noted in the TV listings with service

marks such as CC .

In DTV mode

to view the digital captioning(Off,service1,service2,
service3,service4, service5 or service6).
Select one of the digital service channels made available
by the caption provider.
There are 6 standard services. Service 1 is designated as
the Primary Caption Service. This service contains the
verbatim, or near-verbatim captions for the primary
language being spoken in the accompanying program audio.
Service 2 is designated as the Secondary Language Service.
This service contains captions in a secondary language
which are translations of the captions in the primary Caption
Service. The other service subchannels are not
pre-assigned. It is up to the discretion of the individual
caption provider to utilize the remaining service channels.

30 TV LCD-TFT

allows you to configure the way you choose

USB Input

Operation

1.Supporting media and file format: Digital pictures (.JPG)
and digital music (.MP3) files
Due to differences in the file code and file mode, It is
possible that some files cannot be read.

2.Before starting operation, verify USB storage device
is of FAT32 and FAT file system format. At present, this
television does not support NTFS and the file systems
of other format.

3.External card reader supports most digital cards
available in the market. Readable digital cards are
classified according to the property of card readers and
can be connected to mobile hard disks (working voltage

5.0V, working current not over 500mA).

4.The television operation may be halted due to
excessive rate of information code errors. In such case,
restart the system. Please note - there are many
nonstandard USB mobile devices in the market. If a
nonstandard device is used then an identification
problem may occur.

To play picture

1.Press USB button on the remote to enter stream media
system.
The system start up

the USB drive in the USB input.

takes about 3 second. Then insert

4.Press the button on the remote control to select the
item, press ENTER button to confirm.

1

PLAY/PAUSE

STOP

REV

4

5

.Press EXIT button to return to the previous menu.

PREV

5

6

2.Stop;

REPEAT

3.Repeat

4.

NEXT

No available

5.No available

6.Play previous picture;

7.Play next picture;

7

1.Play or pause

3

2

Press USB button to exit the USB mode.

Note you may play the pictures among selected.

To play music

1.Press button to select Music option.
Press ENTER to enter.

2.Press / button to select desired music, and
then press ENTER button to enter the play interface.

/

//

2.Press button to select Picture option.

/

Press ENTER to enter.

3.Press / button to select desired picture, and

//

then press ENTER button to enter the play interface.

3

2

1

7

5

1.Play mode: None/Dissolve/Wipe right/Wipe left/Wipe up/Wipe down/Box in/Box out

2.Play time: Short/Medium/Long;3.File name 4.Pause/Play

5. Duration/Rotate 6.Effect7.Infomation

4

6

3.Press the button on the remote control to select the
adjusted item, press ENTER button to confirm.

1.Play or pause

3

2

REV

4

1

PLAY/PAUSE

5

STOP

PREV

6

REPEAT

NEXT

7

2.Stop;

3.Repeat

4.Fast reverse

5.Fast forward

6.Play previous

7.Play next

music;

music;

4.Press EXIT button to return to the previous menu.

Press USB button to exit the USB mode.

Note You may play the music among selected.

Owner s Manual 31

USB Input

To play pictures and music together

Insert USB drive with music and picture files in to the USB
input , select the Music folder and choose the MP3 files
to be played. Then select the pictures to be played.
Please note as some files must be read while music is
being played, the speed of picture operation response
might be affected.

Operation

1.Press button to select Music .
Press ENTER to enter.

2.Press / button to select the desired music, and
then press ENTER button to enter to play.

3.Press button to turn to the main menu. And then
press button to select Picture option.
Press ENTER to enter.

4.Press / button to select desired picture, and
then press ENTER button to enter the play interface.

/

/

EXIT

/

/ /

/

folder

5.Press USB button to exit USB mode.

Note Do not remove USB device from the TV until you
have exited the USB mode otherwise you may
damage the USB device.

32 TV LCD-TFT

Universal Remote Control

Setting Up Your Remote Control

Operation

After it has been set up properly, your remote control can
operate in six different modes: TV, DVD, VCR, SETBOX ,
CABLE or AUDIO.
Note
The remote control might not be compatible with all DVD
Players, VCRs and Cable boxes.

Control Operation

1.Program the Controller to work with your device.

2.Changing device mode by pressing the TV DVD

STB CABLE VCR AUD key. When device is set,
related device LED will be on for 1 second and then be
off.

3. Aim the remote at the device.

4. Use the other Controller buttons to operate the device.

Device LED will blink if user presses any key (if the key
has data in current mode.). If the key has no data, then
LED will not blink.

5. Default init status: TV/Haier codeset.

Manually Programming the Control

Check the code no. from the code list.

1. Choose the device you want to program.

2. While Press and holding ENTER key, press INPUT

key, and device LED will be ON. Keep the status for
about 3 seconds and the LED will blink, indicating
that the Controller is ready for programming, then
release both keys.

3.Led will blink once when you enter a digit key,

indicating the digit key is programmed. If 3 digits are
programmed successfully, device LED will be ON for
about 3 seconds and then blink twice per second.
Then User now can:
a)Try to operate the device by using power key.
B)If operation can be done, press ENTER key to save
current 3-digits code brand to EEPROM and exiting
manually programming mode.
C)Return to beginning of step 3. Reprogram the
control.

4. If user's input is incorrect, LED will blink 6 times in 3

seconds (2HZ). And then keep 2HZ blink, user now can
return to step 3 and re-program the device.
Within 30 seconds, user should enter the 3-digit brand
code corresponding to your device. If time out or any
key other than Power and digits is pressed, LED will be
off and manually programming process is exit.

Manually scan mode

With manually scan programming, the Controller tests
all the codes available in the codeset database and
assign the correct one for the selected device. Although
this method is more time consuming, it saves you the
trouble of looking up the brand codes necessary for
manual programming.
To manually-scan program the Controller:

1. Manually turn OFF the device for manually scan mode.
(TV, VCR, DVD, STB, cable box or audio equipment).

2. Choose the device you want to program.

3.While Press and holding ENTER key, press INPUT key,
and device LED will be ON. Keep the status for about 3
seconds and the LED will blink, indicating that the
Control is ready for programming, then release both
keys.

4.Press and release the CH+/CH- key.

or the previous POWER key code.

10HZ freq, indicating that the Remote is in manually
scan mode.

5.Press CH+/CH- key repeatedly until the device
switches ON(CH+ key conducts a upward search while
the CH- key conducts a downward search in the code
set database). When the device turns ON, press and
release the ENTER key to program the Controller with
the new code, saving the code to EEPROM and exit.

6. After saving the new code, press POWER key. If the
device responds, no further programming is required.
If the device does not respond, repeat step 3 through 5.
And searching will start from current code set.
To exit without programming,

pressed in 30 second, manually scan mode will be
automatically exit.

EEPROM.
After searching the entire data base, this mode will be
automatically exited and led will blink for 3 times in 1.5
seconds. The code can not be saved to EEPROM.

Automatic Scan Programming the Controller

To automatic scan program the Controller:

1.Manually turn OFF the device you wish to power scan.
(TV, VCR, DVD,STB, cable box or audio equipment).

2. choose the device you wish to program.

3. While Press and holding ENTER key, press the INPUT
key and device LED will be ON. Keep the status for
about 3 seconds and the LED will blink, indicating that
the Controller is ready for programming, then release
both keys.

ess and release the Mute key to enter automatic scan

4.Pr

mode. And the remote will automatically sending codes
to the device per 2 seconds.

5.When the device turns ON, press ENTER key to
program the Controller with the new code, saving it to
EEPROM and exit.

6.Press POWER key, If the device responds, no further
programming is required. If the device does not
respond repeat steps 1 through 5.

7.After searching the entire data base, this mode will be
automatically exited and led will blink for 3 times. The
codeset is not saved to EEPROM.

In automatic scan mode, press any key other than ENTER
key will exit without programming,.

The code can not be saved to

press any key or no key was

it will emit the next

The LED blinks with

Owner s Manual 33

Universal Remote Control

Display mode

1. choose the device you wish to program.

2.To enter display mode, while press and holding ENTER
key, press the INPUT key and device LED will be ON,
keep the status for about 3 seconds and the LED will
blink, indicating that the Controller is ready for
programming, then release both keys.

3. Sequence press 9, 8, 0 to enter display mode.

4.Press digit 1 key to get the first digit of current codeset.
For example, if the first digit of codeset is 1, so then led
will blink once and remains OFF. Digit “0” in codeset
will not be displayed. Blink Freq is 1HZ.

5.Press digit 2 key to get the second digit of current
codeset. For example, if the second digit of codeset
is 3, so then led will blink three times and remains OFF.
Blink Freq is 1 HZ.

6.Press digit 3 key to get the third digit of current codeset.
Blink Freq is 1 HZ.

7. Only digit 1, 2, 3 are valid in this mode. And the
sequence is not fixed.
Controller will not send out data in this mode if user
presses any keys other than digit 1, 2, 3, or no key was
pressed in 30 seconds, display mode is ended.

Operation

Punch-Through Features

The Controller provides two punch-through features that
allow users to control TV volume and DVD or VCR
operation while the Controller is in another device mode
control certain features of another device.

Volume Punch-Through

The TV Volume/Mute punch-through feature allows you
to control the volume and mute function of your TV while
the Controller is in another device mode. The feature is
applicable for all devices and brands that do not use the
volume control buttons for other purposes.

Transport Key Punch-Through

The DVD or VCR transport key punch through feature lets
you control the PLAY, STOP, PAUSE, REWIND, FF and
RECORD functions of your DVD or VCR while the Control
operates in other modes. The feature is applicable for all
devices and brands that do not use the transport keys for
other purposes.

Fast Programming Haier default TV
codeset

Press and holding the ENTER key and then press POWER
key for 3 seconds, the LED will blink 3 times and turn off,
default Haier codeset (001) will be programmed to the
control.

34 TV LCD-TFT

Universal Remote Control

Remote Control Codes

TV

NO. Brand Code

1

Haier

2

Abex

3

Acer

4

Addison

5

Admiral

6

Advent

7

Adventura

8

Aiko

9

Aiwa

10

Akai

11

Albatron

12

Alleron

13

America Action

14

Ampro

15

Amtron

16

Anam

17

Anam National

18

AOC

19

Apex

20

Archos

21

Astar

22

Audiovox

23

Aventura

24

Axion

25

Bang & Olufsen

26

Baur

27

Belcor

28

Bell & Howell

29

Benq

30

Bradford

31

Brillian

32

Brockwood

33

Broksonic

34

byd:sign

35

Candle

36

Carnivale

37

Carver

38

CCE

39

Celebrity

40

Celera

41

Centurion

42

Changhong

43

Ching Tai

44

Chun Yun

45

Chung Hsin

46

Citizen

47

Clarion

48

Coby

49

Colortyme

50

Colt

51

Commercial Solutions

52

Concerto

53

Contec

54

Contec/Cony

55

Craig

56

Crosley

57

Crown

58

CTX

59

Curtis Mathes

60

CXC

61

Cytron

62

Daewoo

63

Daytron

64

Dell

65

Denon

66

DiamondVision

67

Dimensia

68

Disney

69

Dumont

70

Durabrand

71

Dwin

72

Electroband

73

Electrograph

74

Electrohome

75

Element

76

Emerson

77

Emprex

001 002 003 004 005 006 007 008 009 010 240 241 297 307 355
077
267
333
057 078 334 338
324
079
066 333
165
038 058 258 271 279 331 350
321 325
068
335
323
067
335
059 067
060 061 062 222 331 349 350 353
092 135 151 195 339
308
259
067 189 191 207 256 333 335 337
053
280
345 346
058
060 349
057
245 246 284 329
067 335
342
060 349
197 335 338
310
060 062 063 079 331 350
331 350
055 320
239 351
058
339
064
339
333
333 335 361 374
335 364
060 062 063 066 067 074 076 331 333 350 352 354 380
335
210
060 062
377
332
060 062
335
065 067
067 335
055 293 320
067 071 335 352
235
038 055 056 060 062 074 076 088 320 331 332 334 337 340 350 352 354
067 335
238 278
060 061 062 066 076 093 117 125 152 333 337 349 352 380
060 062 076 349
251 285 304
340
311 317 319
056 088
132
031 060 330 349
053 097 137 341 335 338
322 334
058
243
058 059 060 062
228
053 060 062 065 067 068 076 093 137 266 292 335 338 349 352 380
314

NO. Brand Code

78

Envision

79

Epson

80

Erres

81

ESA

82

Ether

83

Firstar

84

Fujitsu

85

Funai

86

Furi

87

Futuretech

88

Gateway

89

GE

90

GFM

91

Gibralter

92

Go Video

93

Goldstar

94

Gradiente

95

Grundig

96

Grunpy

97

Hallmark

98

Hankook

99

Harman/Kardon

100

Harvard

101

Havermy

102

Hello Kitty

103

Hewlett Packard

104

Hisense

105

Hitachi

106

HP

107

Hyundai

108

Ilo

109

IMA

110

Infinity

111

InFocus

112

Initial

113

Innova

114

Insignia

115

Inteq

116

Janeil

117

JBL

118

JC Penney

119

JCB

120

Jean

121

Jensen

122

Jinxing

123

JVC

124

Kawasho

125

Kaypani

126

KEC

127

Kenwood

128

Kioto

129

KLH

130

Kloss Novabeam

131

Kolin

132

KTV

133

LG

134

Loewe

135

Logik

136

Luxman

137

LXI

138

M & S

139

Magnasonic

140

Magnavox

141

Magnin

142

Majestic

143

Marantz

144

Matsushita

145

Maxent

146

Mediator

147

Megapower

148

Megatron

149

Memorex

150

MGA

151

Midland

152

Mintek

153

Minutz

154

Mitsubishi

060 062 222 331 350
225
347
053
362
372
068 216
053 067 068 335
368
067 335
243 274 341 360
027 056 059 060 062 069 070 085 088 107 116 332 337 378
051 305
031 060 330 331 349 350
328
060 061 062 065 076 077 331 349 350 379
242
351
067 068 335
060 062
335 362 371
055
067 335
334
337
175 204 219
250 370 375
032 060 062 065 126 127 134 149 150 186 200 340
204 219
327
174 254 266 312
067
055 071 320
275
277
351
097 237 298 299 300 306 313
330
079
055 071 320
056 060 061 062 063 069 070 074 076 077 088
058
333 363 370 372
060 062 236
365 368 370
047 048 049 065 070 114 154 172 199 201
058 060 062
353
335
060 062 331 349 350
055
339
067 079
335 369
067 076 331 335 350 352
030 060 061 182 224 257 302 321 350
071
057
060 062
055 056 062 071 088 151 320 332
055
380
052 055 060 062 063 071 090 105 108 110 163 174 176 218 320
331 350
378
057
055 060 062 071 231 272 320 331 350 351
336
243 252 301
374
321
062 340
057 061 062 137 181 338 376 379
060 061 062 331 349 350 378
031 070 076 077 330 332 352
174
069
060 061 062 119 159 170 334 349

Operation

Owner s Manual 33

Universal Remote Control

Remote Control Codes

Operation

NO. Brand Code

155

Monivision

156

Montgomery Ward

157

Motorola

158

MTC

159

Multitech

160

Multivision

161

NAD

162

NEC

163

Netsat

164

NET-TV

165

Newave

166

Nikko

167

Norcent

168

Noshi

169

NTC

170

Olevia

171

Onwa

172

Oppo

173

Optimus

174

Optoma

175

Optonica

176

Orion

177

Otto Versand

178

Panasonic

179

Penney

180

Philco

181

Philips

182

Philips Magnavox

183

Phonola

184

Pilot

185

Pioneer

186

Plasmsync

187

Polaroid

188

Portland

189

Price Club

190

Prima

191

Princeton

192

Prism

193

Proscan

194

Proton

195

Protron

196

Proview

197

Pulsar

198

Pye

199

Quasar

200

Quelle

201

Radio Shack/Realistic

202

Radiola

203

Radio Shack

204

RCA

205

Realistic

206

Runco

207

Sampo

208

Samsung

209

Samsux

210

Sansui

211

Sanyo

212

SBR

213

Sceptre

214

Scimitsu

215

Scotch

216

Scott

217

Sears

218

SEI

219

Sharp

220

Shen Ying

221

Sheng Chia

222

Shogun

223

Signature

224

Simpson

225

Sinudyne

321 325
057
059 078 334
060 061 062 074 331 349 350 354
067 335
072
062 151 351
059 060 061 062 234 268 331 349 350
351
243 247
333 367 371
062 066 331 333 350
222
348
066 333
138 192 221 357 358
067 335
282
336 376
276
073 078 334
097 338
058
021 022 023 024 025 026 059 070 071 086 103 122 144 147 155 168 183
185 336 376
151 331 332 348 349 350 352 354 378 379
055 059 060 061 062 063 065 071 181 320 331 349 350
040 041 042 043 044 045 046 055 059 060 063 065 071 089 090 091 096
160 162 164 169 174 177 179 190 208 291 320 347 351
042 045 089 090 096
347
060 076 331 349 350 352
060 062 156 157 205 212
269
211 217 220 228 315 339
060 061 062 066 076 333 349 352
074
281 324
321
070
027 056 088 332
060 062 065 353
196 262
263 343
031 060 330 349
347
022 059 070 336 376
058
056 060 062 065 067 073 076 077
347
088 331 332 335 349 350 352
027 028 029 056 059 060 061 062 082 088 095 098 332 348 349 354 378
088 331 335 349 350 352
031 330 331 350
060 062 076 077 243 283 331 350 352 353
037 038 039 060 061 062 065 074 076 077 129 130 140 143 158 166
178 193 194 209 213 229 232 286 294 295 331 349 350 351 354
352
097 338
060 249 270 378
347
264
349
062
060 062 065 067 068 255 335 349
053 055 056 060 062 068 080 088 151 244 320 332 379
058
033 034 035 036 060 062 065 073 076 078 083 112 131 139 142 145 167
171 180 198 202 203 334 352
333

334 367
060 349
057
063
058

NO. Brand Code

226

SKY

227

Skygiant

228

Sony

229

Soundesign

230

Sowa

231

Squareview

232

SSS

233

Starlite

234

Studio Experience

235

Superscan

236

Supre-Macy

237

Supreme

238

SVA

239

Sylvania

240

Symphonic

241

Synco

242

Syntax

243

Syntax-Brillian

244

Tacico

245

Tandy

246

Tatung

247

Technics

248

Techview

249

Techwood

250

Teco

251

Teknika

Telecaption

252

Telefunken

253

Thomson

254

TMK

255

TNCi

256

Toshiba

257

Totevision

258

Trutech

259

Tuntex

260

TVS

261

Universal

262

Vector Research

263

Victor

264

Vidikron

265

Vidtech

266

Viewsonic

267

Viking

268

Viore

269

Visco

270

Vizio

271

Wards

272

Waycon

273

Westinghouse

274

White Westinghouse

275

Yamaha

276

Yapshe

277

Zenith

278

351
335
011 012 013 014 015 016 058 087 094 101 102 118 124 128 136
148 153 184 206 226 287 288
060 062 063 067 068 335
366 370
053 080
060 067 335 349
067 335
325
052 260 334 356
079
058
230 355
046 050 051 052 053 054 055 060 062 063 071 137 141 161 289
320 331 350
053 067 080 141 335
333 337 361 366 367 371
138 192 344 357 358
192 244
333 371
078 334
059 253 273 341 360 363 366 370
070 336
326
060 062 070
363 367 371
055 057 060 061 062 063 065 066 067 068 074 076 320 333 335
349 352 354
075
038
088
060 062
330
017 018 019 020 074 075 099 100 104 106 109 111 113 115 120
123 146 151 173 227 354
076 352
248
333 362
338
069
331 350
065
055 320
060 061 062 349
133 214 218 223 233 243 316 356
079
254
309
133 257 261 296 318 341 356 359 360
055 056 057 060 061 062 068 069 071 073 088 320 331 349 350
151
133 187 188 195 215 290 303 337
093 338
060 061 062 331 349 350
373
030 031 032 057 060 081 084 093 121 330 333 338

36 TV LCD-TFT

Universal Remote Control

Remote Control Codes

DVD

NO. Brand Code

1

Accele Vision

2

Accurian

3

Advent

4

Aiwa

5

Akai

6

Alco

7

Allegro

8

Alpine

9

Amphion MediaWorks

10

AMW

11

Apex

12

Apple

13

Arrgo

14

Aspire

15

Astar

16

Audiovox

17

Axion

18

Bang & Olufsen

19

Blaupunkt

20

Blue Parade

21

BOSE

22

BOSS

23

Boston Acoustics

24

Broksonic

25

California Audio Labs

26

CambridgeSoundWorks

27

Changhong

28

CineVision

29

Clarion

30

Classic

31

Coby

32

Curtis

33

Curtis Mathes

34

CyberHome

35

Cytron

36

Daewoo

37

Denon

38

Desay

39

DiamondVision

40

Disney

41

Dual

42

Durabrand

43

DVD2000

44

Eclipse

45

Emerson

46

Enterprise

47

ESA

48

Fisher

49

Funai

50

Gateway

51

GE

52

GFM

53

Go Video

54

Goldstar

55

GPX

56

Gradiente

57

Greenhill

58

Grundig

59

Haier

60

Harman/Kardon

61

Hitachi

62

Hiteker

63

iLive

64

Ilo

65

iLuv

66

Initial

67

Insignia

68

Integra

69

Irradio

70

iSymphony

71

Jamo

72

JBL

73

Jensen

74

JVC

Jwin

75

Kawasaki

76

Kenwood

77

KLH

78

Konka

79

Koss

80

Landel

81

Lasonic

82

250
355
330
307
280 323 361
328
349
257
258
258
025 026 027 028 078 117 172 192 342 343
319
351
332
252
164 167 223 328
281
344
249 343
340
062 079
251
381
123 323
325
290
326 375
196 349 350
262
236
082 129 143 237 331
129
352
029 048 351 368 373 374 377
279
113 349 361
070 182 198 209 299 300 325
268
320 321 322
100 132
312
353
337
227
063 248 324 345 385
345
259 354
305 346
354 385
376 378 384
101 195 338 343
204
118 349 382 384
120
194
270 325
343
339
334
224 347
014 136 203 244
342
293
213
314
278 343
274 289 298 303 354
326 340
174
294
308
162 347
311 331
030 031 032 033 034 035 036 037 038 086 087 095 103 122 141
142 161 173 214 218 243 306 341
309
328
325
115 272 328 343
359 360
153 286 327 334
363
263 348

NO. Brand Code

83

Lenoxx

84

Lexicon

85

LG

86

Liquid Video

87

Liteon

88

Loewe

89

Magnavox

90

Marantz

91

Memorex

92

Microsoft

93

Mintek

94

Mitsubishi

95

NAD

96

Nakamichi

97

Nesa

98

Next Base

99

Nexxtech

100

Norcent

101

Onkyo

102

Oppo

103

Oritron

104

Panasonic

105

Philco

106

Philips

107

Pioneer

108

Polaroid

109

Polk Audio

110

Portland

111

Presidian

112

Prima

113

Princeton

114

Proceed

115

Proscan

116

Pye

117

Qwestar

118

RCA

119

Regent

120

Rio

121

Rotel

122

Rowa

123

Sampo

124

Samsung

125

Sansui

126

Sanyo

127

Sensory Science

128

Sharp

129

Sharper Image

130

Sherwood

131

Shinco

132

Shinsonic

133

Sigma Designs

134

Sonic Blue

135

Sony

136

Sungale

137

Superscan

138

SVA

139

Sylvania

140

Symphonic

141

Teac

142

Technics

143

Techwood

144

Terapin

145

Theta Digital

146

Toshiba

147

Tredex

148

Trutech

149

Tview

150

Urban Concepts

151

US Logic

152

Venturer

153

Vizio

154

Vocopro

155

Westinghouse

156

Xbox

157

Yamaha

158

Zenith

333 353
357
102 151 165 185 189 201 211 242 256 283 345 349
334
158 219 355 384
356 365
068 071 124 156 179 213 298 324 336 339 354
245 301 302 339
100 133 323
338
213 278 343
106 177 190 337
264
310
343
363
271
129 246
145 188 197 206 207 326 336
273 284
327 334
017 018 019 020 021 022 023 024 051 059 067 070 072 073 077
080 083 091 099 135 138 160 181 183 184 199 205 233 234 235
325 336 387 388
328
007 041 042 071 098 137 144 152 157 168 174 176 178 208 213
336 339 357 385
043 044 045 046 047 058 110 150 200 229 247 340 390
028 241 277
339
361
385
282 383
358
342
069 338
276
327
039 040 069 090 166 191 328 338 340 343
333
349
341
329
119 265 370 372
012 013 014 015 016 054 064 066 074 075 085 104 105 108 111
121 125 134 154 193 210 226 325 389
228 275 323
287 323 346
384
093 119 187 202 220 291 295 296 297
368
292 361
260
213 335
358
349
000 001 002 003 004 005 006 049 052 055 056 057 060 061 065
076 081 092 094 097 109 112 114 126 127 128 146 147 148 155
230 231 232 316 317 318 335
267
124 324
364
042 063 124 133 159 204 225 285 324 354 385 386
133 159 385
266 328 371 379 380
325
261
366
340
007 008 009 010 011 050 053 084 088 089 096 107 130 131 140
163 169 170 171 175 186 212 215 216 217 221 238 239 240 254
255 323 336
362
296
313
336
213
288 328
367 369
315
222
338
180 253 325 339
102 116 120 139 149 336 345 349

Operation

Owner s Manual 37

Universal Remote Control

Remote Control Codes

VCR

NO. Brand Code

1

ABS

2

Adventura

3

Aiwa

4

Akai

5

Alienware

6

American High

7

Apex

8

Asha

9

Audio Dynamics

10

Audiovox

11

Bang & Olufsen

12

Beaumark

13

Bell & Howell

14

Broksonic

15

Calix

16

Candle

17

Canon

18

CineVision

19

Citizen

20

Colortyme

21

Colt

22

Craig

23

Curtis Mathes

24

Cybernex

25

Cyperpower

26

Daewoo

27

Davidson

28

DBX

29

Dell

30

Denon

31

DiamondVision

32

DIRECTV

33

Dishpro

34

Durabrand

35

Dynatech

36

Echostar

37

Electrohome

38

Electrophonic

39

Emerson

40

ESA

41

Expressvu

42

Fisher

43

Fuji

44

Funai

45

Garrard

46

Gateway

47

GE

48

Go Video

49

GOI

50

Goldstar

51

Gradiente

52

Harley Davidson

53

Harman/Kardon

54

Headquarter

55

Hewlett Packard

56

Hitachi

57

HNS

58

Howard Computers

59

HP

60

HTS

61

Hughes Network Systems

62

Humax

63

Hush

64

iBUYPOWER

65

Insignia

66

Instant Replay

67

JC Penney

68

JCL

69

JVC

70

KEC

71

Kenwood

72

Kodak

73

LG

74

Linksys

75

Lloyd's

76

LXI

77

Magnasonic

78

Magnavox

79

Magnin

80

Marantz

81

Marta

82

Matsushita

83

Media Center PC

84

MEI

38 TV LCD-TFT

111
008 032
008 032 095 112
019
111
031
115
012 029
016
030 082 112
113
012 029
028
074 099 114
030 112
029 030
031
094
029 030 112 121
016
118
012 029 030 112
016 029 031
012 029
111
018 032 051 093 121
008
016
111
013
107
110 122 124 125 129 130 134 136
133
025
008 032
133
010 030 112
030 112
008 010 020 030 031 032 105 112 116 121
101
133
028 073
031
008 020 032 105 116
008 032
111
012 029 031 055 119
012 072
133
016 030 106 112 120
008 032
032
016
028
111
008 013 048
110
111
111
133
013 110 122 124 125 130
110 122
111
111
081
031
016 028 029 030 031
031
014 015 016 028 040 059 060 083 084 085 086 122 133
112
016 028
030 031 112
030 081 091
111
008 032
030 112
020 121
008 020 021 025 027 031 044
012 030 119
016 028 031
030 112
031
111
031

NO. Brand Code

85

Memorex

86

MGA

87

MGN Technology

88

Microsoft

89

Mind

90

Minolta

91

Mitsubishi

92

Motorola

93

MTC

94

Multitech

95

NEC

96

Nikko

97

Niveus Media

98

Noblex

99

Northgate

100

Olympus

101

Optimus

102

Optonica

103

Orion

104

Panasonic

105

Penney

106

Pentax

107

Philco

108

Philips

109

Philips Magnavox

110

Pilot

111

Polaroid

112

Presidian

113

Profitronic

114

Proscan

115

Pulsar

116

Pye

117

Quarter

118

Quartz

119

Quasar

120

Radio Shack

121

Radio Shack/Realistic

122

Radix

123

Randex

124

RCA

125

Realistic

126

ReplayTV

127

Ricavision

128

Runco

129

Samsung

130

Sanky

131

Sansui

132

Sanyo

133

Scott

134

Sears

135

Sharp

136

Shogun

137

Singer

138

Sonic Blue

139

Sony

140

Stack

141

STS

142

Superscan

143

Sylvania

144

Symphonic

145

Systemax

146

Tagar Systems

147

Tandy

148

Tashiko

149

Teac

150

Technics

151

Teknika

152

Thomas

153

Tivo

154

TMK

155

Toshiba

156

Totevision

157

Touch

158

UltimateTV

159

Unitech

160

Vector

161

Vector Research

162

Video Concepts

163

Videomagic

164

Videosonic

165

Viewsonic

166

Villain

167

Voodoo

168

Wards

169

White Westinghouse

170

XR-1000

171

Yamaha

172

Zenith

173

ZT Group

008 012 025 028 029 030 031 032 100 108 112 114 117 120
010 012 119
012 029
111
111
013
010 041
031
008 012 029
008 029 032
016 028
030 112
111
012 029
111
031
020 030 112 117
023
045 108
000 001 002 003 031 035 037 056 063 079 089 098 109 117 128
012 013 112 119 120
013
031
023 031 044 071 087 110 116 122 124 125 126
044
030 112
104 115
116
012
069 070 134
025
103
028
028
031 076 117
008 023 030
023 028 029 030 031 032
030 112
030 112
011 012 013 029 031 034 058 067 097 110 119 122 124 134 136
008 023 028 029 030 031 032 112
109 127
111
025
012 017 018 019 029 043 049 050 068 080 110 124
025
008 045 102 108 114
012 028 029 073 119
010 018
008 013 028 030 031 112 120
022 023 052 090 096
012 029
031
109 127
004 005 006 007 008 033 036 038 039 046 064 065 066 075 111
123 131 135
111
013 031
021
008 010 020 021 031 032 048 062 088 116
008 020 021 032 105 116
111
111
028
030
008 032
031
008 030 031 032 112
008
110 122 123 124 126 130 131 135
012 029
009 010 018 042 047 053 054 057 061 077 111 132
012 029 030 112
111
136
012 029
018
016
016 018
112
012 029
111
008
111
008 012 013 023 029 030 031 032
105
008 031 032
016 028
008 024 025 026 078 092
111

Operation

Universal Remote Control

Remote Control Codes

SETBOX

NO. Brand Code

1

AccessHD

2

Alpha Digital

3

Alphastar

4

Artec

5

CaptiveWorks

6

Channel Master

7

Chaparral

8

Coolsat

9

Coship

10

Crossdigital

11

Digital Stream

12

DIRECTV

13

Dish Network

14

Dishpro

15

Drake

16

Echostar

17

Expressvu

18

GE

19

General Instrument

20

GOI

21

Goodmind

22

Hisense

23

Hitachi

24

HTS

25

Hughes Network Systems

26

Humax

27

Ilo

28

Insignia

29

Jerrold

30

JVC

31

Lasonic

32

LG

33

Magnavox

34

Memorex

35

MicroGem

36

Mitsubishi

37

Motorola

38

Next Level

39

Panasonic

40

Pansat

41

Paysat

42

PCT

43

Philco

44

Philips

45

Pioneer

46

Primestar

47

Proscan

48

Proton

49

Radio Shack

50

RCA

51

Realistic

52

Samsung

53

Sharp

54

Sony

55

Star Choice

56

STS

57

STS1

58

STS2

59

STS3

60

STS4

61

Tivax

62

Tivo

63

Toshiba

64

UltimateTV

65

Uniden

66

US Digital

67

Viewsat

68

Voom

69

Zenith

70

Zentech

CABLE

NO. Brand Code

1

ABC

2

Adelphia

3

Americast

4

Antronix

076
076
036
072
067
078
027
066
083
099
077
006 007 008 009 010 011 012 017 022 023 024 025 026 040 043
047 048 049 050 052 053 055 057 085 086 088 091 096 097
000 001 002 003 013 014 087 089 092 095
087 089 092 095
028
000 013 014 087 089 092 095 098
089 095 098
004 005 080
029 093
095
081
094
023 037
095
008 011 016 017 019 024 040 052 085
068
094
075
093
000 013 014 095
082
059 071
022 073
022
074
017 063
090 093
093
009 057 060 061
064
022
078
073
008 016 017 019 021 022 049 050 085
008
035
004 005 051 088
094
093
004 005 006 019 025 039 041 044 045 046 047 048 051 069
030
008010 018 019 020 053 056 058
062
007 015 042 043 054 055 086
090 093
038
031
032
033
034
0776
008 019
011
086
022
094
065
093
012 070 079
084

009 010 011 013 031 044

007
050
015 016

NO. Brand Code

5

Archer

6

AT&T

7

Bell South

8

Cable Vision

9

Cabletenna

10

Cableview

11

Clearmaster

12

ClearMax

13

Colour Voice

14

Comcast

15

Comtronics

16

Contec

17

Coolmax

18

COX

19

Daeryung

20

Director

21

Dumont

22

Eastern

23

Everquest

24

Focus

25

GC Electronics

26

GE

27

Gehua

28

Gemini

29

General Instrument

30

Goldstar

31

Hamlin

32

Hitachi

33

Jasco

34

Jerrold

35

LG

36

Magnavox

37

MegaCable

38

Memorex

39

Motorola

40

Movie Time

41

Multitech

42

NEC

43

NET Brazil

44

NSC

45

Oak

46

Pace

47

Panasonic

48

Paragon

49

Philips

50

Pioneer

51

Popular Mechanics

52

Proscan

53

Pulsar

54

Quasar

55

Radio Shack

56

RCA

57

Realistic

58

Recoton

59

Regal

60

Regency

61

Rembrandt

62

Runco

63

Samsung

64

Scientific Atlanta

65

Signal

66

Signature

67

Sony

68

Sprucer

69

Standard Component

70

Starcom

71

Stargate

72

Starquest

73

Supercable

74

Supermax

75

TIME WARNER

76

Tocom

77

Torx

78

Toshiba

79

Trans PX

80

Tristar

81

TS

82

Tusa

83

Tv86

84

Unika

85

United Cable

86

Universal

87

V2

88

View Star

89

Viewmaster

90

Vision

91

Vortex View

92

Zenith

93

Zentek

016

003
050
006
015
014
049
049
018
000 005
019
020
049
005
057
043
056
021
045
048
016
009 010
055
045
005 008 010 040 042 043
046
022
010
045
008 010 031 032 040 042 043 045
053
025
005
024 044
000 003 005 008 039 040 042 043
025
049
012
036
025
020
001 047
028 030 044
044
017 018 023
002 026 033 038 046
048
009 010
044
044
045 049
014 030
016
048
020
021
010
044
001 026 035 046
001 002 003 007 013 037 038 041
045
010
006 051
030
027
031 045
045
045
040
049
004
011
052
044
054
049
052
045
025
015 016
031
015 016
049
020 023 025
049
049
049
029 034 044 050
048

Operation

Owner s Manual 39

Universal Remote Control

Remote Control Codes

AUDIO

NO. Brand Code

Accuphase

1

Acurus

2

ADC

3

Adcom

4

Admiral

5

ADS

6

Aiwa

7

Akai

8

Alco

9

Altec Lansing

10

Amphion Media Works

11

AMW

12

Anam

13

Angstrom

14

Apex

15

Arcam

16

AudioSource

17

Audiotronic

18

Audiovox

19

B & K

20

Bang & Olufsen

21

Bel Canto Design

22

Biamp

23

BOSE

24

Boston Acoustics

25

California Audio Labs

26

CambridgeSoundWorks

27

Capetronic

28

Carver

29

Cary Audio Design

30

Casio

31

Chase Technologies

32

Clarinette

33

Classe

34

Classic

35

Coby

36

Creative

37

Curtis

38

Curtis Mathes

39

Dell

40

Denon

41

Digital Audio Control

42

Dual

43

Durabrand

44

Eclipse

45

Elan

46

Emerson

47

Fisher

48

Fonmix

49

Fosgate

50

GE

51

Glory Horse

52

Go Video

53

GPX

54

Gradiente

55

Harman/Kardon

56

Hitachi

57

iLive

58

Inkel

59

Insignia

60

Integra

61

iSymphony

62

Jamo

63

JBL

64

Jensen

65

JVC

66

Kenwood

67

KLH

68

Knoll Systems

69

Koss

70

Krell

71

Left Coast

72

Lenoxx

73

LG

74

Linn

75

Lloyd's

76

Logitech

77

Luxman

78

292
266
319
208 219
308
309
118 126 168 318
310
332
301
325
325
321
267
195
294 311
268
322
190 214 220 332
213 236
336
269
270
071 088 285
305
271
241
319
318 322
272
329
273
329
297
221
147 331
274 302
207
283
312
053 054 055 056 057 133 134 156 157 158 160 161
163 164 165 171 172 176 180 185 187 188 189 206
275
258
299
218
295
229
326
303
276
048 282
331
306
196
235 313
177 224 286 318
326
244
314
233 240
317
245
256
186 193
257
032 033 034 035 036 037 104 121 150 182 211 284
331
038 039 040 041 042 073 082 089 095 115 122 130
135 323
332
277
237 324
225
386
299 333
175
318
329
278
279 288

NO. Brand Code

Magnavox

79
80
81
82
83
84
85
86
87
88
89
90
91
92

93
94
95

96
97
98
99
100

101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121

122
123
124
125
126
127
128
129
130
131
132
133
134
135
136

137
138

Marantz
Mark Levinson
McIntosh
MCS
Memorex
Midiland
Mitsubishi
Modulaire
NAD
Nakamichi
NEC
Nikko
Onkyo

Optimus
Oritron
Panasonic

Parasound
Penney
Philco
Philips
Pioneer

Polaroid
Polk Audio
Prima
Proscan
Qisheng
Quasar
RadioShack
RCA
Realistic
Regent
Rio
Rotel
Samsung
Sansui
Sanyo
Sharp
Sharper Image
Sherwood
Shure
Sonic Blue
Sony

Soundesign
Soundmatters
Soundstream
Stereophonics
Sunfire
Teac
Technics
Thorens
Toshiba
Tview
Venturer
Victor
Wards
Xantech
Yamaha

Yorx
Zenith

075 191 318 319 322 329
215 228 260 286 291 318 322 328
298
227
328
315
280
184 194
329
261 335
291 334
290
281
043 044 045 046 047 080 018 087 094 097 119 124 127 146 166
167 178 181 203 217
283 293 319 320 321 330
324
019 020 201 022 023 024 069 076 077 091 098 107 113 144 151
209 328
230
329
332
183 210 286 294 318 322
025 026 027 028 029 030 031 062 068 072 090 100 101 105 123
132 148 149 162 212 246 247 248 249 250 251 252 253 254 283
287 319 320
222 226
216 286 318
307
048
304
328
331
048 049 050 051 151 137 234 283 319 320 321 332
293 329
333
327
231
084 103 138 143
291 318
238 326
205 242 296
331
145 243
290
327
000 001 002 003 004 005 006 007 058 058 059 060 061 063 064
065 066 067 070 074 079 085 093 108 109 110 111 112 117 125
128 129 131 140 170 262 263 264 265
282 289 330
232
316
320
323
223 321 332
052 086 114 116 141 328
322
152
259
239 332
284
282 287 289 318
300
008 009 010 011 012 013 014 015 016 017 018 078 083 092 096
099 102 106 120 139 142 153 154 155 169 173 174 179 192 197
198 199 200 201 202 204 255 317
329
136 159

Operation

40 TV LCD-TFT

Operation

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

1. Here`s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water
and a little fabric softener or dish washing detergent. Wring the cloth until it`s almost dry, and then use it to
wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it`s a good idea to unplug the power
cord to protect against possible damage from lightning or power surges.

Owner s Manual 41

Product Specification

Specifications

Resolution

Power requirement

Stand-by Consumption

Color system

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

MODEL

Dimensen(WX X ) Unit:inches/mmDH
(Including stand)

HL42XK1

1920X1080(Dot)

120V~ , 60Hz

less than 1W(models - HL26R1, HL32R1, HL26K1, HL32K1, HL32XK1)

NTSC ATSC Clear QAM

75 ohm

16,770,000(256 steps of each R, G and B)

32~104 F(0~40 C)

Less than 80%

6561 feet (2000m)

Weight(pounds/kg)

40.3X12.9 X28.7inches
1023X328X730 mm

58.6/26.6

The specifications shown above may be changed without prior notice for quality improvement.

42 TV LCD-TFT

Troubleshooting

Troubleshooting

For the sake of time and cost, it is strongly recommended that you check out the problem by yourself according to
the instructions listed hereunder before contacting the after-sales service for technical assistance.

Verify if the television is properly plugged.

No picture, no sound

Blank screen

No sound

Verify if the television is properly supplied power.
Verify if electricity is available.

Verify if correct signals are input.
Press INPUT button to change signal input to TV input.
Restart the television of power supply is interrupted.

Press Mute button and verify if Mute mode is set.
Switch to other channel and verify if the same problem
happens.
Press VOL+ button to see if the problem can be solved.

Poor sound

No picture in some
channel

No color for some
channel program
(black and white)

Spots with some or
all pictures

Horizontal/vertical bars
or picture shaking

Television out of control

Note: Do not leave the television with static picture in an extended period as the image may become permanently burned.

Verify if sound system is correct. Refer to Page 22 for
adjustments.

Verify if correct channel is selected.
Adjust the antenna.
Make adjustments by Fine Tune and Manual Scan.

Verify if the same problem exists in other channels.
Check out of picture and sound systems.
Refer to relative instructions in the Manual for color
adjust.

Verify if the antenna is correctly connected.
Verify if the antenna is in good condition.
Make fine adjustment of channel.

Check for local interference such as an electrical
appliance or power tool.

Disconnect the television from power supply and, 10
seconds later, connect the television to the power supply.
If the problem still exists, contact authorized after-sales
service for technical assistance.

Note: Production of the LCD screen requires high and precision technologies. However, there might be some dark or bright
(red, blue or green) spots, or some anomalistic stripes or spots. This is not defect. If the TV set is used in an area 2,400
meters above the sea level where the air pressure is below 750hpa, the picture on the LCD screen may be affected and a
muffled sound might be produced. These phenomena might happen in the area 1,500 meters above the sea level. This is
resulted from difference between air pressures inside and outside the display. This is not a defect covered by the limited
warranty.

Owner s Manual 43
